Device Profile — FUJIFILM SonoSite X-Porte Ultrasound System w/ HSL25xp & HFL38xp Probes

Manufacturer: FUJIFILM SonoSite Inc.
System: SonoSite X-Porte Ultrasound System
System Type: Modular Dual-Screen Ultrasound Platform

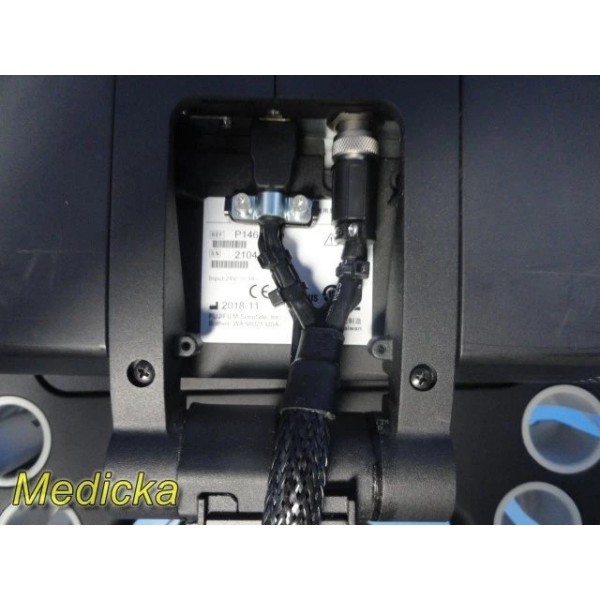

Main System REF: P14646 (partially visible due to system cable coverage)
Main System S/N: 2104**** (partially visible due to system cable coverage)
Date of Manufacture: 2018-11
Country of Manufacture: USA
Certification: CE Marked

Power Information

• Input: 100–240V AC | 50–60Hz | 8.0–3.0A
• Output 1: 24V DC | 11.5A
• Output 2: 100–240V AC | 50–60Hz | 2.5–1.0A

Installed TTC / Probe Interface Module Information

• Module: X-Porte TTC (Probe Interface / Transducer Connector Module)
• REF: P14644-51
• Serial Number: Q4XKFF
• Date of Manufacture: 2018-04
• Country of Manufacture: Malaysia
• Certification: CE Marked

Probe Dock Configuration: Triple transducer connector module with 3 probe slots
Testing: All probe ports appear active; included probes recognized successfully during testing

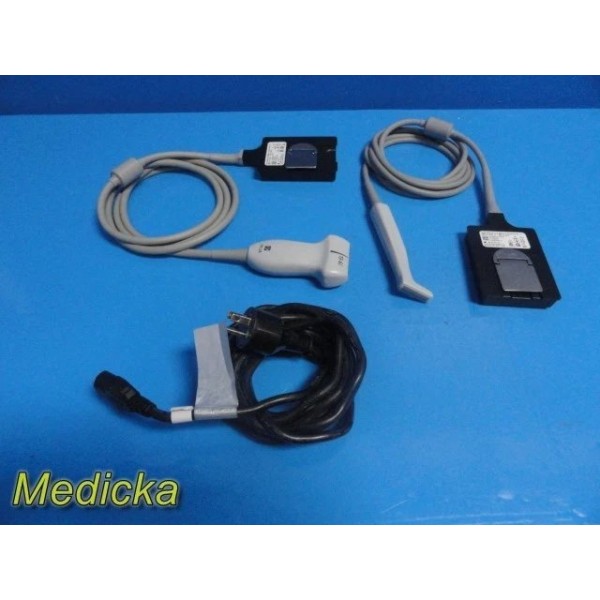

Included Probes / Transducers

Probe 1 — SonoSite HSL25xp Linear / Hockey Stick Probe

• REF: P18657-21
• Serial Number: 04F94Q
• Date of Manufacture: 2018-05-19
• Frequency Range: 13–6 MHz
• Applications Displayed: Lung, MSK, Nerve, Ophthalmic, Superficial, Arterial, Venous

Probe 2 — SonoSite HFL38xp Linear Probe

• REF: P160318-20
• Serial Number: 04F960
• Date of Manufacture: 2018-05-19
• Frequency Range: 13–6 MHz
• Applications Displayed: Breast, Lung, MSK, Nerve, Small Parts, Arterial, Venous

Short Description

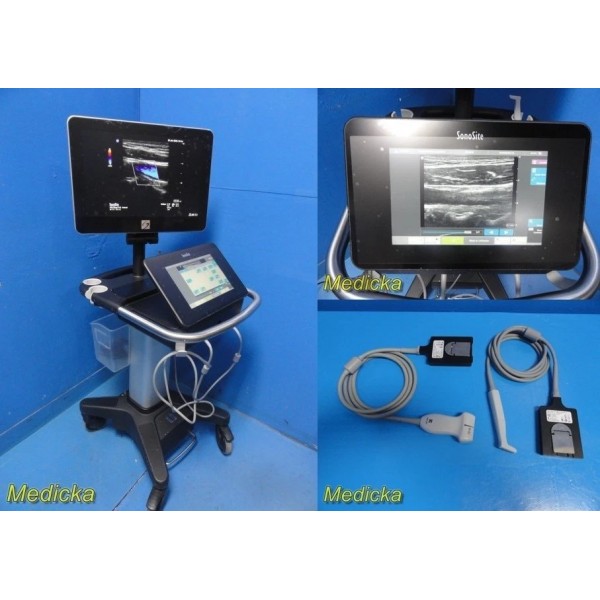

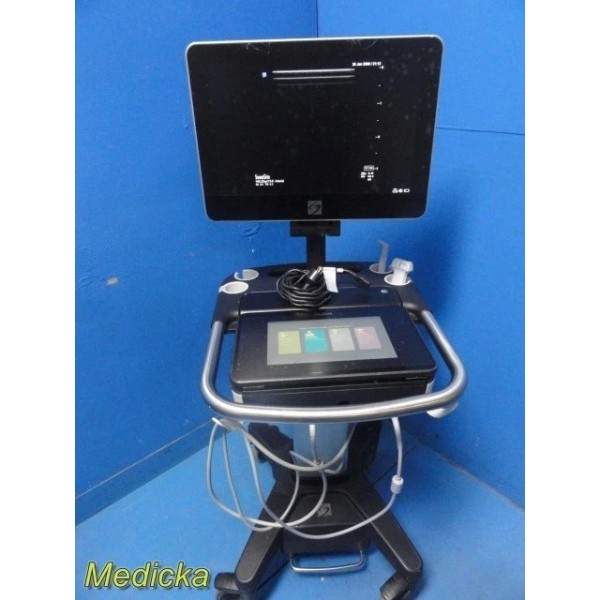

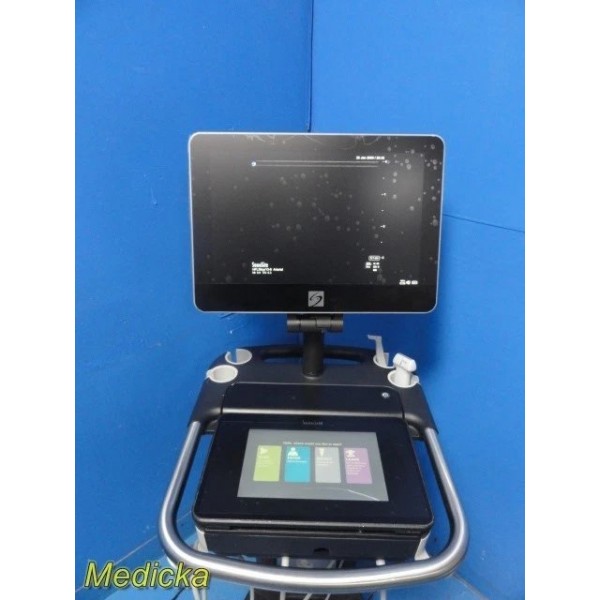

FUJIFILM SonoSite X-Porte modular ultrasound platform featuring dual-screen architecture with primary diagnostic monitor, touchscreen command interface, integrated TTC probe connector module, mobile cart assembly, HSL25xp hockey-stick probe, HFL38xp linear probe, installed battery, and hospital-grade power cable. System powers on normally, completes startup procedures, reaches scan mode, recognizes both included probes, and produces ultrasound imaging during testing.

Quick Condition Overview

• Functional Status: Tested & Working
• Cosmetic Condition: Good overall condition with important screen disclosures noted below
• Probe Status: Tested and recognized by system
• Battery Status: Installed and holding charge during testing (long-term health unknown)
• RTC Status: See bold disclosure below

Condition Summary

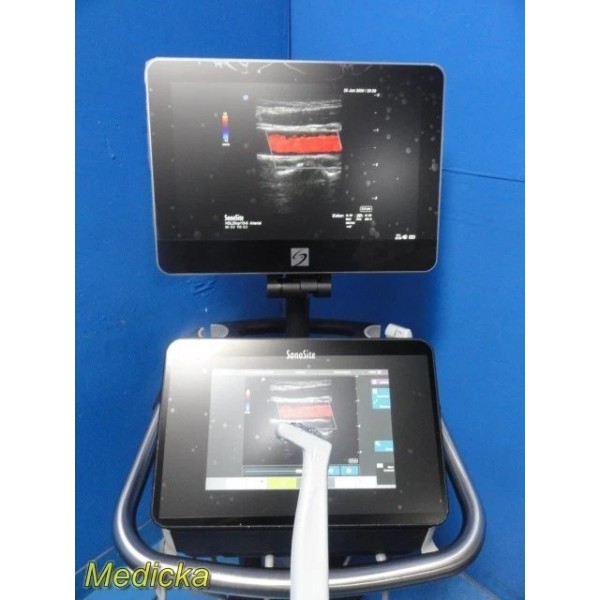

Main Clinical Monitor: Approximately 24-inch primary monitor displaying ultrasound imaging clearly. Display is bright with good visibility. Main monitor is non-touchscreen.

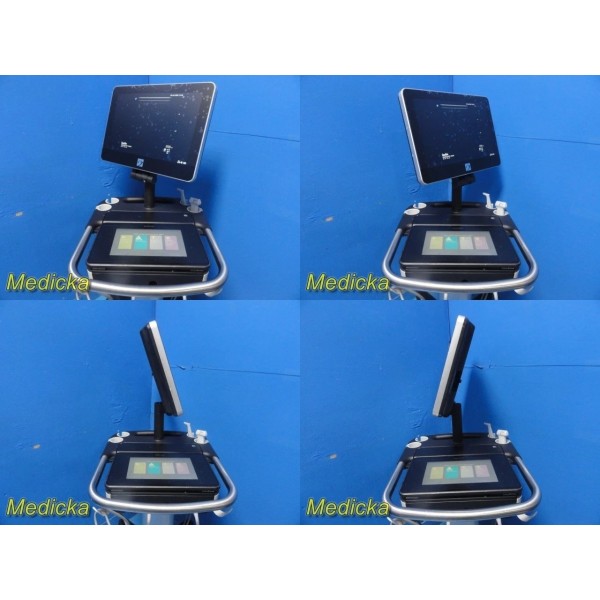

Main Monitor Positioning: Monitor tilts backward/forward and rotates approximately 360°.

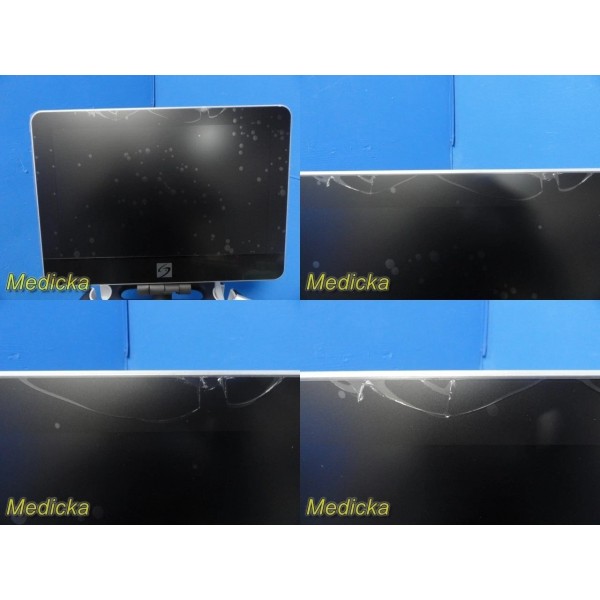

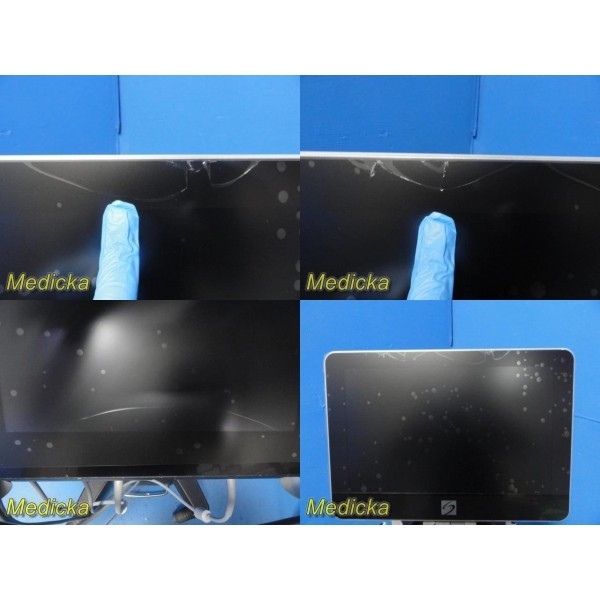

IMPORTANT MAIN SCREEN DISCLOSURE: Visible deep scratches and/or possible stress-crack markings are present along the superior/top portion of the main monitor assembly. These markings appear outside the active viewing region and did not interfere with imaging or testing. Buyer should review images carefully.

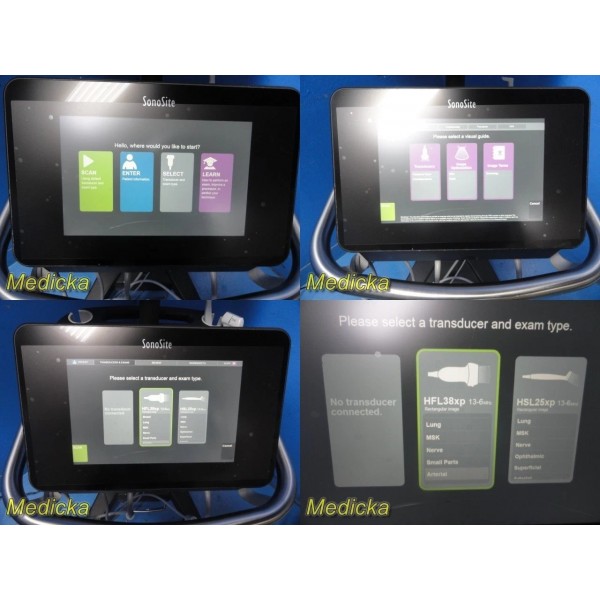

Touchscreen Command Display: Approximately 17-inch touchscreen command display. Touch response tested and found responsive across menus, exam selection, probe selection, built-in learning functions, and navigation controls.

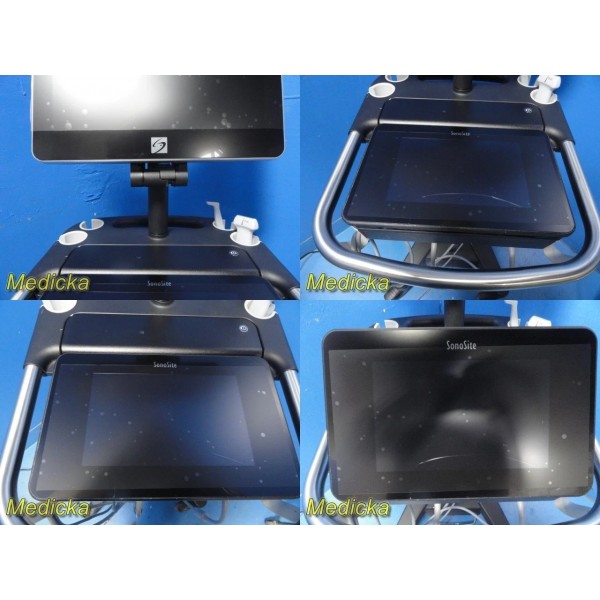

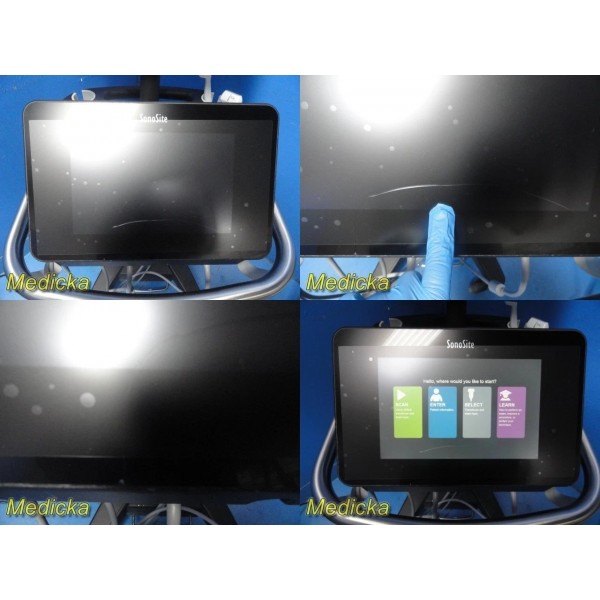

IMPORTANT COMMAND SCREEN DISCLOSURE: Visible D-shaped deep scratch and/or possible stress-crack marking noted on the command display surface. Touch response remained fully functional during testing. Buyer should review images carefully.

Protective Screen Covers: Protective screen films remain installed on both displays. Visible trapped air bubbles are present beneath the covers and should not be mistaken for LCD defects. Buyer may leave the protective covers installed or remove/replace them after purchase.

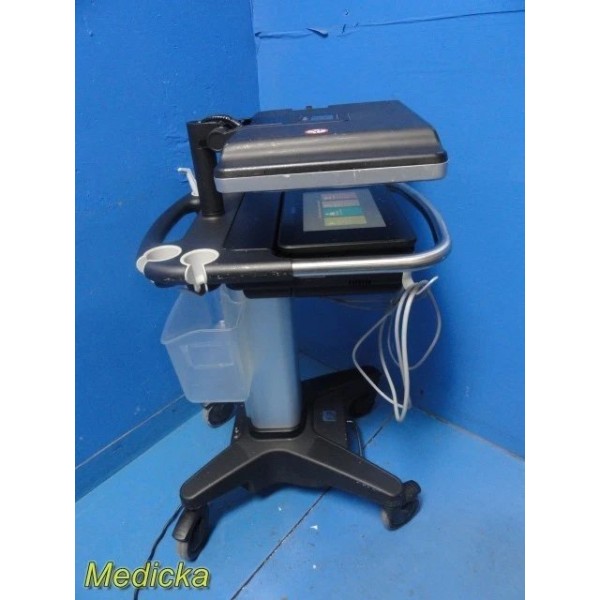

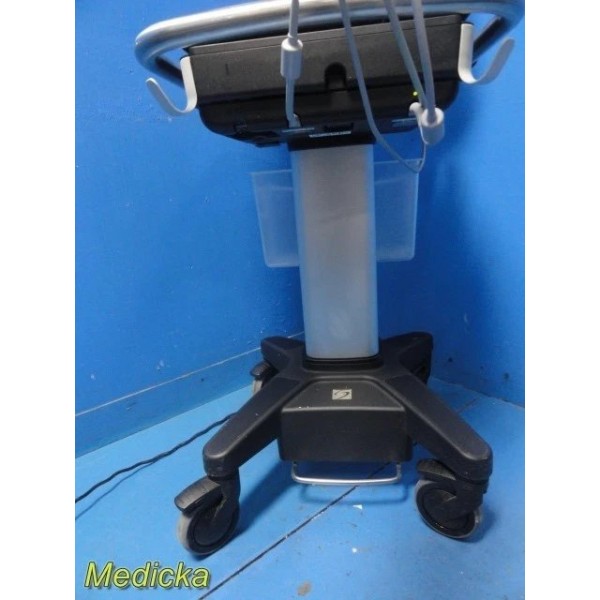

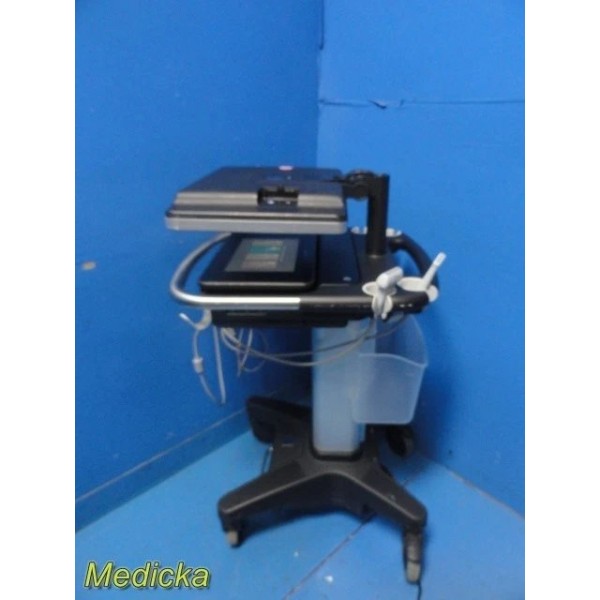

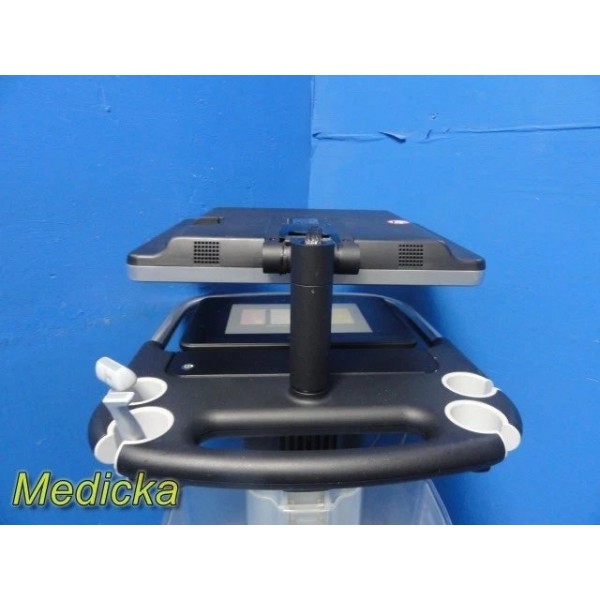

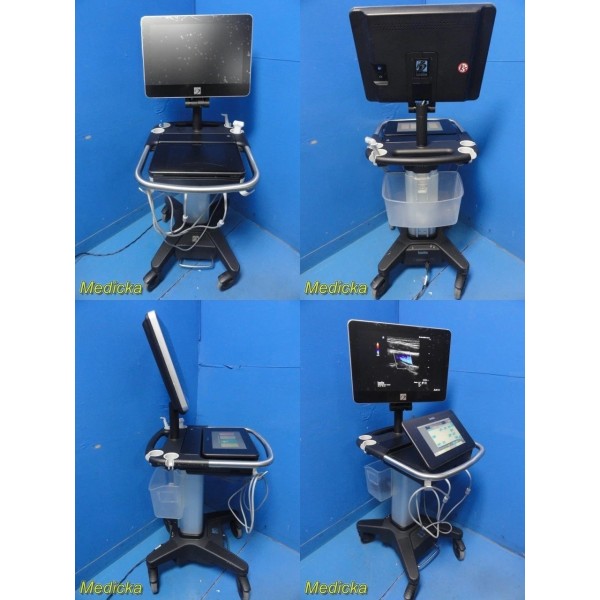

Housing / Cart Assembly: System housing remains in good overall condition with expected cosmetic signs of prior use. Includes integrated pull handle, rear utility basket, probe holders, and mobile rolling base.

Probe Dock / TTC Module: Triple transducer connector assembly installed beneath system. All three ports appear active and properly recognized probes during testing.

Battery Condition: Installed battery held charge during testing. Due to age and prior usage history, long-term battery performance cannot be guaranteed. Overnight charging prior to use is recommended.

RTC / DATE-TIME DISCLOSURE: System date/time settings are incorrect and likely indicate RTC/date-time battery service or replacement may be required. No PM information was available. This condition did not interfere with startup, scan functionality, or probe recognition during testing.

Built-In Help Features: System includes integrated touchscreen training/help functions and visual learning guidance.

User Manual: Printed manual is not included; however, user manuals and operating documentation can be downloaded online from FUJIFILM SonoSite.

Probe Condition Summary

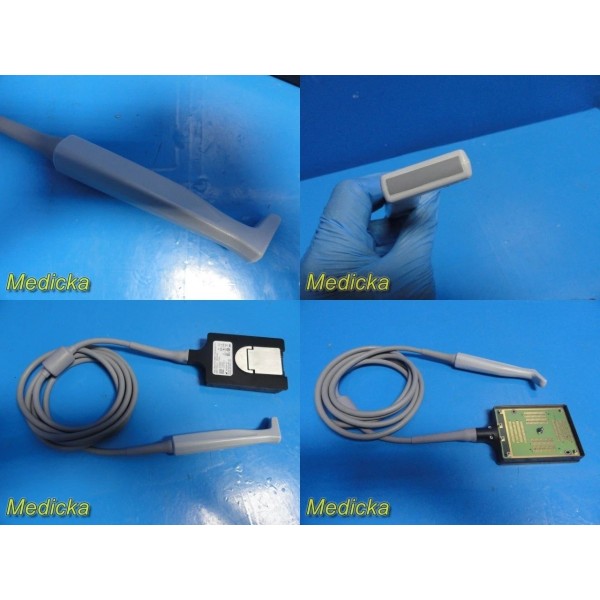

• HSL25xp Probe: Approximately 7-foot cable with no cuts or tears observed. Strain relief intact. Cartridge connector and locking mechanism intact.

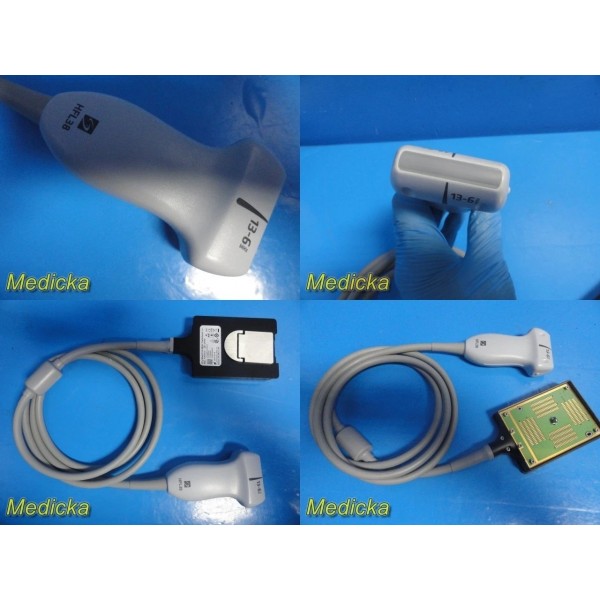

• HFL38xp Probe: Approximately 7-foot cable with no cuts or tears observed. Strain relief intact. Cartridge connector and locking mechanism intact.

Functionality / Testing Summary

• Startup Testing: Unit powers on normally, completes startup process, and reaches scan interface.
• Probe Recognition: Both included probes recognized successfully.
• Touchscreen Testing: Touchscreen interface responsive throughout testing.

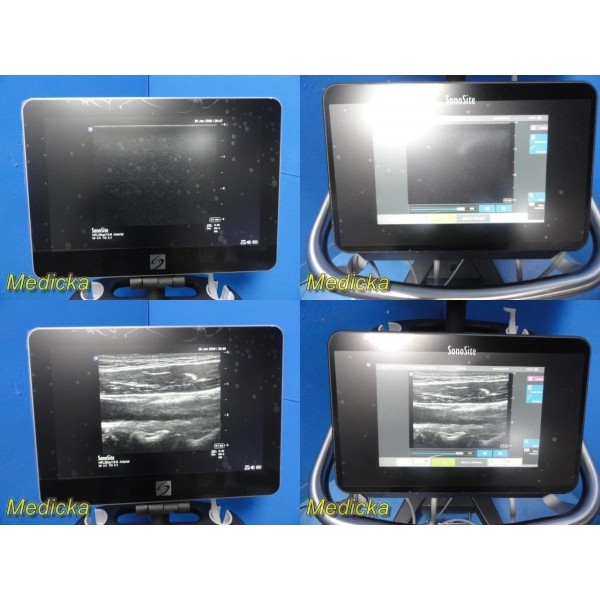

• Air Scan Testing: Smooth imaging noted with both probes. No major image dropout observed.
• Phantom Scan Testing: Phantom scans performed with both probes without noticeable abnormalities.

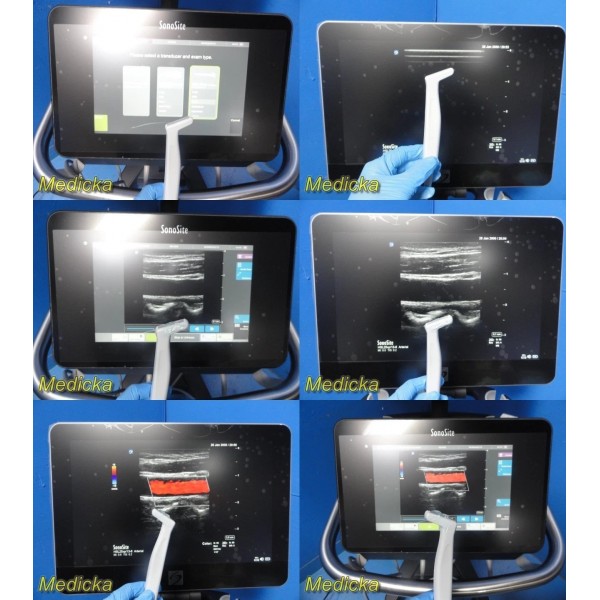

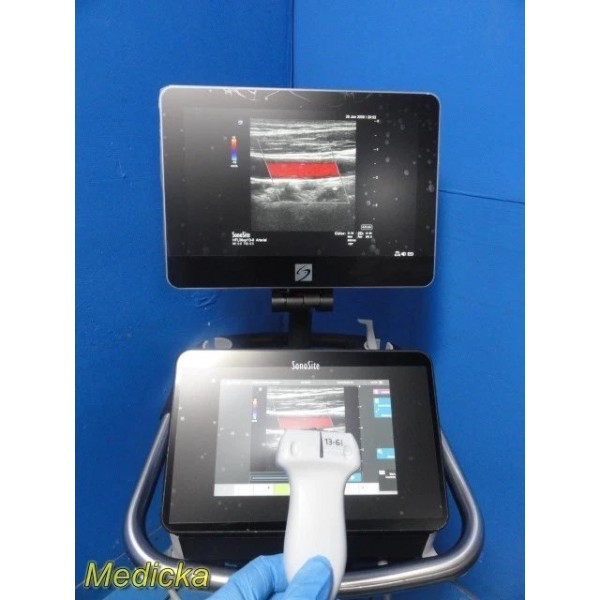

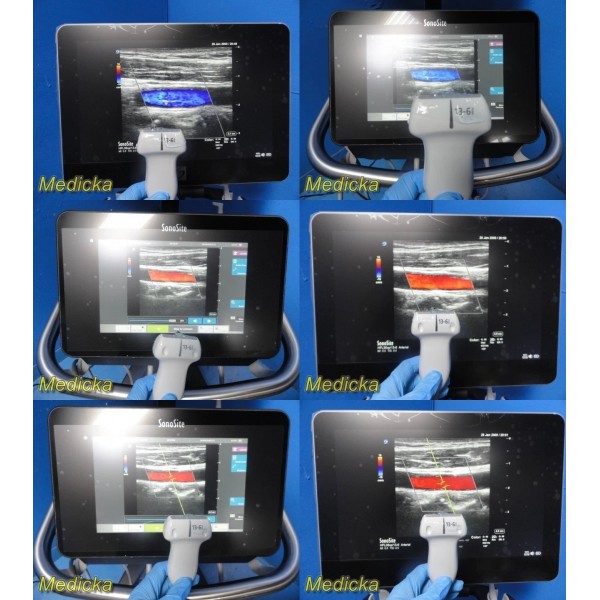

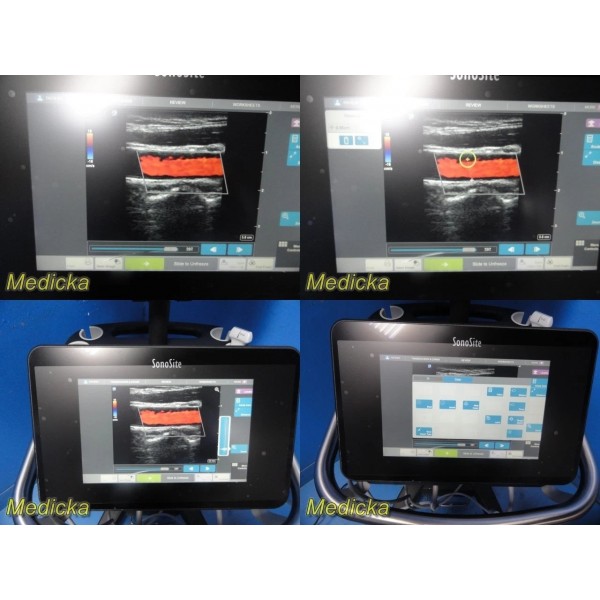

• Vascular Testing: Limited carotid vascular scan performed. Carotid lumen visualized successfully with color Doppler flow appearing good.
• Testing Limitation: Multiple examination presets and scanning applications exist; however, only limited vascular testing was performed.

What Is Included

• FUJIFILM SonoSite X-Porte Ultrasound System
• X-Porte TTC Probe Interface Module
• HSL25xp Hockey-Stick Probe
• HFL38xp Linear Probe
• Primary Clinical Monitor
• Touchscreen Command Display
• Mobile Cart Assembly
• Utility Basket
• Installed Battery
• Hospital Grade Power Cable

What Is Not Included

• Printed user manual
• Ultrasound gel
• Disposable consumables
• Additional probes
• Calibration documents
• PM records
• Accessories not shown

Buyer Advisory Note

Pre-owned medical ultrasound equipment. Biomedical inspection and calibration are recommended before clinical use.

Important Disclosure: Visible deep scratches and/or possible stress-crack markings are present on both display assemblies. Protective screen films have trapped air bubbles beneath them and may remain installed or be removed by the buyer. System date/time settings are incorrect and RTC battery service may be required. These conditions did not prevent successful testing, probe recognition, or ultrasound imaging during evaluation.

Shipping Note

Unit will be professionally packaged with protective materials. Freight shipment may be required because of overall dimensions and cart configuration.

Stock ID: 39877 (P.O. 1200) (Loc ?)

Purchase Terms & Buyer Protections

Condition & Use Notice

Condition: Overall, cosmetic, and functional condition are described in the listing above; please review all images carefully.
Functionality: Sold as described in the listing, or untested if stated. Biomed evaluation is recommended where applicable.
Included: Only items shown in photographs or specifically stated in the listing are included.
Buyer Responsibility: Buyer is responsible for verifying compatibility, suitability, and obtaining inspection, calibration, maintenance, or service as appropriate prior to use.
