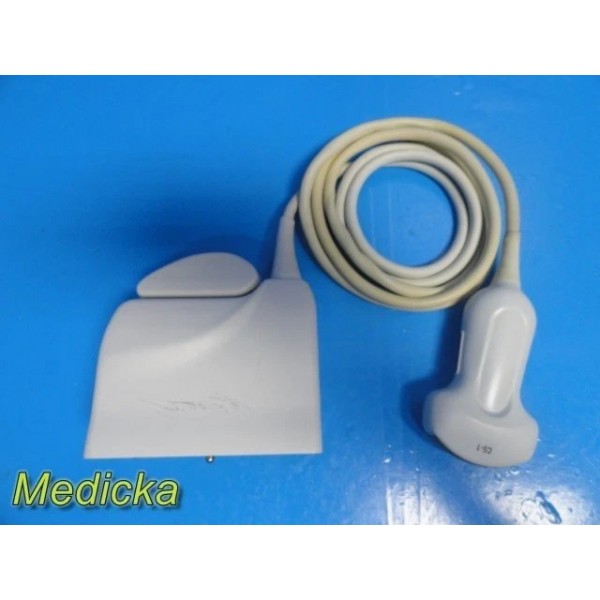

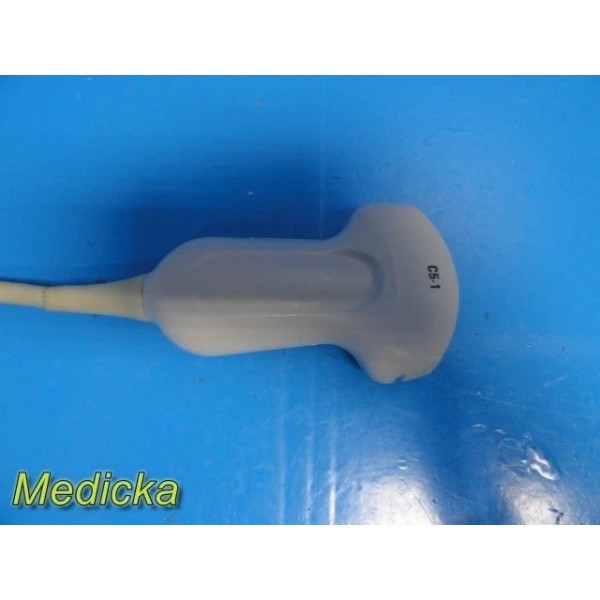

Philips C5-1 Curved Array Ultrasound Transducer – Tested – AS-IS – 453561224483

Item Overview

Pre-owned Philips C5-1 curved-array ultrasound transducer, tested on a Philips iU22. Probe was recognized, produced 2D/B-mode images, and displayed Color Doppler.

Sold AS-IS due to image-quality imperfections and a localized acoustic-lens defect.

Device Information

Manufacturer: Philips Ultrasound
Model: C5-1
Part Number: 453561224483
Serial Number: 03216R
Type: Curved / Convex Array
Applications: Abdominal, General, OB-GYN, Vascular
Cable Length: Approx. 7 ft

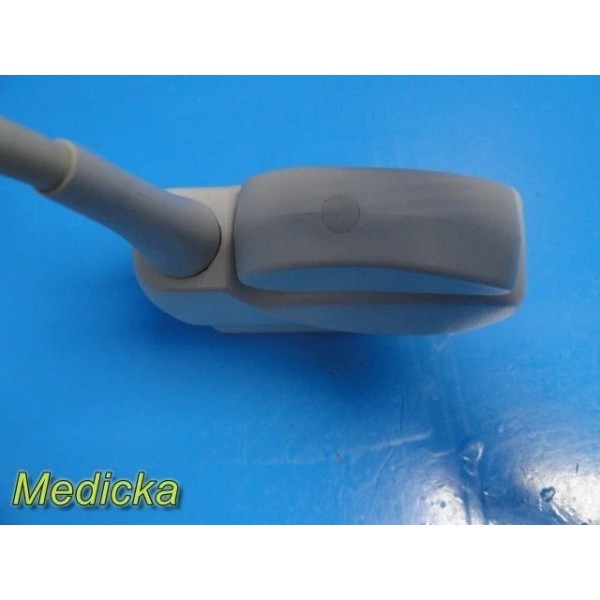

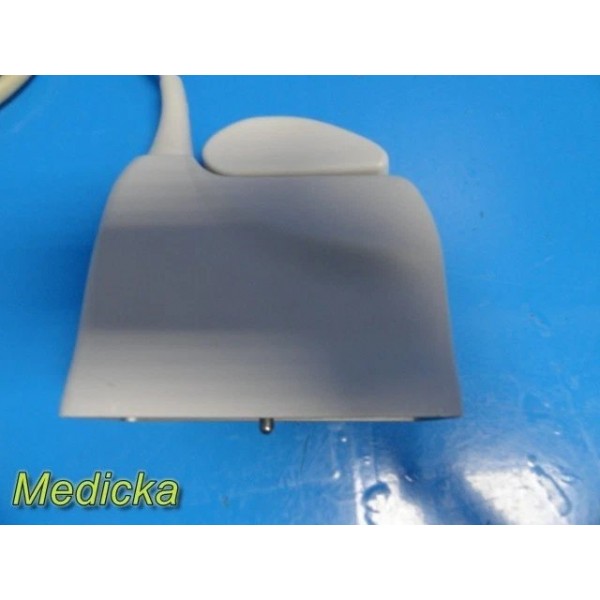

Connector: Philips multi-pin w/ locking mechanism
Made In: USA
CE: 0086
Condition: Pre-owned • AS-IS

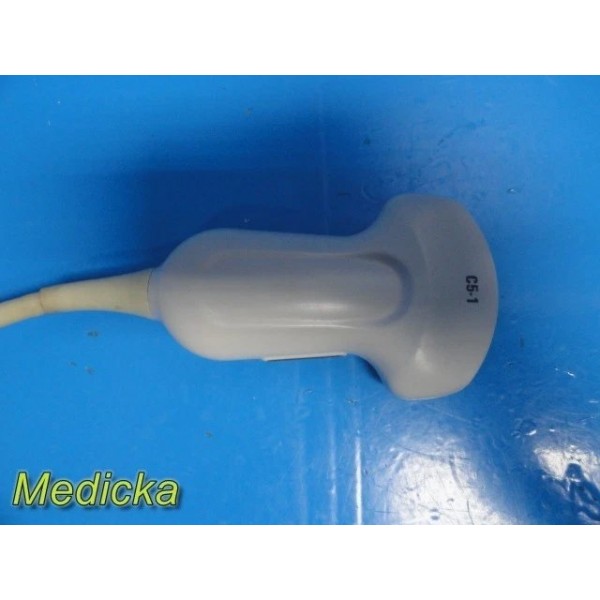

Cosmetic Condition

• Good overall cosmetic condition

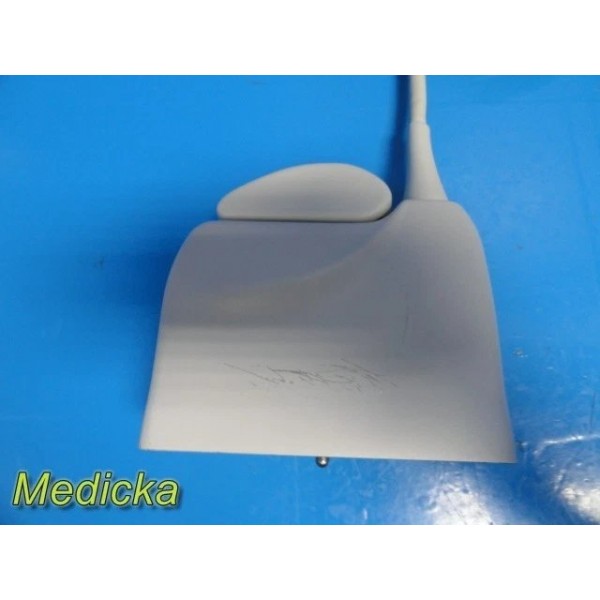

• Normal handling/use wear

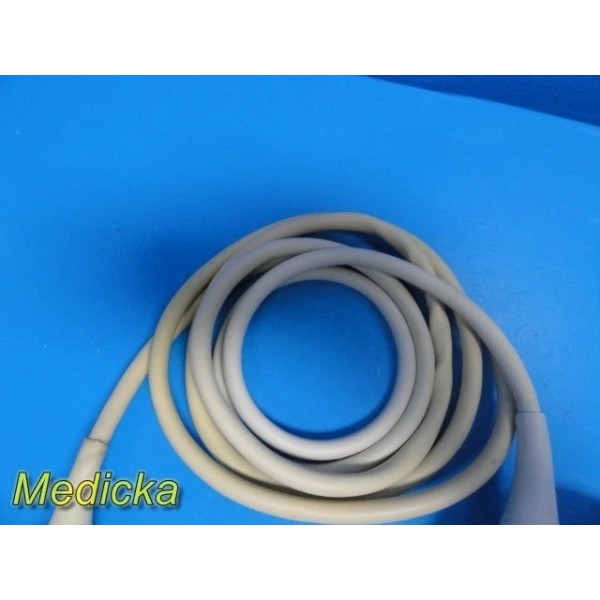

• Probe housing and cable appear structurally intact

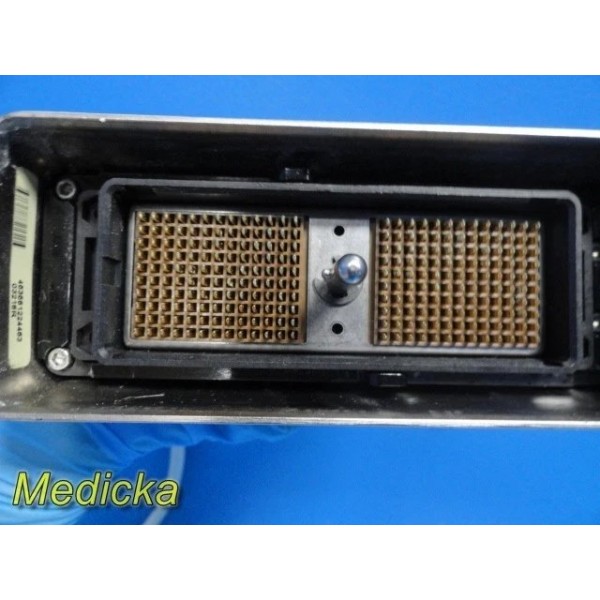

• Connector pins appear intact; no obviously bent or broken pins noted

• Locking mechanism intact

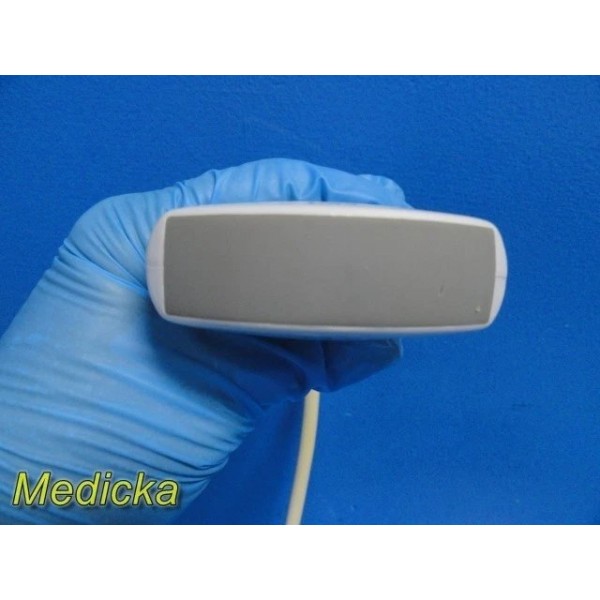

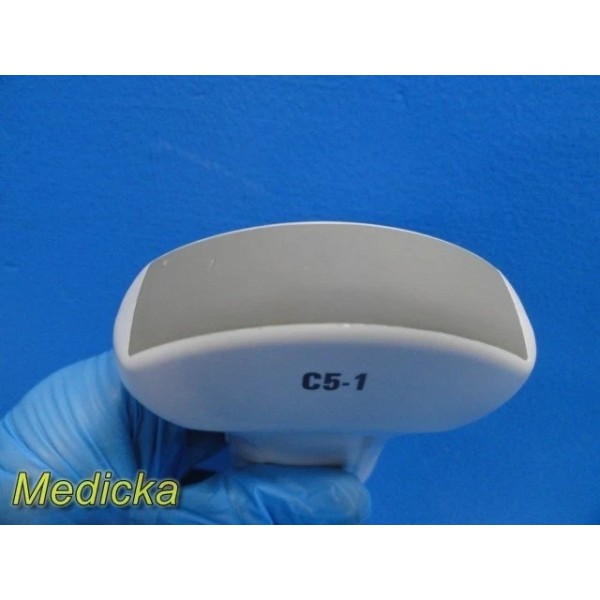

• Small localized nick/pinhole on acoustic lens, documented in photos


Functional Testing – Philips iU22

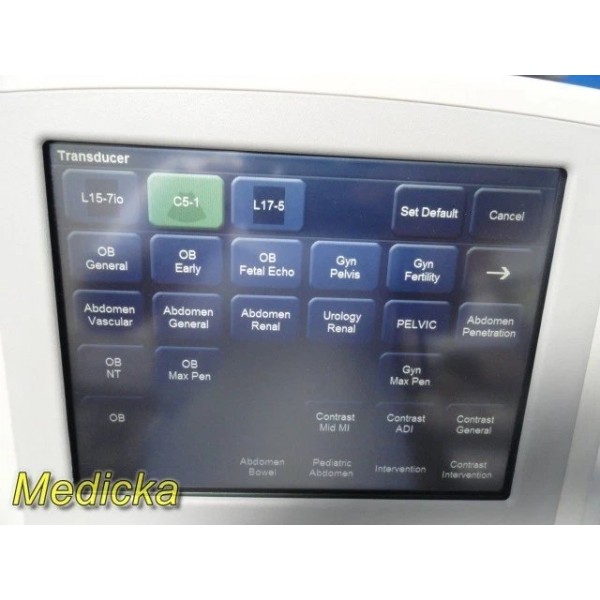

• Probe recognized as C5-1

• 2D/B-mode imaging produced

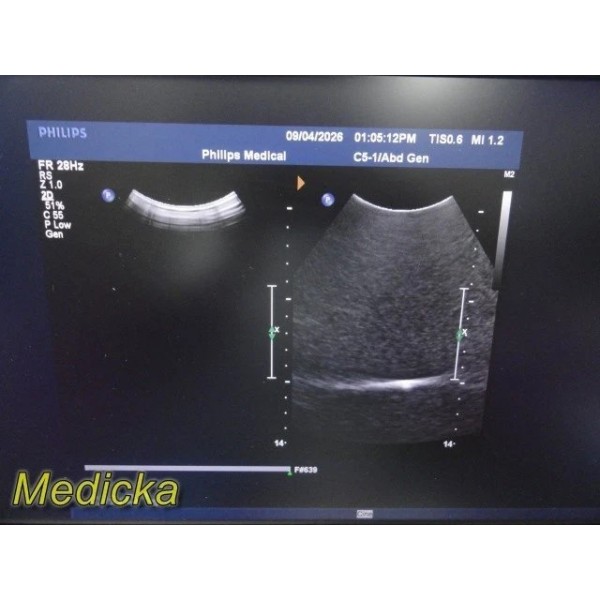

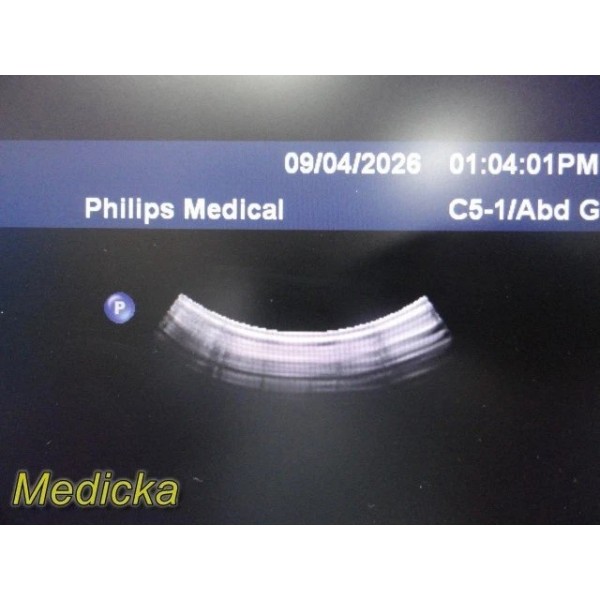

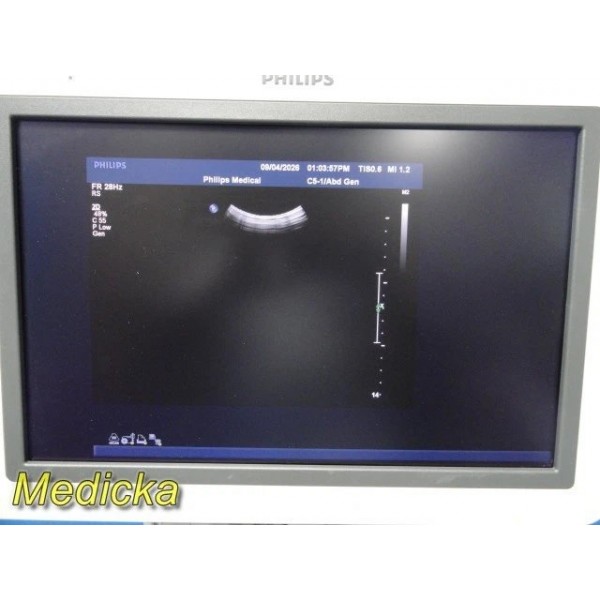

• Test/phantom scan shows image non-uniformity/artifact

• No obvious major/complete field dropout observed during basic testing

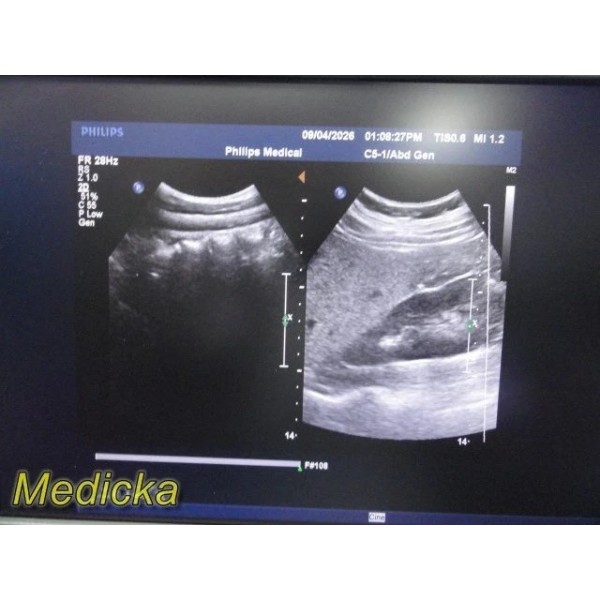

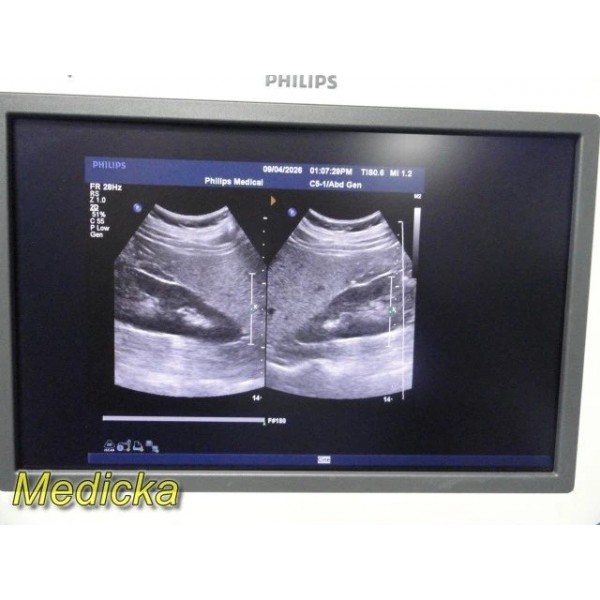

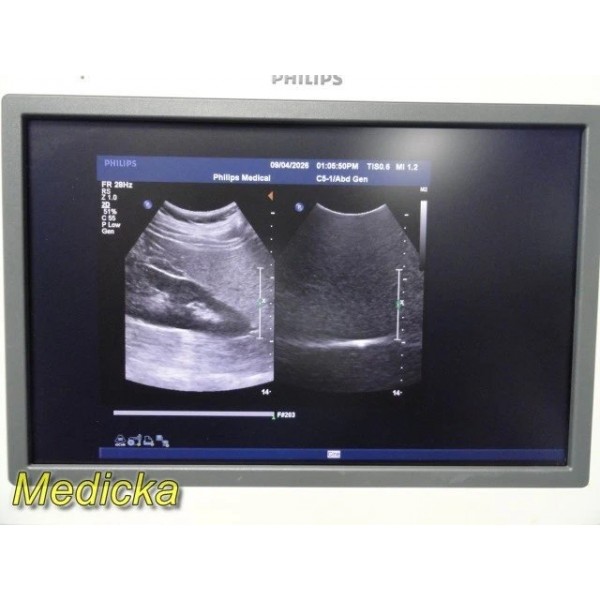

• Abdominal scan produced recognizable liver and kidney images

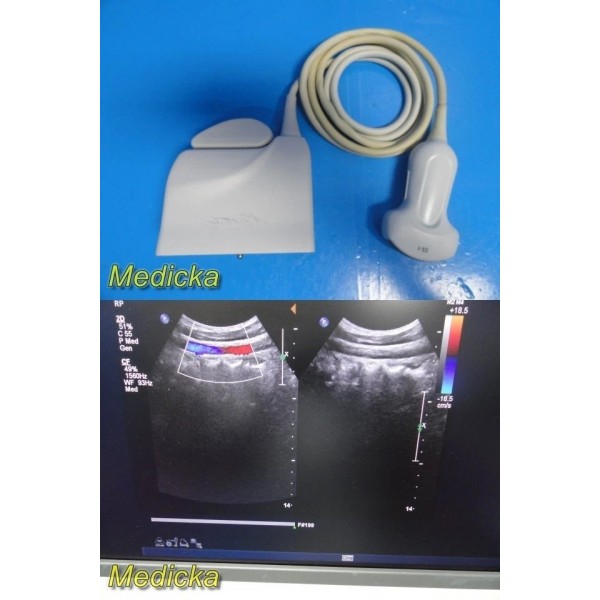

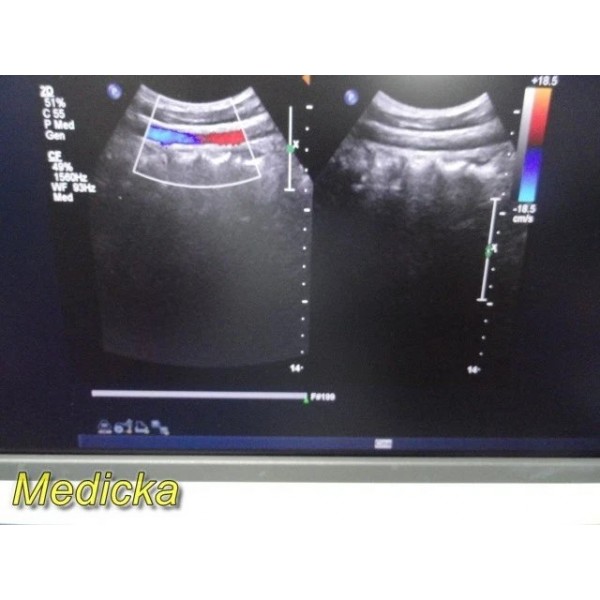

• Vascular/Color Doppler test displayed color-flow information


Actual test images are included for buyer review.

Functional Disclosure

Probe produces recognizable images and may be suitable for basic imaging applications; however, image-quality degradation is present.

Due to the observed image imperfections and acoustic-lens defect, the probe is not recommended for detailed diagnostic imaging in its present condition. Repair/service and subsequent validation are recommended before detailed diagnostic use.

Package Includes

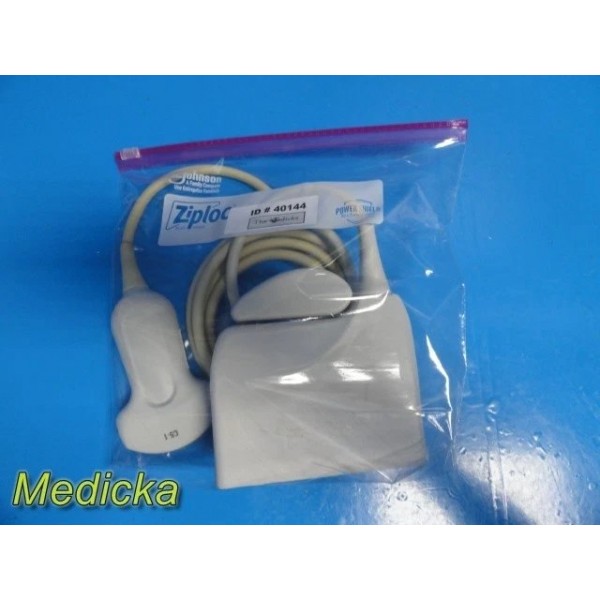

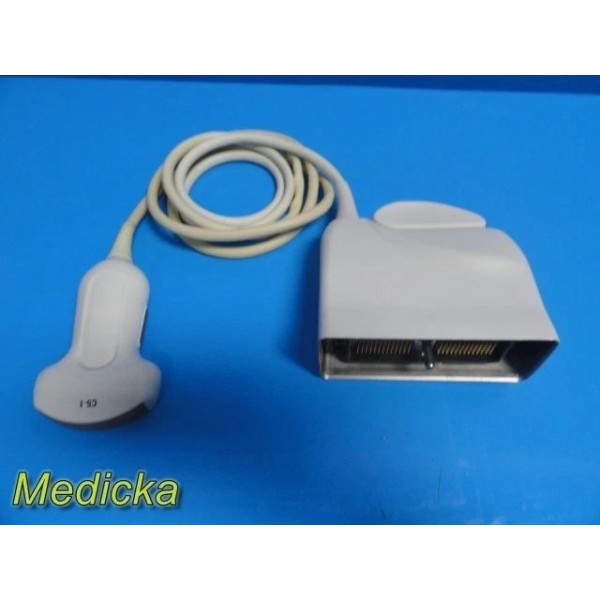

• 1× Philips C5-1 Curved Array Ultrasound Transducer

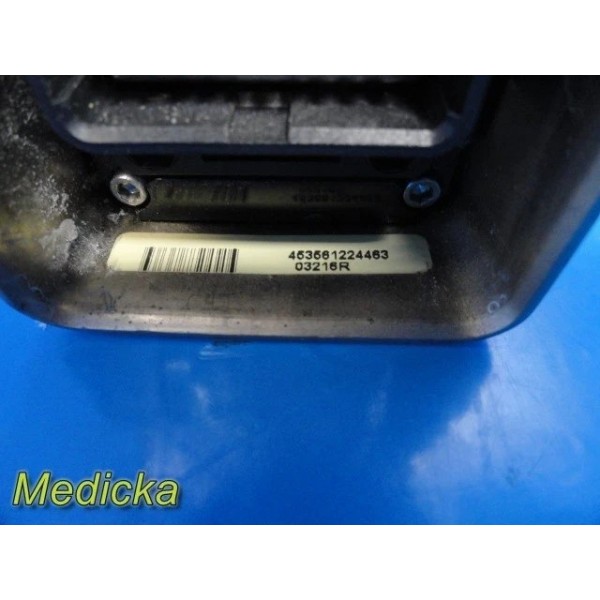

  P/N: 453561224483 • S/N: 03216R

Sale is for the pictured transducer only.
Philips iU22 system, storage case, user manual, and other accessories are not included.

Buyer Advisory

Sold AS-IS. Testing was limited to the procedures described above and does not constitute comprehensive clinical validation. Buyer/facility is responsible for inspection, any necessary repair/service, and validation before use.

Stock ID: 40144 (P.O. 1200) (05E)
