GE 3S‑RS Phased Array Cardiac Ultrasound Probe — Ref 2356686 (Tested) ~ 39407
Product details
GE 3S‑RS Phased Array Ultrasound Transducer — Professional Instrument Profile
Instrument Identification
- Manufacturer: GE Ultrasound
- Model: 3S‑RS
- REF / Part Number: 2356686
- Serial Number: 59080WX9
- Probe Type: Phased Array Cardiac / Sector
- Frequency Range: 1.5 – 2.5 MHz
- Cable Length: Approx. 7 ft
- Connector Type: Cartridge‑Style Connector
- Country of Manufacture: China
- CE Marked: Yes — CE 0843
- Compatibility: Tested with GE LOGIQ E (system not included)
Short Description
GE 3S‑RS phased‑array cardiac ultrasound probe tested on a compatible GE LOGIQ E system using air scan, limited body scan, and color Doppler evaluation. Probe produced grayscale and color‑flow imaging and remained recognized by the system throughout testing. Cosmetic condition is good overall, with intact housing, cable, strain reliefs, and connector. Air scan shows mild non‑uniformity/graininess consistent with normal aging and prior clinical use. Review all images carefully.
Quick Condition Overview
- Functional Status: Tested & Operational
- Cosmetic Condition: Good Overall
- Cable Condition: No cuts or tears observed
- Connector Condition: Cartridge connector intact
- Image Quality: Mild non‑uniformity on air scan
- Color Flow: Responsive Doppler activity observed
- Recommended Use: Training, teaching, research, veterinary, backup, or basic evaluation
Detailed Condition Summary

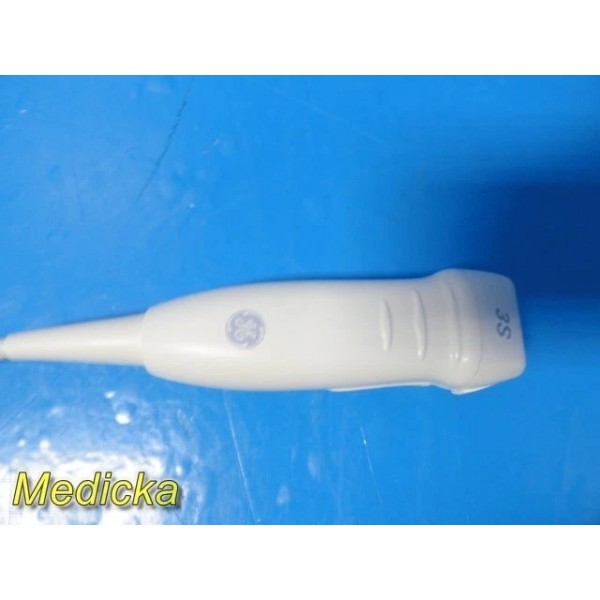

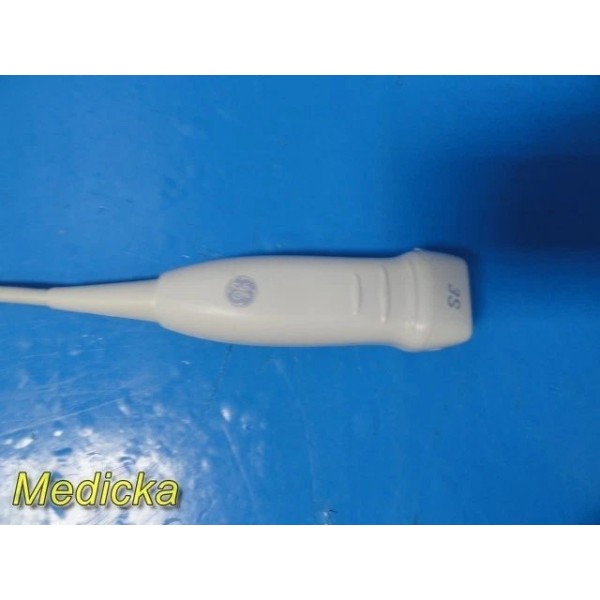

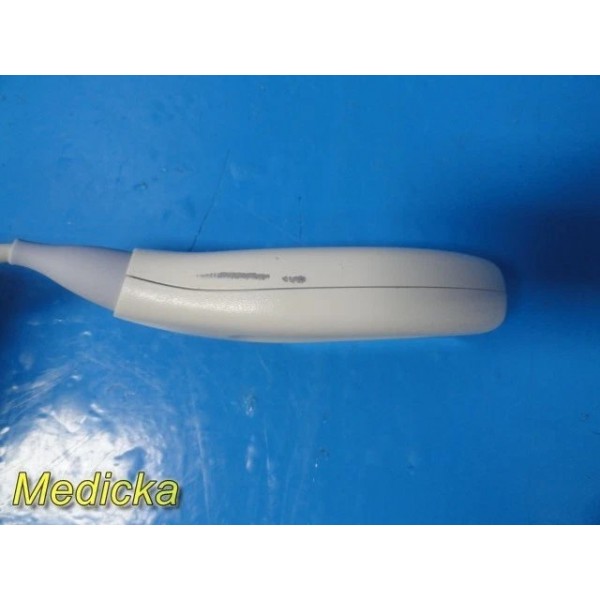

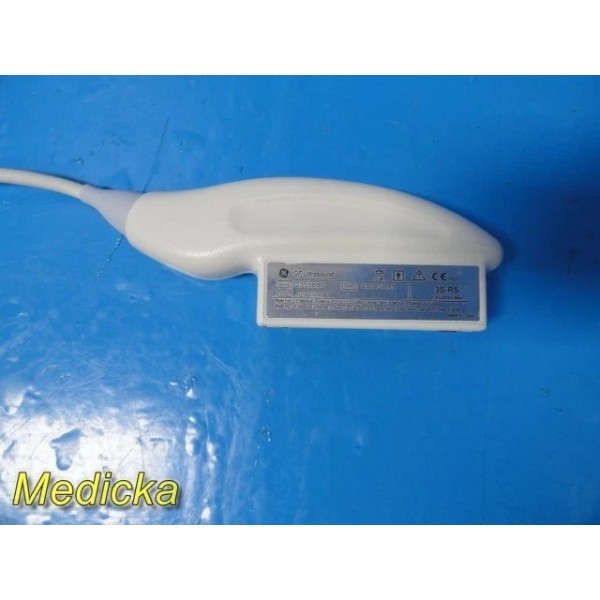

Probe Housing & Handle
Structurally intact with no major cracks or dents. Minor cosmetic scuffs/scratches from prior use may be present.

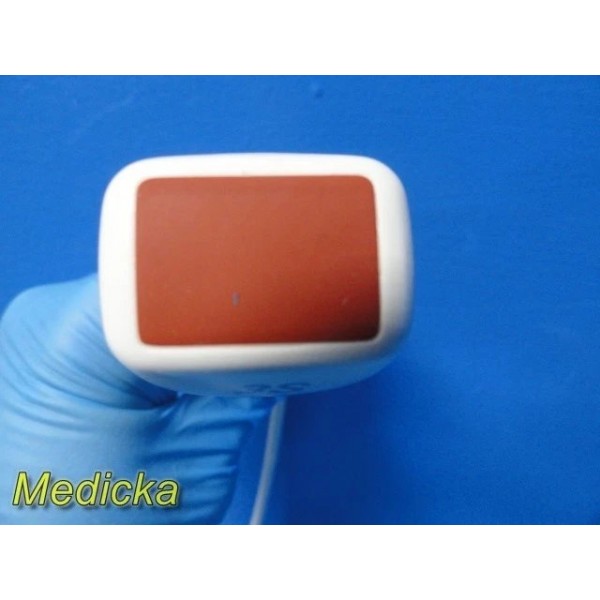

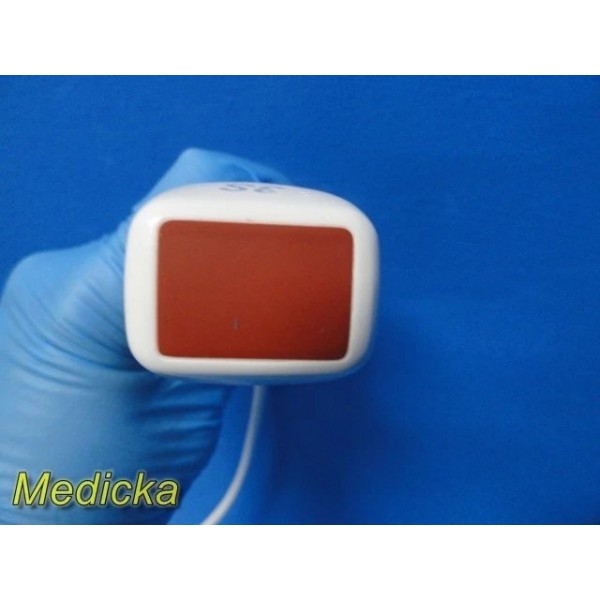

Acoustic Lens
Lens intact with no major punctures, lifting, or severe separation noted on inspection.
Cable & Strain Reliefs

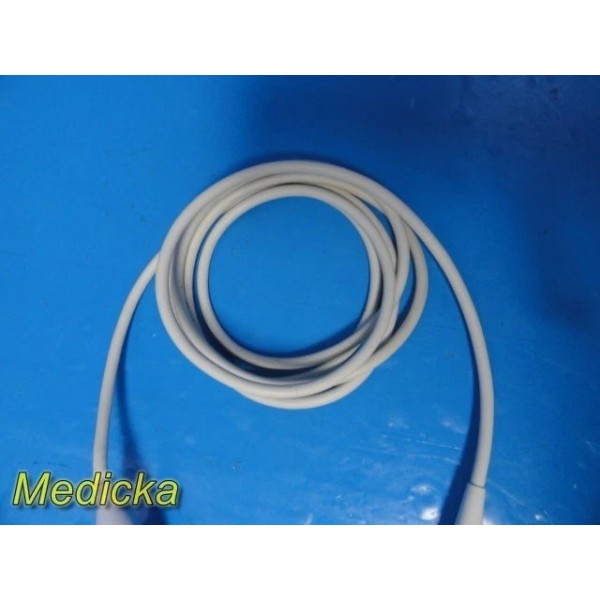

Approx. 7‑ft cable intact with no visible cuts or tears. Strain reliefs show no cracking or separation.

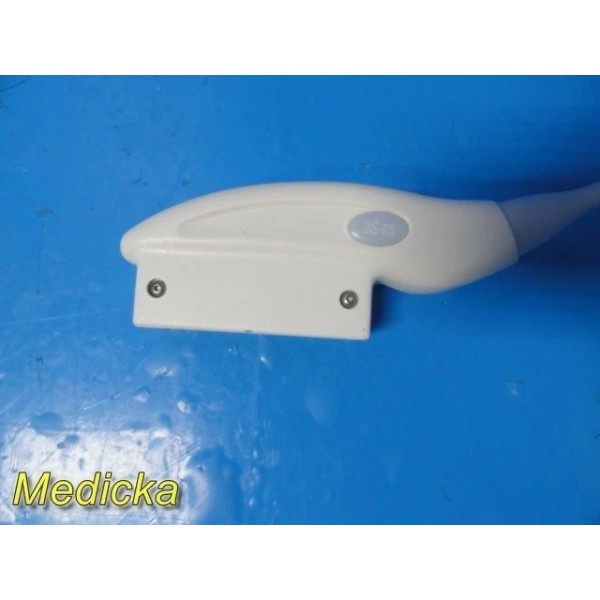

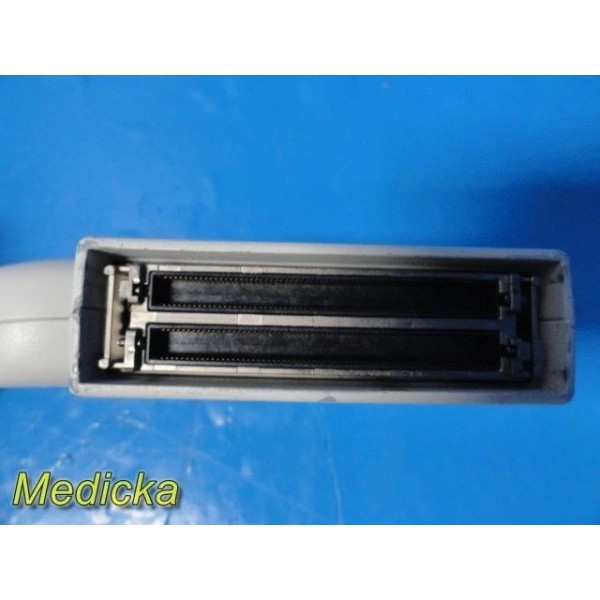

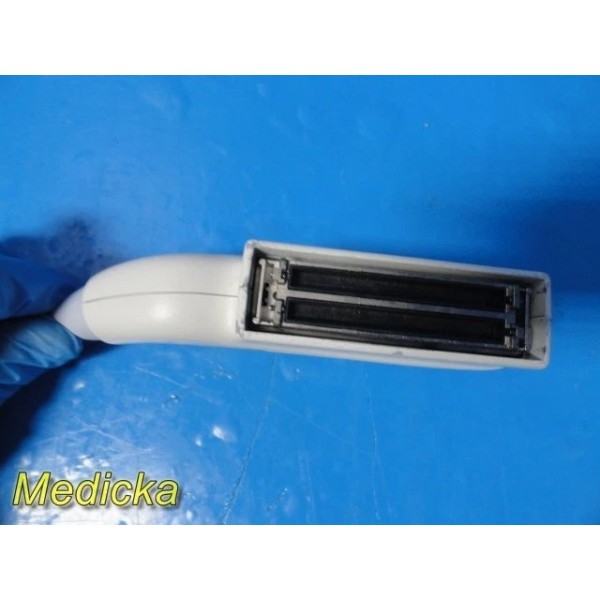

Connector Condition
Cartridge‑style connector intact with no major structural damage. Interface/pin area appears visually acceptable.
Functionality & Testing Summary
System Recognition
Probe recognized properly by GE LOGIQ E during testing. (Ultrasound system not included.)

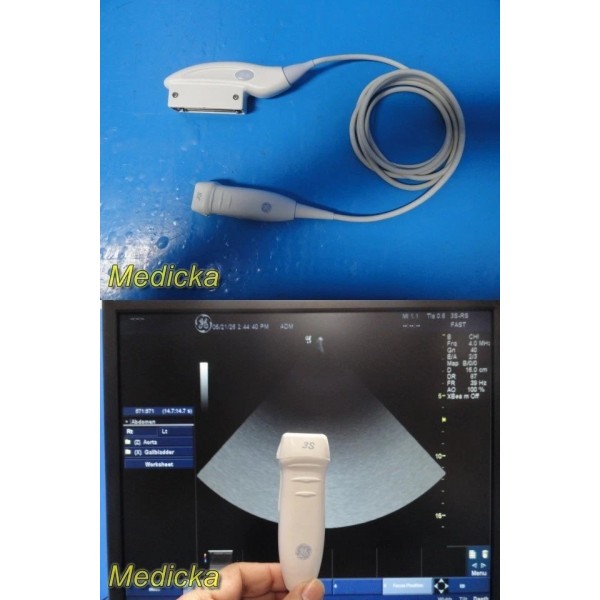

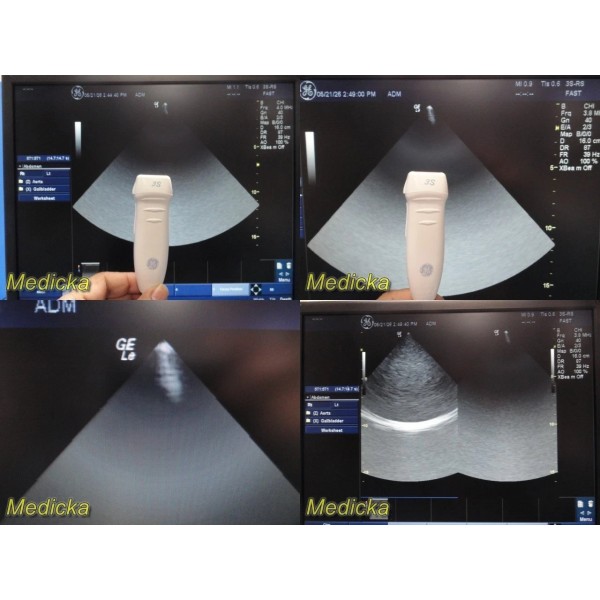

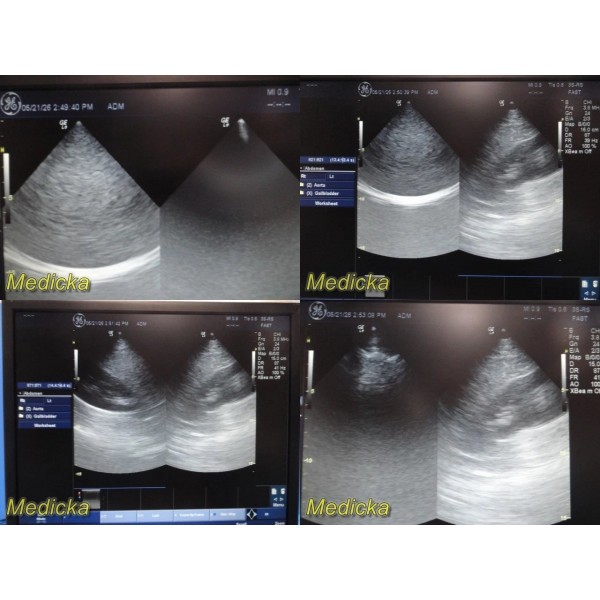

Air Scan Evaluation
Mild image non‑uniformity/graininess observed; sector not fully homogeneous. No major dropout lines or catastrophic element failure noted.
Body Scan Evaluation
Limited RUQ abdominal scan performed. Images show recognizable echotexture differentiation between liver and kidney regions.

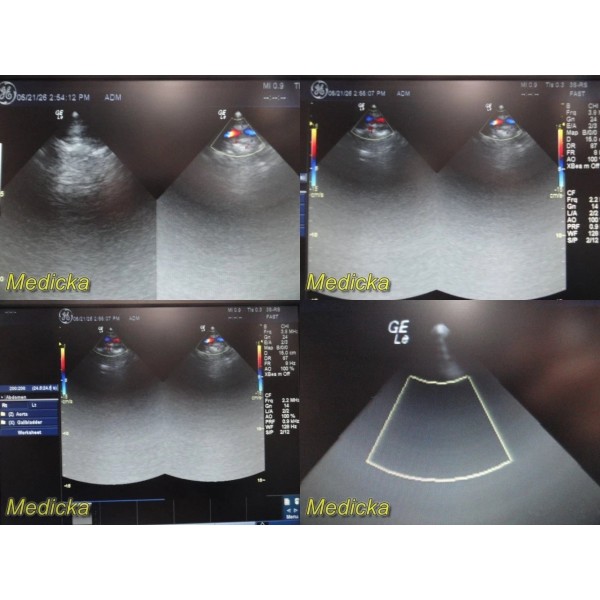

Color Doppler / Vascular Evaluation
Limited carotid evaluation performed. Color Doppler flow responsive without major instability or significant dropout.
Phantom / Fluid Evaluation
Not fully assessed due to phased‑array design and available testing setup.
Cardiac Testing
Full echocardiographic evaluation not performed. Testing limited to grayscale and basic color‑flow assessment.
Included

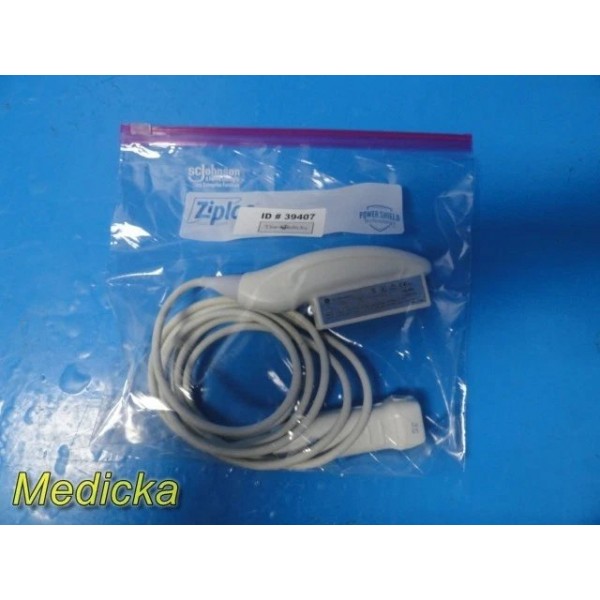

GE 3S‑RS Phased Array Ultrasound Probe
Not Included
GE LOGIQ E system, user manuals, phantom, storage case, consumables, disposables, additional probes, carts, software, or accessories not specifically listed or shown.
Buyer Advisory
This is used hospital‑surplus equipment and may show cosmetic wear such as scratches, scuffs, or label residue. Air scan demonstrated mild non‑uniformity consistent with prior use and aging‑related element variation. Probe may not be ideal for advanced diagnostic cardiac imaging and may be better suited for training, teaching, research, veterinary, backup, or basic evaluation depending on buyer needs. Review all images carefully before purchase.
Shipping Note
Probe will be professionally packed with protective materials for safe shipment.
Stock ID: 39407 (P.O. 2025) (WH104 SCC16)
