GE 4C‑RS Convex Ultrasound Probe /Transducer — Ref 5125386 | Tested ~ 39872
- Made In: China
Product details
GE 4C‑RS Convex Ultrasound Transducer — Professional Instrument Profile
Device Identification
Manufacturer: GE Ultrasound Model: 4C‑RS REF / Part Number: 5125386 Serial Number: 55720WX7 Date of Manufacture: 2007 Probe Type: Convex / Curvilinear Transducer Frequency Range: 2 – 5 MHz Connector Type: Cartridge‑Style Connector Cable Length: Approx. 7 ft Country of Manufacture: China CE Marked: Yes — CE 0843 Compatibility: Tested with GE LOGIQ E (system not included)
Short Description
GE 4C‑RS convex ultrasound probe tested on a GE LOGIQ E system using air scan, phantom‑style evaluation, body scan, and limited vascular/color‑flow assessment. Probe produces grayscale and color Doppler imaging; however, visible image imperfections and early element degeneration were observed during testing. Cosmetic condition is good overall, with intact housing, cable, strain reliefs, acoustic lens, and connector. Review all uploaded images carefully.
CONDITION SUMMARY
Quick Condition Overview
Functional Status: Operational with Image Imperfections Cosmetic Condition: Good Overall Cable Condition: No cuts or tears observed Connector Condition: Cartridge connector intact Acoustic Lens: Smooth and intact Image Quality: Early element degeneration / non‑uniformity present Color Flow: Color Doppler responsive Recommended Use: Training, teaching, research, veterinary, backup, or basic/non‑clinical evaluation
Detailed Condition Summary

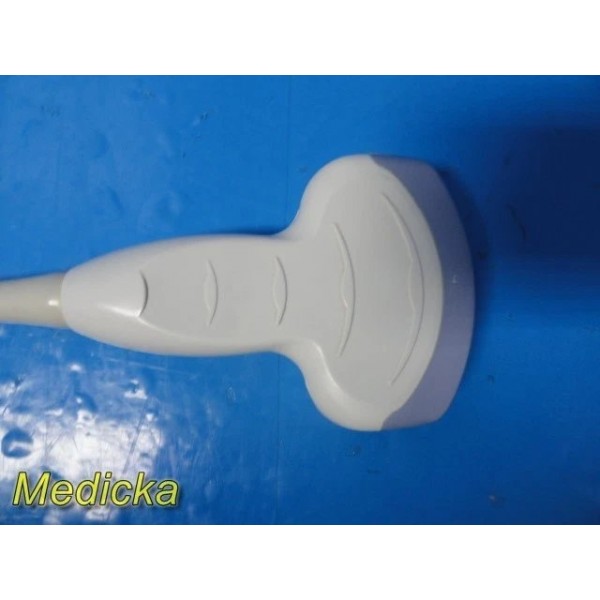

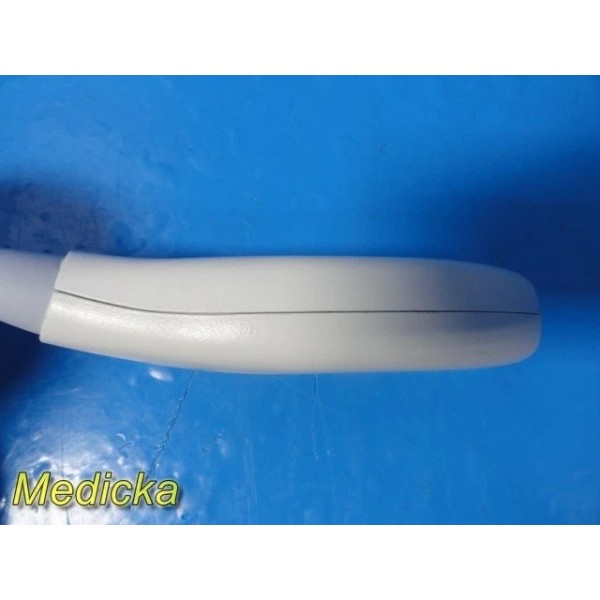

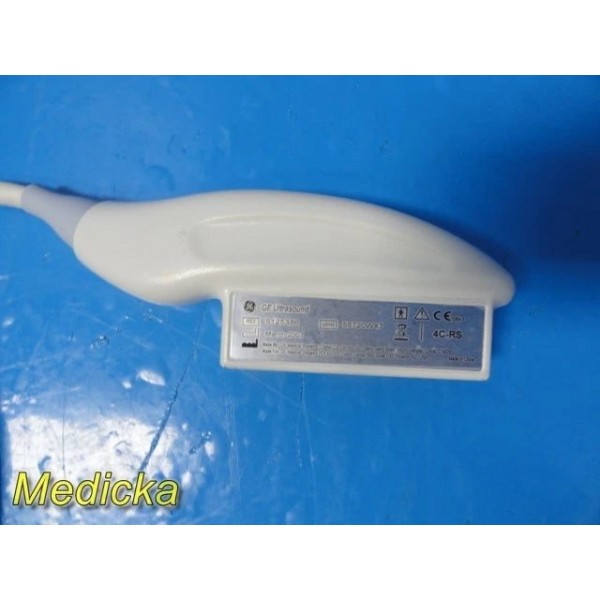

Probe Housing & Handle
Structurally intact with no major cracks or dents. Minor cosmetic scuffs/scratches consistent with prior use.

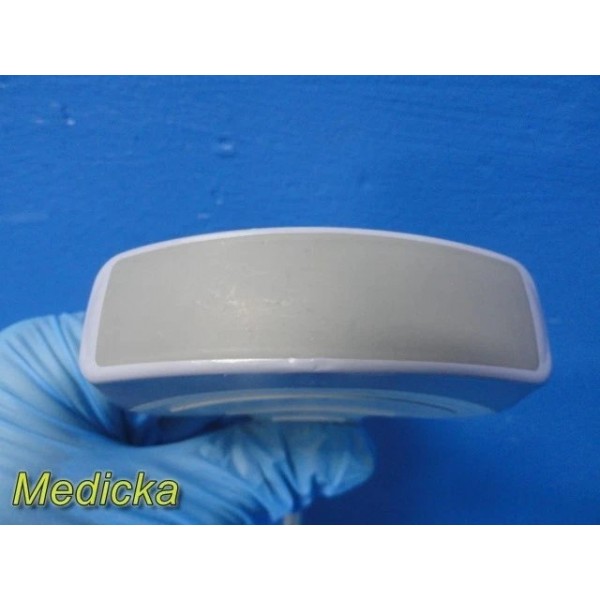

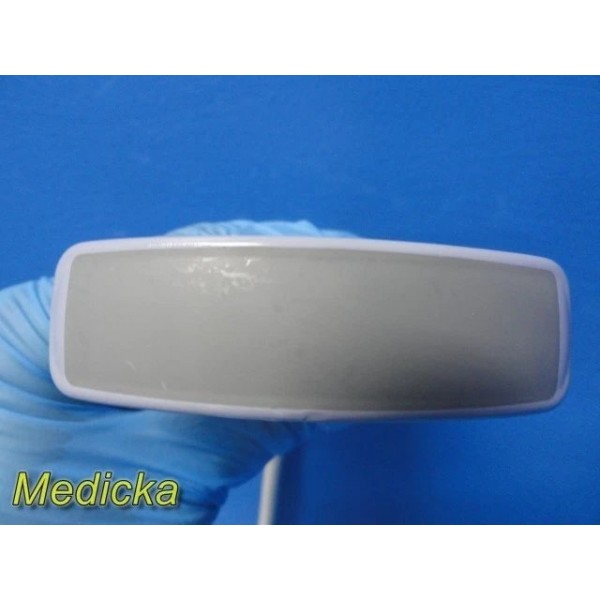

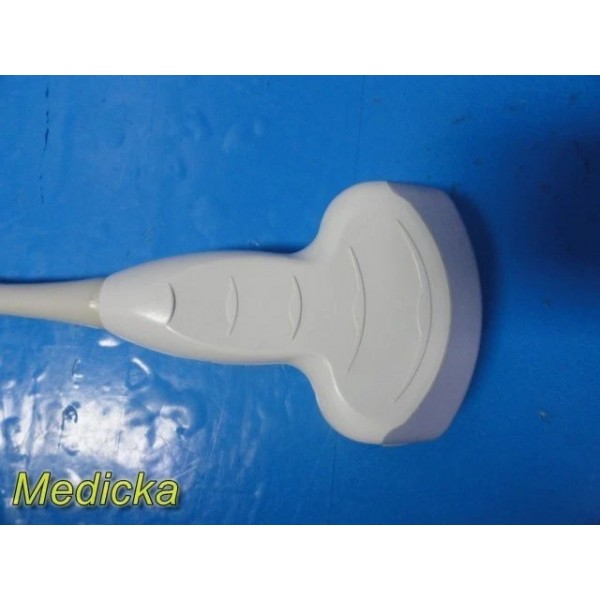

Acoustic Lens
Lens surface smooth and intact with no major punctures, peeling, or separation noted.

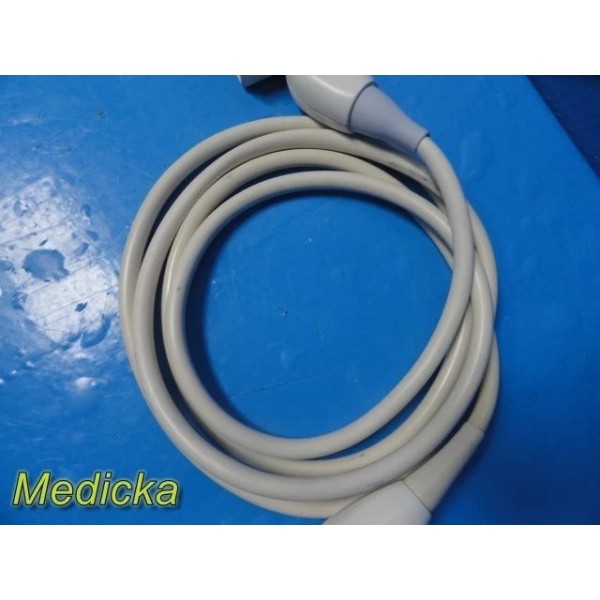

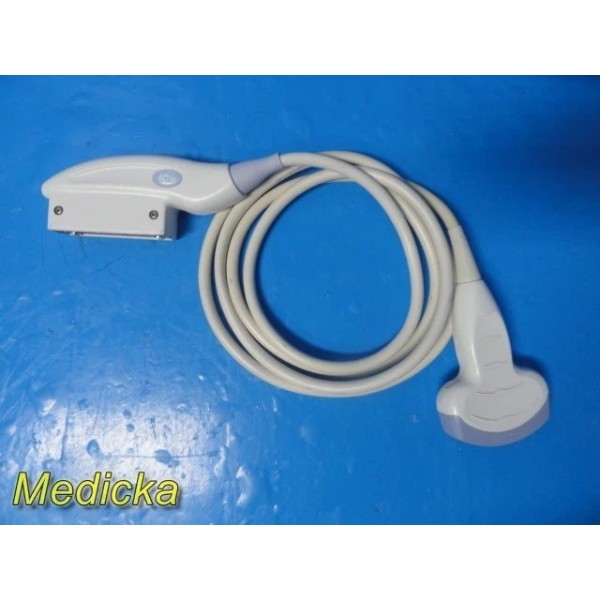

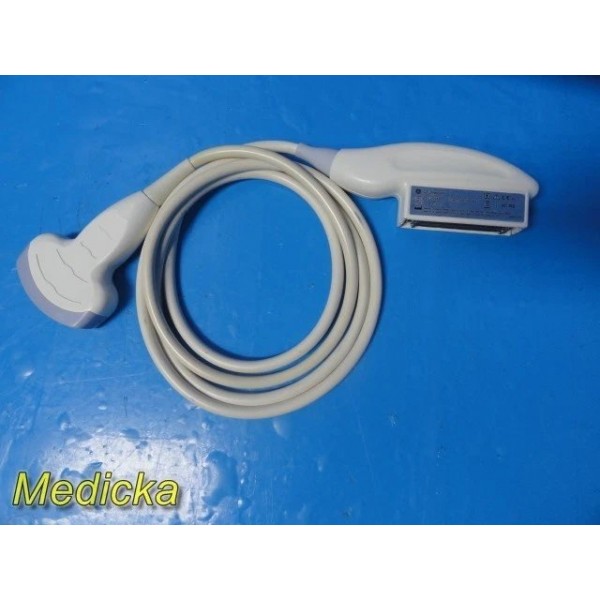

Cable & Strain Reliefs
Approx. 7‑ft cable intact with no visible cuts or tears. Strain reliefs remain secure and tear‑free.

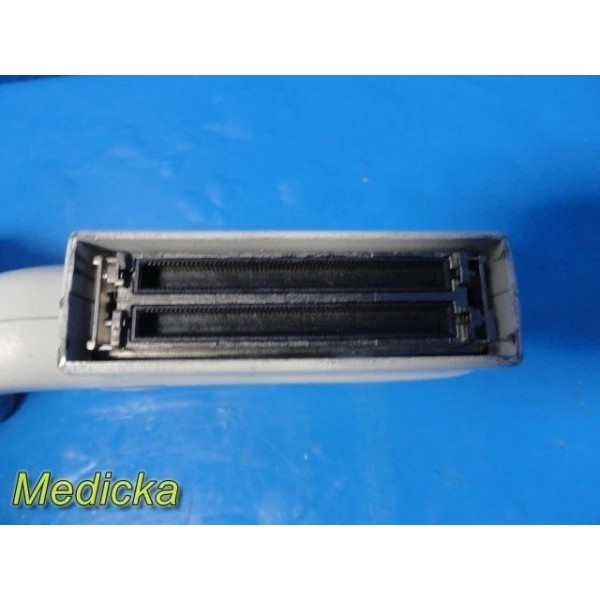

Connector Condition
Cartridge‑style connector structurally intact with no major cracks or deformation. Contact/interface area appears visually acceptable.
Functionality & Testing Summary

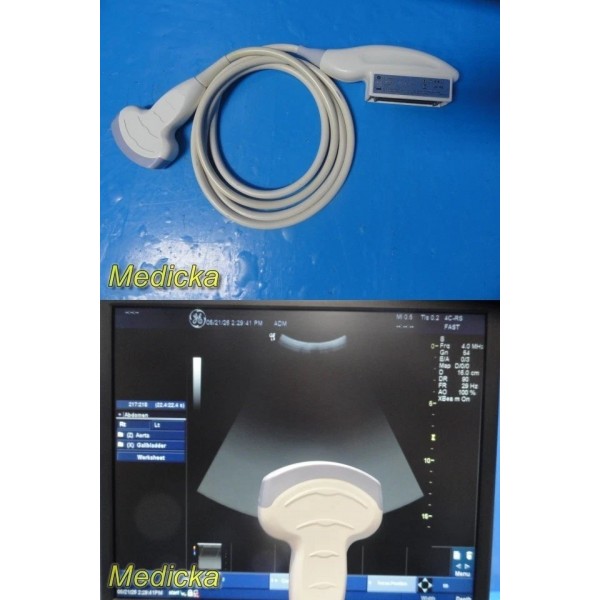

System Recognition
Probe recognized properly by GE LOGIQ E during testing. (System not included.)

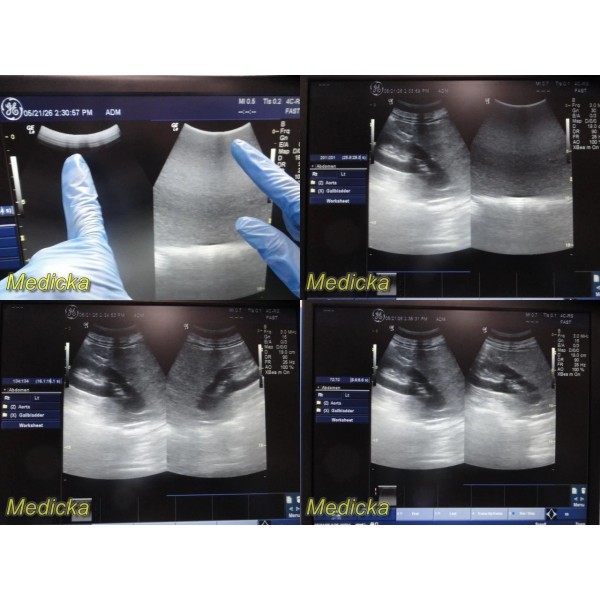

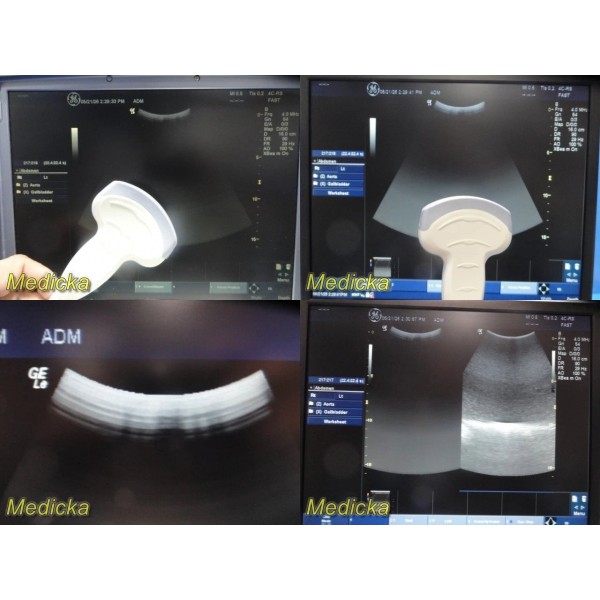

Air Scan Evaluation
Air scan shows visible non‑uniformity, grayscale inconsistency, and central shadowing/dropout extending through portions of the imaging sector. Findings are consistent with early element degeneration. Sector fill is incomplete compared to a fully homogeneous convex probe.

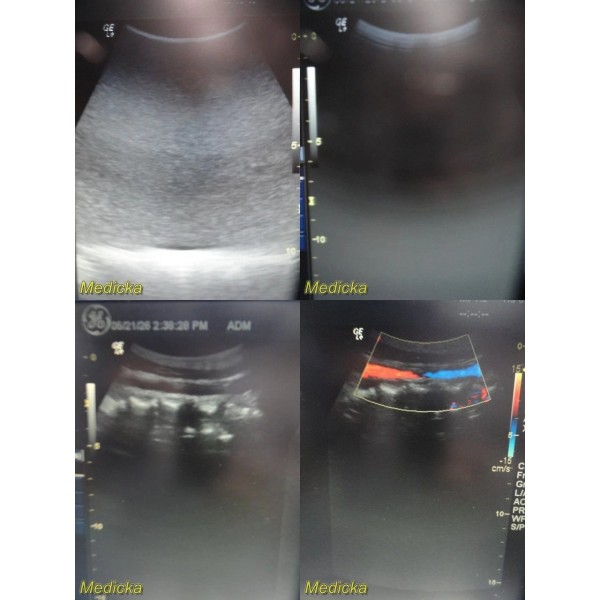

Phantom / Fluid‑Style Evaluation
Phantom‑style evaluation reproduces the same defects seen on air scan. Vertical attenuation/shadowing persists, supporting probable element degradation rather than gain or environmental artifact.

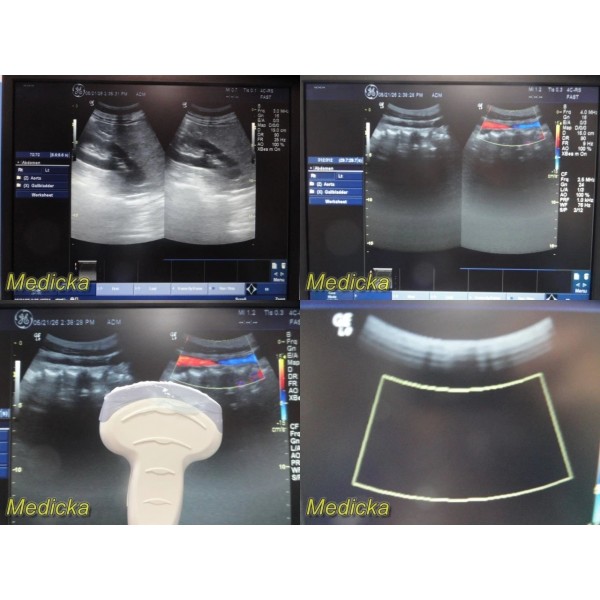

Body Scan Evaluation
Limited RUQ abdominal scan performed. Liver and kidney echotexture differentiation is visible, though image quality remains affected by sector imperfections. Buyers should review uploaded images carefully.
Color Doppler / Vascular Evaluation
Limited carotid evaluation performed. Color‑flow activity visualized and responsive despite grayscale imperfections.
Technical / Application Limitations
Only basic operational testing was performed. Due to observed image imperfections and probable early element degeneration, this probe is not recommended for advanced diagnostic imaging. More suitable for training, teaching, research, veterinary, backup, or basic/non‑clinical applications depending on buyer requirements.
Included

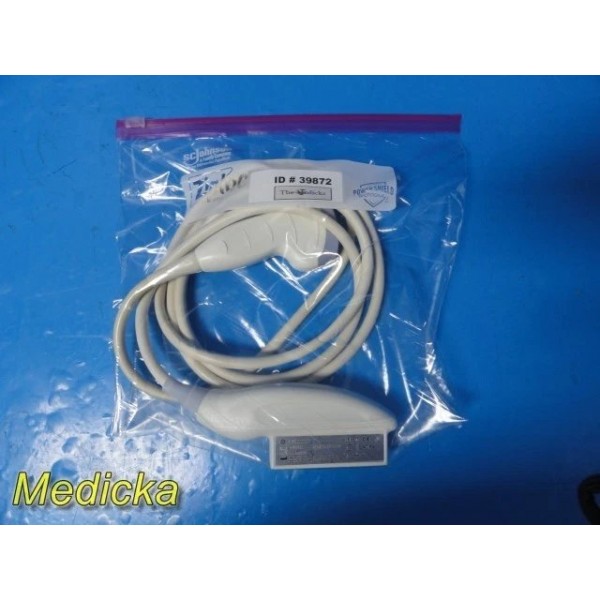

GE 4C‑RS Convex Ultrasound Probe
Not Included
GE LOGIQ E system, phantom, user manuals, storage case, carts, consumables, disposables, additional probes, software, or accessories not specifically listed.
Buyer Advisory
This is used hospital‑surplus equipment and may show cosmetic wear such as scratches, scuffs, discoloration, or label residue. Probe demonstrates visible image imperfections and probable early element degeneration during testing. Buyers should review all images and testing results to determine suitability for their intended application.
Shipping Note
Probe will be professionally packed and secured using protective materials.
Stock ID: 39872 (P.O. 2025) (WH104 SCC16)
