Siemens ACUSON 4V1c Phased ...

Product details

Short description:

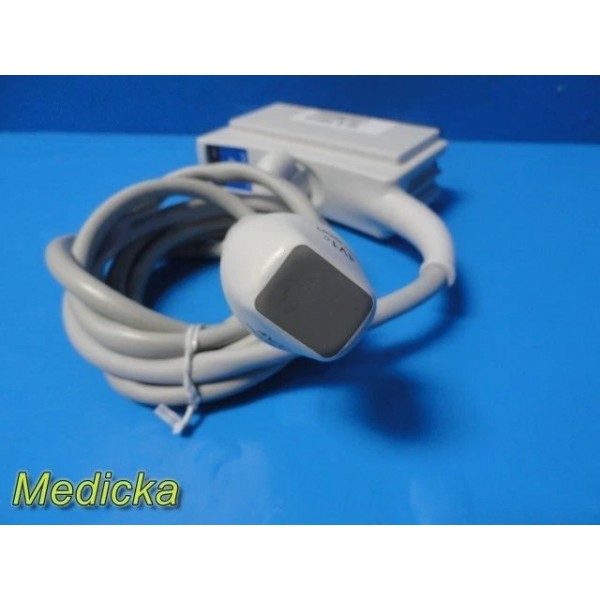

Siemens ACUSON 4V1c phased array ultrasound transducer (Ref. 07695724), designed for cardiac, vascular, and general phased-array imaging applications. This probe was tested with a Siemens ACUSON 2000 ultrasound system (not included) and demonstrated system recognition and basic imaging functionality during limited in-house testing.

Condition Summary:

Overall Cosmetic Condition

• Overall cosmetic condition is very good
• Normal signs of prior clinical use only
• No visible damage affecting structural integrity

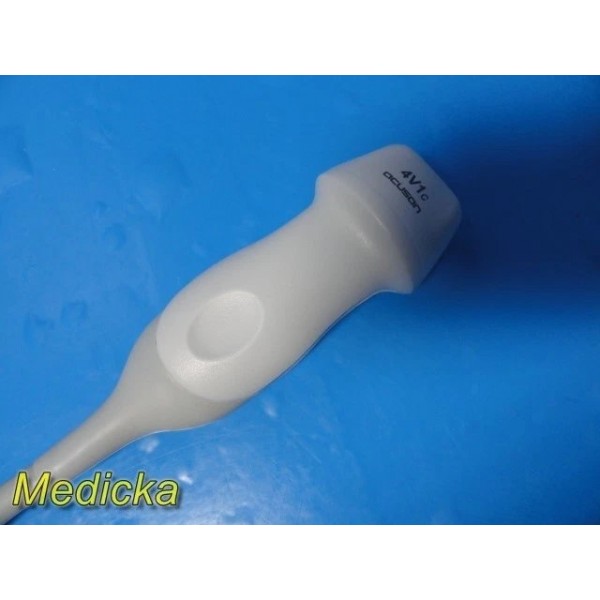

Scan Head / Housing

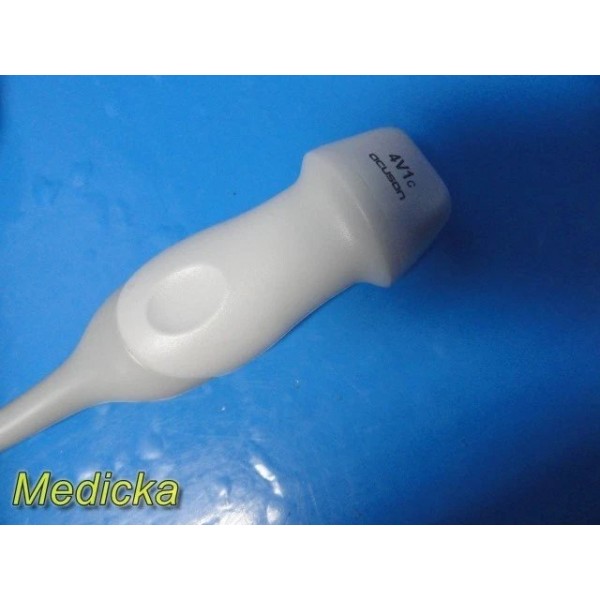

• Probe head and handle are in very good condition
• No dents, cracks, or structural damage observed
• Housing surfaces appear smooth and intact

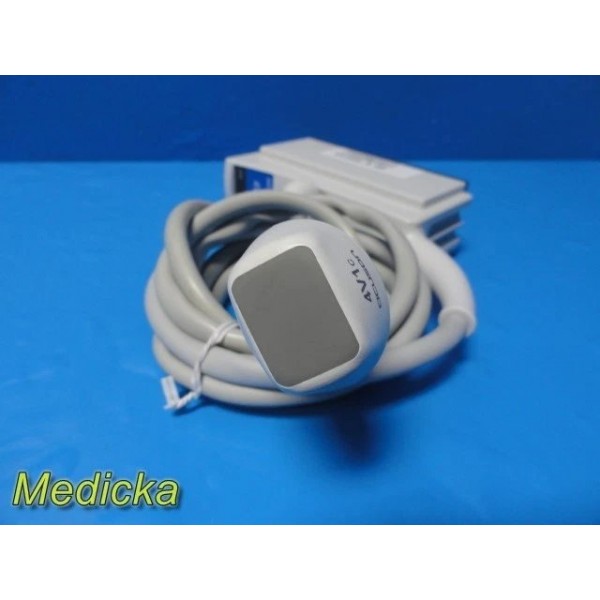

Acoustic Lens

• Acoustic lens is intact
• No cracks or tears noted
• Lens surface appears smooth

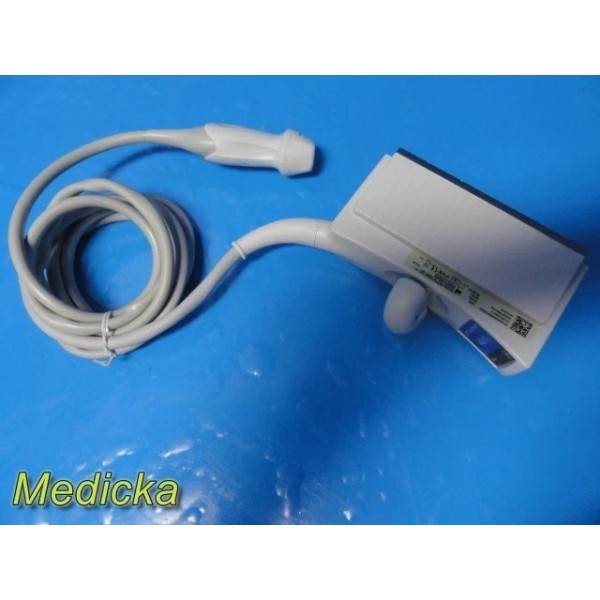

Cable

• Cable length approximately 7 feet
• Cable jacket is clean and flexible
• No cuts, tears, kinks, or exposed wiring observed

Strain Relief

• Strain relief at probe and connector ends is intact
• No splitting, tearing, or separation noted

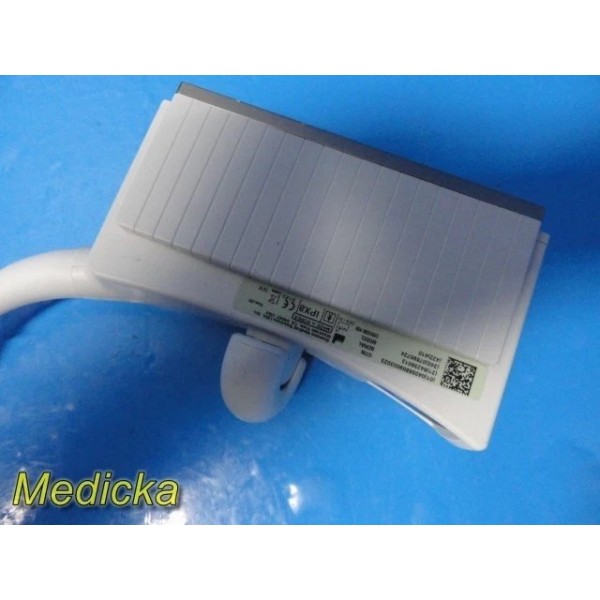

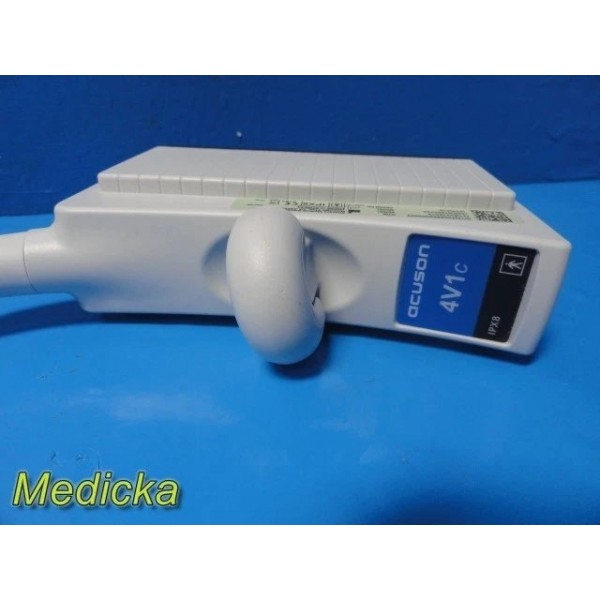

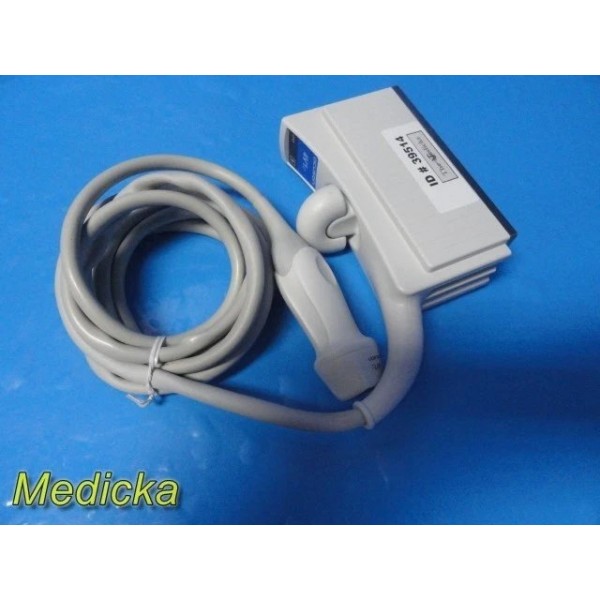

Connector (Pinless Type)

• Pinless connector housing is in good condition
• No cracks, chips, or damage observed
• Connector face appears clean

Connector Lock

• Locking mechanism is present and functional
• Connector secures properly into the system port

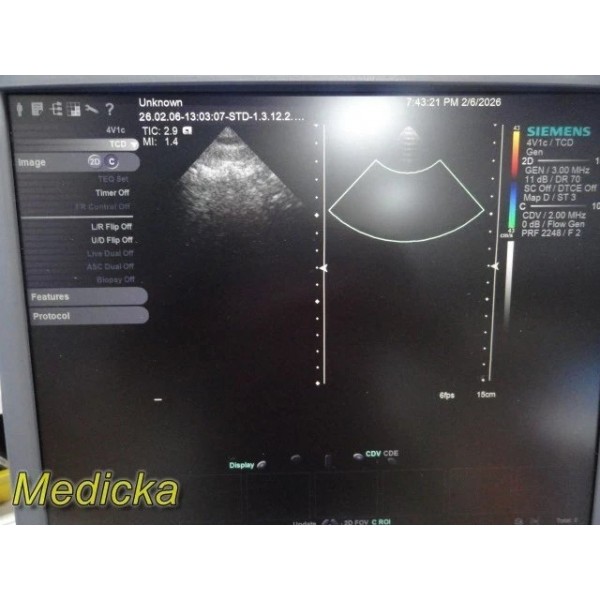

Functionality / Testing Summary:

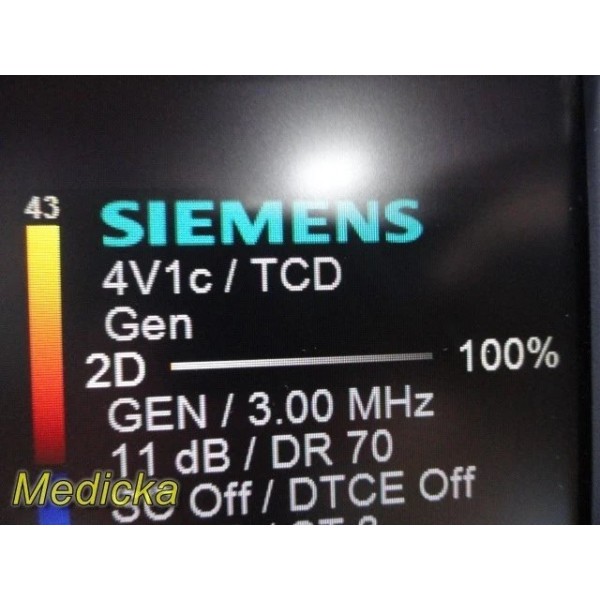

System Recognition

• Probe was connected to and recognized by a Siemens ACUSON 2000 ultrasound system (system not included)

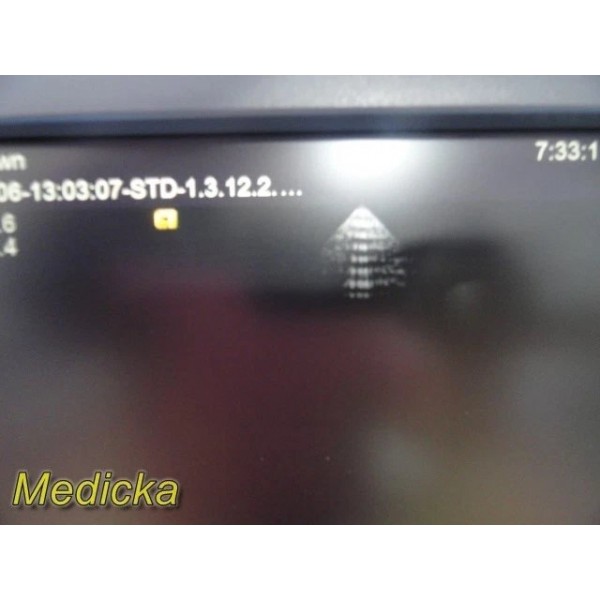

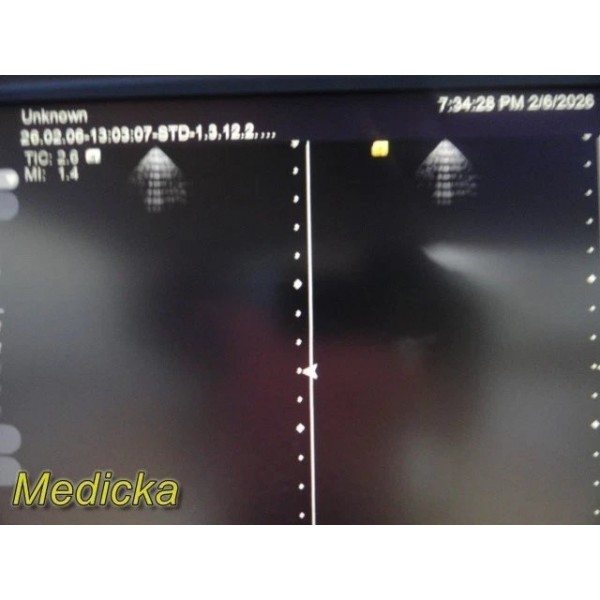

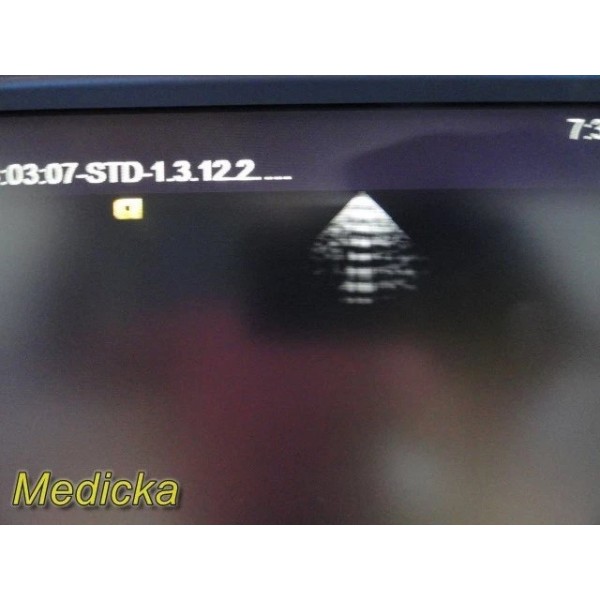

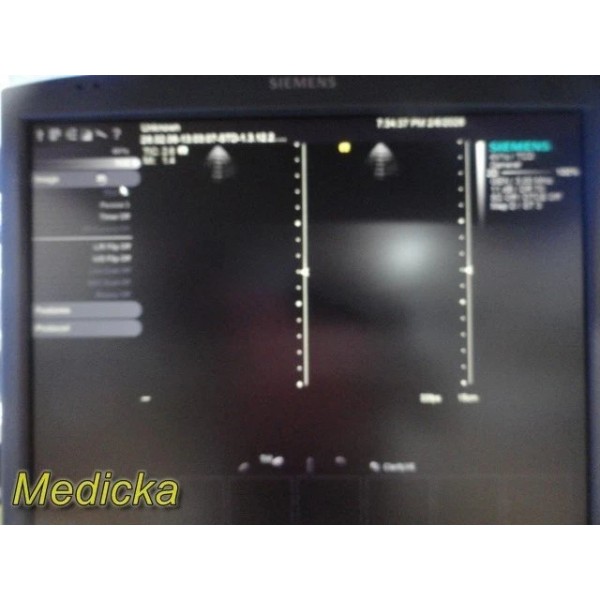

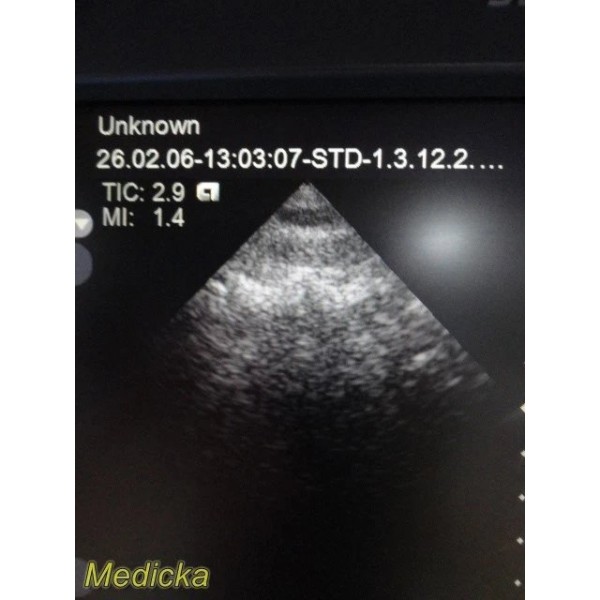

Air Scan

• Air scan performed
• Image generated; buyers are requested to review provided images
• No definitive conclusions drawn beyond basic image presence

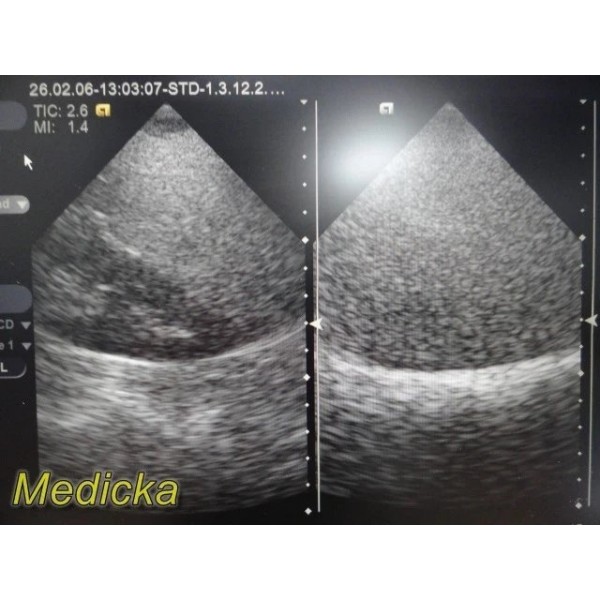

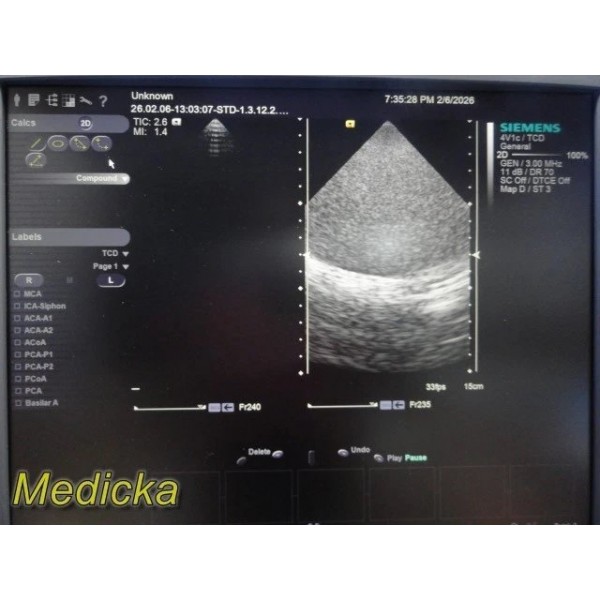

Phantom Scan

• Phantom scan performed using an in-house phantom
• Due to limitations of the available phantom, no qualitative judgment is made regarding phantom image quality
• Buyers are encouraged to review images provided
• Phantom used for testing is not included

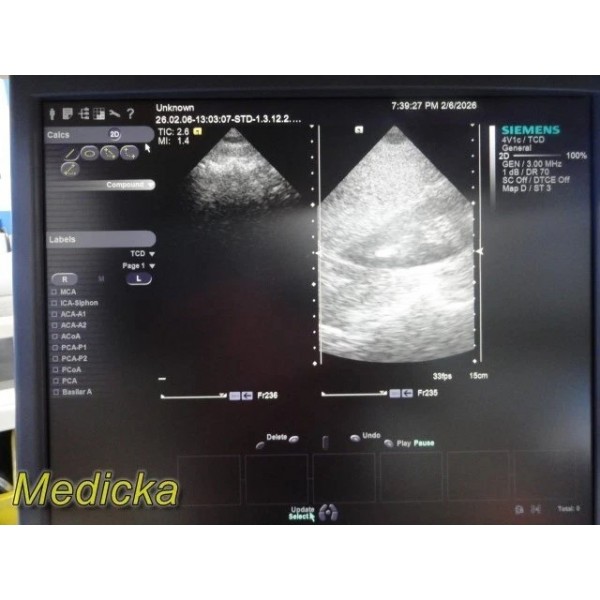

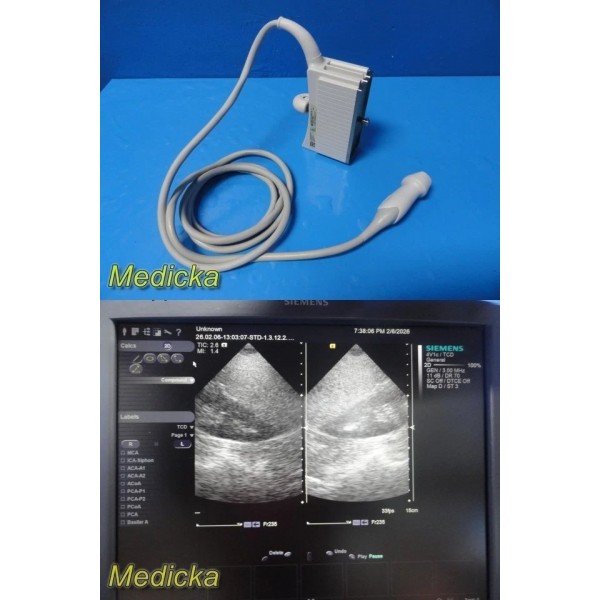

Body Scan

• Body scan performed by placing the probe on the right upper quadrant
• Hepatorenal imaging performed
• Echotexture of solid organs (liver and kidney) visualized
• Buyers are requested to review images and make their own assessment

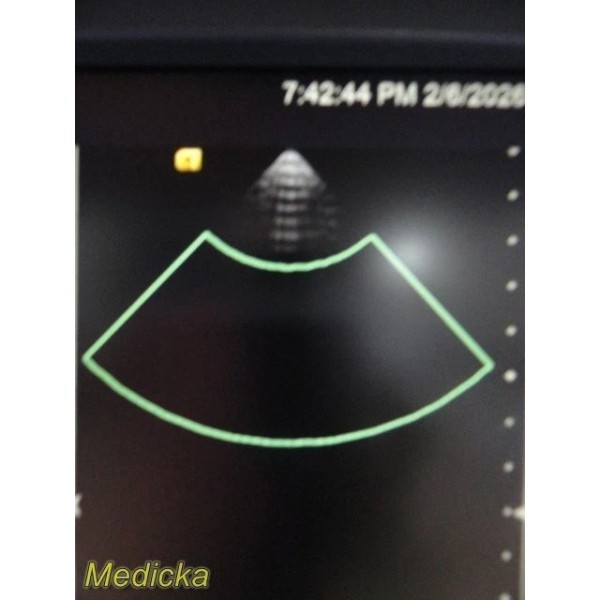

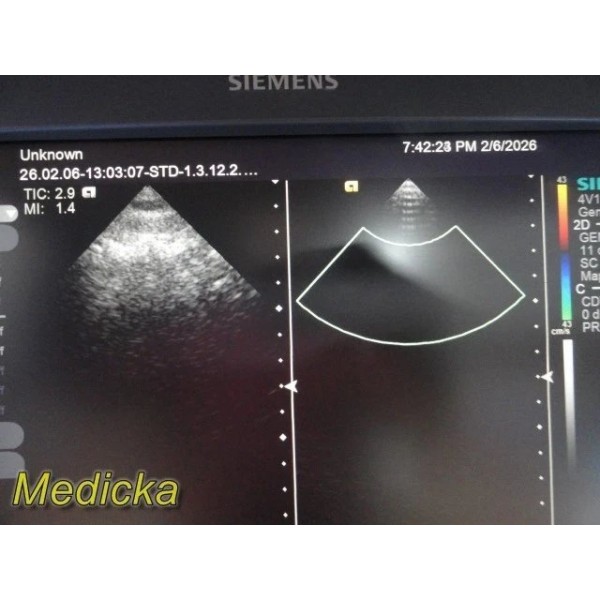

Vascular / Color Doppler Scan

• Vascular scan performed by placing the probe on the right carotid artery
• Color Doppler flow observed and appears decent
• Buyers are requested to review provided color flow images

Additional Notes

• No cardiac-specific measurements, quantitative analysis, or advanced examinations were performed
• No additional clinical or specialty testing conducted beyond what is described above

What Is Included:

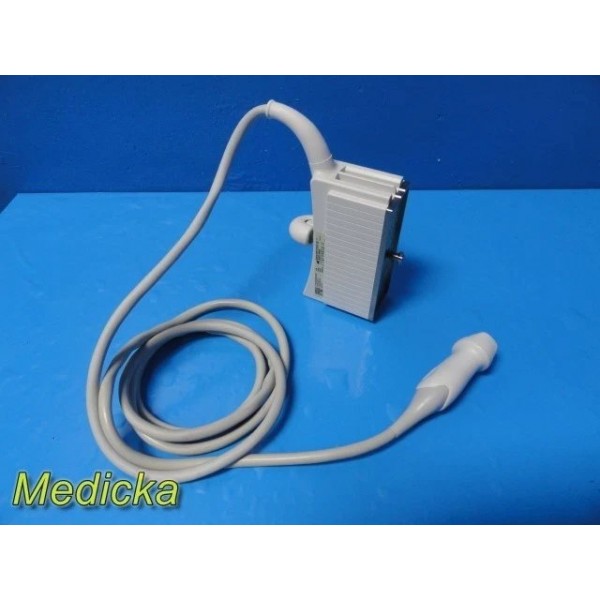

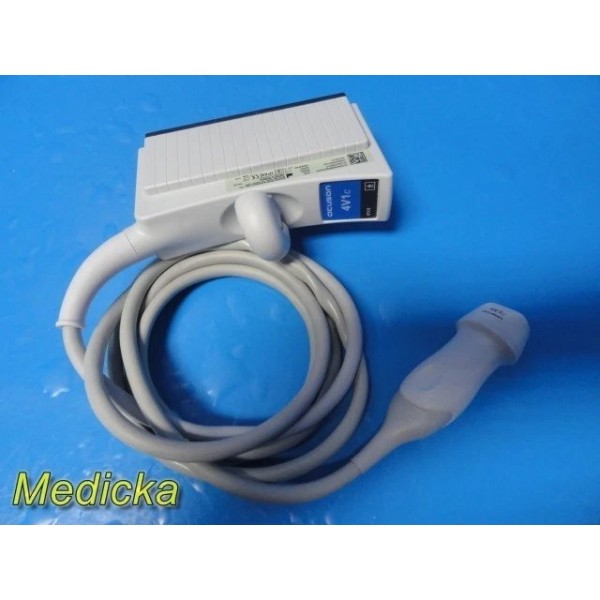

• Siemens ACUSON 4V1c Phased Array Ultrasound Transducer (Ref. 07695724), as pictured

What Is Not Included:

• Ultrasound system / console
• Phantom used for testing
• Storage case
• User manual
• Any disposables or accessories not shown

Buyer Advisory Note:

This ultrasound probe has undergone limited, basic functional testing only, as described above. Image quality assessment is subjective and dependent on clinical application, system configuration, and operator technique. Buyers are encouraged to review all provided images carefully to determine suitability for their intended use.

Shipping Note:

The probe will be professionally packaged to protect the scan head, cable, and connector during shipment.

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

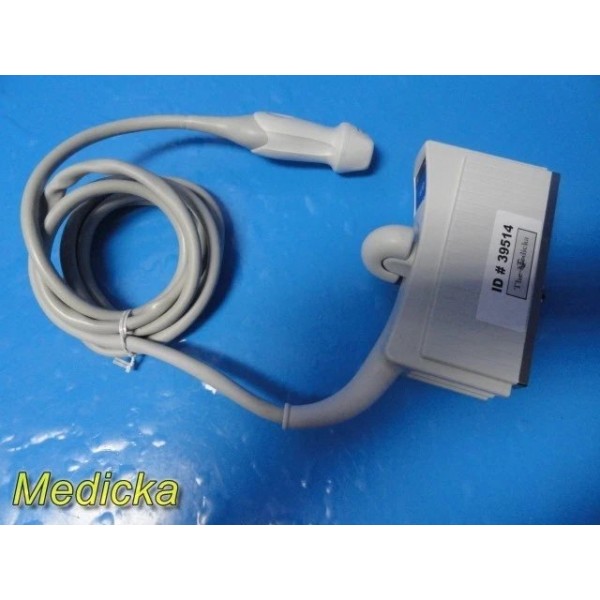

Stock ID : 39514 (P.O 2022) (Loc ?)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition: As seen in images - Good
2. 2.    Physical Condition: Please review images before bidding - Very Good
3. 3.    Working Condition: Has been tested at our end & is in good functionality....Will receive item as pictured…………(Offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
