CONMED System 2450 GEM Bipo...

Product details

Voltage:                  120V AC | 7.1 Amps | 50/60 Hz

Fuse Rating:          T8.0A 250V

Short Description:

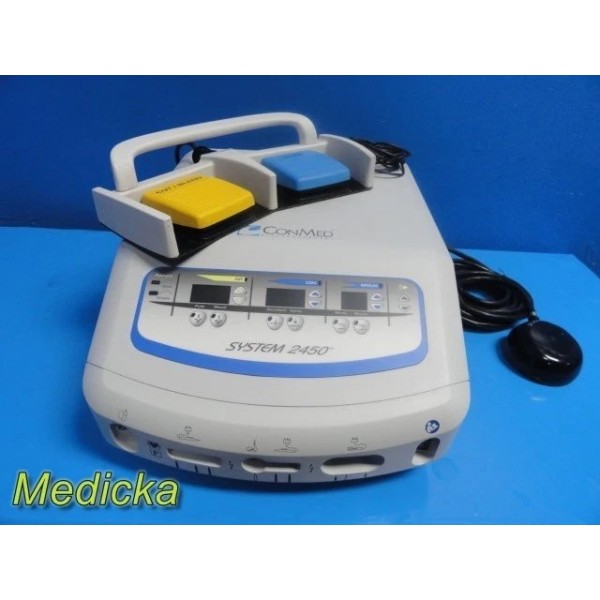

CONMED System 2450™ 120V Electrosurgical Generator complete with Monopolar Dual Footswitch, Bipolar GEM Footswitch, and Covidien RapidVac Remote Switch Activator. Unit powers on, responds properly to controls, and was tested with compatible instruments. Overall in very good cosmetic and working condition.

Output Specifications:

Monopolar Modes:

• Pure Cut – 300W / 500Ω / 390–410 kHz
• Blend Cut – 200W / 500Ω / 390–410 kHz
• Standard Coag – 120W / 500Ω / 485–505 kHz
• Spray Coag – 80W / 500Ω / 485–505 kHz

Bipolar Modes:

• Macro – 70W / 300Ω / 390–410 kHz
• Micro – 70W / 50Ω / 390–410 kHz

Duty Cycle: 15 sec ON / 30 sec OFF (Intermittent Operation)

Condition Summary:

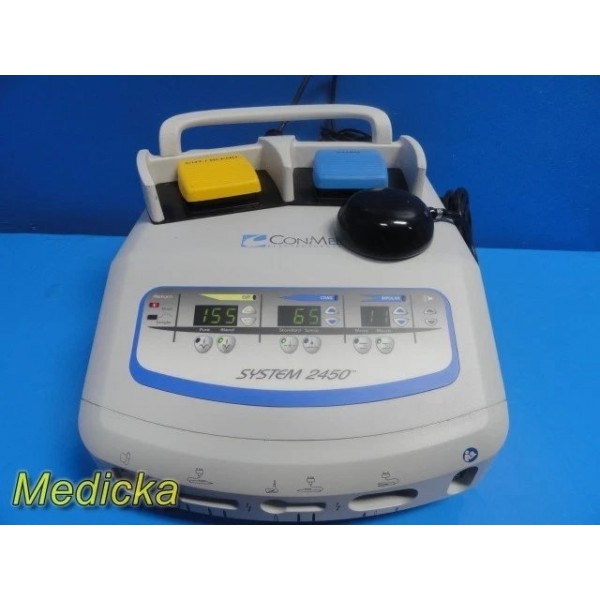

Electrosurgical Generator:

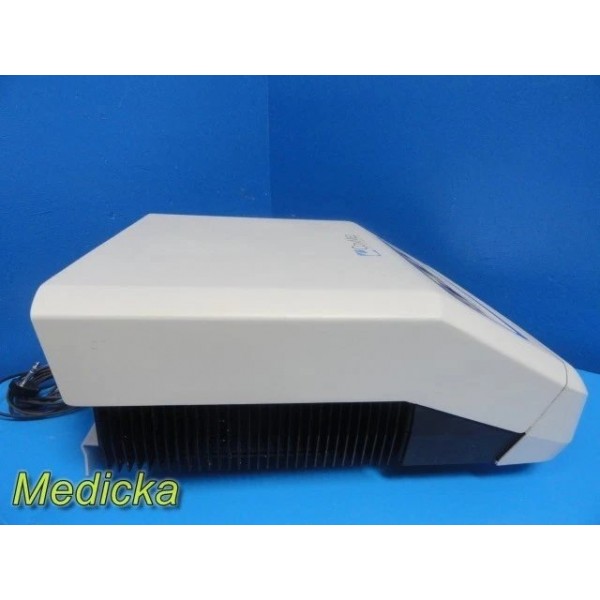

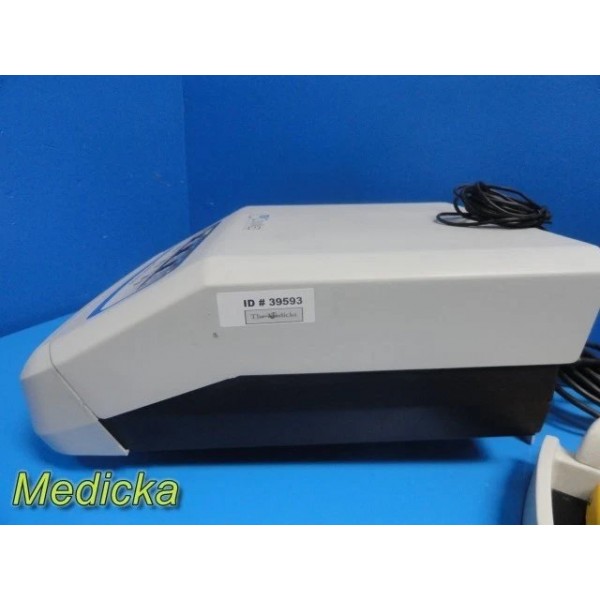

Unit is in very good cosmetic condition. Light surface scratches and minor scuffs noted consistent with normal use. Small paint loss/chips noted on upper housing in sporadic areas. No dents observed in metal chassis.

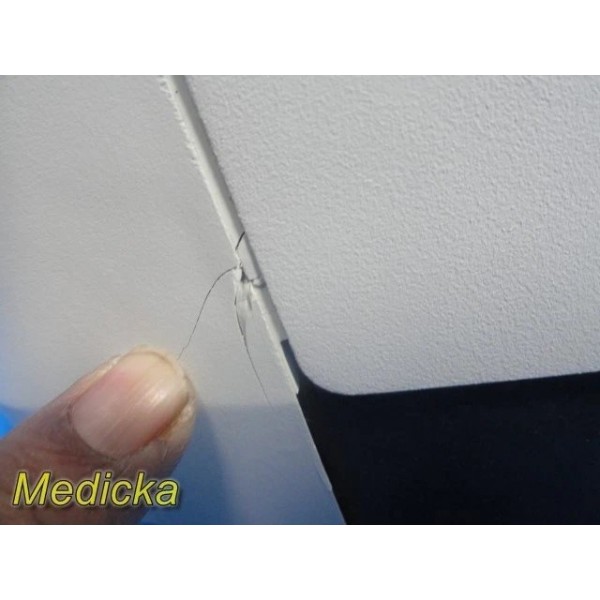

A small crack is noted on the right front bezel panel (clearly shown in images). Does not affect functionality.
Rear handle and bottom mounting plate are intact. Mount plate allows secure placement on compatible ESU carts.
All soft-touch control buttons are responsive.

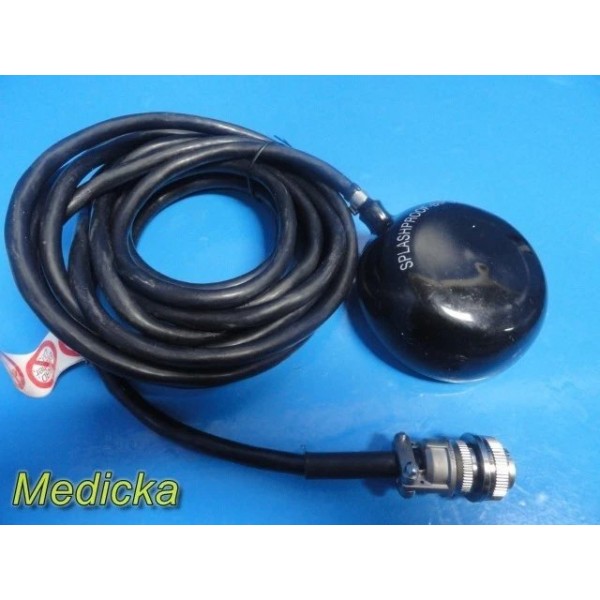

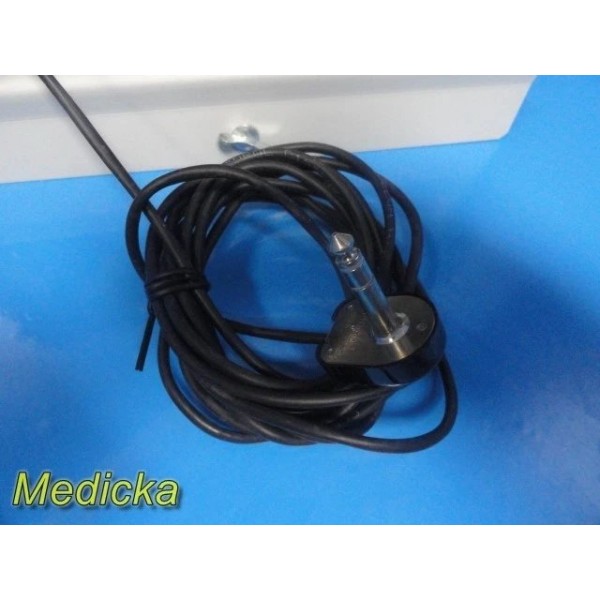

Bipolar Footswitch – GEM Switch

Manufacturer: CONMED
CAT No: GEM-VK2 (60-5103-002)
Lot: 390719

• Splash-proof bipolar footswitch
• Approx. 15 ft cable
• Dome housing intact with no cracks
• Cable insulation intact with no cuts or tears
• Strain relief intact
• 3-pin male connector with locking screw in great condition
• Pedal responsive to command

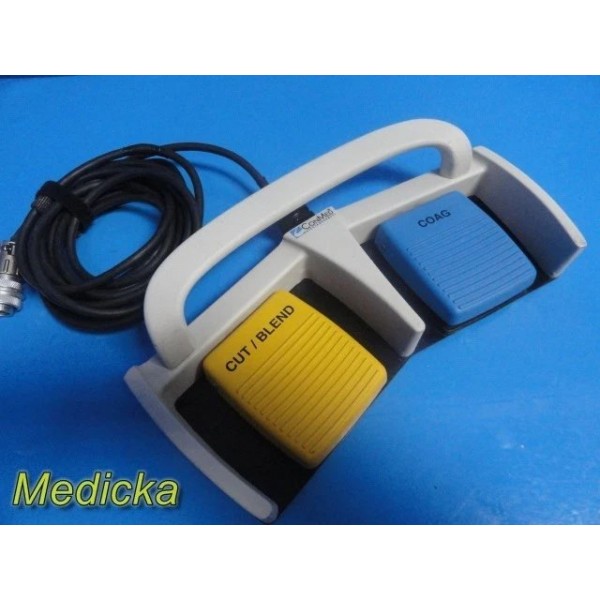

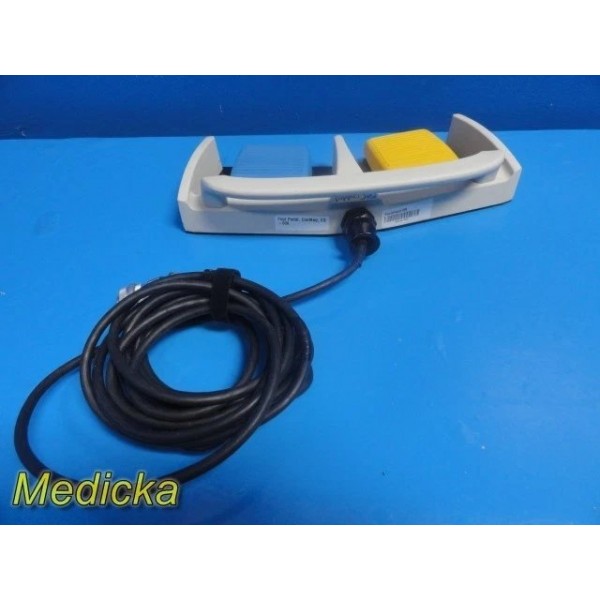

Monopolar Dual Footswitch:

CONMED CAT No: 60-6700-001
Lot: 546910R

• Dual pedal (Yellow = Cut/Blend, Blue = Coag)
• Approx. 15 ft cable
• One section of cable insulation has a tear that has been taped (visible in images)
• Strain relief intact
• 4-pin locking connector intact
• No bent or broken pins
• Pedals responsive

RapidVac Remote Switch Activator

Manufacturer: Covidien
REF: SEA3740
Approx. 8 ft cable
Unit appears intact and functional.

Functionality / Testing Summary:

Device powers on and initializes properly.

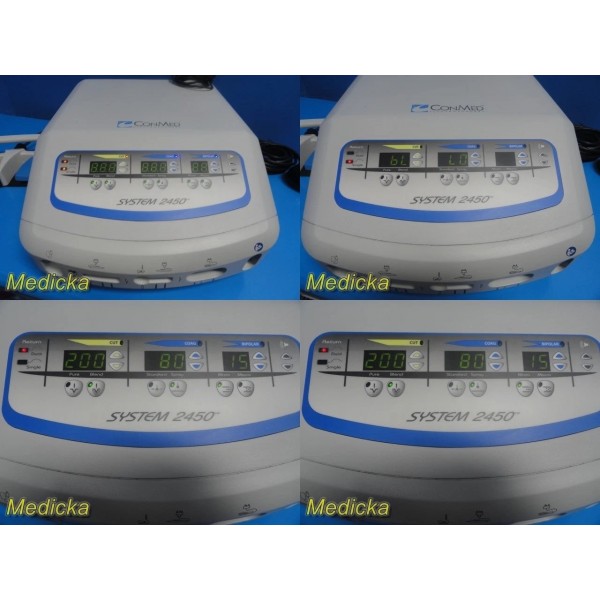

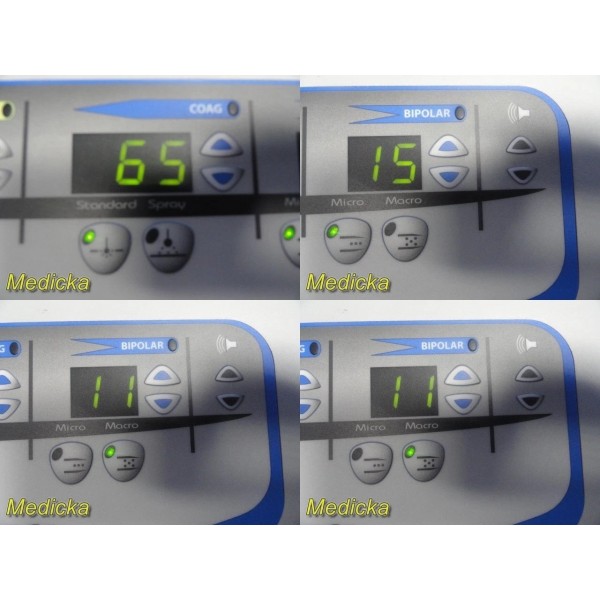

Digital displays illuminate correctly.

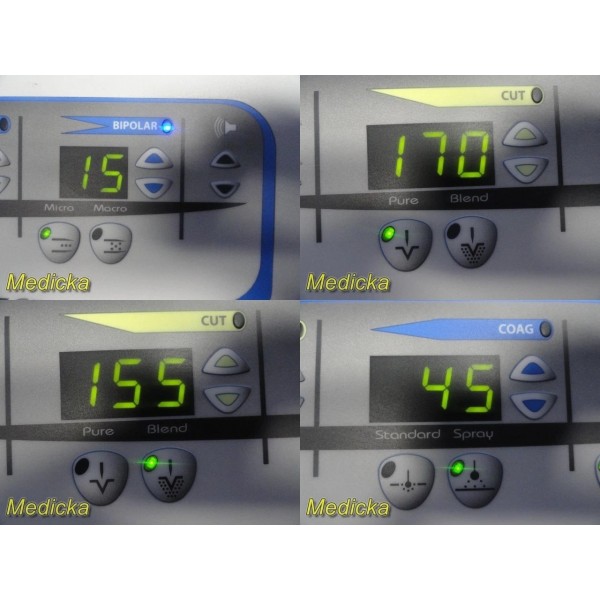

Cut, Coag, and Bipolar modes respond appropriately to control inputs.
Tested with compatible instrument — unit produced output as expected.
Footswitches activate corresponding modes properly.
Unit is functioning; however:
This unit has not been biomed certified and is not labeled as patient-ready.
Buyer is responsible for inspection, calibration, and certification prior to clinical use.

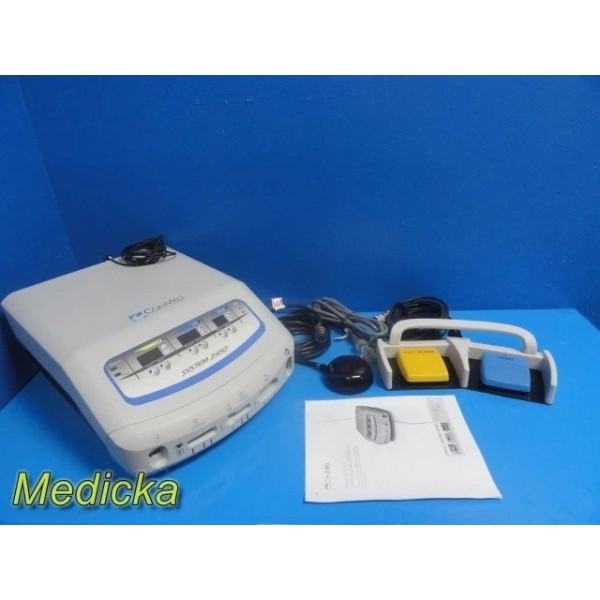

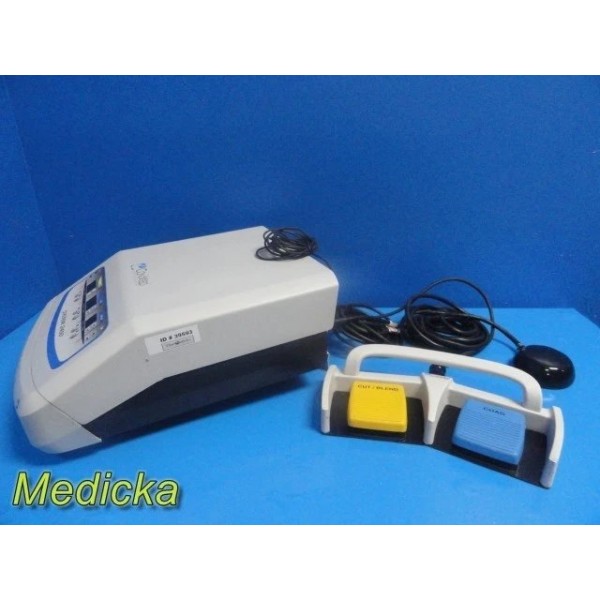

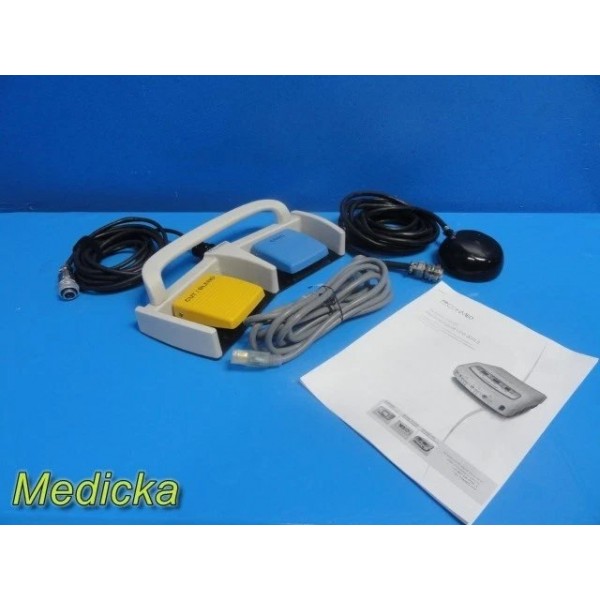

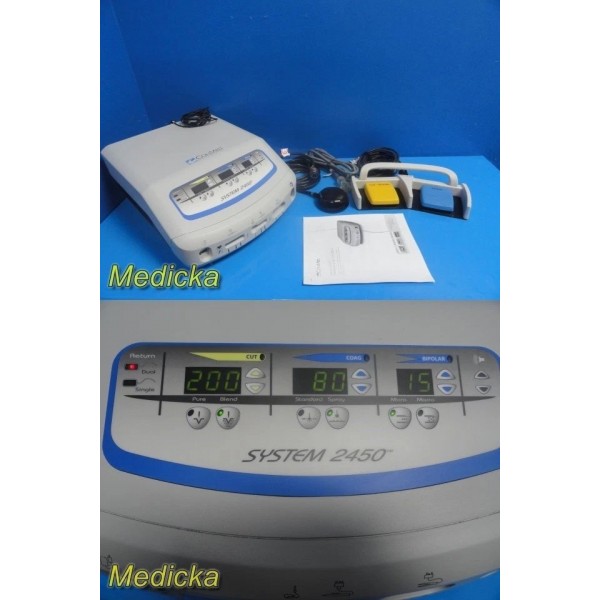

What Is Included:

• CONMED System 2450™ ESU (120V)
• CONMED Bipolar GEM Footswitch (CAT GEM-VK2 / 60-5103-002)
• CONMED Monopolar Dual Footswitch (CAT 60-6700-001)
• Covidien RapidVac Remote Switch Activator

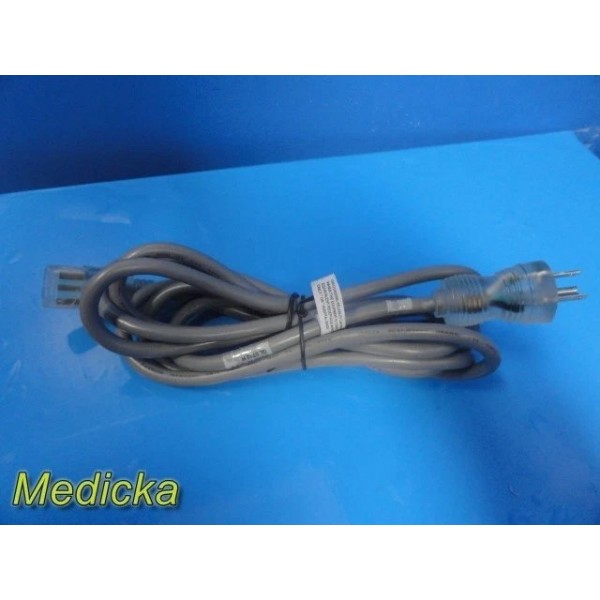

• Hospital-grade power cord

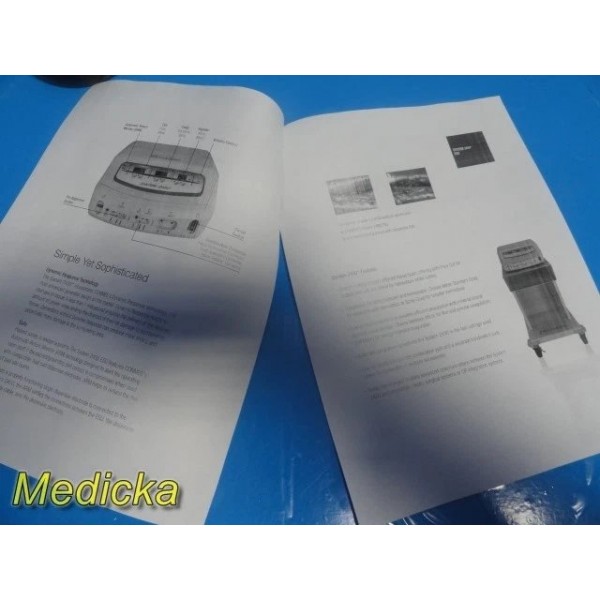

• Product literature (as shown)

What Is Not Included:

• Return electrodes (Dual or Single)
• Hand instruments
• Monopolar or bipolar surgical instruments
• Patient cables
• Additional accessories not shown
• Biomed certification

Buyer Advisory Note:
This device is being sold as preowned medical equipment. It powers on and functions as described but has not been biomed tested or certified. Buyer is responsible for ensuring compliance with facility standards and regulatory requirements prior to clinical use.

Shipping Note:
Unit will be professionally packed with footswitches secured to prevent cable stress during transit.

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

Stock ID: 39593 (P.O 4018) (105 888) - SHIPPING READY

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition: As seen in images - Very Good
2. 2.    Physical Condition: Please review images before bidding - Good
3. 3.    Working Condition: Tested with compatible instrument — unit produced output as expected.....Will receive item as pictured…………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
