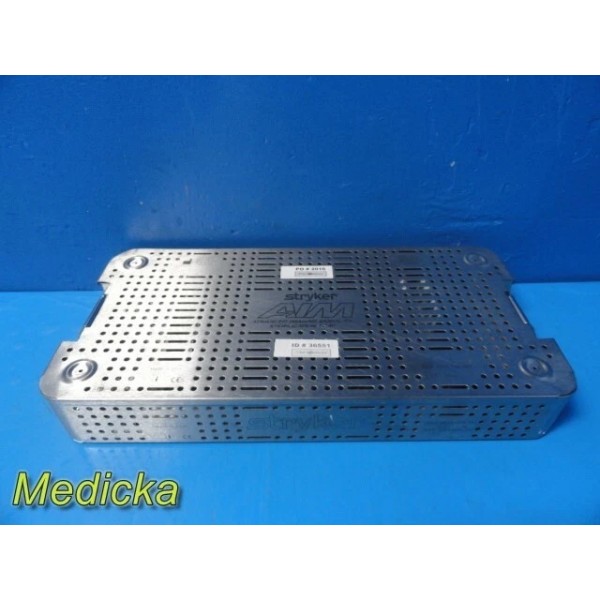

Stryker Ref 0233-032-301 & ...

Product details

Short description...

1. 1.      Sale is for imaged items only.
2. 2.   Signs of careful use.
3. 3.   Has been tested at our end & is in good functionality.

      *Made by Paragon Medical

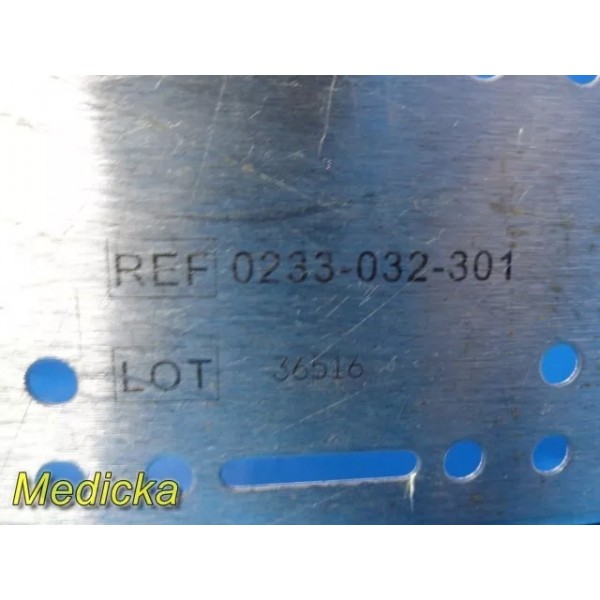

      *Lot# 36516

      *Lock clamps: Intact on all units

      *Handles: Intact on all units

      *Scratches & scuffs: Noted on all units

      *Dents: Maybe present

      *External size W/ lid: 20.75 x 10 x 3"

      *Instrument Basket: N/A

      *Retention Plates: N/A

      *Filter Plates: N/A

      *Uses: For stryker AIM camera, light cable, complex, rigid scopes & adapters

      *04 units are in stock

      *All have been cleaned & inspected

      *All enjoy similar condition

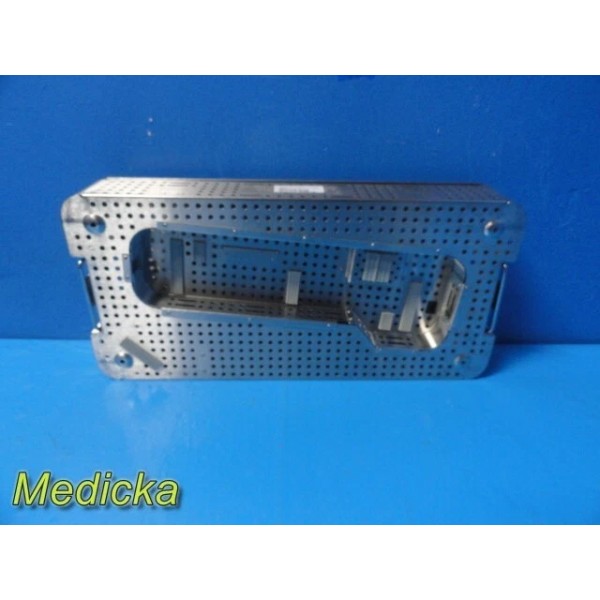

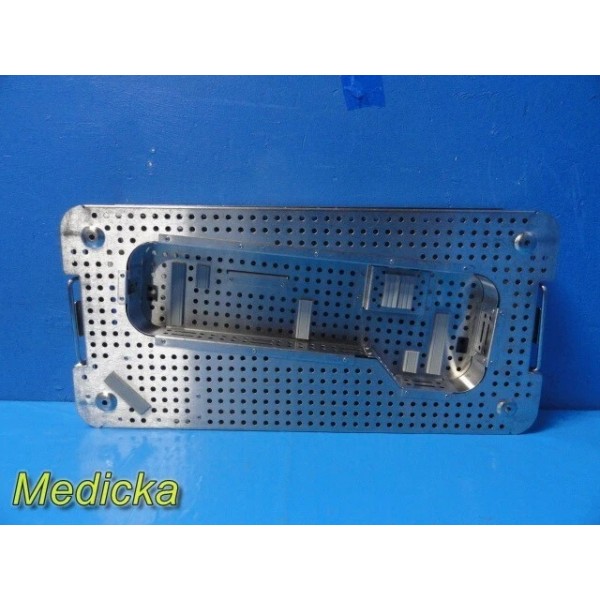

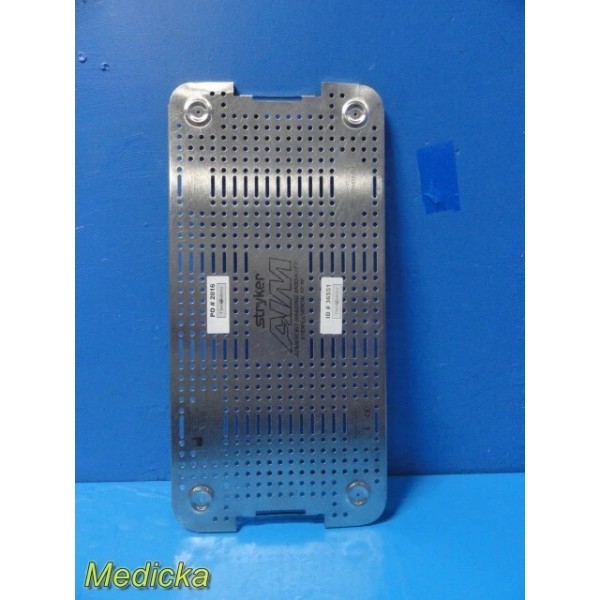

      *Please review images & check for compatibility before bidding for the item

KNOW THIS DEVICE BEFORE YOU BUY!

The Stryker 0233-032-301 Advanced Imaging Modality (AIM) Sterilization Tray is designed to enclose and organize Stryker Endoscopy reusable medical instruments during sterilization. It is compatible with various sterilization methods, including Ethylene Oxide (EtO), Prevacuum Steam, Gravity Steam, STERIS V-PRO, and STERRAD systems.

Specifications:

Capacity: Accommodates 1 Camera, 1 Light Cable, 1 Coupler, 2 Scopes & 2 Adapters

Maximum Tray Product Load: 10.58 lbs

Total Loaded Tray Weight: 10.58 lbs

Materials: Constructed from stainless steel with perforations to allow sterilizing agents to penetrate and sterilize enclosed devices.

Design Features:

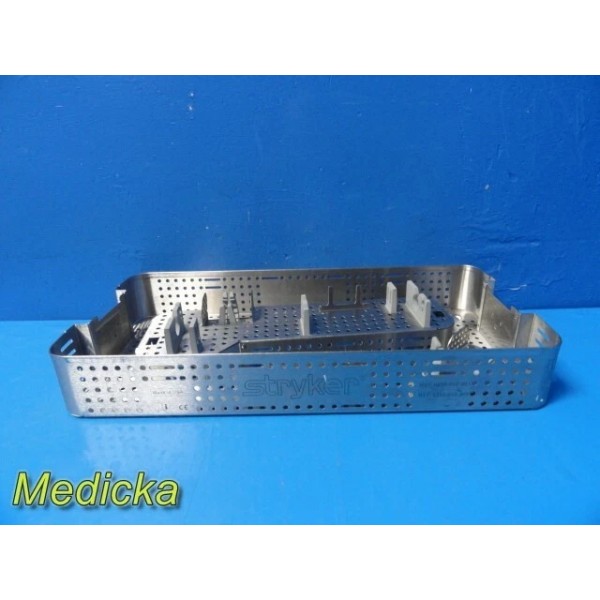

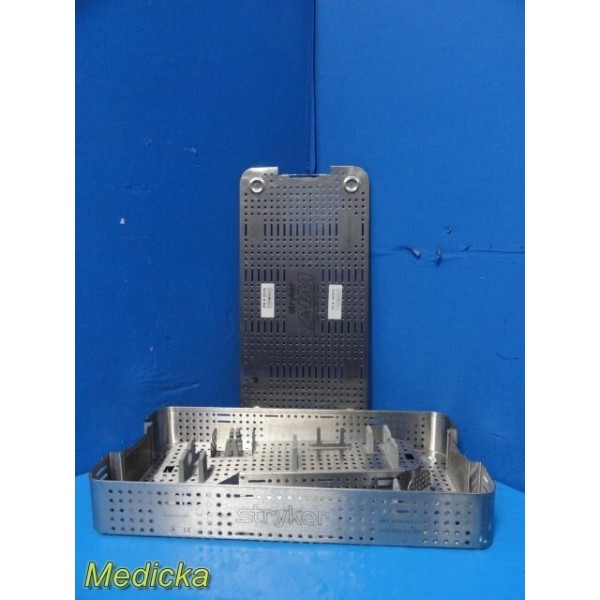

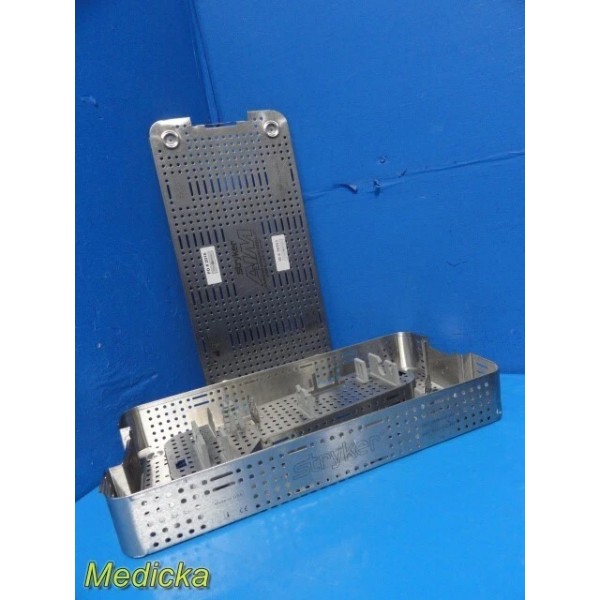

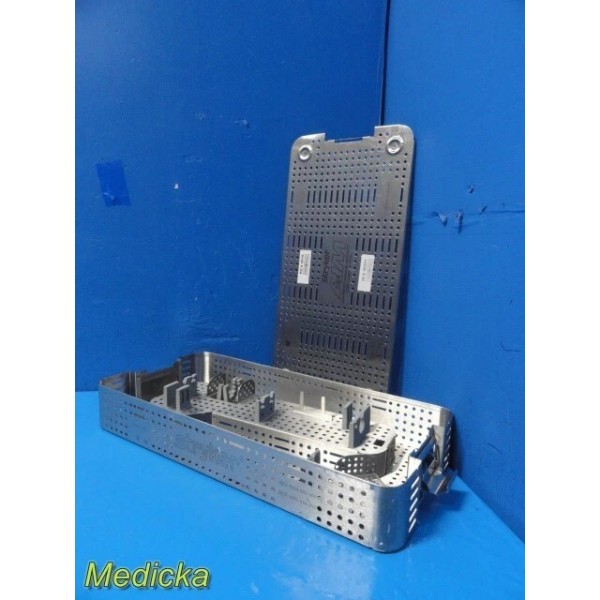

• Interlocking tray and lid, both perforated to facilitate sterilization.

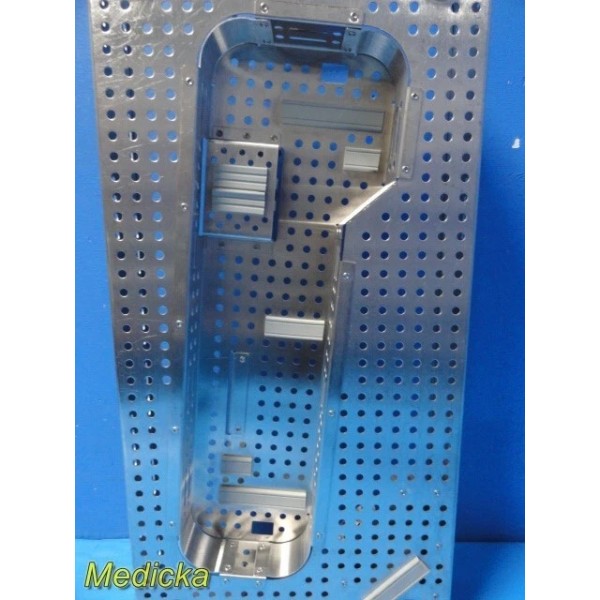

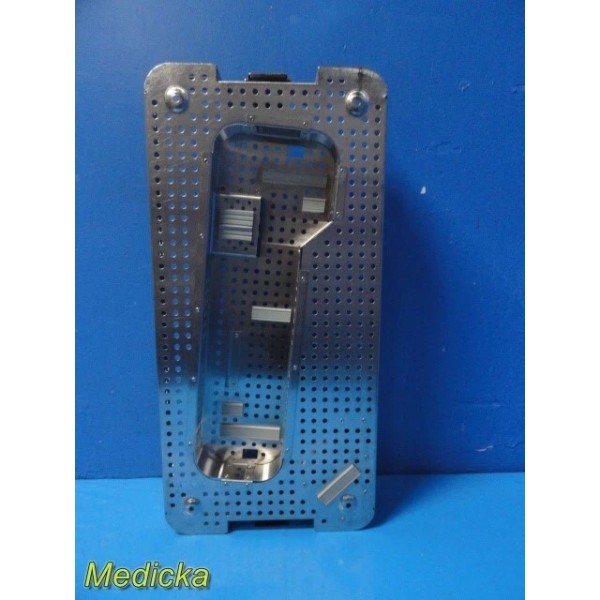

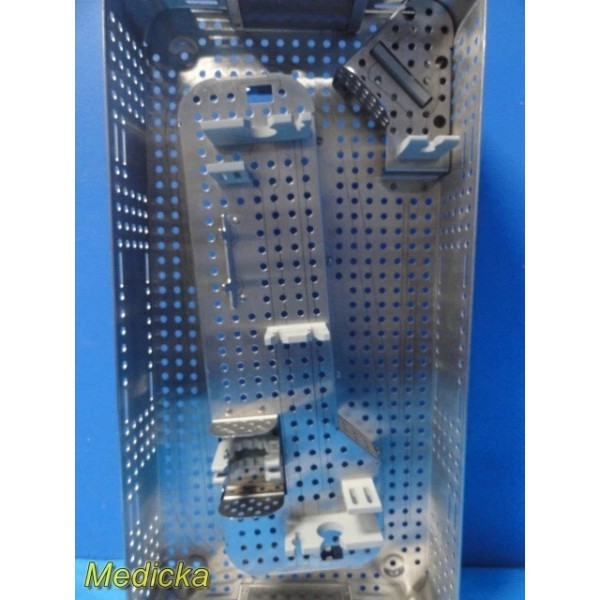

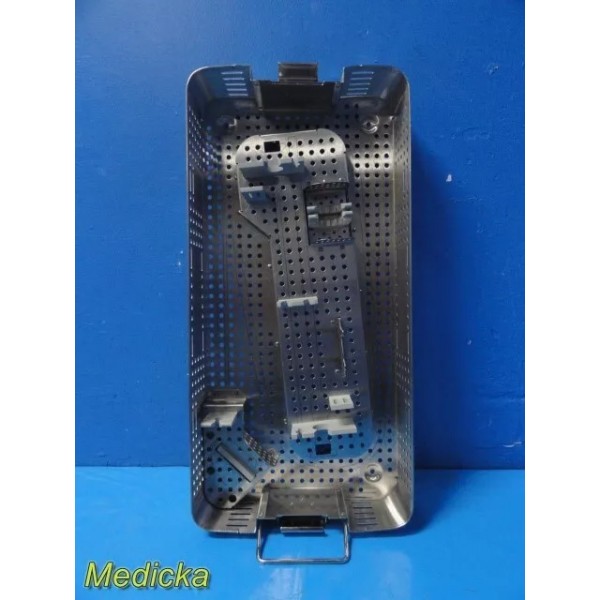

• Silicone brackets for secure fixation of devices within the tray.
• Side handles for easy carrying.

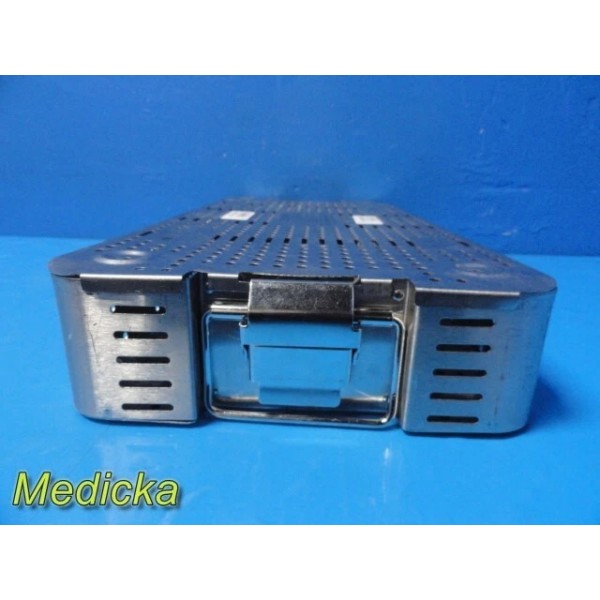

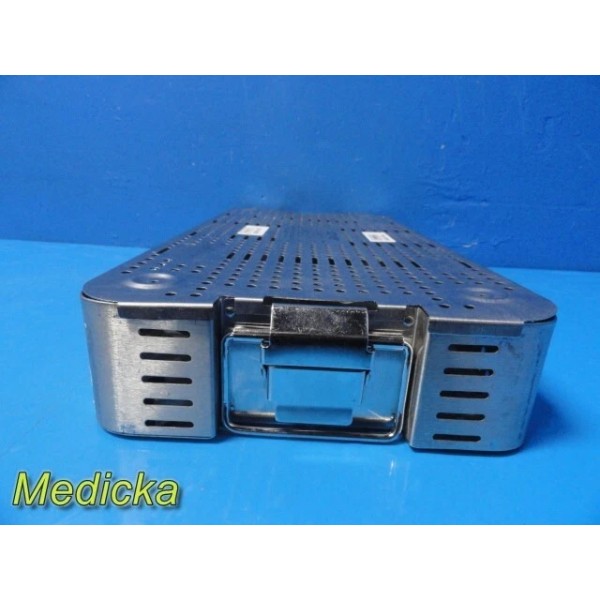

• Two latches to affix the lid to the base.

Sterilization Compatibility:

The tray is validated for use with the following sterilization cycles:

1. Ethylene Oxide (EtO):

• • Preconditioning at 55°C with 70% relative humidity.
• • Exposure with 725 mg/L concentration at 55°C for 1 hour. Aeration time of 12 hours at 35°C to 54°C.

2. Prevacuum Steam:

• • 132°C for 4 minutes with a 30-minute dry time. 134°C for 3 minutes with a 30-minute dry time.

3. Gravity Steam:

132°C for 15 minutes with a 30-minute dry time. 134°C for 10 minutes with a 30-minute dry time.

4. Low-Temperature Systems:

• • STERIS V-PRO 1, 1 Plus, and maX (Non-Lumen or Lumen cycles).
• • STERRAD 100S, NX, and 100NX (Standard cycles).

Usage Note:

The tray is intended to be used in conjunction with legally marketed, FDA-cleared sterilization wrap to maintain sterility of the enclosed devices.

    Package includes:-

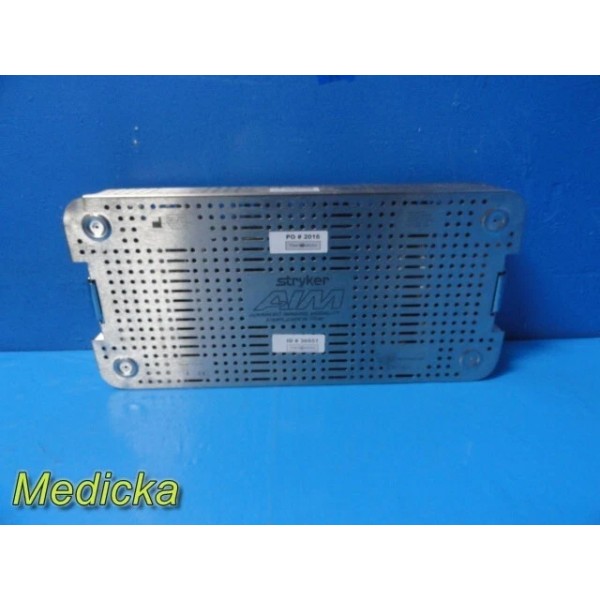

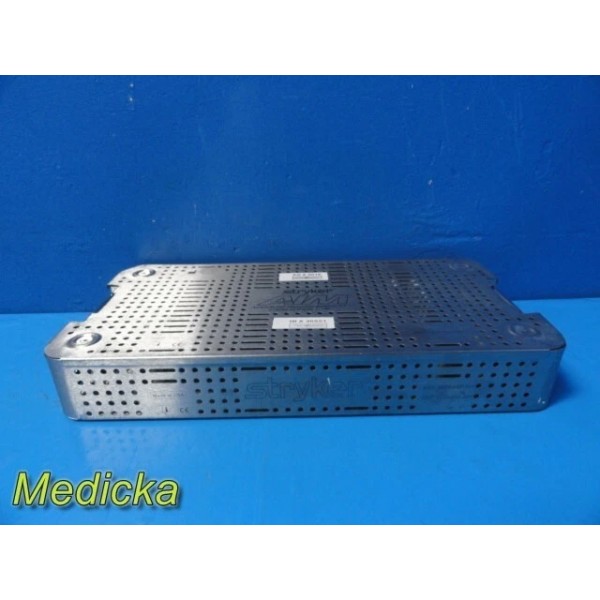

Stryker Ref 0233-032-301 & 0233-032-302 AIM Sterilization Tray W/ Lid

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

1. 6.        Sterilized : No
2. 7.        Manual : No
3. 8.        Cleaned : Yes
4. 9.        Shipping Weight  : 20 lbs

Stock ID : 36551 (P.O 2016) (SC6)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition: As seen in images - Very Good
2. 2.    Physical Condition: Please review images before bidding - Good
3. 3.    Working Condition: Has been tested at our end, review images for cosmetics...Will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
