Ludlum Model 14C Survey Met...

Product details

Power:                    2 × “D” cell batteries (Included)

Short description:

The Ludlum Model 14C is a rugged, handheld analog Geiger counter designed for alpha, beta, and gamma radiation surveying. It supports both an internal GM detector (0–2000 mR/hr range) and external GM or scintillation detectors via a Series “C” connector. Durable cast aluminum housing with handle and locking clamps ensures long-lasting reliability in industrial or laboratory environments. The unit bears a calibration seal (“Calibration Void If Seal Is Broken”), though the exact date of calibration is not available.

Specifications (Blended Features):

• Detector Options:


  • Built-in internal GM detector: 0–20 mSv/hr (0–2000 mR/hr)


  • Compatible with external GM/scintillation detectors (900 VDC)


• Range & Sensitivity: 200 CPM per mR/hr, up to 2000 mR/hr
• Energy Response: 60 keV – 3 MeV, within ±15% (internal)

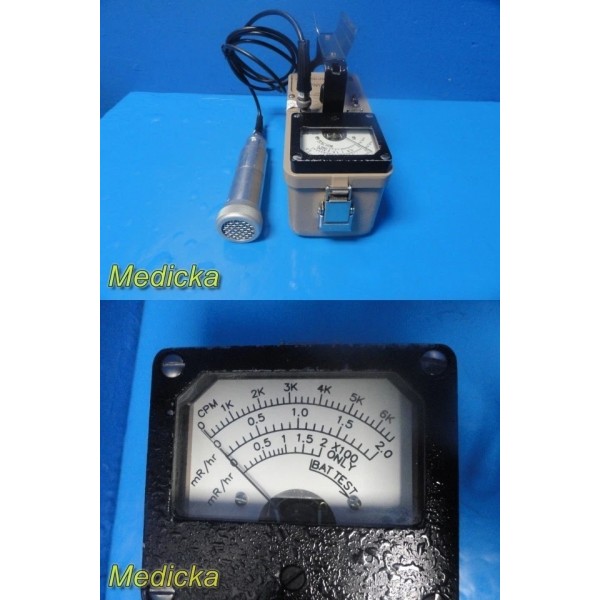

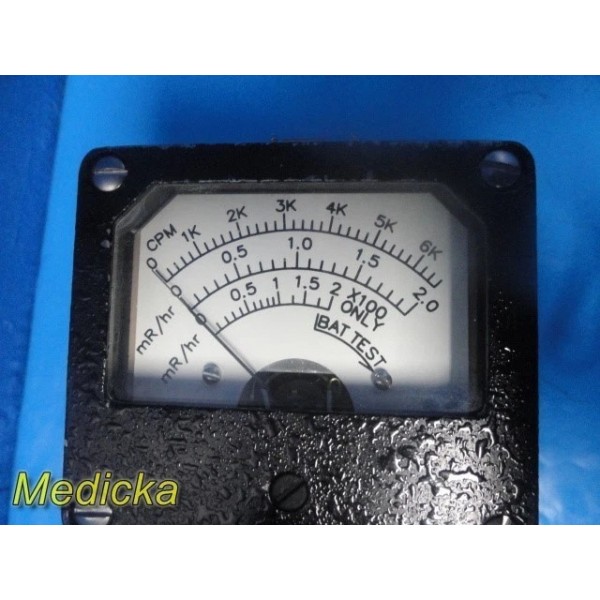

• Meter: 6.4 cm (2.5 in) analog, 1 mA, 5-scale

• Controls:

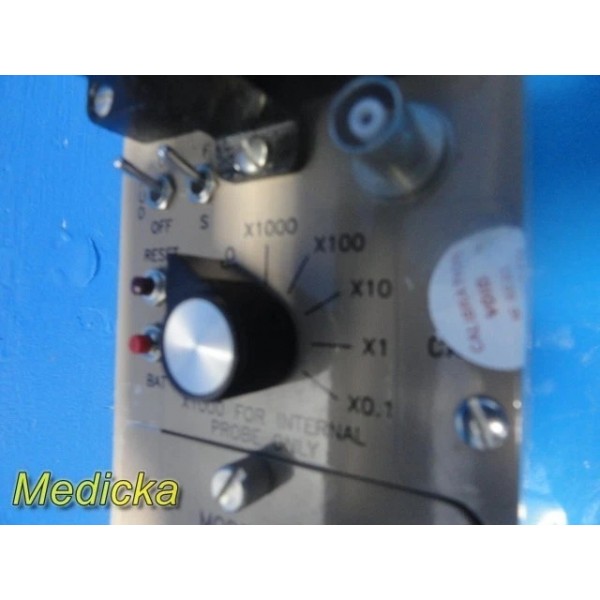

  • Rotary selector: Off, ×0.1, ×1, ×10, ×100, ×1000


  • Response switch: Fast (4 s) / Slow (22 s)


  • Reset and battery test buttons


  • Audio toggle (built-in speaker >60 dB @ 0.6 m)

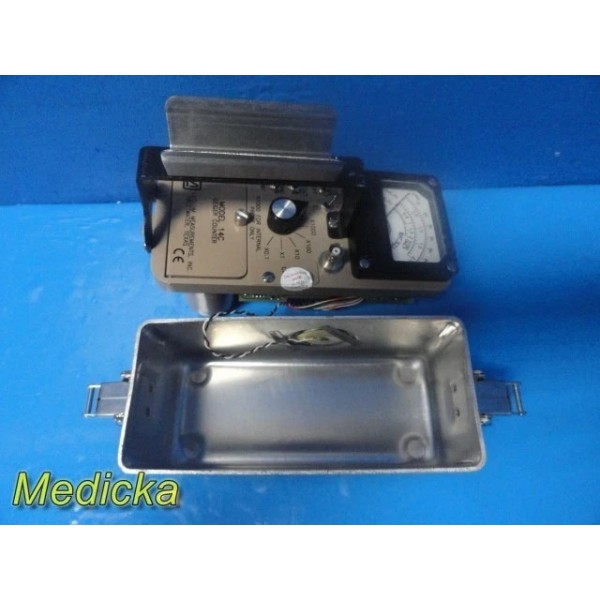

• Construction: Cast & drawn aluminum, beige powder coat
• Size: 16.5 × 8.9 × 21.6 cm (6.5 × 3.5 × 8.5 in)
• Weight: 1.6 kg (3.5 lbs) with batteries
• Operating Range: –20 to 50 °C; <95% RH

Condition:

• Unit has some scratches/scuffs but no dents or cracks on housing.

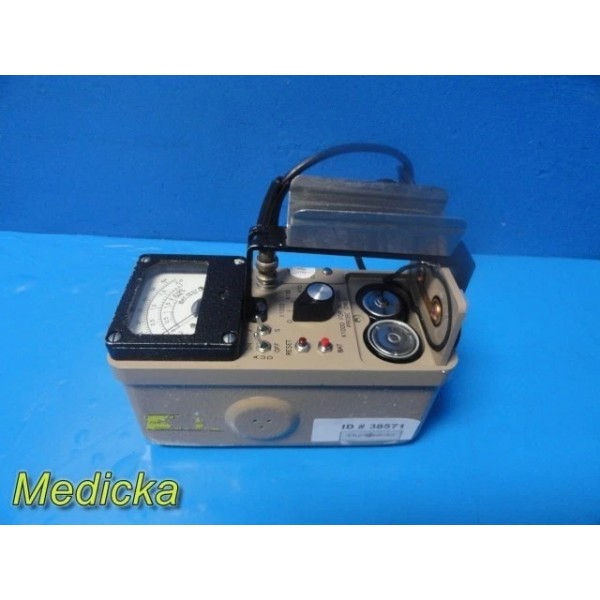

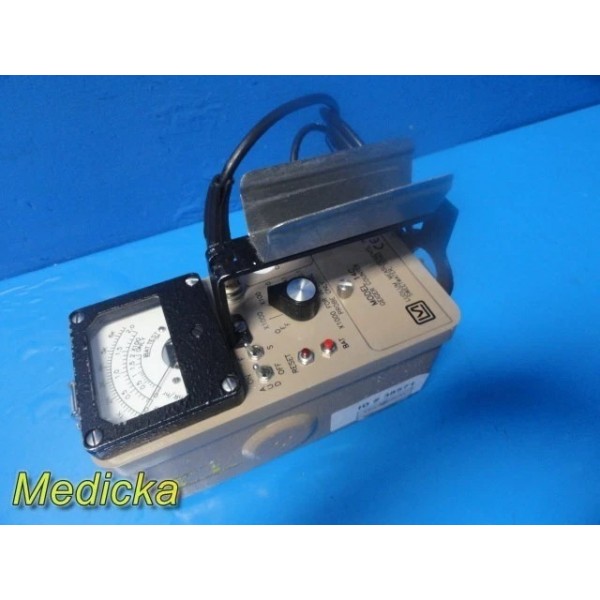

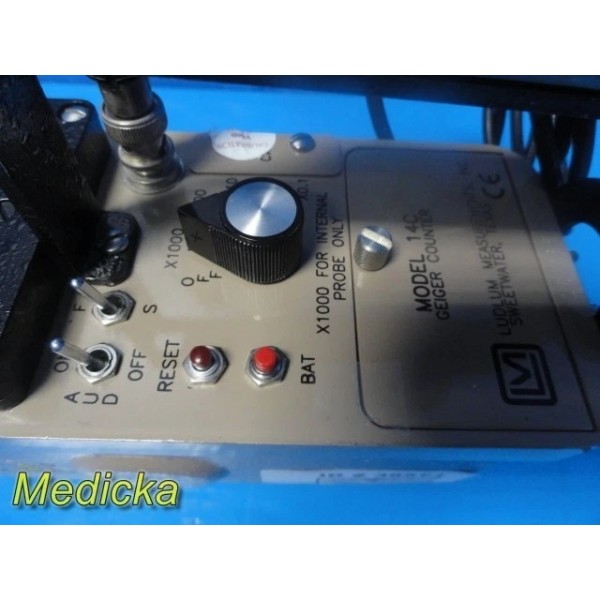

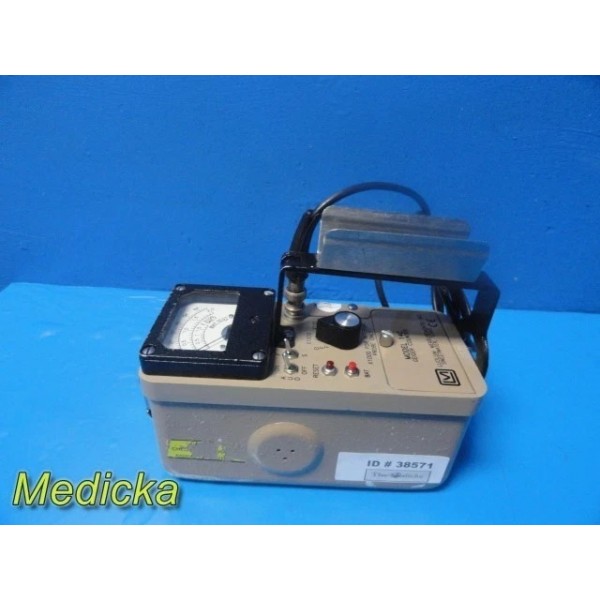

• Front panel, knobs, toggle switches, and meter face intact.

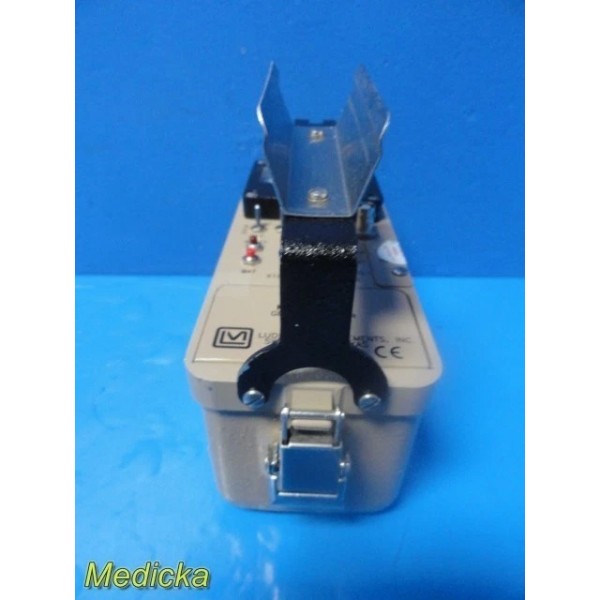

• Locking clamps and handle secure.
• Probe shows cosmetic wear but remains intact.
• Interface cable (~5 ft) is included, insulation in good shape though strain relief has a minor tear.
• Batteries are present, condition unknown; advised to replace before use.
• Calibration seal present (“Calibration Void If Seal Is Broken”) – calibration date not visible.
• Audio output functional; battery test passed. Further testing not performed.

Functionality Summary:

• Unit powers on; analog meter responds.
• Battery check passed successfully.
• Audio seems operational.
• External probe connectivity intact.
• Full radiation detection not tested; selling as working condition based on power-up checks.

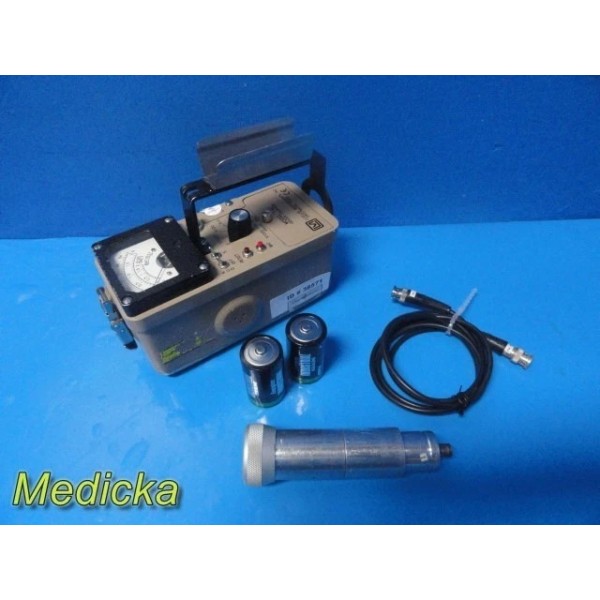

What’s Included:

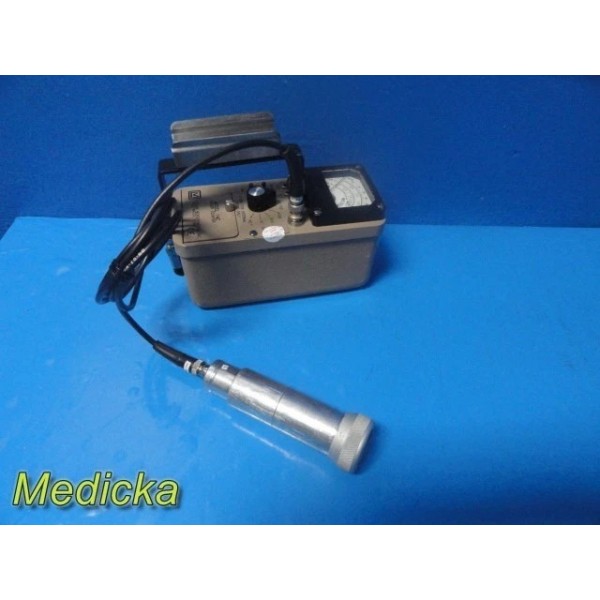

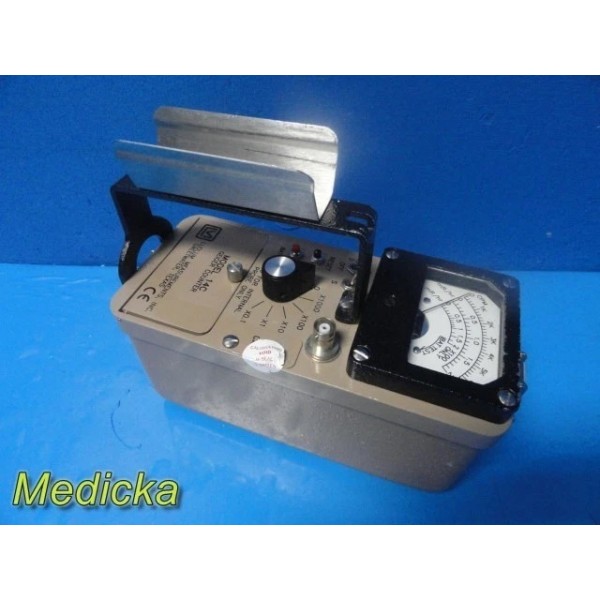

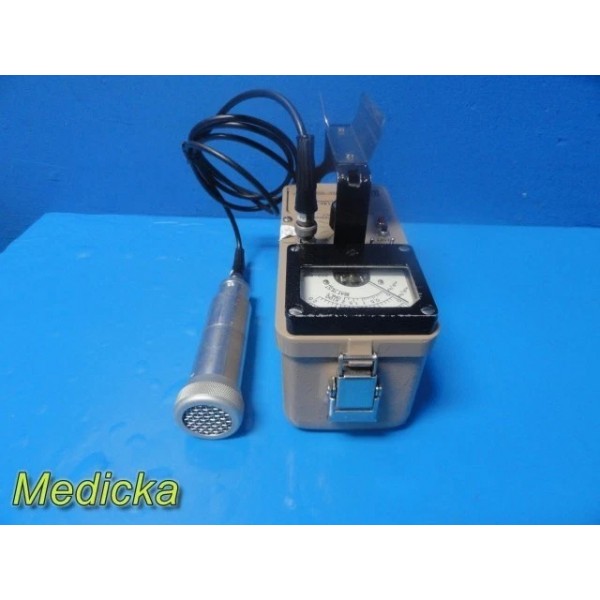

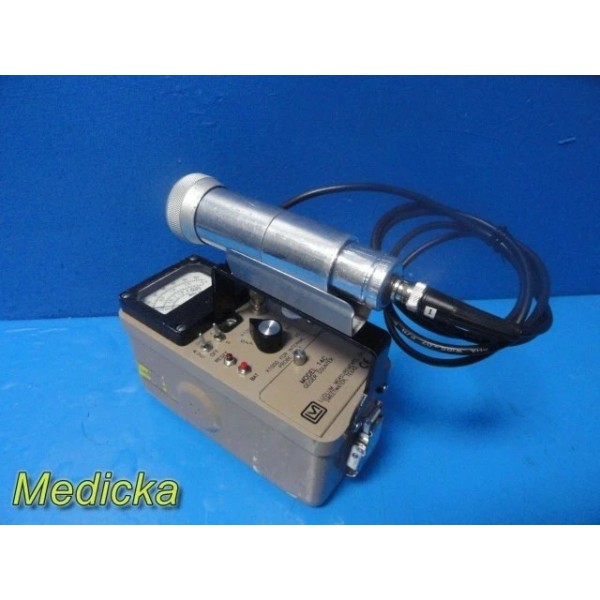

• Ludlum Model 14C Survey Meter Console

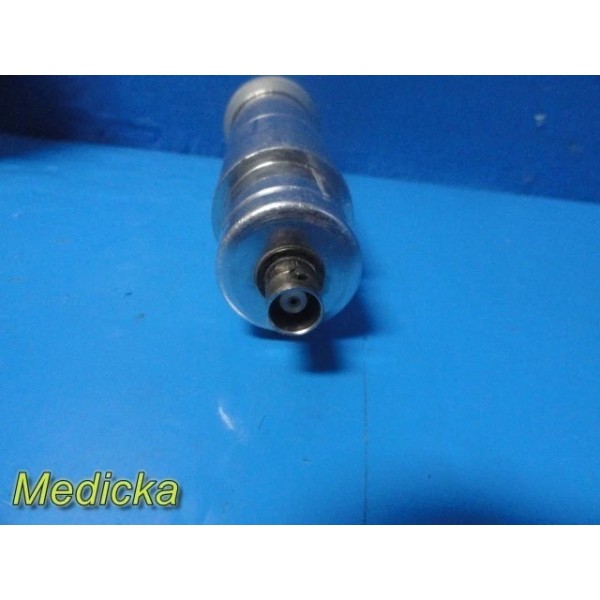

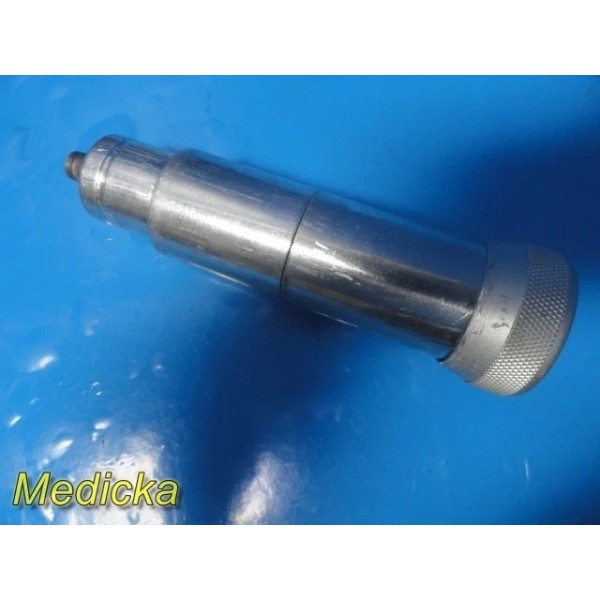

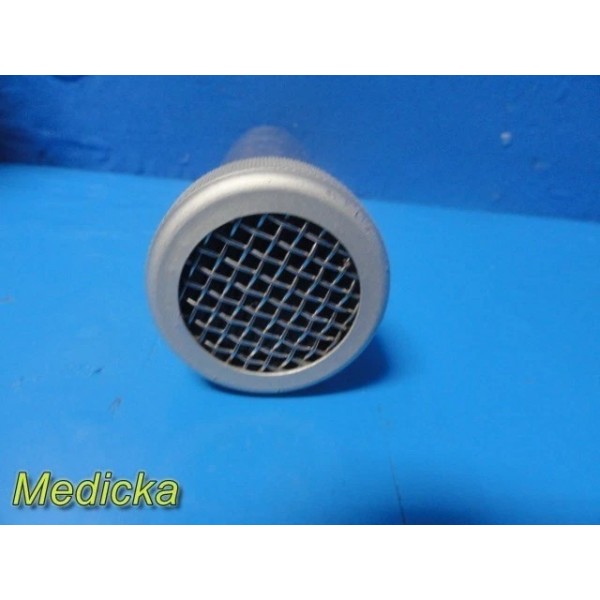

• External Probe (metal cylindrical type)

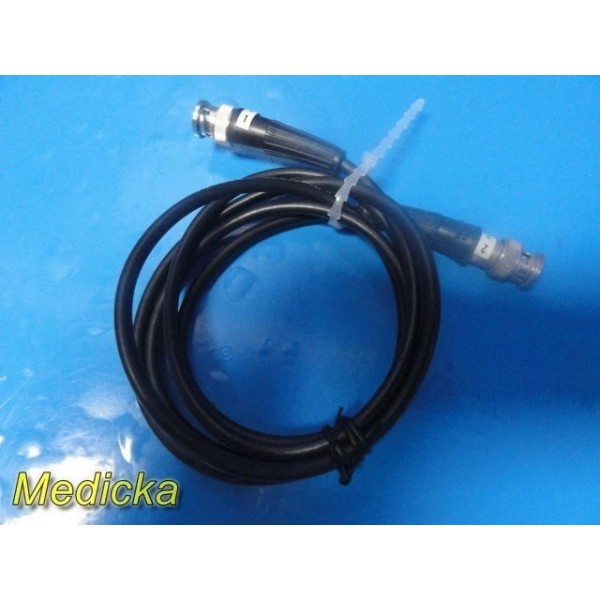

• Interface Cable (~5 ft, BNC ends)
• 2 × “D” Cell Batteries (included, condition unknown)

What’s Not Included:

• User Manual
• Calibration certificate/date record
• Additional probes or accessories not listed above

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

Stock ID : 38571 (P.O 2019) (R3 C17)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition: As seen in images - Very Good
2. 2.    Physical Condition: Please review images before bidding - Very Good
3. 3.    Working Condition: Unit powers on; analog meter responds| Seems working to us.....Will receive item as pictured…………(Offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
