Device Profile – Masimo Root Patient Monitoring Platform w/ Radical‑7 Rainbow SET

Manufacturer: Masimo Corporation
System: Masimo Root Patient Monitoring & Connectivity Platform
Integrated Module: Radical‑7 Rainbow SET Pulse CO‑Oximeter

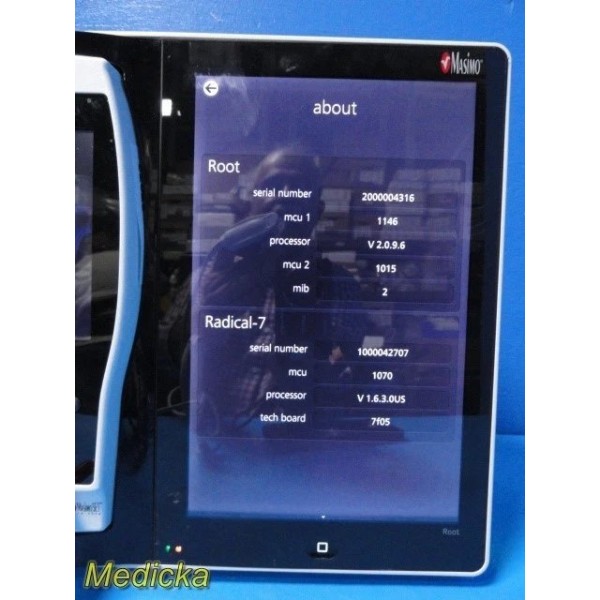

Root Platform Details

• Model: RDS7A
• Serial Number: 2000004316 (DOM 2014)
• Processor Version: V2.0.9.6 MCU 1 / MCU 2: 1146 / 1015 MIB: 2
• Power: 100–240V AC, 47–63Hz, 180VA Max
• Assembly: Designed in California, Assembled in Mexico
• CE Marked: Yes

Radical‑7 Module Details

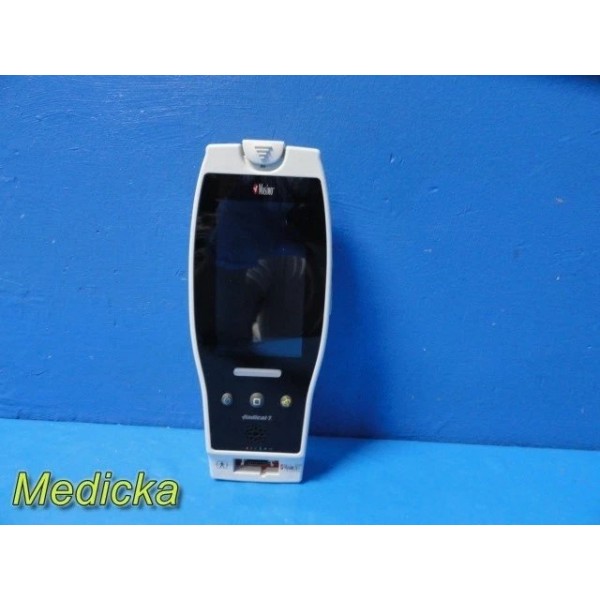

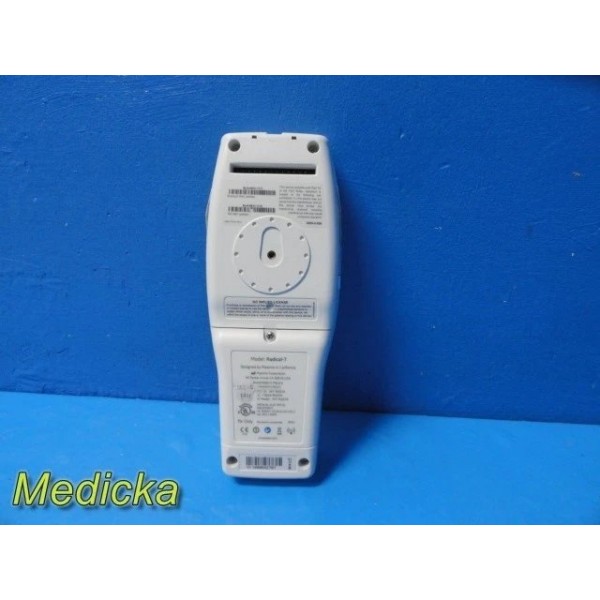

• Model: Radical‑7 Rainbow SET
• Serial Number: 1000042707
• Date of Manufacture: 2014
• Processor Version: V1.6.3.0US MCU: 1070
• Tech Board: 7F05 Power: 100–240V AC, 47–63Hz, 55VA Max
• CE Marked: Yes

Installed / Verified Parameters

• Masimo SpO₂
• Pulse Rate (BPM)
• Perfusion Index (PI)
• Pleth Waveform
• Rainbow® Visualization
• Note: NIBP and Temperature are not included on this configuration.

Connectivity & Features

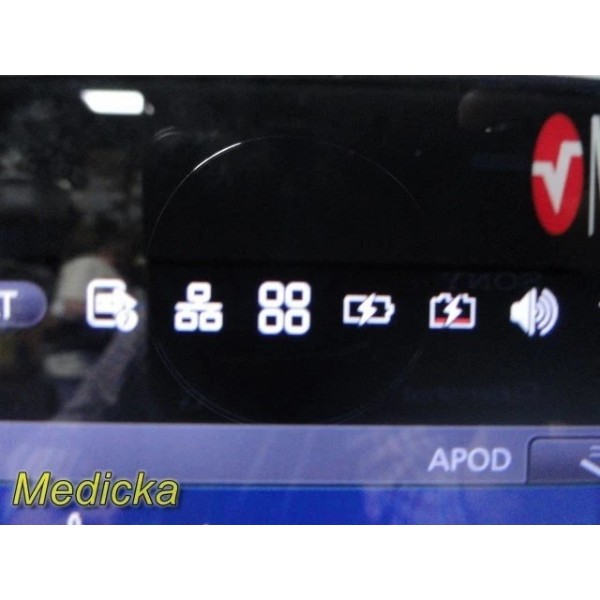

Wi‑Fi • Bluetooth • Multi‑language support • Adult/Pediatric/Neonatal profiles • Rainbow® interface • Trend menus • IRIS connectivity • Device output settings • Access‑control menus • Integrated underside mount

Short Description

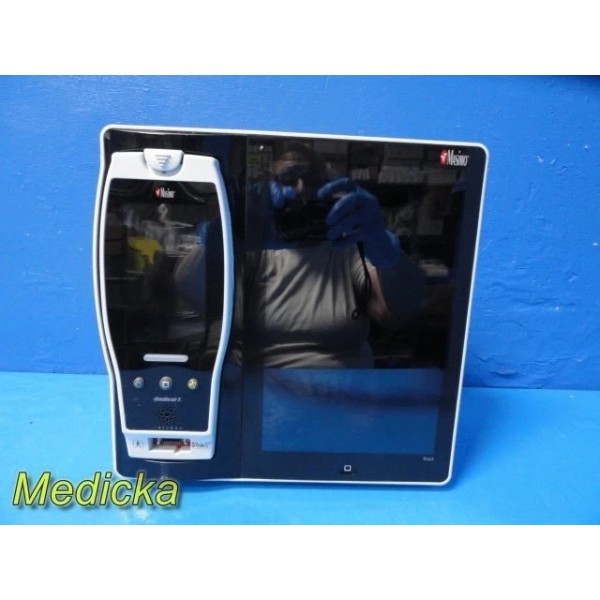

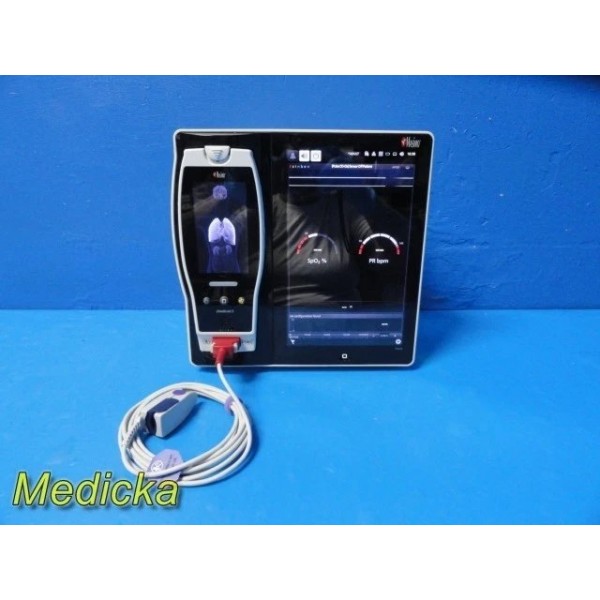

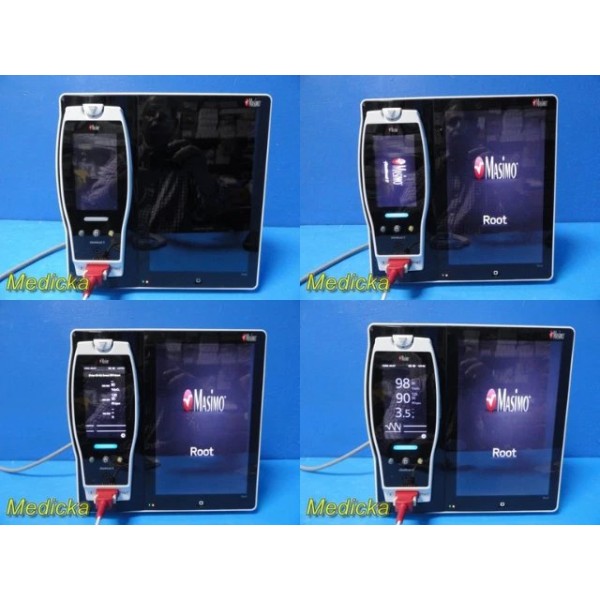

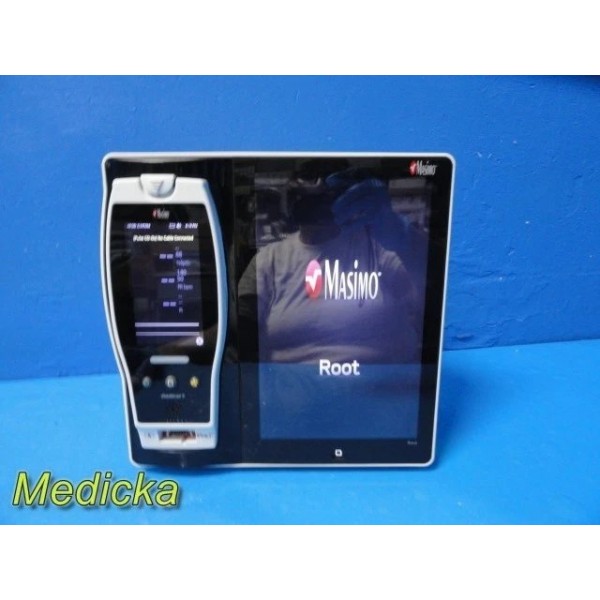

Masimo Root monitoring platform paired with a Radical‑7 Rainbow SET module. System powers on normally, initializes without errors, and maintains stable communication. Verified SpO₂, pulse rate, PI, pleth waveform, and Rainbow visualization. Includes a new reusable adult direct SpO₂ sensor and hospital‑grade power cord.

Quick Condition Overview

Functional Status: Tested & Fully Operational
Cosmetic Condition: Excellent Communication: Root ↔ Radical‑7 stable
Display Condition: Bright & responsive Battery Status: Both units hold charge (long‑term runtime unknown) Completeness: Root + Radical‑7 + SpO₂ sensor + power cord

Condition Summary

Cosmetics
Excellent overall appearance with minimal handling wear. No cracks, dents, or structural damage. Ports and docking surfaces clean and intact.

Displays
Root touchscreen and Radical‑7 display are bright, responsive, and free of major defects.

Controls & Navigation
Touch controls, alarms, menus, and navigation functions operate correctly, including brightness, profiles, and trend review.

Battery Condition
Internal batteries in both units hold charge during testing. Long‑term capacity was not evaluated.

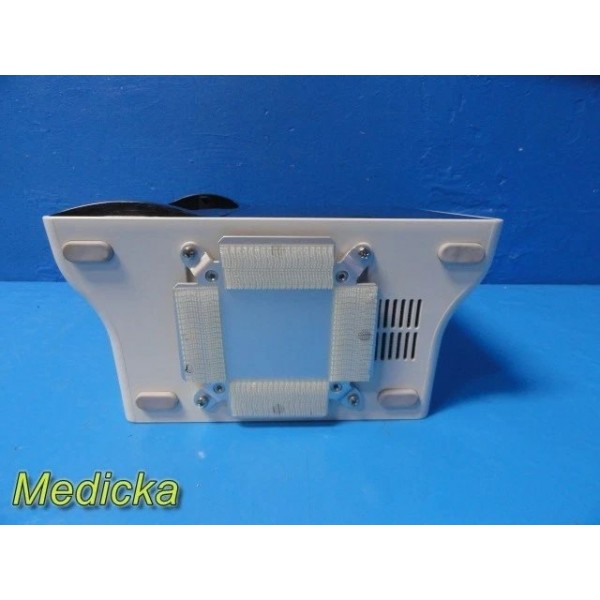

Mounting System
Integrated underside mounting interface is present. Rolling stand/cart is not included.

Functionality / Testing Summary

Operational Testing

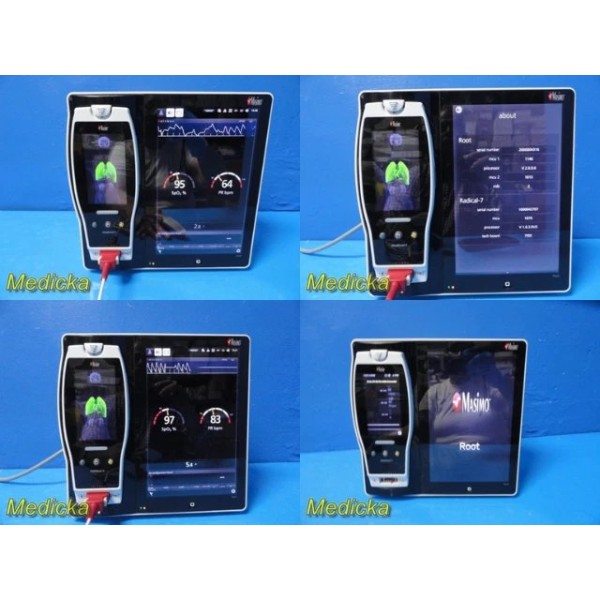

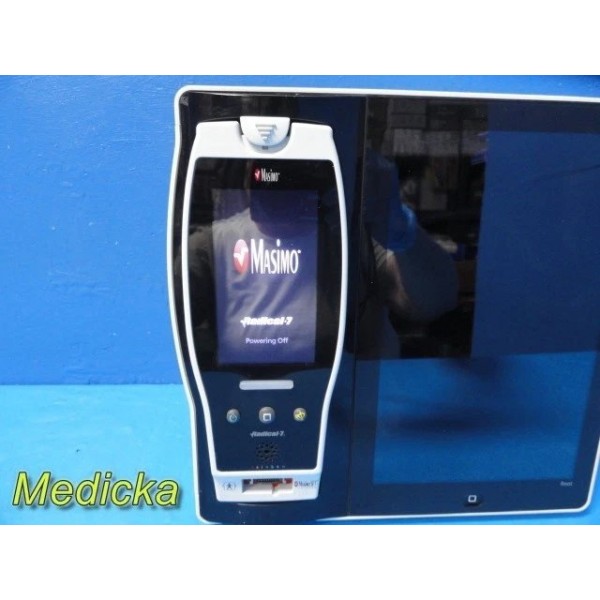

System powers on normally, completes initialization, and maintains stable communication between the Root and Radical‑7.

Patient Monitoring

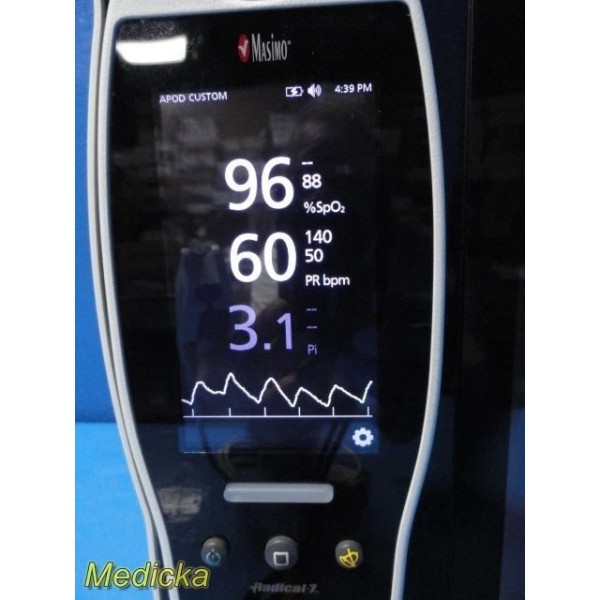

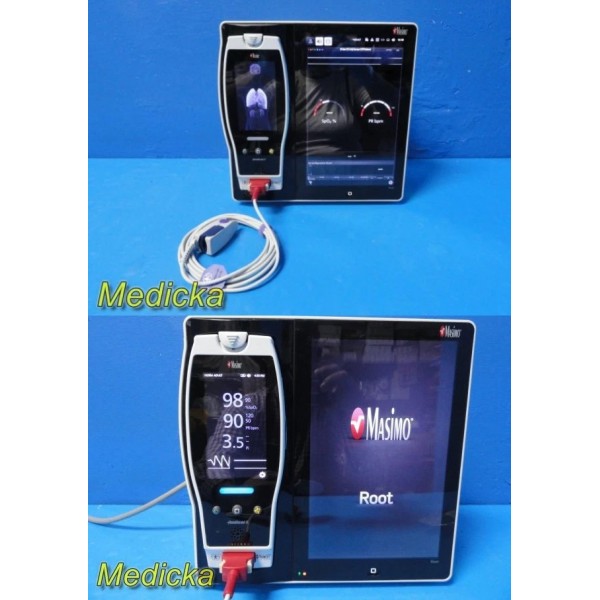

Verified SpO₂, pulse rate, perfusion index (PI), pleth waveform, and Rainbow® visualization using the included adult direct SpO₂ sensor.

Profiles & Configuration

Adult, Pediatric, and Neonatal profiles are installed. Multi‑language support is active.

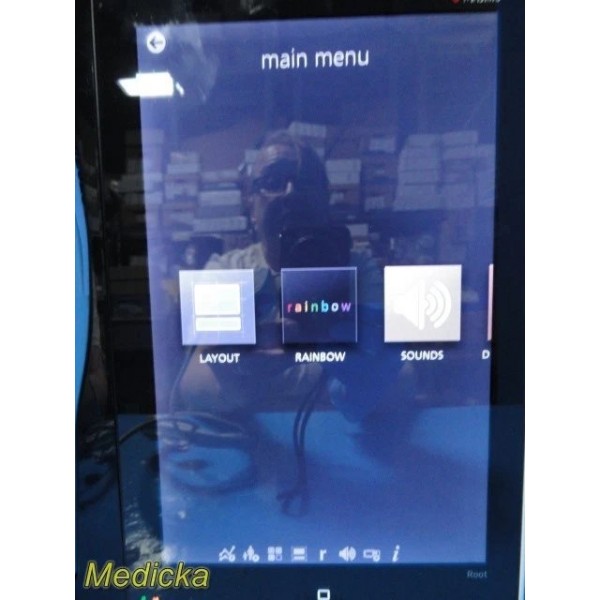

Connectivity Features

Wi‑Fi, Bluetooth, IRIS connectivity, device output, trends, access control, and system settings menus are accessible and responsive.

Parameter Configuration Note

This configuration does not include IBP or temperature monitoring capability.

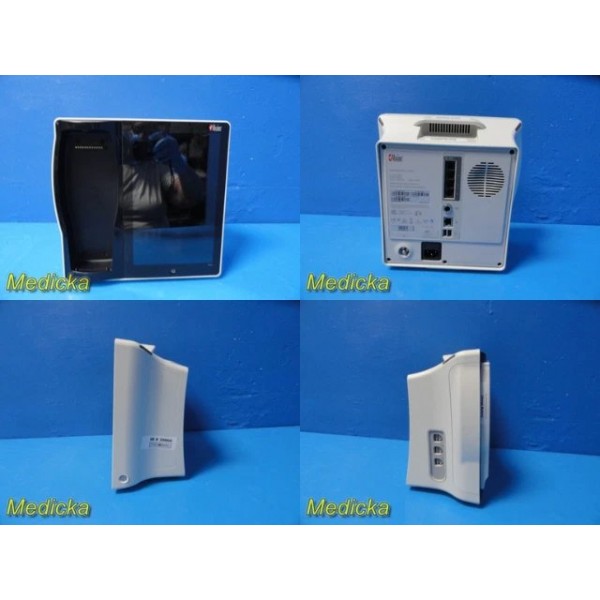

Ports & Connectivity

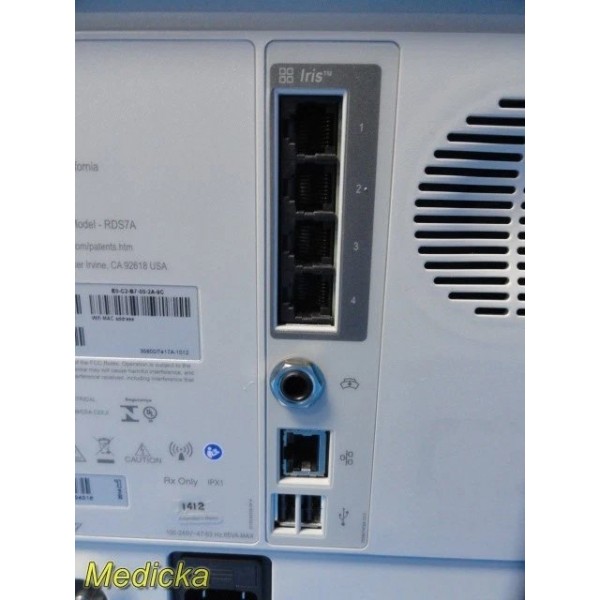

Root Rear Panel: LAN/Ethernet • USB ports • 4× IRIS ports • Audio/service connector • AC power inlet • Wi‑Fi/Bluetooth capability

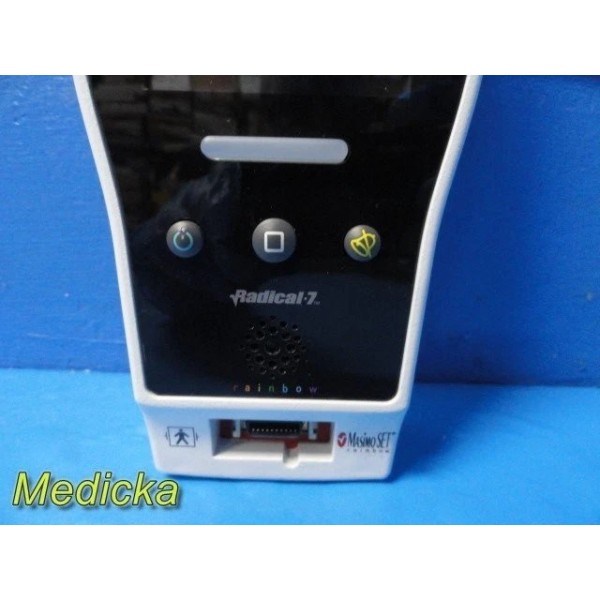

Radical‑7 Module: Direct SpO₂ sensor port • Integrated docking communication

What Is Included

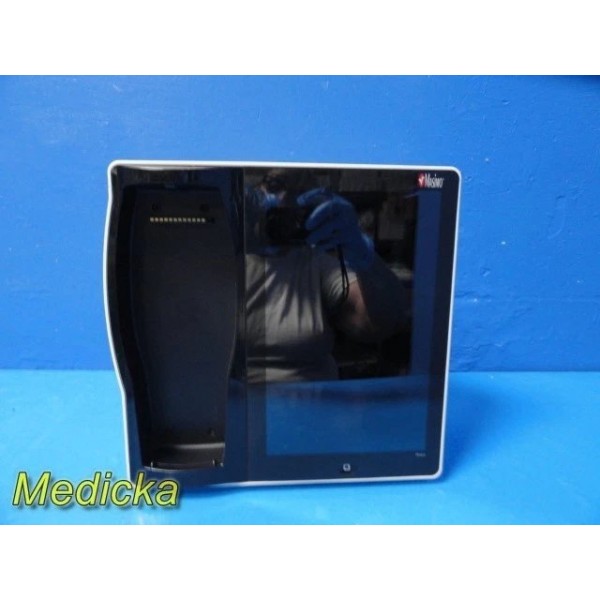

• Masimo Root monitoring platform
• Masimo Radical‑7 Rainbow SET module

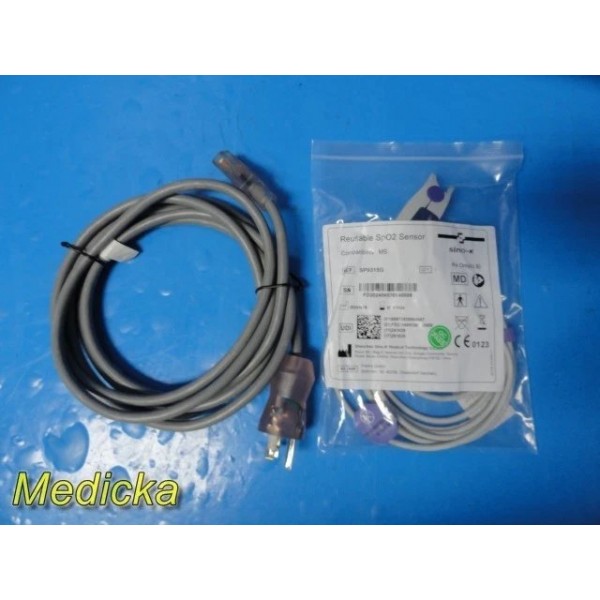

• New reusable adult direct SpO₂ sensor (REF SPA115F)
• Masimo SpO₂ adapter cable
• Hospital‑grade power cord
• Integrated underside mount
• Items shown in images

What Is Not Included

• Rolling stand/cart •  Temperature probes/modules • Pediatric/neonatal sensors • Disposable sensors • Additional accessories not shown • User manuals

Buyer Advisory Note

This is a pre‑owned medical monitoring system. Batteries currently hold charge, but long‑term performance is not guaranteed. Biomedical inspection, calibration verification, and compatibility confirmation are recommended prior to clinical use.

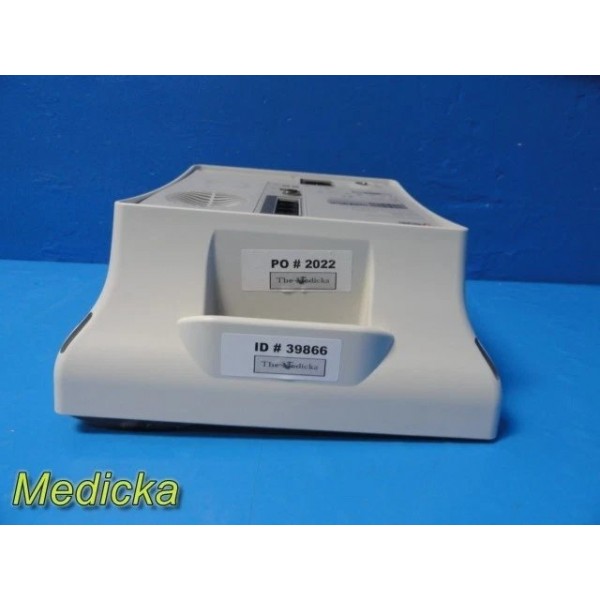

Stock ID: 39866 (P.O. 2022) (WH104 SCC13)
