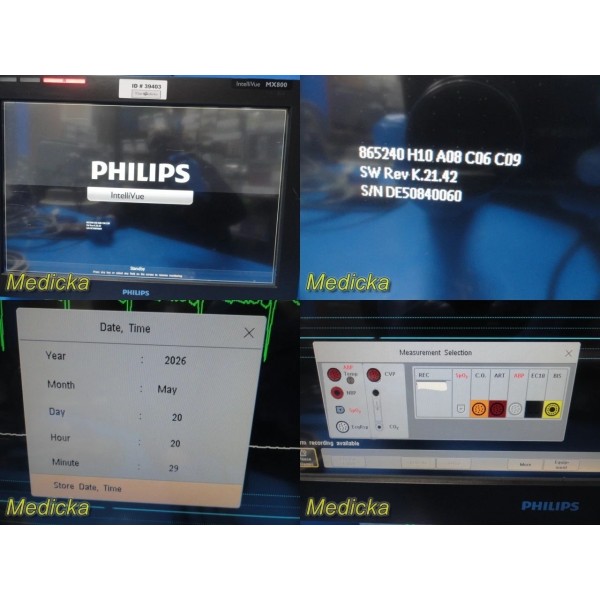

Manufacturer: Philips Medical Systems System: IntelliVue MX800 Patient Monitoring Platform Main Monitor Model: MX800 REF: 865240 Serial Number: DE50840060 DOM: 2015 Software Revision: K.21.421 Installed Options: H10, A08, C06, C09 Power Requirements: 100–240V AC, 50/60 Hz Country of Manufacture: Germany CE Marked: Yes

Short Description — System Composition

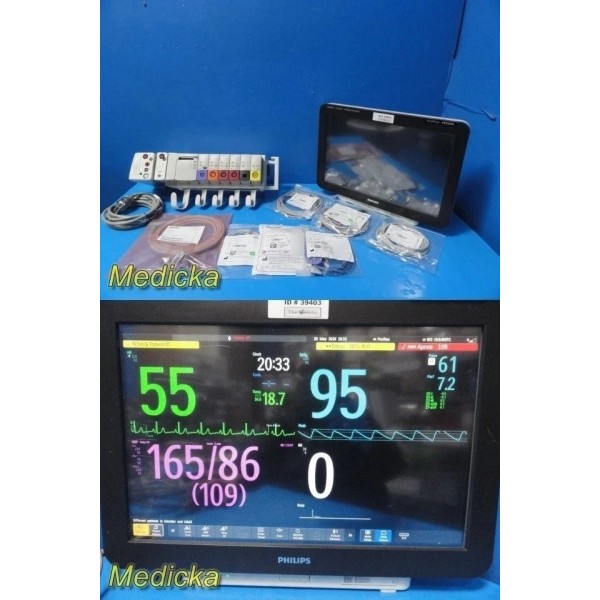

Philips IntelliVue MX800 monitoring platform including MX800 touchscreen bedside monitor, FMS 8‑bay module rack, IntelliVue X2 companion monitor/module, hemodynamic/CO₂ module, IBP modules, BIS module, Nellcor SpO₂ module, IntelliBridge EC10, recorder/printer module, Philips interface cable, and OEM‑compatible accessories. System powers on, recognizes installed modules, and provides full monitoring profiles, waveform layouts, and IntelliVue screen configurations.

CONDITION SUMMARY

Functional Status — Tested & Working

• Power‑on: Normal boot into IntelliVue interface


• Touchscreen: Responsive


• Module Recognition: All installed modules detected


• Profiles Verified: Adult, Pediatric, Neonatal/Baby, Comfort

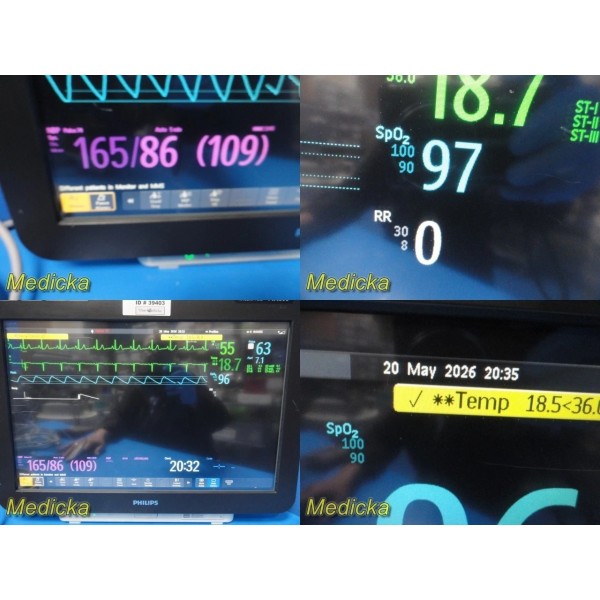

• Waveform Modes Verified: Dynamic Waves, 8‑Wave, 6‑Wave, 4‑Wave, Overlap, Horizon, Big Numbers, Monitor‑at‑Desk, Visitor Clock

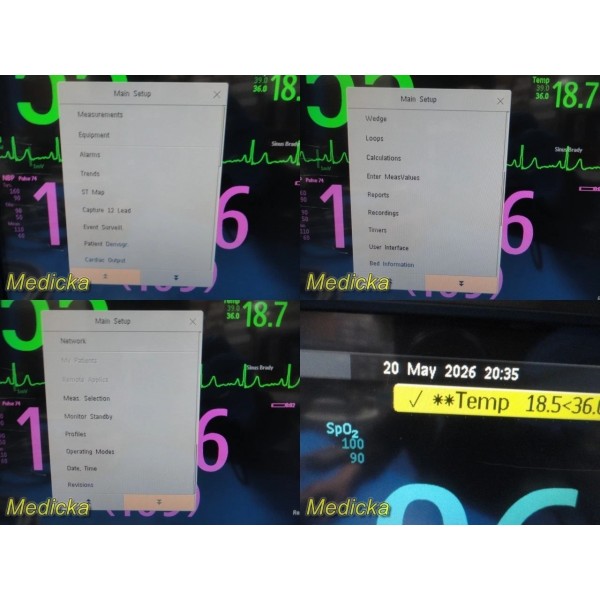

• System Functions: Alarm controls, waveform display, profile switching, date/time configuration operational


Cosmetic Condition — Very Good Overall

• Light surface wear consistent with clinical use
• No cracks, dents, or structural defects on main monitor
• X2 display shows vertical digital lines (operational but cosmetically affected)

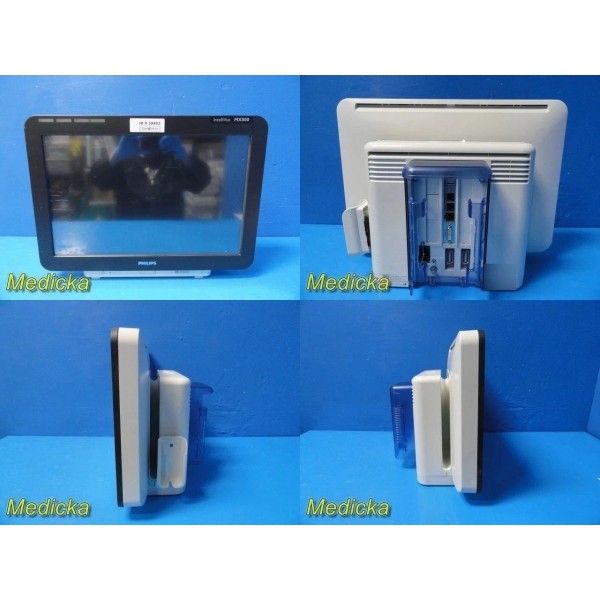

MAIN MONITOR — MX800

Device Identifier

Model: MX800 REF: 865240 S/N: DE50840060 | DOM: 2015

Condition

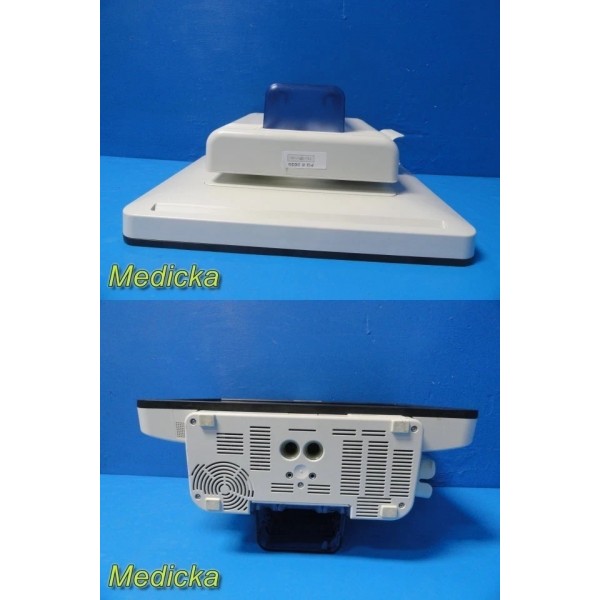

• Housing clean; no cracks or structural damage
• Rear blue cable cover intact; handle/mount area intact

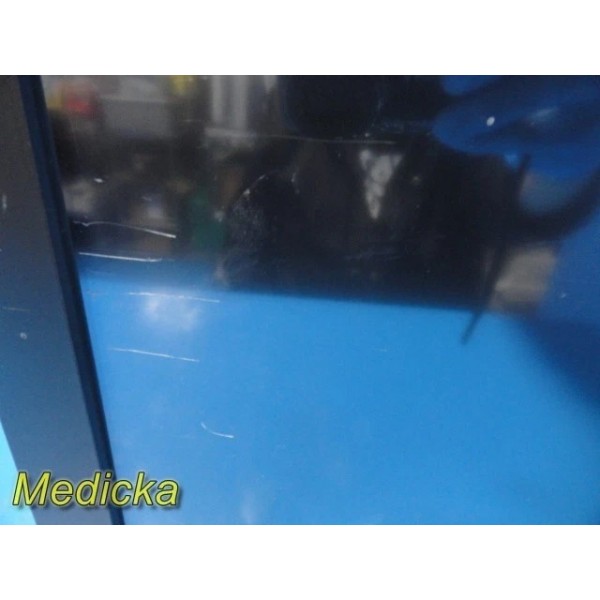

• LCD bright; no dead pixels; light cosmetic scratches only
• Touchscreen responsive
• Hard keys, rotary knob, and alarm controls verified

Verified Functions

• Profiles: Adult / Pediatric / Neonatal / Comfort

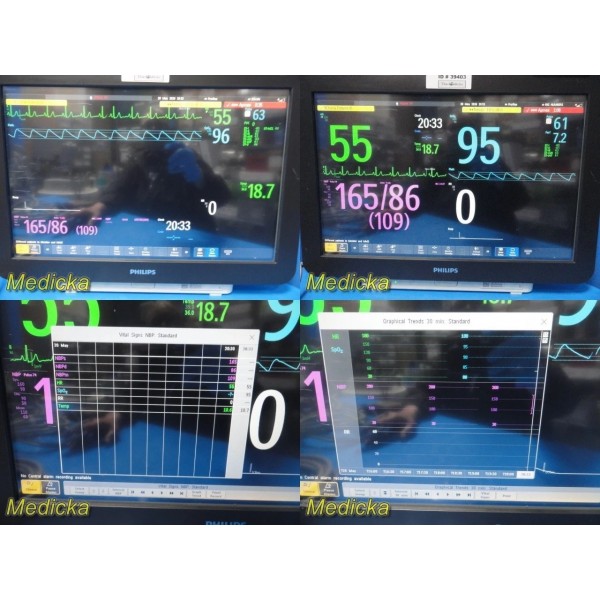

• Display Modes: Dynamic, 8‑Wave, 6‑Wave, 4‑Wave, Overlap, Horizon, Big Numbers, Monitor‑at‑Desk, Visitor Clock
• System: Alarm functions, module recognition, date/time adjustment

Parameters Observed

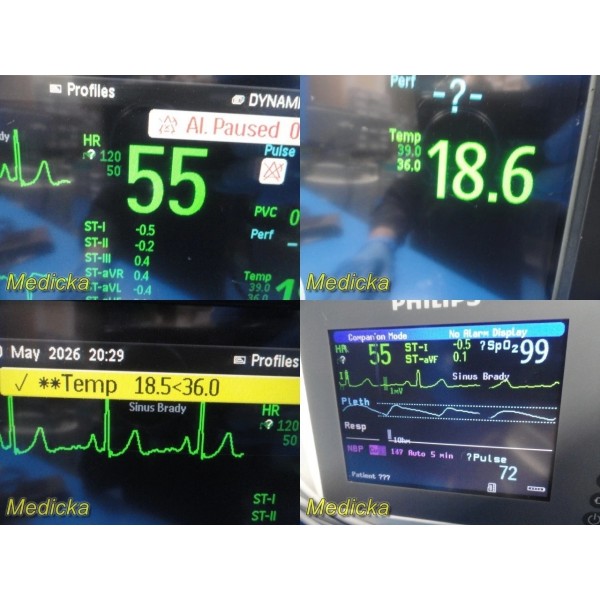

ECG/Resp, NIBP, Masimo SpO₂, Nellcor SpO₂, Temp, IBP, CO₂, CO, BIS

Rear Ports

USB, LAN/Ethernet, RS232, Alarm Port, Video Output, Expansion Bays, Power Input

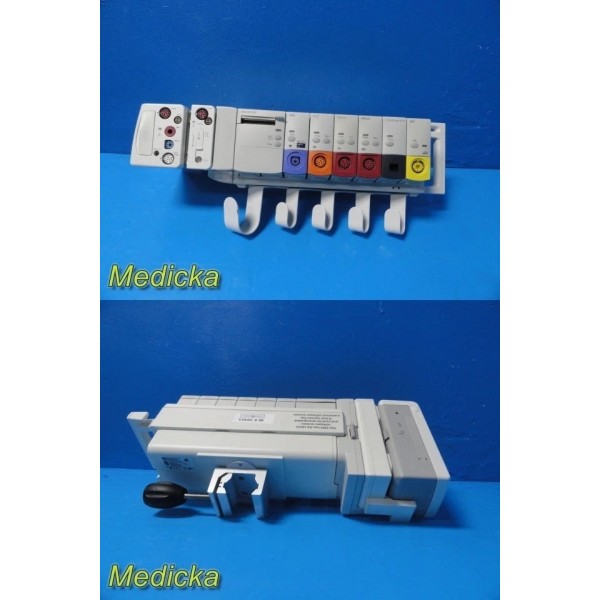

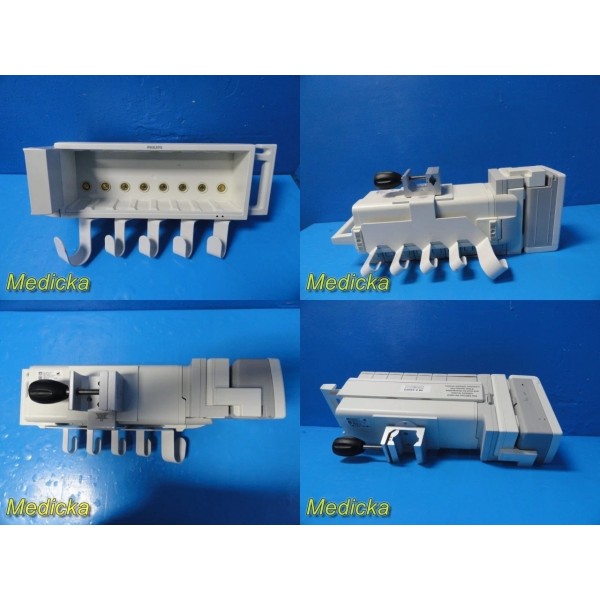

FMS 8‑BAY RACK

Device Identifier

Model: FMS 8‑Bay Rack REF: 862461 S/N: DE439D1865 | DOM: 2015‑03

Condition

• Structural condition very good
• Connector areas intact
• Includes rear pole mount + lower cable caddy

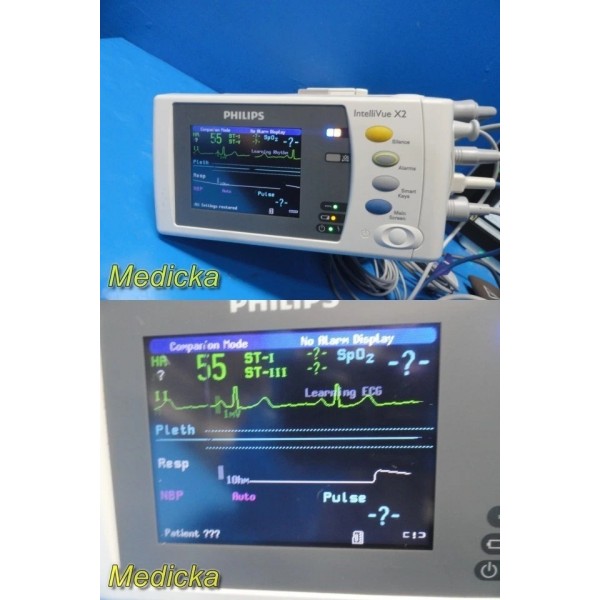

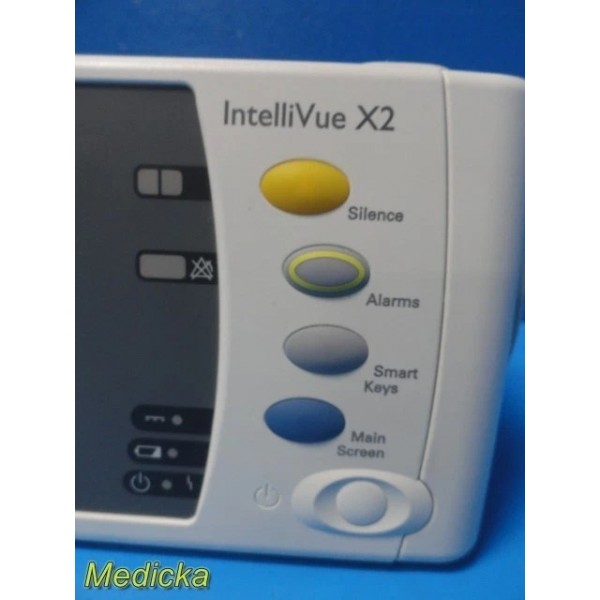

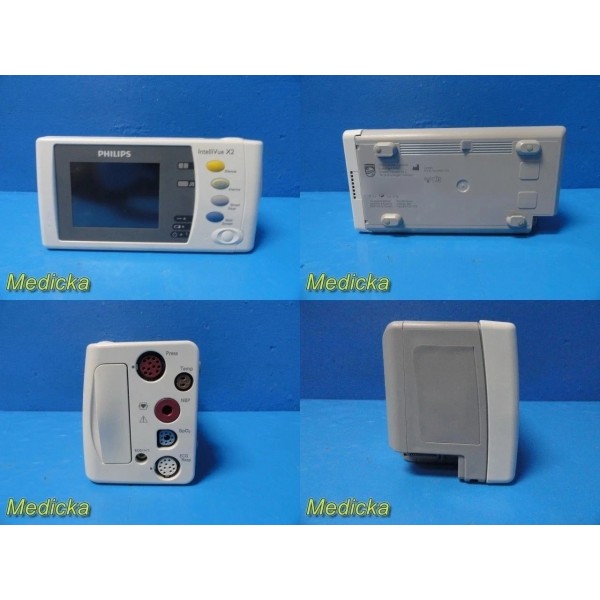

INTELLIVUE X2 COMPANION MONITOR / MODULE

Device Identifier

Model: M3002A REF: 865039 S/N: DE57R0064 | DOM: 2017‑03 | Software: L.01.09

Installed Options

C10, C01, C13, C15, C20

Condition

• Good cosmetic condition
• Touchscreen responsive

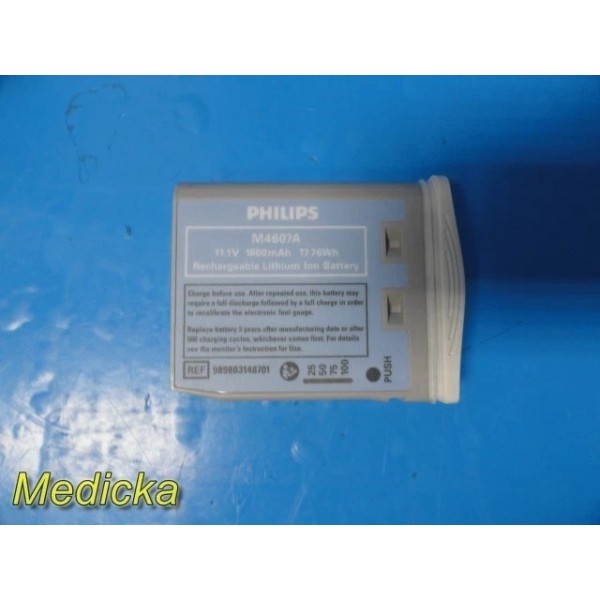

• Battery holds charge (long‑term health unknown)
• LCD shows vertical digital/dead pixel lines (operational but cosmetically affected)

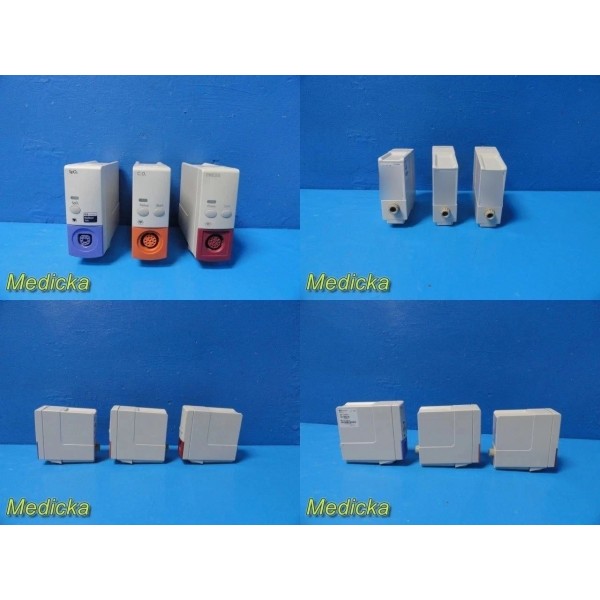

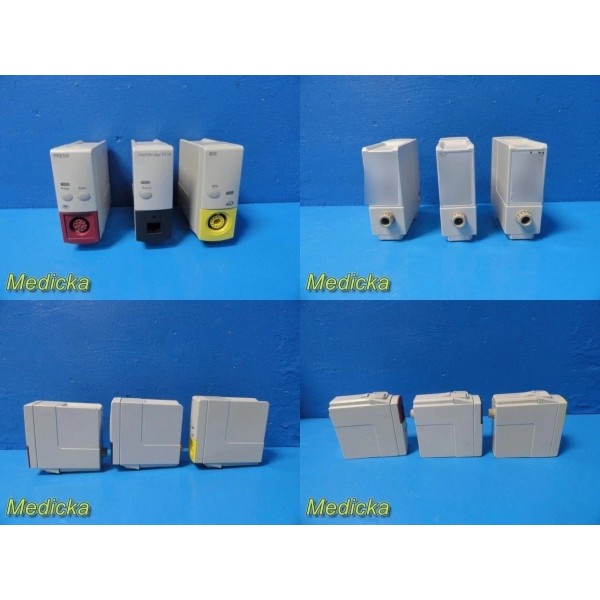

INSTALLED MODULES

M1006B IBP Modules (Qty 2)

S/N: DE805R9357 (DOM 01/13) S/N: 3805A50624 (DOM 12/08)

• Ports intact; recognized by system


• Untested — no transducers available


M1012A Cardiac Output Module

REF: 862279 S/N: DE41548418 | DOM: 2017‑08‑09

• CO port intact; recognized


• Untested — no CO accessories


M1034B BIS Module

S/N: DE11006520 | DOM: 11/05

• Connector intact; recognized


• Untested — no BIS sensors


Nellcor OxiMax SpO₂ Module

Covidien REF: 10083058 Philips P/N: 453564310321 S/N: 561316A184 | DOM: 2013

• Connector intact; operational


• No sensor included for extended testing

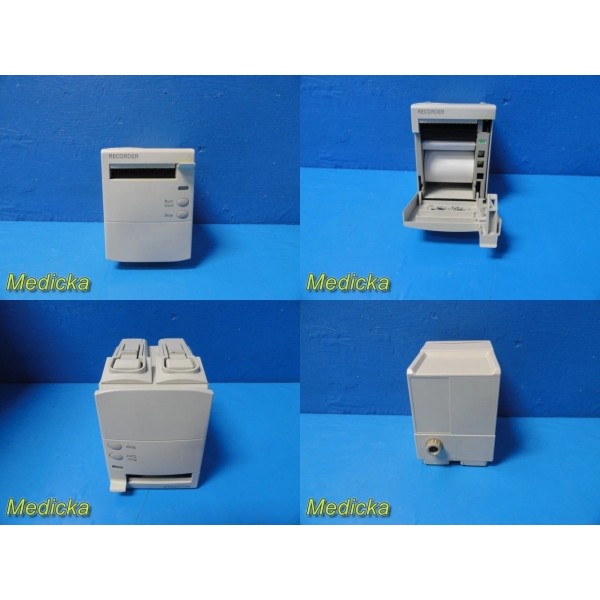

Recorder / Printer Module — M1116B

S/N: 4227A49001 | DOM: 2006‑07

• Recognized at startup


• Print function untested (paper supply not included)


IntelliBridge EC10 Module

REF: 865115 S/N: DE60837813 | DOM: 2017‑09‑26

• Ports intact; recognized

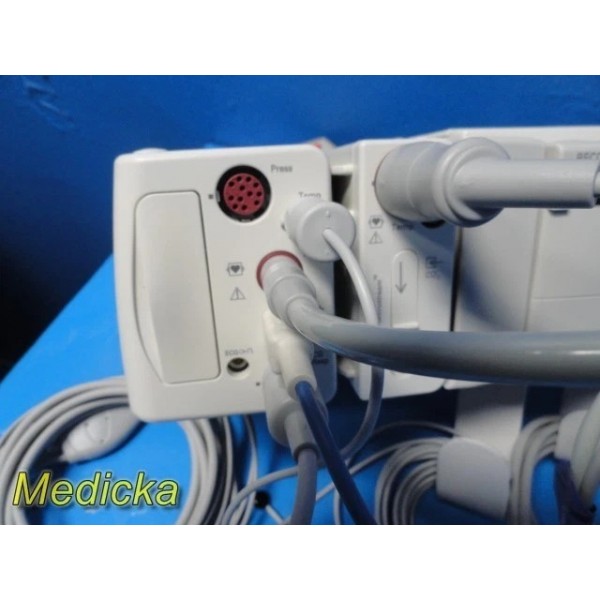

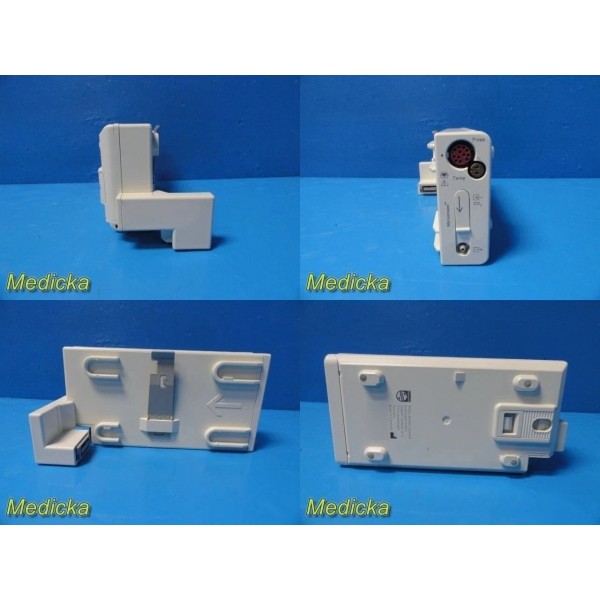

M3015A Hemodynamic / CO₂ Module

REF: 862393 S/N: DE43555274 | DOM: 2017‑11‑21 Option: C06 Parameters: IBP, Temp, Microstream CO₂

• Ports intact; recognized


• Untested — no sample lines

FUNCTIONALITY SUMMARY

System powers on normally, boots into IntelliVue interface, recognizes all installed modules, and supports full touchscreen navigation, waveform display, alarm controls, profile switching, and monitoring menus. Modules tested to the extent possible; others untested due to lack of disposables.

INCLUDED ACCESSORIES (OEM‑Compatible by Sino‑K)

• 5‑Lead ECG Cable — REF SG51245
• Reusable Masimo‑Compatible SpO₂ Sensor — REF SP9325A
• Adult NIBP Cuff — REF SE1711‑11
• NIBP Hose — REF SH0910S
• Reusable Temperature Probe — REF ST4305
• IBP Adapter Cable — REF SB04111
• Philips M3081‑61603 Interface Cable
• Hospital‑grade Power Cord

WHAT IS NOT INCLUDED

Rolling cart/stand, IBP transducers, CO₂ sampling lines, extra cuffs, disposable sensors, pediatric/neonatal sensors, additional modules, user manuals, PM/service records.

BUYER ADVISORY NOTE

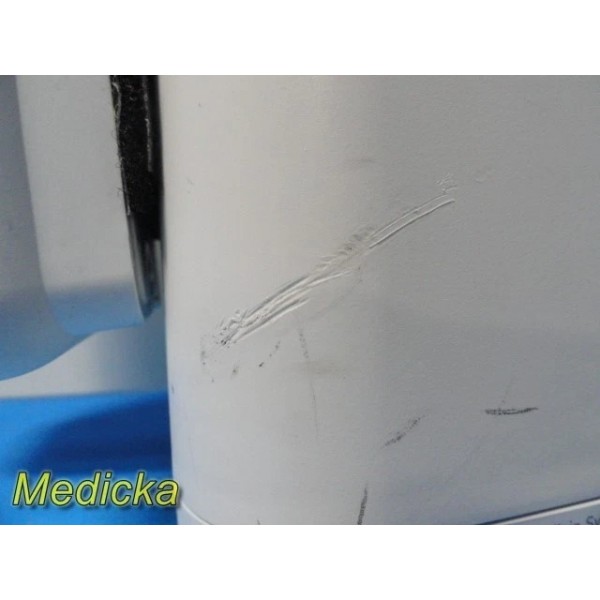

Used hospital‑surplus equipment may show minor cosmetic wear including light scratches, scuffs, or label residue. Some modules remain untested due to lack of disposables. Review images for configuration and condition.

SHIPPING NOTE

System will be professionally packed. Due to size and modular configuration, freight or oversized shipping may be required depending on destination.
