Device Profile — Philips IntelliVue MX800 Patient Monitoring System

Manufacturer: Philips Medical Systems
Main Monitor: IntelliVue MX800
REF: 865240
Serial Number: DE50863422
Date of Manufacture: 09/25/2017
Software Revision: L.01.17
Installed Options: H30, A08, C01, C03, C09, C13, C15, C19, C20, C21, C50, C51, M06, M20
Power Requirement: 100–240V AC, 50/60 Hz
Country of Manufacture: Germany
CE Marked: Yes

Short Description

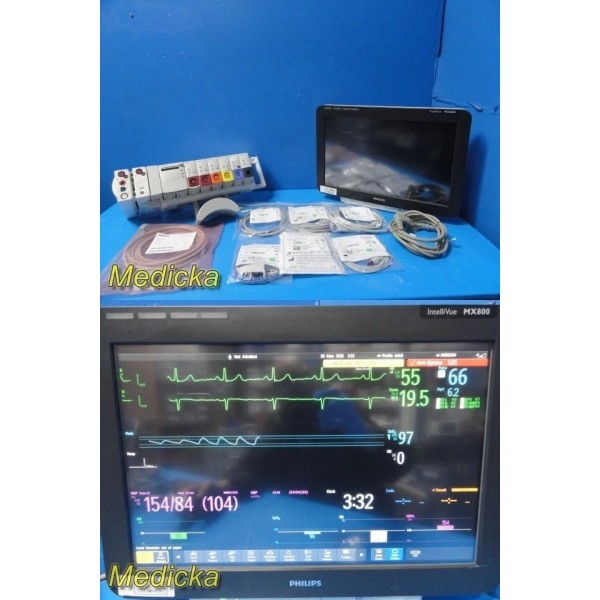

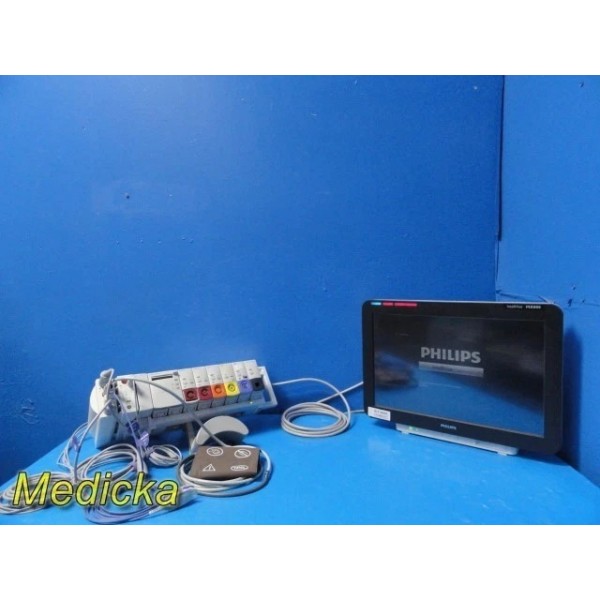

Philips IntelliVue MX800 patient monitoring platform with MX800 touchscreen monitor,  FMS 8-bay module rack, M3001A MMS module, M3015A hemodynamic/CO₂ module, dual M1006B IBP modules, M1029A temperature module, M1012A cardiac output module, M1034B BIS module, Nellcor OxiMax SpO₂ module, M1116B recorder/printer module, IntelliBridge EC10 module,interface cable, and OEM-compatible Sino-K accessories.

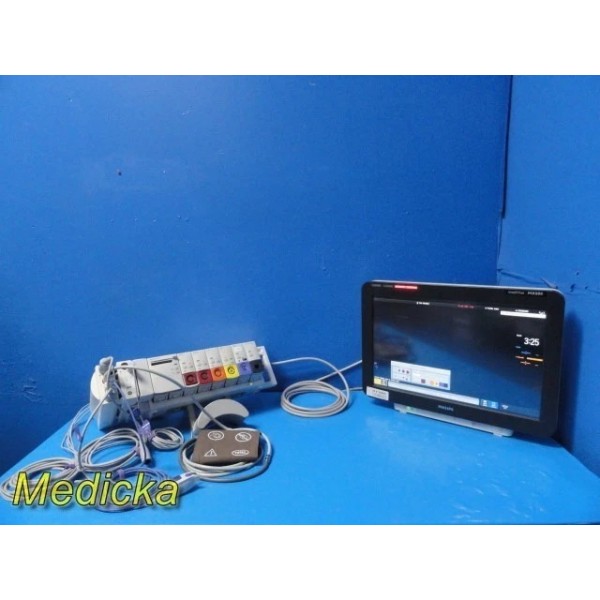

System powers on normally, boots into the IntelliVue interface, recognizes installed modules, and supports touchscreen navigation, waveform display, alarm controls, profile switching, and multiple screen layouts.

Quick Condition Overview

Functional Status: Tested & Working
Cosmetic Condition: Very Good Used Condition
Display Status: Bright, touch responsive, light cosmetic scratches only
Module Recognition: Installed modules recognized by system
Testing Limitation: Some modules not fully tested due to lack of transducers, sample lines, BIS accessories, CO accessories, paper, or disposables

Condition Summary

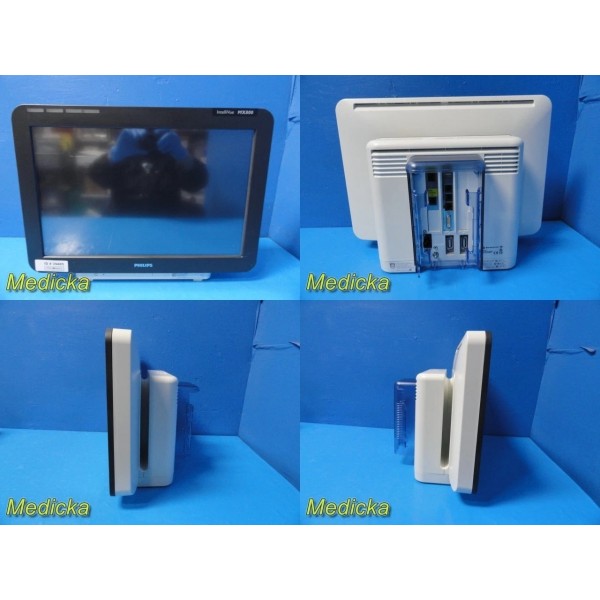

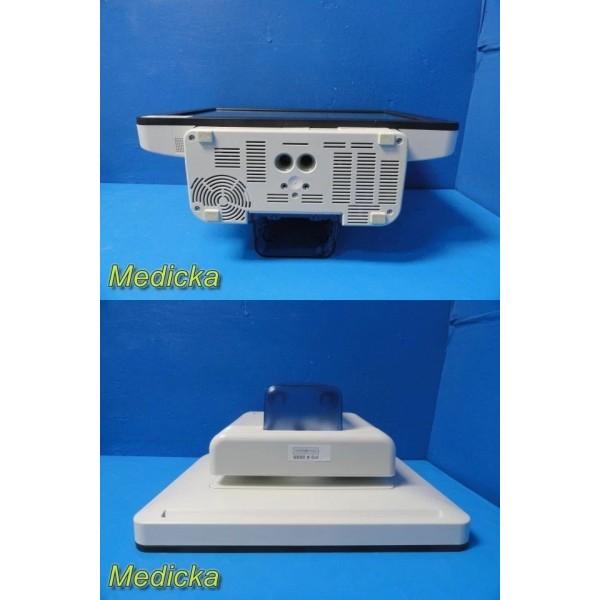

Main Monitor Housing: MX800 housing is in very good overall condition with no dents, no cracks, intact rear blue cable cover, and intact mounting/handle area. Minor cosmetic wear may be present from normal hospital use.

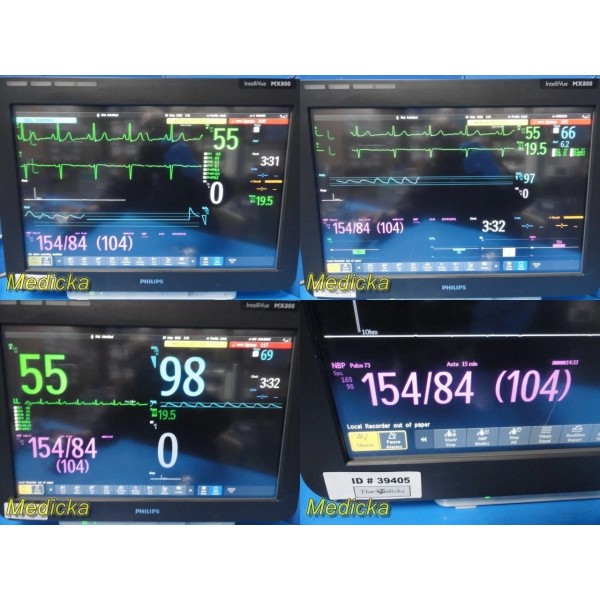

LCD / Touchscreen: Display is bright and touch responsive. Light cosmetic scratches may be present on the screen surface. No deep scratches, cracks, dead pixels, or visible display failure were observed during testing.

Controls & Navigation: Hard keys, knobs, alarm button, and touchscreen navigation were tested and responded properly. Menu navigation, profile changes, waveform layouts, and system controls functioned during evaluation.

Profiles Verified: Adult, Pediatric, Neonatal/Baby, and Comfort profiles were accessed and verified.

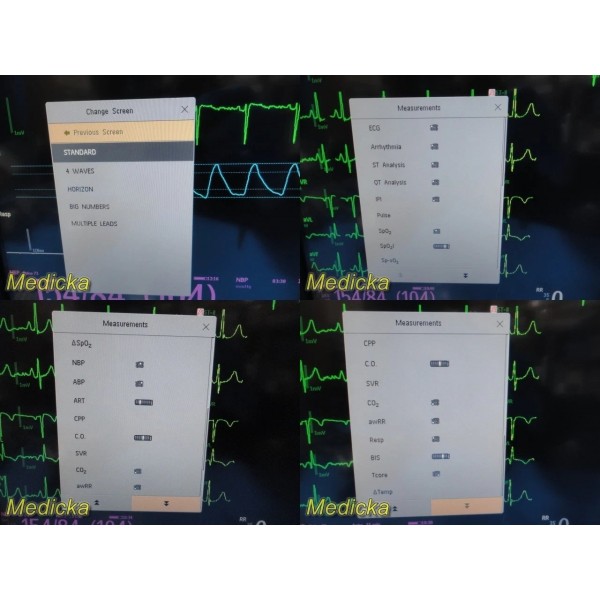

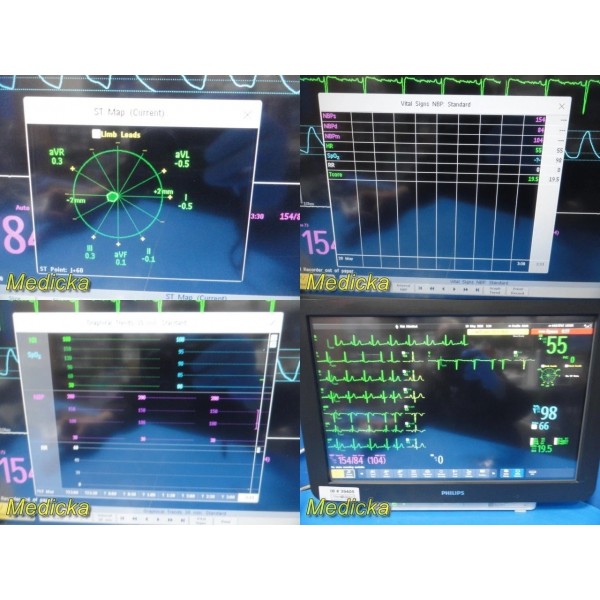

Screen Modes Verified: Dynamic Waves, 8 Waves, 6 Waves, 4 Waves, Multiple Lead, Overlap Waves, Horizon, Big Numbers, Monitor at Desk, and Visitor Clock screen modes were verified.

Rear Ports: Rear connectivity includes USB, LAN/Ethernet, RS232, alarm port, video output, expansion bays, and power input. Ports appear physically intact.

Dock / Rack / Remote Components

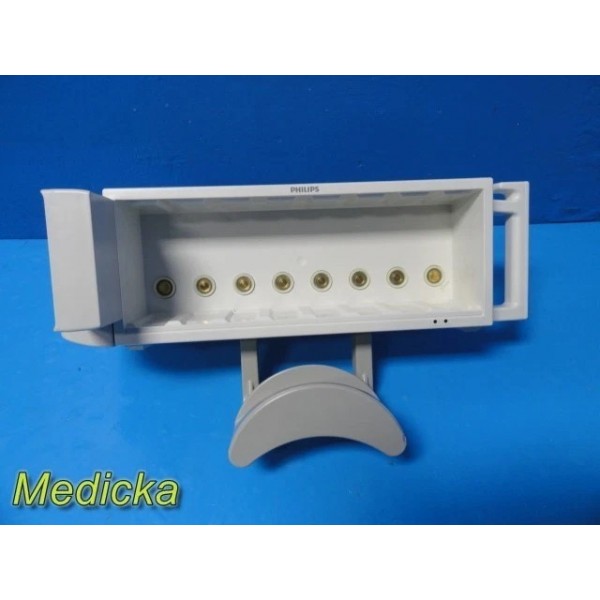

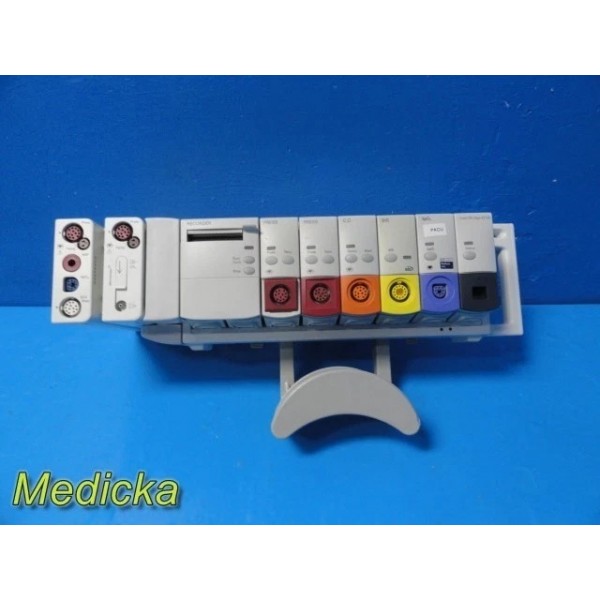

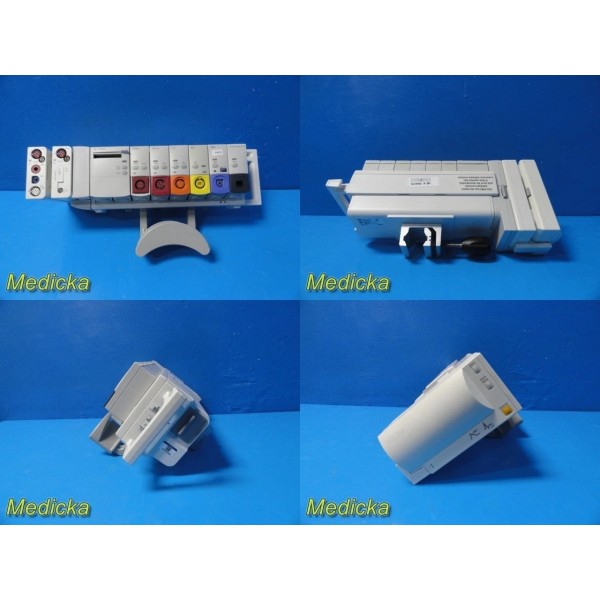

Philips FMS 8-Bay Rack: REF 862461, S/N DE439E6023, DOM 09/14/2017. Rack includes cable holders and pole clamp. Module bays and ports appear intact.

Companion / MMS Module

Philips M3001A MMS Module: REF 862442, S/N DE5630FY7K, DOM 2016. Supports ECG/Resp, NIBP, Masimo SpO₂, Temperature, and IBP. Ports appear intact and module was recognized by system.

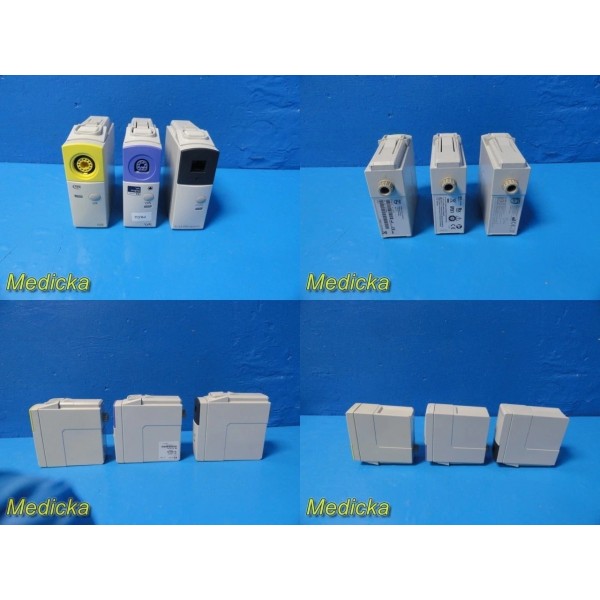

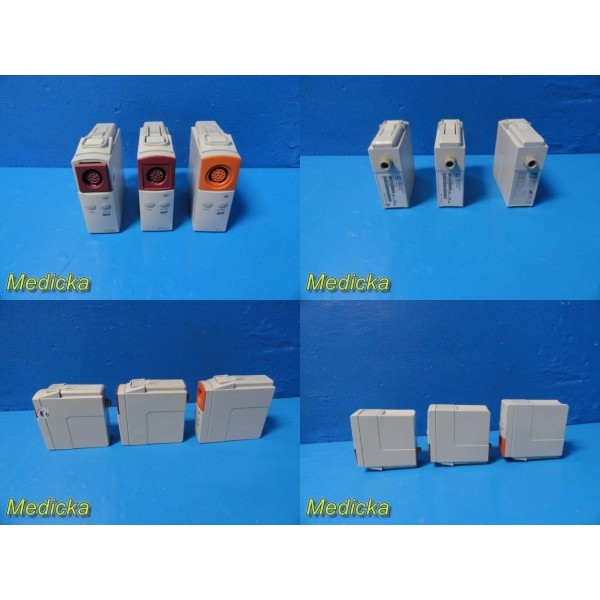

Single / Parameter Modules

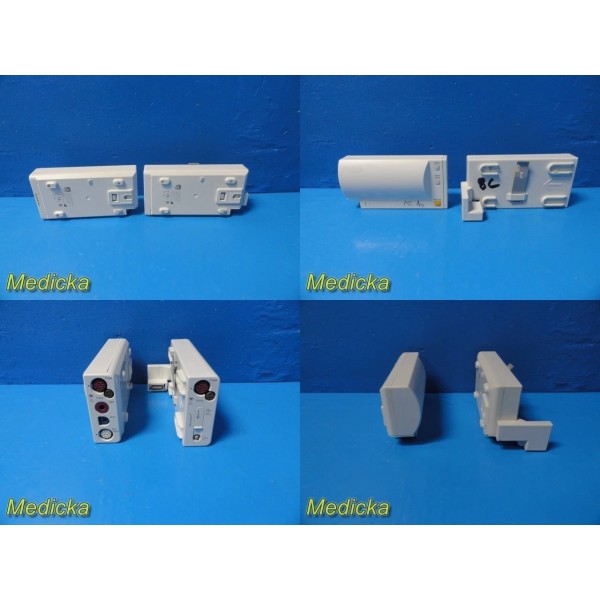

Philips M1006B IBP Modules — Qty 2: One S/N DE805N6061; second serial number not provided. DOM noted as 2003 and 2009. IBP ports appear intact. Modules were recognized but not fully tested due to lack of IBP transducers.

Philips M1029A Temperature Module: REF M1029A / 862279. Temperature port intact. Tested and working.

Philips M1012A Cardiac Output Module: REF 862279, S/N DE41548416, DOM 08/09/2017. CO port intact. Recognized, but CO function not fully tested due to lack of compatible CO accessories.

Philips M1034B BIS Module: S/N DE11007639, DOM 05/2006. BIS port intact. Recognized, but not fully tested due to lack of BISx module, cables, and sensors.

Nellcor OxiMax SpO₂ Module: Covidien REF 10083058, Philips P/N 453564310321, S/N 561316A766, DOM 2013. SpO₂ port intact. Tested and working.

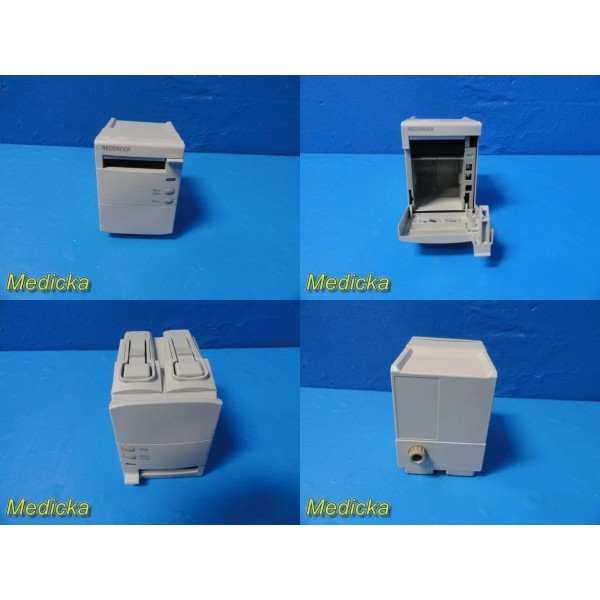

Philips M1116B Recorder / Printer Module: S/N 4227A49022, DOM 2006. Module recognized. Paper is not included and print test was not performed.

Philips IntelliBridge EC10: REF 865115, S/N DE60837831, DOM 2017. Ports intact and module recognized by system.

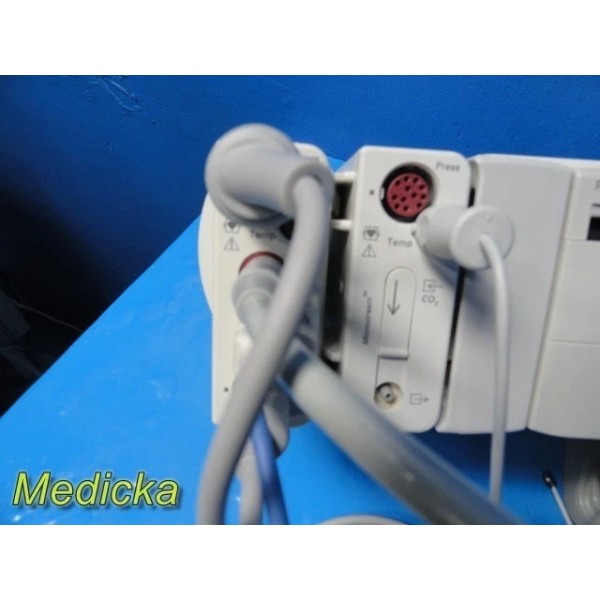

Philips M3015A Hemodynamic / CO₂ Module: REF 862393, S/N DE43552417, DOM 12/05/2016, Option C06. Supports IBP, Temperature, and Microstream CO₂. Ports appear intact. CO₂ function not fully tested due to lack of sample lines.

Functionality / Testing Summary

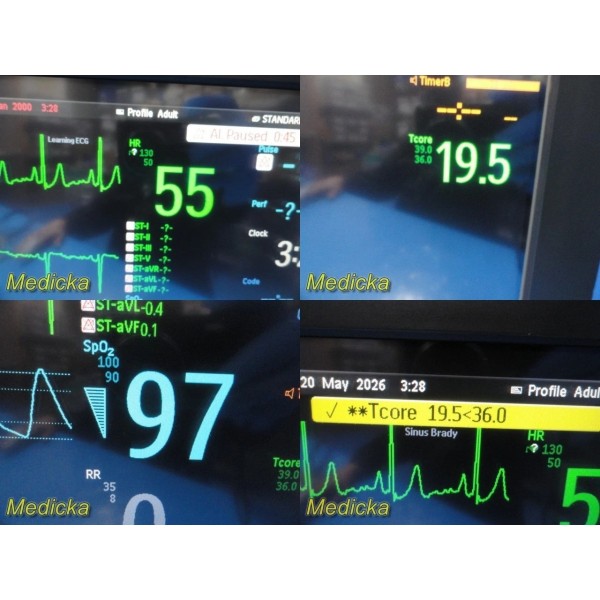

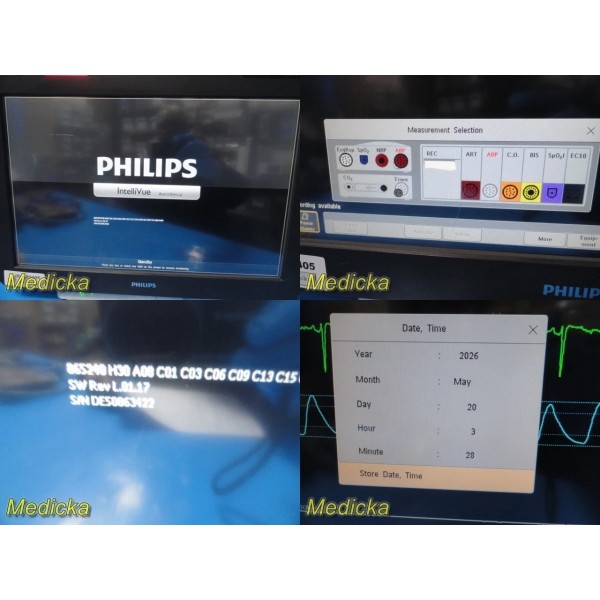

System Operation: System powers on normally, boots into the IntelliVue interface, and allows full touchscreen navigation. Date and time are correct and adjustable. Alarms, menus, profiles, screen layouts, and waveform display functions were verified.

Parameter Recognition: Observed/recognized parameters include ECG/Resp, NIBP, Masimo SpO₂, Nellcor SpO₂, Temperature, IBP, CO₂, Cardiac Output, and BIS, depending on installed module configuration.

Testing Limits: Modules were tested to the extent possible. IBP, CO₂, CO, BIS, and recorder functions were not fully tested where required accessories, transducers, sample lines, BISx cables/sensors, paper, or disposables were not available.

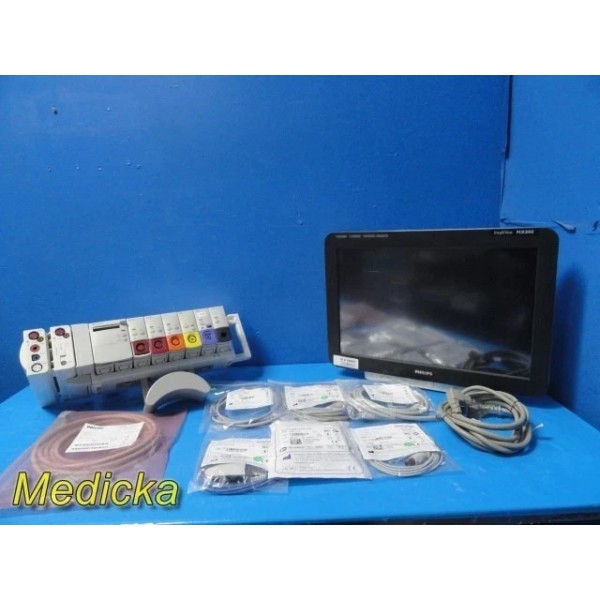

What Is Included

• Philips IntelliVue MX800 monitor
• Philips 8040A Universal Dock with cable and pole clamp
• Philips FMS 8-Bay Rack, REF 862461
• Philips remote control, REF 865244
• Philips M3001A MMS module
• Philips M1006B IBP modules — Qty 2
• Philips M1029A Temperature module
• Philips M1012A Cardiac Output module
• Philips M1034B BIS module
• Nellcor OxiMax SpO₂ module
• Philips M1116B recorder/printer module
• Philips IntelliBridge EC10 module
• Philips M3015A Hemodynamic / CO₂ module

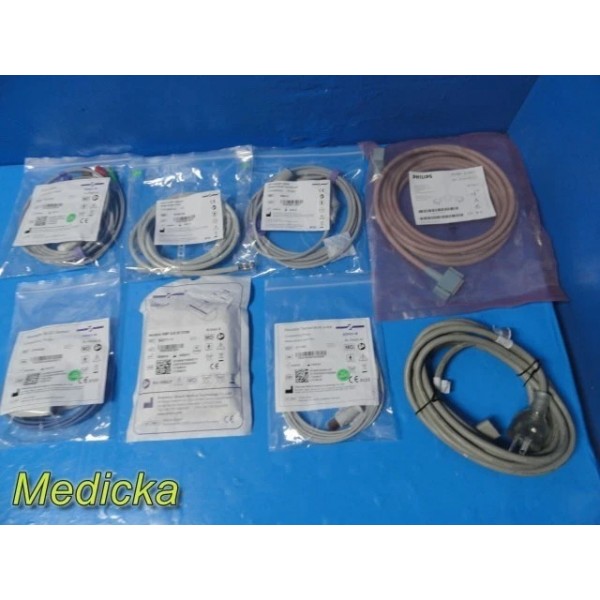

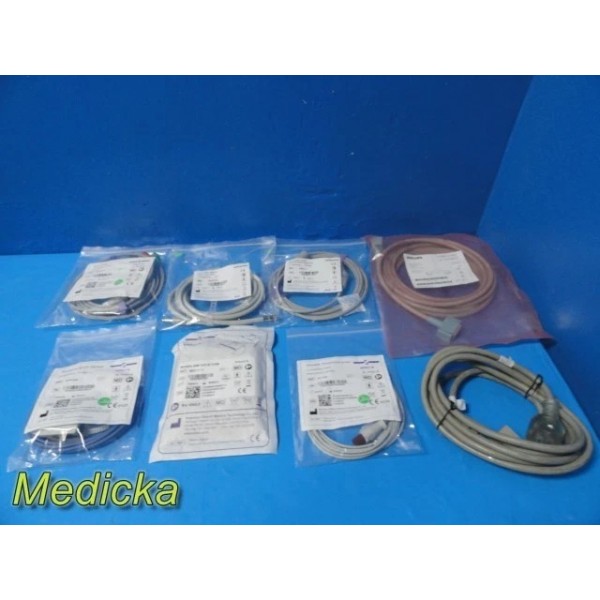

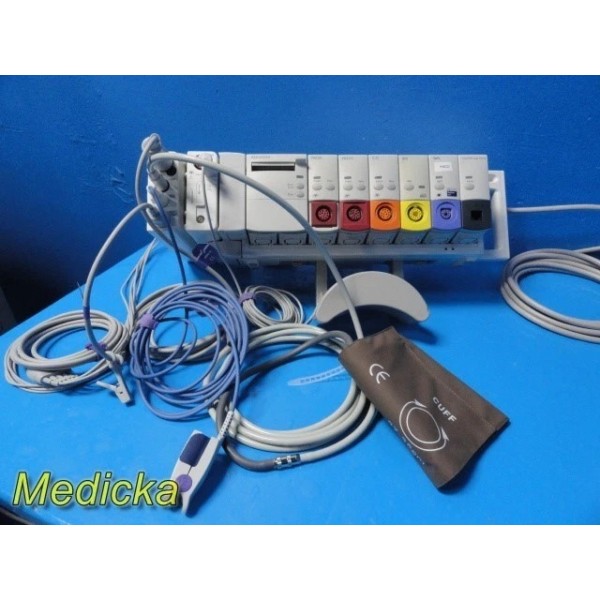

• 5-Lead ECG cable — Sino-K REF SG51245
• Reusable Masimo-compatible SpO₂ sensor — Sino-K REF SP9325A
• Adult NIBP cuff — Sino-K REF SE1711-11
• NIBP hose — Sino-K REF SH0910S
• Reusable temperature probe — Sino-K REF ST4305
• IBP adapter cable — Sino-K REF SB04111
• Philips M3081-61603 interface cable
• Hospital-grade power cord

What Is Not Included

Rolling cart/stand, X2 companion monitor, M3012A module, IBP transducers, CO₂ sampling lines, cardiac output accessories, BISx module, BIS cables/sensors, recorder paper, extra cuffs, disposable sensors, pediatric/neonatal sensors, additional modules, user manuals, PM/service records, or any accessories not shown or specifically listed.

Buyer Advisory Note

This is used hospital-surplus equipment and may show minor cosmetic wear including light scratches, scuffs, or label residue. System and modules were tested as described above. Some functions remain untested due to lack of compatible clinical accessories/disposables. Buyer should review all images and confirm compatibility before purchase. Biomedical inspection, calibration, and facility approval are recommended prior to clinical use.

Shipping Note

System will be professionally packed. Due to size and modular configuration, freight or oversized shipping may be required depending on destination.
