Philips IntelliVue MX700 Monitor w/ X2,FMS Rack,IBP,CO,BIS,Recorder,Leads ~39401
Item specifics
Condition
Used
Seller Notes
Model
MX700
MPN
865241
Product details
Device Profile — Philips IntelliVue MX700 Modular Patient Monitoring Platform
System Overview — MX700 + X2 + FMS Rack

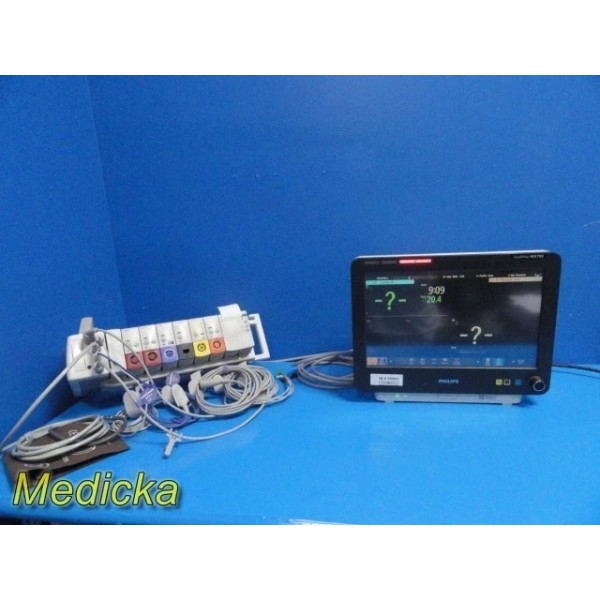

Philips IntelliVue MX700 patient monitoring platform configured with X2 companion monitor, FMS 8‑bay module rack, multiple single‑parameter modules, recorder/printer module, IntelliBridge EC10 module, OEM interface cable, hospital‑grade power cord, and OEM‑compatible patient accessories.

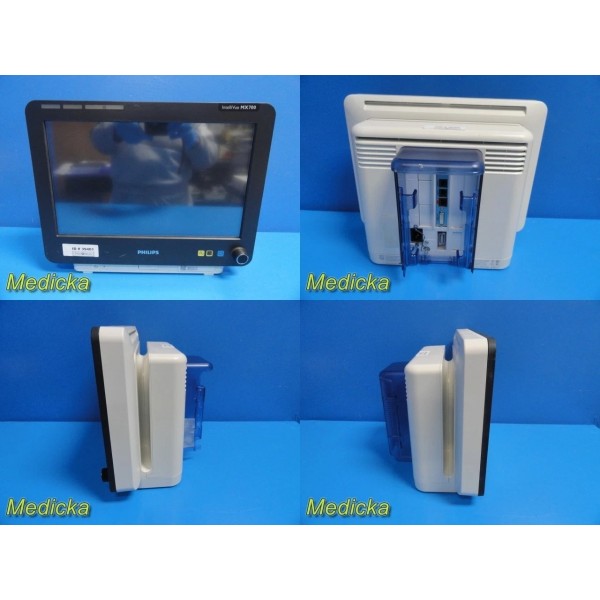

Main Monitor — Philips IntelliVue MX700
- REF: 865241
- Serial Number: DE47827745
- Date of Manufacture: 2014
- Software Revision: M.04.00‑149
- Installed Options: H10, A06, C01, C06, C09, C13, C15, C19, C20, C21, C44, C45, C50, C51, M06, M20
- Condition: Good overall; LCD bright and responsive with light scratches/scuffs (cosmetic only)
- Power Requirements: 100–240V AC, 50/60 Hz
- Country of Manufacture: Germany • CE Marked
- REF: 865039
- Serial Number: DE575P0404
- Date of Manufacture: 2016‑10‑18
- Software Revision: M.04.00‑149
- Installed Options: C01, C12, C13, C15, C20
- Condition: Good physical condition; LCD has visible digital lines
- Battery: Installed and holding charge; long‑term health unknown
- Function: Powers on and communicates with MX700
- REF: 862461
- Serial Number: DE439F0951
- Date of Manufacture: 2018‑05‑09

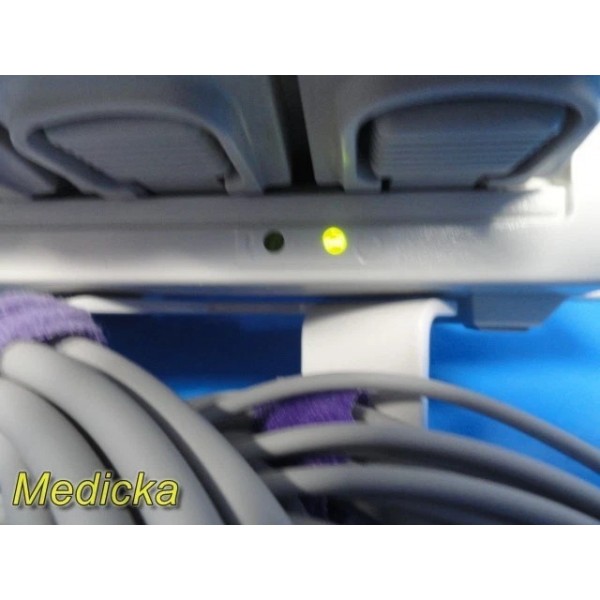

- Condition: Very good; ports intact; includes cable caddy and rear pole clamp
Short Description
Philips IntelliVue MX700 modular patient monitoring system with X2 companion monitor, FMS 8‑bay rack, IBP modules, cardiac output module, BIS module, Nellcor OxiMax SpO₂ module, recorder module, IntelliBridge EC10, OEM interface cable, and OEM‑compatible patient accessories.

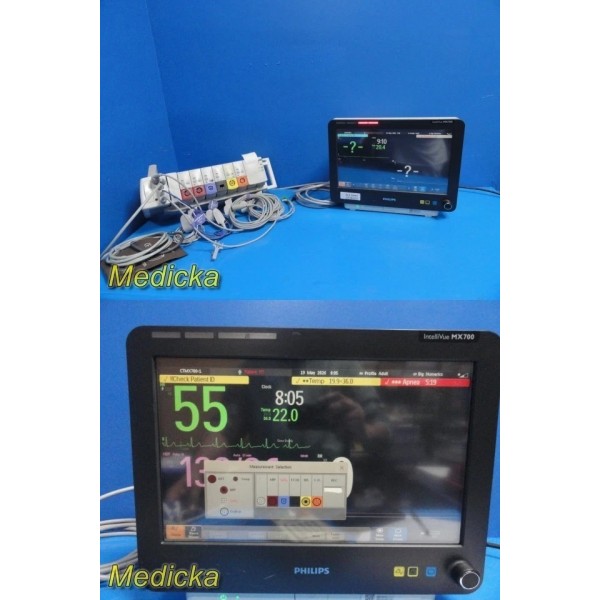

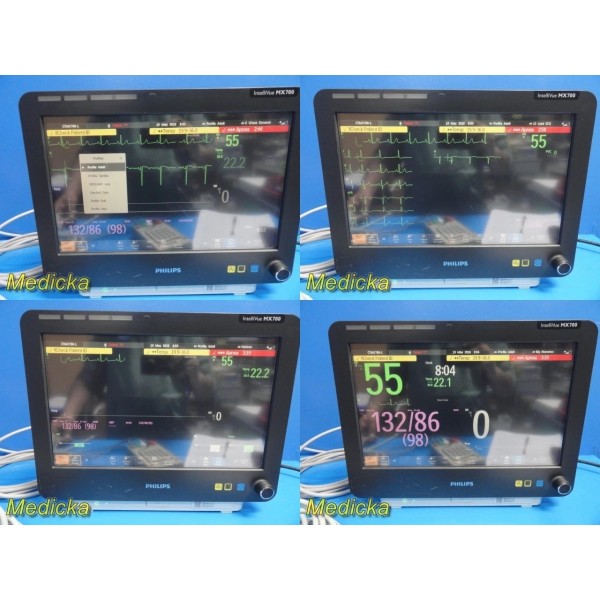

System powers on, displays waveforms, recognizes installed modules, and supports multiple profiles and screen layouts.
Final Condition Snapshot
Functional Status — Tested & working for core functions Cosmetic Condition — Good to very good overall MX700 Display — Bright, responsive; light scratches/scuffs X2 Display — Powers on; visible digital lines Modules — All in great cosmetic condition Testing Limitations — Specialty functions not fully tested due to missing accessories
Condition Summary

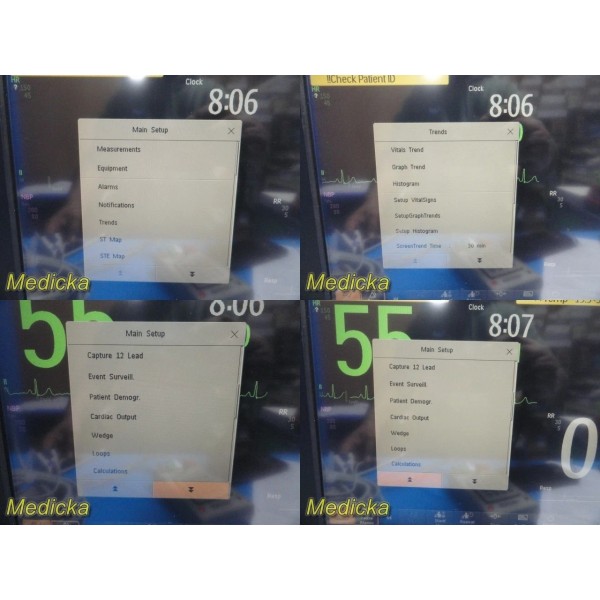

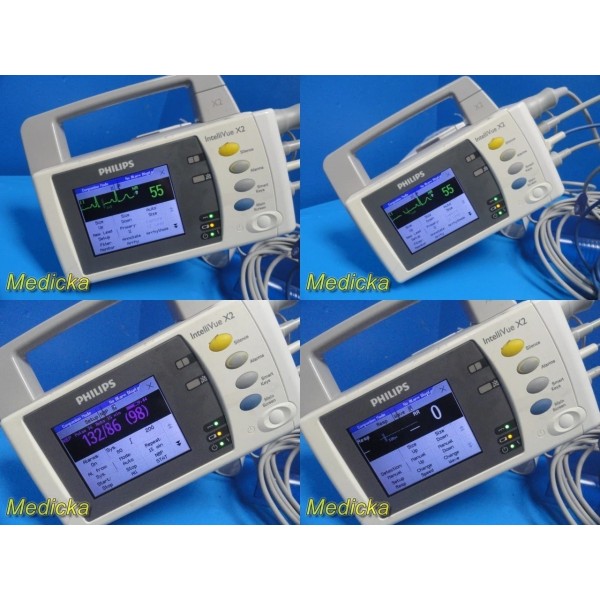

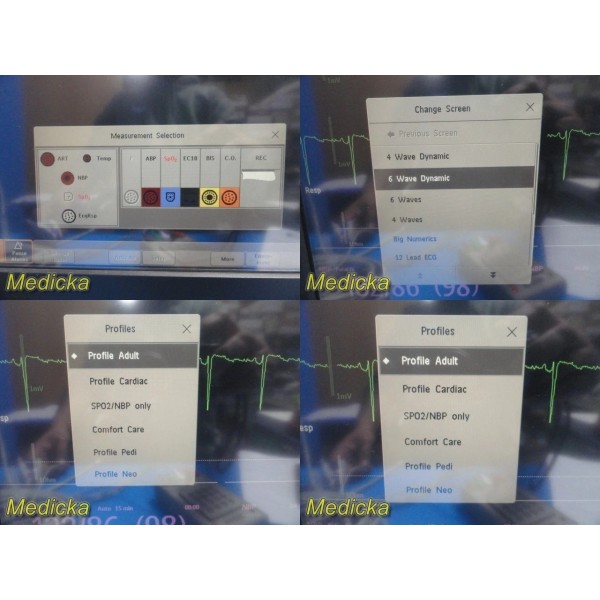

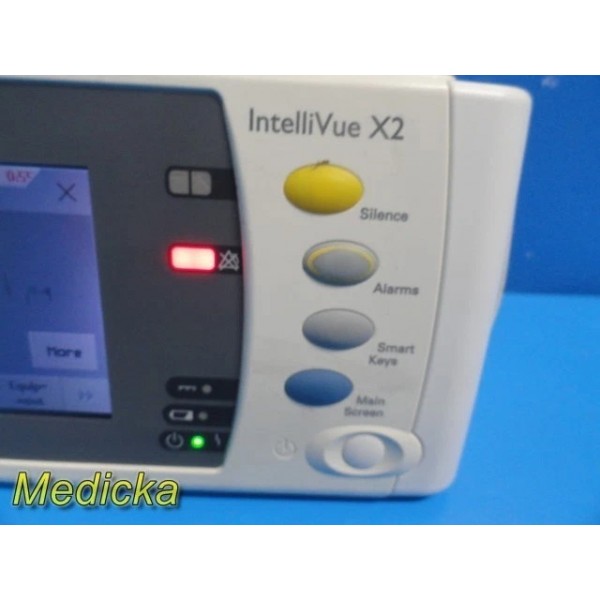

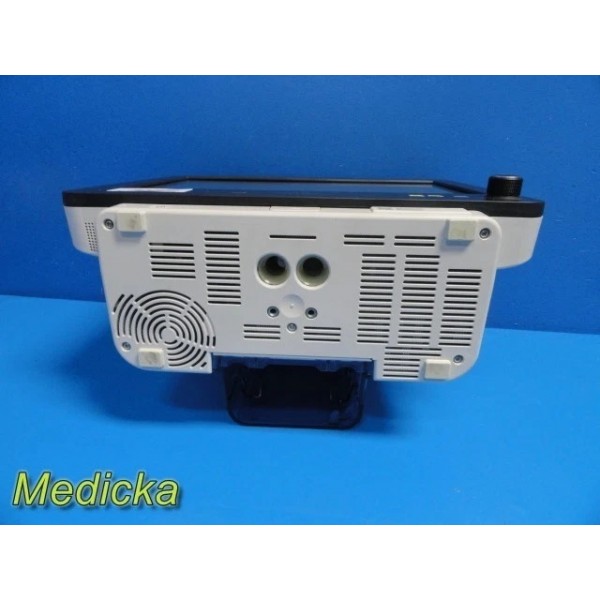

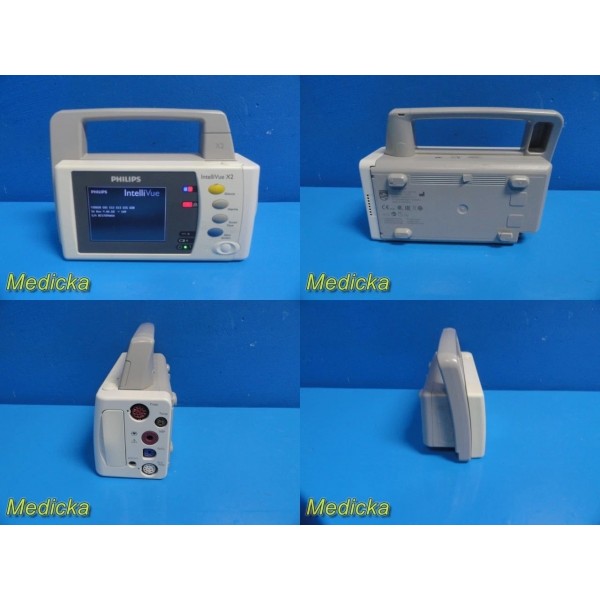

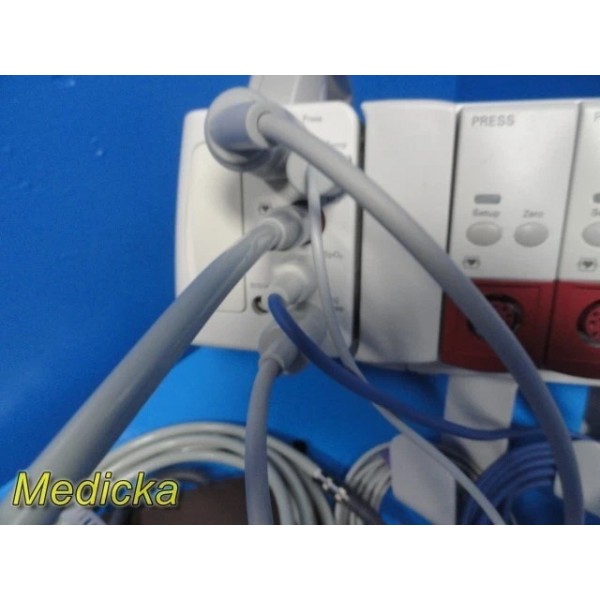

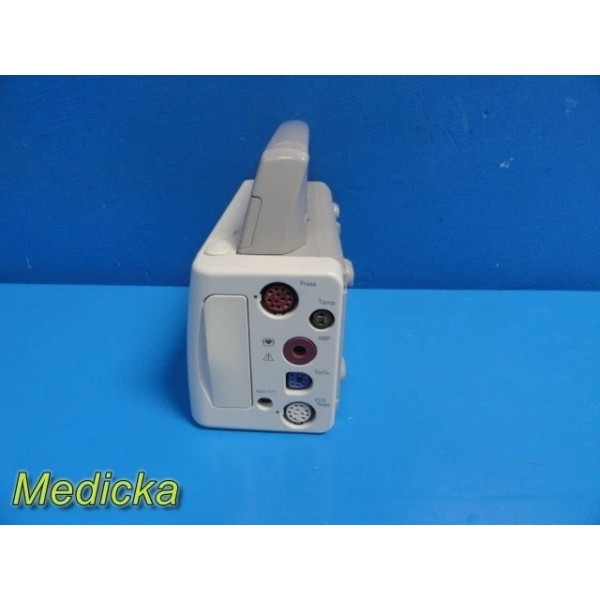

MX700 Main Monitor — Good Overall Housing intact with no dents or cracks. LCD bright and responsive. Light scratches/scuffs on display and bezel. X2 Companion Monitor — Good Condition Handle intact, connectors clean, controls responsive. Battery holding charge. LCD shows digital lines. FMS Rack & Modules — Very Good Rack in great condition with intact ports and cable caddy. Modules recognized by system; housings clean with normal wear. Profiles & Screen Modes Adult, Pediatric, Neonatal/Baby, Cardiac, SpO₂/NBP‑Only, Comfort Care. Screen modes include Dynamic Waves, 4/6 Wave Dynamic, 4/6 Waves, Big Numerics, 12‑Lead ECG, Horizon, 1‑Patient Overview, 2‑Patient Overview, X2 Transport, Visitors. Rear Connectivity USB, LAN/Ethernet, RS232, alarm port, video output, expansion bays, module interfaces, AC power input.
Functionality / Testing Summary

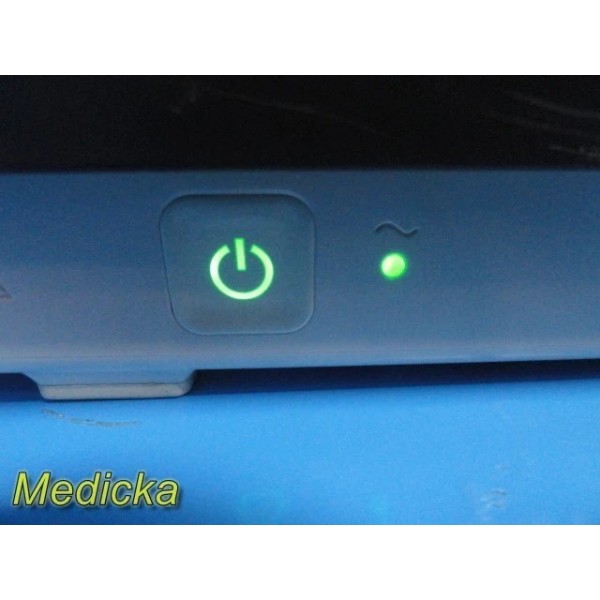

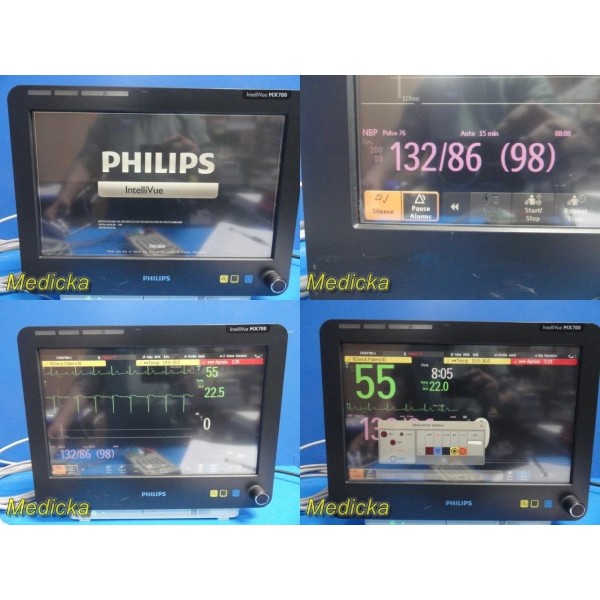

System Operation MX700 powers on normally; touchscreen and hard keys responsive; alarms functional; waveforms display; profiles switch correctly. Module Recognition FMS rack, X2 companion monitor, and installed modules recognized. Observed Parameter Activity ECG/Resp, NIBP, Temperature, Nellcor SpO₂, IBP menu, CO menu, BIS menu, recorder module presence. Specialty Testing Limitations IBP, CO, BIS, and recorder functions not fully tested due to missing transducers, sensors, and consumables.

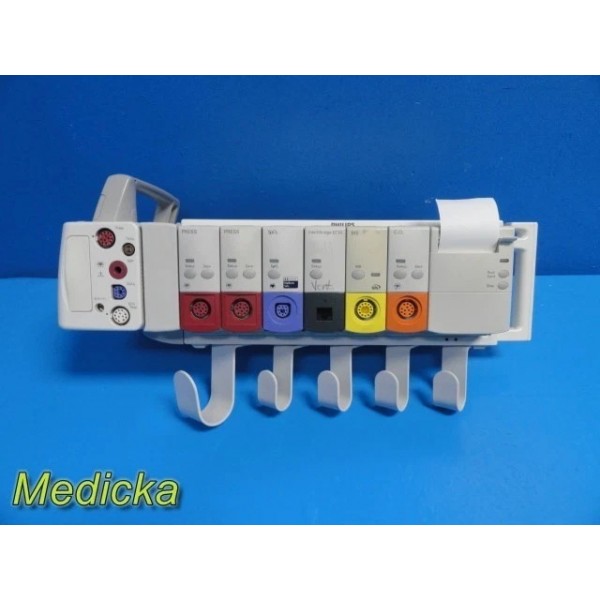

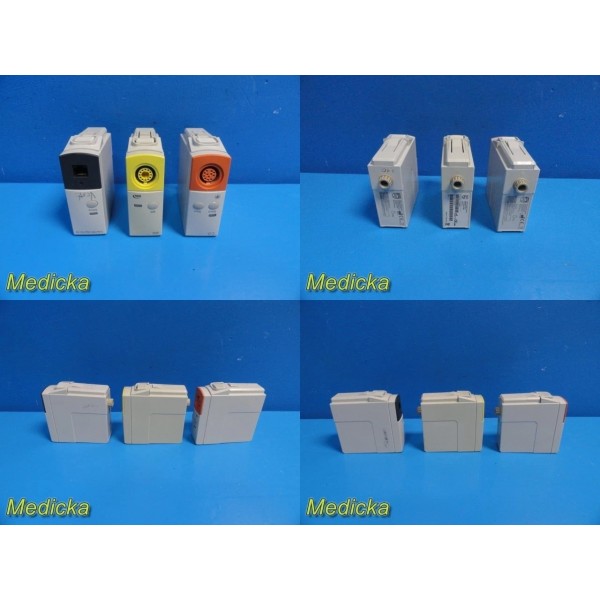

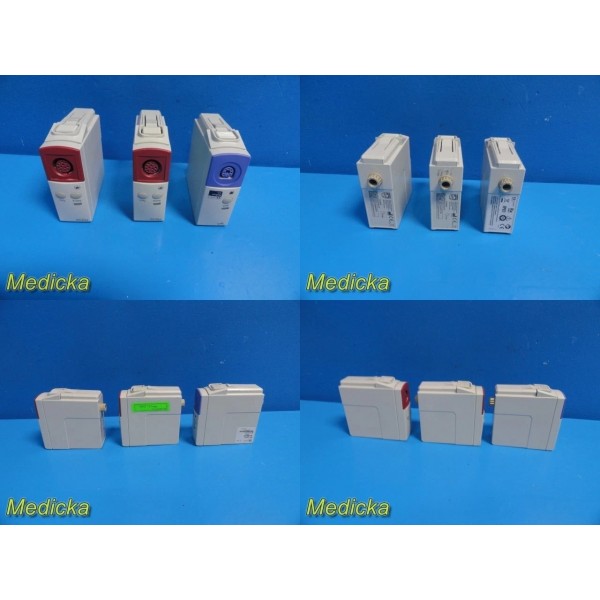

Included Modules (All in Great Condition)
Two Philips M1006B IBP Modules
- One readable S/N: DE408T9758
- DOM range: 12/2014–02/2015
- Ports intact; full IBP testing not completed
Philips M1012A Cardiac Output Module
- REF: 862279
- S/N: DE41548413
- DOM: 2017
- CO port intact; not fully tested
Philips M1034B BIS Module
- S/N: DE11007047
- DOM: 2006
- BIS port intact; not fully tested
Nellcor OxiMax SpO₂ Module
- REF: 10076645
- S/N: 561242A534
- DOM: 2012
- Recognized; port intact

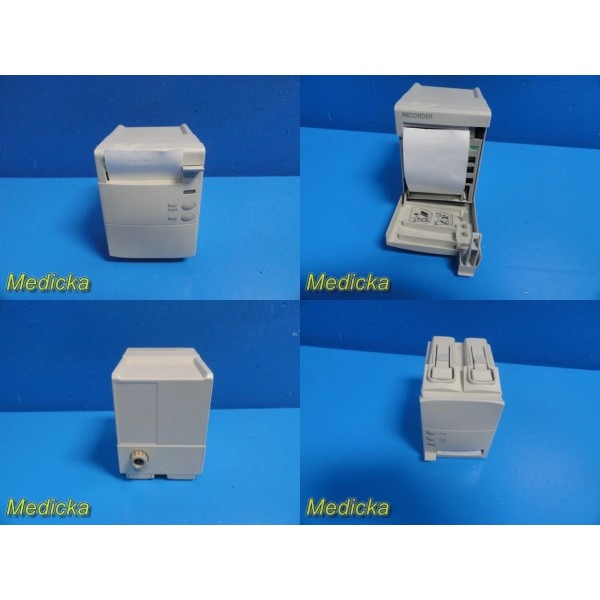

Philips M1116B Recorder / Printer Module
- S/N: 4227A44039
- DOM: 2006
- Recorder included; print testing not completed
Philips IntelliBridge EC10 Module
- REF: 865115
- S/N: DE81719911
- DOM: 2015
- Ports intact; recognized

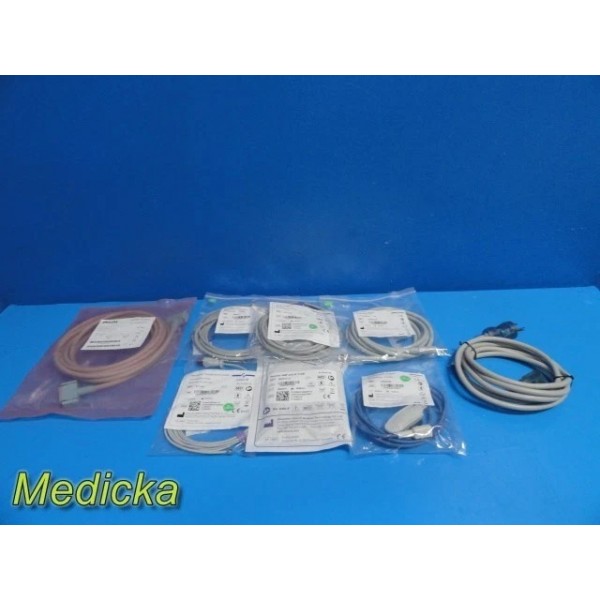

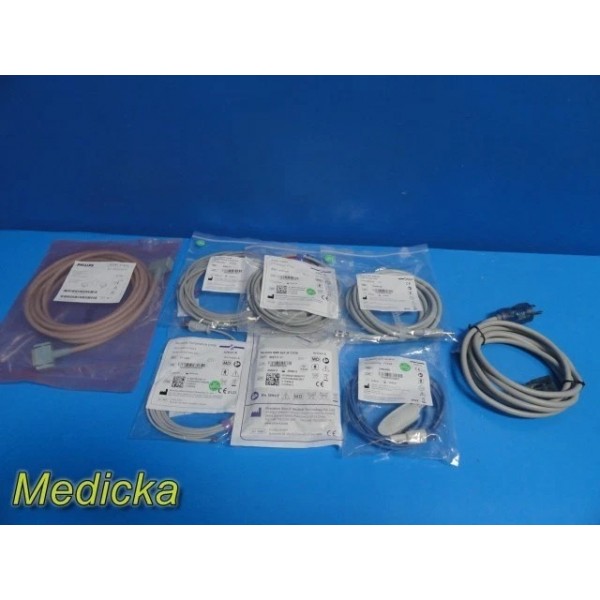

Included New / OEM‑Compatible Accessories
- 5‑Lead ECG Cable — REF SG51245
- Reusable SpO₂ Sensor — REF SP9325A
- Adult NIBP Cuff — REF SE1711‑11
- NIBP Hose — REF SH0910S
- Reusable Temperature Probe — REF ST4305
- IBP Adapter Cable — REF SB04111
- Philips OEM Interface Cable — REF M3081‑61603
- Hospital‑grade power cord
What Is Included

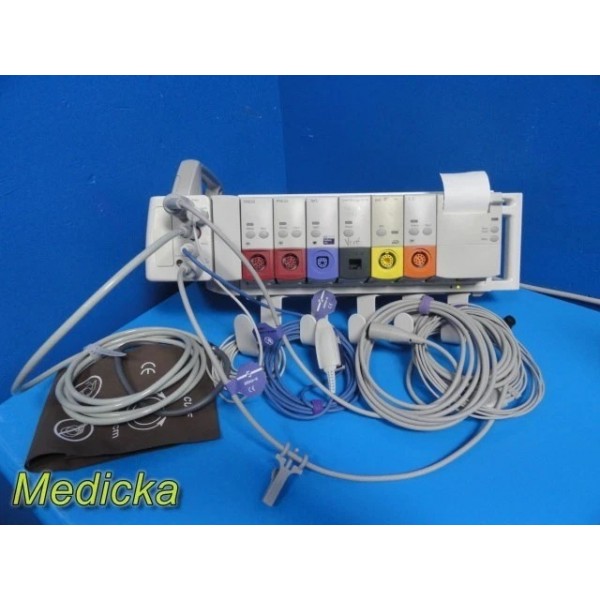

- MX700 main monitor, X2 companion monitor with battery, FMS 8‑bay rack with cable caddy and pole clamp, two M1006B IBP modules, M1012A CO module, M1034B BIS module, Nellcor OxiMax SpO₂ module, M1116B recorder module, IntelliBridge EC10 module, OEM interface cable, OEM‑compatible accessories, hospital‑grade power cord, and all items shown.
What Is Not Included
- Hemodynamic extension module, CO₂ extension module, rolling cart, IBP transducers, CO₂ sampling lines, CO accessories, BIS sensors/cables, extra cuffs, disposable sensors, pediatric/neonatal sensors, extra modules, extra racks, user manual, PM records, or unlisted accessories.
Buyer Advisory Note
System tested for core functionality. Specialty modules included but not fully tested due to missing accessories. Buyer must ensure inspection, configuration, calibration, and biomedical approval prior to clinical use. Review images carefully for cosmetic condition and included components.
Shipping Note
Professionally packaged for secure shipment from Medicka Medical, Minnesota.
