2014 Nihon Kohden BSM-6501A...

Product details

Device Information:

Manufacturer: Nihon Kohden Corporation
Monitor System Reference Number: BSM-6501A
Main Unit Reference Number: MU-651RA
Serial Number: 02947
Date of Manufacture (DOM): 2014 
Software Version: 05–21
Voltage Requirement: 100–240V ~ 50/60Hz, 90VA
Safety Note: Not MR Safe 
Configuration: BIS Ready
Installed Options: QI-672P, QM-600P
Label & Markings: CE Mark: 0086 | BIS Ready marking present on front panel 
Country of Manufacture: Japan
System Password (if prompted): 1234

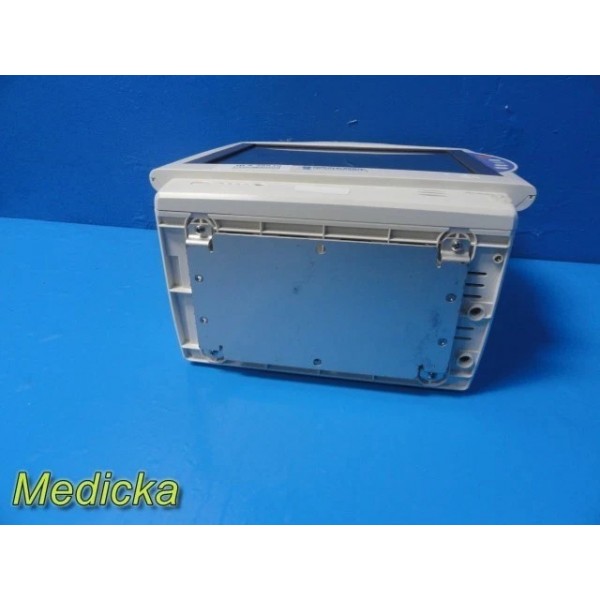

Base Plate: Included | At bottom

Module Information:

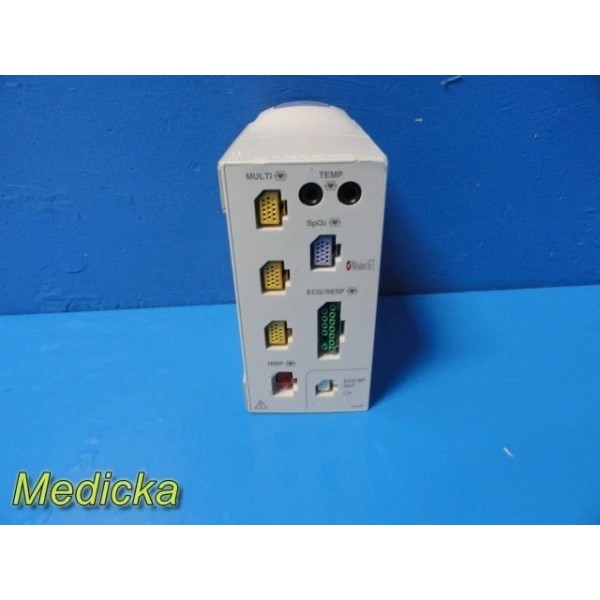

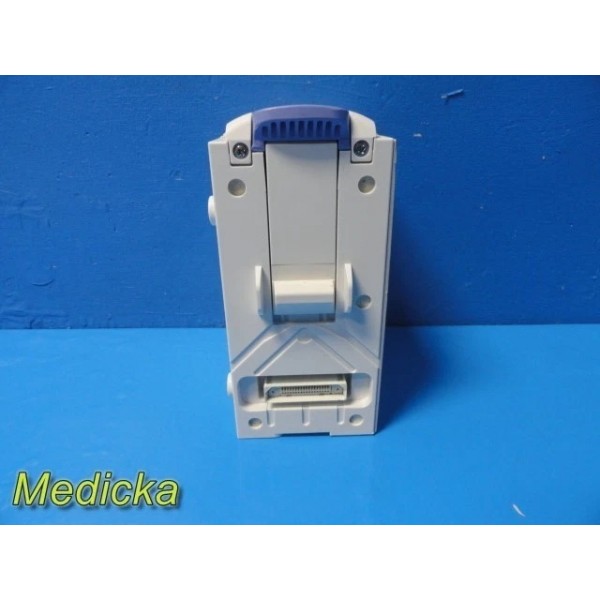

• Module Reference Number: AY-653P
• Serial Number: 02143
• Date of Manufacture: 2010 
• Software Version: 03–10
• Installed Parameters: 3× IBP, 2× TEMP, ECG/RESP, SpO₂ (Masimo SET® Technology), NIBP, ECG/BP OUT
• Condition Details: Module latch intact; connector in good shape; minor surface scratches only

Short Description:

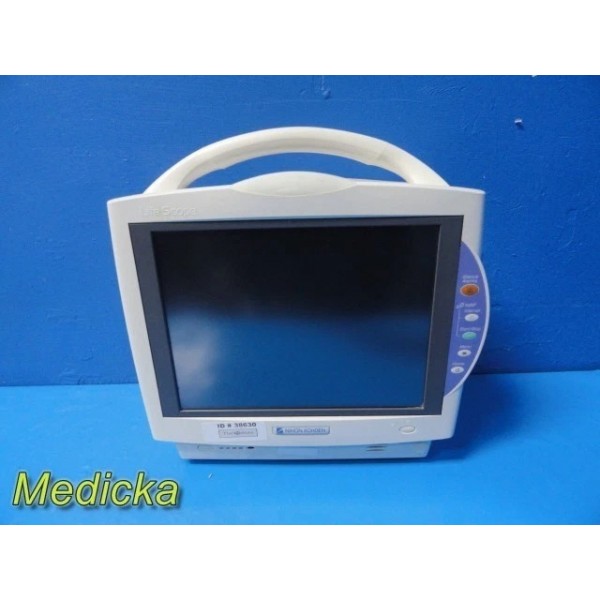

The Nihon Kohden Life Scope BSM-6501A Multiparameter Patient Monitor with AY-653P Parameter Module provides comprehensive physiological monitoring suitable for neonatal, pediatric, and adult patient care.

The system is BIS Ready, supporting ECG, RESP/CO₂, SpO₂ (Masimo technology), NIBP, TEMP, IBP, and advanced parameters such as Cardiac Output (CO) and Gas monitoring when configured. The monitor powers on successfully, passes internal self-tests, and loads the main operational menu.

Condition:

• The monitor powers on and successfully passes self-test
• LCD display is bright, clear, and scratch-free
• Touchscreen is fully responsive with smooth menu navigation

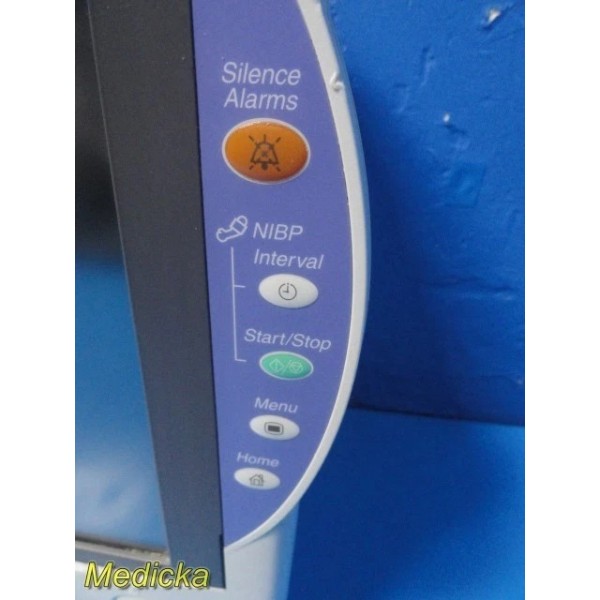

• All soft keys and control pads are functional

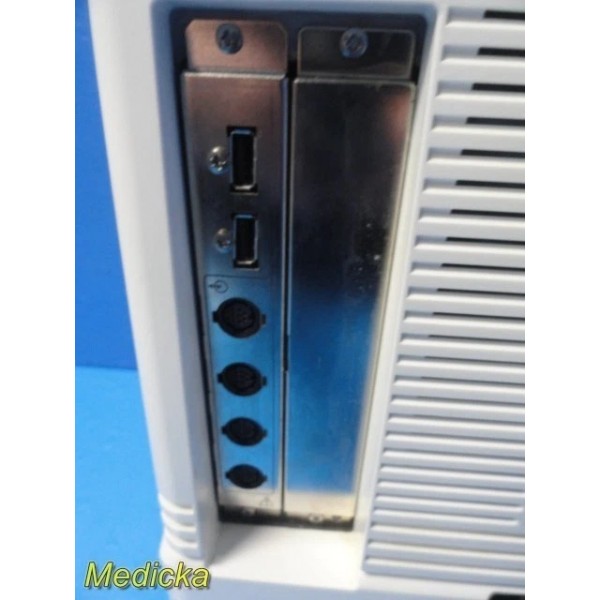

• All ports and vents are intact and undamaged

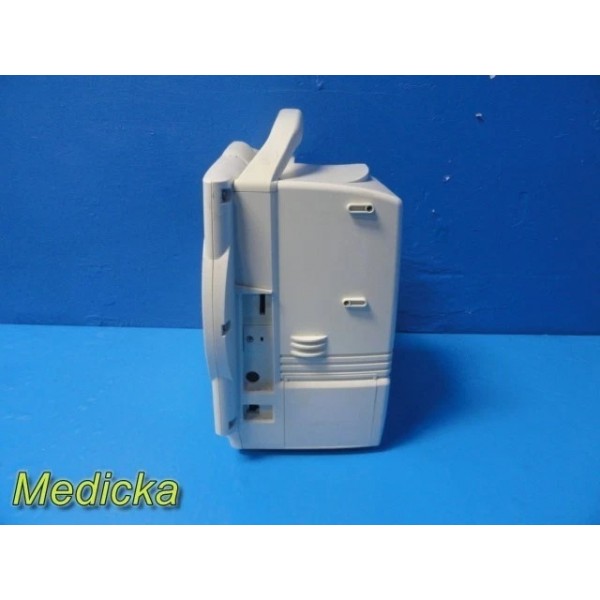

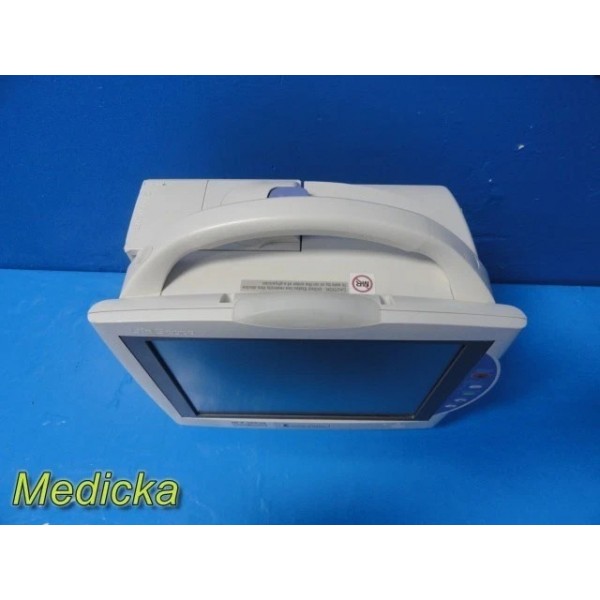

• Handle and casing are structurally sound

Functionality Summary:

• Power-On Self-Test: Passed

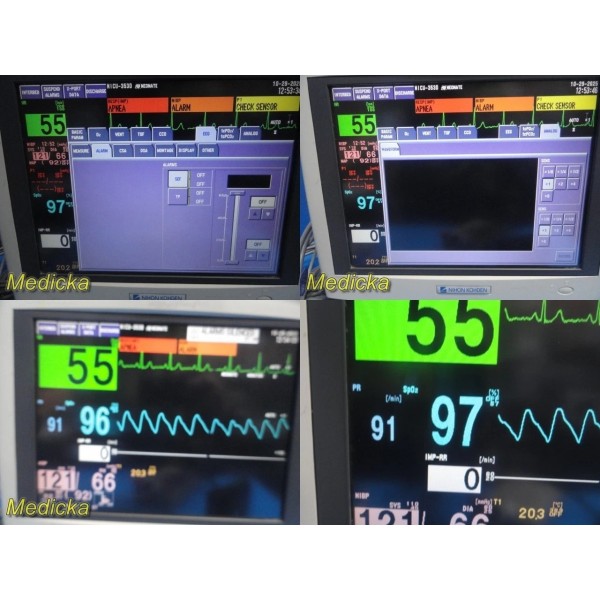

• Display & Touch Function: Working normally
• Parameter Recognition: Active (ECG/RESP, SpO₂, NIBP, TEMP, IBP ports)

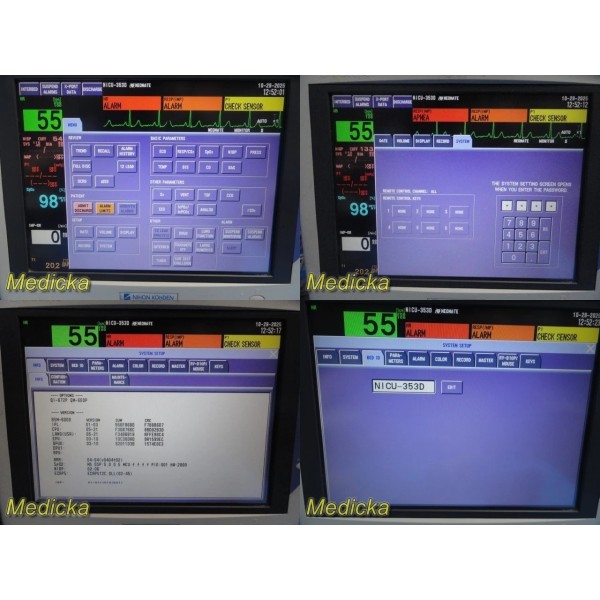

• Software Status: Operational (verified version 05–21)

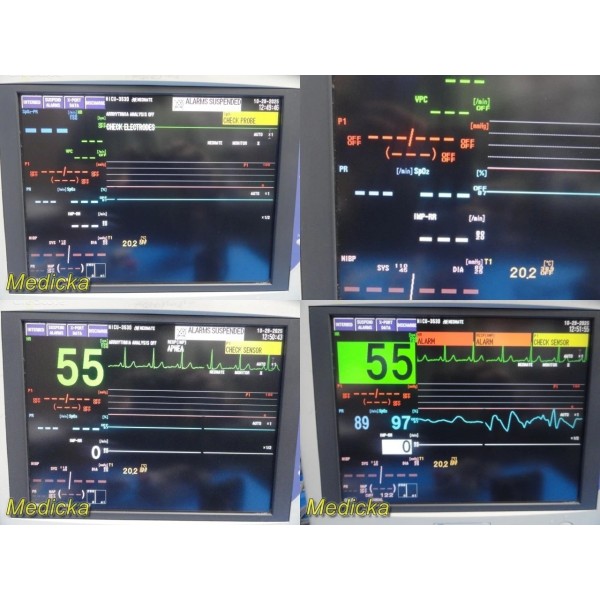

• Alarm System: Functional; audible and visual indicators verified
• Network Settings: LS-NET, Tele-4 configuration active
• No internal errors or warnings observed during testing

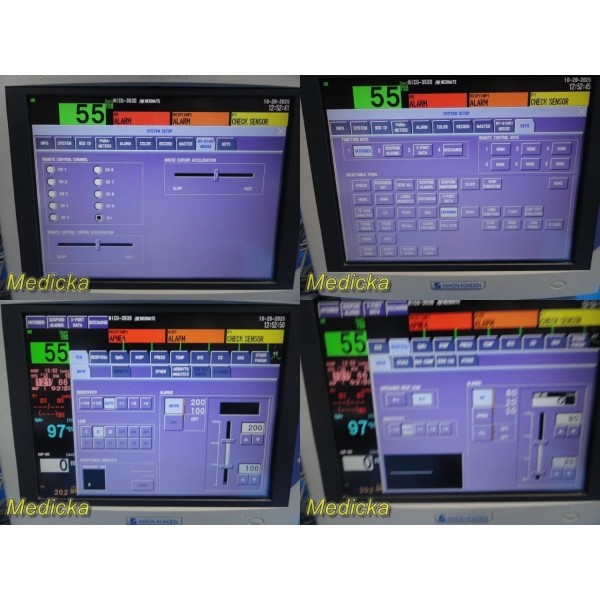

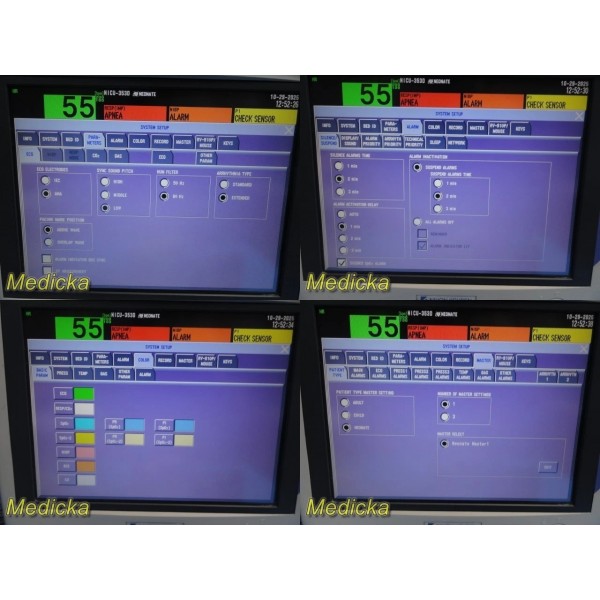

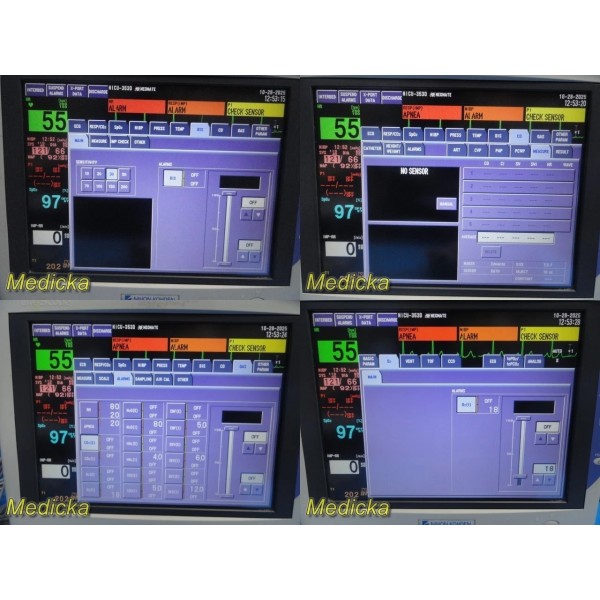

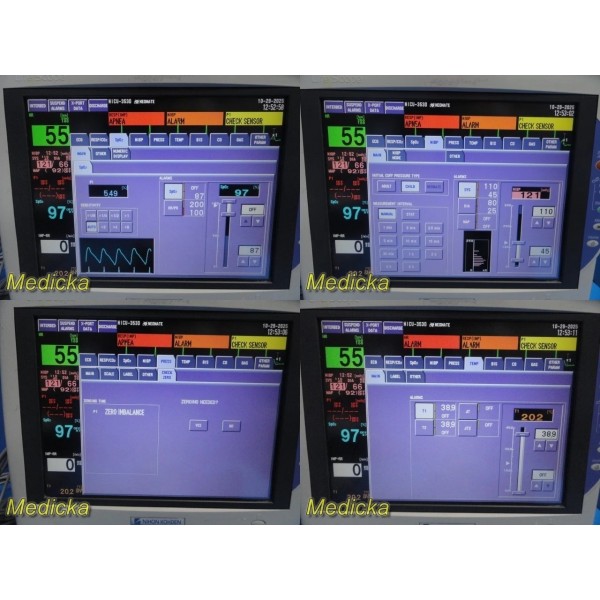

Menu Parameter Overview:

(based on active system configuration)

A. Basic Parameters: ECG, RESP/CO₂, SpO₂, NIBP, PRESS, TEMP, BIS, CO, GAS
B. Other Parameters:O₂, VENT, TOF, CCO, EEG, tcPO₂ / tcPCO₂, ANALOG, rSO₂
C. Other Functions: 12-Lead Analysis, Drug, Lung Function, Suspend Monitoring, Suspend Alarms, Large Numerics, Touchkeys Off, Car Seat Challenge

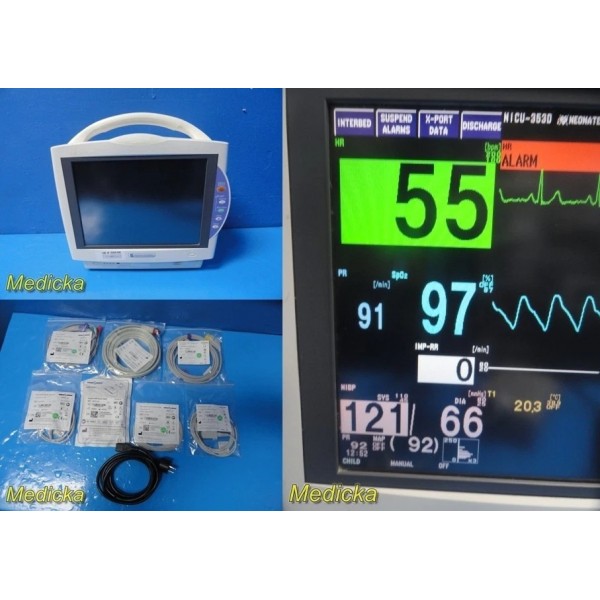

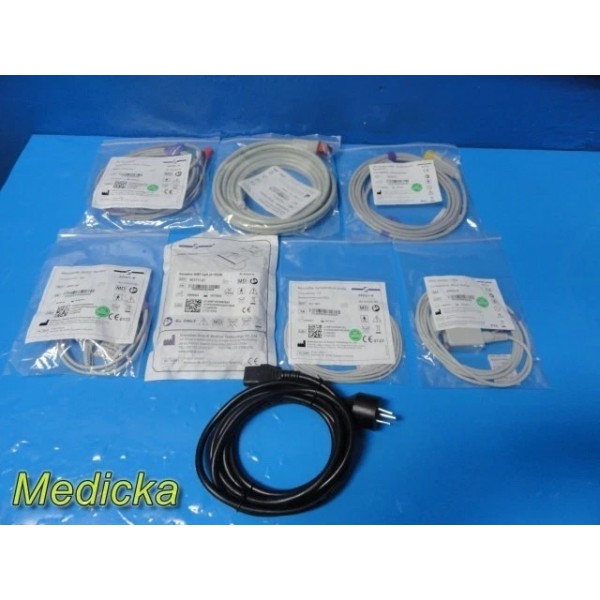

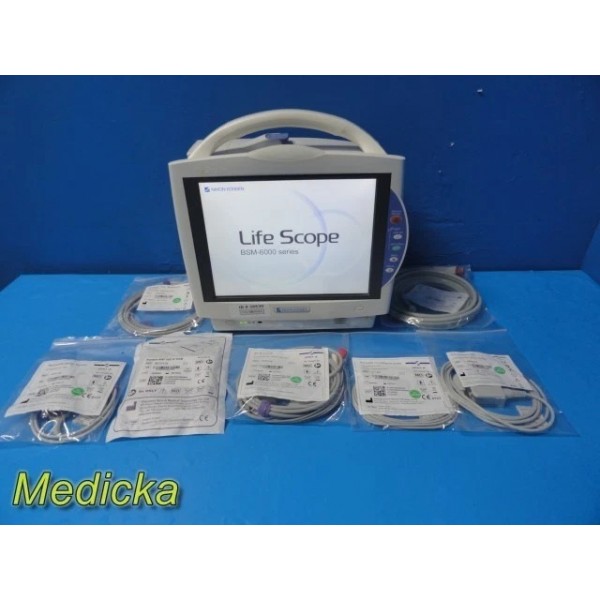

What’s Included:

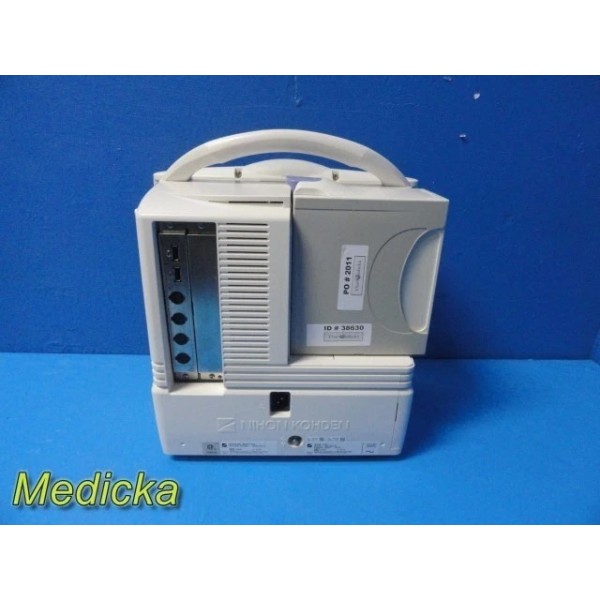

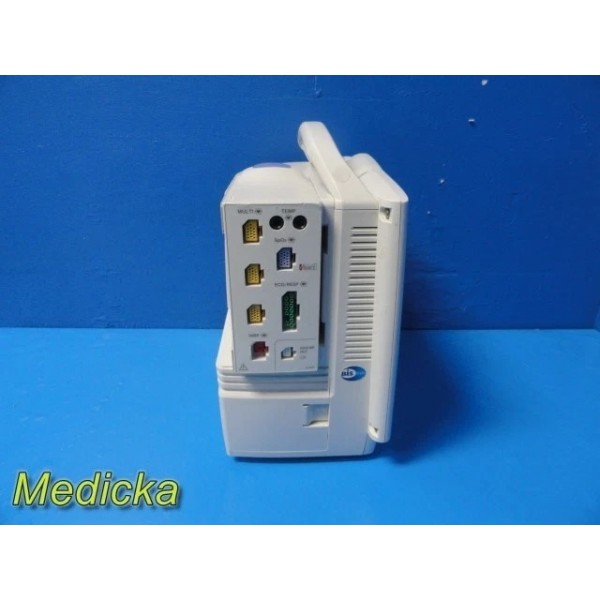

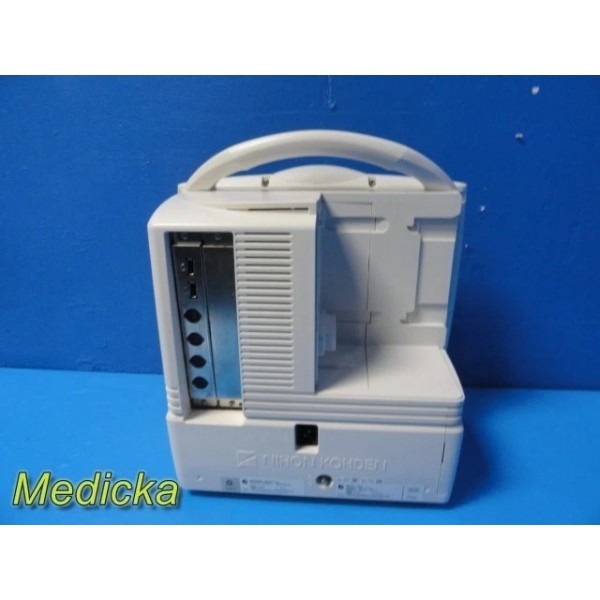

• Nihon Kohden Life Scope BSM-6501A Monitor (MU-651RA Main Unit)

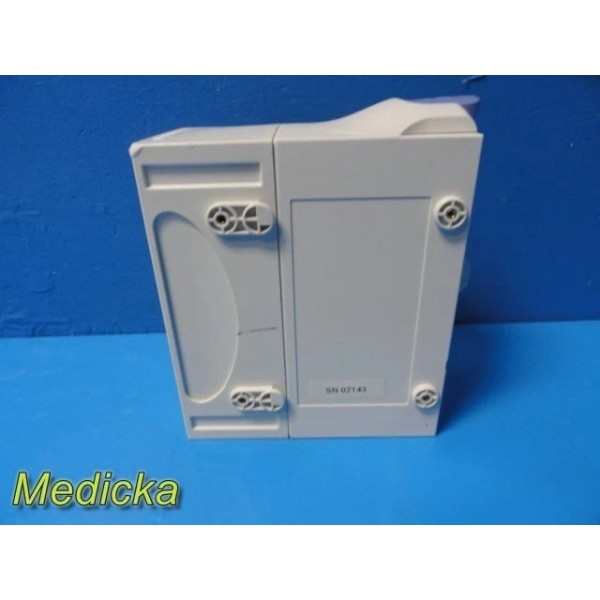

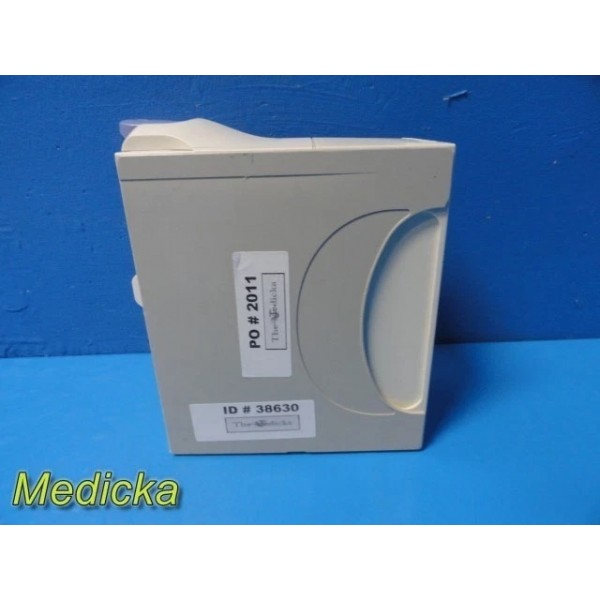

• AY-653P Parameter Module (Installed)
• Reusable SpO₂ Sensor (Ref: SP911SF, Masimo Technology)
• Reusable SpO₂ Adapter Cable (Ref: SP9221E)
• Reusable ECG Cable (Ref: SG5122S, compatible with Nihon Kohden)
• Reusable Temperature Probe (Ref: ST1307)
• Adult NIBP Adapter Hose (Ref: SH4032D)
• Adult NIBP Cuff (Ref: SC1713J, 25–35 cm range)
• Reusable IBP Adapter Cable (Ref: SB0410, compatible with Medex/Abbott transducer)
• Hospital-grade Power Cord

Note: All leads are NEW.

What’s Not Included:

• Printer module
• Stand or cart
• Batteries
• User manual
• Any disposable consumables or single-use accessories

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

Stock ID : 38630 (P.O 4016) (WH104 SCC14)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition: As seen in images : Very Good
2. 2.    Physical Condition: Please review images before bidding : Very Good
3. 3.    Working Condition: Has been tested at our end and the functionality has been shown in the image section...Will receive item as pictured…………(Offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
