GE Solar 8000M Patient Moni...

Product details

Voltage:                 110-120V/220-240V | 2.8/1.4A | 50-60Hz

Short description...

1. 1.      Sale is for imaged items only.
2. 2.   Signs of careful use.
3. 3.   Has been tested at our ned & is in good functionality.

    *Reusable & non-sterile device

    *CE Marked

    *CE# 0459

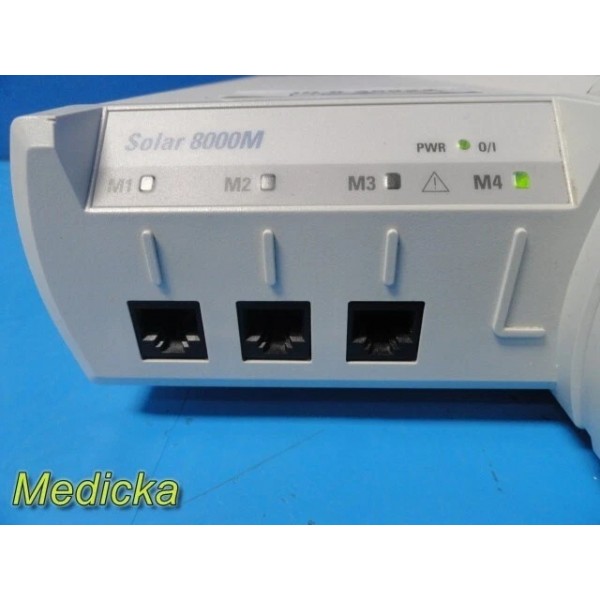

    *Ports: Tram Net 1 & 2; RS232, RS2321, VGA, VID, DFPVID & LAN

    *Cosmetics: No dents or cracks, may have scratches

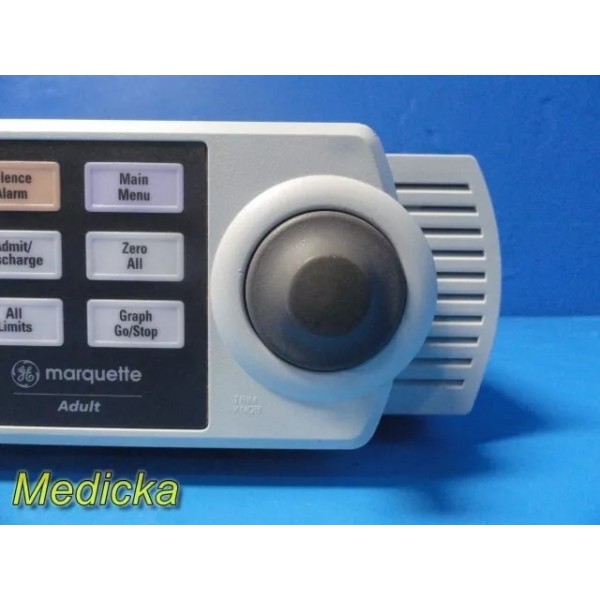

    *Trim Knob: Responsive

    *Softpads: Responsive

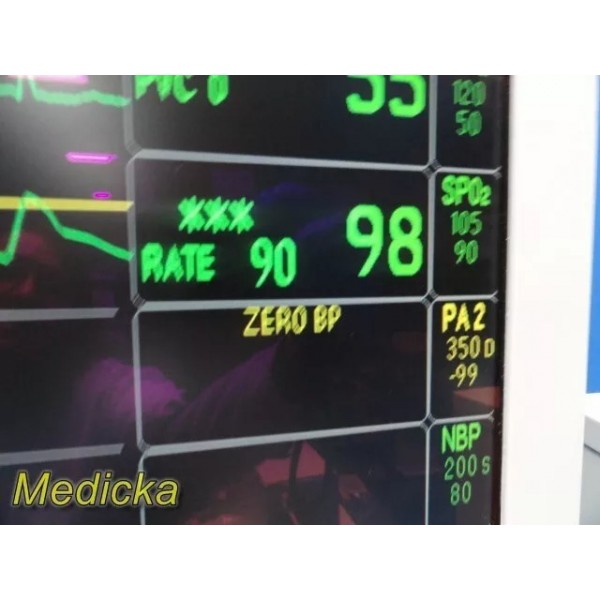

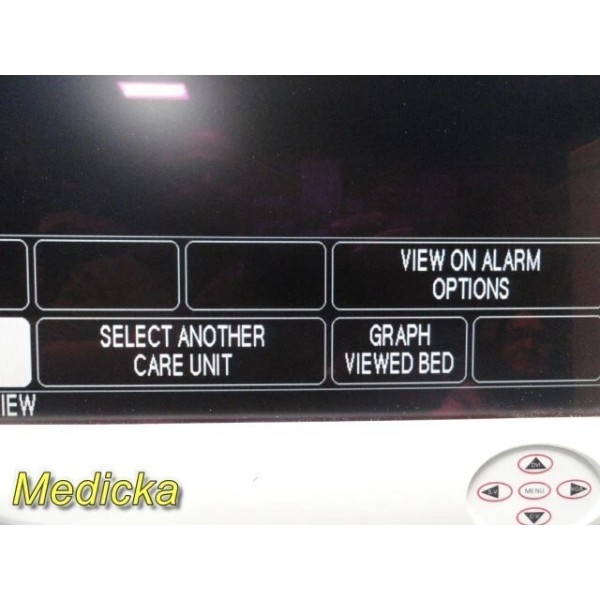

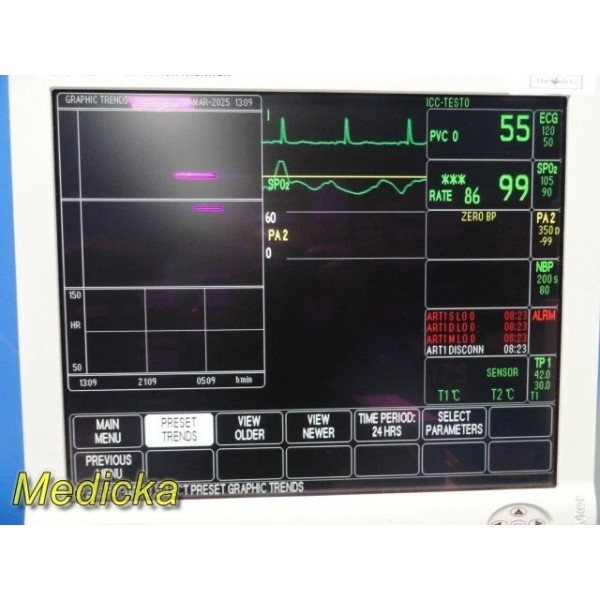

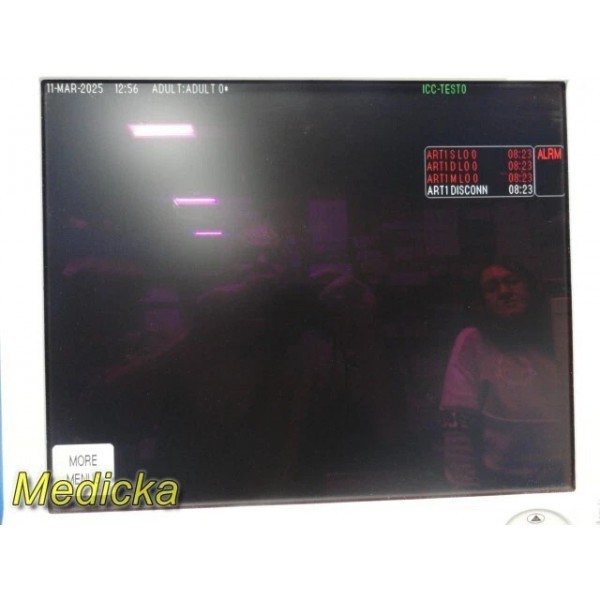

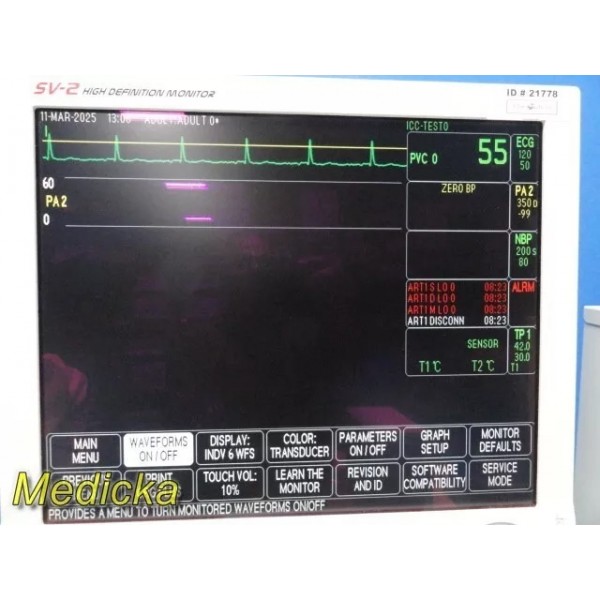

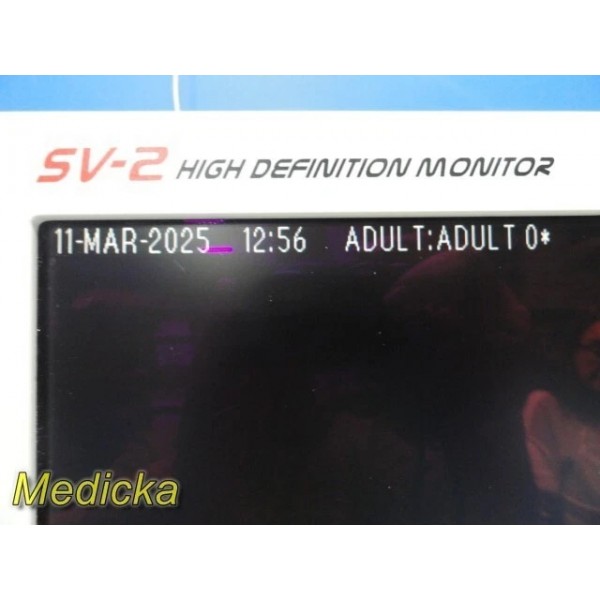

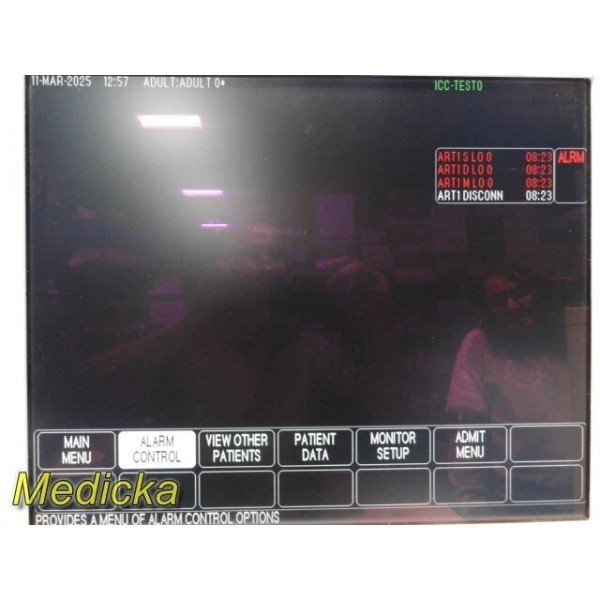

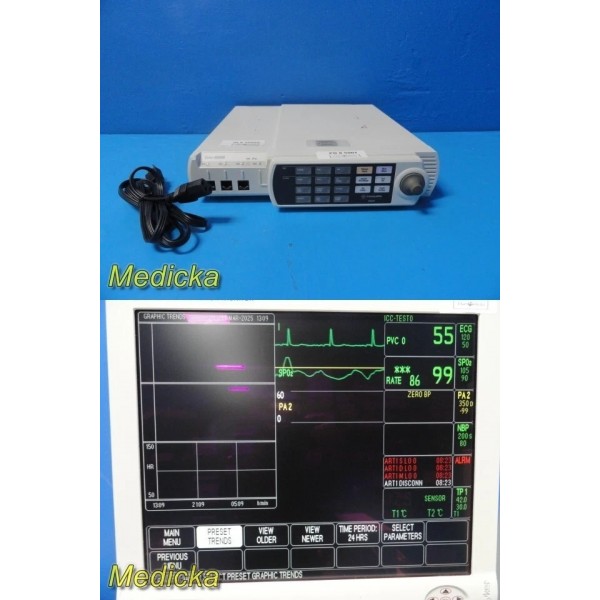

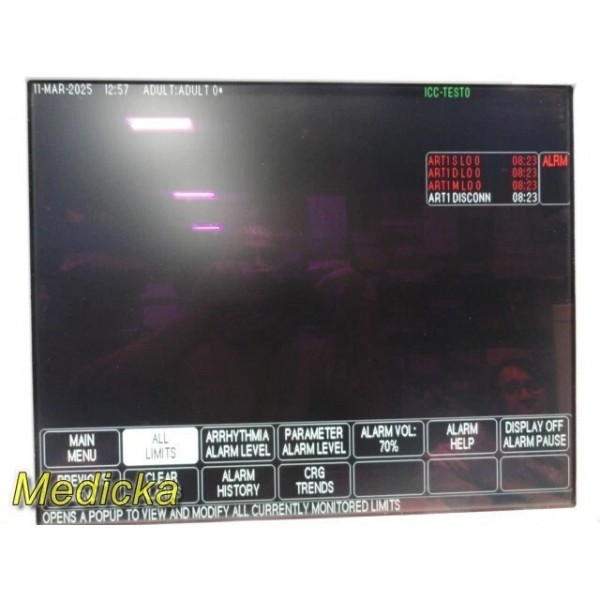

    *Testing: Was hooked up with Tram RAC 4A with Tram Module, leads & monitor and the device is fully functional as imaged

    *Comes with power cord

    *Cosmetically in very good shape

    *Please review images and check for compatibility before bidding for the item

Product Overview: (Be informed before you buy | Information are for guidance use only)

GE Solar 8000M Patient Monitoring System

• Modular Design:


  • Supports various single and multi-parameter modules for flexible patient monitoring.

  • Compatible with GE CARESCAPE™ Patient Data Module and Transport Pro® for continuous data monitoring across different care areas.


• Comprehensive Monitoring Capabilities:


  • Monitors core vital signs, advanced cardiac parameters, and ventilation functions.

  • Supports ST segment analysis, 12-lead ECG (12SL®), and multi-lead arrhythmia detection (EK-Pro™).

  • Can display up to eight waveforms simultaneously for detailed patient assessment.


• User Interface & Display:

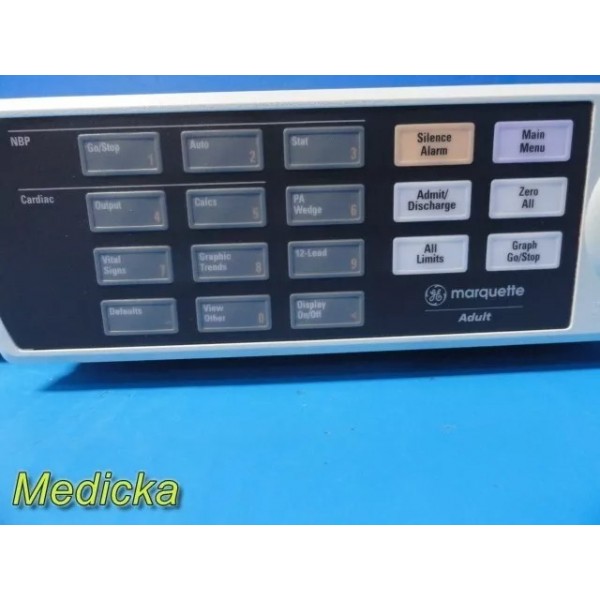

  • Features a keypad and trim knob for easy navigation.

  • Supports 15" to 19" displays with 1024 × 768 resolution.


• Processing & Performance:


  • Motorola MPC860P (PowerPC) 66MHz, 32-bit processor for reliable data handling.


• Power Requirements:


  • Operates on 110 ± 20VAC or 230 ± 40VAC, 50/60Hz, single phase.


• Physical Specifications:


  • Height: 3.2 inches (8.1 cm)

  • Width: 13.9 inches (35.4 cm)

  • Depth: 13.2 inches (33.4 cm)

  • Weight: 12.3 lbs (5.6 kg)


• Environmental Conditions:


  • Operating Temperature: 0°C to 40°C (32°F to 104°F)

  • Humidity: 15% to 95% (non-condensing)


Applications in Healthcare Settings

• Neonatal Intensive Care (NICU):


  • Features CRG® 24-hour trend analysis to evaluate bradycardia and apnea events.

  • Dual-pulse oximetry and transcutaneous monitoring for non-invasive O₂ and CO₂ analysis.


• Perioperative Care (Operating Rooms - OR):


  • Supports GE SAM® module for CO₂, O₂, and anesthetic agent identification.

  • Compatible with BIS® monitoring for depth of anesthesia analysis.


• Critical & Emergency Care:


  • Advanced cardiac tools such as multi-lead arrhythmia analysis, ST segment analysis, and continuous ECG monitoring.

  • Supports transport monitoring with continuous data collection.


This high-acuity patient monitoring system is designed for reliable, continuous data collection in critical care environments, enhancing clinical decision-making.

    Package includes:-

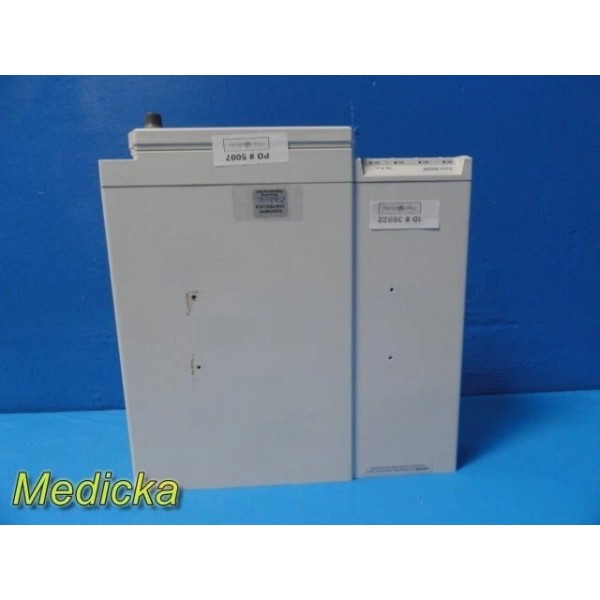

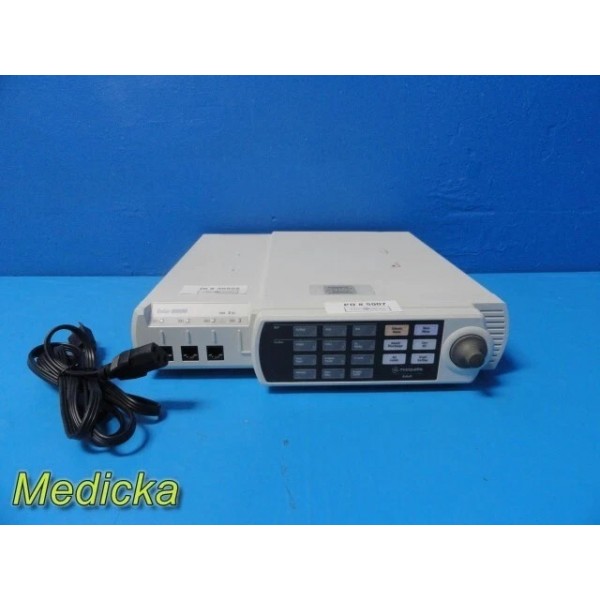

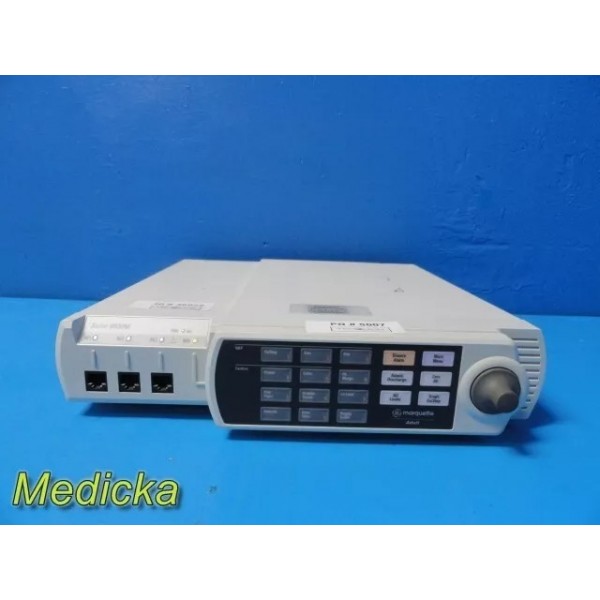

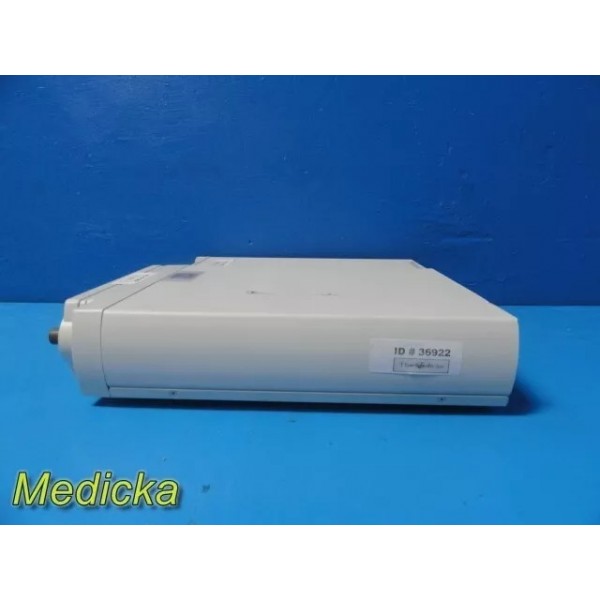

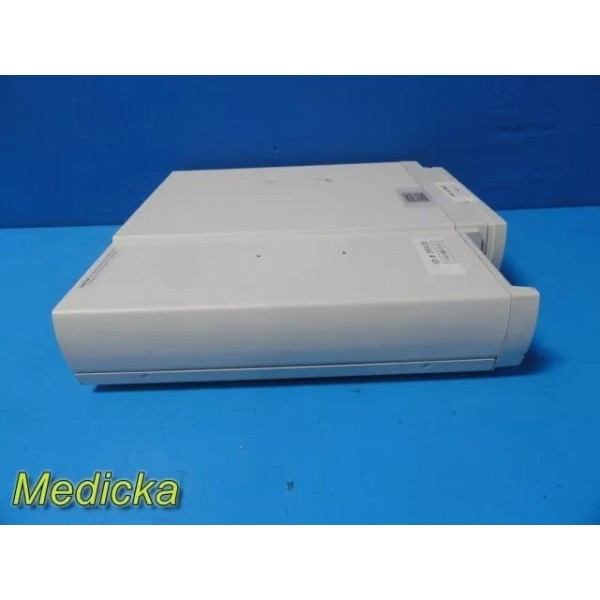

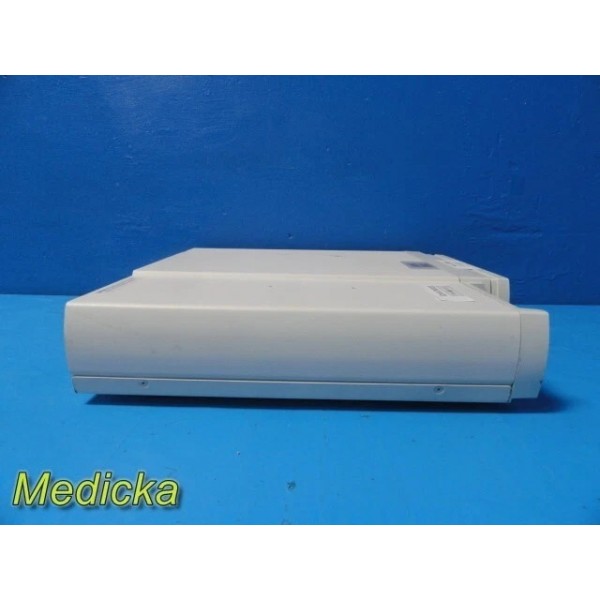

GE Solar 8000M Patient Monitoring System Console

Power Cord

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

1. 6.        Sterilized : Non-sterile device
2. 7.        Manual : Not included
3. 8.        Cleaned : Yes, at our facility
4. 9.        Shipping Weight  : 15 lbs

Stock ID : 36922 (P.O 5007) (SC 9)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition: As seen in images - Very Good
2. 2.    Physical Condition: Please review images before bidding - Very Good
3. 3.    Working Condition: Has been tested at our ned & is in good functionality...will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
