ConMed Sabre 2400 Electrosurgical Unit ESU Generator Model 60-5600-002 ~ 39133
Item specifics
- For parts or not working
- Model
- Sabre 2400MPN
- 60-5600-002
Product details
Manufacturer | ConMed Corporation (Aspen Labs) |
Item: | ConMed Sabre 2400 Electrosurgical Unit ESU Generator Model 60-5600-002 – Parts/Repair |
Model/Cat # | Sabre 2400 | 60-5600-002 |
Serial No. | 99JGS010 |
Made In: | USA |
Date of Manufacture: | U/K |
Voltage: 120V ~ 50/60 Hz | 7A / 700W
Short Description:
ConMed Sabre 2400 electrosurgical generator designed for monopolar and bipolar surgical procedures. The unit powers on and passes internal self-test with bright LED displays and responsive controls. Bipolar activation functions properly during testing; however monopolar activation lights do not illuminate during footswitch activation. Due to this inconsistency the unit is being offered as-is for parts or repair.
Device Type: Electrosurgical Unit (ESU)
Input Power: 120V ~ 50/60 Hz
Power Consumption: 7A / 700W
Country of Manufacture: USA
Regulatory Markings: UL Listed Medical Equipment
Output Modes: Pure Cut, Blend Cut, Coagulation, Bipolar
Maximum Output Power:
| Mode | Maximum Power | Rated Load | Fundamental Frequency |
|---|---|---|---|
| Pure Cut | 300 W | 300 Ω | 417 kHz |
| Blend Cut | 180 W | 300 Ω | 417 kHz |
| Coag | 120 W | 500 Ω | 540 kHz |
| Bipolar | 50 W | 50 Ω | 1050 kHz |
Condition Summary:
Overall Condition
The device shows moderate cosmetic signs of normal clinical use including surface scratches and scuffs consistent with age and prior handling.

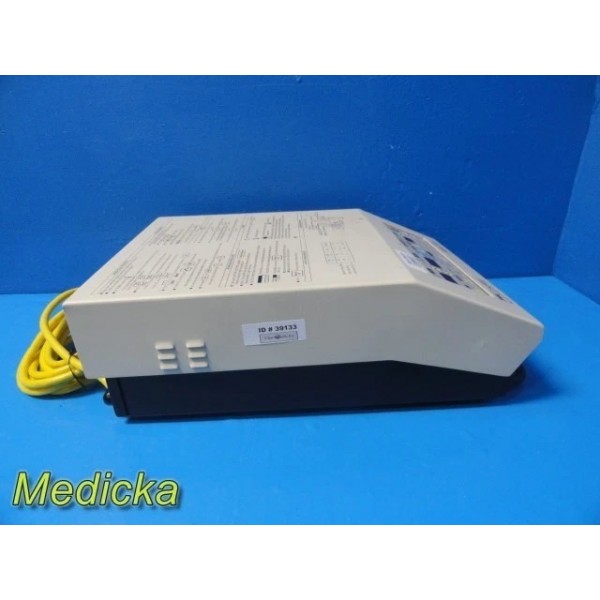

Housing

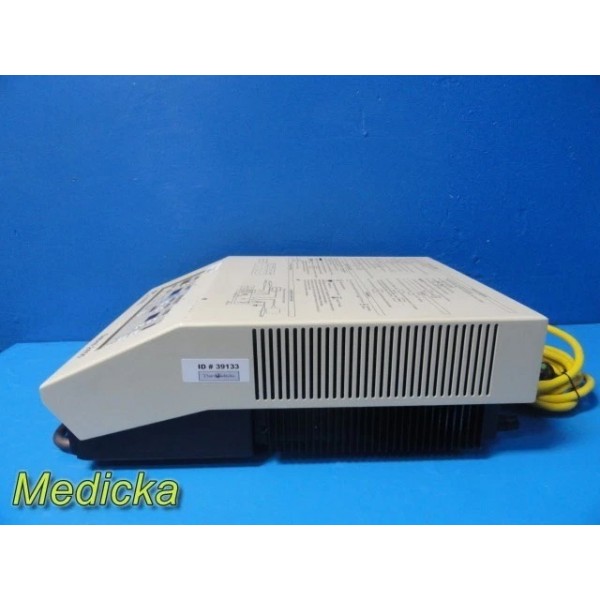

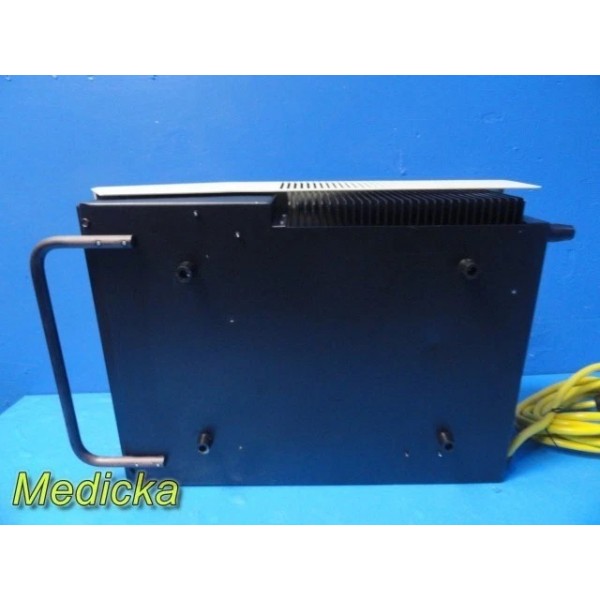

Outer housing remains structurally sound with no cracks, dents, or structural damage observed.
Front Handle

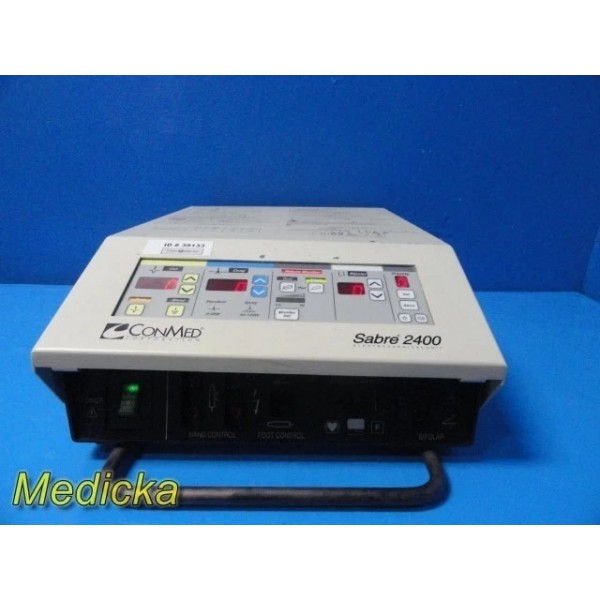

Front integrated pickup handle is intact and secure.
Control Panel

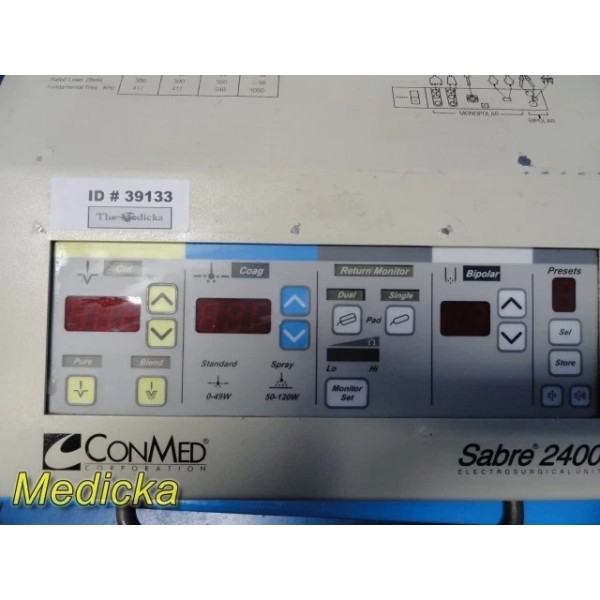

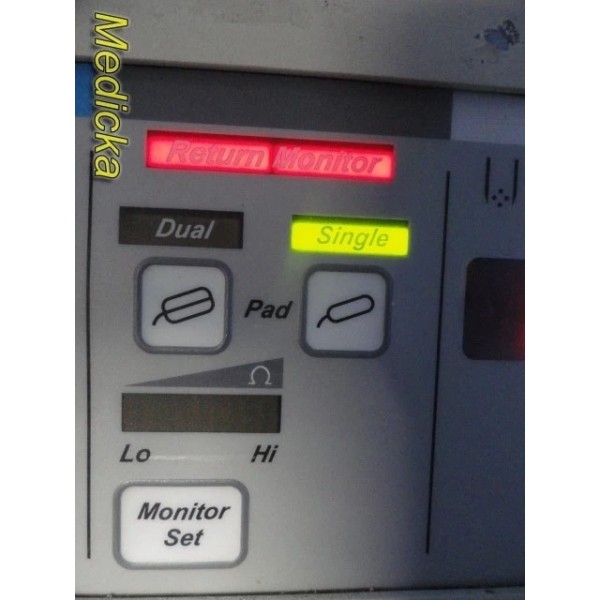

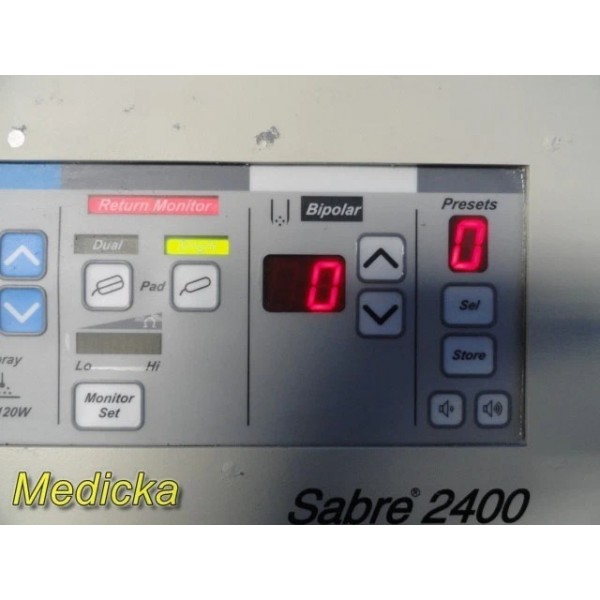

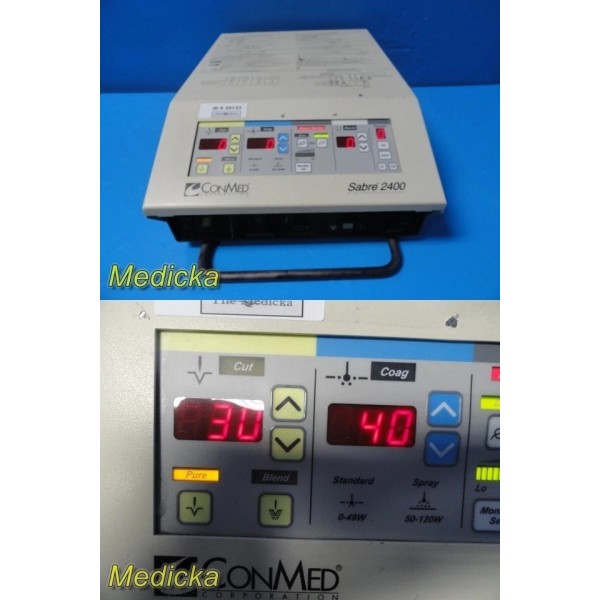

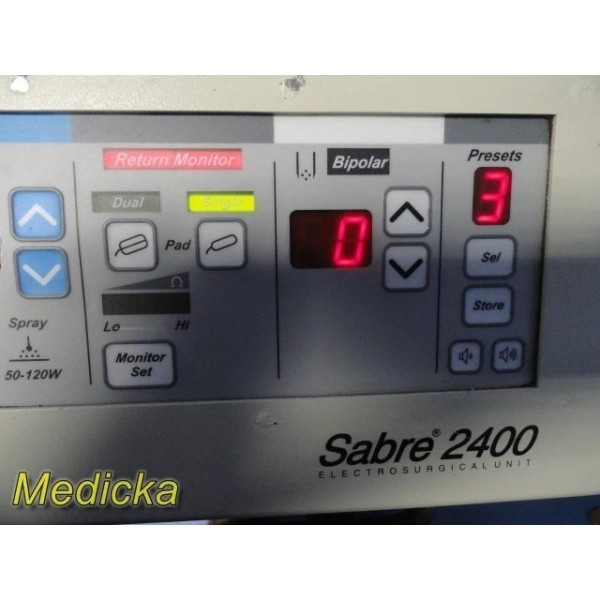

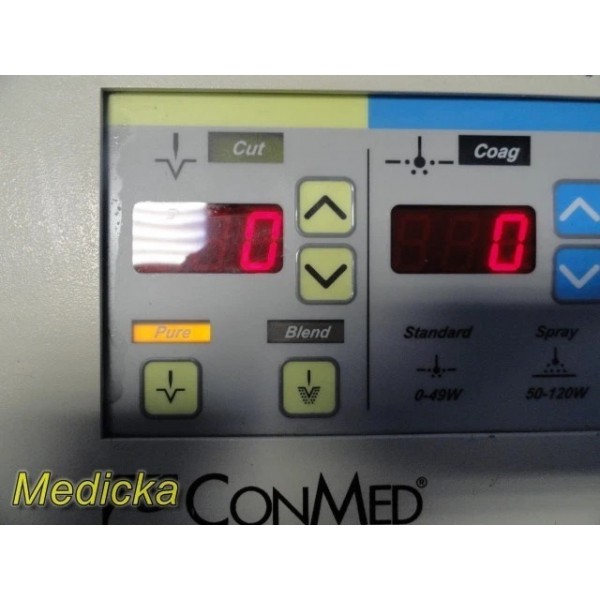

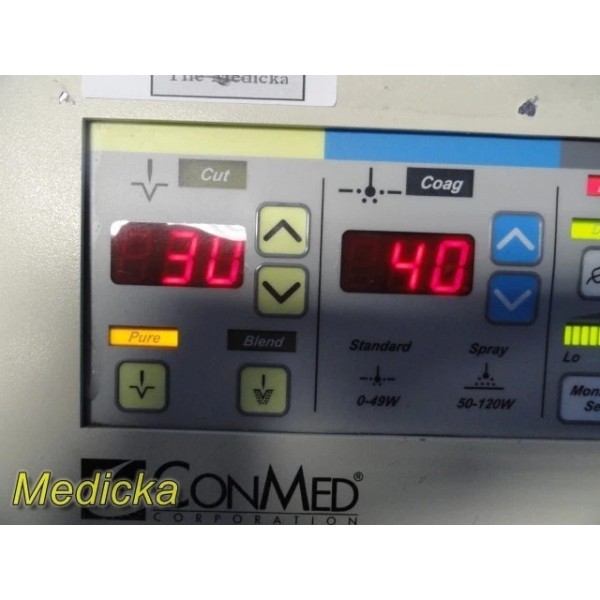

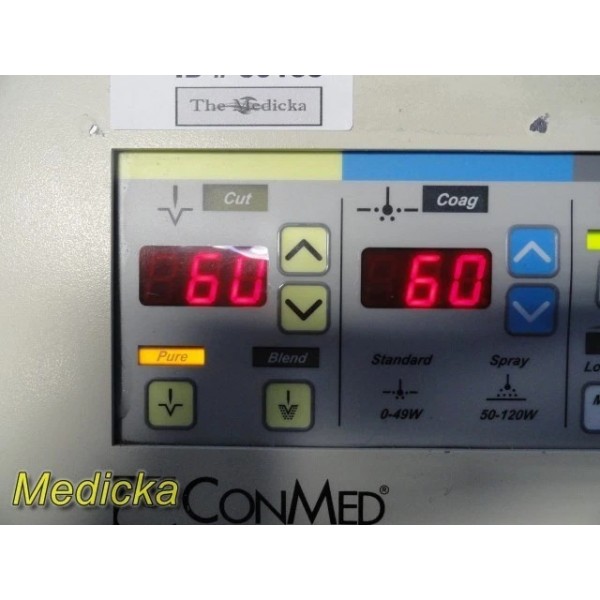

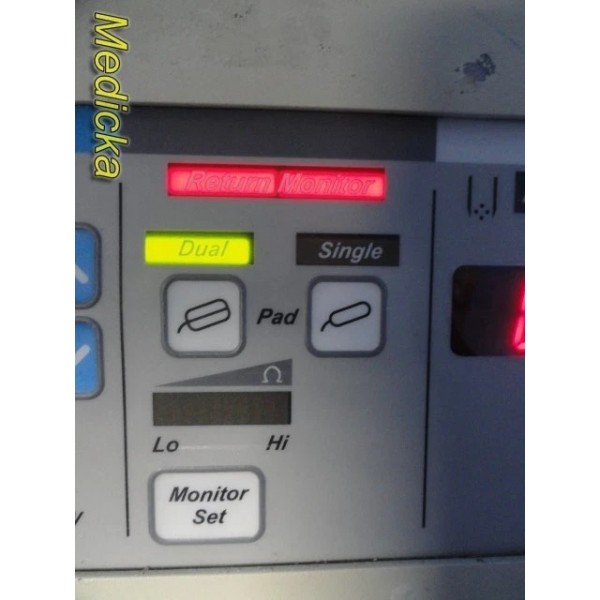

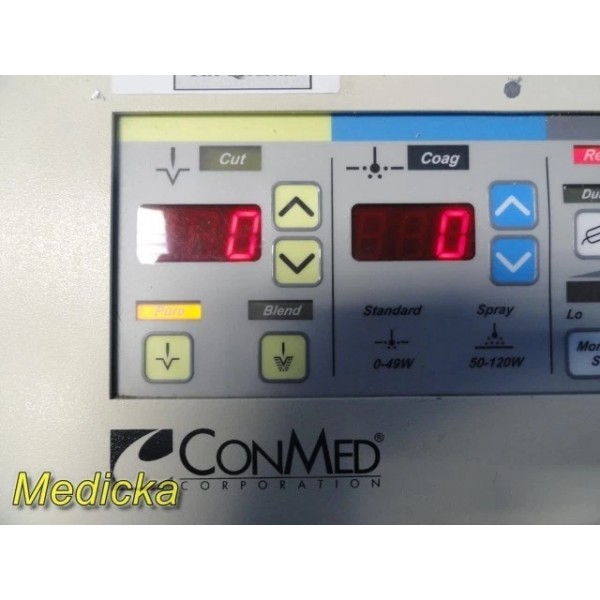

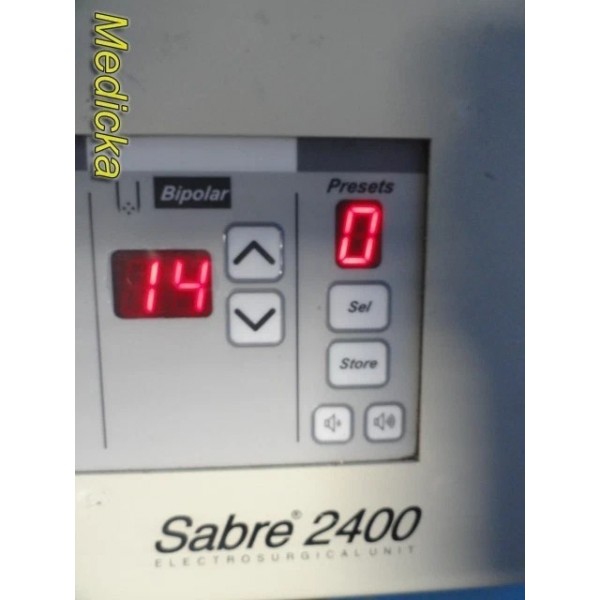

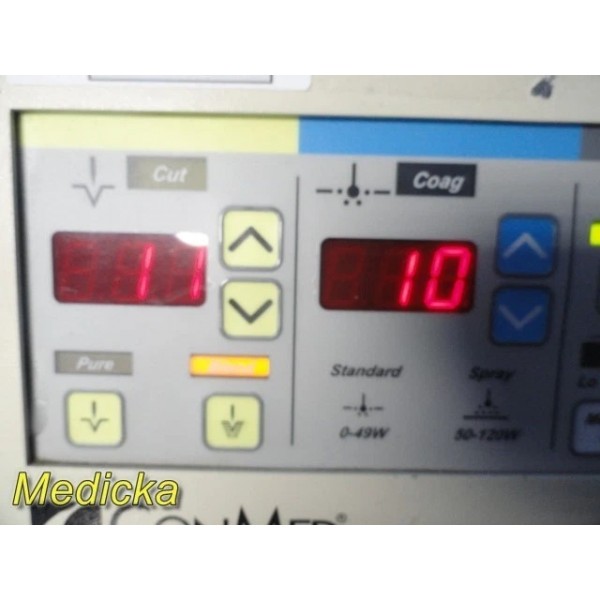

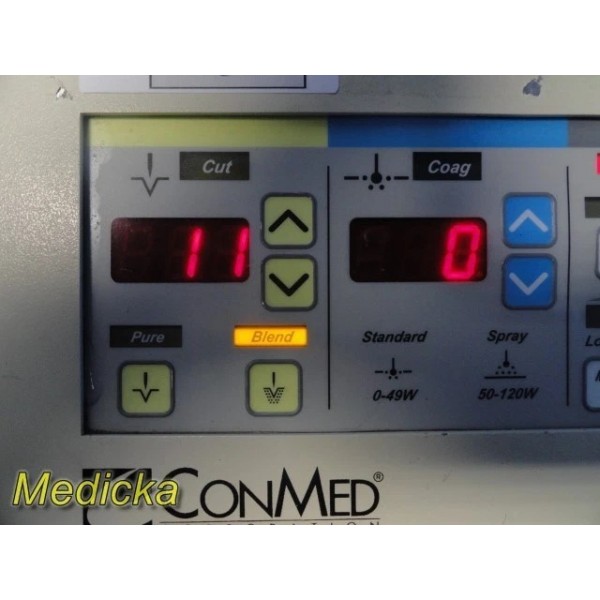

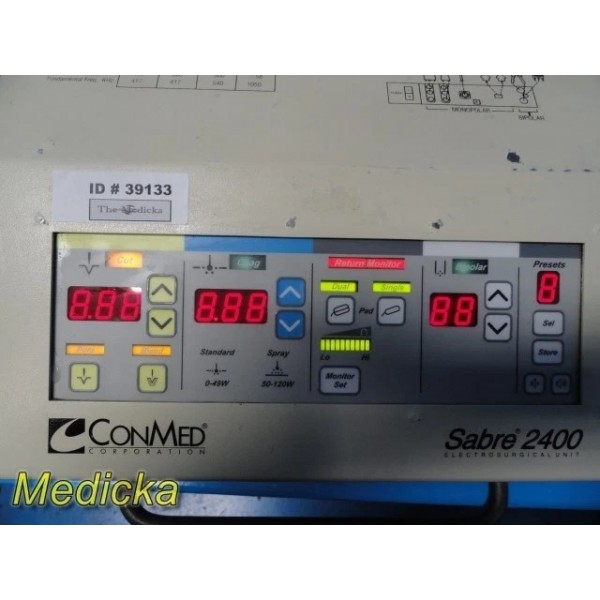

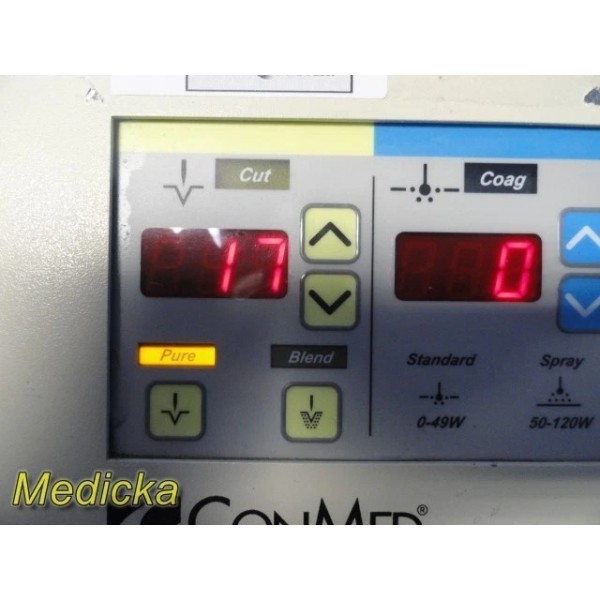

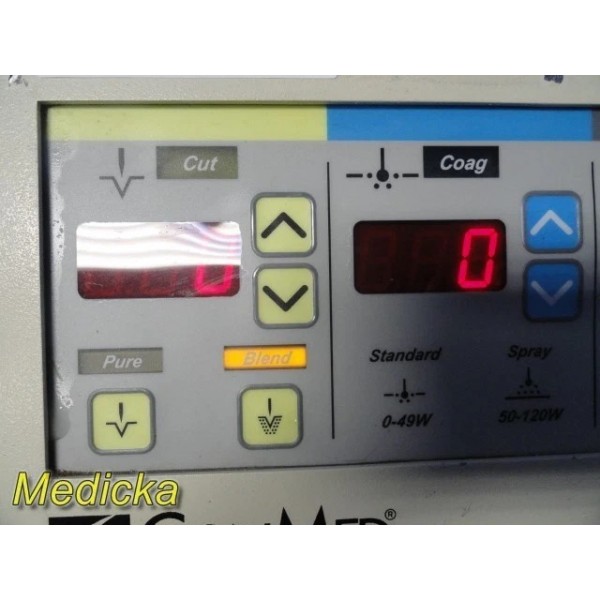

The front control panel layout includes separate sections for Cut, Blend, Coagulation, and Bipolar output settings, with digital display windows and membrane control buttons for power adjustment and presets. The control panel graphics remain readable and intact.
Display Windows

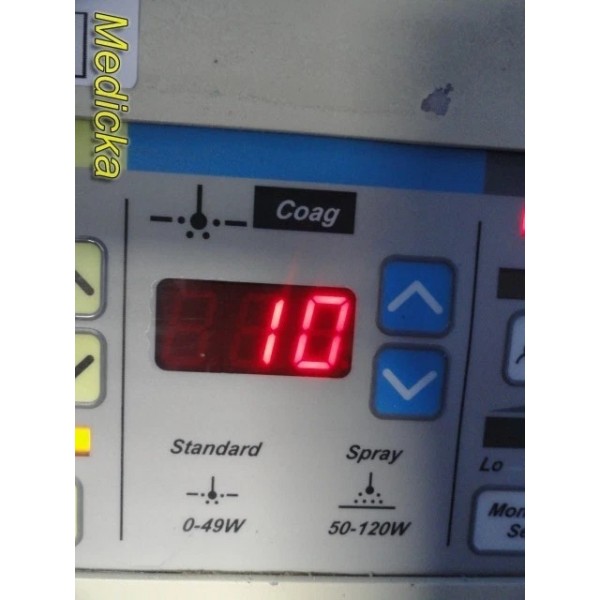

LED display windows appear bright and readable.
Integrated Power Cord
Device includes an integrated power cord approximately 15 feet in length. Cable insulation appears intact with no visible cuts or tears.
Instruction Label
Quick-reference operating instructions are printed on the top panel of the device for monopolar and bipolar operation guidance.
Functionality / Testing Summary:

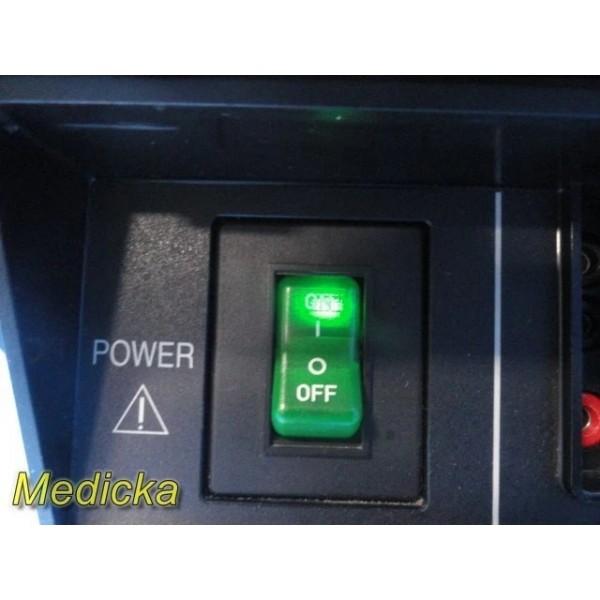

Power-On Test
The device powers on normally and passes the internal startup/self-test sequence.
Controls & Interface
Front panel buttons respond appropriately and output settings can be adjusted.
Monopolar Activation Test
The unit was connected to a compatible monopolar footswitch for testing. When the CUT or COAG pedals are pressed:
• Activation tone is heard
• Output activation indicator lights do not illuminate
This behavior suggests a possible indicator circuit or output issue.

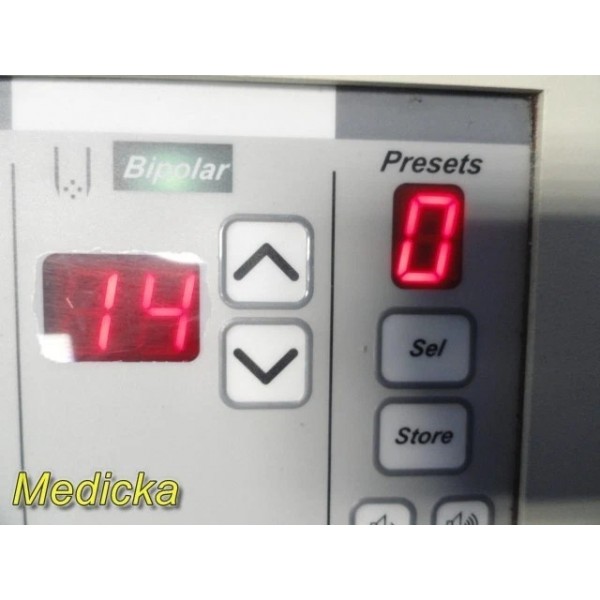

Bipolar Activation Test
When tested using a bipolar footswitch:
• Activation tone is heard
• Bipolar activation indicator illuminates correctly
Summary of Testing:
Because the monopolar activation indicator lights do not appear during testing, full functional verification of monopolar output could not be confirmed.
For this reason the unit is being offered AS-IS for parts or repair.
What Is Included:
• ConMed Sabre 2400 Electrosurgical Unit
• Integrated power cord (~15 ft)
What Is Not Included:
• Monopolar footswitch
• Bipolar footswitch
• Patient return electrode / grounding pads
• Hand control pencil
• HF cables or instruments
• Patient plate cable
• Disposable or consumable accessories
• Mounting plate or cart
• User manual
• Any additional accessories not shown in the listing photos
Buyer Advisory Note:
Due to the monopolar activation indicator lights not appearing during testing, the unit is being offered as-is for parts or repair. Buyers should expect the device may require inspection, calibration, or repair before clinical use.
Shipping Note:
The unit will be securely packed to protect the control panel and front interface during transit.
*Items shown in photos are the items that will ship. If it is not shown in the photos, it is not included*
Stock ID : 39133 (P.O 4018) (WH104 C5)
Comments:
Kindly enlarge the images and see them with zooming.
Concern or query: Ask a Question
Condition: PARTS ONLY, please refer to images for cosmetic condition.
- 1. Overall Condition:- As seen in images - AS IS
- 2. Physical Condition: Please review images before bidding - Good
- 3. Working Condition: Due to the monopolar activation indicator lights not appearing during testing, the unit is being offered as-is for parts or repair.....Will receive item as pictured……………(Offered AS IS)
- 4. “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
- 5. Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
