Olympus ESG-100 Electrosurgical Generator Ref WB991046 Monopolar/Bipolar ~ 39151
Item specifics
- Used
- Model
- ESG-100MPN
- WB991046
Product details
Manufacturer | Olympus |
Item: | 2008 Olympus ESG-100 Electrosurgical Generator REF WB991046 Monopolar/Bipolar |
Model/Cat # | ESG-100 | Ref WB991046 |
Serial No. | 16357W23-103 |
Made In: | Germany |
Date of Manufacture: | May 2008 |
Voltage: 100–120 V ~ 50/60 Hz, 400 VA
Short Description:

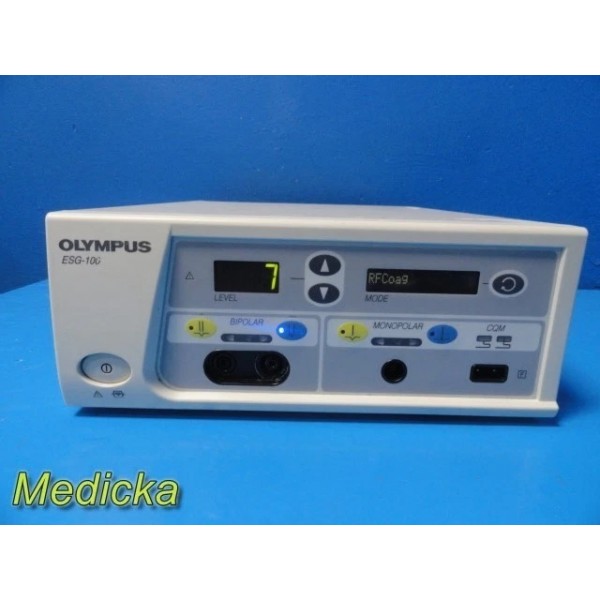

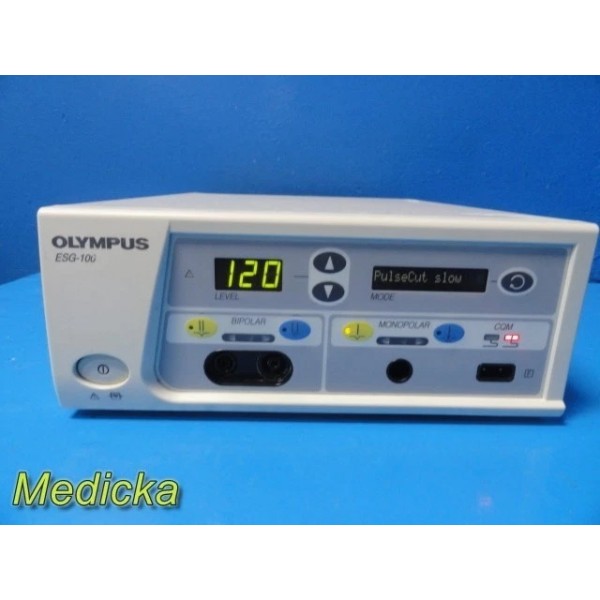

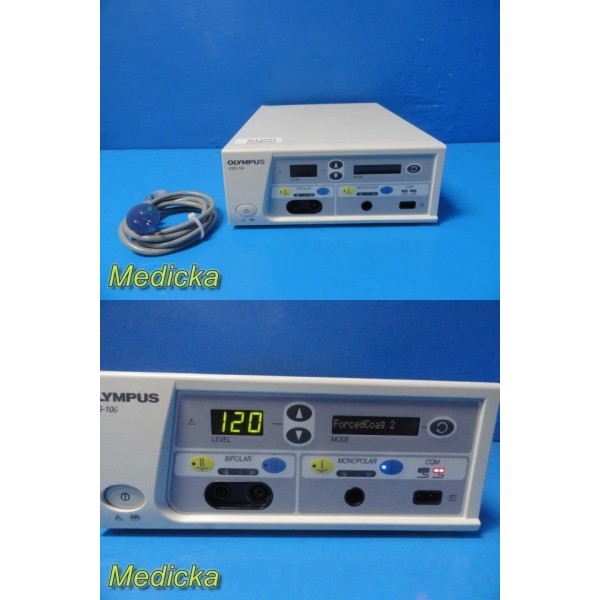

Olympus ESG-100 electrosurgical generator supporting monopolar and bipolar surgical modes. Unit powers on, completes internal self-test, and allows navigation through operating modes and power levels. System includes multiple cut and coagulation modes. Device is in good cosmetic condition and includes power cord only.
RF Output Specifications:
- Coagulation: 120 W @ 100 Ω, 330–380 kHz
- Forced Coag: 120 W @ 500 Ω, 330–380 kHz
- Cut: 120 W @ 500 Ω, 330–380 kHz
- Duty Cycle: 25%
- Fuse Rating: 2 × 250V / T5A
Condition Summary:

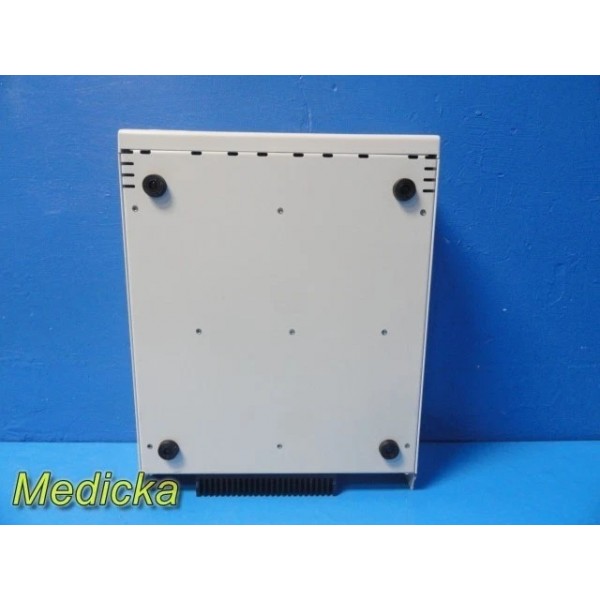

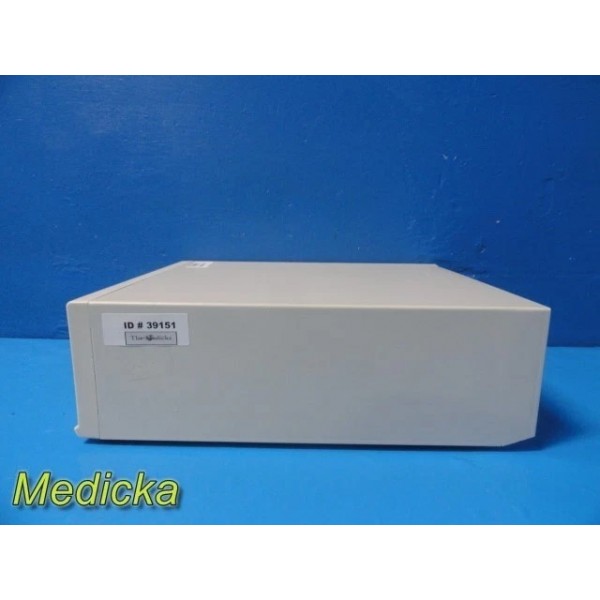

Exterior Housing

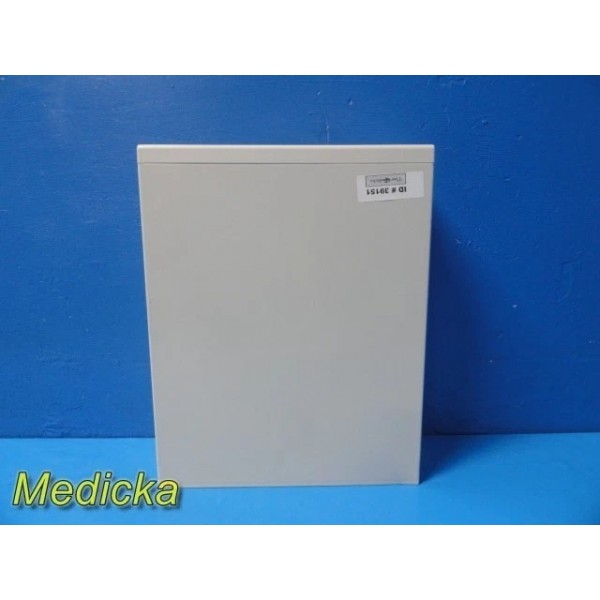

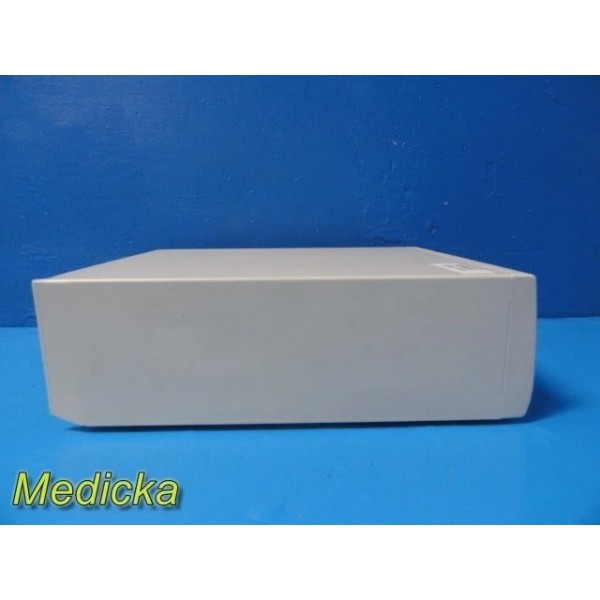

Device housing is in good overall condition. No dents or cracks observed. Minor cosmetic wear such as light scratches consistent with normal use.
Front Control Panel

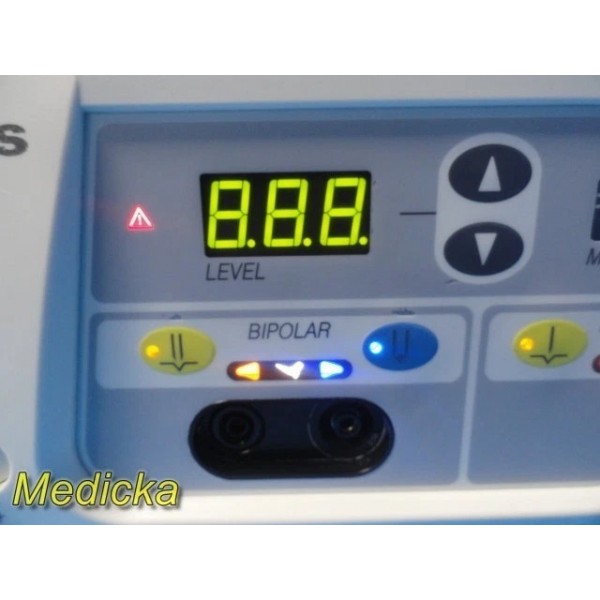

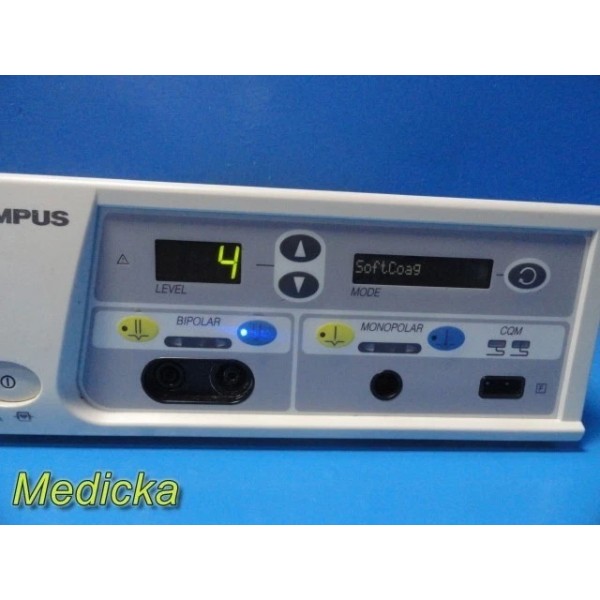

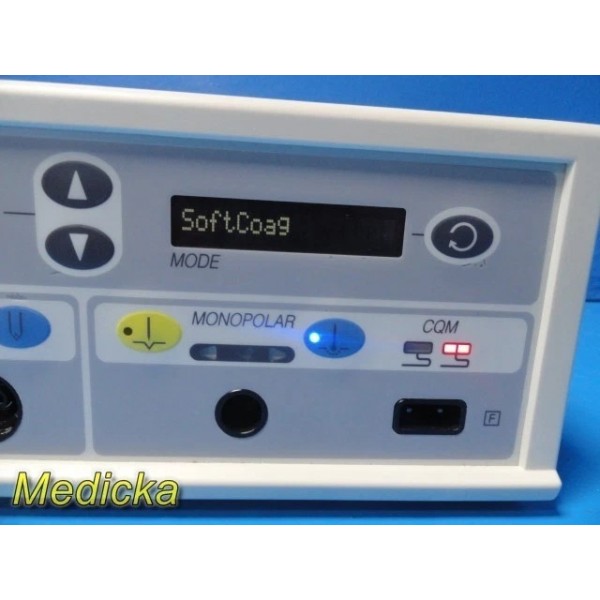

Control panel is clean with intact labels and responsive soft-touch buttons. All indicator lights and mode indicators illuminate during startup.
Display
LCD display is bright and clear with no visible dead segments.
Connectors
Front instrument connectors and rear ports appear clean and intact with no visible bent pins or structural damage.
Functionality / Testing Summary:

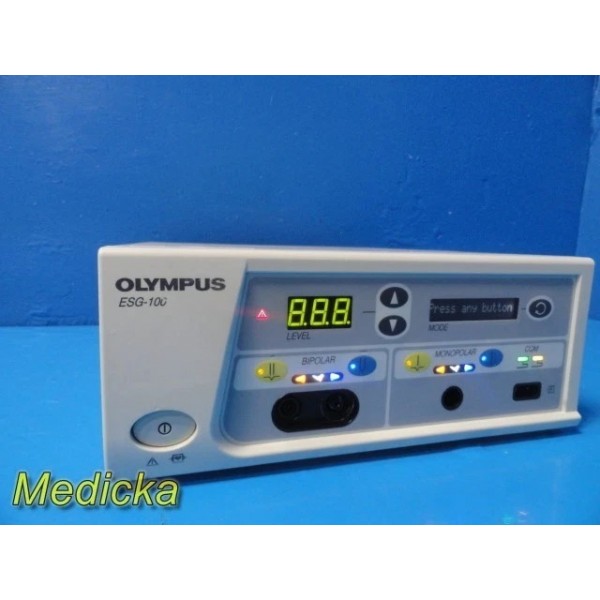

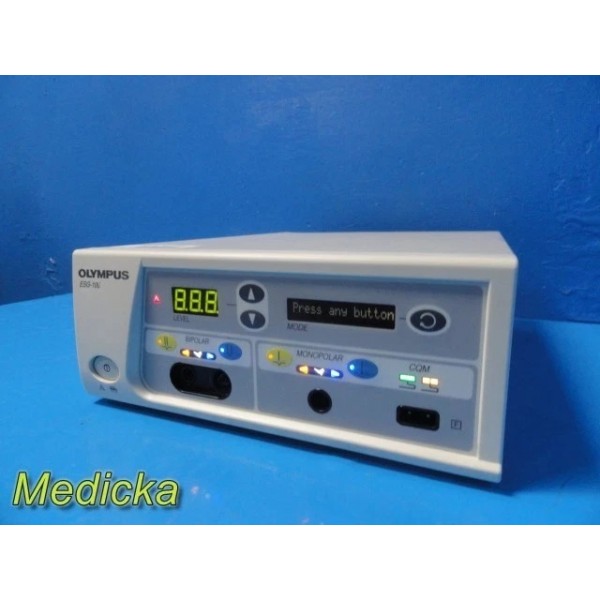

Power-On Self Test

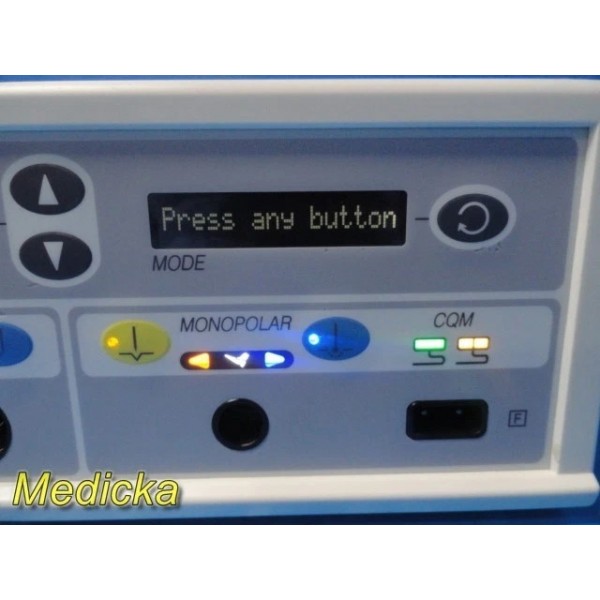

Unit powers on normally and passes internal startup diagnostics.

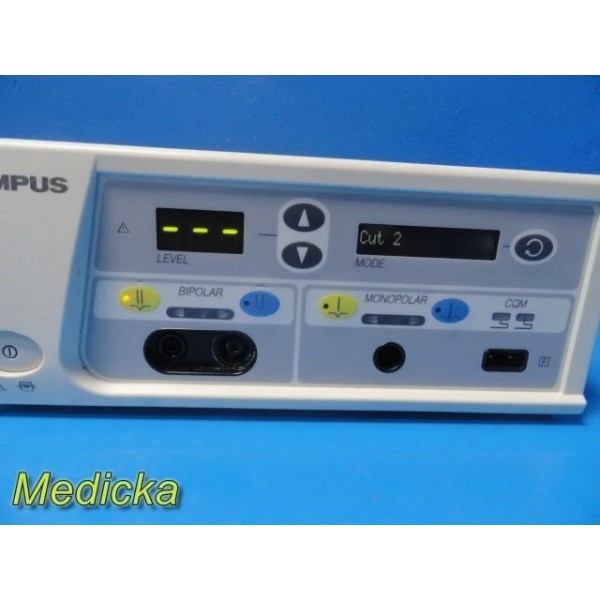

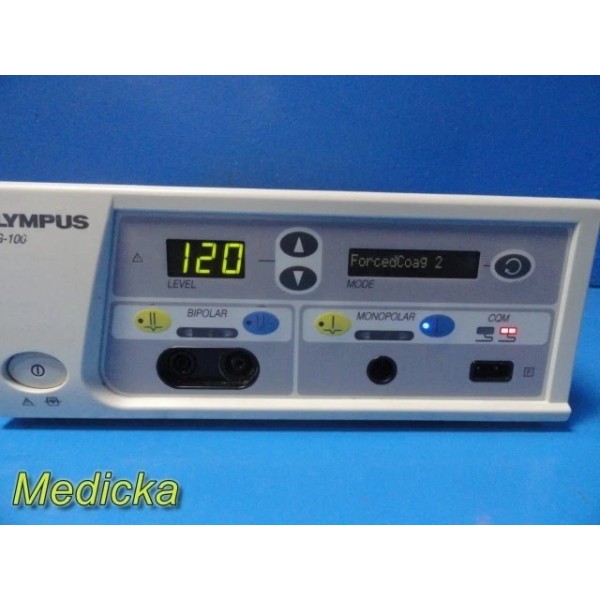

Controls & Interface

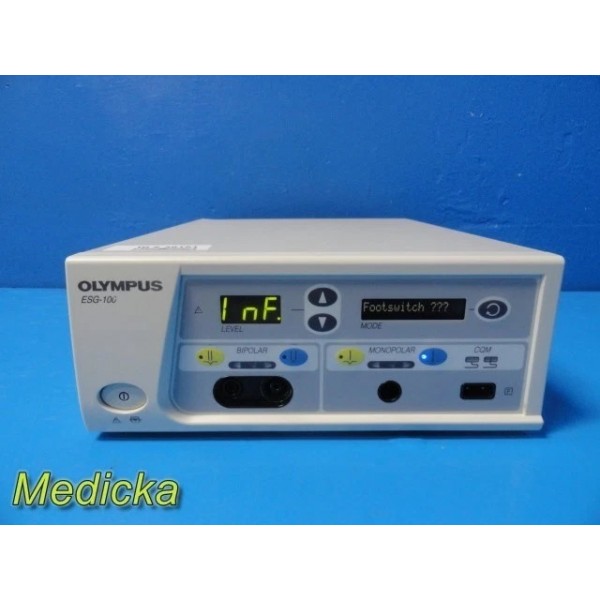

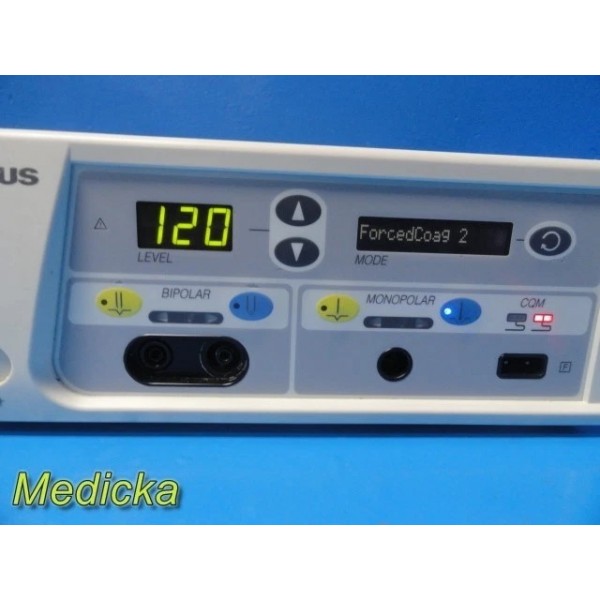

Buttons respond properly and the system allows adjustment of power levels and navigation through operating modes. The unit prompts for a footswitch and responds appropriately to control inputs.
Operating Modes:
Monopolar: Cut, Pulse Cut (Slow/Fast), Cut 1–3, Forced Coag, Soft Coag
Bipolar: Bipolar Cut 1–3, Soft Coag, RF Coag, RF Coag Plus / RCAP
RF output testing was not performed due to the absence of footswitch, return electrode pads, and HF instrument cables.
What Is Included:

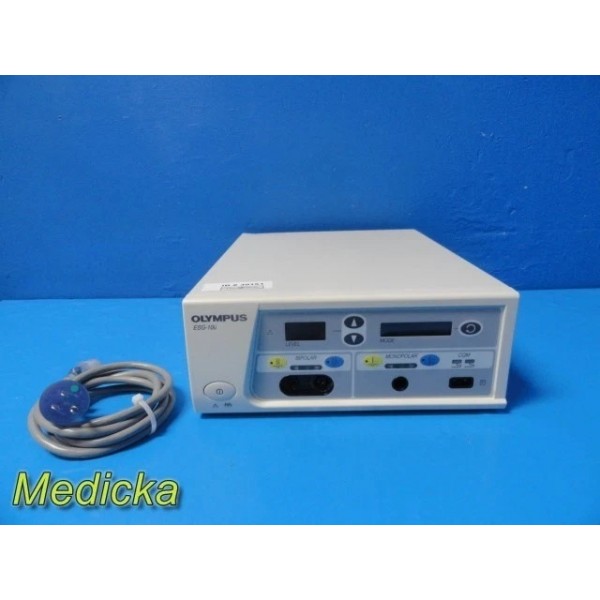

• Olympus ESG-100 Electrosurgical Generator
• Power Cord
What Is Not Included:
• Footswitch / Foot Pedal
• Patient Return Electrode Pads
• Monopolar HF Cable
• Bipolar Instrument Cable
• User Manual
• Any additional accessories
Buyer Advisory Note:
This unit powers on and completes internal diagnostics; however, full RF output testing was not performed due to missing accessories. Buyers should ensure compatibility with their accessories and have the system inspected by qualified biomedical personnel before clinical use.
Shipping Note:
Unit will be professionally packaged to ensure safe delivery. Power cord will be included with the shipment.
*Items shown in photos are the items that will ship. If it is not shown in the photos, it is not included*
Stock ID: 39151 (P.O 2023) (WH 999)
Comments:
Kindly enlarge the images and see them with zooming.
Concern or query: Ask a Question
Condition: USED, please refer to images for cosmetic condition.
- 1. Overall Condition: As seen in images - Very Good
- 2. Physical Condition: Please review images before bidding - Very Good
- 3. Working Condition: Has been tested at our end & is in good functionality | Unit powers on normally and passes internal startup diagnostics......Will receive item as pictured…………(offered AS IS)
- 4. “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
- 5. Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
