Siemens Healthineers / JPI ACS Anti-Scatter Grid | Model 3543EZH ~ 38948
Item specifics
- Used
- Model
- 10892478
MPN- 10860587
Product details
Manufacturer | JPI Healthcare Co., Ltd. | Siemens Healthineers |
Item: | Siemens Healthineers / JPI ACS Anti-Scatter X-Ray Grid, Model 3543EZH (5:1, 85C L/CM, 376 × 458 mm) |
Model/Cat # | 10892478 | 10892478 |
Serial No. | See below |
Made In: | Korea |
Date of Manufacture: | 2019-08-13 |
Short description:

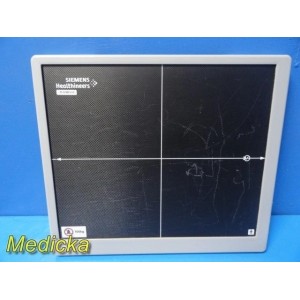

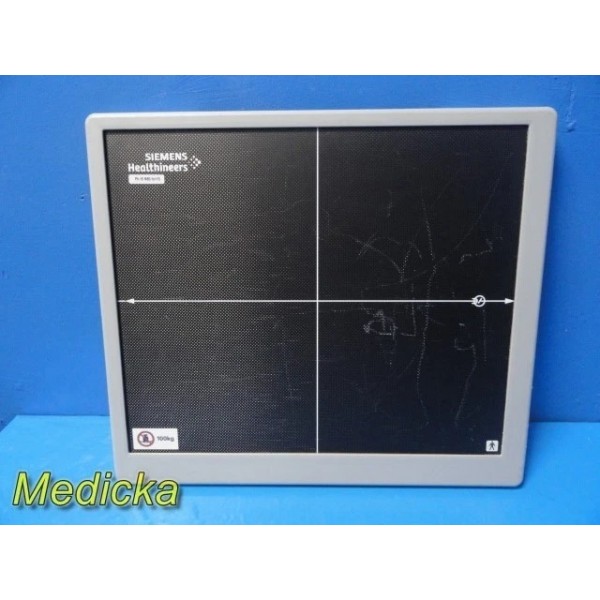

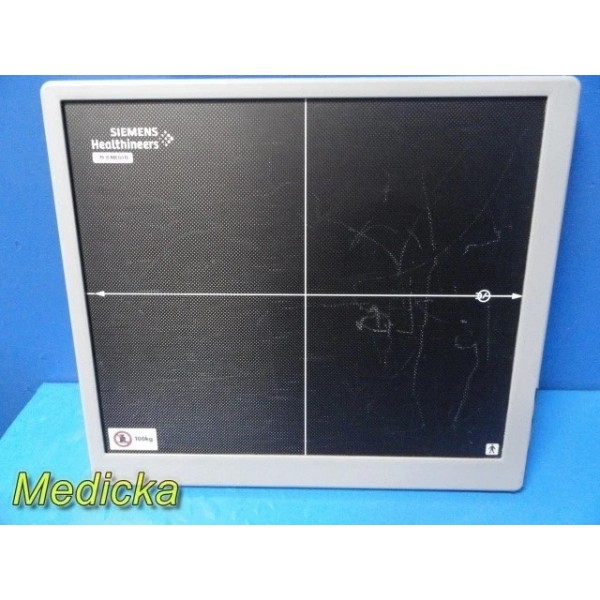

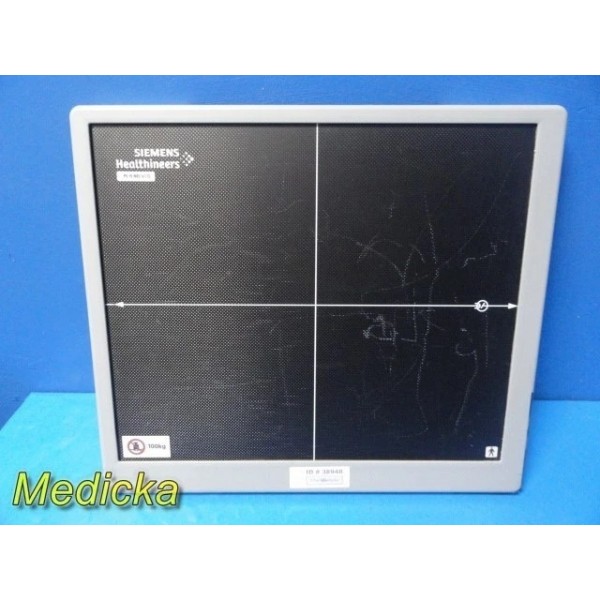

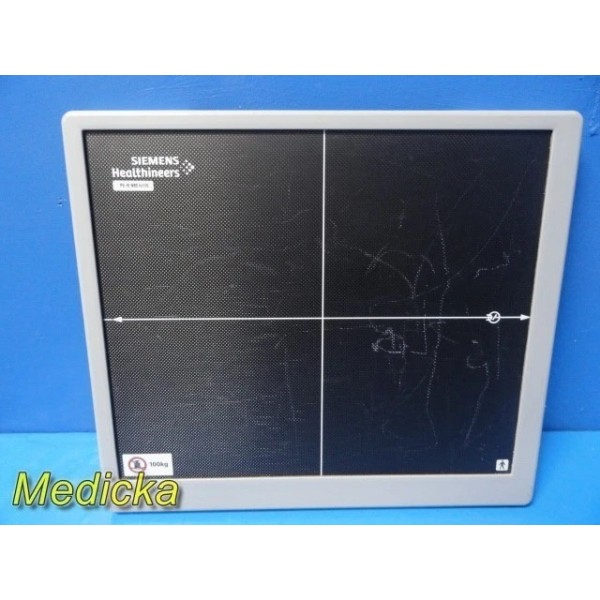

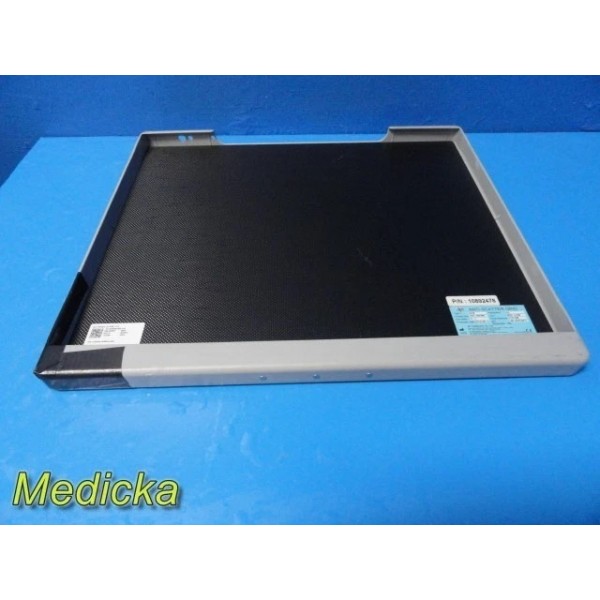

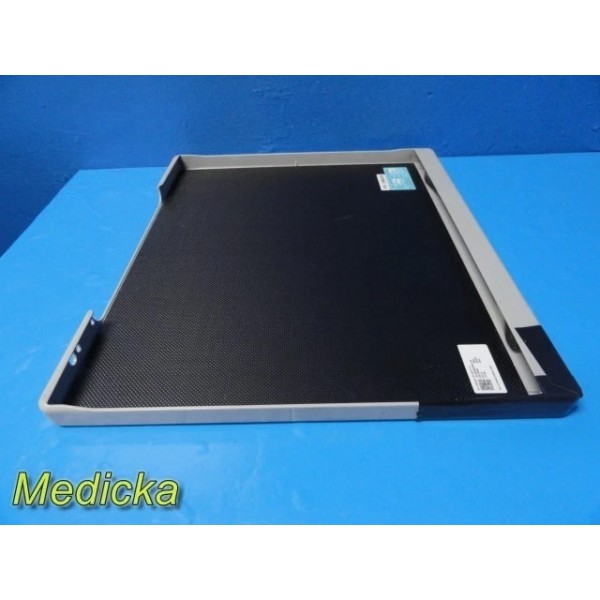

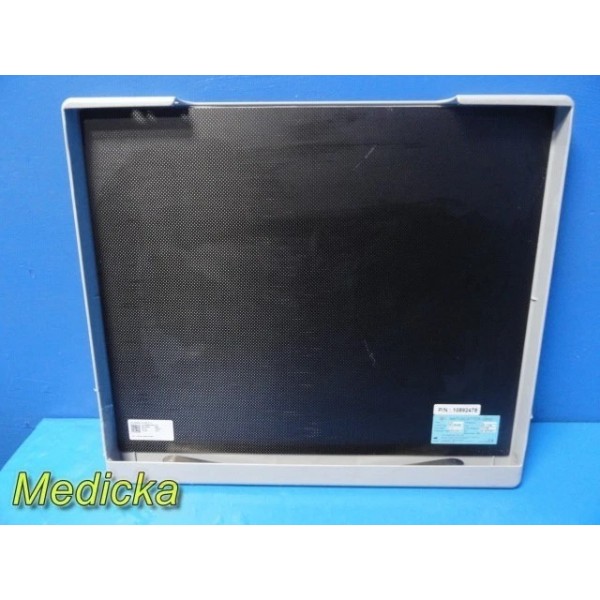

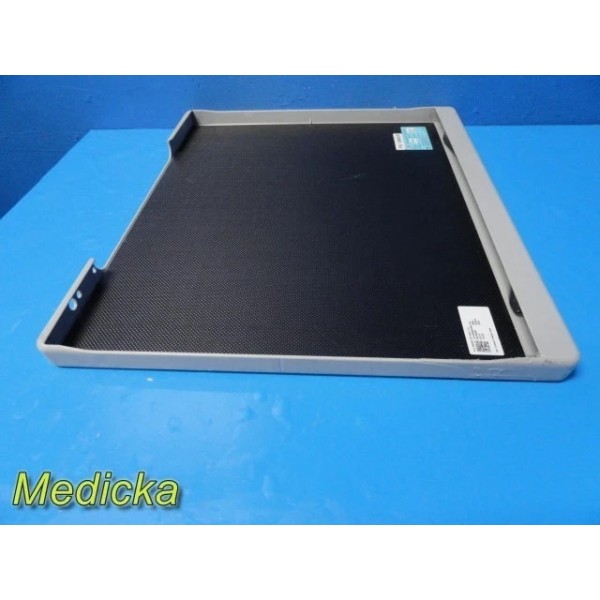

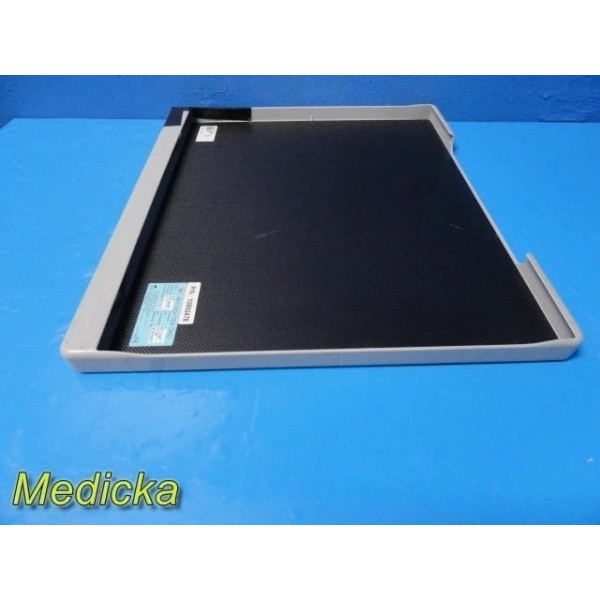

Siemens Healthineers branded JPI anti-scatter X-ray grid, Type ACS, Grid 3543EZH / JPI 5/85 F115. This flat panel radiography grid features a 5:1 grid ratio, 85C L/CM line density, 115 cm focal distance, aluminum interspacer, and lead absorber. Designed to reduce scatter radiation and improve image contrast in DR imaging applications. Unit is housed in a white protective casing with perimeter support pads and is intended for floor or detector interface use.
This is a mechanical anti-scatter grid accessory and not a detector panel.

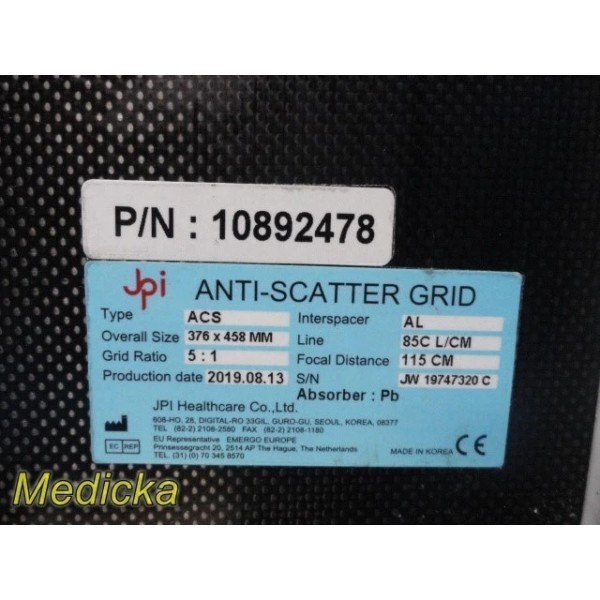

Specifications:
- Device Type: X-Ray Anti-Scatter Grid (Flat Panel / DR Applications)
- JPI Type: ACS
- JPI P/N: 10892478
- JPI Serial Number: JW 19747320 C
- JPI Production Date: 2019-08-13
- Siemens Model: 10860587
- Siemens Serial Number: 6091

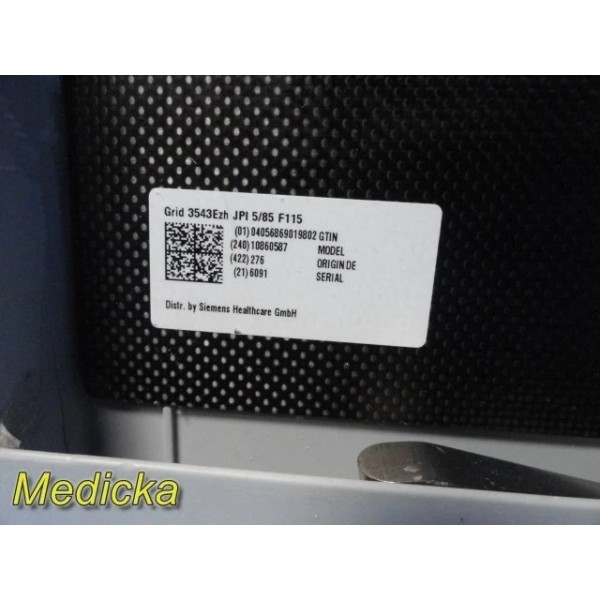

- Grid Marking: 3543EZH / JPI 5/85 F115

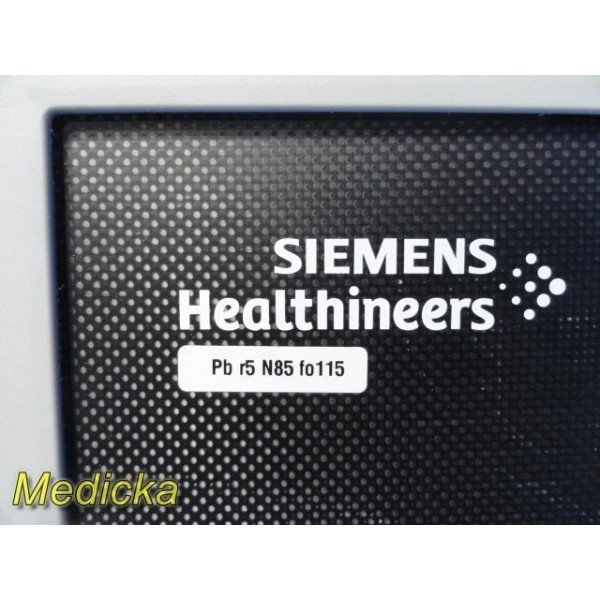

- Siemens Marking: Pb r5 N85 f0 115
- Absorber Material: Pb (Lead)
- Interspacer: AL (Aluminum)
- Grid Ratio: 5:1
- Line Density: 85C L/CM
- Focal Distance: 115 cm
- Overall Grid Size (per JPI label): 376 × 458 mm (approx. 14.8" × 18.0")

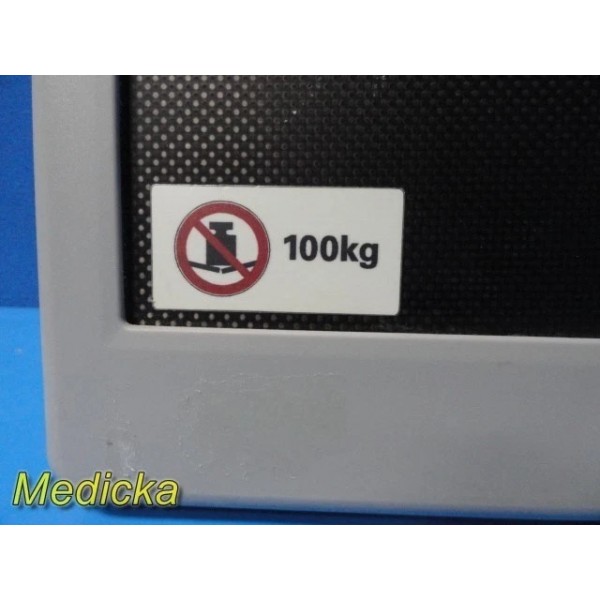

- Maximum Load Marking on Face: 100 kg
- Sterility: Non-sterile
- Reusable: Yes
Condition:
- Preowned with cosmetic wear consistent with clinical use, including surface scratches and scuffs on the grid face and housing

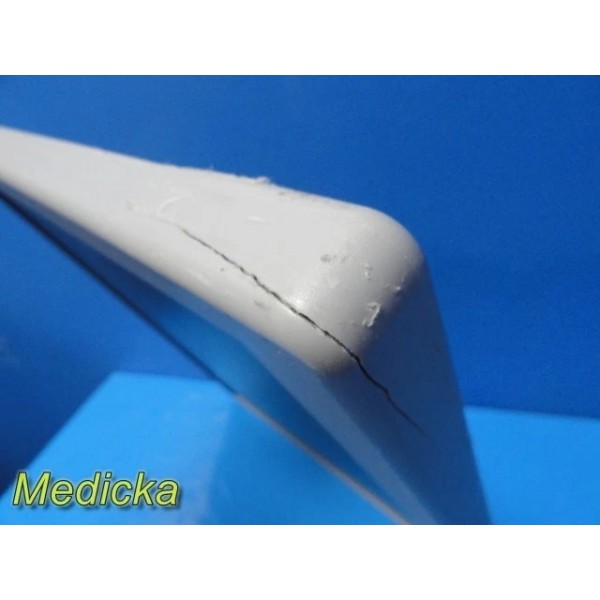

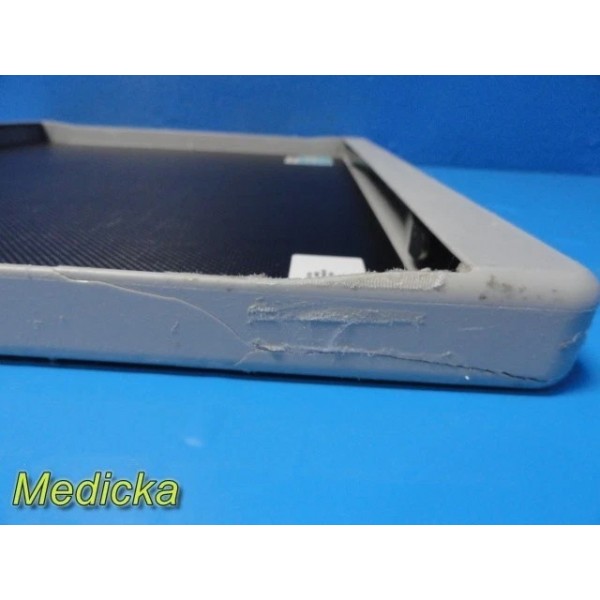

- Crack present on the right lower corner of the outer plastic casing near the Grid 3543EZH / JPI 5/85 F115 marking area
- Crack is limited to the casing only and does not extend into the grid itself

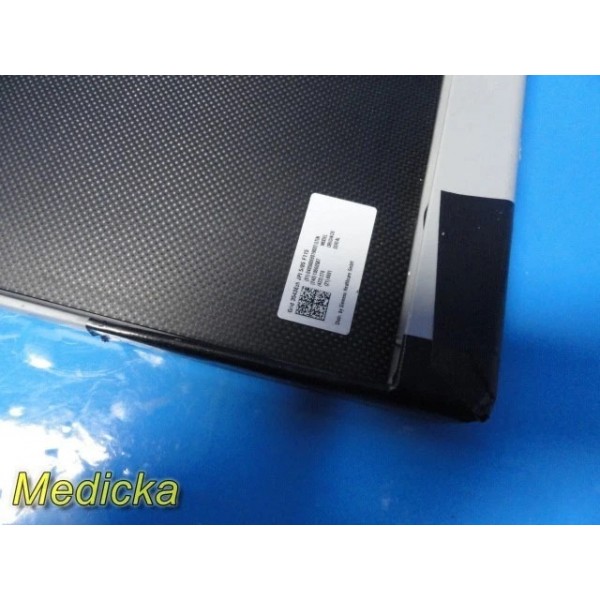

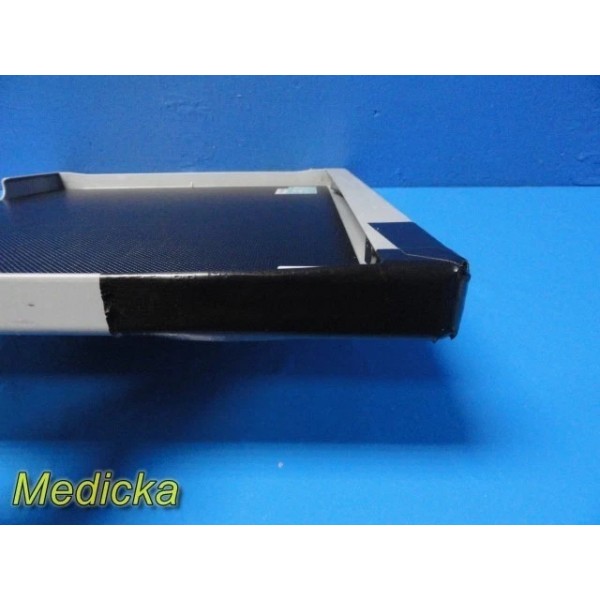

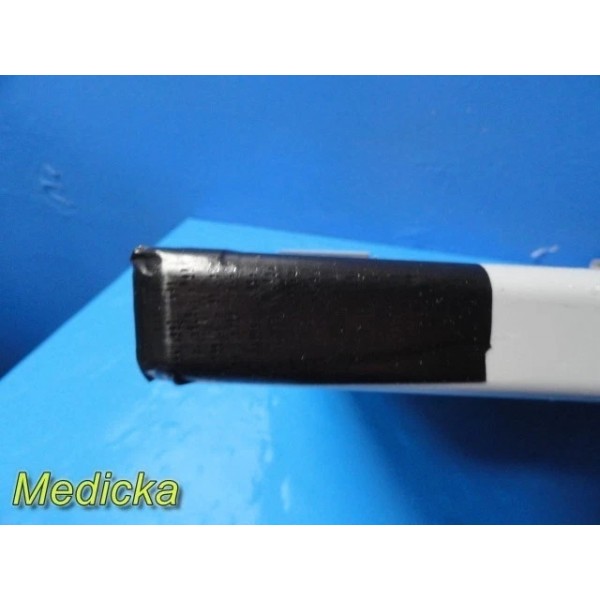

- Corner has been stabilized with duct tape (visible in images)
- Grid surface appears intact with no visible deformation of the lead structure
- Frame remains rigid

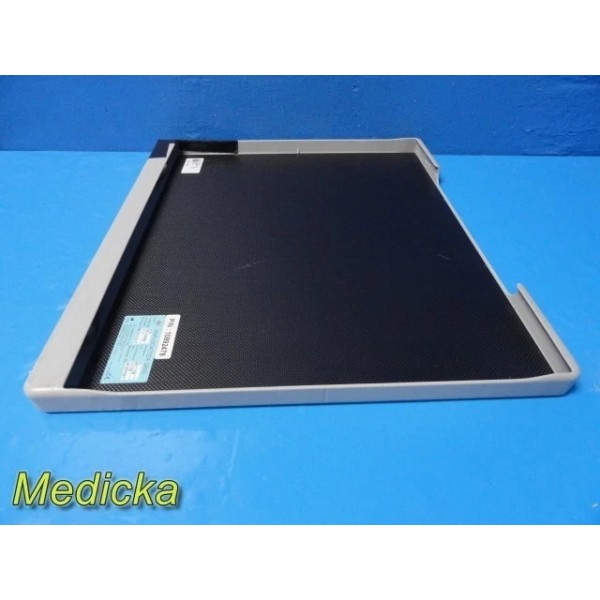

- Perimeter support pads are present
- No protective film present
Functionality Summary:
- Visual inspection only
- No powered or imaging tests performed
- Grid structure appears intact
- Housing remains usable despite cosmetic casing crack
- Item sold as preowned mechanical radiography accessory
- One (1) Siemens Healthineers / JPI anti-scatter grid as pictured and described
- User manual
- OEM box or packaging
- Detector panel
- Any accessories or mounting hardware not shown
*Items shown in photos are the items that will ship. If it is not shown in the photos, it is not included*
Stock ID : 38948 (P.O 2022) (R2 BC1)
Comments:
Kindly enlarge the images and see them with zooming.
Concern or query: Ask a Question
Condition: USED please refer to images for cosmetic condition.
- 1. Overall Condition: As seen in images - Fair
- 2. Physical Condition: Please review images before bidding - Fair
- 3. Working Condition: Visual inspection only | Untested at our end...will receive item as pictured ……………(offered AS IS)
- 4. “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
- 5. Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
