CooperVision Möller-Wedel 653 Surgical Microscope w/ Stand & Foot Pedal ~ 38975
Item specifics
Condition
- Used
Seller Notes
- Model
- Möller-Wedel 653 Series
MPN- See below
Product details
Manufacturer | CooperVision / Möller-Wedel |
Item: | CooperVision Möller-Wedel 653 Surgical Operating Microscope w/ Mobile Stand, X-Y Control & Foot Pedal |
Model/Cat # | 653 Series |
Serial No. | N/A |
Made In: | USA |
Date of manufacture | U/K |
Short description:

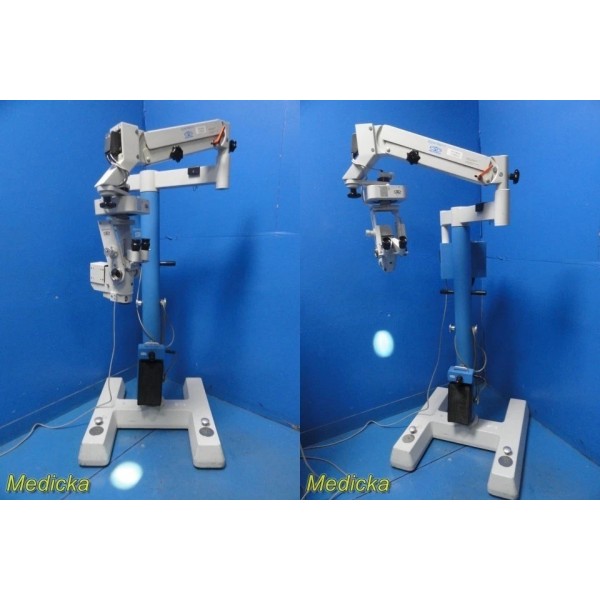

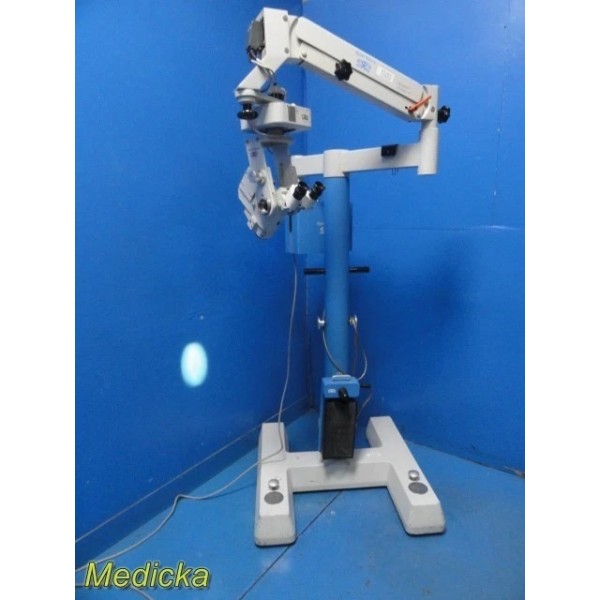

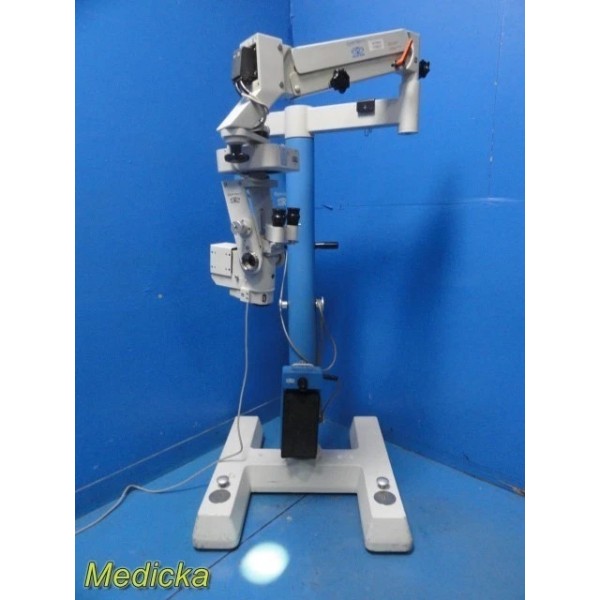

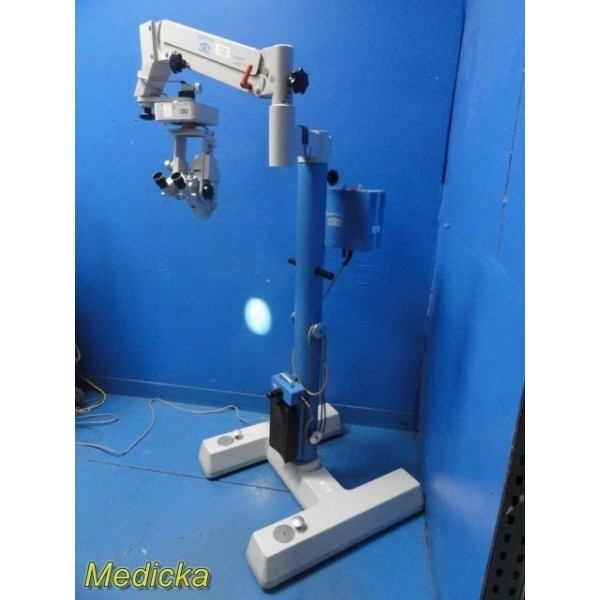

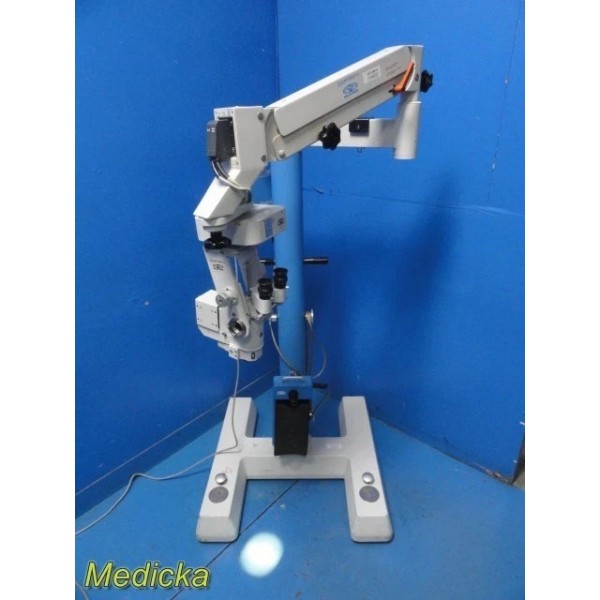

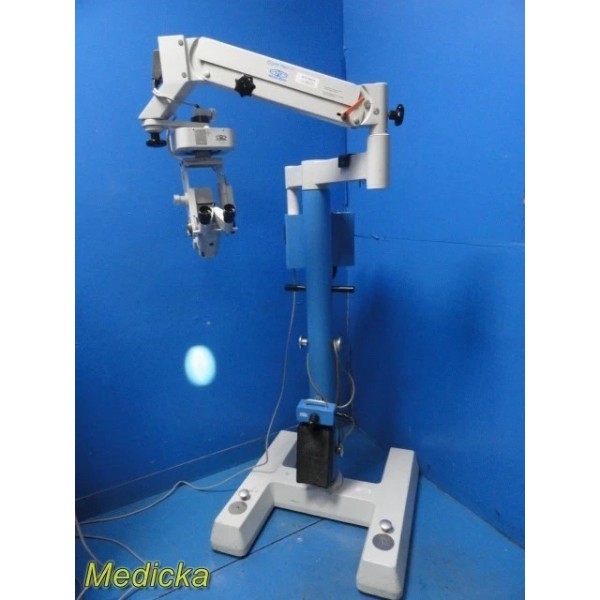

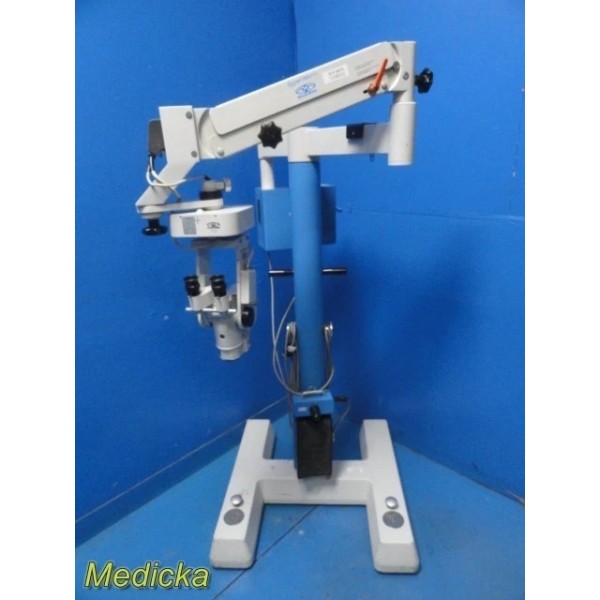

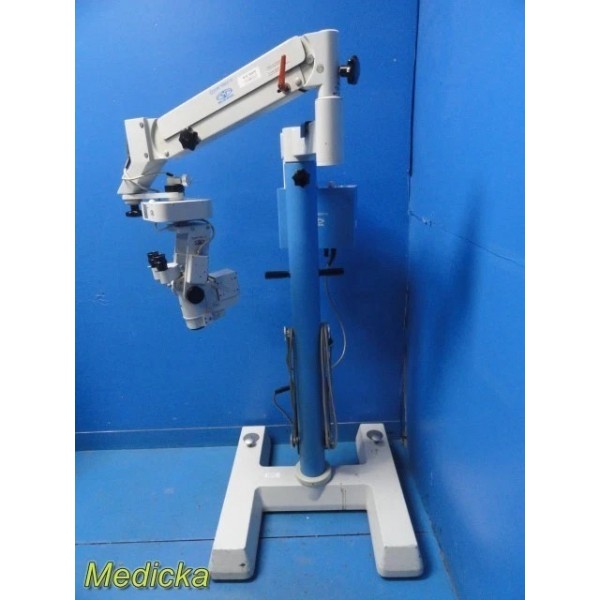

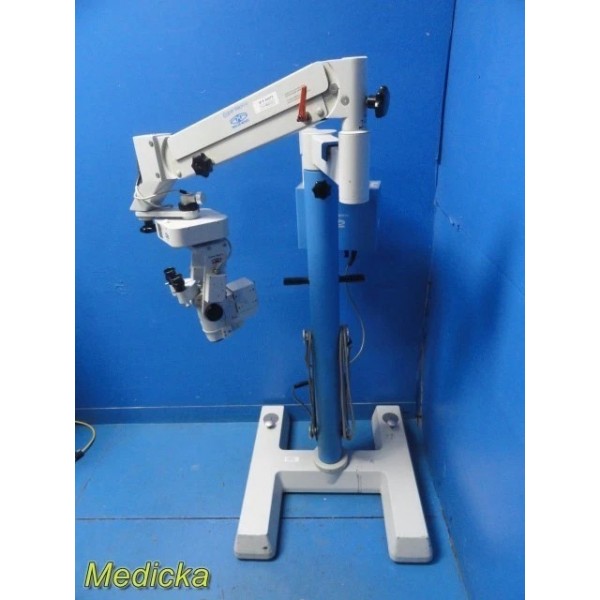

CooperVision / Möller-Wedel 653 surgical operating microscope system featuring binocular primary viewing head, variable 160–220 mm objective, spring-balanced articulating arm assembly, vertical support column, mobile H-base, integrated blue CooperVision light/control box, and multifunction foot control with joystick. The system provides motorized focus, zoom, illumination, and X-Y positioning through foot control and is suitable for ENT, ophthalmic, dental, and microsurgical applications.

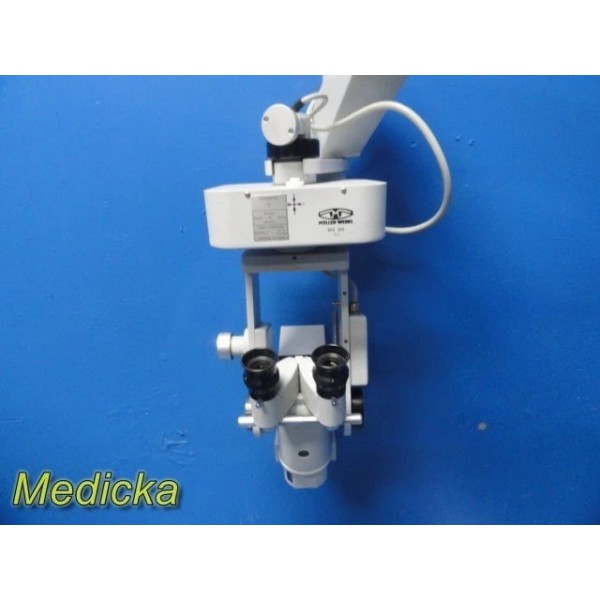

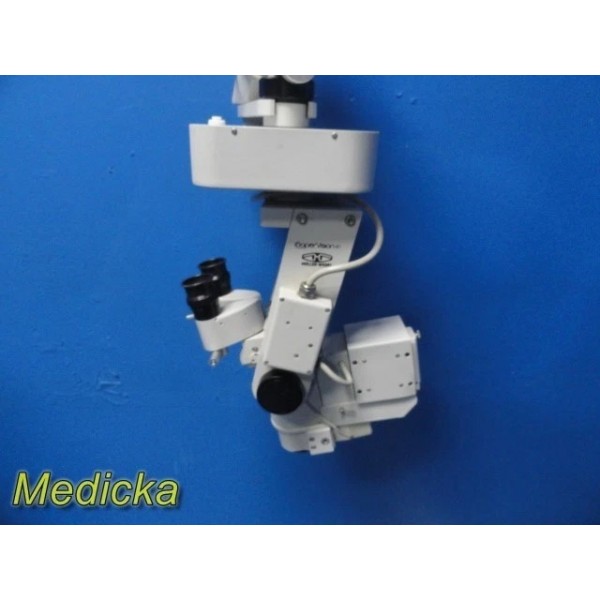

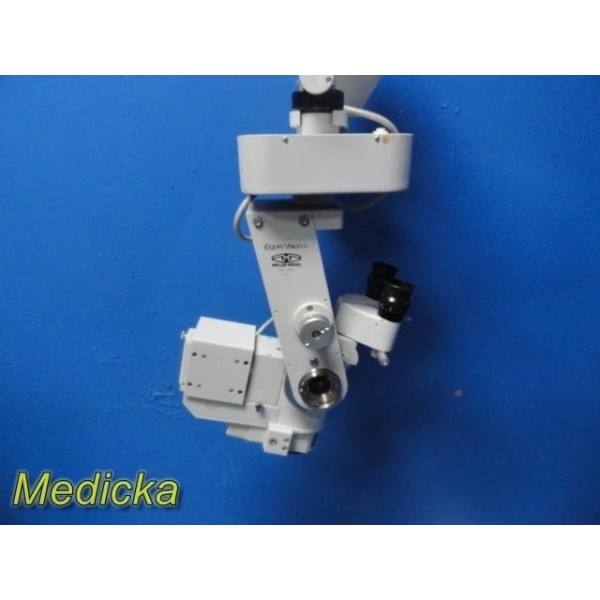

Identified Optical / Head Assembly Components:
- Main Optical Carrier / Head Interface: 653 250 (312)
- Zoom / Control Ring Assembly: 653 260 (312)
- Auxiliary Optical Module: 653 254 (312)
- Binocular Assembly Block: 653 550 (347)
- Objective Lens: Variable 160–220 mm
- Eyepieces: 12.5×
System Configuration:

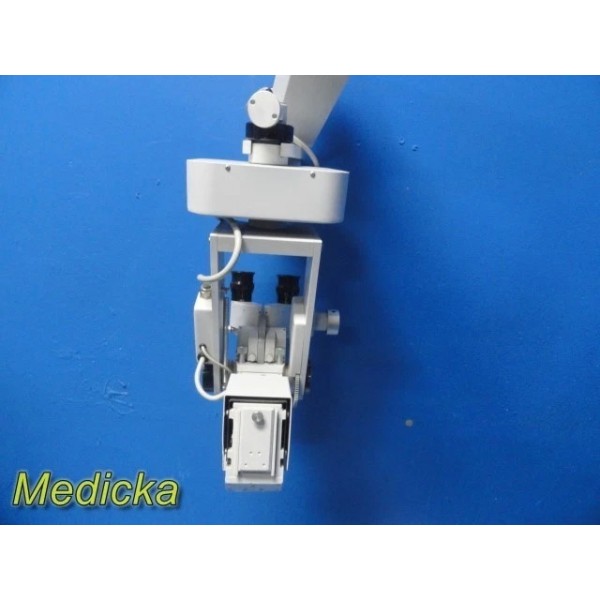

- Viewing Configuration: Single-surgeon binocular viewing head installed (assistant / examiner head not present)
- Auxiliary Port: Left-side auxiliary/accessory port open (cosmetic/accessory cover missing; optional assistant head or accessory module can be installed by buyer)

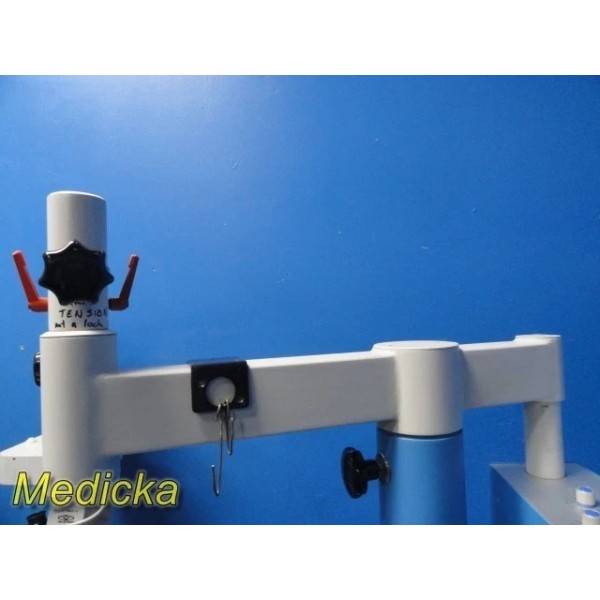

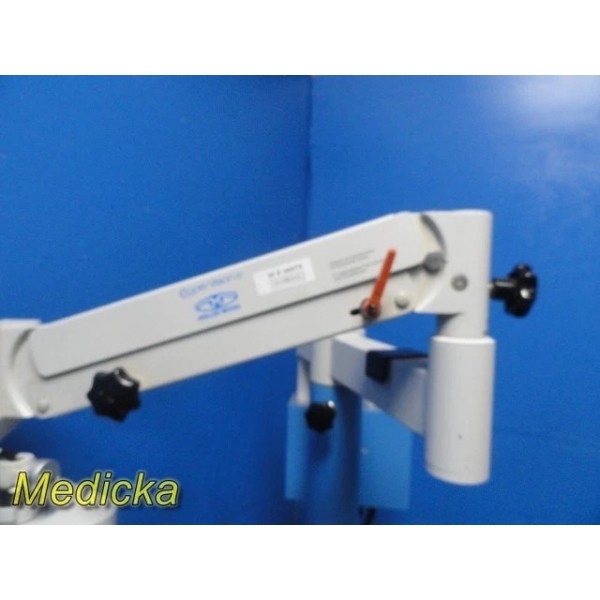

- Stand Type: Mobile H-base with vertical support column and spring-balanced articulating suspension arm

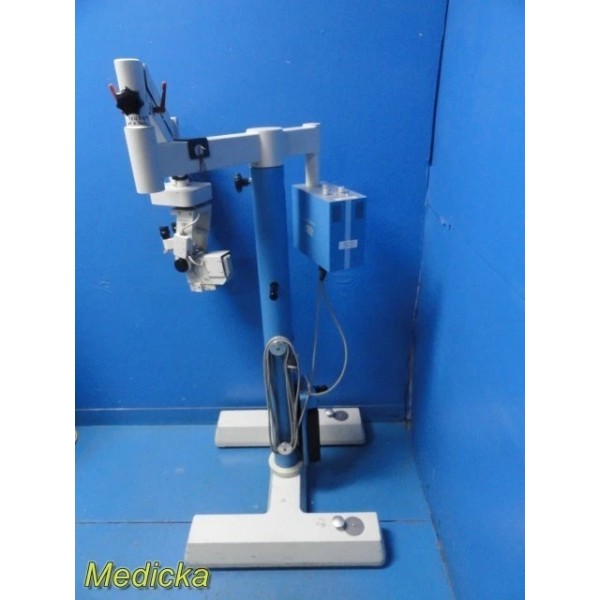

- Light Source: CooperVision / Möller-Wedel integrated blue light/control box (single lamp installed; second lamp bay available)

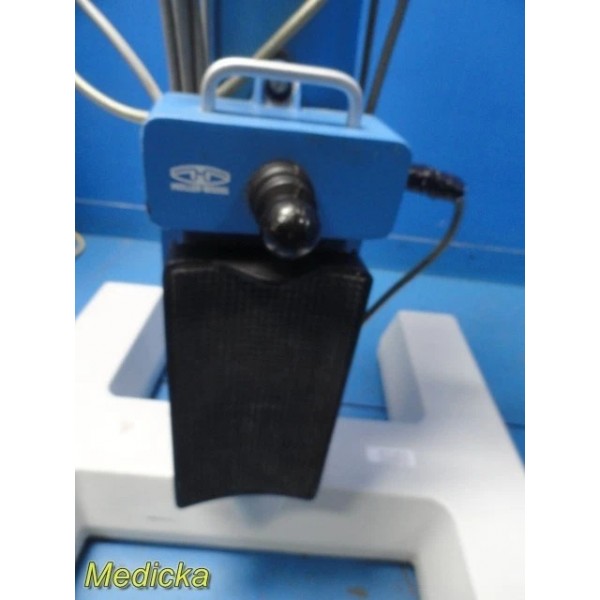

- Foot Control: Möller-Wedel multifunction foot pedal with integrated joystick
Physical Characteristics:
- Approximate Base Footprint: ~30" × 30"
- Estimated System Weight (for freight planning): approx. 400–500 lbs
Condition Summary:
Cosmetic Condition
System is in good cosmetic condition consistent with clinical use. Light surface scuffs and paint wear are present on the arm assemblies, column, and base. Optical housings are intact with no visible cracks or structural damage.
Mechanical / Structural
- Spring-balanced articulating arms intact and hold position
- All adjustment knobs, locks, and joints present
- Vertical column and mounting arm rotate freely

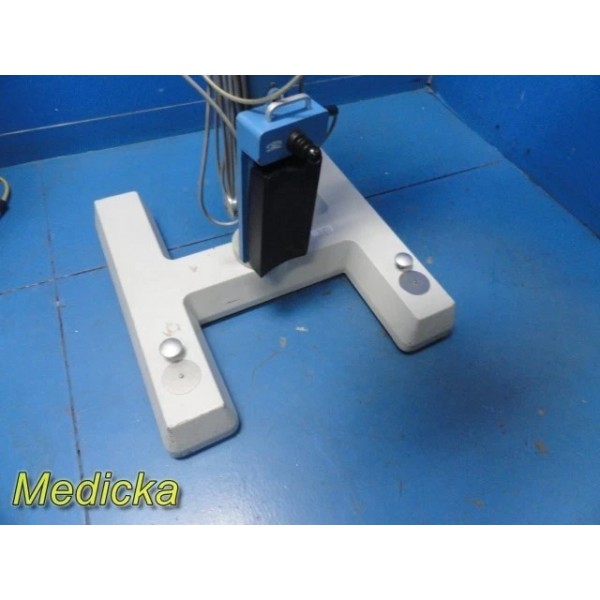

- H-style mobile base is stable with locking casters
Noted Cosmetic / Configuration Items

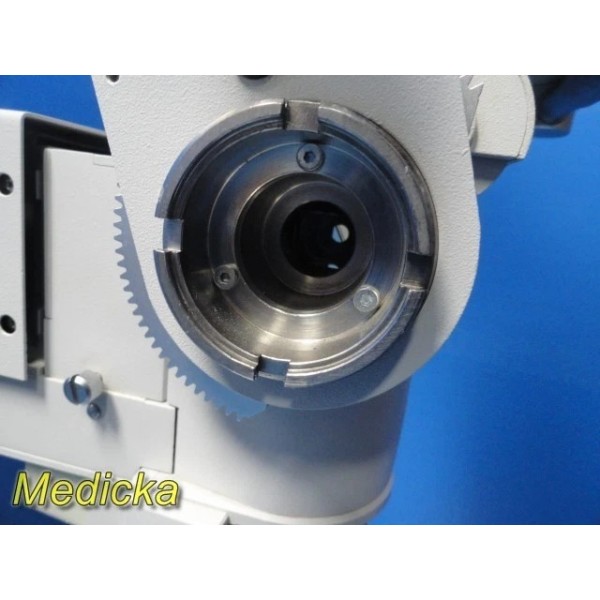

- Left-side cosmetic/accessory cover at the 653-250 head carrier area is missing, leaving auxiliary port exposed
- Right-side cosmetic cover is present
- Assistant/observer viewing head is not installed

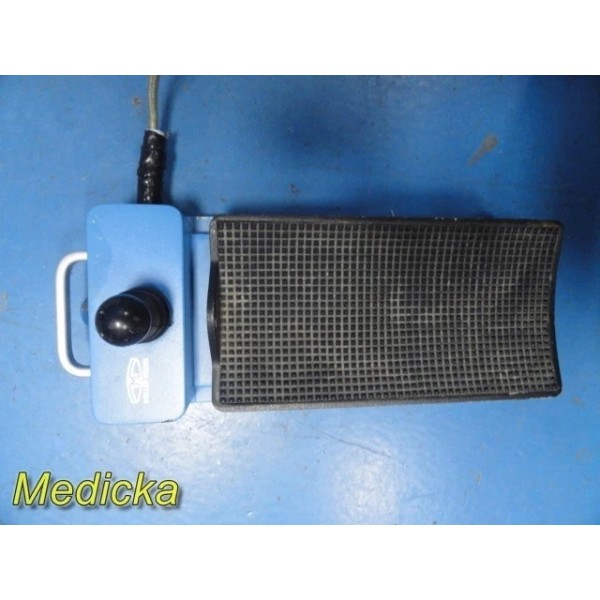

- Foot pedal shows surface wear; strain relief near pedal cable appears taped
- Typical floor-contact wear visible on base
Functionality / Testing Summary:
- System powers on successfully

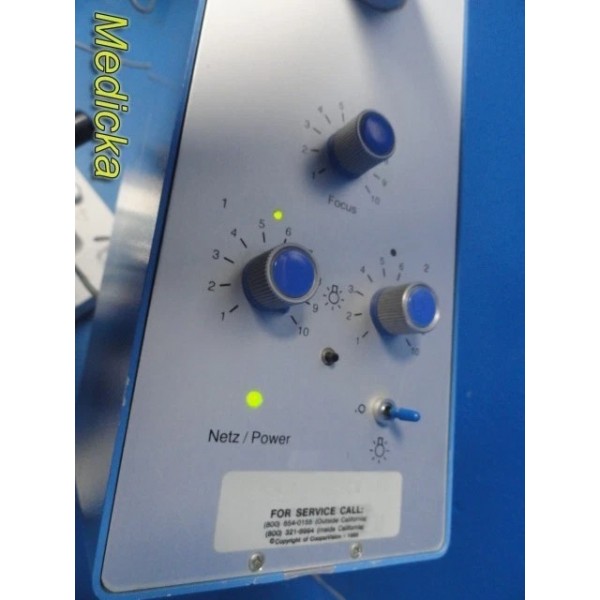

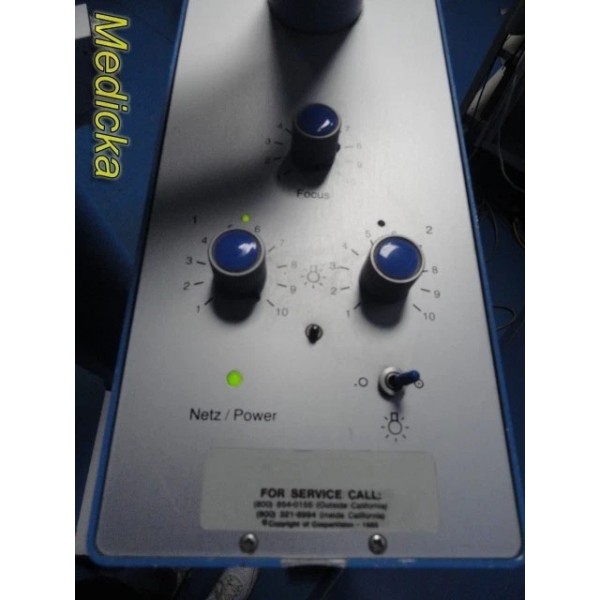

- Blue CooperVision light/control box powers up and responds to adjustments
- Light intensity control functions properly
- Focus and zoom respond via foot control
- X-Y positioning responds through the Microscope/X-Y interface
- Foot control joystick responds appropriately
- Suspension arm provides full positioning range with 360° rotation at column mount
- Optical pathway visually clear through eyepieces
System is currently operating with one installed lamp. Secondary lamp bay is available for buyer installation.
No advanced optical calibration or clinical testing performed.
X-Y / Microscope Interface Panel:
Primary Microscope and X-Y connectors are installed and operational, enabling focus, zoom, illumination, and X-Y positioning through the foot control. The third auxiliary connector slot is currently unused, as no assistant viewing head or camera module is installed. This auxiliary port is intended for optional accessories and does not affect standard primary surgeon operation.
What Is Included:
- CooperVision / Möller-Wedel 653 surgical microscope system (as shown)
- Binocular primary surgeon viewing head (12.5× eyepieces)
- Variable objective lens (160–220 mm)
- Optical carrier and zoom/control assemblies listed above
- Spring-balanced articulating suspension arm
- Vertical support column
- Mobile H-style base with locking casters
- Blue CooperVision integrated light/control box
- Integrated power cord (approx. 20 ft)
- Möller-Wedel multifunction foot control with joystick (approx. 12 ft cable)
What Is Not Included:
- Assistant / observer viewing head
- Mono-ocular attachment
- Left-side cosmetic/accessory cover
- Interface cable for auxiliary accessories
- Secondary illumination lamp
- Camera or imaging accessories
- User manual
- Any consumables or disposables
Buyer Advisory Note:
This system is configured for primary surgeon operation. The left auxiliary port remains open due to the missing cosmetic cover and absence of assistant viewing head or accessory module. This port supports optional accessories but does not impact standard microscope operation. System currently operates on a single lamp; secondary lamp may be installed by buyer. Unit has undergone basic power and mechanical testing only. Professional inspection and calibration by qualified biomedical personnel is recommended prior to clinical use.
Shipping Note:
This is a large surgical microscope system and will ship via freight on pallet unless otherwise arranged. Estimated shipping weight approximately 400–500 lbs. Buyer responsible for unloading capability. Local pickup is welcome.
*Items shown in photos are the items that will ship. If it is not shown in the photos, it is not included*
Stock ID : 38975 (P.O 2022) (WH104)
Comments:
Kindly enlarge the images and see them with zooming.
Concern or query: Ask a Question
Condition: USED, please refer to images for cosmetic condition.
- 1. Overall Condition:- As seen in images - Good
- 2. Physical Condition: Please review images before bidding - Good
- 3. Working Condition: Has been tested at our end & is in good functionality.......Will receive item as pictured ……………(offered AS IS)
- 4. “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
- 5. Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
