Tekdata 7-Pin Mini-DIN to Dual 3.5mm TRS Interface Cable | 4-ft ~ 38767

Item specifics

Condition
Used
Seller Notes
“OEM Tekdata 4‑ft specialty interface cable featuring a 7‑pin Mini‑DIN male connector to dual 3.5mm TRS plugs (green and pink). Designed for neurodiagnostic, rehab therapy, and auxiliary signal routing applications."
Model
N/A
MPN
Does Not Apply

More details


$19.20

38767

1 item in stock

Warning: Last item in stock!

Add to cart

Place an offer

Product details

Manufacturer

Tekdata

Item:

Tekdata 7-Pin Mini-DIN to Dual 3.5mm TRS Interface Cable – Neurodiagnostic / Rehab Equipment (4-ft)

Model/Cat #

N/A

Serial No.

N/A

Made In:

U/K

Date of Manufacture:

U/K



Short description:

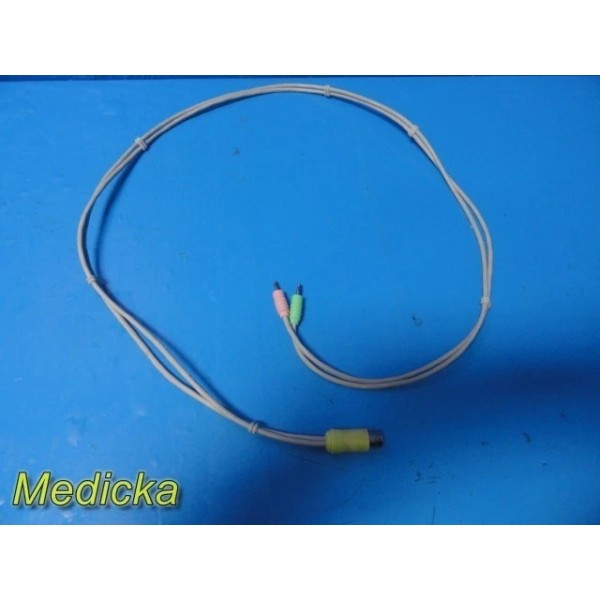

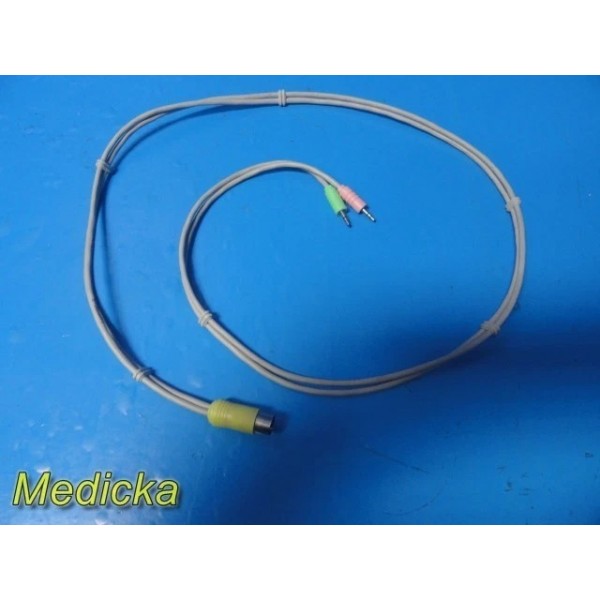

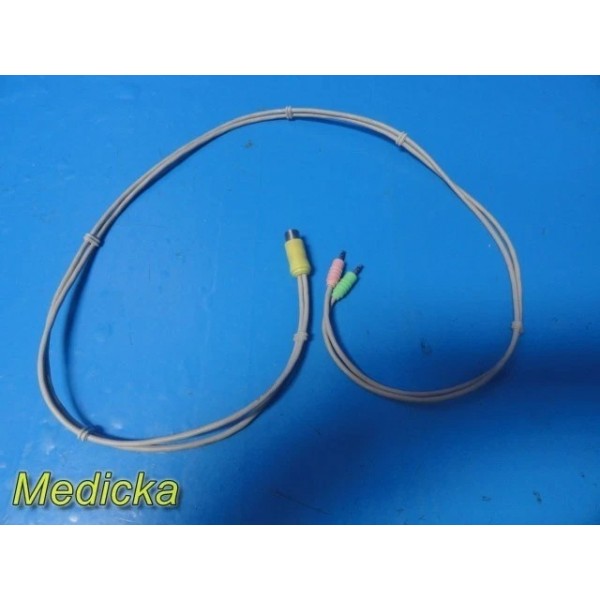

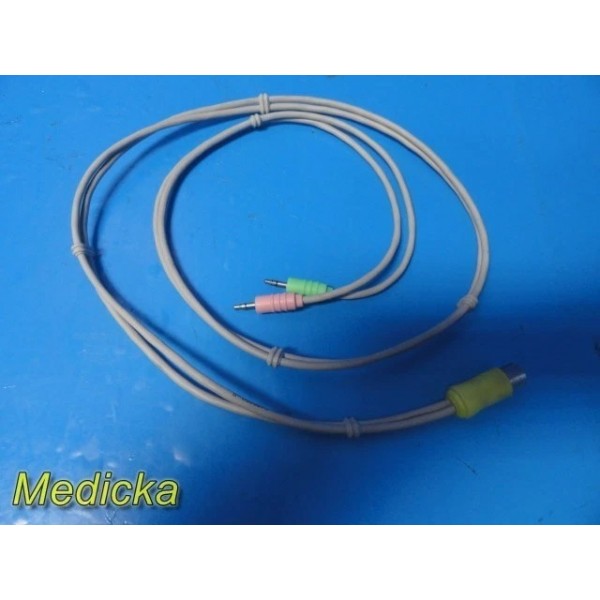

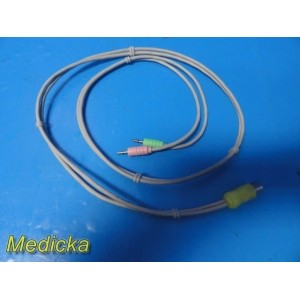

OEM Tekdata 4-ft interface cable designed for specialty medical systems. Features a 7-pin Mini-DIN connector on one end and dual 3.5mm TRS plugs on the opposite end. Suitable for neurodiagnostic, rehab therapy interfaces, analog trigger routing, or system-specific device integration.

Cable Markings: TEKDATA 021178 7 02 / 040D020-B
Cable Type: Custom OEM low-voltage interface cable
Overall Length: Approximately 4 feet
Connector Style: 7-pin Mini-DIN to dual 3.5mm TRS (green and pink)
Color: Beige / off-white

Connector Description:

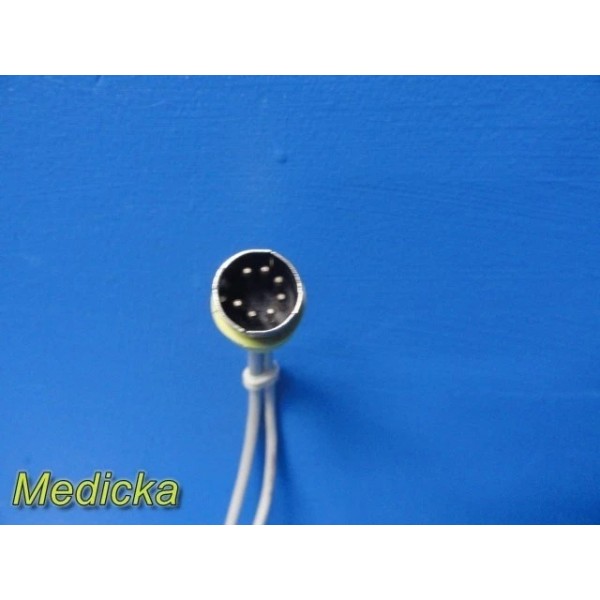

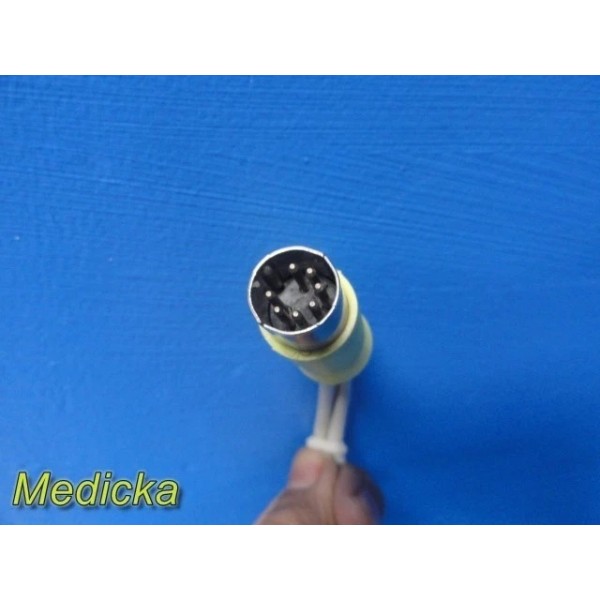

Side A – Yellow 7-Pin Mini-DIN Connector:

  • Type: 7-pin Mini-DIN male
  • Pin Configuration: 7 evenly spaced circular pins inside metal shell
  • Housing: Yellow molded strain-relief

  • Use Cases:

    • Neurodiagnostic systems

    • Rehabilitation/therapy equipment

    • Auxiliary patient-sensor interfaces

    • Control signal, low-voltage trigger, or analog/auxiliary communication

This style of Mini-DIN connector is commonly seen on EEG, EMG, EP, and rehab-therapy consoles.

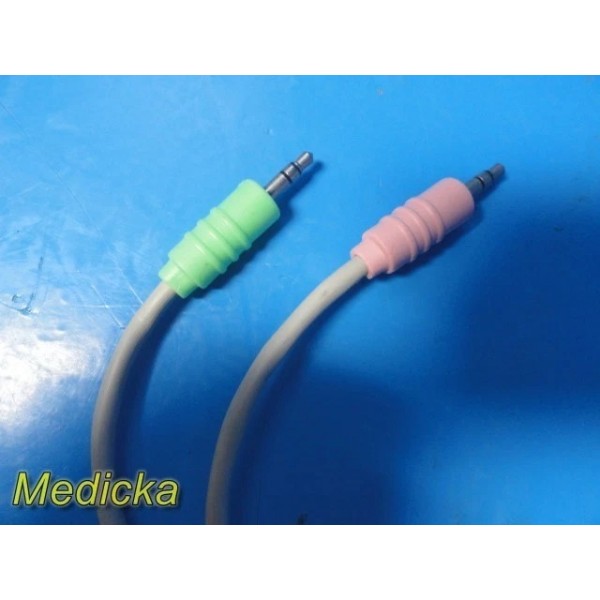

Side B – Dual 3.5mm TRS Plugs:

  • Type: Two standard 3.5mm TRS male connectors
  • Colors: Green (channel A), Pink (channel B)

  • Likely Function:

    • Signal breakout

    • Control channel in/out

    • Auxiliary audio/trigger lines

    • Device-specific interface routes

Each TRS connector has molded strain relief and a standard tip-ring-sleeve configuration.

Condition:

  • Cable jacket intact with no cuts, tears, or exposed wiring
  • Connectors clean with no bent pins
  • Molded strain-reliefs are secure
  • Mild cosmetic wear from storage only
  • Old stock, excellent physical condition

Functionality Summary:

This cable has not been electrically tested, but all pins and connectors appear intact and secure. Offered as-is, ideal for replacement, integration, or use as an auxiliary interface cable in compatible legacy medical systems.

What Is Included:



  • (1) Tekdata 7-pin Mini-DIN to dual 3.5mm TRS interface cable (4 ft)



What Is Not Included:



  • No attached devices
  • No adapters
  • No user manual
  • No modules, sensors, or accessories







*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*



Stock ID : 38767 (P.O 2013) (WH104 SCC15)



Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

Condition: USED, please refer to images for cosmetic condition.

  1. 1.    Overall Condition:- As seen in images - Very Good
  2. 2.    Physical Condition:  Please review images before bidding : Good
  3. 3.    Working Condition: This cable has not been electrically tested, but all pins and connectors appear intact and secure......will receive item as pictured ……………(offered AS IS)
  4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
  5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
