McGan Micromed PD-8K High Voltage Porosity Detector W/ Probe Attachments ~ 38082
Item specifics
- Used
- Brand
- McGan Technology
MPN- PD-8K
Product details
Manufacturer | McGan Technology |
Item: | McGan Micromed PD-8K High Voltage Porosity Detector W/ Probe Attachments & Case |
Model/Cat # | PD-8K |
Serial No. | 171008.2 |
Made In: | USA |
Date of Manufacture: | U/K |
Voltage: See Below
Short description:
McGan Micromed PD-8K High Voltage Porosity Detector with digital display and interchangeable probe attachments. Designed for non-destructive coating and insulation integrity testing. OEM system with multiple accessories and storage case.
Adapter (included):
- Model No: DC1201000
- Input: 120V AC, 60Hz, 20W
- Output: 12V DC, 1000mA
- Certifications: UL, SA
Display: Digital LCD screen showing applied test voltage (in kV). Current reading visible in image: 3.03 kV.

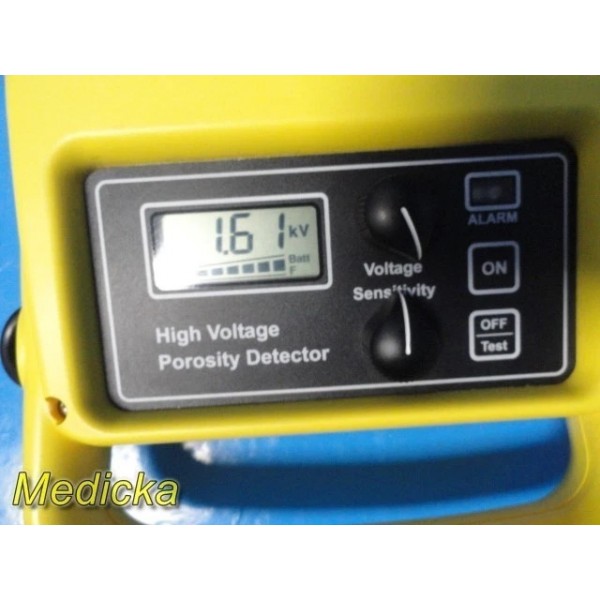

Controls:
- ON / OFF / TEST soft-pad buttons (responsive)
- Voltage Sensitivity rotary knob
- Alarm indicator light
- High Voltage Warning: “CAUTION – HIGH VOLTAGE. Care must be exercised when using this instrument. This instrument must be adequately earthed. REFER TO INSTRUCTIONS BEFORE USE.”
- Green cable with alligator clip (grounding/earth connection)
- Red cable with integrated yellow handheld probe (slightly curved, accommodates interchangeable attachments)

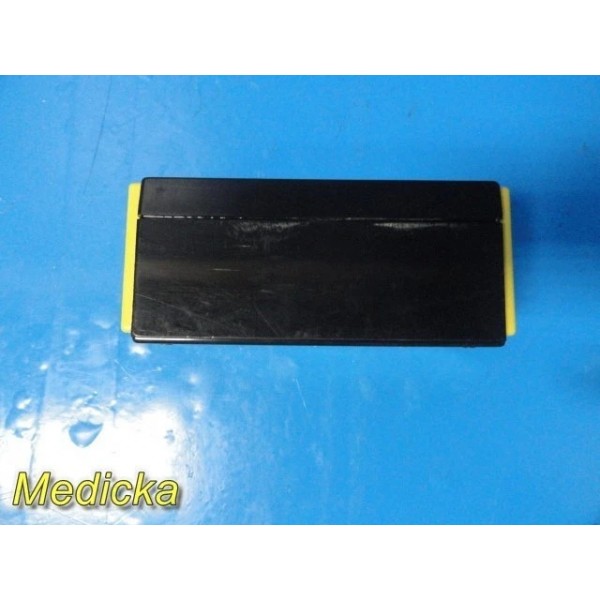

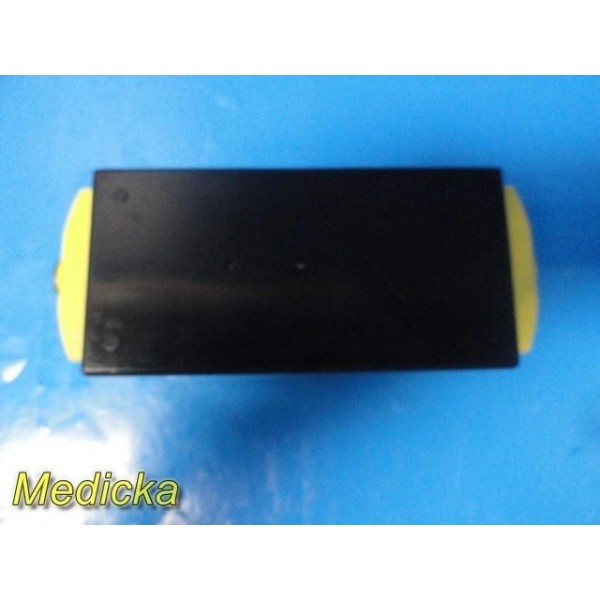

- Grey rectangular adapter with multiple ports
- White circular ring adapter with brass bristle insert (for circumferential testing)
- Metal brush attachment (fine-point, in bag, for small area testing)

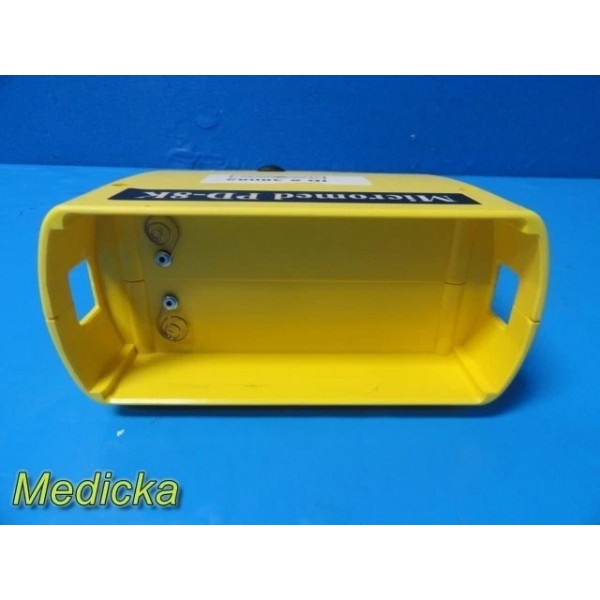

- Cosmetics: Good overall; may show minor scuffs and scratches, no cracks or dents
- Battery: Internal battery is dead; replacement recommended if portable use is intended
- Functionality: Device powers on and tests properly with included 12V DC adapter. Knobs and buttons responsive, alarm functional
- Calibration: No prior PM/calibration records available
- Powers on with AC adapter (tested, functional)
- Displays test voltage clearly on digital LCD
- Voltage sensitivity knob and ON/OFF/TEST pads responsive
- Alarm activates during test sequence
- Attachments fit probe securely, covering a wide range of surface testing needs

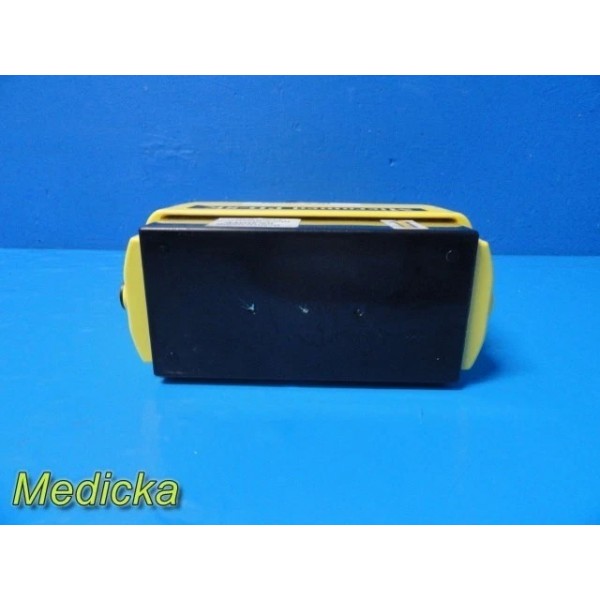

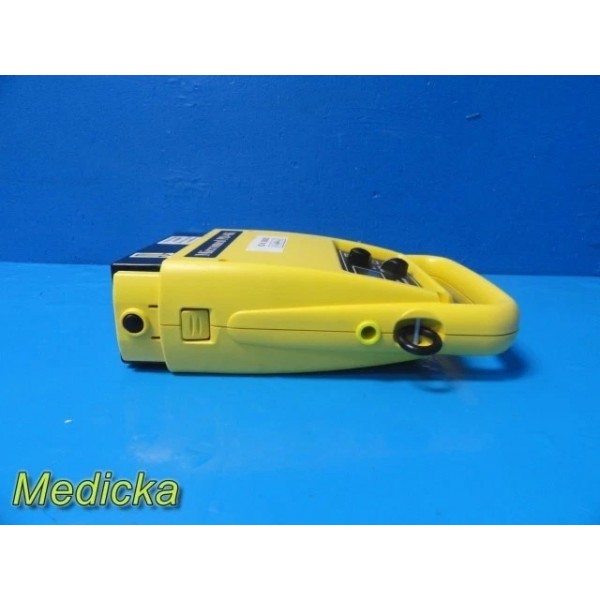

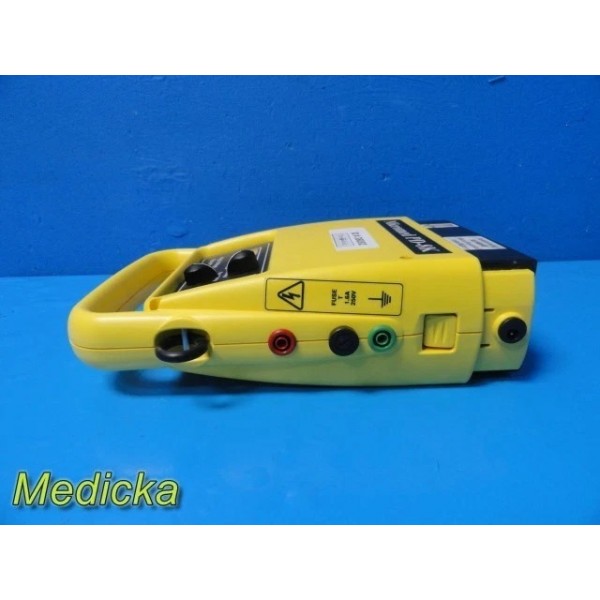

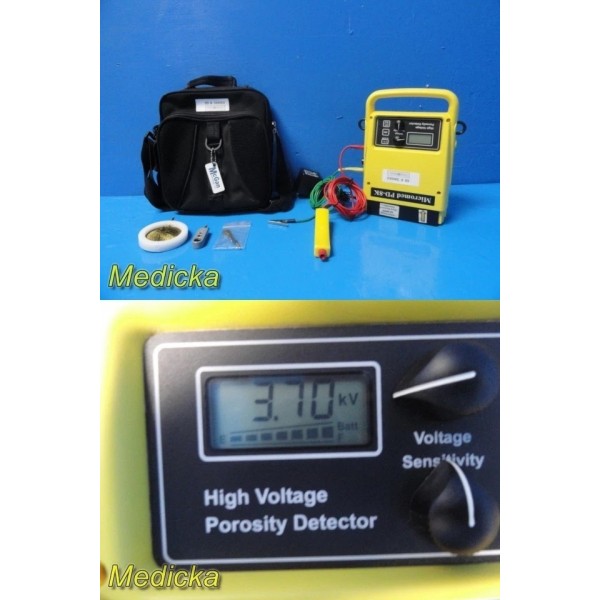

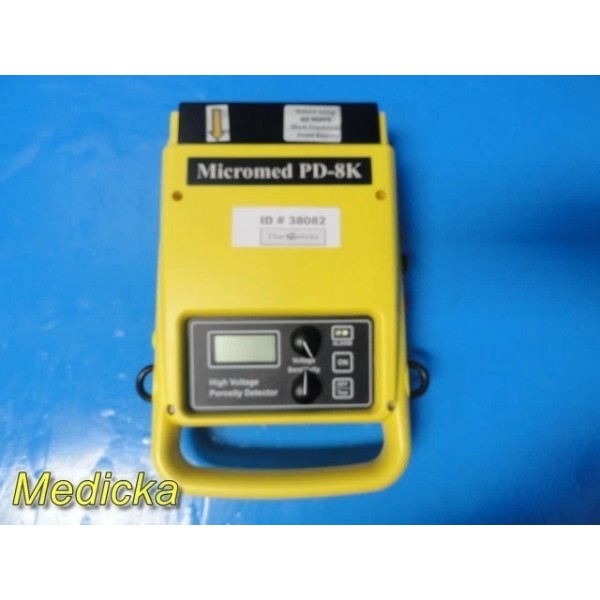

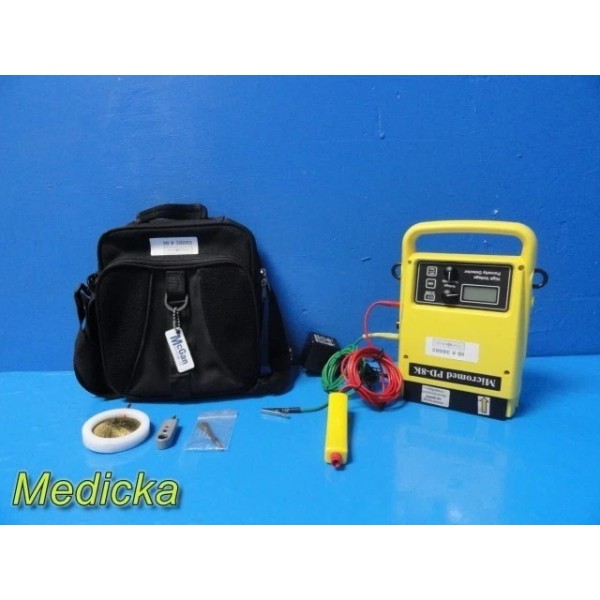

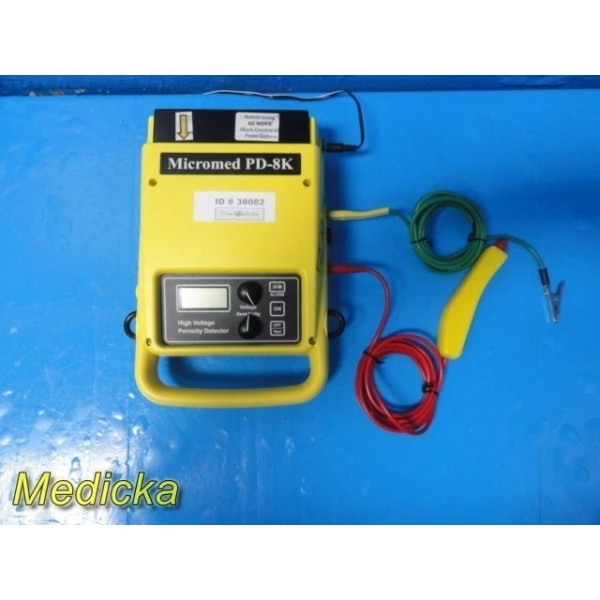

- McGan Micromed PD-8K unit (S/N 171008.2)

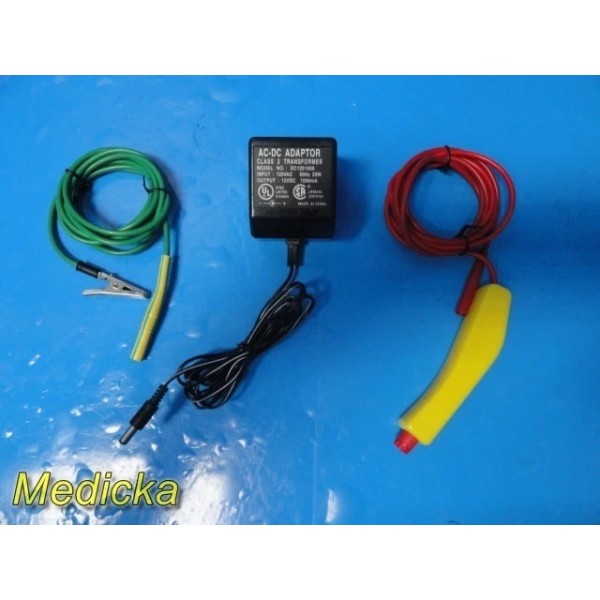

- AC-DC adapter (Model DC1201000)
- Green grounding cable with alligator clip
- Red cable with integrated yellow probe handle

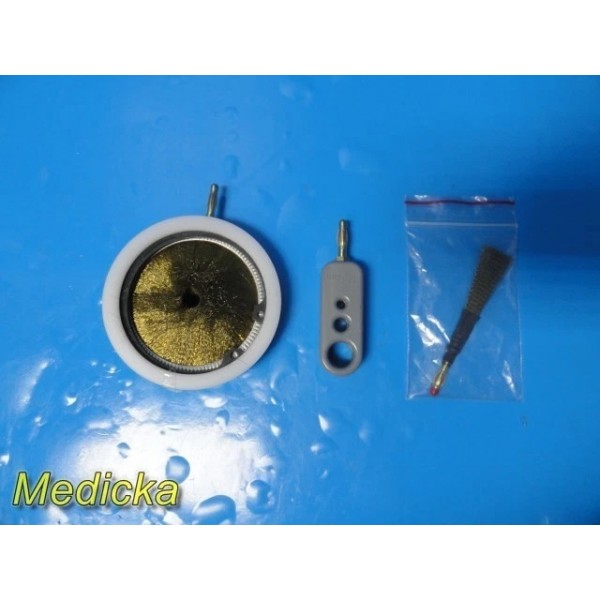

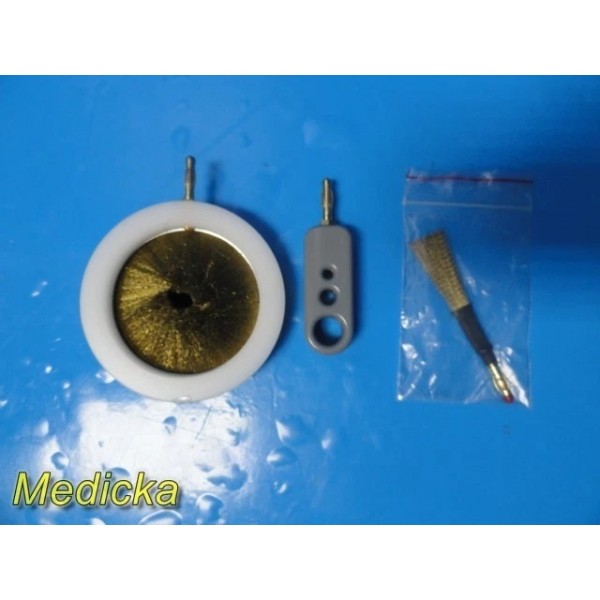

- Three probe attachments:
- Grey rectangular adapter

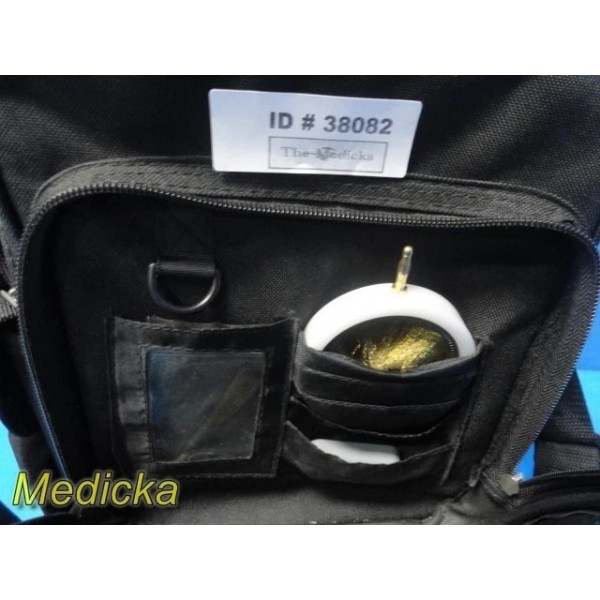

- White circular ring adapter with brass bristle insert
- Metal brush tip (fine point)

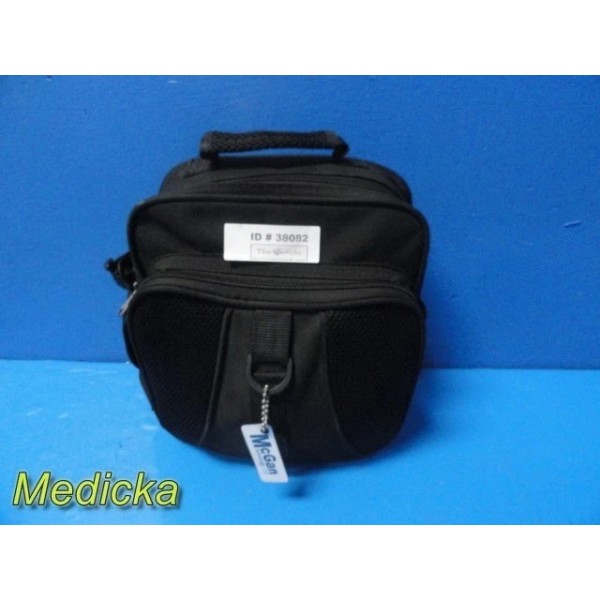

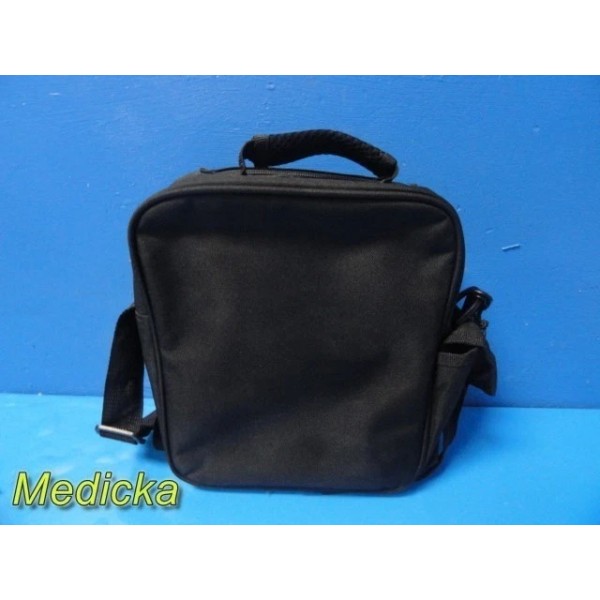

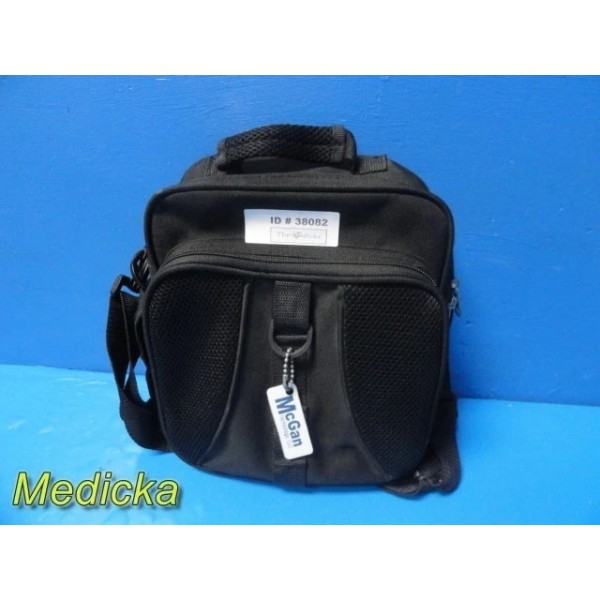

- McGan storage case with multiple compartments
- User manual
- Battery (device runs on AC adapter as included)
- Any additional accessories not shown
*Items shown in photos are the items that will ship. If it is not shown in the photos, it is not included*
Stock ID : 38082 (P.O 2019) (R3 C14)
Comments:
Kindly enlarge the images and see them with zooming.
Concern or query: Ask a Question
Condition: USED, please refer to images for cosmetic condition.
- 1. Overall Condition: As seen in images - Very Good
- 2. Physical Condition: Please review images before bidding - Very Good
- 3. Working Condition: Has been tested at our end & is in good functionality...Will receive item as pictured ……………(offered AS IS)
- 4. “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
- 5. Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
