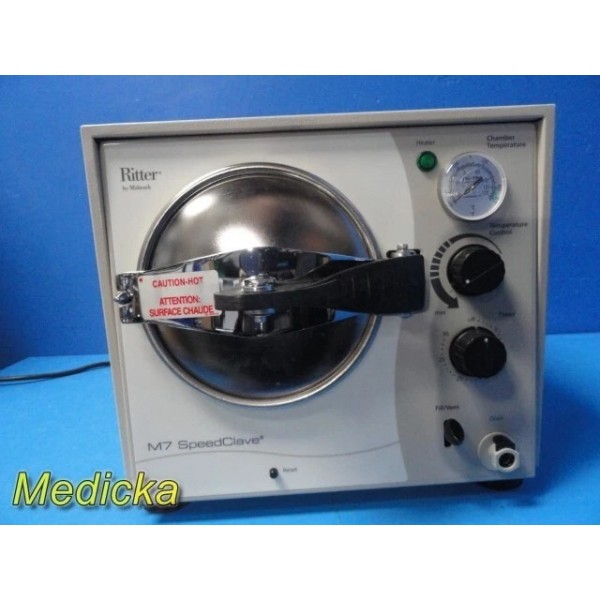

Midmark Ritter (Model M7-01...

Product details

Voltage:                  120V | 50-60Hz | 12A

Short description...

1. 1.      Sale is for imaged items only.
2. 2.   Signs of average use.
3. 3.   Has been tested at our end & is in good functionality.

    *Reusable & non-sterile device

    *CE Marked

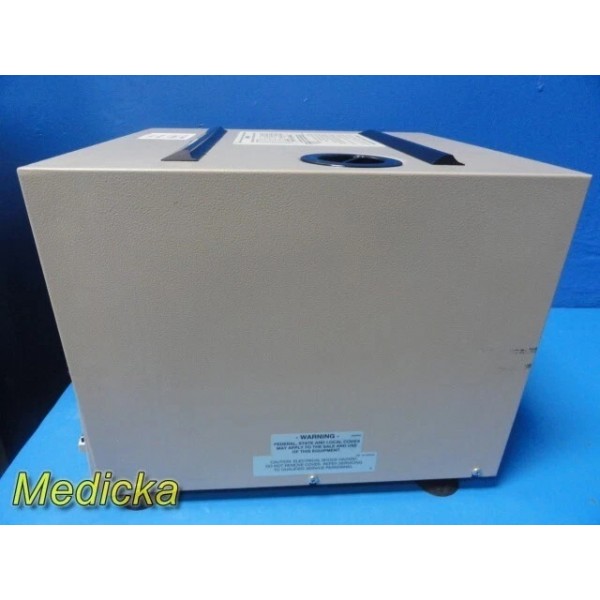

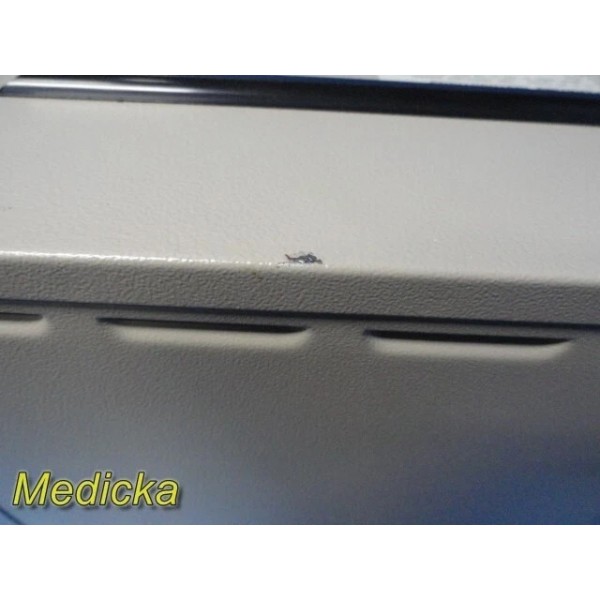

    *Has some scratches & scuffs

    *No dents or cracks noted

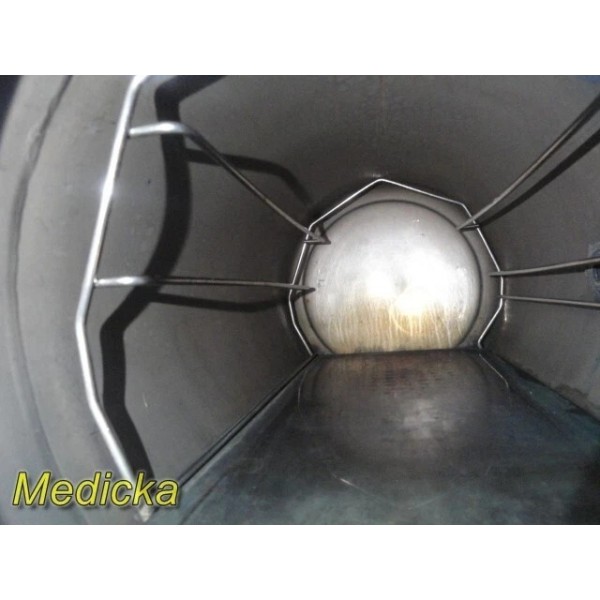

    *Chamber display some signs of usage with patina effects

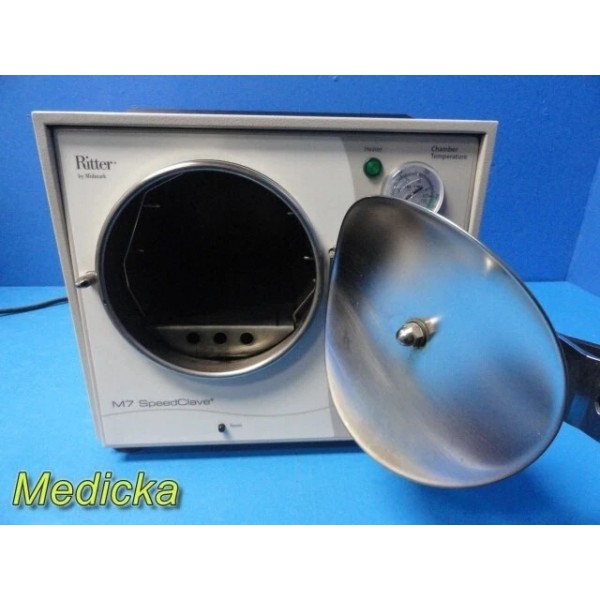

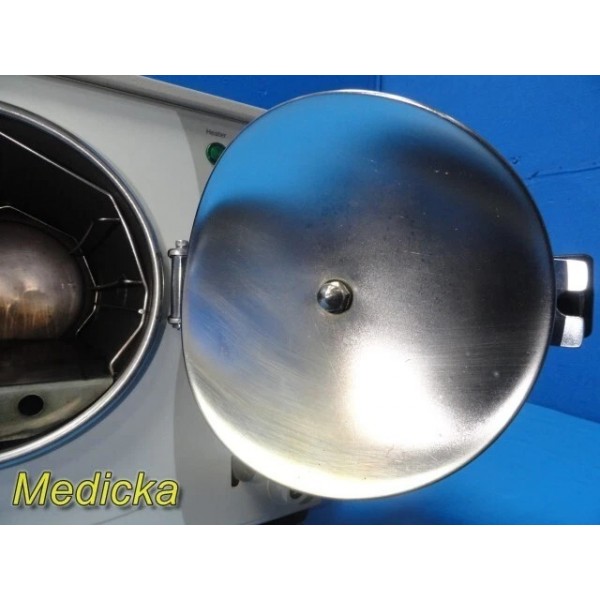

    *Door is in good shape

    *Lock seems fine

    *Temperature control & timer knobs are working

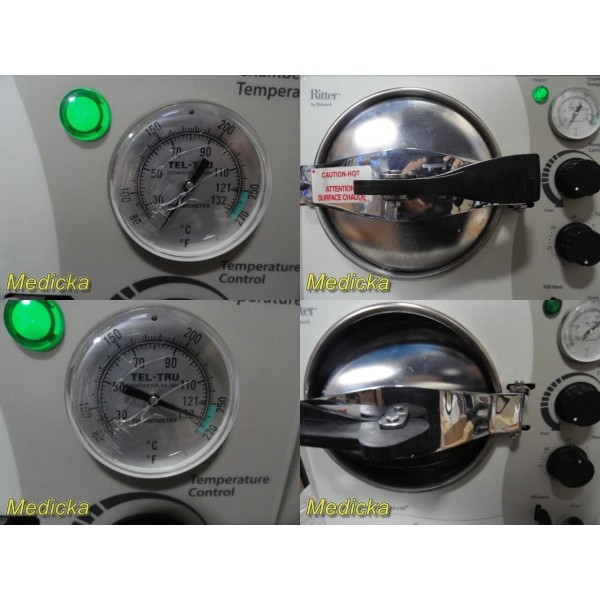

    *Chamber temperature gauge is working | Some stress effects are seen

    *Fill/Vent reset buttons are responsive

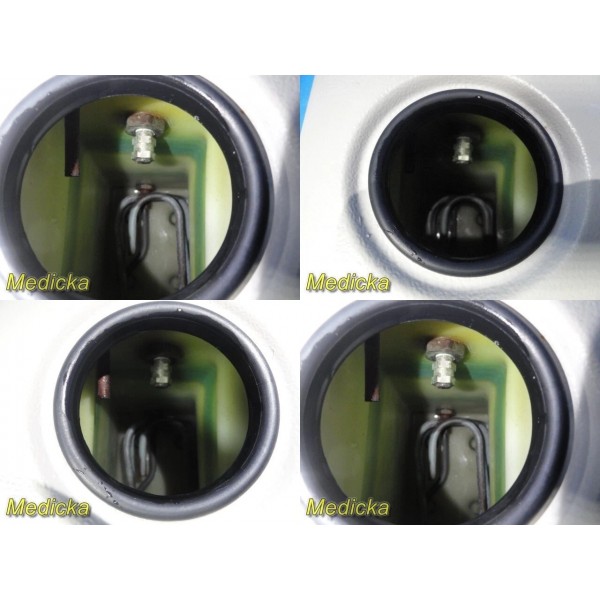

    *Water reservior lid is intact

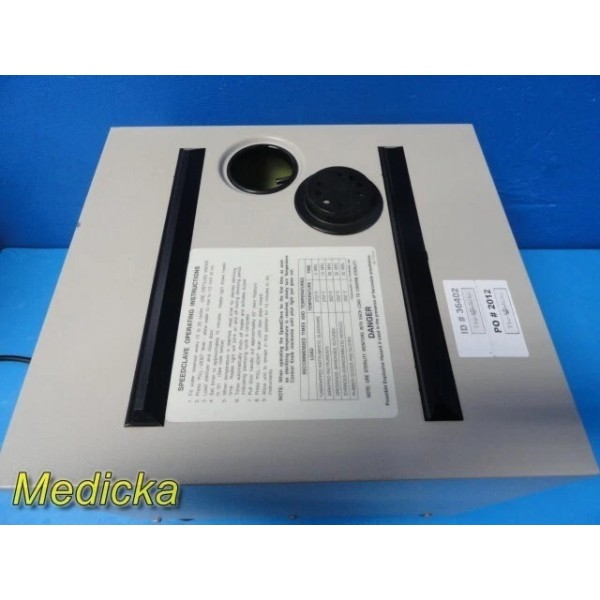

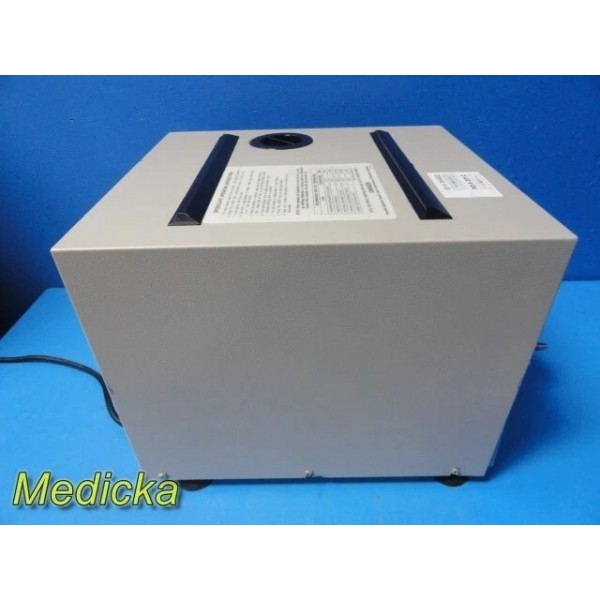

    *Has quick instructions on the top

    *Note: Use distilled water only

    *Device enjoys integarted power cord

    *Comes with tray (Sieved | Size: 12-1/2 x 9-1/2 x 1" approx)

    *Testing: Distilled water installed > One cycle of 20min/270° was run > Device successfully ran the cycle & working well

    *Note: Autoclave does not come with drain hose, manual or additional trays

    *Please review images and check for compatibility before bidding for the item

Ritter M7 SpeedClave – Brief Overview:

The Ritter M7 SpeedClave, manufactured by Midmark, is a manual autoclave designed for sterilizing medical instruments. Known as the "workhorse of sterilizers," it is widely used in medical, dental, and laboratory settings due to its reliability, efficiency, and ease of use.

Key Features:

• Fast Sterilization:


  • Unwrapped instruments: 9 minutes from a cold start, 6 minutes when hot.


  • Wrapped instruments: 15 minutes at 270°F (132°C).


  • Linen packs: 30 minutes at 250°F (121°C).


• Safety Door:


  • Automatically seals when pressurized and prevents opening until the chamber is safely depressurized.


• Temperature Control:


  • Adjustable temperature settings between 250°F (121°C) and 270°F (132°C).


  • Temperature gauge provides real-time chamber temperature readings.


• Cycle Timer:


  • Regulates sterilization time from 0 to 30 minutes and automatically shuts off after the cycle is complete.


• Low Water Cut-out Switch:


  • Prevents "dry burning" by ensuring the unit only operates when there is enough water, extending the life of the heating element.


• Front Draining Feature:


  • Simplifies cleaning and maintenance.


Main Components:

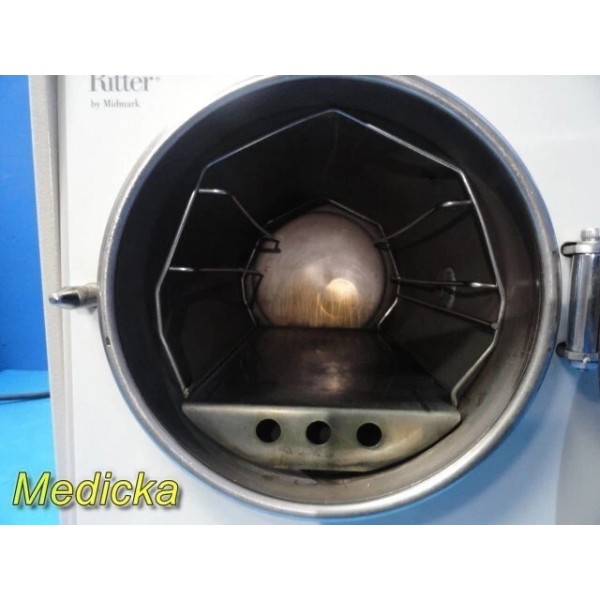

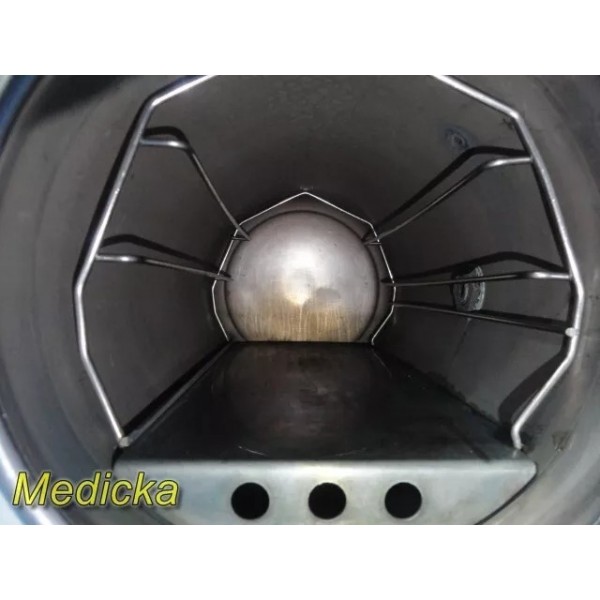

1. Chamber:

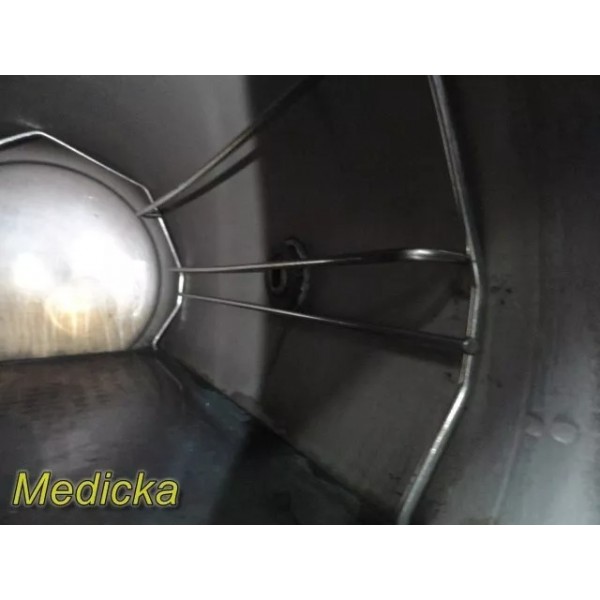

   • 7.5-inch diameter and 15-inch depth, with a 2.4-gallon usable volume.


2. Trays:


   • Comes with three stainless steel trays (two large, one small).


3. Water Reservoir:


   • 1.31-gallon capacity for distilled or demineralized water.


4. Control Panel:


   • Includes temperature regulator, cycle timer, pilot light, and fill/vent lever.


Specifications:

• Dimensions:


  • Height: 12.81 inches (32.5 cm)


  • Width: 13.56 inches (34.4 cm)


  • Depth: 18.12 inches (46 cm)


• Weight:


  • 30 lbs (13.6 kg) (empty)


  • 39 lbs (17.7 kg) (shipping weight)


• Electrical Requirements:


  • 120 VAC, 60 Hz, 10 AMPS


  • 220-240 VAC, 50 Hz, 5 AMPS


Installation & Maintenance:

• Placement:


  • Can be used on laminate, stainless steel, or stone surfaces.


  • Requires 2.5 inches of clearance on the sides and rear and 12 inches above for reservoir filling and cooling.


• Maintenance:


  • Daily: Wipe external surfaces and door gasket.


  • Weekly: Drain and refill the reservoir with clean distilled water.


  • Monthly: Perform a full system flush using a cleaning solution.

    Package includes:-

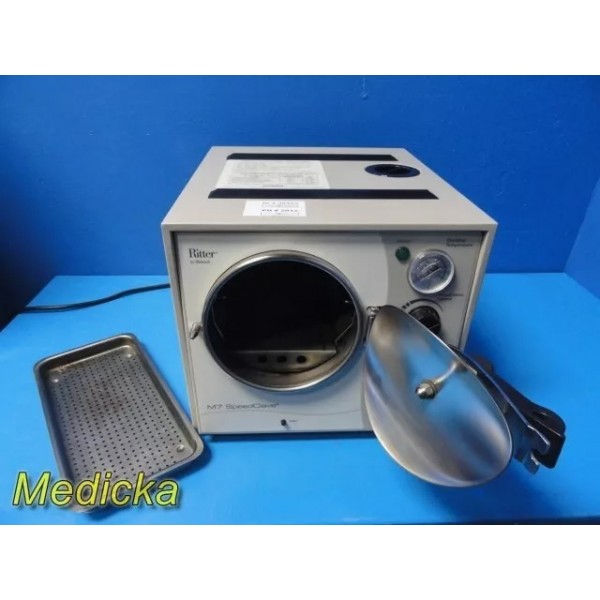

Midmark Ritter (Model M7-011) M7 Speedclave Autoclave

Seived Tray (Size: 12-1/2 x 9-1/2 x 1" approx)

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

1. 6.        Sterilized : Non-sterile device
2. 7.        Manual : Not included
3. 8.        Cleaned : Yes, at our facility
4. 9.        Shipping Weight : 50  lbs

Stock ID : 36402 (P.O 2012) (WH22 - Shipping Ready)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition:- As seen in images  - Very Good
2. 2.    Physical Condition:  Please review images before bidding : Very Good
3. 3.    Working Condition: Has been tested at our end & is in good functionality....will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
