Smith & Nephew Shampaine 49...

Product details

Voltage:                  115VAC | 50-60Hz | 12A | 1/2HP

Short description...

1. 1.      Sale is for imaged items only.
2. 2.   Signs of average use.
3. 3.   Table has been cleaned & inspected; seems to be working well.

    *Last Preventive Maintenance (PM): 2021 | PM Due: 2022

    *Electrosurgery table with versatile applications, suitable for imaging, endoscopy, and operating room (OR) environments

    *Non-battery operated model, tested and functional with AC plug-in

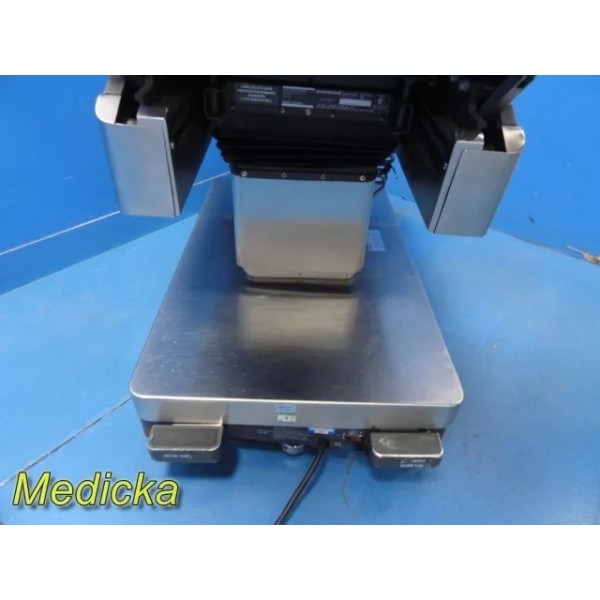

    *Table functionality requires locking:

     -To lock: Push the lock paddle down and press the back of the remote

     -To unlock: Push the lock paddle up

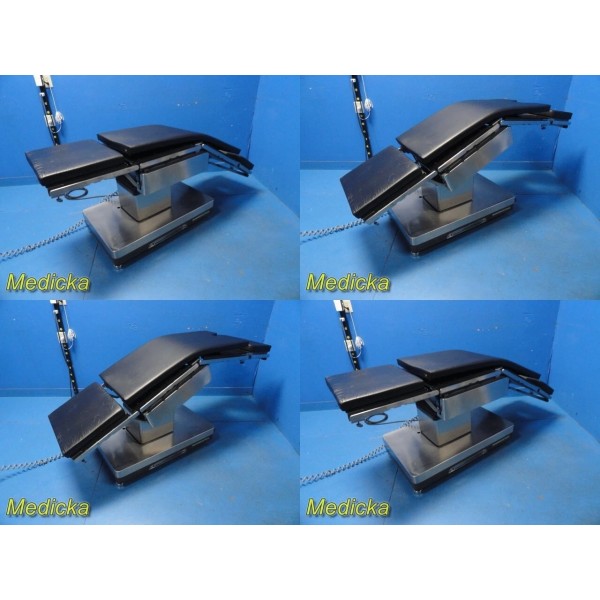

    *All table movements are controlled via the hand control

     -Press the desired button to actuate the corresponding movement

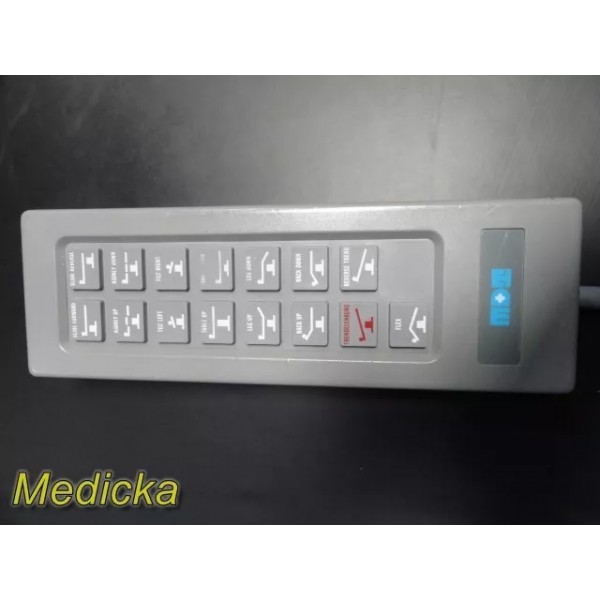

    *Hand control functions include:

     -Table slide forward/reverse

     -Kidney up/down

     -Tilt left/tilt right

     -Table up/down

     -Leg up/down

     -Back up/down

     -Trendelenburg/reverse Trendelenburg

     -Flex

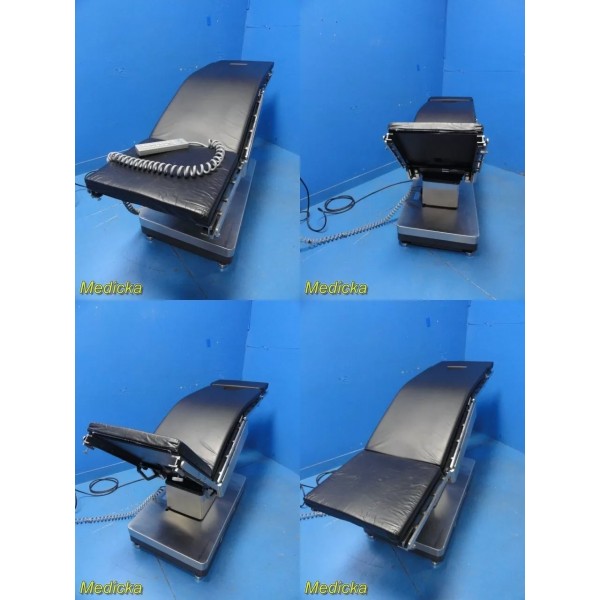

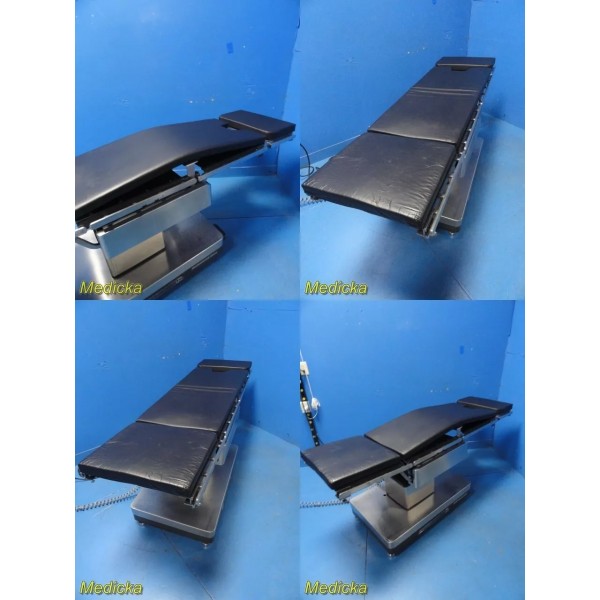

    *All actuations are fully operational | Video demonstration available upon request

    *Designed for heavy-duty use in medical imaging, endoscopy, and OR settings

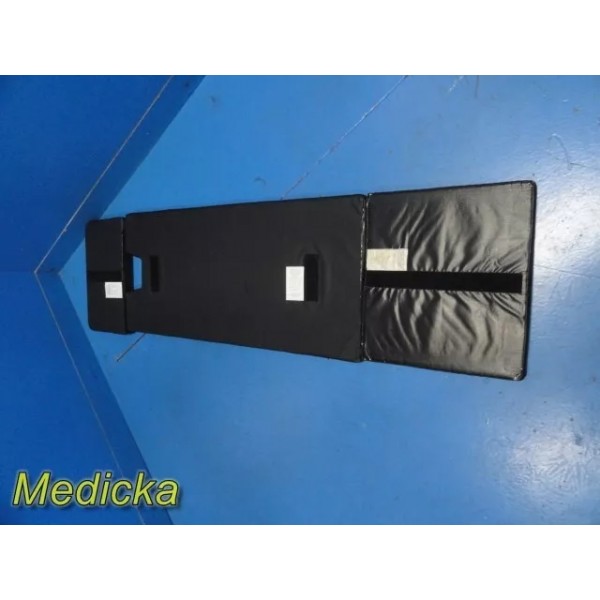

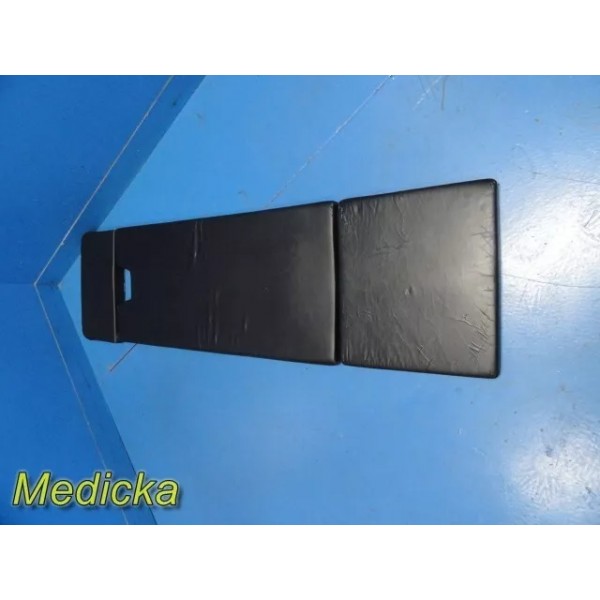

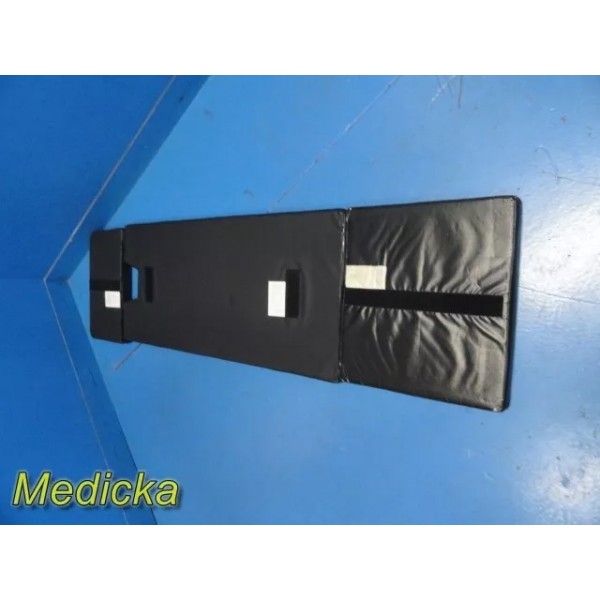

    *Includes a full set of pads: head, torso, and leg

     -No visible tears or damage to pads

    *Side rails are intact and in good condition

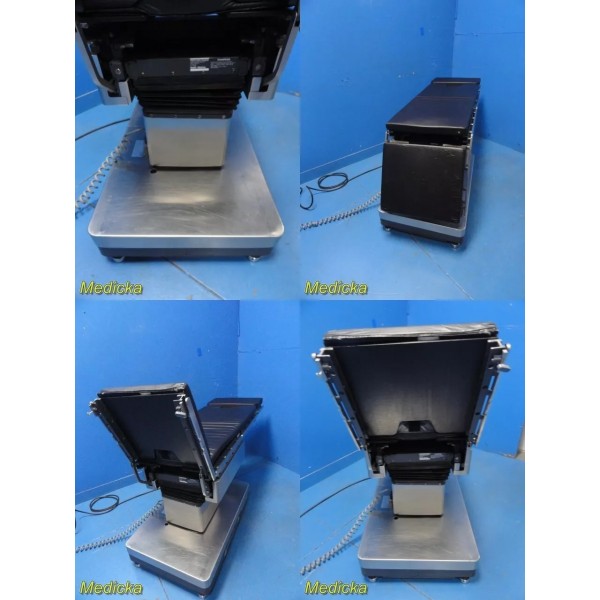

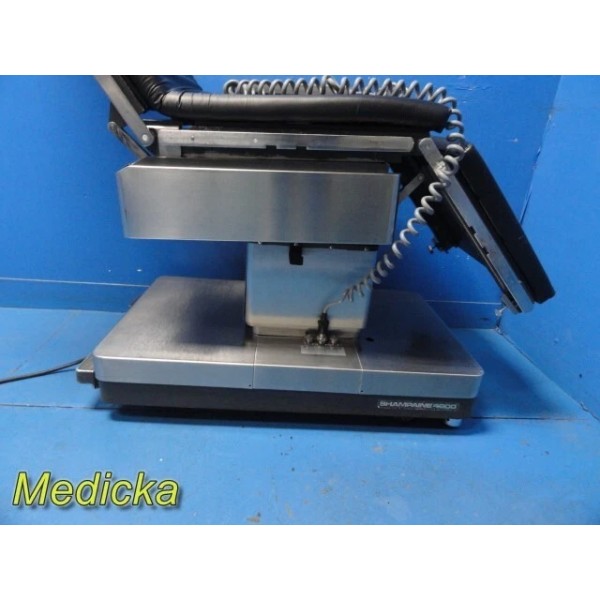

    *Metal base is structurally sound with minor cosmetic wear

     -Surface shows some scratches, scuffs, and paint loss

     -No visible rust; however, minor rust may be present

    *Recommended to undergo Preventive Maintenance (PM) prior to clinical use

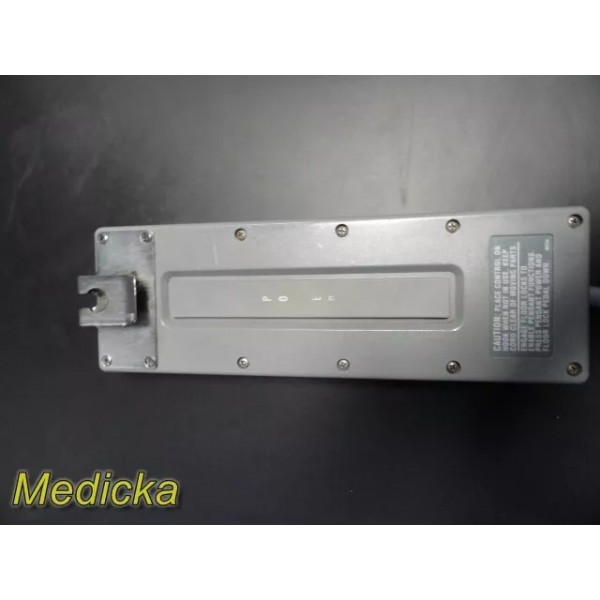

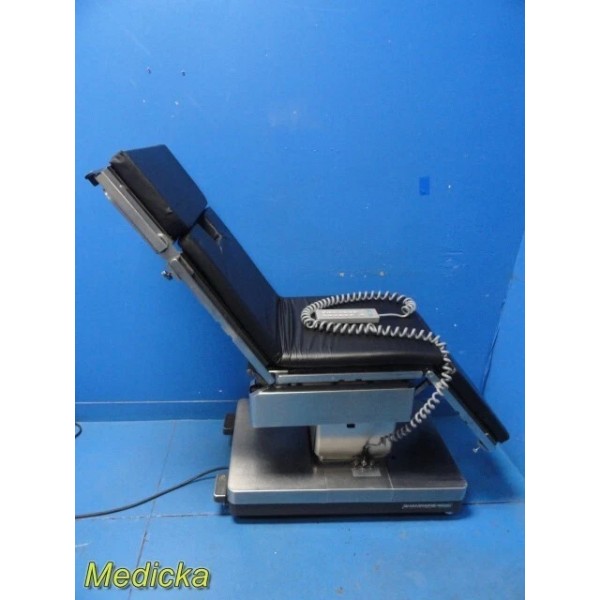

    *Hand remote features a coiled, heavy-duty cable (approx. 12-14 ft), free from cuts or tears

    *Includes a hospital-grade power cord

    *Caution:

     -Place the hand control on the hook when not in use.

     -Keep the cord clear of moving parts.

     -Instructions for engaging floor locks are included.

    *Please review images and check for compatibility before bidding for the item

KNOW THIS DEVICE BEFORE YOU BUY!

Shampaine 4900 Surgical Table: Features and Specifications

The Shampaine 4900 Surgical Table is a versatile, electro-hydraulic operating table designed to accommodate a wide range of surgical procedures. Below are its features and specifications:

Radiolucent Tabletop with Longitudinal Slide:

Radiolucent top with an 8-inch longitudinal slide facilitates full-length imaging and enhanced C-arm accessibility.

Cassette tunnel runs the full length of the table, reducing X-ray scattering and improving imaging quality.

Flexible Articulation:

Offers Trendelenburg, reverse Trendelenburg, lateral tilt, back, leg, and kidney adjustments for diverse surgical requirements.

Weight Capacity:

Lift and articulation capacity of 500 lbs (distributed load), ensuring stability and safety for a wide range of patients.

Battery and AC Power Options:

The 4900B is battery-operated, allowing for cordless operation during procedures.

The 4900E is AC-powered, providing continuous operation through a direct power source.

The battery recharge system restores completely discharged batteries to 80% of full charge within six hours and to full charge within twelve hours.

Table Dimensions:

• Length: 71.5 inches (1842 mm); 88 inches with removable leg section.
• Width: 19.75 inches (502 mm); 21.75 inches with side rails.
• Height Range: 28 inches to 43 inches (711 mm to 1092 mm).

• Trendelenburg/Reverse Trendelenburg: ±25°.
• Lateral Tilt (Left/Right): 18°.
• Back Section Adjustment: 30° down to 90° up.
• Leg Section Adjustment: 70° up to 95° down.
• Headrest Section: 45° up to 90° down (in 15° increments).
• Kidney Elevator: Extendable up to 2.5 inches (64 mm).

Electrical Requirements:

115 VAC, 50/60 Hz, 4A, single-phase or 230 VAC, 50/60 Hz, 2A, single-phase.

These features make the Shampaine 4900 Surgical Table particularly adaptable for procedures requiring mobile imaging amplification, eliminating the need for additional accessories and providing greater C-arm accessibility for laparoscopic and endoscopic surgeries.

    Package includes:-

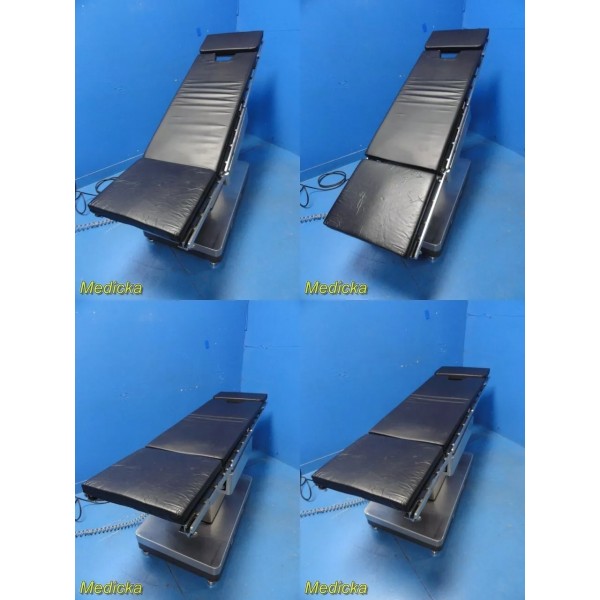

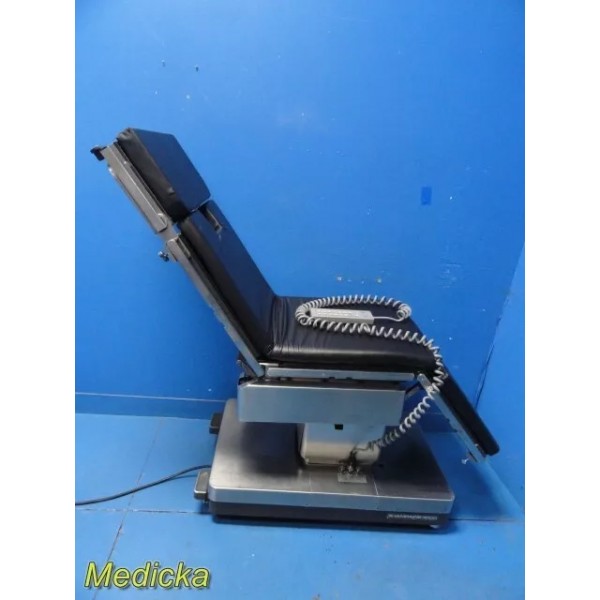

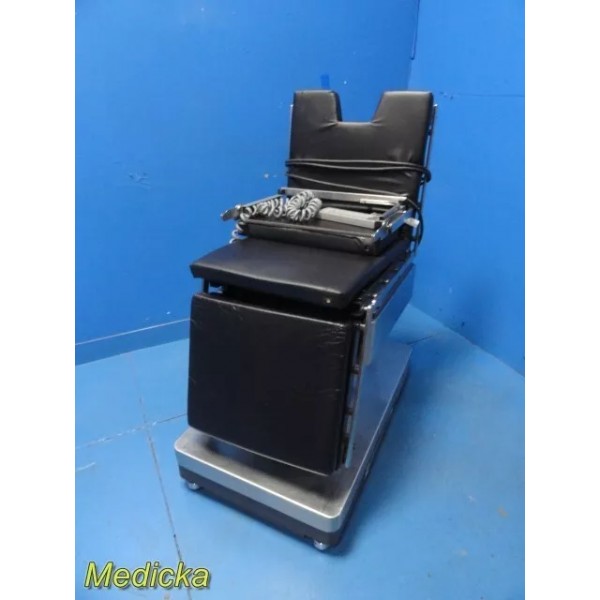

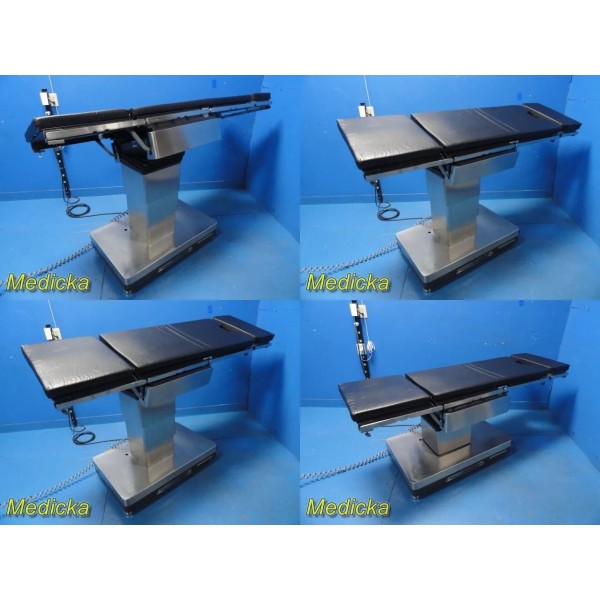

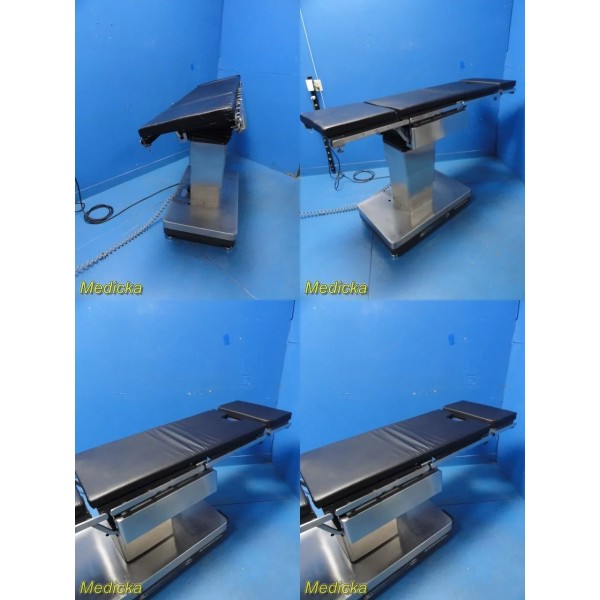

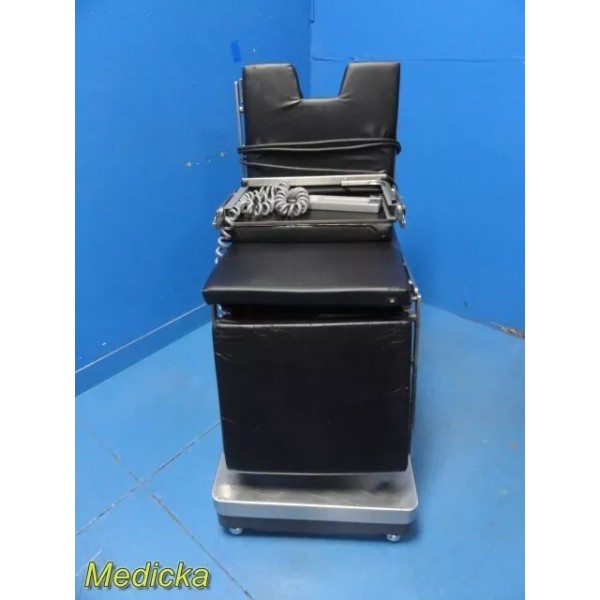

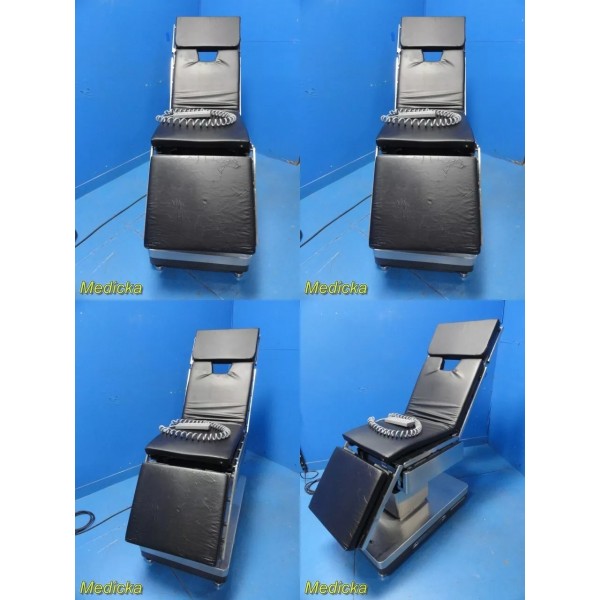

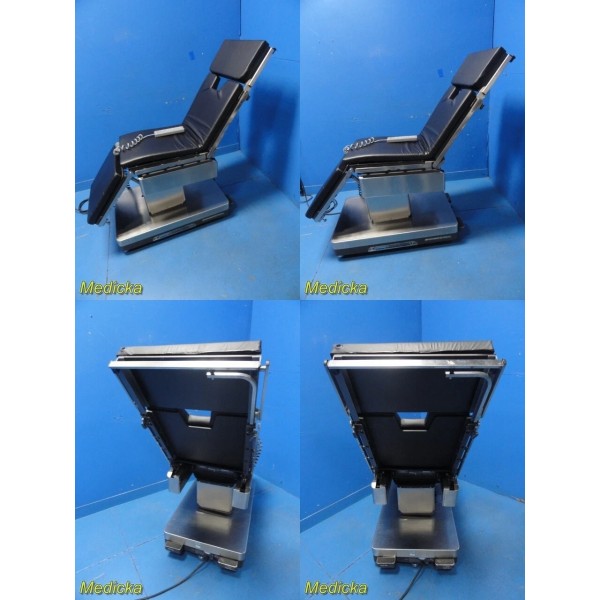

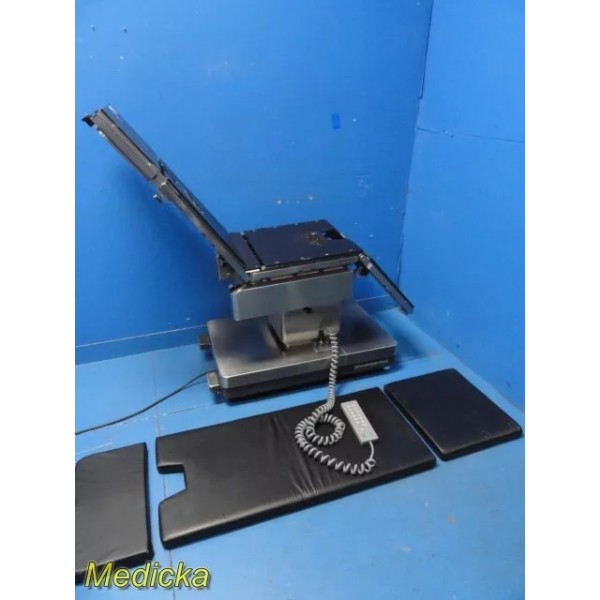

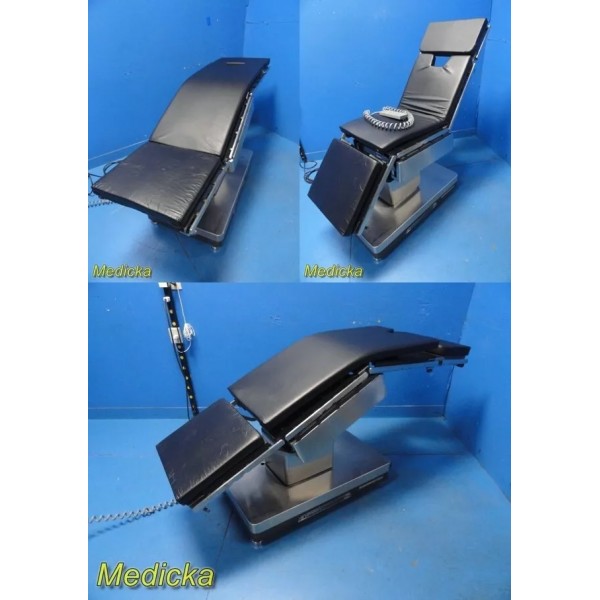

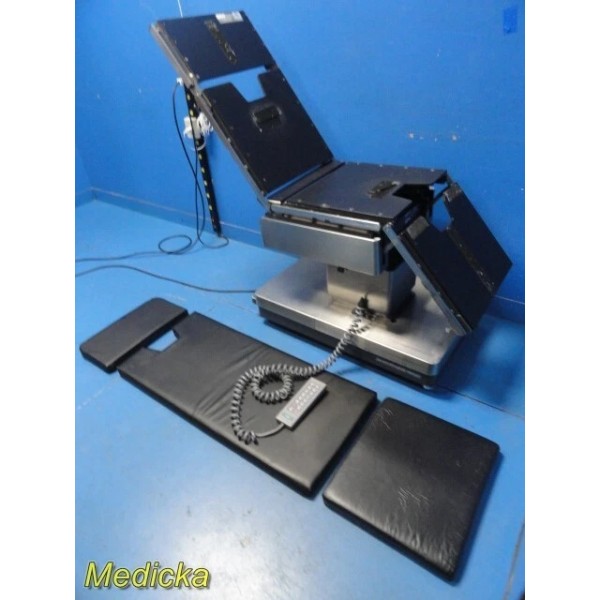

Smith & Nephew Shampaine Model 4900 Surgical/Imaging OR Table

Hand Control

Pads

Hospital-grade power cord

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

1. 6.        Sterilized : No
2. 7.        Manual : No
3. 8.        Cleaned : Yes
4. 9.        Shipping Weight : 750 lbs

Stock ID : 36579 (P.O 2016) (19E)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition:- As seen in images - Very Good
2. 2.    Physical Condition:  Please review images before bidding : Good
3. 3.    Working Condition: Has been tested at our end & is in good functionality...will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
