Brainlab 52302 Knee Navigat...

Product details

Short description:

This Brainlab Knee Replacement Navigation Instrument Set (Ref 52302) includes a wide range of reference arrays, pointers, fixators, cutting block adapters, and templates, supplied in a fitted sterilization tray. All instruments have been visually inspected and are in very good cosmetic and physical condition, free from dents or cracks. Designed for orthopedic navigation-assisted surgeries, mainly total knee replacement.

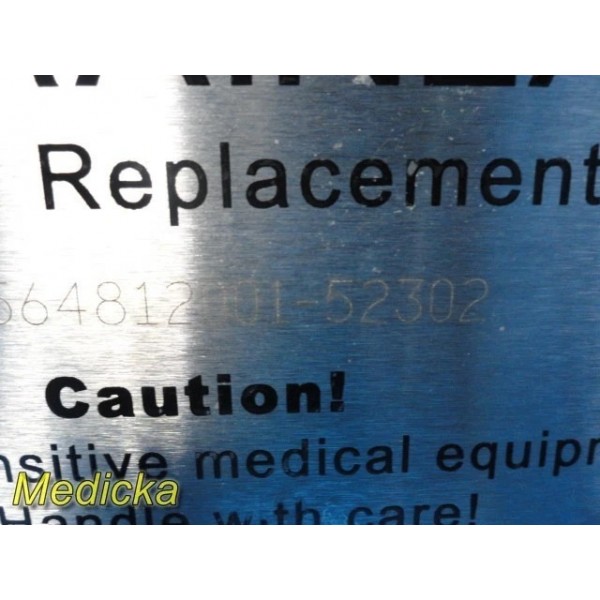

Reference Number (Tray): 52302

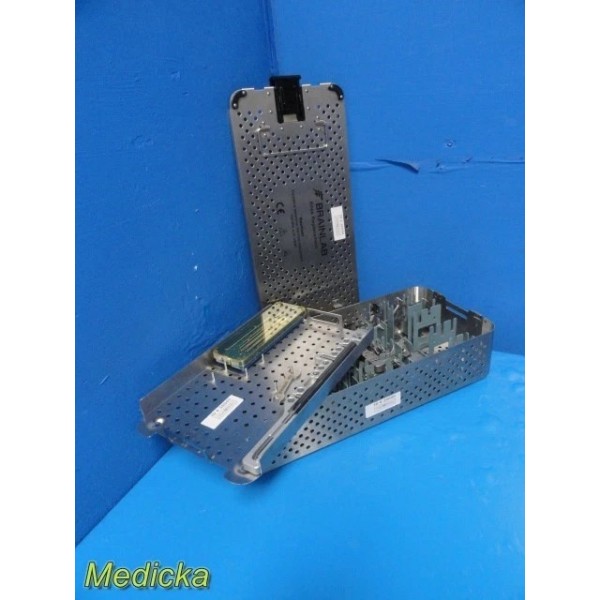

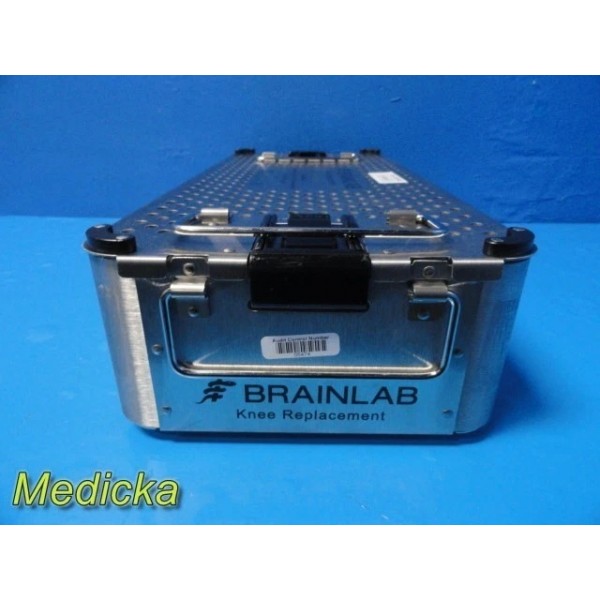

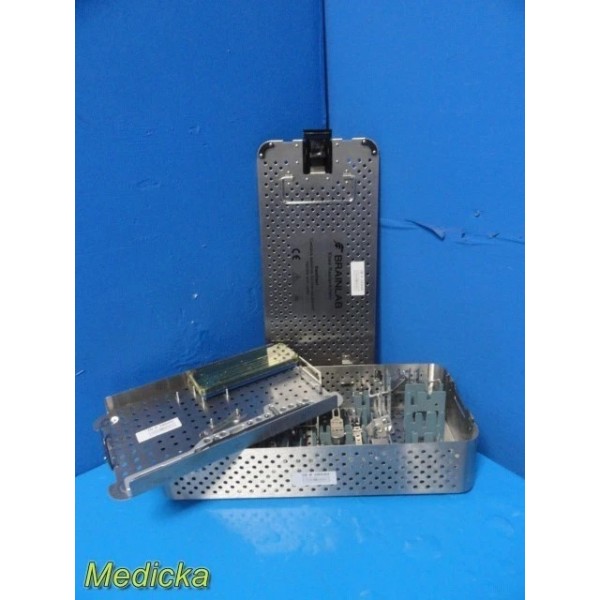

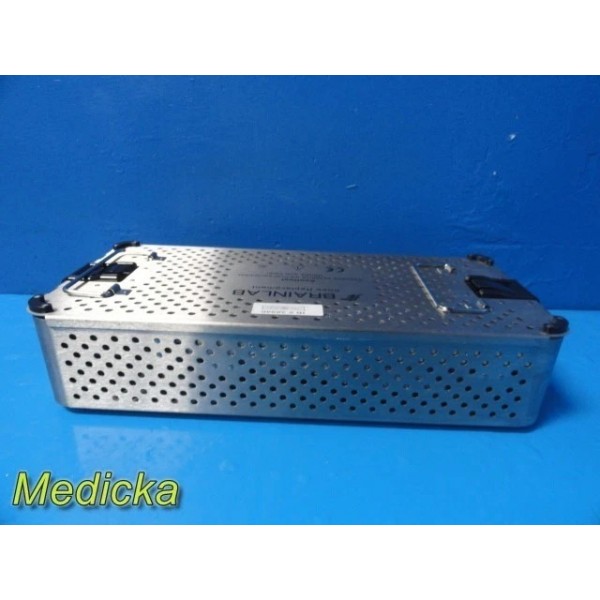

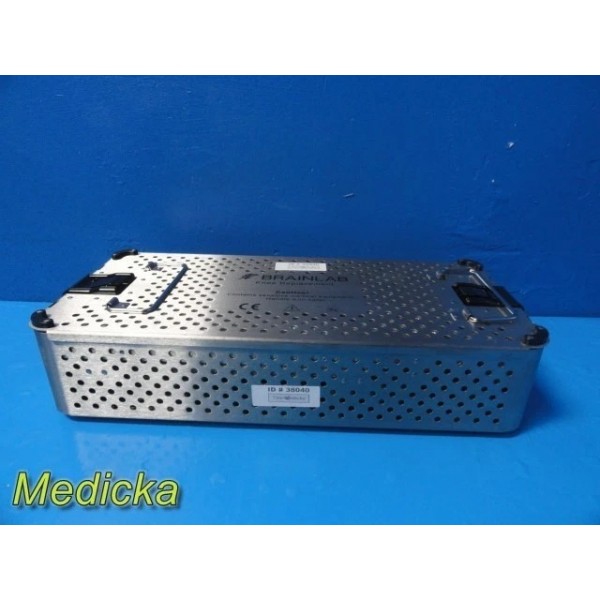

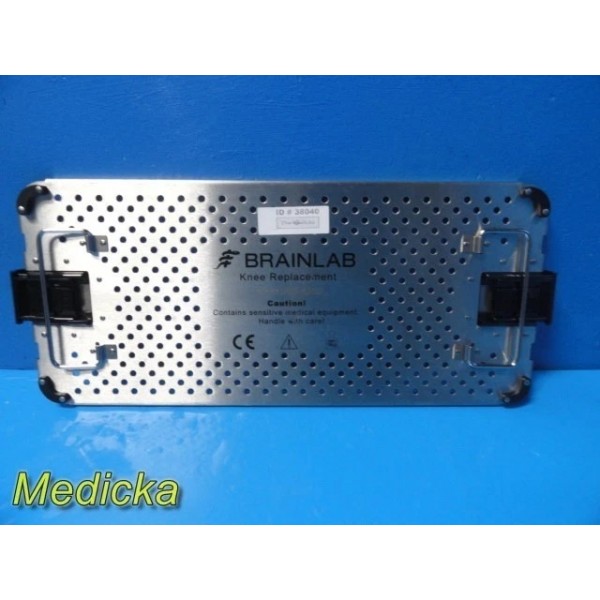

Tray System: Brainlab sterilization tray with fitted brackets and CE marking
Intended Use: Navigation instruments for orthopedic procedures, primarily total knee replacement, with cross-specialty applicability.

Condition & Functionality Summary:

• Instruments intact, free of structural damage.
• Cosmetic wear limited to minor surface marks consistent with previous use.
• Tray and brackets are secure, inserts hold instruments firmly.
• Locking, clamping, and reference mechanisms appear fully functional.
• No user manual included.
• Supplied non-sterile — cleaning/sterilization required before clinical use.

What’s Included:

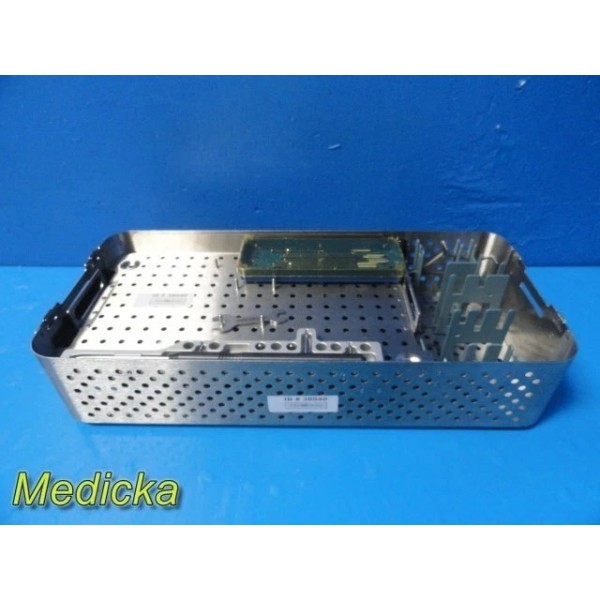

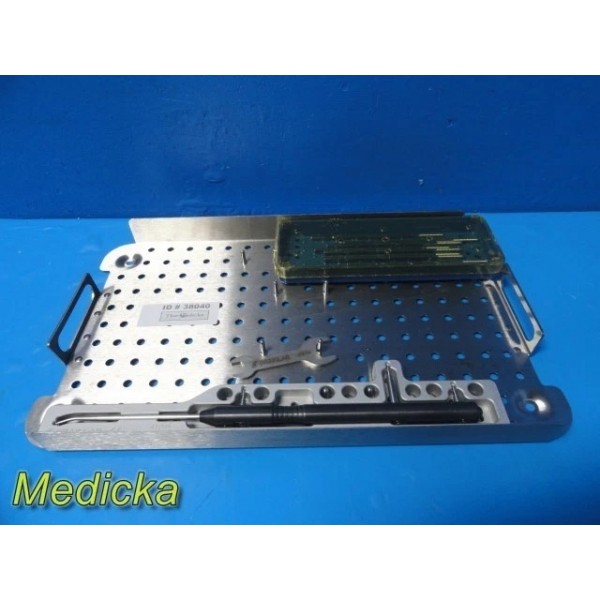

Top Tray Components:

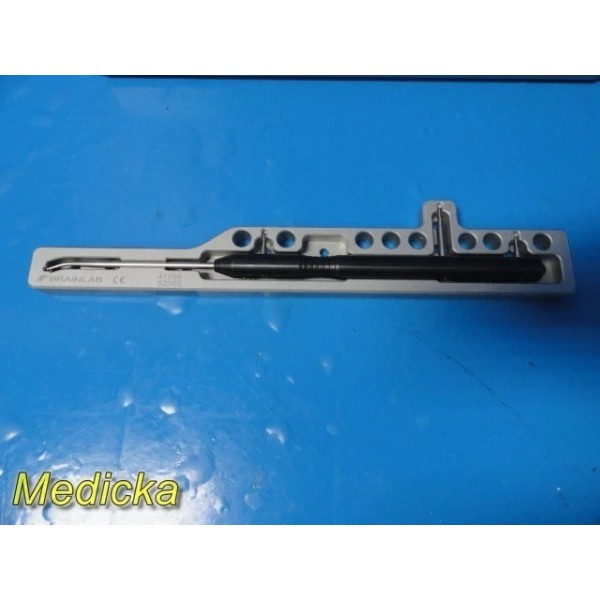

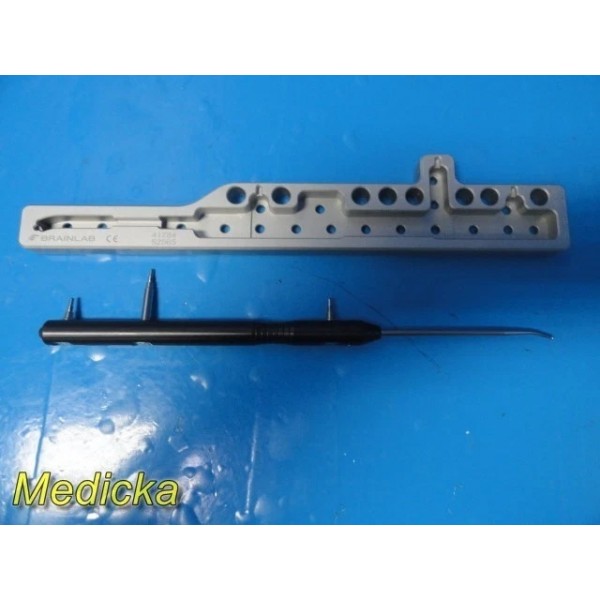

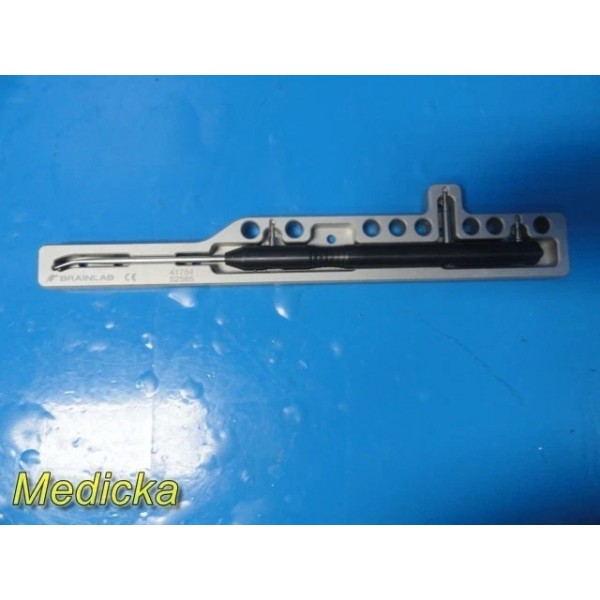

• Ref. 41784-B – Pointer, angled
• Ref. 52565 – Pointer holder (Alternate #41784)

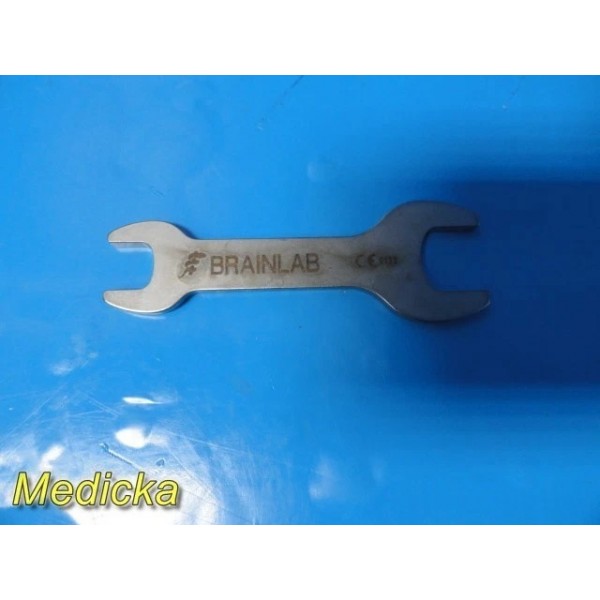

• Ref. 52242 – Wrench, X-Press

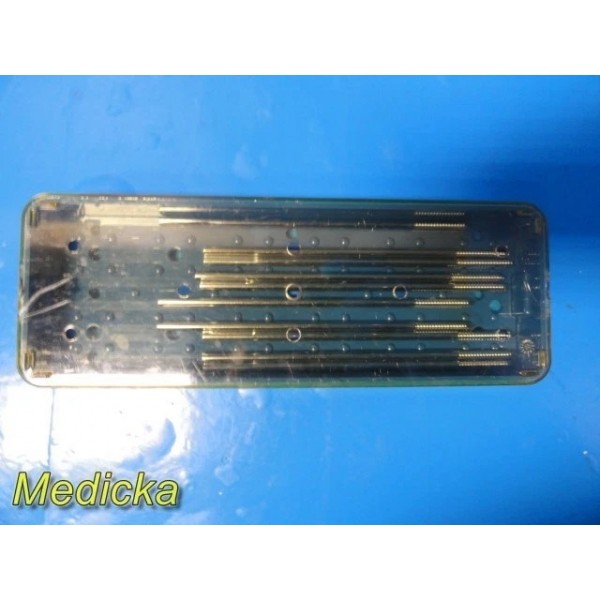

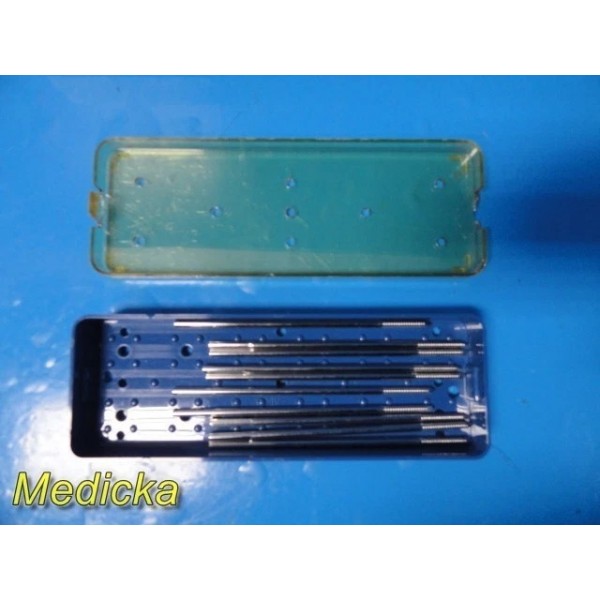

• Blue storage box with lid – Contains threaded pins (Qty 10), 4 × 130 mm TREU threaded pins, screws, CE #0483

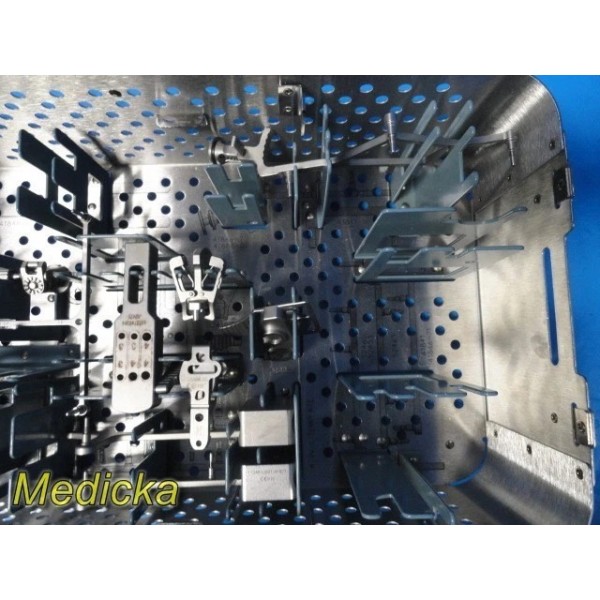

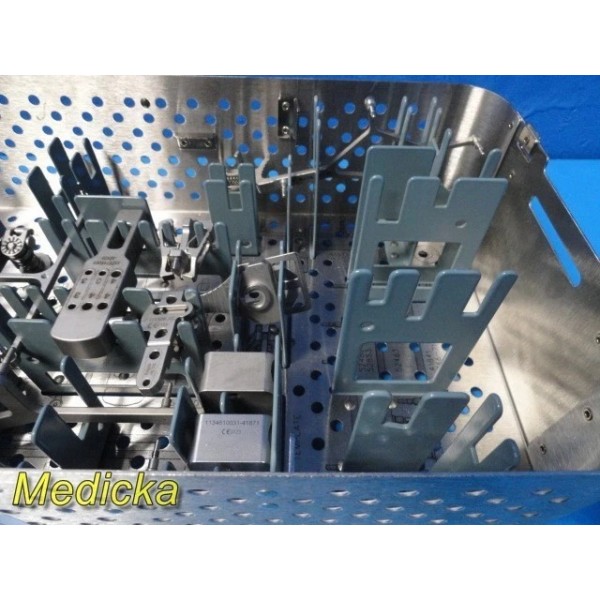

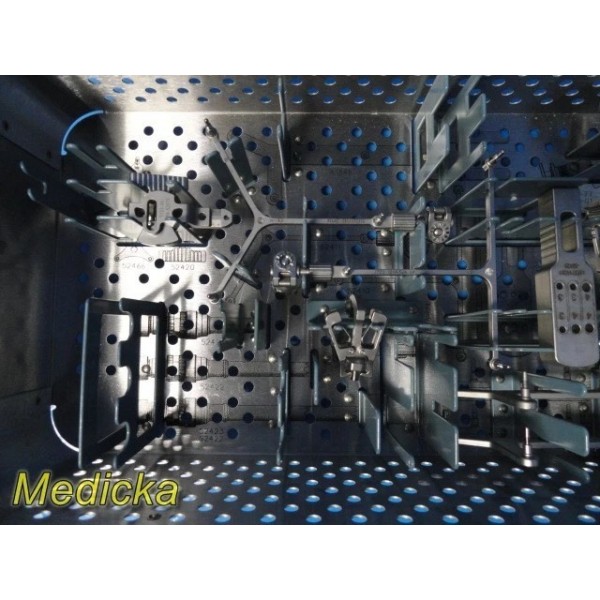

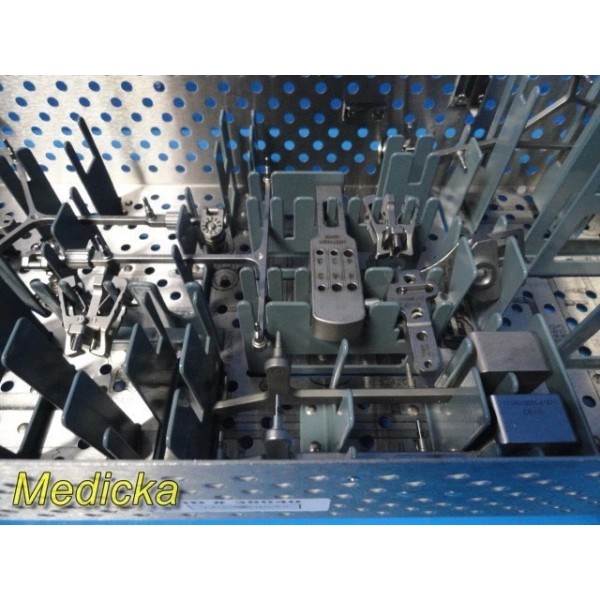

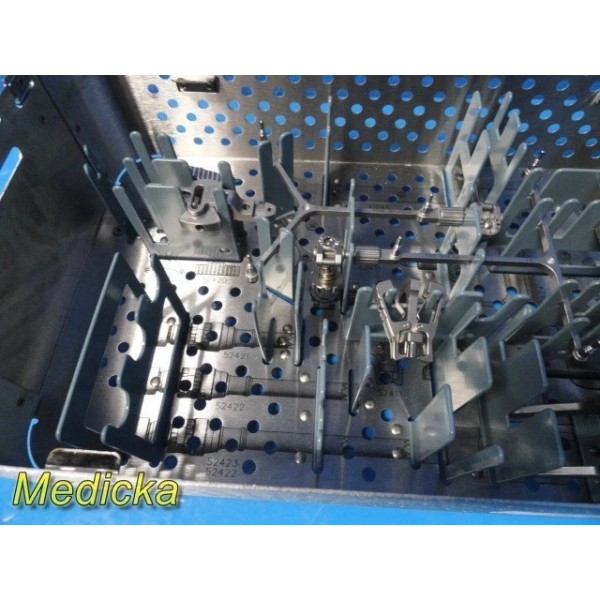

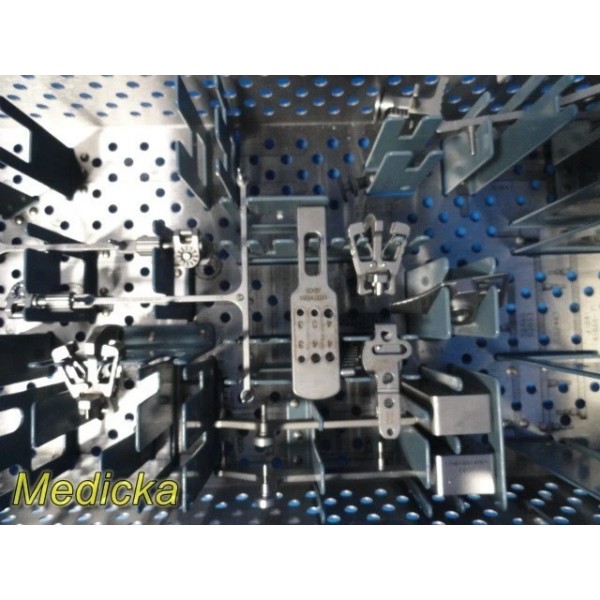

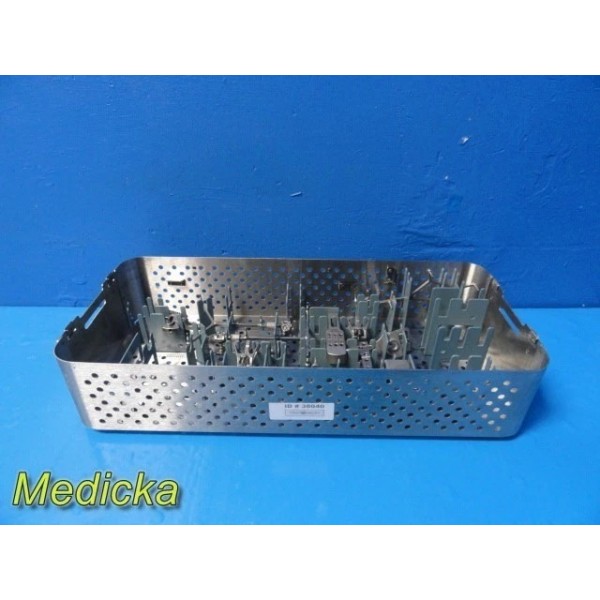

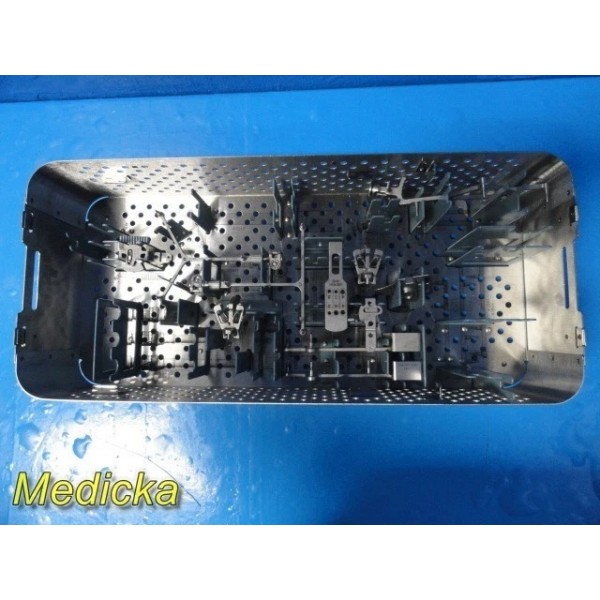

Bottom Tray Components:

• Ref. 52420 – Bone Fixator, 2-Pin, X-Press (not for drilling)
• Ref. 52411 – Reference Array, Y-Geometry
• Ref. 52410 – Reference Array, T-Geometry, X-Press
• Ref. 41888-03 – Cutting Block Adapter, Universal Array
• Ref. 52411 – Reference Array, T-Geometry, X-Press (Component)
• Ref. 52425 – 2-Pin Drill Template, X-Press
• Ref. 52410 – Reference Array, T-Geometry, X-Press (Component)
• Ref. 41888-04 – Cutting Block Adapter Base
• Ref. 41871 – 4-in-1 Block Template (for Smith & Nephew Journey)
• Ref. 41838 – 4-in-1 Block Template (for Genesis 2)
• Ref. 5103-06 – Instrument

What’s Not Included / Missing Components:

 The following reference numbers are optional accessories (not included in this set). These vary depending on surgeon preferences and specific navigation configurations:

• Ref. 52466
• Ref. 52421
• Ref. 52422
• Ref. 52423
• Ref. 41848
• Ref. 52460
• Ref. 52463
• Ref. 41841 / 41866–71
• Ref. 41866–77 / 41888–01

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

Stock ID : 38040 (P.O 1200) (R1 C4)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition:- As seen in images  - Very Good
2. 2.    Physical Condition:  Please review images before bidding : Very Good
3. 3.    Working Condition: Remains untested at our end and is being offered AS IS...Will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
