2016 Masimo Root Vital Signs Monitor W/ 2021 Radical‑7 – SpO₂,NIBP,Temp,Pi ~ 39392
Product details
Device Profile – Masimo Root Vital Signs Platform w/ 2021 Radical‑7 Pulse CO‑Oximeter
Manufacturer: Masimo Corporation
System: Masimo Root Vital Signs & Connectivity Platform with Radical‑7 Pulse CO‑Oximeter

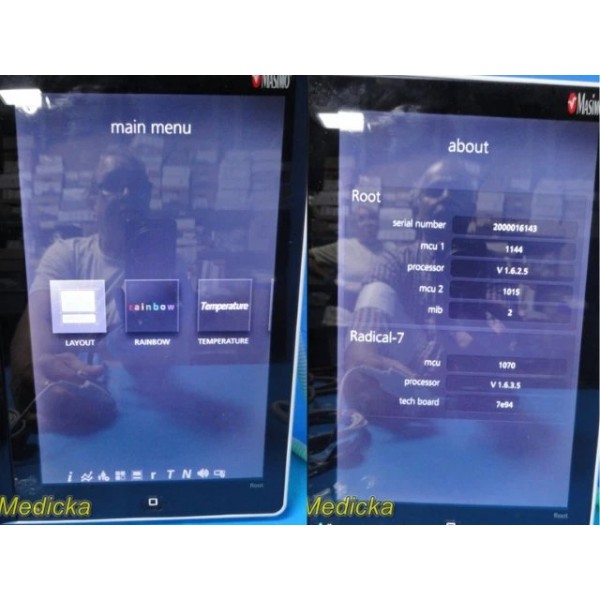

Root Platform Details

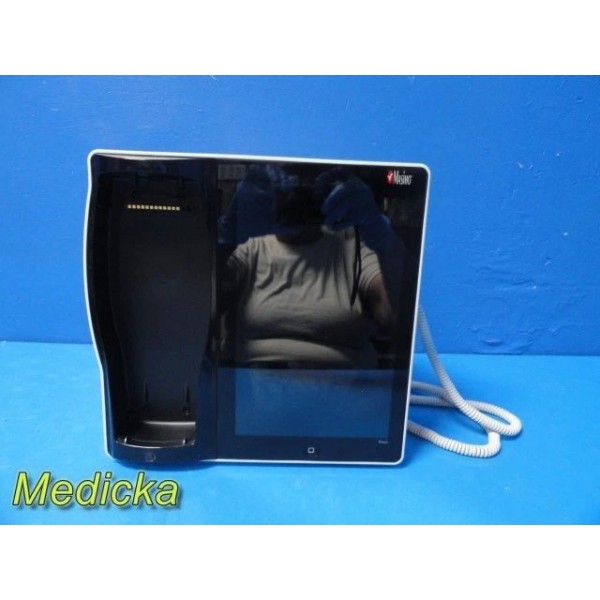

- Model: Root Vital Signs
- Serial Number: 2000016143
- Date of Manufacture: 2016
- Processor Version: V1.6.2.5
- MCU 1 / MCU 2: 1144 / 1015
- MIB: 2
Radical‑7 Module Details

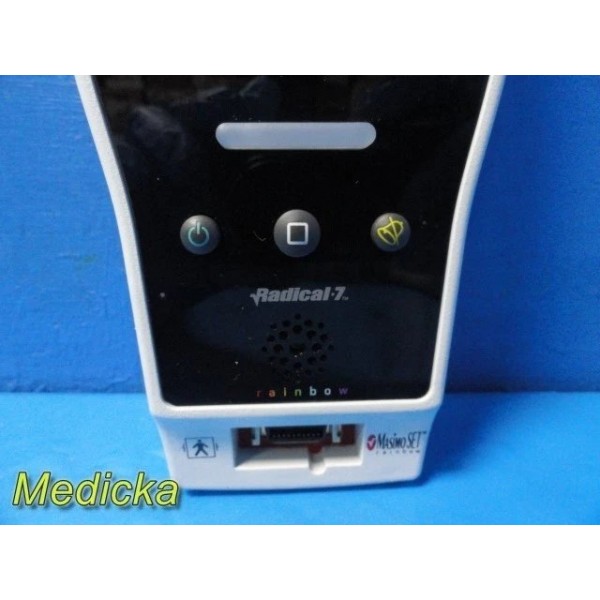

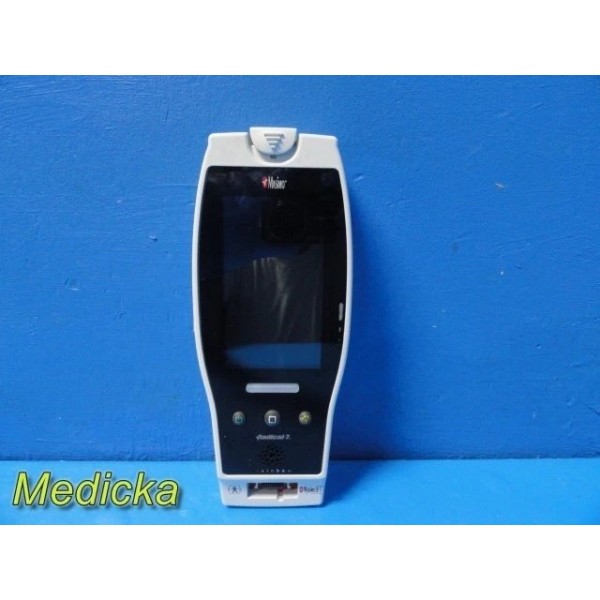

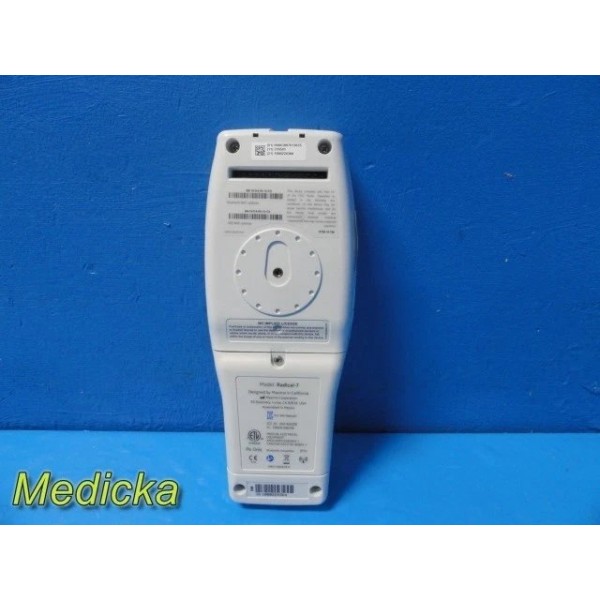

- Model: Radical‑7 Pulse CO‑Oximeter
- Serial Number: 1000224324
- Date of Manufacture: 2021
- Processor Version: V1.6.3.5
- MCU: 1070
- Tech Board: 7e94
Regulatory & Power
- Voltage Requirements: 100–240V AC, 47–63 Hz, 180VA Max
- CE Mark: CE 0123
- Ingress Rating: IPX1
- Root Assembled In: Mexico
- Radical‑7 Made In: USA
Installed / Verified Parameters
- SpO₂
- Pulse Rate (BPM)
- Perfusion Index (Pi)
- NIBP
- Temperature
Short Description
Masimo Root Vital Signs monitoring platform paired with a 2021 Radical‑7 Pulse CO‑Oximeter module. The system powers on normally, docks correctly, and was verified for SpO₂, pulse rate, perfusion index, NIBP, and temperature. Includes reusable accessories suitable for immediate evaluation and basic operation.
Quick Condition Overview
Functional Status: Tested & Working
Cosmetic Condition: Excellent
Display Condition: Bright & Clean
Touchscreen: Fully Responsive

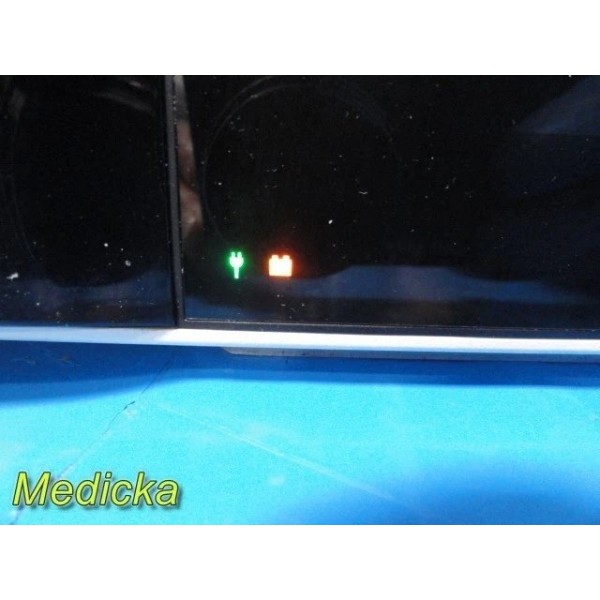

Battery Status: Root battery holds charge; Radical‑7 battery condition unknown
Condition Summary
Cosmetics
Excellent overall appearance with minimal signs of prior use. Housing, docking interface, ports, and handle areas are clean and intact. No cracks, dents, or structural defects observed.
Display & Controls

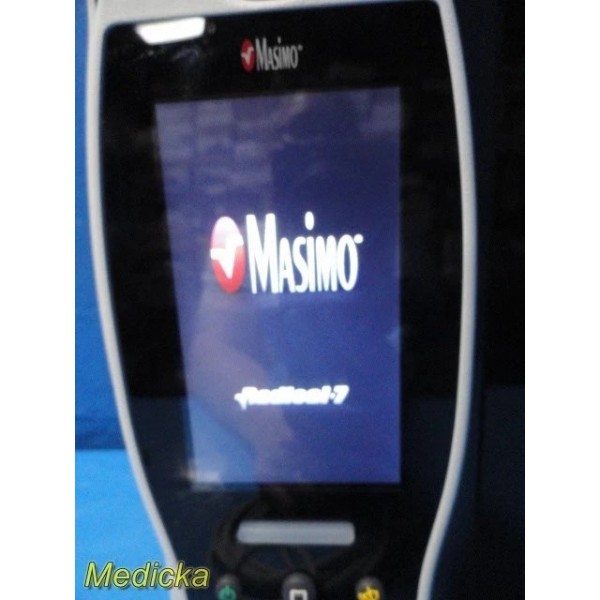

Root touchscreen is bright, clear, and highly responsive. Radical‑7 display also functions properly. All buttons, alarms, and menu navigation controls respond as expected.

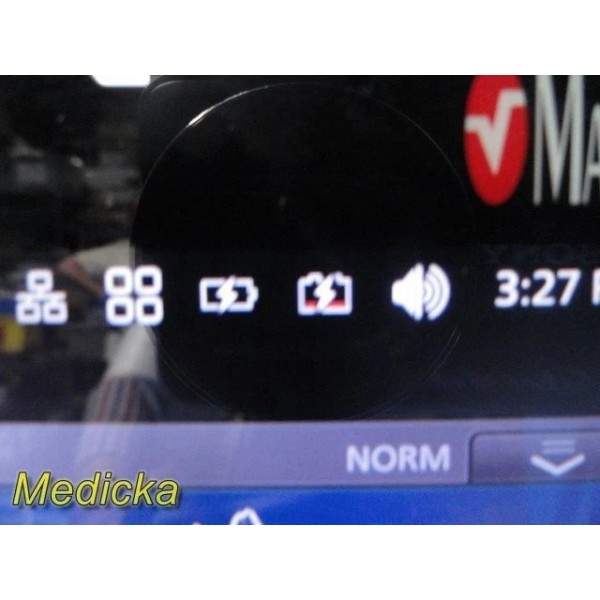

Battery Status
- Root internal battery holds charge; long‑term health not evaluated.
- Radical‑7 battery holds charge but overall condition is unknown.
- Overnight charging recommended before portable use.
Profiles & Features

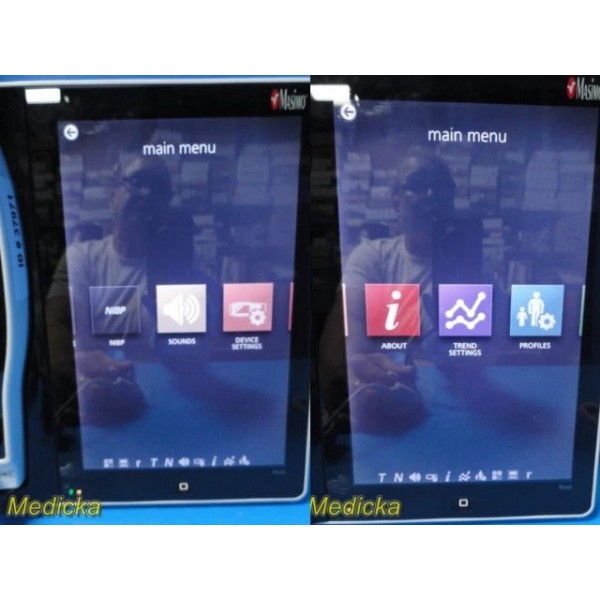

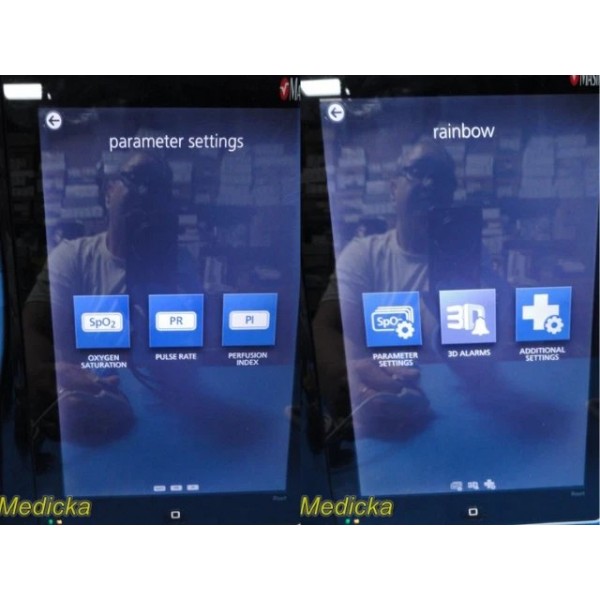

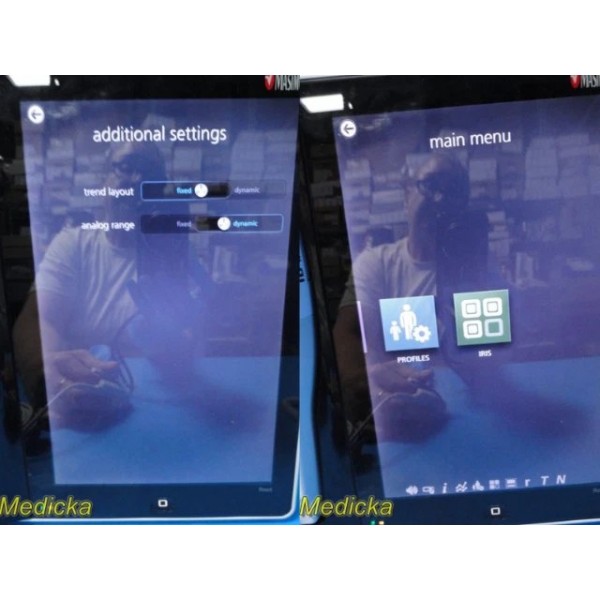

System includes Rainbow® interface, trend/profile menus, sound controls, localization settings, battery diagnostics, access control, device information, and output configuration. Adult and pediatric profiles installed. Wi‑Fi, Bluetooth, and multi‑language menus accessible.
Date & Time
Clock settings functional and adjustable.

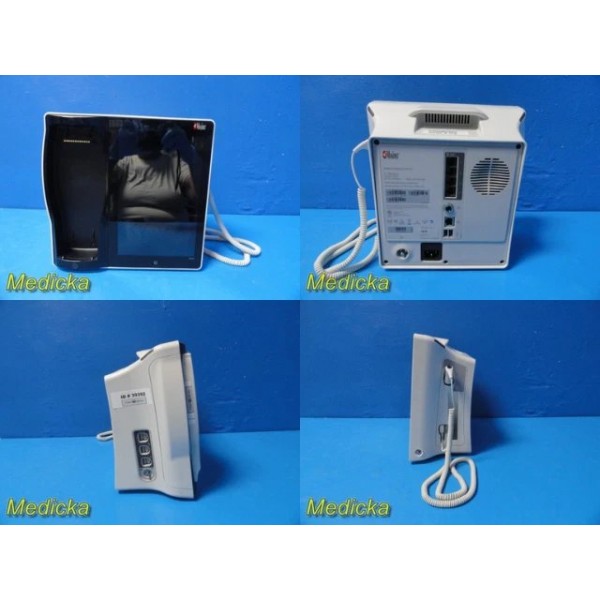

Ports & Connectivity

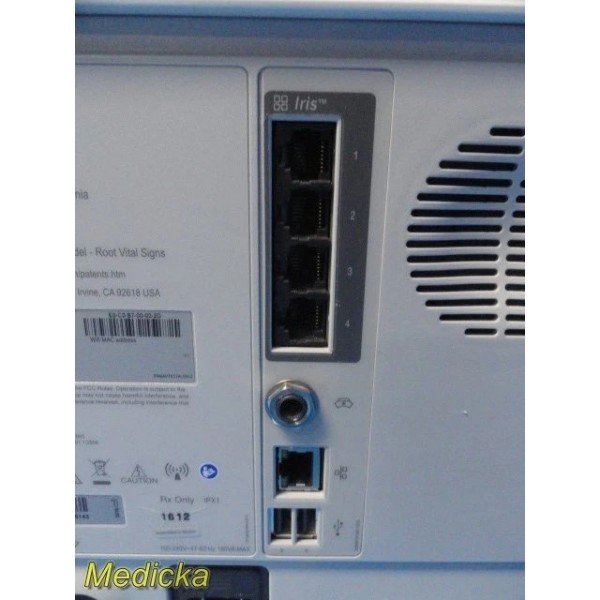

Rear panel includes:
- Iris connectivity ports
- Ethernet/LAN
- Dual USB ports
- Nurse‑call/audio‑style connector
- Integrated speaker
- AC power inlet

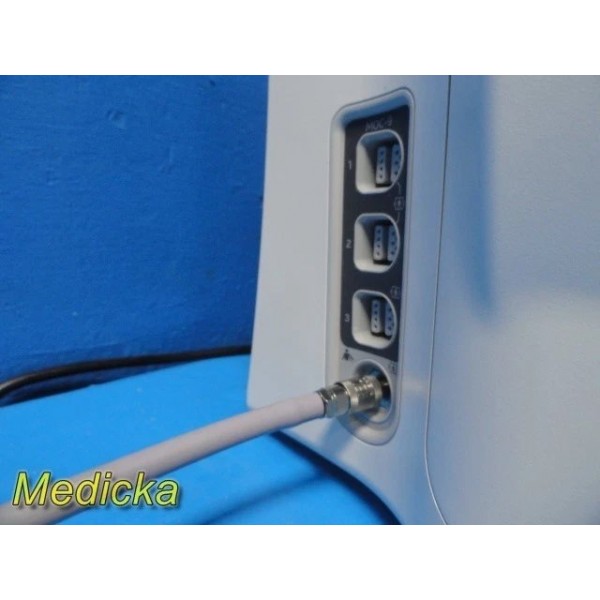

Side panel includes:
Three MOC‑9 modular expansion ports for compatible Masimo modules/accessories
All visible ports appear clean and intact.
Functionality / Testing Summary
- Root platform powers on normally
- Radical‑7 docks and initializes correctly
- Touchscreen fully responsive

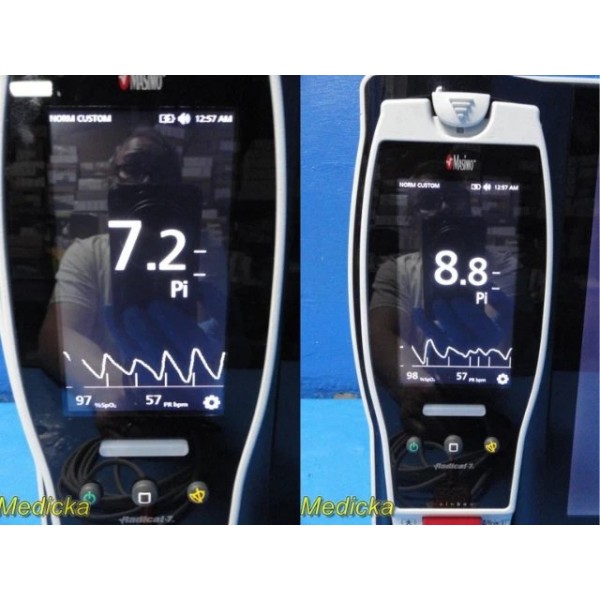

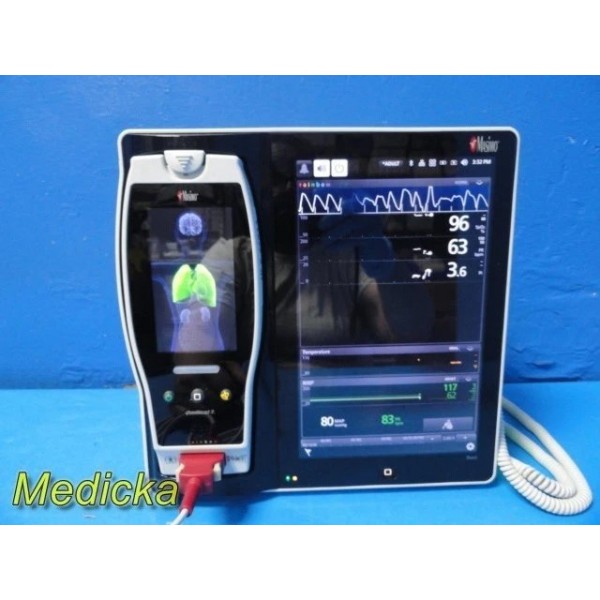

- SpO₂ verified with live waveform
- Pulse rate confirmed
- Perfusion Index displayed correctly
- NIBP tested successfully
- Temperature tested successfully
- Menus, configuration settings, Wi‑Fi/Bluetooth, and battery diagnostics accessible

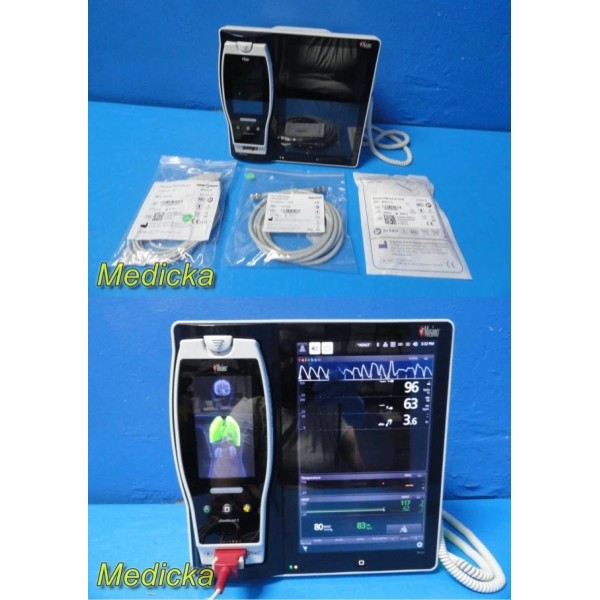

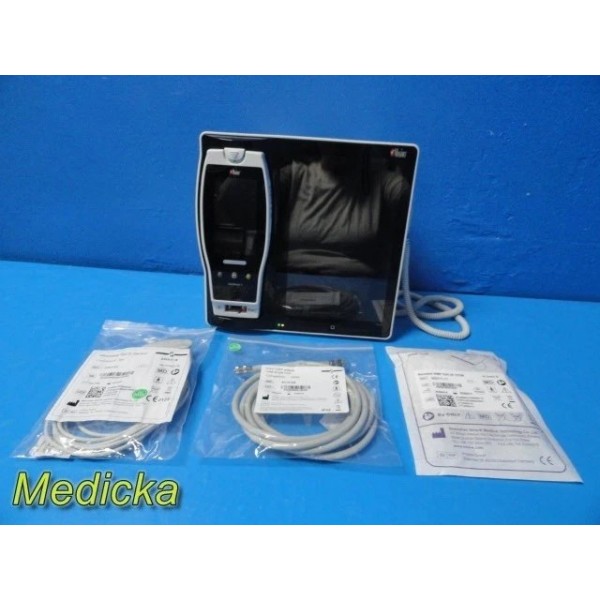

What Is Included
- Masimo Root Vital Signs monitoring platform

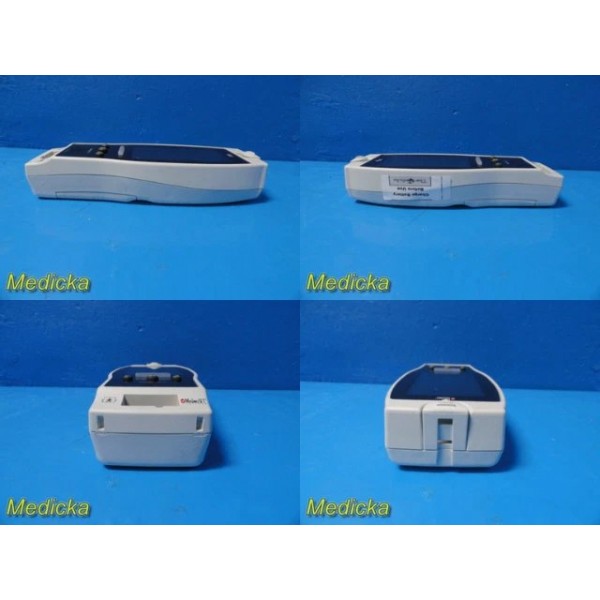

- 2021 Masimo Radical‑7 Pulse CO‑Oximeter module

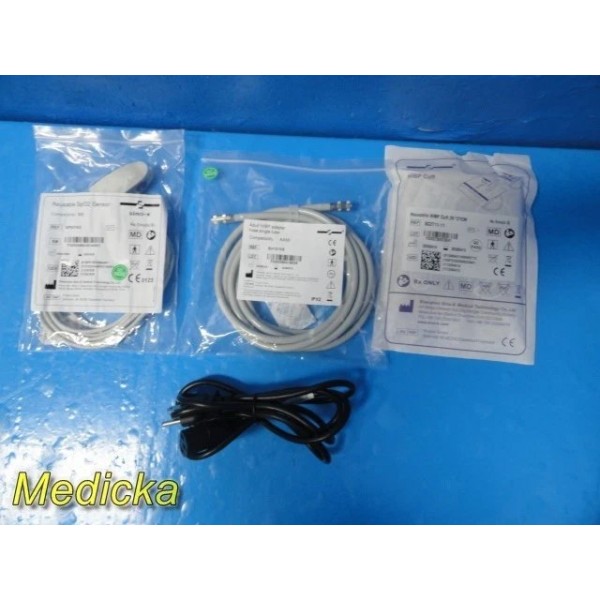

- New reusable direct SpO₂ sensor — REF SPA115F
- Masimo SpO₂ adapter cable

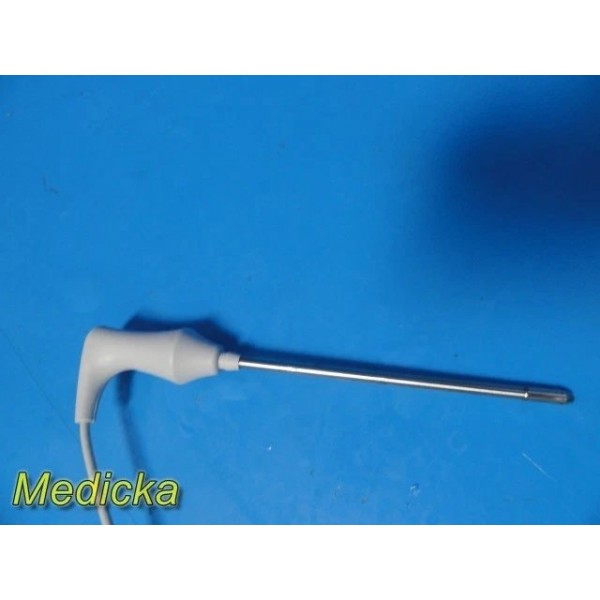

- Installed coiled temperature probe
- New reusable adult NIBP cuff — REF SC2711‑11
- New adult NIBP hose — REF SH1010S
- Power cord
- Items shown in images
What Is Not Included
- Rolling stand / cart
- Temperature probe covers
- User manual
- Disposable sensors or consumables
- Additional modules
- Additional cables or accessories not shown
Buyer Advisory Note
This is a pre‑owned medical monitoring system. Batteries currently hold charge, but long‑term performance is unknown and replacement may be required depending on usage. Biomedical inspection, calibration verification, and compatibility confirmation are recommended prior to clinical deployment.
Stock ID: 39392 (P.O. 2022/2019) (WH104 SCC13)
