Covidien SuperDimension Nav...

Product details

Voltage: 100-240V 50-60Hz 4.3A

Short description...

    *Sale is for imaged items only.

    *PARTS ONLY SALE.

    *Has been tested at our end for Powers On, no detailed inspection could be performed.

    *The Covidien superDimension™ Navigation System (REF: AAS00161-20) is a sophisticated image-guided platform used for Electromagnetic Navigation Bronchoscopy (ENB).

    * It enables physicians to access and biopsy peripheral lung lesions with enhanced accuracy and minimally invasive technique.

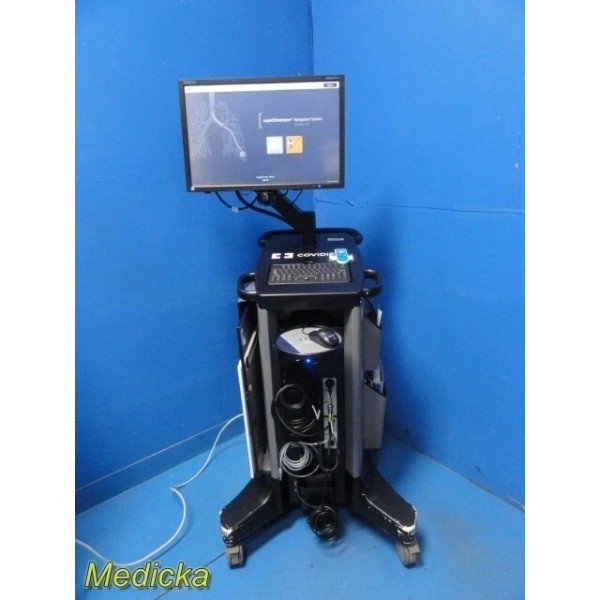

    *This listing offers a fully equipped configuration, complete with industrial-grade PC, touchscreen display, location subsystem, manuals, and all listed accessories.

1.    A. System Specifications & Details:

     *Location Subsystem: REF AAS00187-01 | SN: 02067 | DOM: July 2014

     *Location Board: REF AAS00027-01 | SN: 111375

     *Monitor: NEC MultiSync P242W-BK | SN: 43105422TW | DOM: March 2014

     *PC: SuperLogics SL-2U-Q77LL-DB-SD5 | SN: 23030115

     *Software Version:

       -Planning: v7.0.3.6584.14874

       -Procedure: v7.0.1.6584.14874

     *Location Subsystem Hardware: v3.03 (28-May-2014)

     *User Credentials:

       -Username: sduser

       -Password: sduser1 (Confirmed and working login)

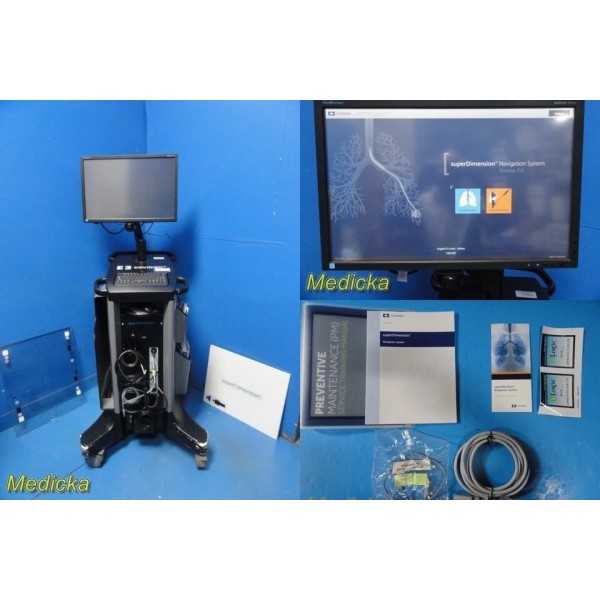

1.    B. Included Components – Fully Equipped System:

     *Industrial PC (SuperLogics SL-2U model)

     *NEC 24" Monitor (Touchscreen-capable)

     *Location Subsystem (Main tracking hardware)

     *Location Board – REF AAS00027-01

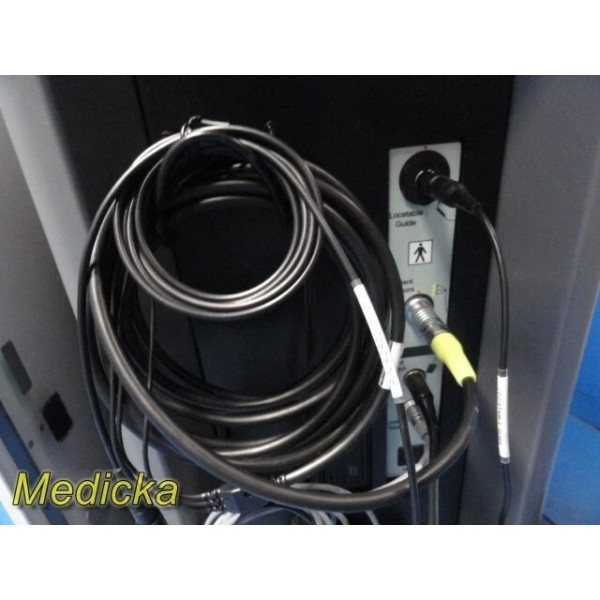

     *Locatable Guide Cable – REF ACACA00131-01

     *Patient Sensors – REF AAS00180-01

     *Foot Switch – REF AED00033-01

     *Harness for Location Board – REF ACA00054-02

     *Remote Control – REF APE00189-01 (battery is dead)

     *Infrared Receiver

     *Isolation Transformer

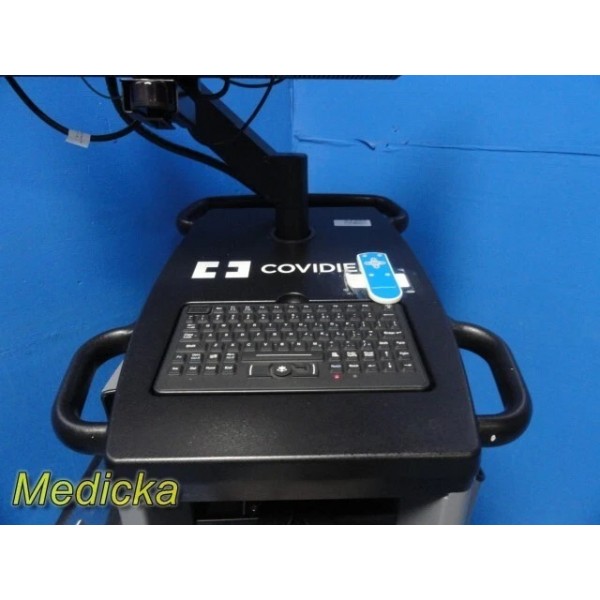

     *Keyboard and Mouse

     *User Manual + Preventive Maintenance Training Manual

1.    C. System Condition / Alert Summary:

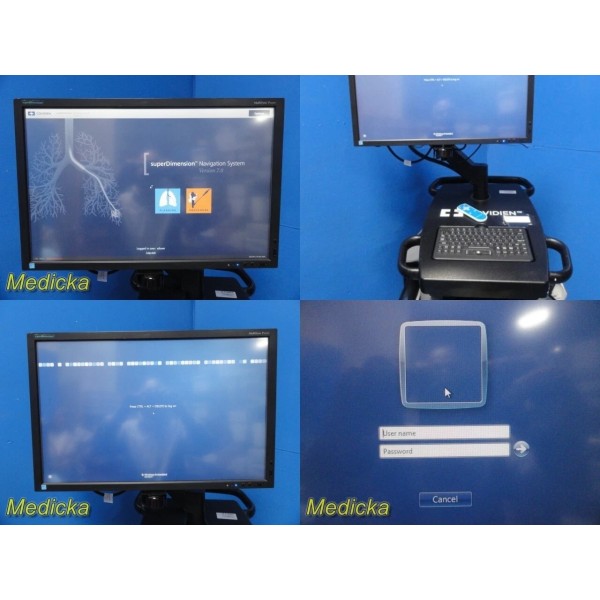

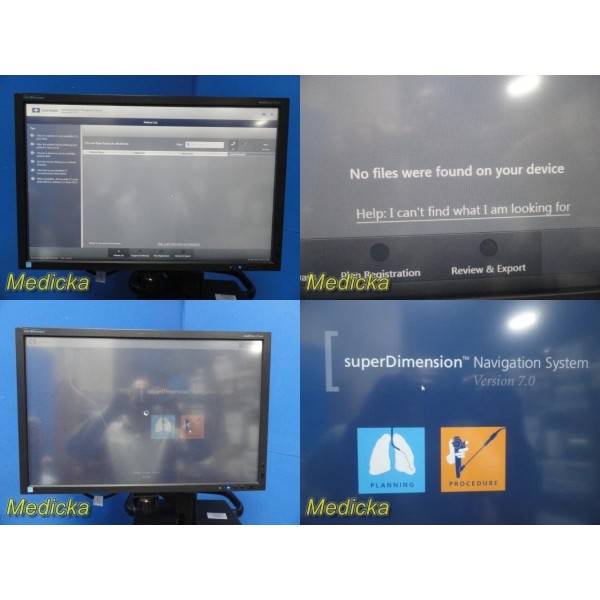

     *System Boot & UI:

       -System powers on and boots successfully

       -User interface and all modules (Planning, Procedure) are fully accessible and responsive

       -Touchscreen display and software environment function correctly

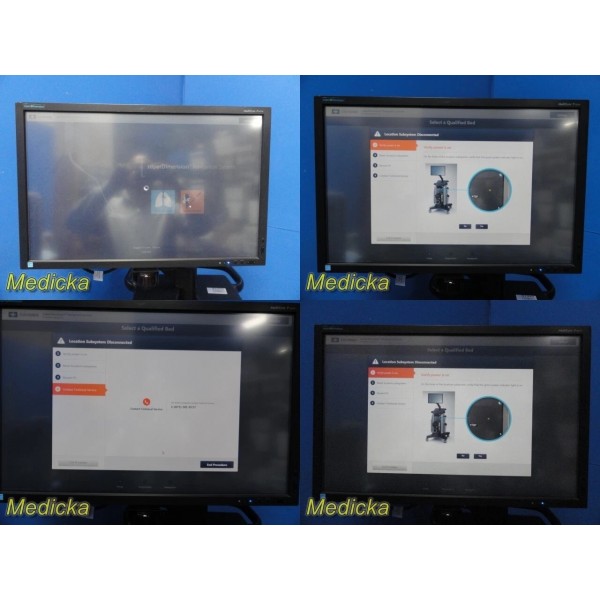

     *Current Alert Displayed:

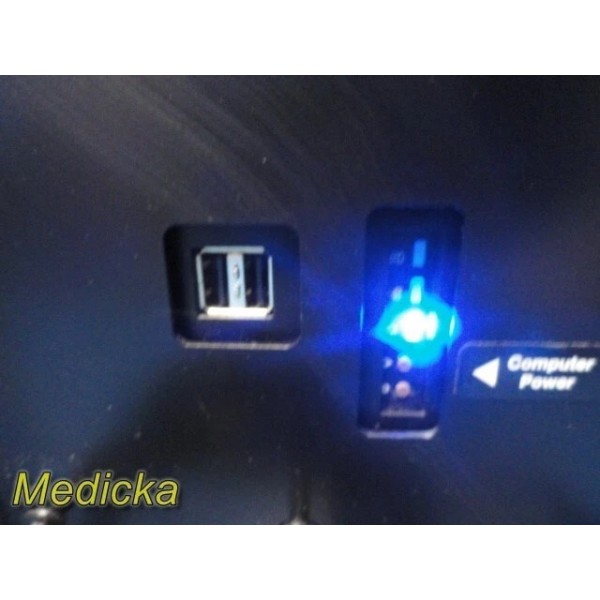

       -Prodecure Tab > Verify device power light is on > We did not see  that turned light on at the front

     *Troubleshooting Prompts (shown on screen) > We have performed all the steps

       -Verify power is on

       -Reset location subsystem (reset button is present on hardware)

       -Restart the PC

     *System Status:

       -The core software and hardware are operational

       -Location subsystem requires reset or service for full tracking/navigation functionality

       -Remote control is present, but battery is dead

1.    D. Clinical Application:

       -Navigating to and sampling peripheral lung nodules

       -Fiducial marker placement for radiation planning

       -Pre-operative 3D lung mapping and visualization

       -Real-time tracking via electromagnetic field technology

       -Ideal for interventional pulmonologists, thoracic surgeons, and advanced bronchoscopy suites.

   E. Shipping & Handling:

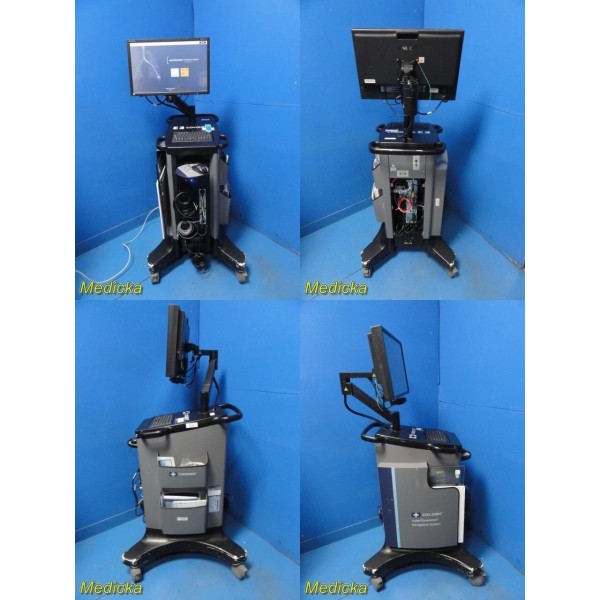

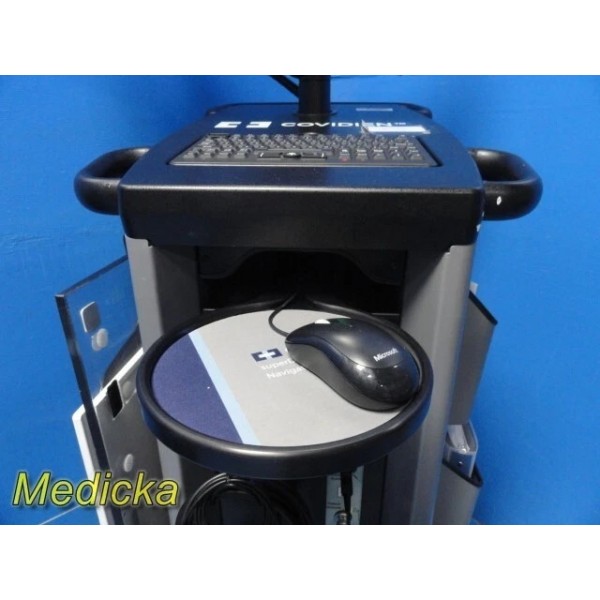

       -Unit is mounted on a hospital-grade wheeled cart

       -Freight shipping required due to weight and size

    *Please review images and check for compatibility before bidding for the item

NO RETURN, REFUND OR EXCHANGE OPTION FOR PRODUCTS LISTED UNDER "PARTS OR NOT WORKING" CATEGORY

    Package includes:-

Industrial PC (SuperLogics SL-2U model)

NEC 24" Monitor (Touchscreen-capable)

Location Subsystem (Main tracking hardware)

Location Board – REF AAS00027-01

Locatable Guide Cable – REF ACACA00131-01

Patient Sensors – REF AAS00180-01

Foot Switch – REF AED00033-01

Harness for Location Board – REF ACA00054-02

Remote Control – REF APE00189-01 (battery is dead)

Infrared Receiver

Isolation Transformer

Keyboard and Mouse

User Manual + Preventive Maintenance Training Manual

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

Sterilized : Non-sterile

Manual : Included

Cleaned : Yes, at our facility

Shipping Weight : 300 lbs

Stock ID : 36490 (P.O 2017) (WH 104)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition: As seen in images: AS-IS | PM Needed
2. 2.    Physical Condition: Please review images before bidding: Good
3. 3.    Working Condition: Has alerts > Green power on light is not seen...will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
6. 6.    Caution for Buyers:

DESPITE WHAT MAY BE WRITTEN IN THIS LISTING ALL ITEMS ARE SOLD 'AS IS' & 'WHERE IS' AND UNLESS THE SELLER HAS INDICATED OTHERWISE, THERE WILL BE NO REFUND.

Please make sure you are ready to buy if you decide to place a bid.

Available Documentation (manual etc.): nil

Accessories: Comes with everything you see in pictures nothing more nothing less.
