2007 Siemens SONOLINE G20 U...



2007 Siemens SONOLINE G20 Ultrasound System BRACHY SW | For Parts/Repair ~ 39779

Item specifics

Condition
For parts or not working
Seller Notes
“Pre‑owned Siemens SONOLINE G20 ultrasound console configured with specialized BRACHY (urology/brachytherapy) software. Unit powers on, completes boot sequence, and recognizes probes with imaging capability,"
Model
G20
MPN
08649847

More details


$455.20

39779

1 item in stock

Warning: Last item in stock!

Add to cart

Place an offer

Product details

Manufacturer

Siemens Medical Solutions

Item:

2007 Siemens SONOLINE G20 Ultrasound System BRACHY SW | For Parts/Repair

Model/Cat #

G20 | 08649847

Serial No.

JB00897

Made In:

Japan

Date of Manufacture:

July 2007

 Short Description:

Siemens SONOLINE G20 ultrasound console equipped with specialized BRACHY (urology/brachytherapy) software. System powers on and reaches ultrasound interface but is being sold for parts/repair due to CMOS battery failure affecting system date/time retention.

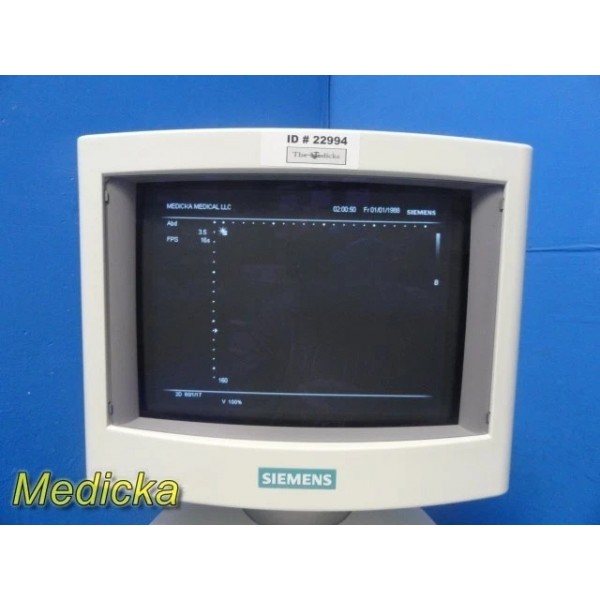

Display: MC-12H6J3-ME | 12" Monochrome Monitor (DOM: March 2007)
System Type: Diagnostic Ultrasound Console (Brachytherapy / Urology Configured)

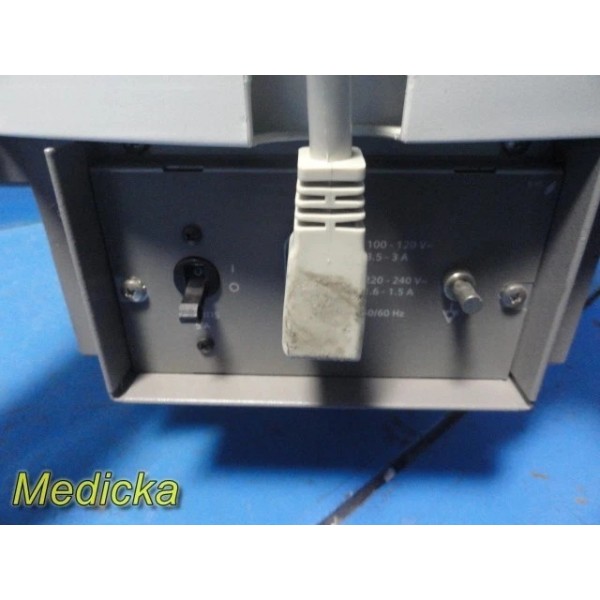

Electrical Requirements:





  • Mains Voltage: 100–120V / 220–240V (Auto Configurable)
  • Frequency: 50–60 Hz
  • Accessory Outlet: 90–132V / 198–264V (Max 150VA)



Condition Summary:

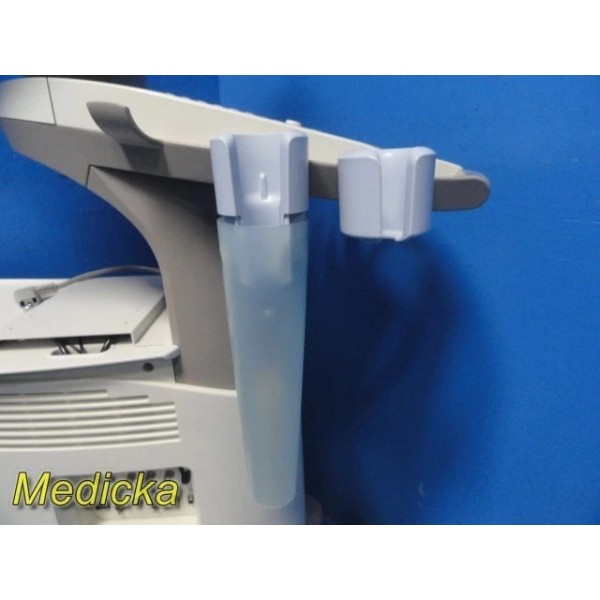

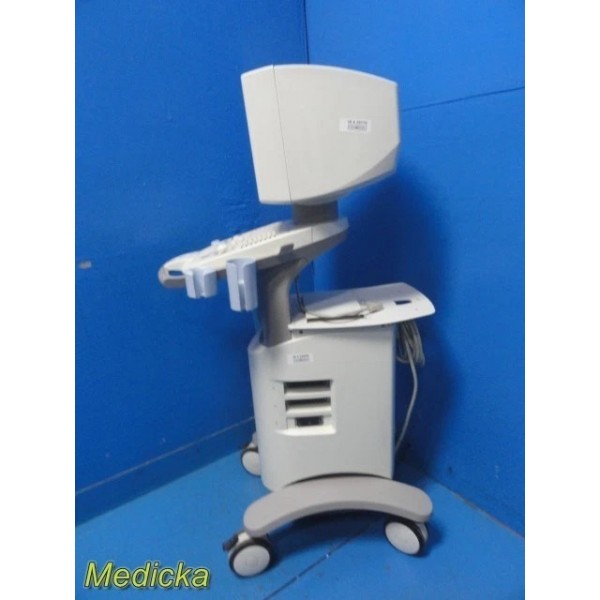

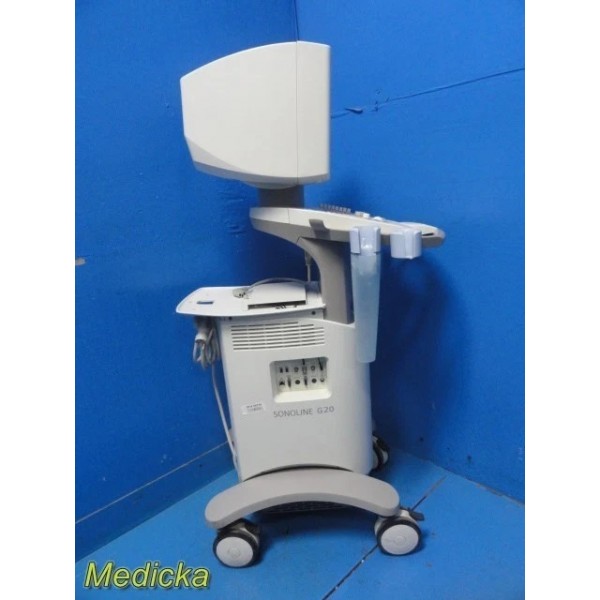

  • Overall Cosmetic Condition: Good
  • Housing: Clean with no cracks or structural damage
  • Wear: Minor scratches and scuffs consistent with normal clinical use
  • Monitor: Clean screen, no major blemishes; can benefit from optional screen protector

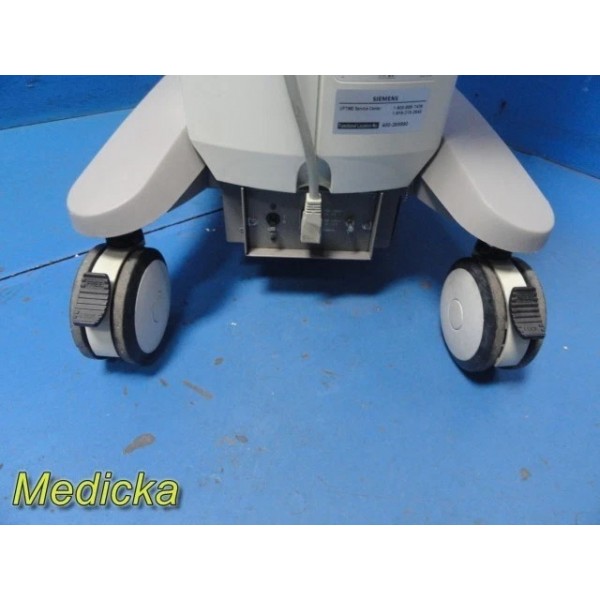

  • Cart/Base: Stable with fully mobile and lockable casters
Functionality / Testing Summary:

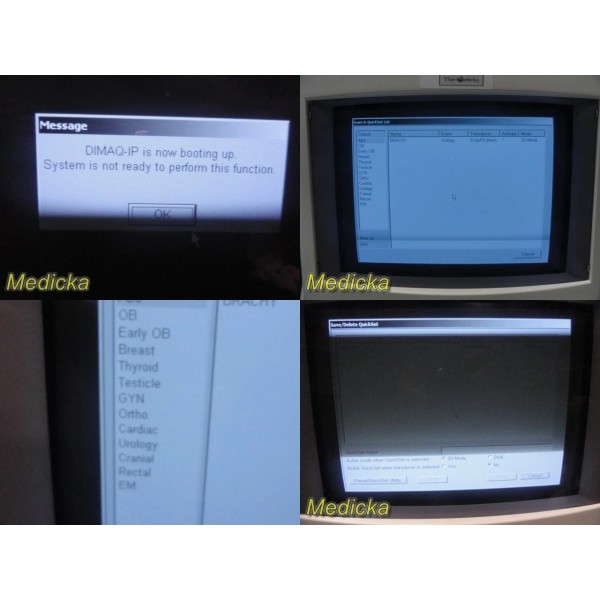

Power & Boot: Device powers on successfully and completes boot sequence

System Behavior:
  • CMOS battery exhausted → system does not retain date/time

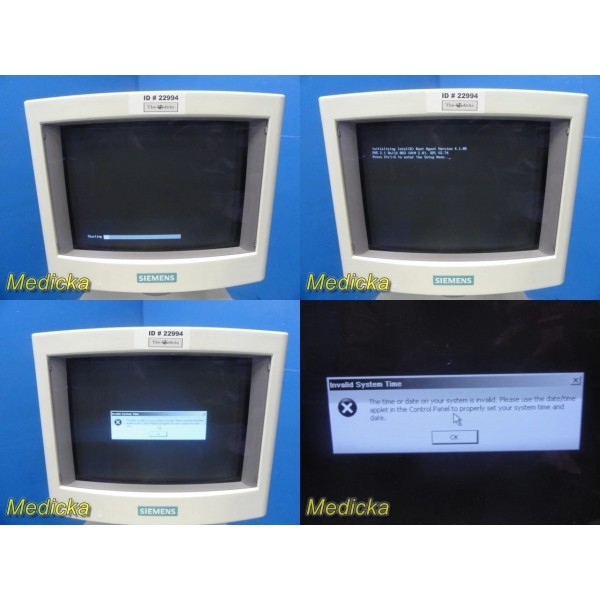

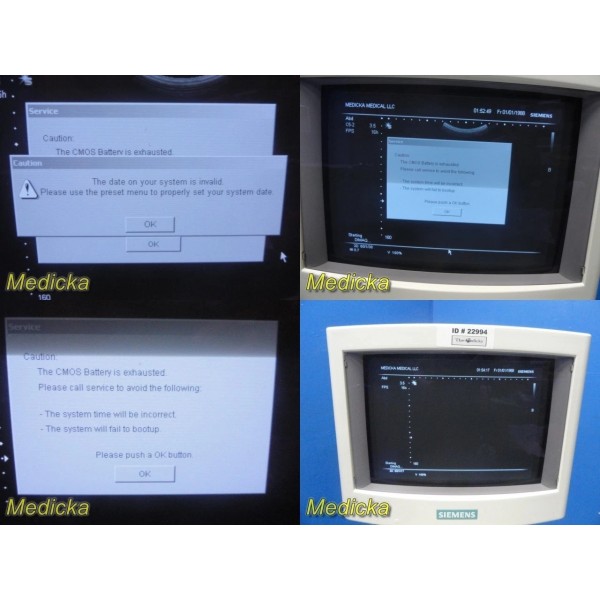

  • Error messages observed:
  • “CMOS Battery is exhausted”
  • “Invalid system time/date”
User Interaction:
  • Initial screen “Set” button does not respond
  • System can be navigated using external USB mouse (tested and required) - after boot up the set button works

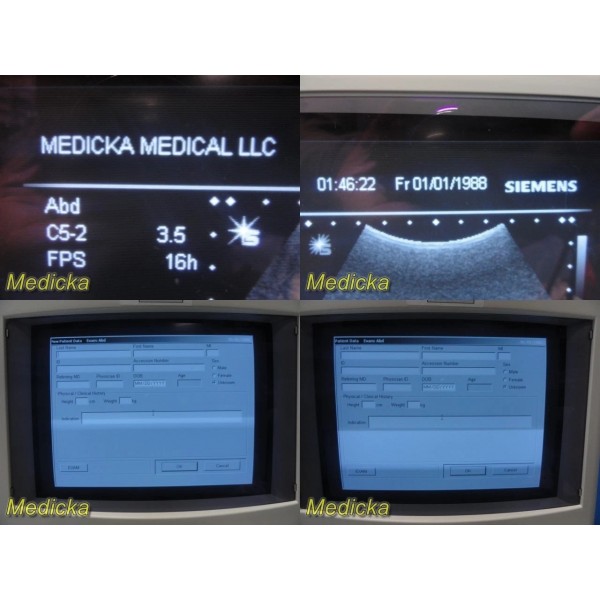

Operational Status:

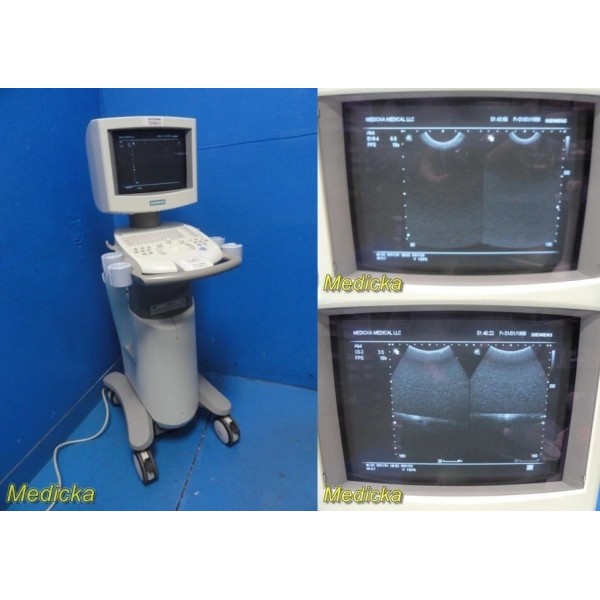

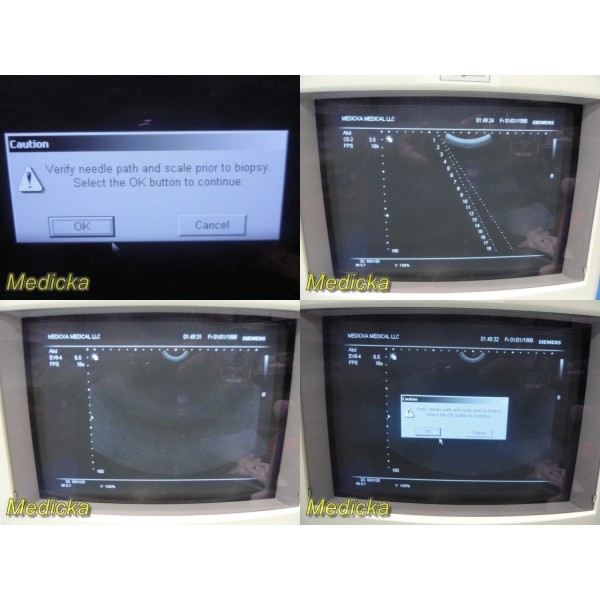

  • After bypass, system reaches ultrasound interface successfully

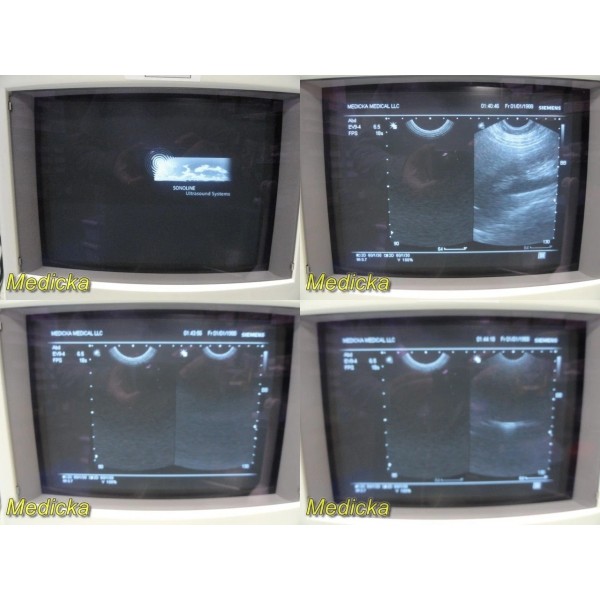

  • Displays imaging interface and accepts probe input

Probe Ports (3 Total):

  • All probe ports tested and functional
  • Tested with:
    • C5-2 Convex Probe
    • EV-9 Endocavity Probe
    • Brachy Endopath Probe

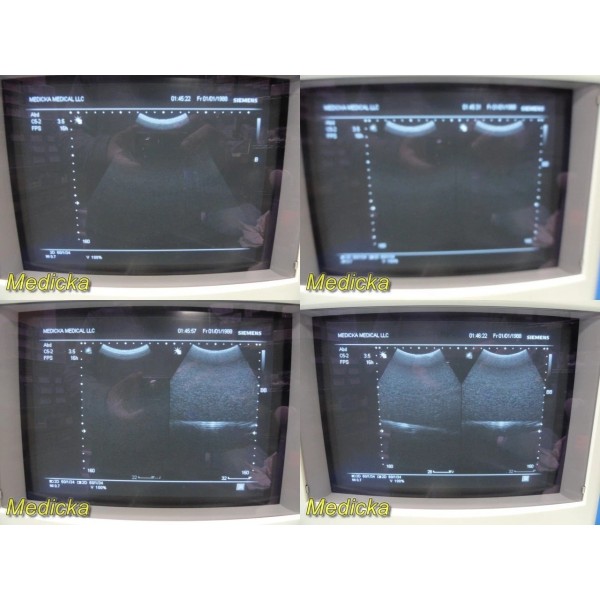

  • System recognizes probes and imaging output confirmed

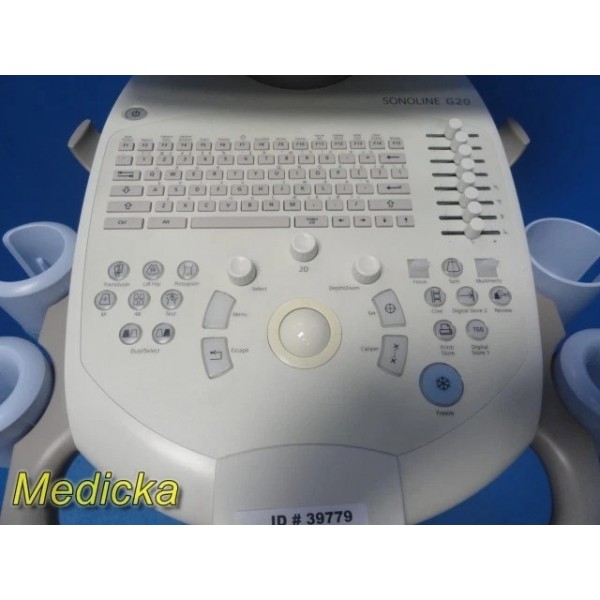

Controls & Input Devices:
  • Keyboard, soft keys, knobs: responsive
  • Trackball: responsive and functional
Conclusion: System is operational with imaging capability, but requires CMOS battery replacement to restore normal workflow and eliminate boot/interface limitations

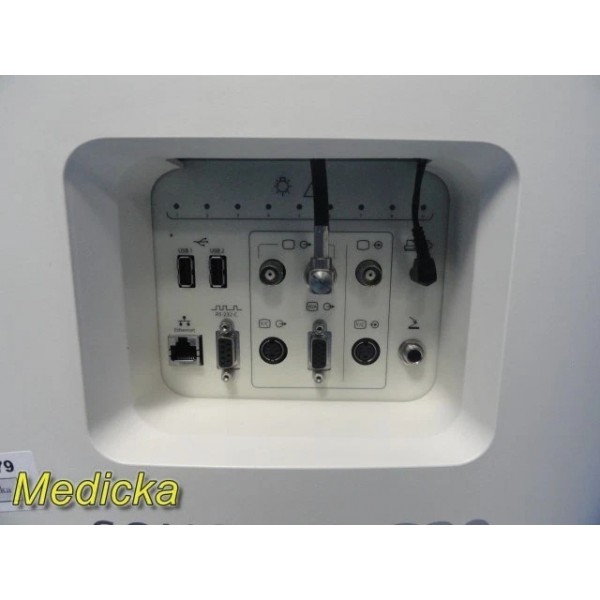

Key Features / Ports:
  • 3x Probe Ports (Fully Functional)
  • USB Ports (Front Panel)
  • Ethernet Port
  • RS-232 Serial Port
  • VGA / Video Output Ports
  • S-Video (Y/C) Interfaces
  • Accessory Power Outlet
  • Integrated Brachytherapy (BRACHY) Software
What Is Included:

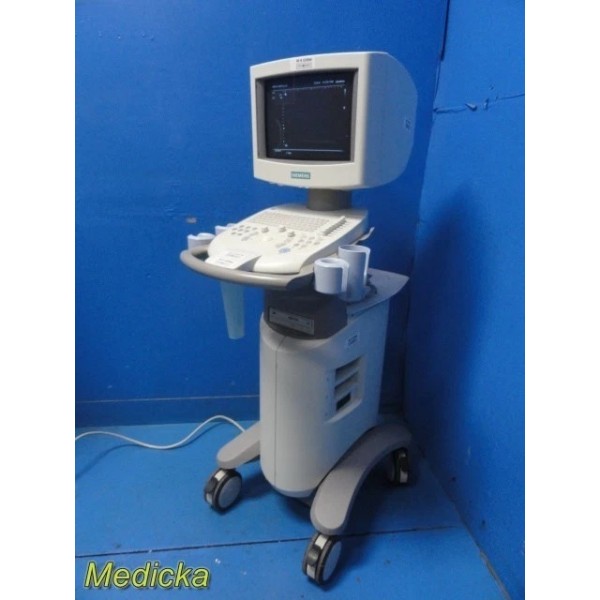

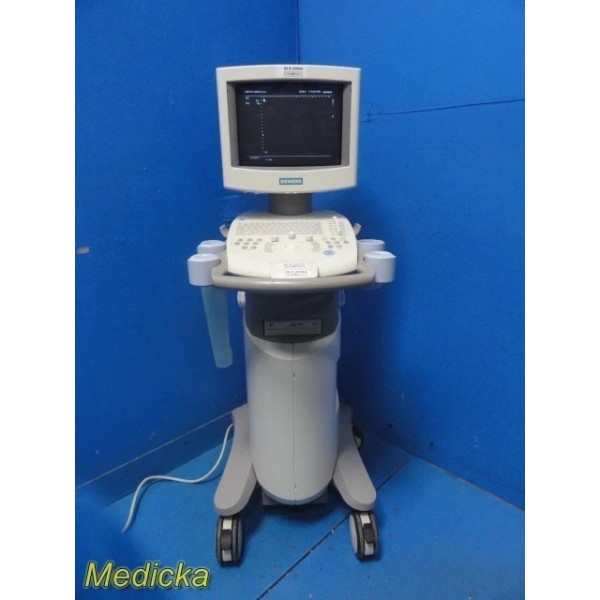

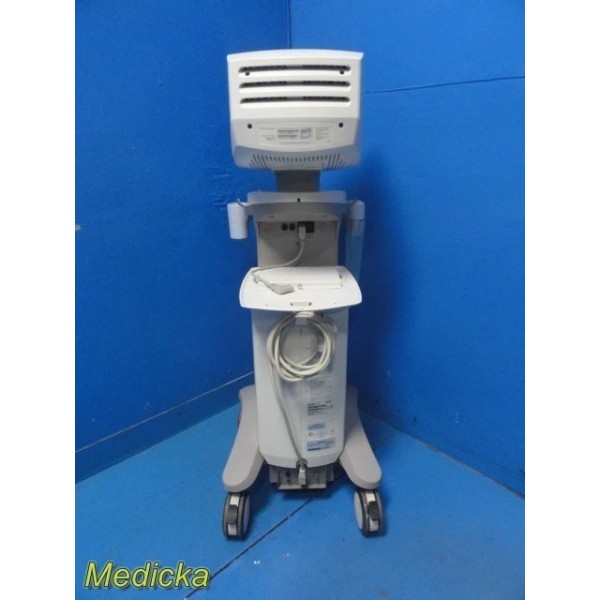

  • Siemens SONOLINE G20 Ultrasound Console

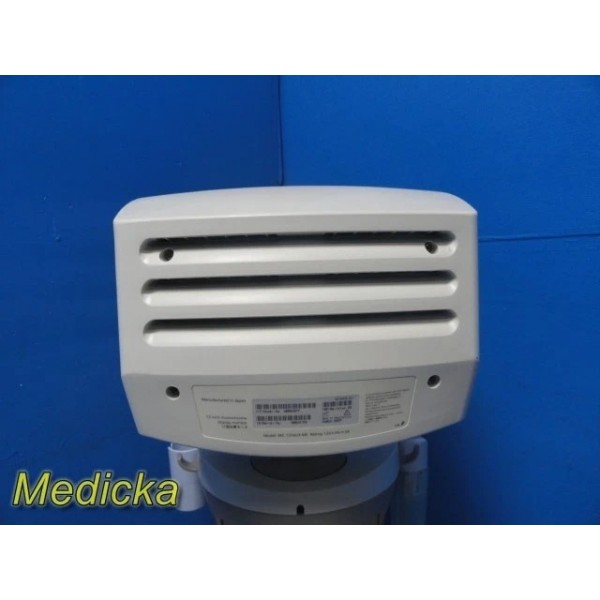

  • Integrated Monitor (MC-12H6J3-ME)
  • Power Cable
What Is Not Included:
  • Ultrasound Probes / Transducers
  • Printer
  • Gel / Consumables / Disposables
  • Software Media / Manuals
  • External Mouse (used for testing only, not included)
Buyer Advisory Note:
This system is being sold FOR PARTS OR REPAIR due to a known CMOS battery failure.
While the unit powers on, recognizes probes, and produces imaging, it requires:
  • CMOS battery replacement
  • Possible system configuration/reset
This is a common and serviceable issue, but unit is not guaranteed for clinical use in current condition.

Shipping Note:
Unit will be professionally packed and shipped on a pallet via freight due to size and weight.

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

Stock ID : 39779 (P.O ?) (WH 333)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

Condition: Parts / Repair, please refer to images for cosmetic condition.

  1. 1.    Overall Condition: As seen in images : AS IS
  2. 2.    Physical Condition: Please review images before bidding : Good
  3. 3.    Working Condition: This system is being sold FOR PARTS OR REPAIR due to a known CMOS battery failure......Will receive item as pictured…………(Offered AS IS)
  4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
  5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
