Philips C5-1 Curved Array Ultrasound Transducer - Tested on iU22 ~ 40624
Item specifics
- C5-1
Product details
Philips C5-1 Curved Array Ultrasound Transducer – Tested on iU22 – Color Doppler – USA – CE 0086
Item Overview

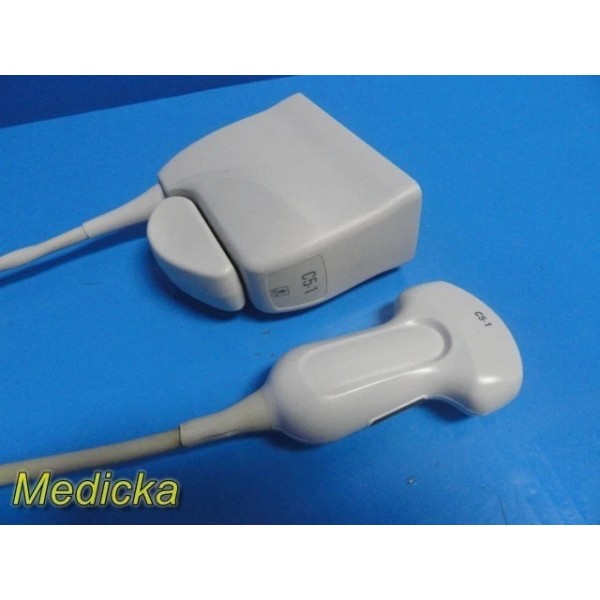

Pre-owned Philips C5-1 curved array ultrasound transducer, tested on a compatible Philips iU22 system.
Probe was recognized and underwent basic functional evaluation including air scan, phantom imaging, abdominal/hepatorenal imaging, and Color Doppler vascular testing.
Probe produces a usable image and demonstrates Color Doppler functionality; however, image non-uniformity is visible during air-scan testing, and the acoustic lens shows localized peripheral wear/deterioration.
Please review all probe and test images carefully.
Device Information
Manufacturer: Philips Ultrasound
Product: Curved Array Ultrasound Transducer
Model / Probe ID: C5-1
P/N: 453561224465
Additional Code: B00QC4
CE: 0086
Made In: USA
Cable Length: Approx. 8 ft
Reusable / Non-Sterile

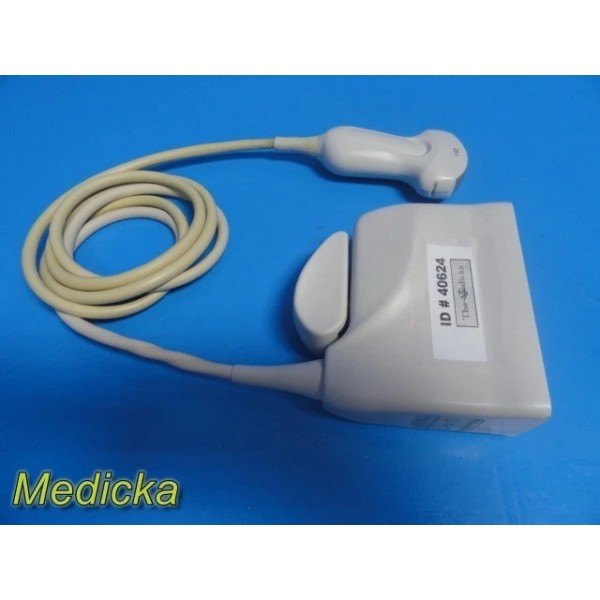

Physical Condition Summary
- Overall pre-owned condition with normal cosmetic wear

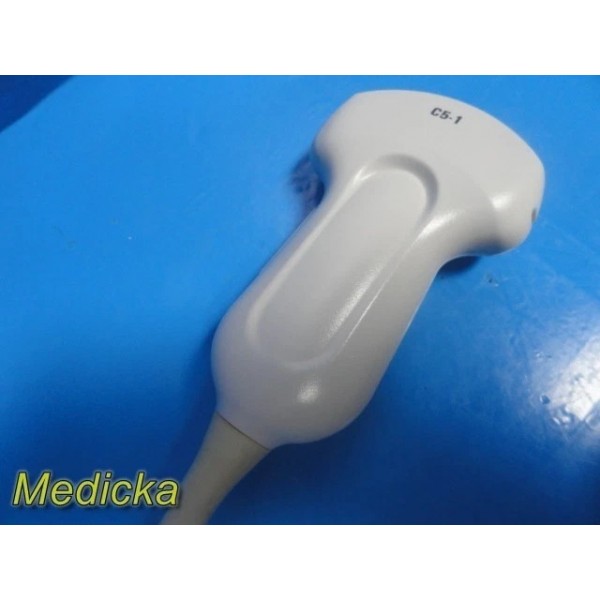

- Probe housing/handle structurally intact; no major cracks or dents observed

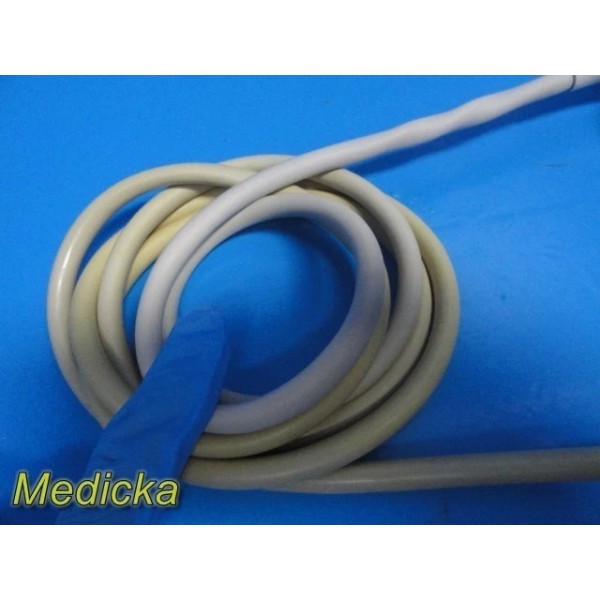

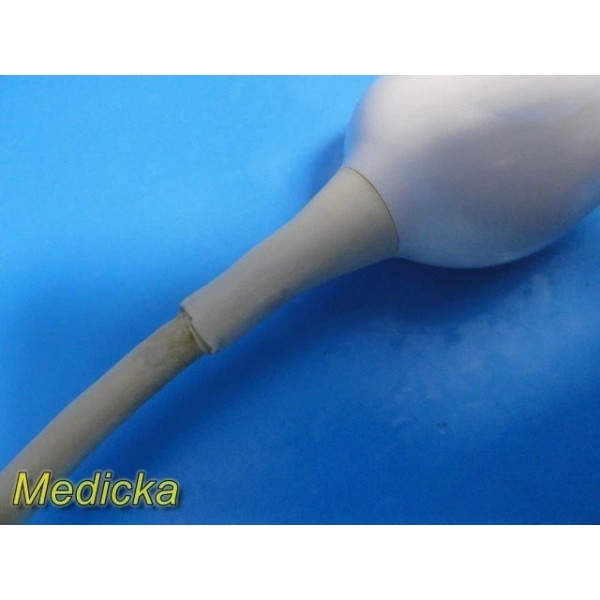

- Approx. 8-ft cable appears intact with yellowing/discoloration from age and previous use

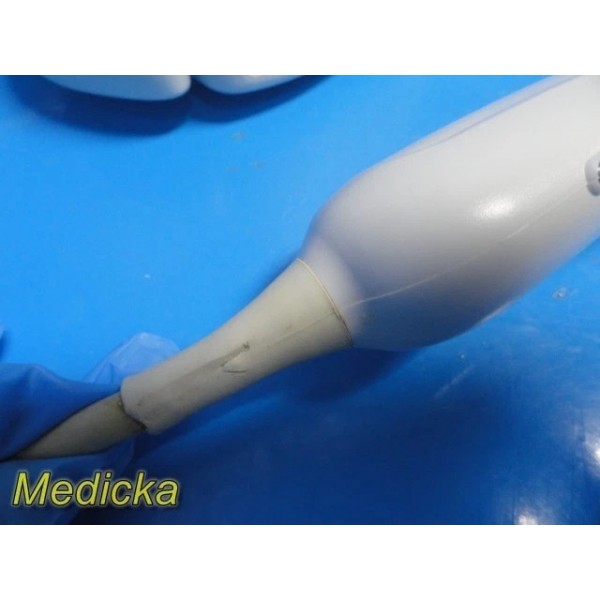

- Minor wear/deterioration present around the strain-relief areas
- Connector-side strain relief remains comparatively well preserved

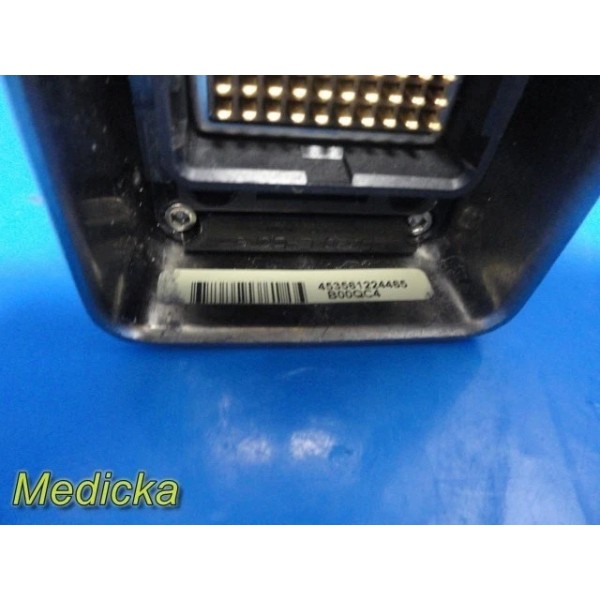

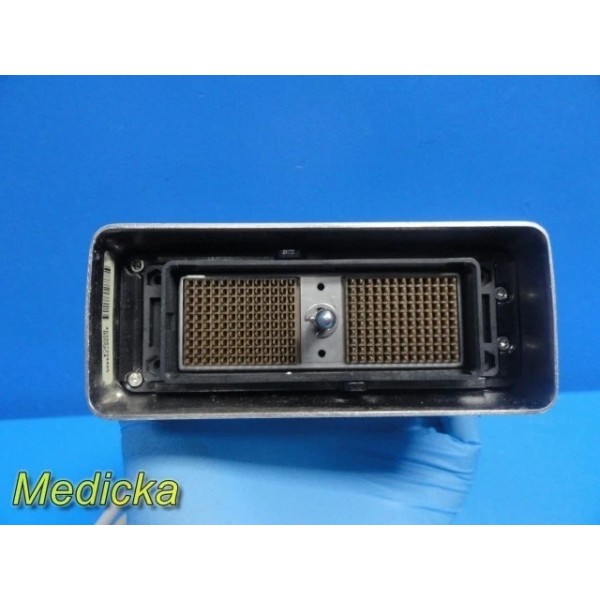

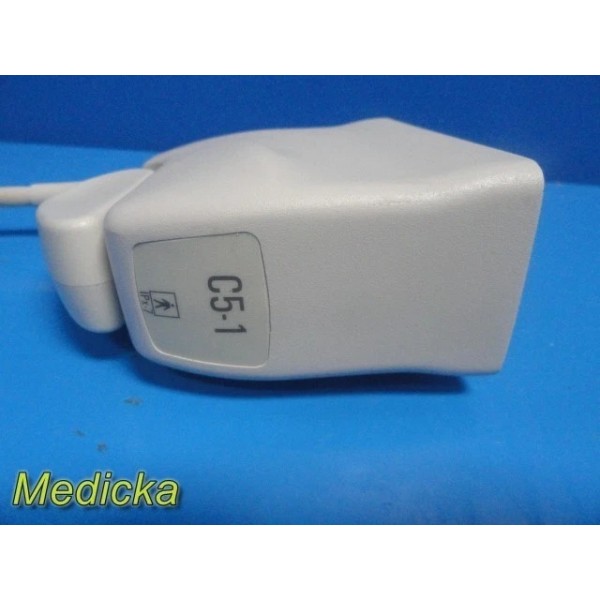

- Connector housing and contacts intact
- Connector locking mechanism intact
- No visibly bent or broken connector pins observed

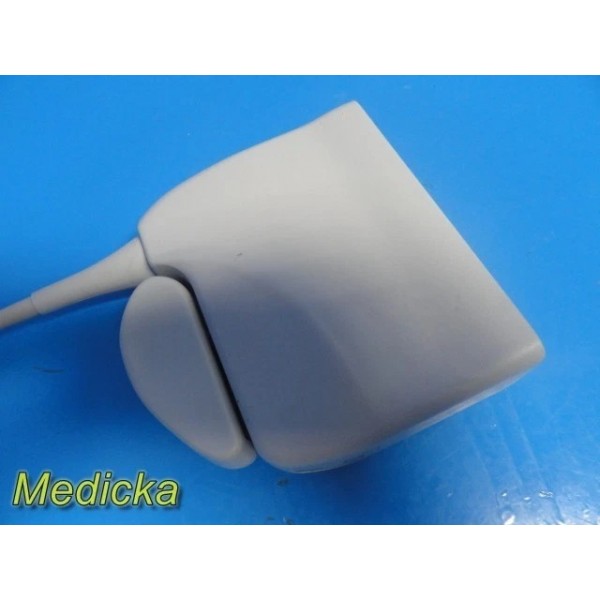

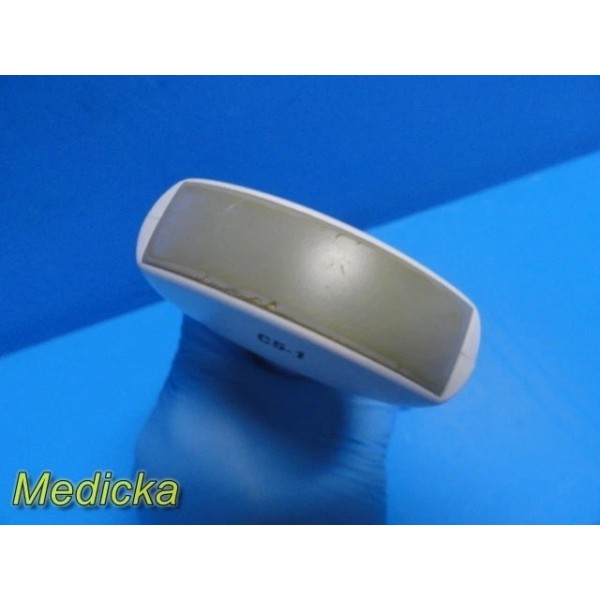

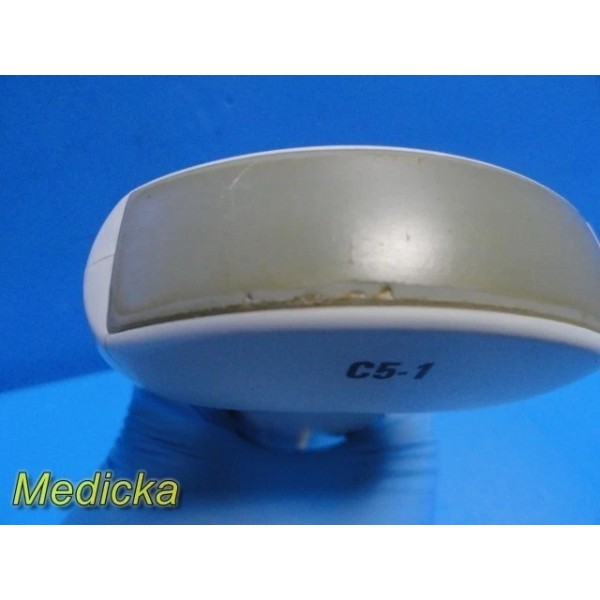

- Acoustic lens shows localized peripheral deterioration with small areas of chipping/nicking and stress cracking
- Central acoustic surface shows superficial wear
- Lens is not represented as pristine or refurbished
Review close-up photographs of the acoustic lens carefully.
Functional Testing Summary – Philips iU22

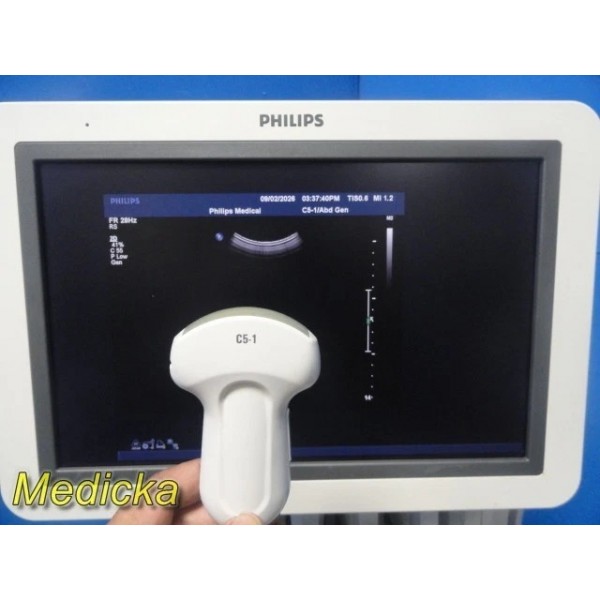

System Recognition
- Recognized by the system as C5-1
- C5-1 abdominal preset loaded
- Imaging controls accessible

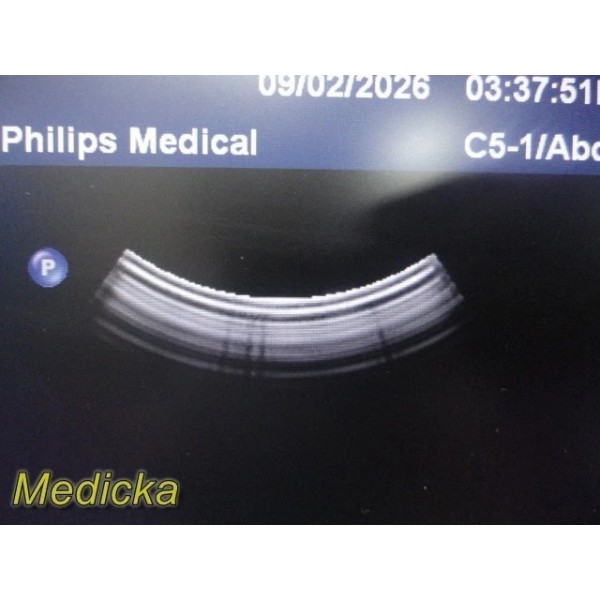

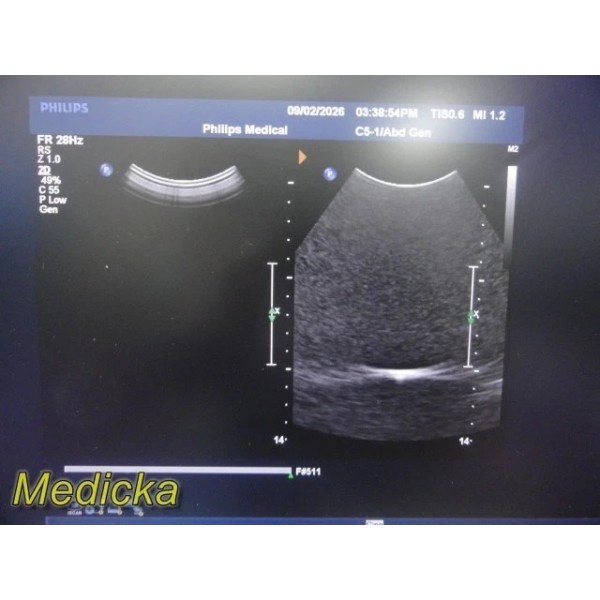

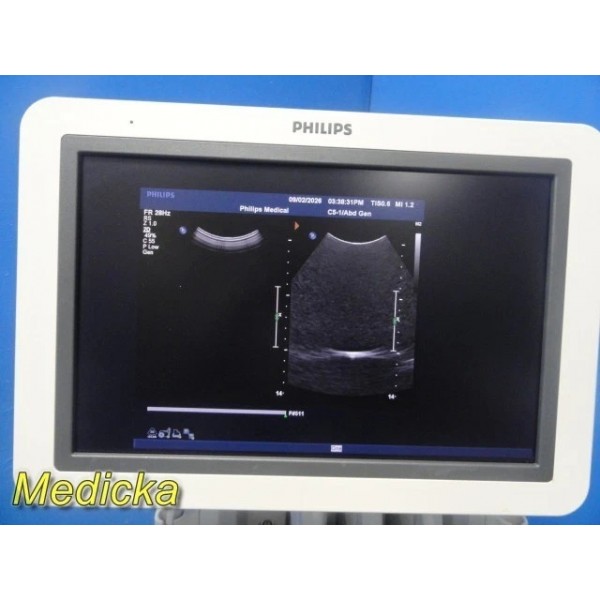

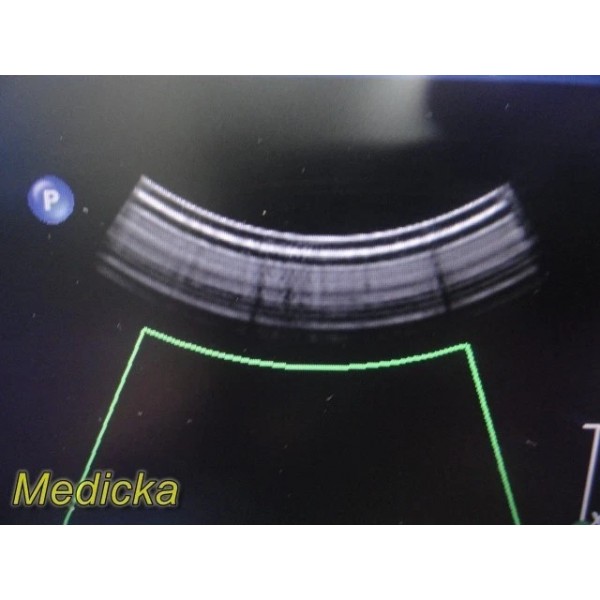

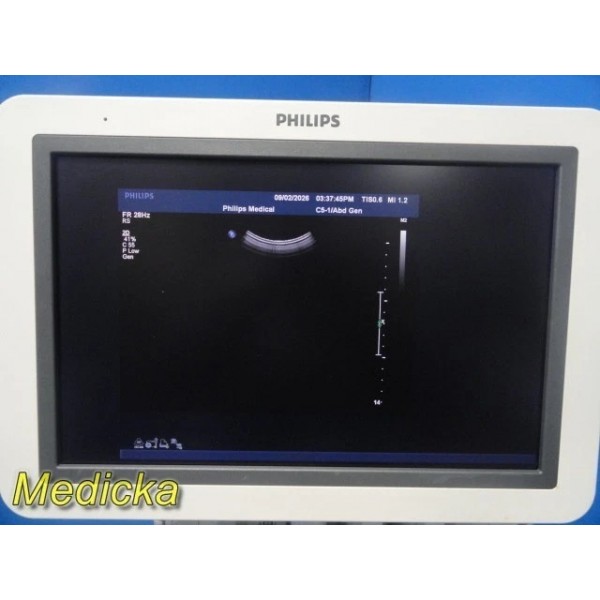

Air Scan
- Imaging field generated
- Vertical streaking / non-uniformity visible
- No claim is made regarding full element-by-element functionality

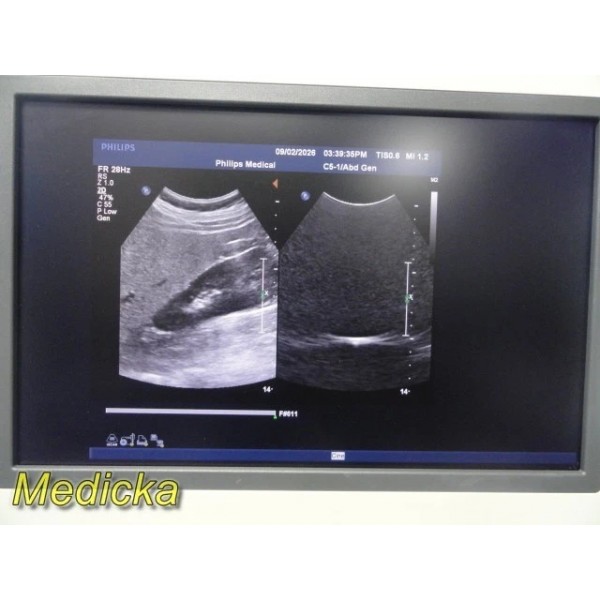

Phantom Imaging
- Imaging field appeared generally usable
- No broad or complete dropout observed during basic testing

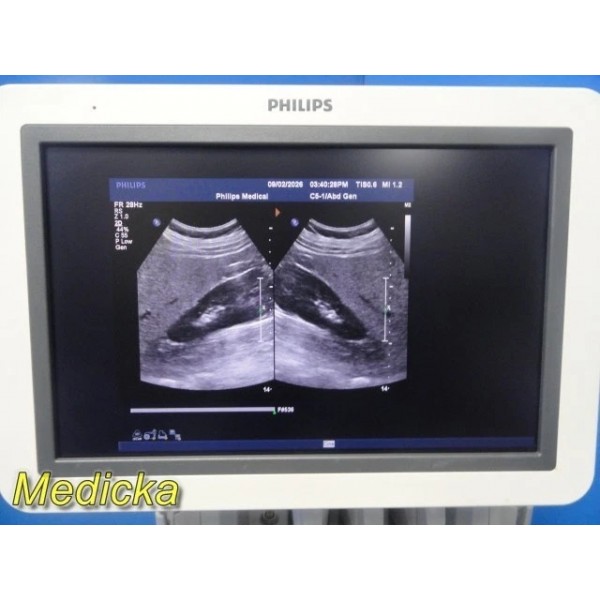

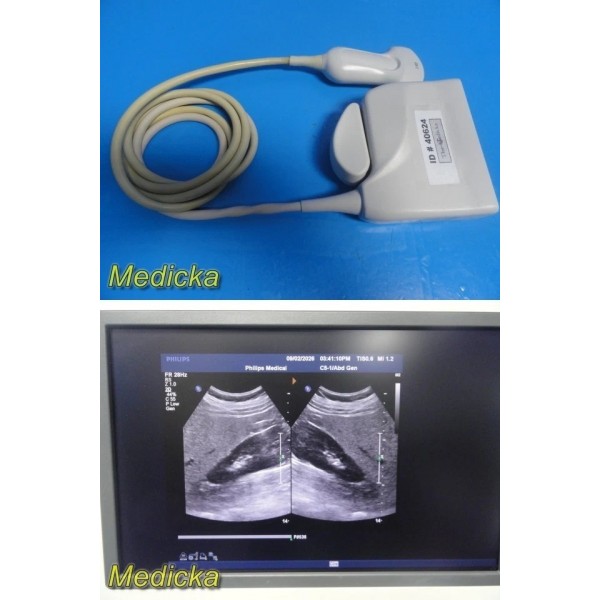

Abdominal / Hepatorenal Imaging
- Liver and right kidney visualized
- Hepatorenal interface demonstrated
- Probe produced a usable B-mode image during this limited test

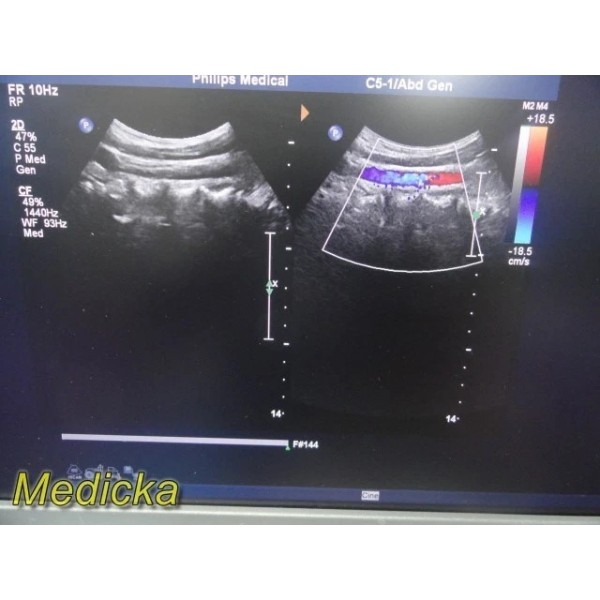

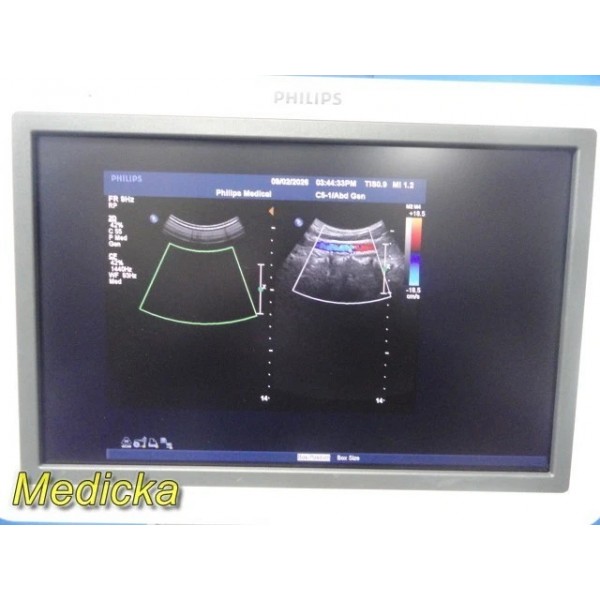

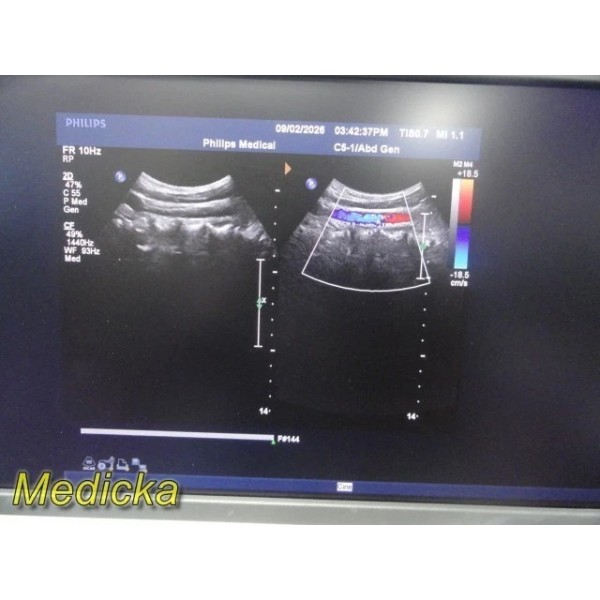

Color Doppler / Vascular Imaging
- Carotid vessel lumen visualized
- Color Doppler activated successfully
- Color flow demonstrated during testing
Testing Limitations
Basic functional testing only. No OEM-level diagnostic evaluation, electrical leakage testing, or complete element-by-element analysis was performed.
Probe demonstrated usable imaging during our testing; however, air-scan non-uniformity and acoustic-lens deterioration are present.
Probe is not represented as equivalent to a new or professionally refurbished transducer.
Package Includes
- 1× Philips C5-1 Curved Array Ultrasound Transducer
Not Included
- Philips iU22 ultrasound system — used for testing only
- Storage case
- User manual
- Additional probes or accessories
Sale is for the pictured C5-1 probe only.
Buyer Advisory
Pre-owned ultrasound transducer with limited functional testing. Image non-uniformity and acoustic-lens wear/deterioration were observed and disclosed.
Buyer/facility must independently verify image quality, electrical safety, compatibility, and suitability for intended use before clinical application.
Stock ID: 40624 (P.O. 1200) (WHC10)
