Toshiba PLT-1202S 14L7 Linear Array Ultrasound Transducer – Tested

Item Overview

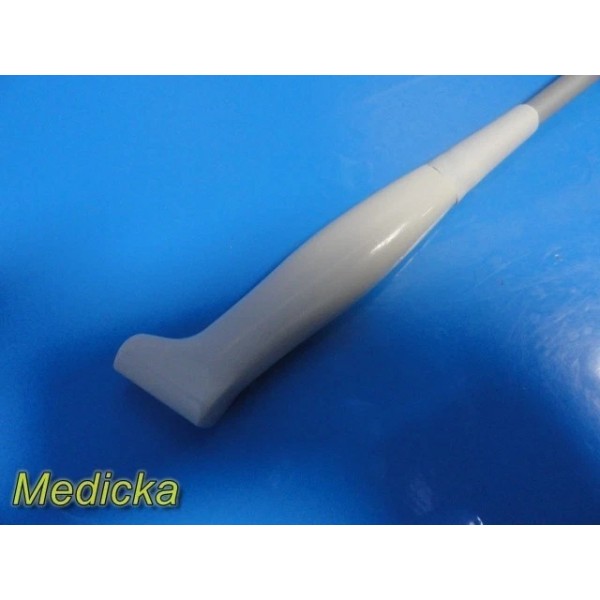

Pre-owned Toshiba PLT-1202S linear array ultrasound transducer (14L7). Probe was connected to a compatible Toshiba ultrasound system, recognized by the system, and subjected to basic functional testing including air scan, phantom/imaging assessment, and a live carotid scan with color Doppler.

The probe produces a usable image; however, some image non-uniformity / imperfections were observed, more noticeable toward the right side of the imaging field. Please review the actual test-screen photos carefully.

Device Information

Manufacturer: Toshiba Medical Systems Corporation
Product: Linear Array Transducer
Model: PLT-1202S
Probe ID: 14L7
Serial Number: 99A1643537
Date of Manufacture: 04/2016
CE: 0197 Made In: Japan
Cable Length: Approx. 7 ft

Condition Summary

• Good overall pre-owned cosmetic condition

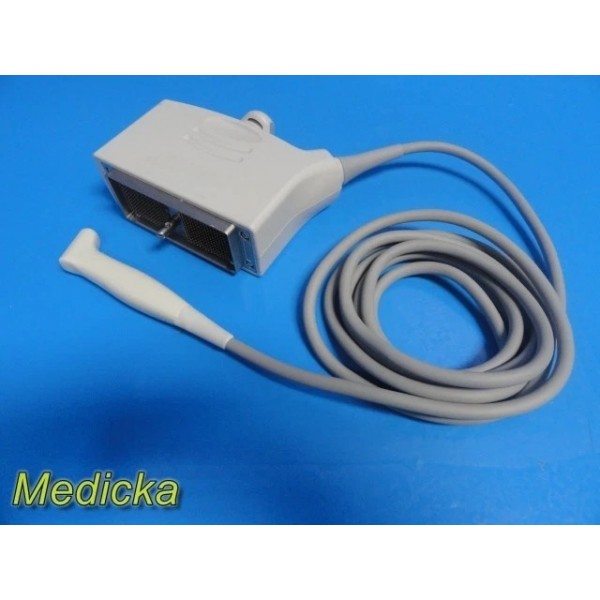

• Approx. 7-ft cable appears intact with no observed cuts or tears

• Cable strain-relief areas appear intact

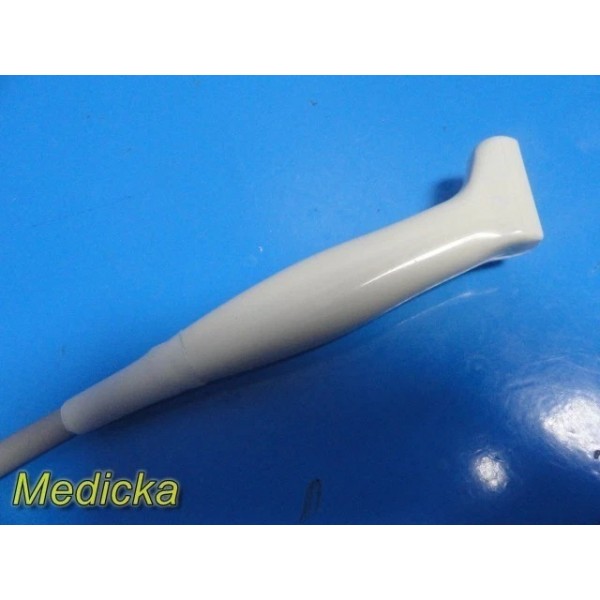

• Probe housing/handle is in good condition

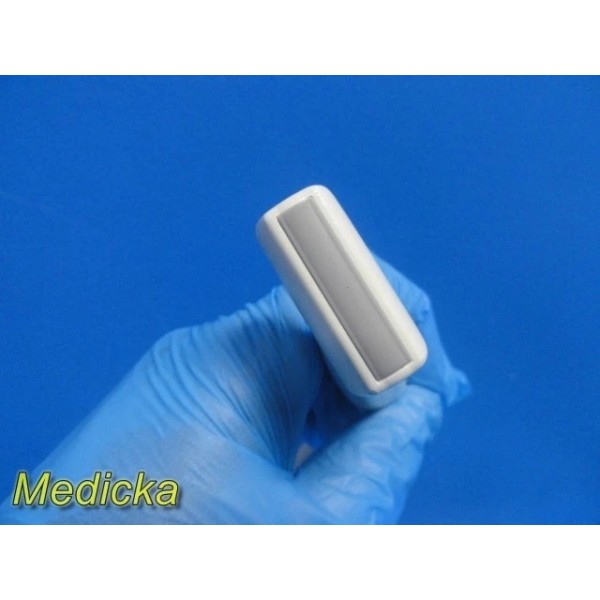

• Acoustic lens surface appears smooth with no obvious cuts, gouges, or major physical damage observed

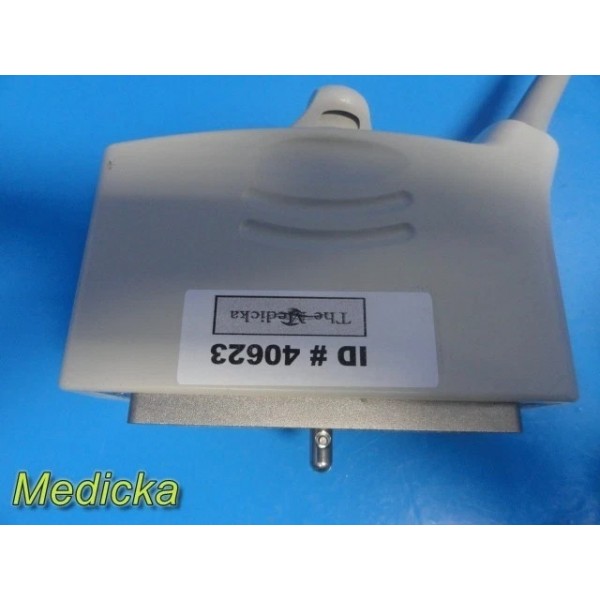

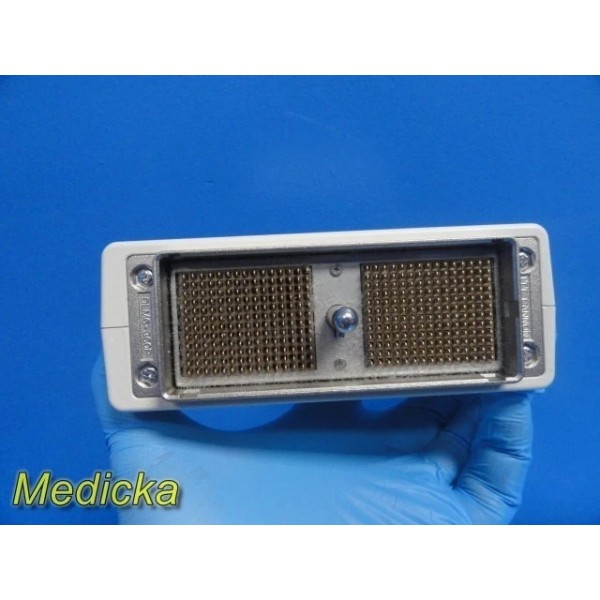

• Connector housing, contacts, and locking mechanism appear intact

• Normal cosmetic scratches/scuffs from prior use

• No obvious cracked housing, bent connector, or broken pins observed


Functional Testing

Tested on a compatible Toshiba ultrasound system:

• Probe was recognized by the system as 14L7

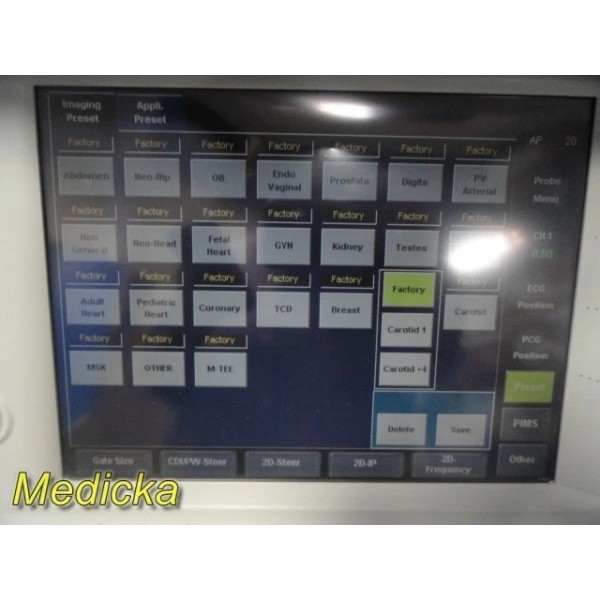

• Probe/preset controls were accessible

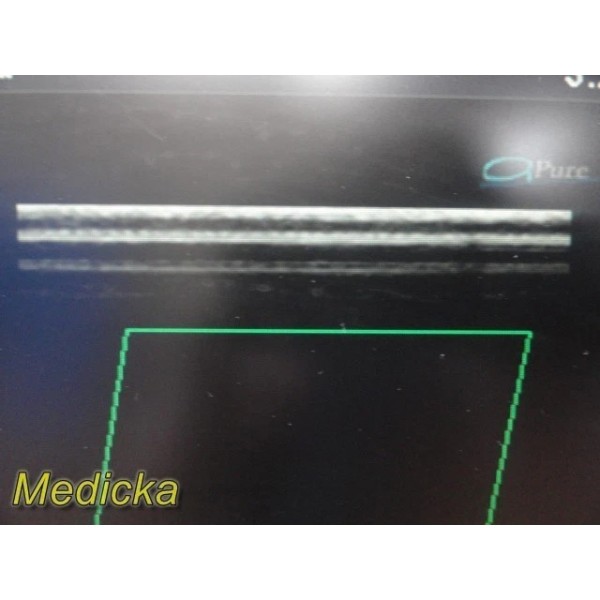

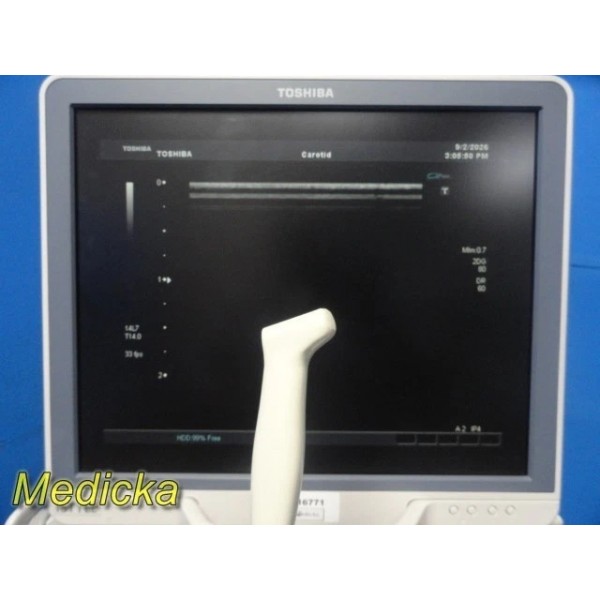

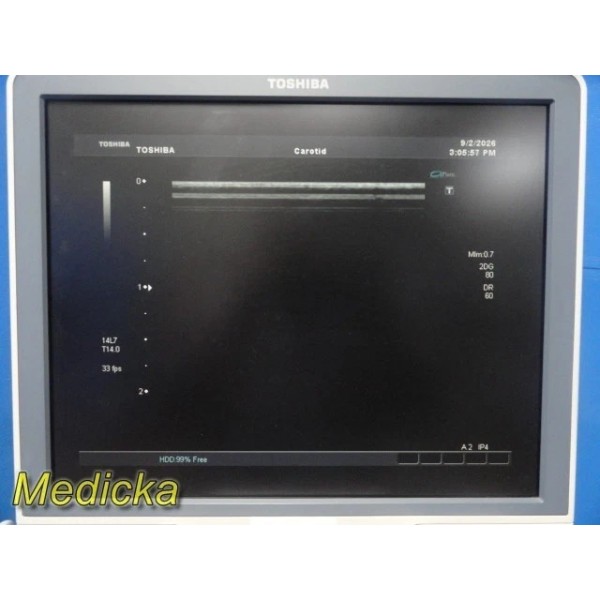

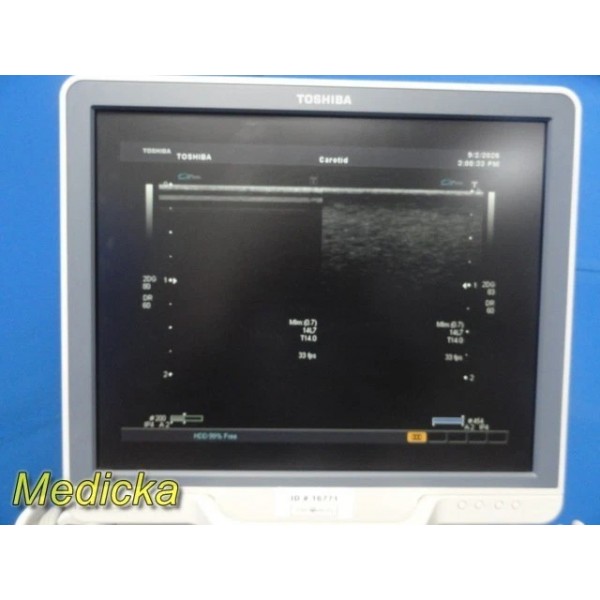

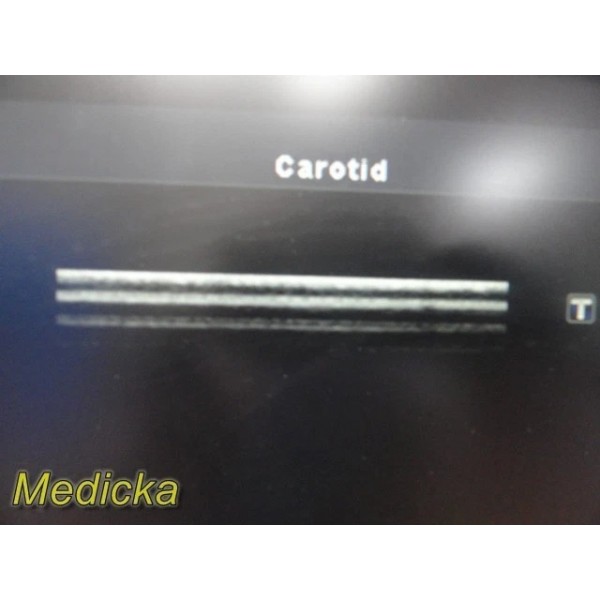

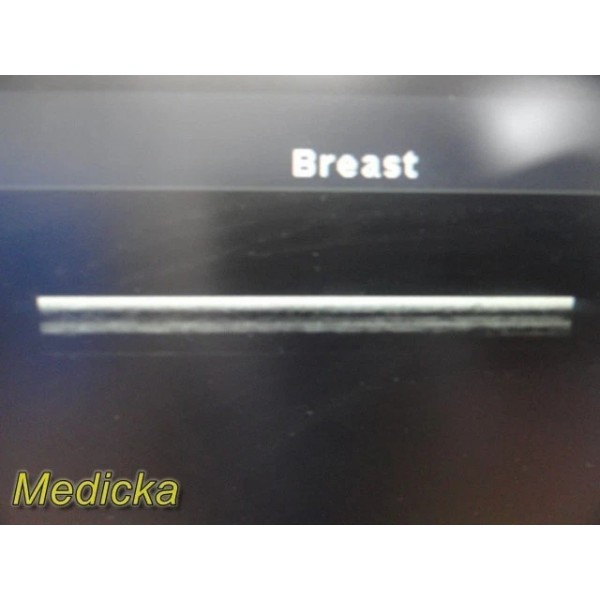

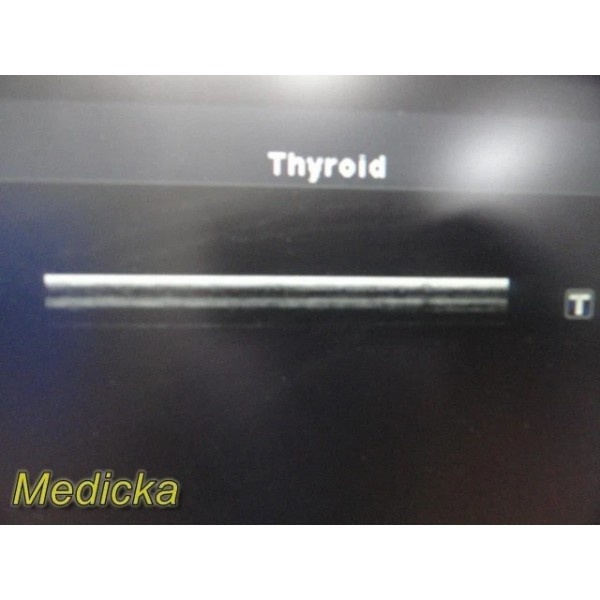

• Basic air scan performed

• Imaging functionality confirmed

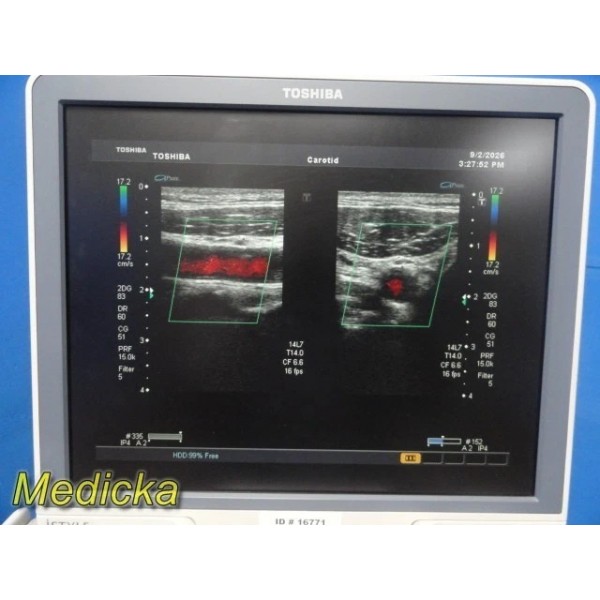

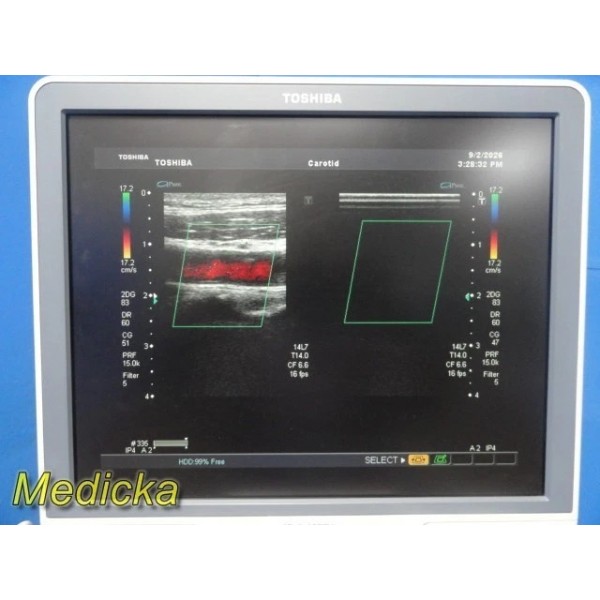

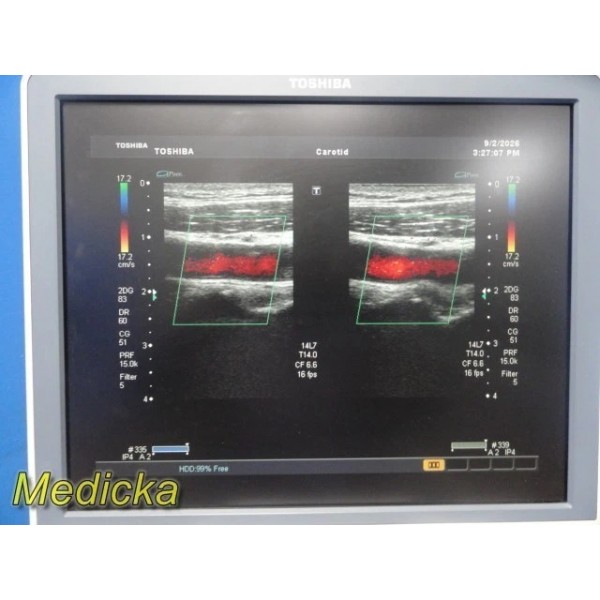

• Color Doppler/flow imaging demonstrated

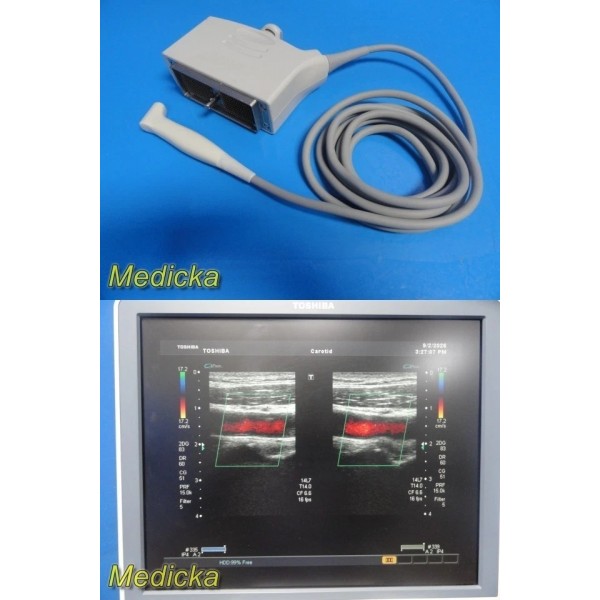

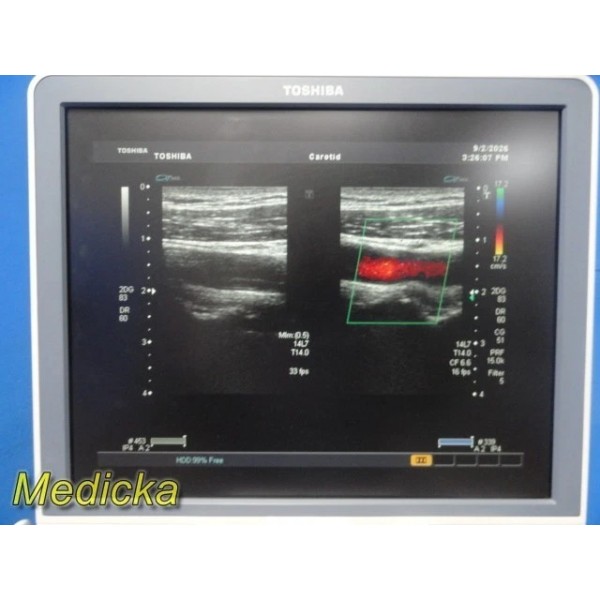

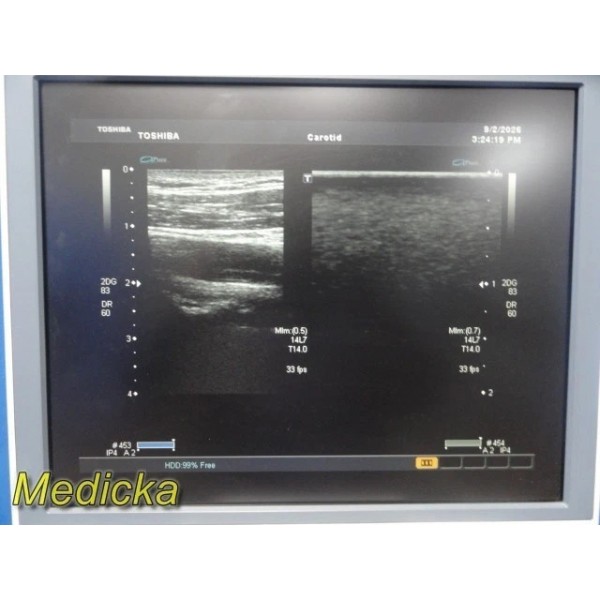

• Live carotid scan produced identifiable B-mode anatomy and color-flow information

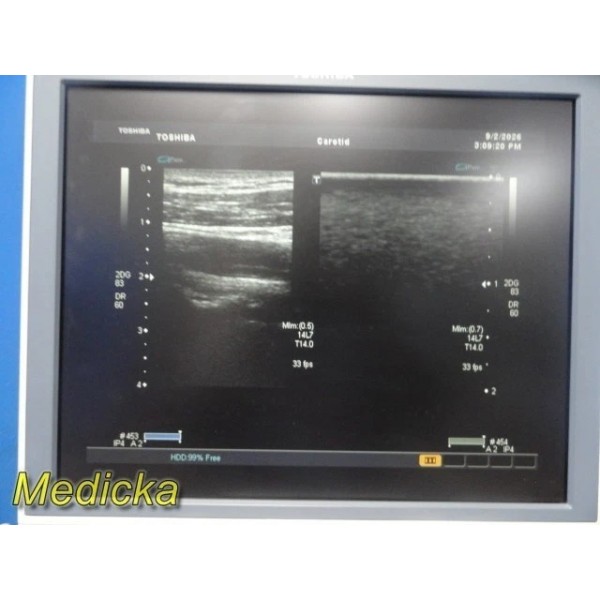

• Some image imperfections/non-uniformity are visible, particularly toward the right side of the imaging field

• No major complete image dropout was observed during our basic testing


Based on our limited bench evaluation, the probe demonstrates basic imaging functionality, but image quality is not represented as equivalent to a new or fully refurbished transducer. It may be suitable for basic imaging applications; we would not represent it as ideal for applications requiring optimal image uniformity or highly detailed imaging.

Please review all included test images to independently evaluate image quality.

Package Includes

• 1× Toshiba PLT-1202S 14L7 Linear Array Transducer

Not Included

• Toshiba ultrasound system shown during testing

• Storage case

• User manual

• Any additional probes, cables, or accessories


Ultrasound system shown in testing photos is NOT included and was used solely to demonstrate probe functionality.

Buyer Advisory

This is a pre-owned ultrasound transducer with limited basic functionality testing performed as described above. Image imperfections/non-uniformity were observed during testing.

Buyer/facility is responsible for independently evaluating image quality, electrical safety, compatibility, calibration, and suitability for its intended application before clinical use.

Stock ID: 40623 (P.O. 1200) (WHC10)
