Philips L12‑5 Linear Array Ultrasound Transducer | 12–5 MHz (Tested) ~ 40047
Item specifics
- PhilipsMPN
- 453561189756
Product details

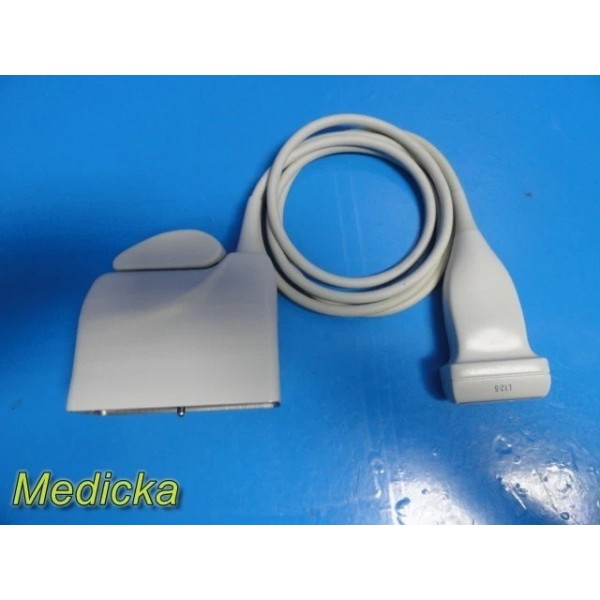

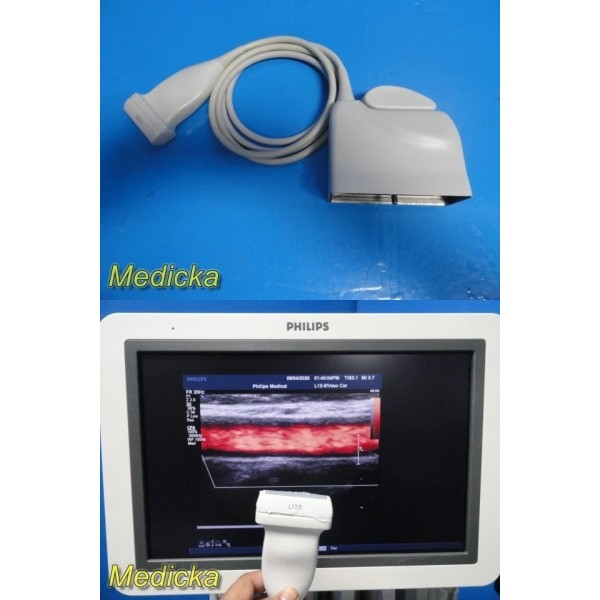

Philips L12-5 Linear Array Ultrasound Transducer – 12–5 MHz – Tested
Item overview
Pre-owned Philips L12-5 linear array ultrasound transducer in good working condition. Tested on a compatible Philips iU22 Ultrasound System (not included) and demonstrated proper system recognition, grayscale imaging, phantom imaging, carotid vascular imaging, Color Doppler, and Color Power Angiography (CPA). During testing, a slight linear imaging imperfection was observed on the air scan and faintly persisted on the phantom scan; however, it did not significantly affect grayscale or Doppler imaging performance.
Sale includes the ultrasound transducer only.
Device information
Manufacturer: Philips Ultrasound
Item: Linear Array Ultrasound Transducer
Model: L12-5
P/N: 453561189756 • Serial: B07879
Probe Type: Linear Array • Frequency: 12–5 MHz
Ingress Protection: IPX7 • Made In: USA

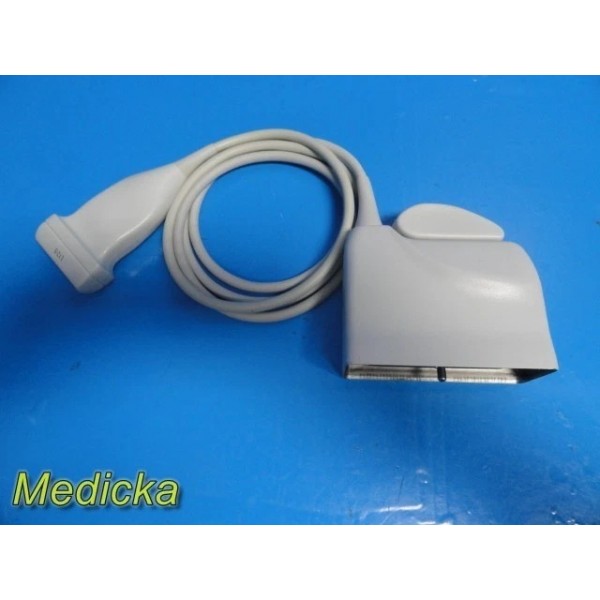

Cosmetic condition

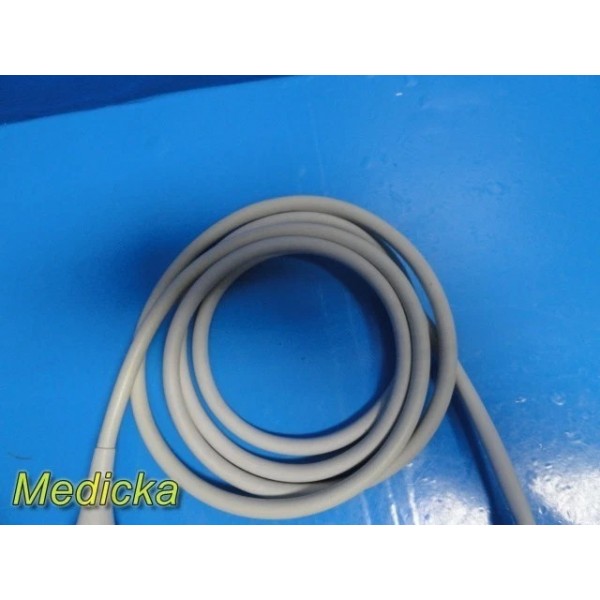

Cable
- Approx. 8 ft long
- No cuts, tears, exposed wiring, or repairs observed
- Mild discoloration from normal clinical use
- Strain reliefs intact

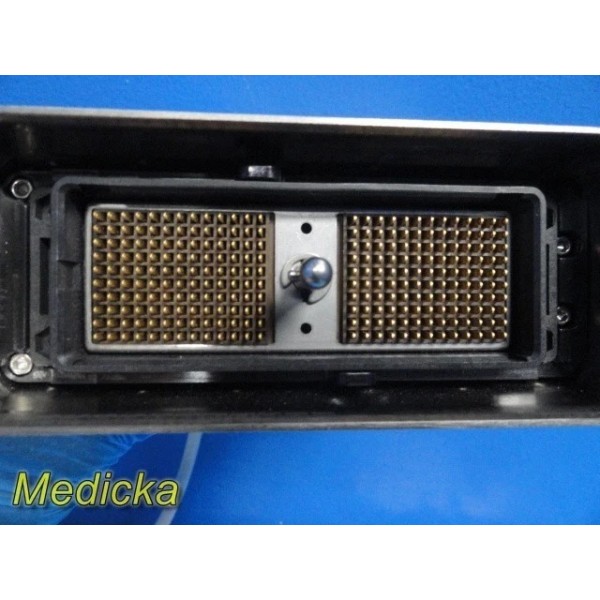

Connector & lock
- Connector housing in very good condition
- Locking mechanism intact and functional
- Connector pins clean and well aligned
- No bent or broken pins observed
- No cracks around connector housing

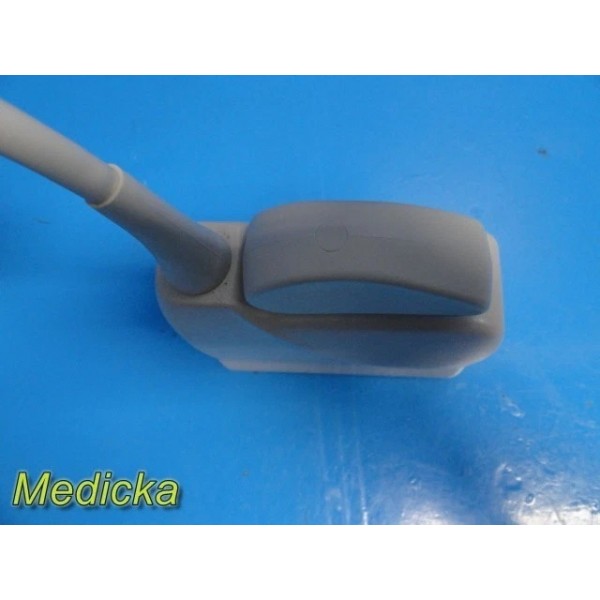

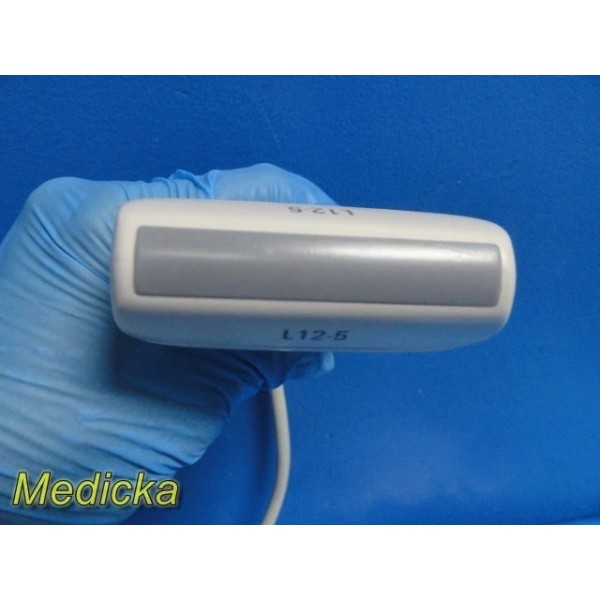

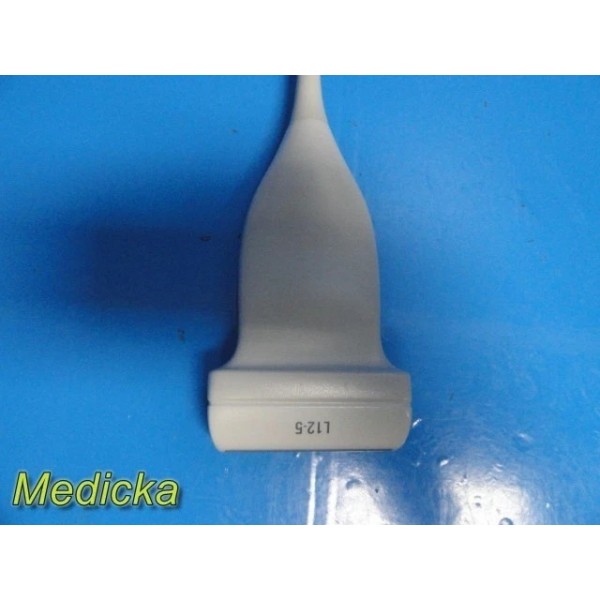

Scan head & acoustic lens
- Housing in very good cosmetic condition
- No cracks observed
- Acoustic lens smooth and intact
- No cuts, tears, swelling, or delamination
- Handle secure and free of damage
Functional testing

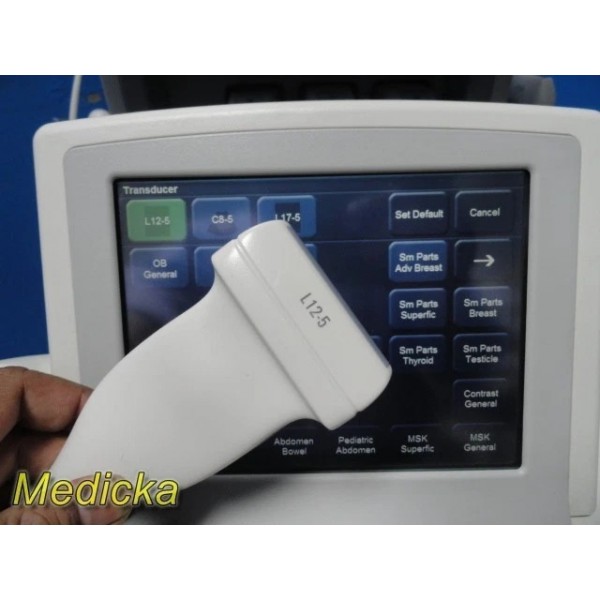

System recognition
- Successfully recognized by a compatible Philips iU22 Ultrasound System

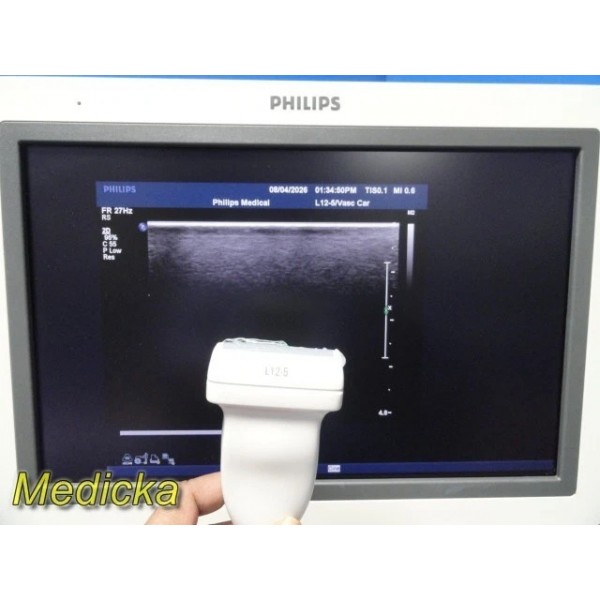

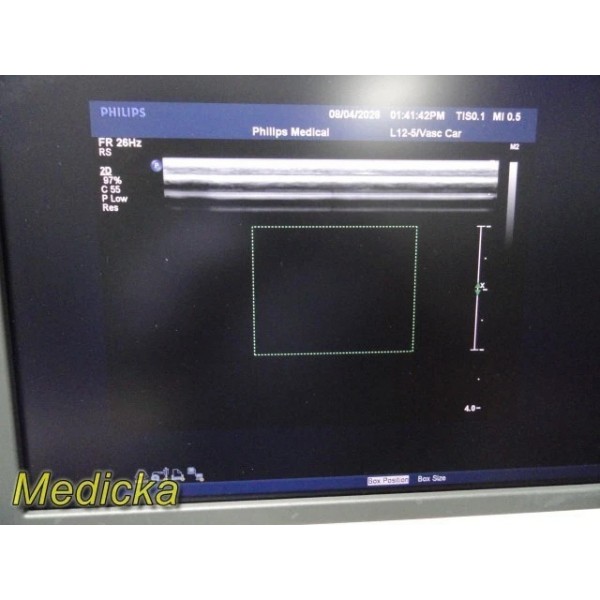

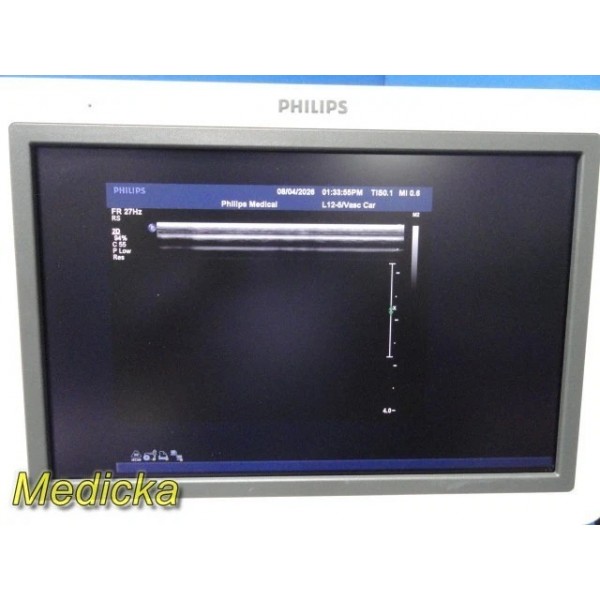

Air scan
- Uniform scan across the majority of the imaging field
- A slight linear imaging imperfection/non-uniformity was observed within the scan field
- No complete dead elements or major scan-line dropout observed
Phantom scan
- Good grayscale image quality
- A faint corresponding linear imperfection was noted, consistent with the air scan finding
- Overall phantom imaging remained smooth with no significant degradation of image quality

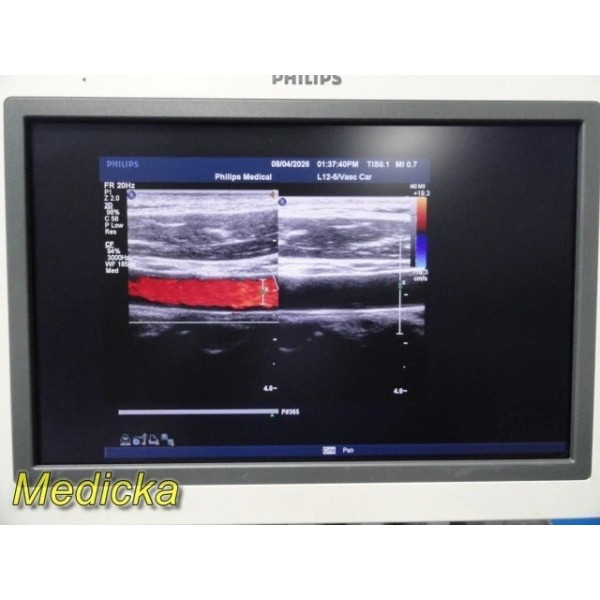

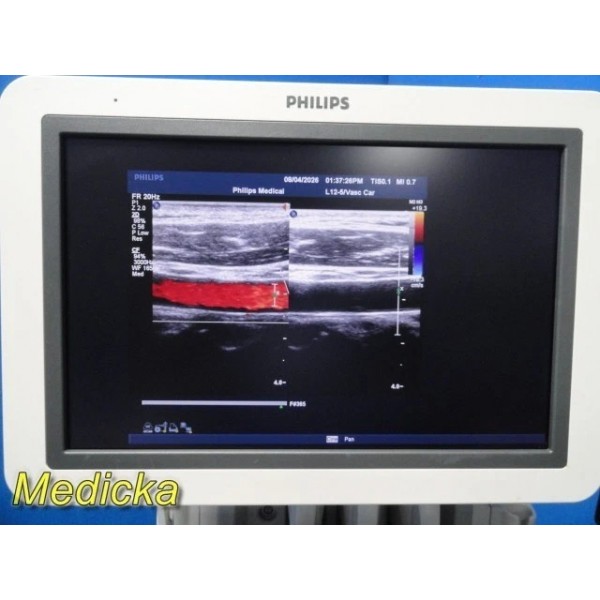

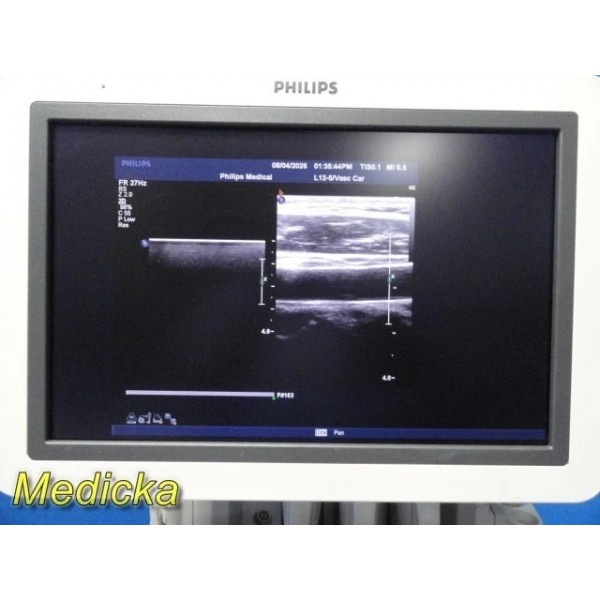

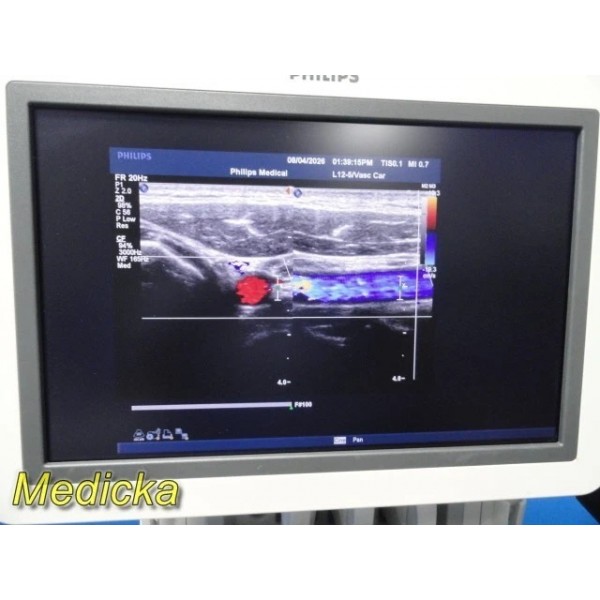

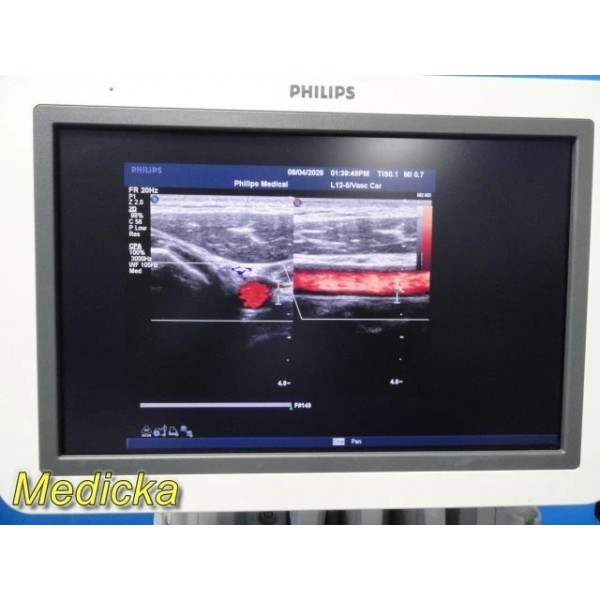

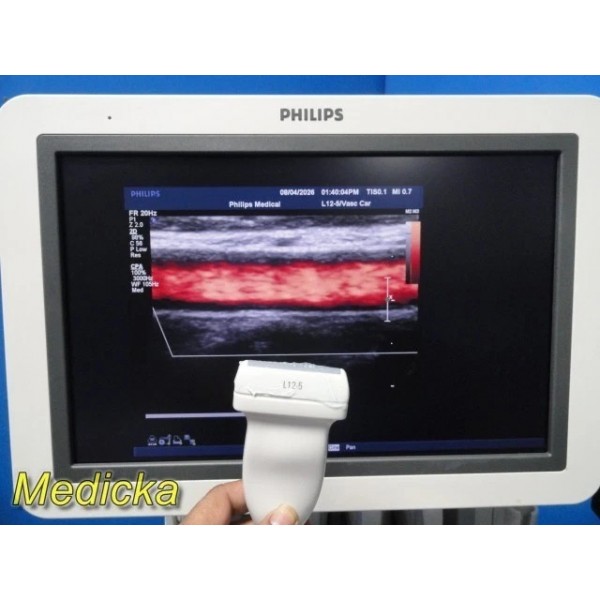

Body/vascular scan
- Carotid vascular examination successfully performed
- Excellent grayscale visualization of vascular anatomy

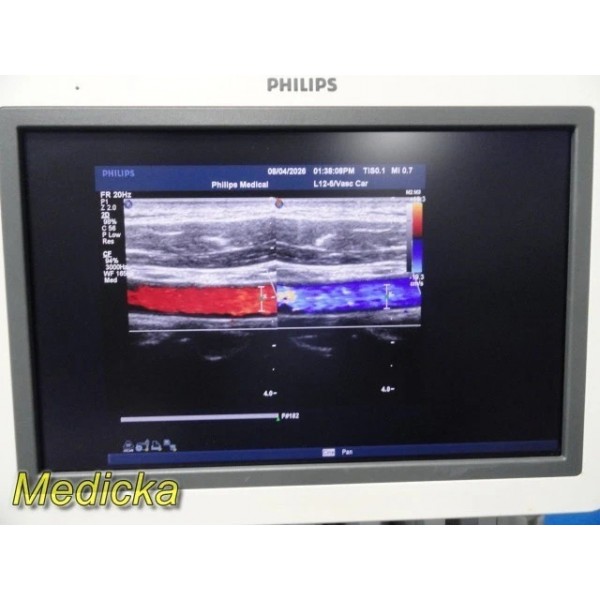

- Excellent Color Doppler performance with strong, uniform color fill

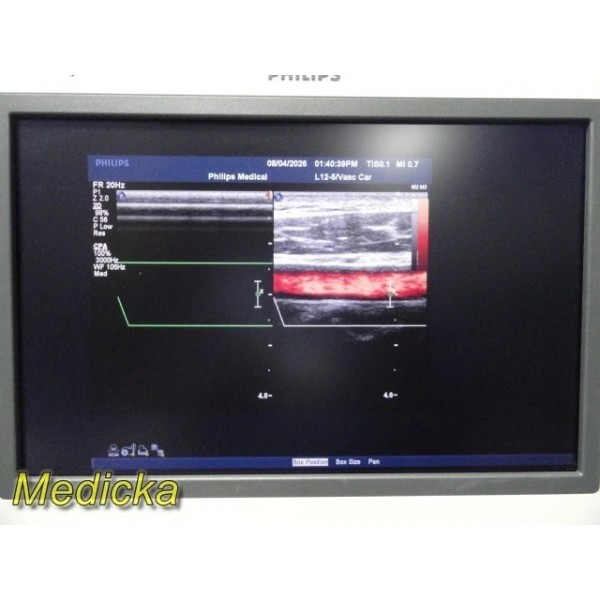

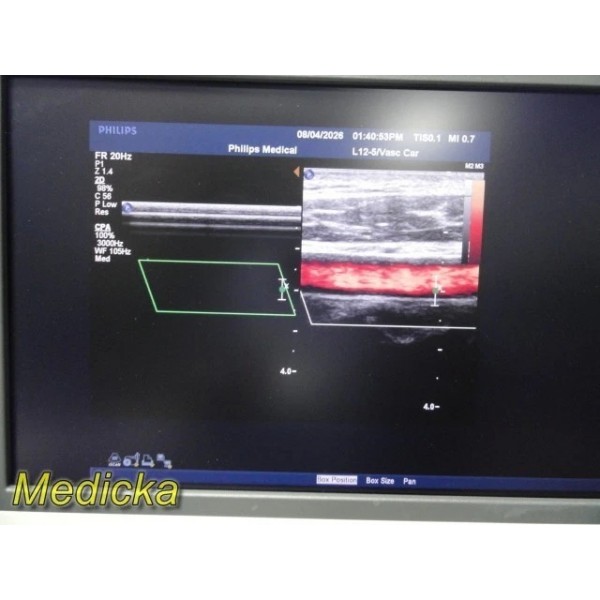

- Color Power Angiography (CPA) demonstrated excellent sensitivity and vascular detail
- The minor imaging imperfection noted during air and phantom scans was not observed to significantly impact carotid vascular imaging or Doppler performance
Included
- Philips L12-5 Linear Array Ultrasound Transducer
Not included
- Philips iU22 Ultrasound System (used for testing only)
- User manual
- Storage case
- Ultrasound gel
- Consumables or disposable accessories
- Any items not shown in listing photographs
Buyer advisory
This probe was tested on a compatible Philips iU22 Ultrasound System to verify probe recognition and basic imaging performance. Testing confirmed successful operation in grayscale, phantom, carotid vascular, Color Doppler, and CPA imaging modes. A minor linear imaging imperfection was observed during the air scan and faintly during phantom imaging; however, carotid vascular imaging demonstrated excellent grayscale quality, color flow, and Doppler sensitivity. The ultrasound system shown in the photographs is used for testing only and is not included. Please review all photographs, including the test images, and verify compatibility with your ultrasound system before purchase.
Shipping

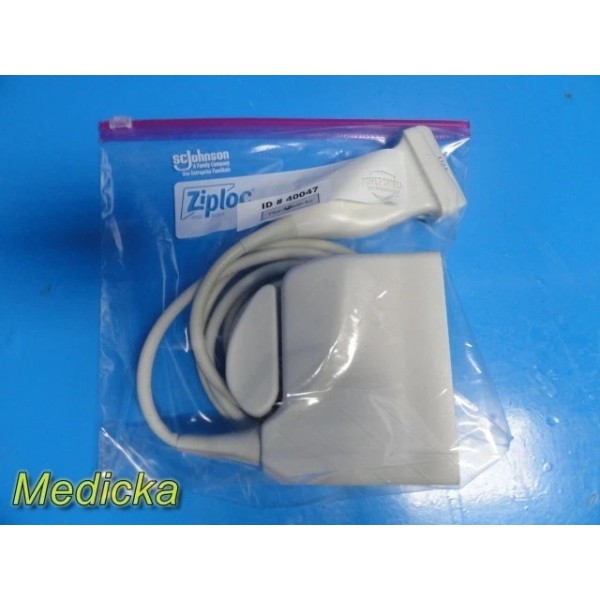

The transducer will be professionally packaged with dedicated protection for the scan head, connector, and cable to help ensure safe transit.
Stock ID: 40047 (P.O. 1200) (OFH C7)
