Product details

GE LOGIQ e Portable Ultrasound System — Professional Device Profile

System Identification

• Manufacturer:GE Medical Systems (China) Co., Ltd.
• System:LOGIQe Portable Ultrasound System
• Model / REF:LOGIQe / 5199704
• Serial Number: 99038WX2
• Date of Manufacture: 08/2008
• Software Version:LOGIQe R5.2.2
• Country of Manufacture: China
• Voltage: 100–120V~, 50/60Hz, 6A
• CE Marked: Yes — CE 0197

Included Linear Probe — GE 12L‑RS

• Manufacturer:GE Yokogawa Medical Systems, Ltd.
• Model: 12L‑RS
• Part Number: 5141337
• Serial Number: 1025YP6
• Date of Manufacture: 08/2006
• Probe Type: Linear Array
• Country of Manufacture: Japan
• CE Marked: Yes — CE 0459

Docking Cart Identification

• Manufacturer:GE Medical Systems (China) Co., Ltd.
• Description: Mobile Docking Cart for LOGIQe Series
• REF: 5252432
• Serial Number: 106750WX3
• Date of Manufacture: 11/2008
• Input Power: 100–120V~, 50/60Hz, 500VA
• Output Power: 100–120V~, 50/60Hz, 380VA / 220V ⎓ 6A

Short Description

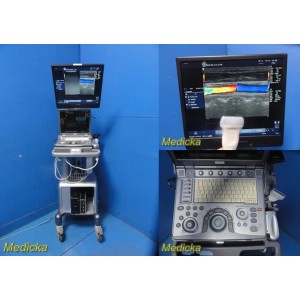

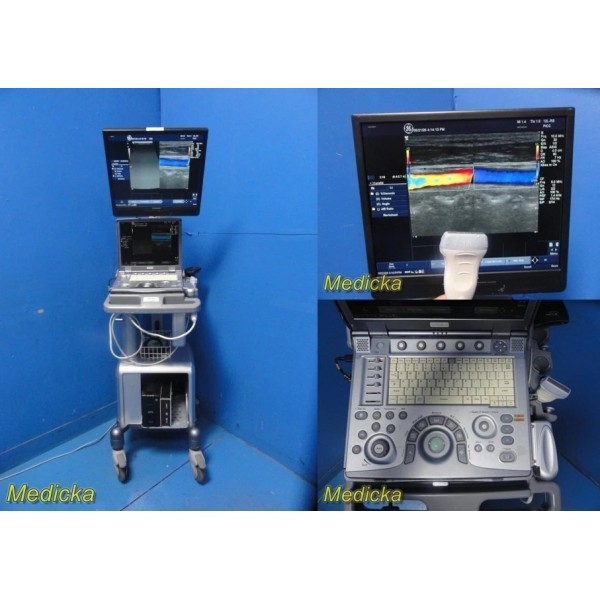

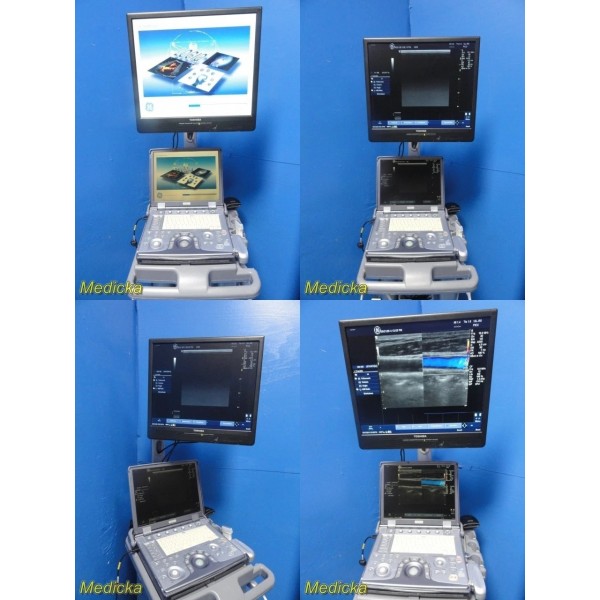

GE LOGIQ e portable ultrasound system mounted on a GE mobile docking cart with Toshiba secondary patient‑viewing monitor, APC Back‑UPS Pro 700, Lite‑On DVD writer, barcode scanner, and GE 12L‑RS linear array probe. System powers on normally, boots into LOGIQ e R5.2.2 software, and all three docking‑cart probe slots were tested successfully. Includes articulating secondary display, utility basket, gel holder, and integrated storage bay.

Quick Condition Overview

• Functional Status: Tested & Working
• Cosmetic Condition: Good overall with visible signs of prior clinical use
• Probe Status: Functional with imaging imperfections consistent with early element weakening
• Battery Status: Internal system battery weak/dead; replacement recommended

Condition Summary

Ultrasound System

• Housing structurally intact; no major cracks or broken chassis components
• Cosmetic scratches, scuffs, and paint wear across keyboard deck and exterior surfaces
• Carry/pickup handle intact

TGC Controls (Updated)

• Two lower TGC sliders/buttons damaged:

  • One partially broken

  • One fully broken

• Remaining TGC sliders functional during testing

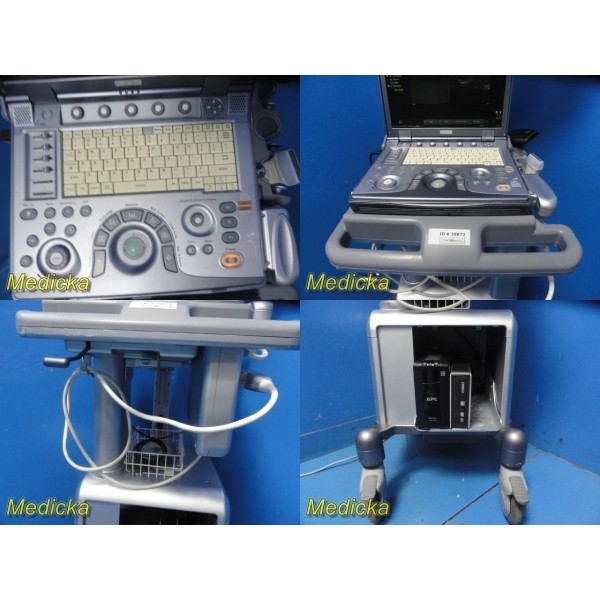

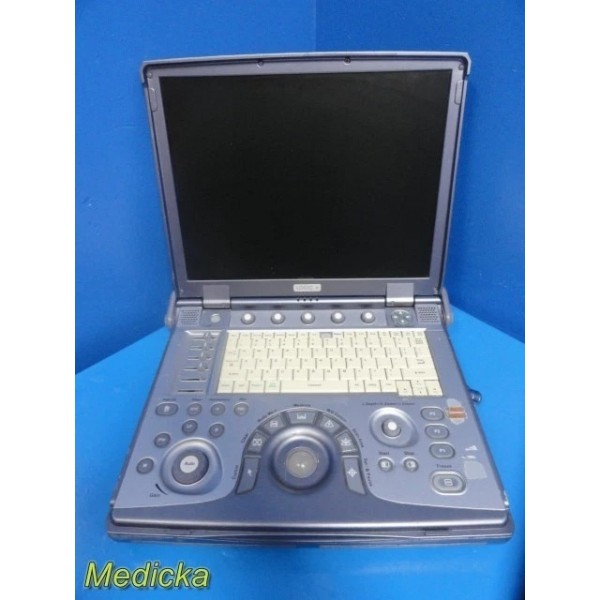

Keyboard & Controls (Updated)

• Keyboard, trackball, rotary knobs, hard keys, and control panel buttons responded properly

• F8 key cover is missing (key still actuates but cover is absent)

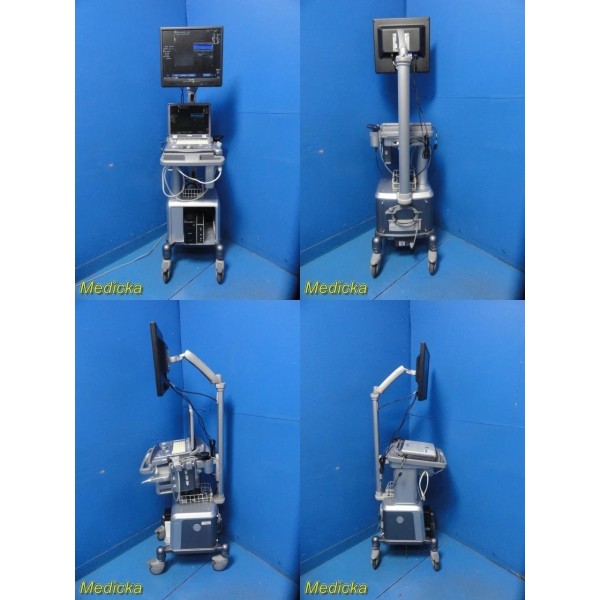

Docking Cart

• Very good overall condition

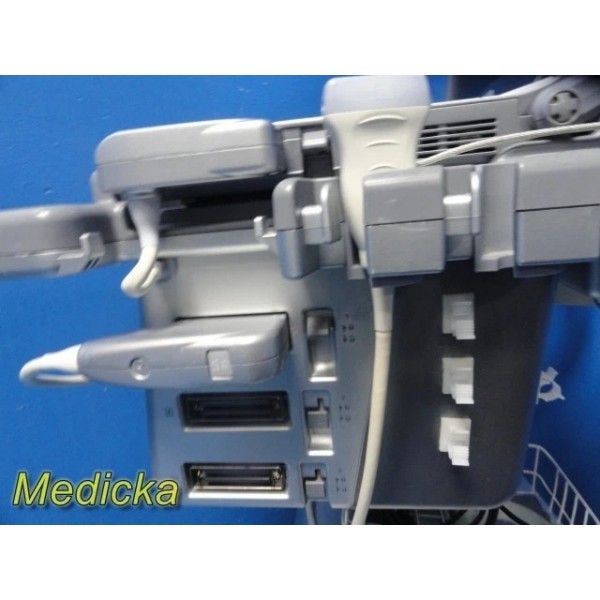

• Three probe holders and three active probe slots tested successfully
• Includes gel holder, front pull handle, articulating monitor arm, utility basket, and lower storage compartment
• Wheels roll freely; front casters lock properly
• Lower bay houses APC UPS and DVD writer with additional space for printer

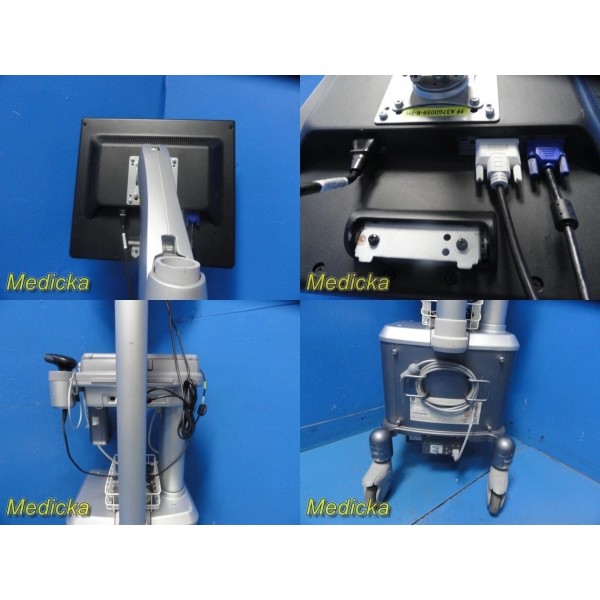

Secondary Monitor

• Toshiba flat‑panel monitor on articulating arm
• Displays properly; suitable for patient‑viewing or secondary imaging

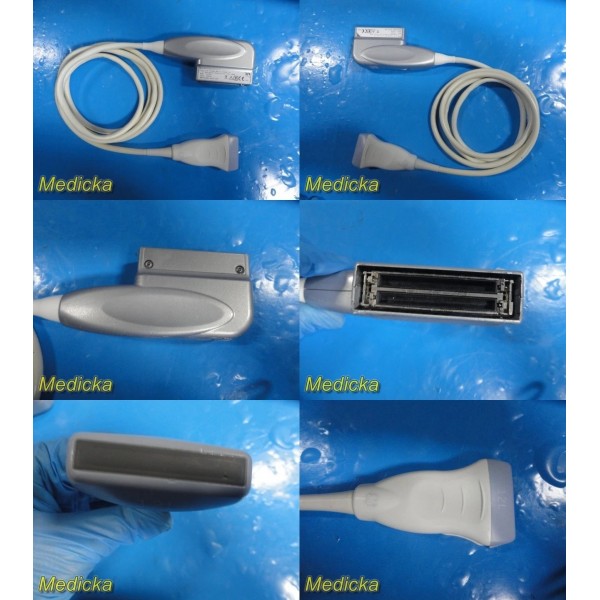

Probe Condition — GE 12L‑RS

• Approx. 7‑ft cable intact; no major cuts or tears
• Cartridge‑style connector seats properly
• Housing shows expected cosmetic wear
• Minor neck/lens‑edge gouge or wear present (see images)

Functionality / Testing Summary

System Testing

• System powers on normally

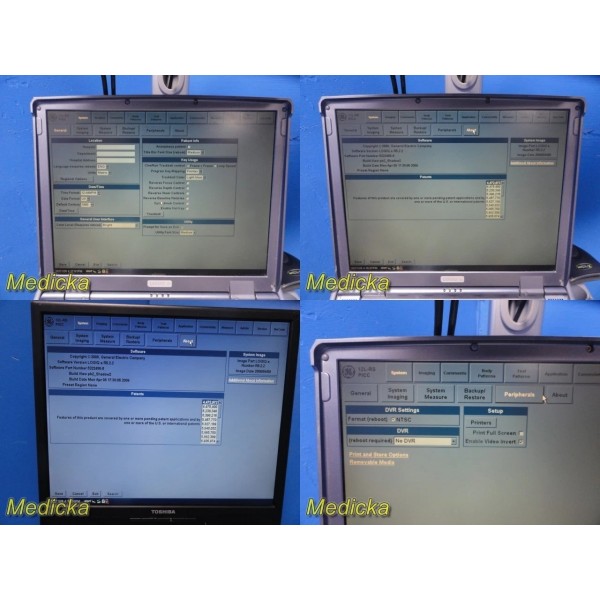

• Boots into LOGIQe R5.2.2 without errors

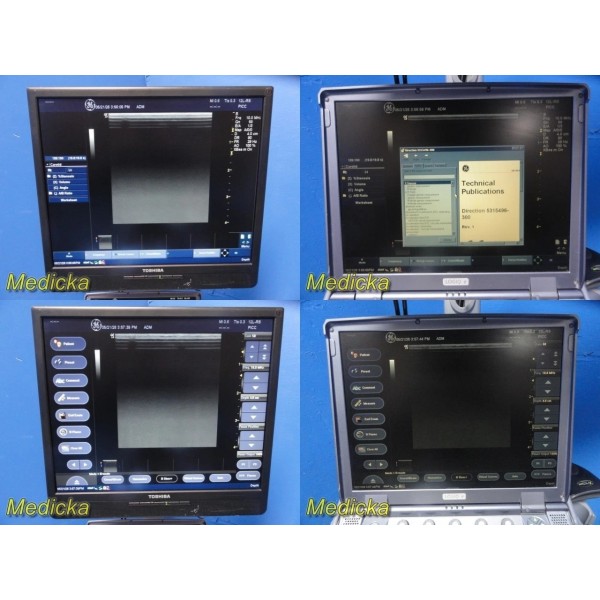

• Imaging functions load correctly

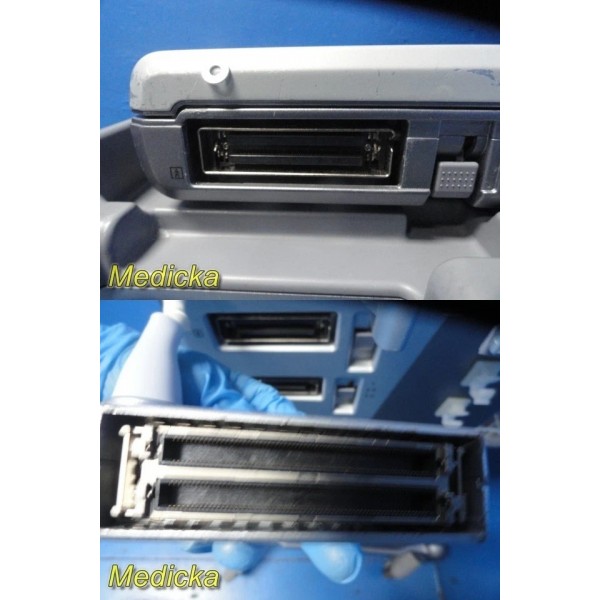

• All three docking‑cart probe slots tested successfully

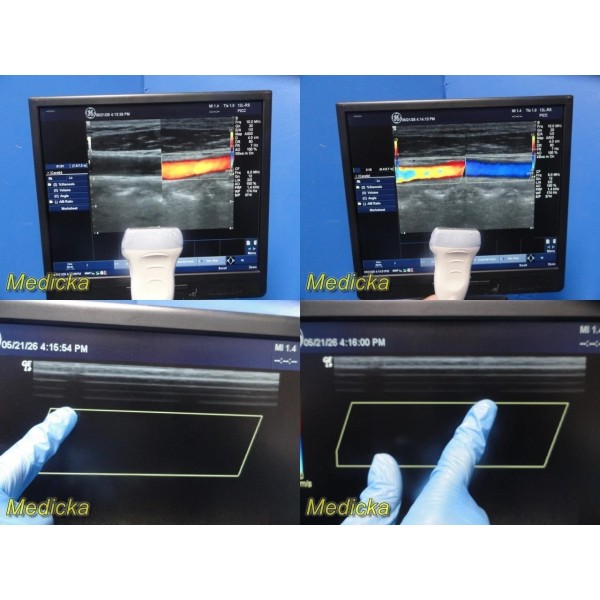

Imaging Evaluation

• 12L‑RS probe produced image output

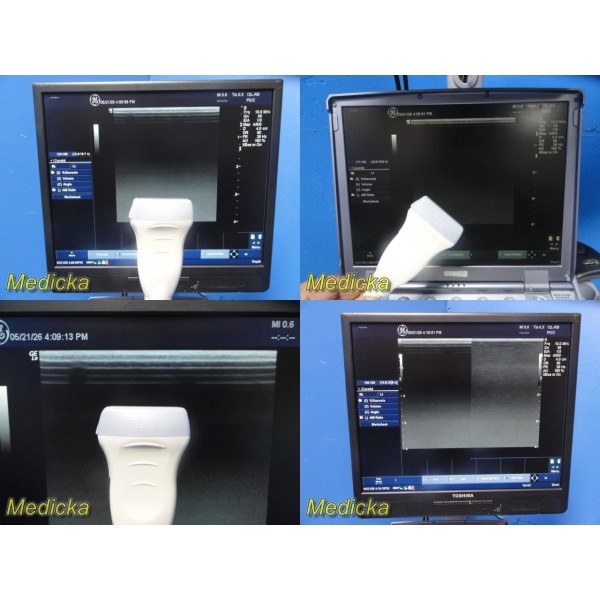

• Air scan shows visible imaging imperfections/artifacts
• Phantom‑styleevaluation reproduces same defects
• Findings consistent with early element degradation

Body Scan Evaluation

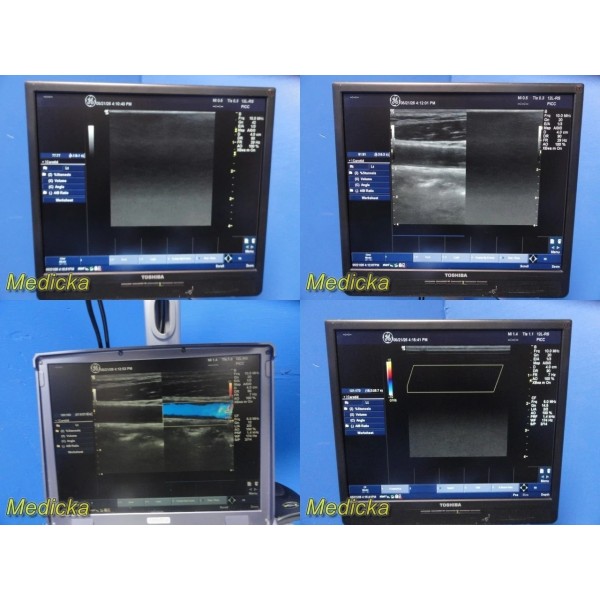

• Limited carotid scan performed
• Vascular anatomy and Doppler flow visualized

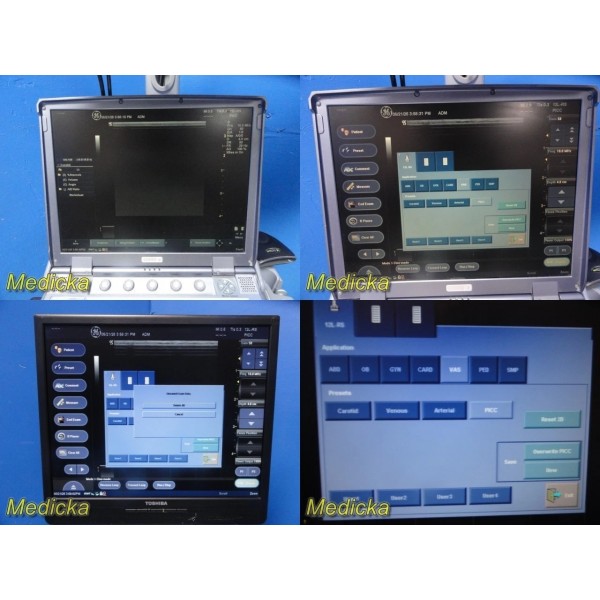

• Cardiac, abdominal, and vascular presets installed

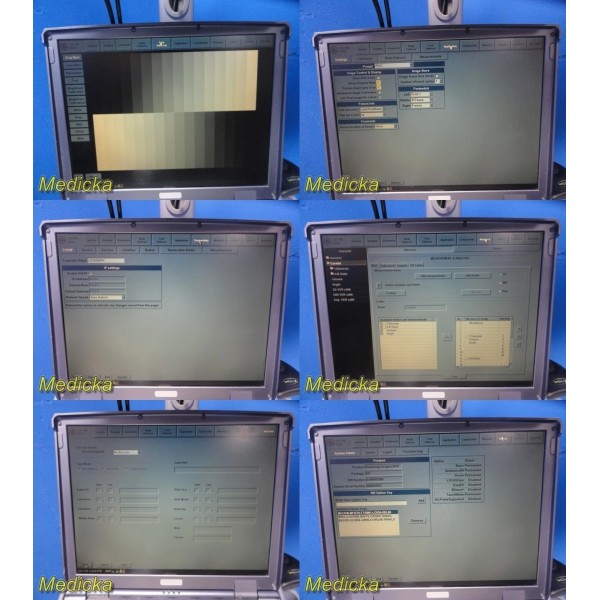

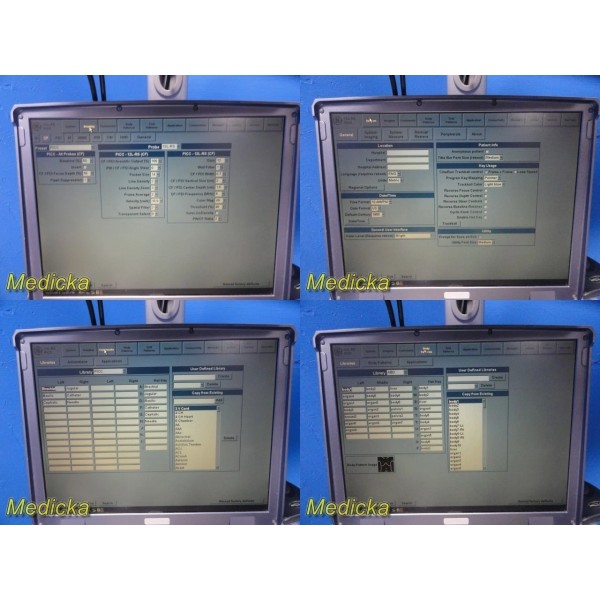

Installed Features Observed

• Basic
• AnatomicalM
• DICOM
• TouchMode

PM / Service Information

• PM performed: 03/06/2025
• Next PM due: 03/06/2026

What Is Included

• GELOGIQe ultrasound system
• GE mobile docking cart
• Toshiba secondary monitor with articulating arm
• GE 12L‑RS linear array probe
• APC Back‑UPS Pro 700 (battery health unknown)

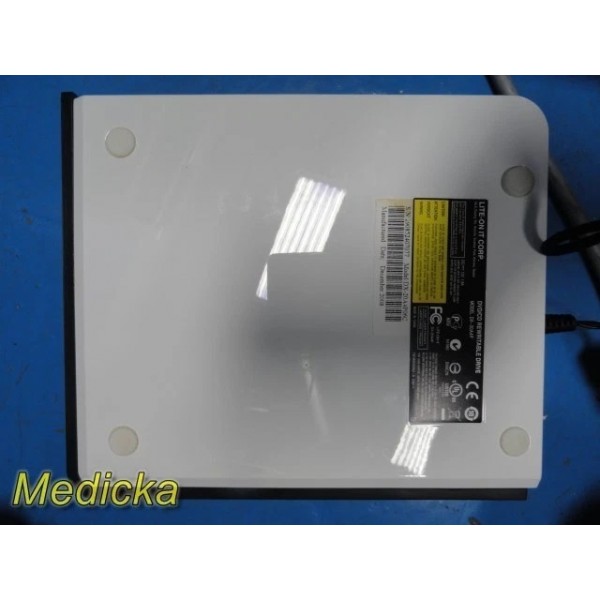

• Lite‑On DVD writer

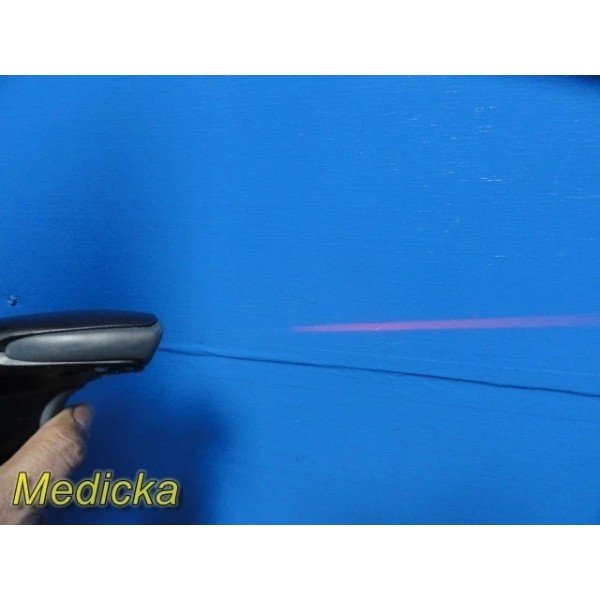

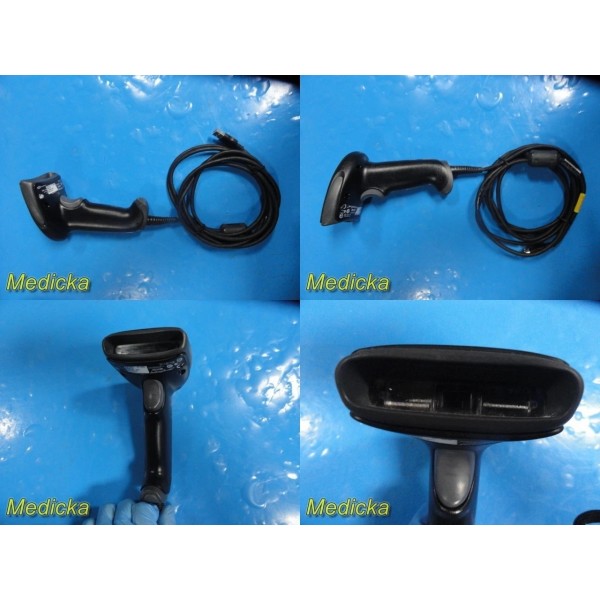

• Barcode scanner
• Utility basket and gel holder

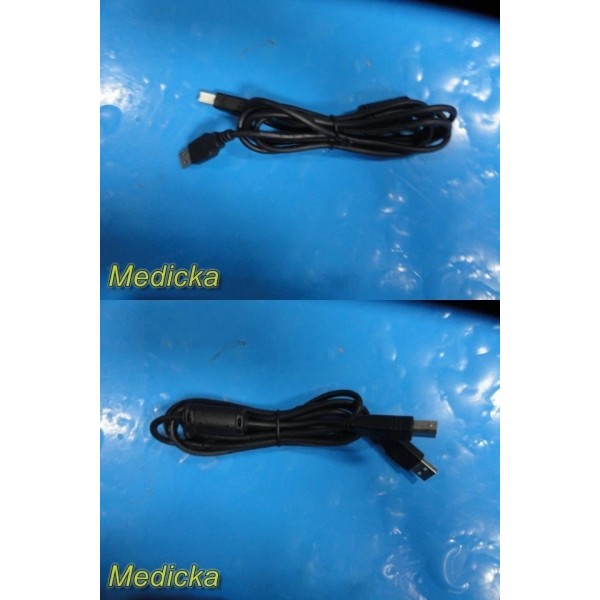

• Power and interconnect cables shown in images

What Is Not Included

• Additional probes (cardiac, abdominal, specialty)
• User manual
• Printer
• Consumables or disposables
• Replacement internal battery
• Ultrasound gel

Buyer Advisory Note

• Included 12L‑RS probe shows imaging imperfections consistent with early element degradation
• Two TGC sliders damaged (one partial, one fully broken)
• F8 key cover missing
• Internal system battery is weak/dead and should be replaced
• APC Back‑UPS Pro 700 battery health is unknown
• Buyers should review all images and verify suitability for intended application

Shipping Note

Large cart‑based ultrasound system requiring freight or specialized packaging. Secondary monitor arm and accessories may be partially disassembled for safe shipment.

Stock ID: 39873 (P.O. 2025) (WH104)

Purchase Terms & Buyer Protections

Condition & Use Notice

Condition: Overall, cosmetic, and functional condition are described in the listing above; please review all images carefully.
Functionality: Sold as described in the listing, or untested if stated. Biomed evaluation is recommended where applicable.
Included: Only items shown in photographs or specifically stated in the listing are included.
Buyer Responsibility: Buyer is responsible for verifying compatibility, suitability, and obtaining inspection, calibration, maintenance, or service as appropriate prior to use.
