Siemens CH4‑1 Convex Ultrasound Probe (Tested) Imaging Artifacts Present ~ 39870
Item specifics
- CH4‑1MPN747256
Product details

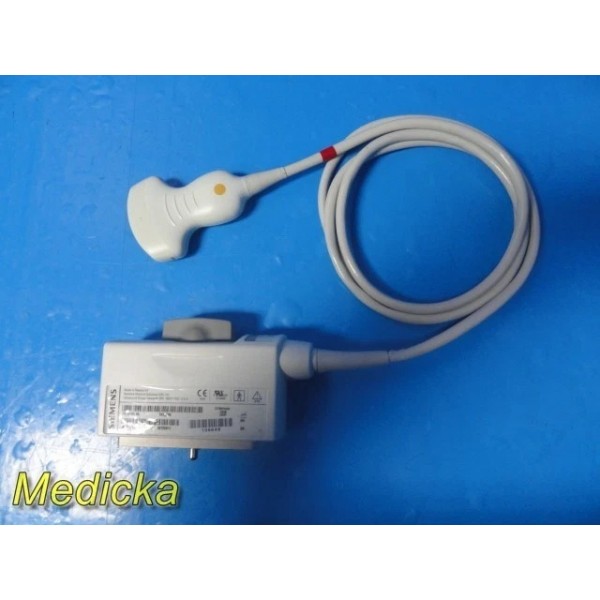

Device Profile — Siemens CH4‑1 Convex Ultrasound Probe
Device Identification
Manufacturer: Siemens Medical Solutions USA, Inc. Model: CH4‑1 Convex Array Transducer Probe Type: Curved / Convex Broadband Transducer Frequency Range Observed: 2.0 – 4.0 MHz Model Number: 747256 Serial Number: 42722811 Date of Manufacture: 2004 Country of Manufacture: Mexico IP Rating: IPX8 CE Marked: Yes (CE 0123) Compatible System Used for Testing: Siemens ACUSON Antares Premium Edition (system not included)
Short Description
Siemens CH4‑1 convex ultrasound transducer tested on a Siemens ACUSON Antares Premium Edition system. Probe was recognized properly and evaluated with air scan, phantom‑style uniformity assessment, abdominal grayscale imaging, and carotid color Doppler testing. Sale includes probe only; ultrasound system, phantom, manuals, and storage case are not included.
CONDITION SUMMARY
Quick Condition Overview
- Functional Status: Tested & Working — Imaging Artifacts Present
- Cosmetic Condition: Good Used Condition
- Cable Condition: Minor insulation tear (taped)
- Connector Condition: Good — pins intact

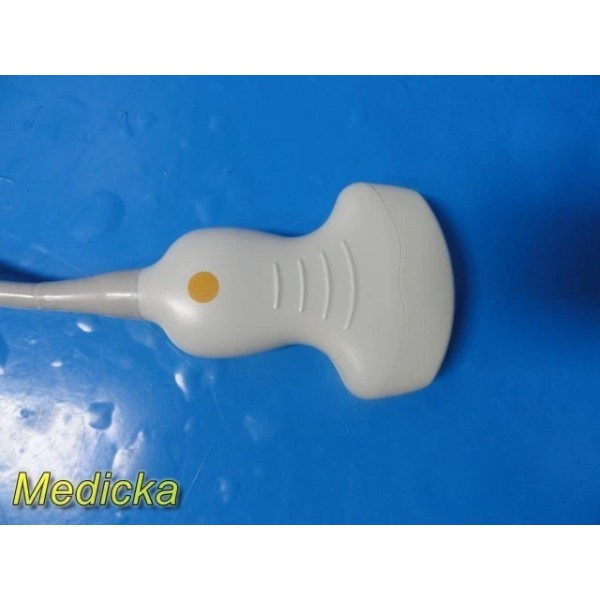

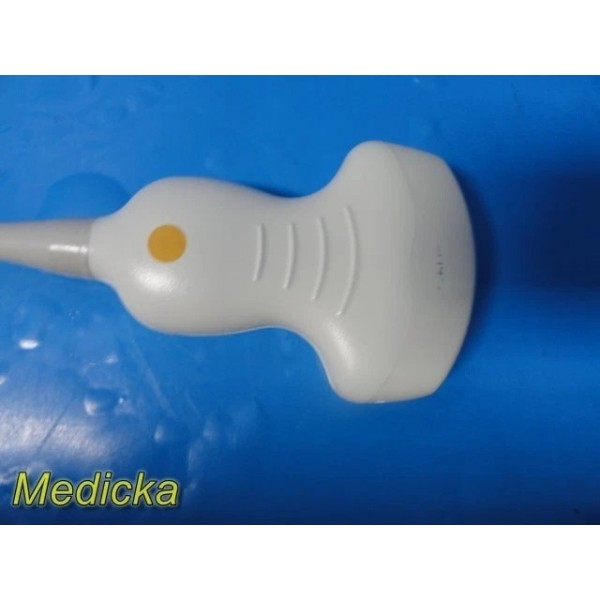

Probe Housing & Handle
- Structurally intact; no major cracks or dents
- Cosmetic scratches/scuffs consistent with prior clinical use

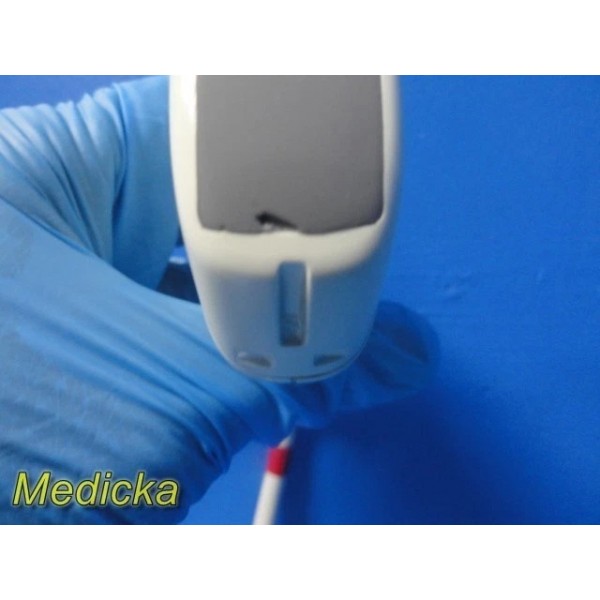

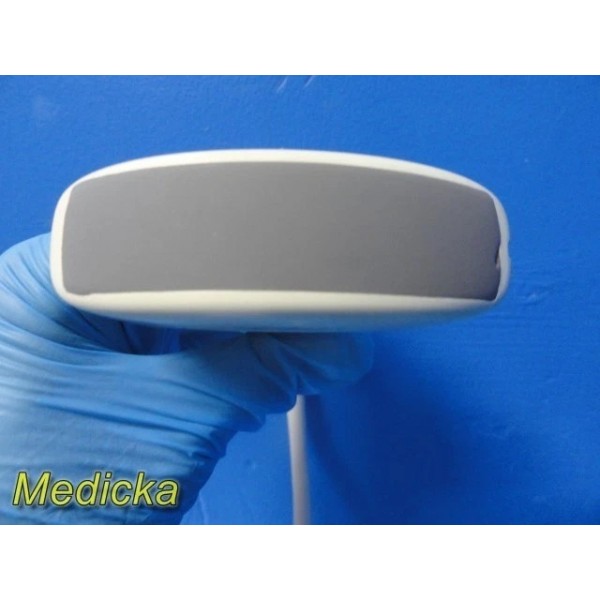

Acoustic Lens
- Lens intact without major separation or puncture
- Localized edge wear/gouging present (visible in images)
- Wear did not prevent probe recognition or image generation

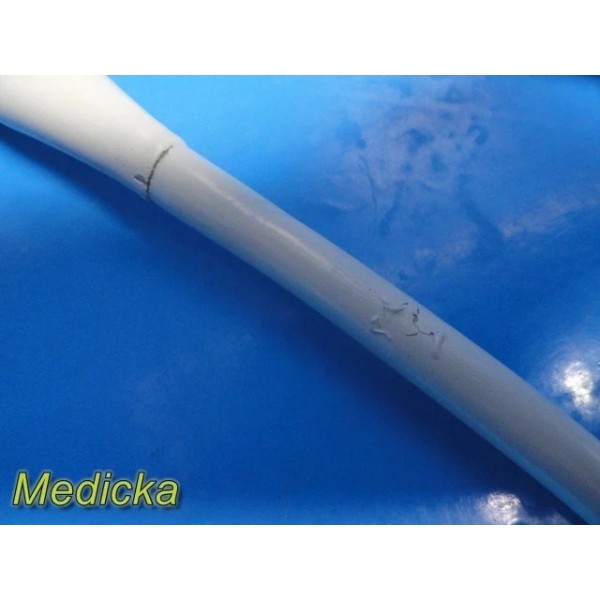

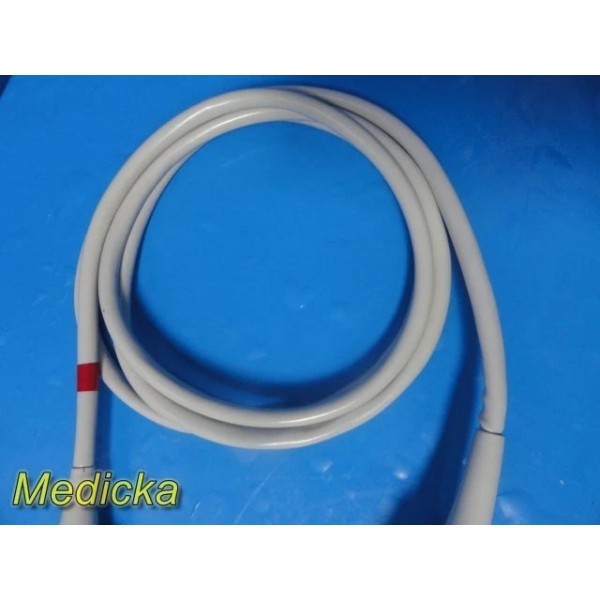

Cable & Strain Relief
- Approx. 7‑foot cable

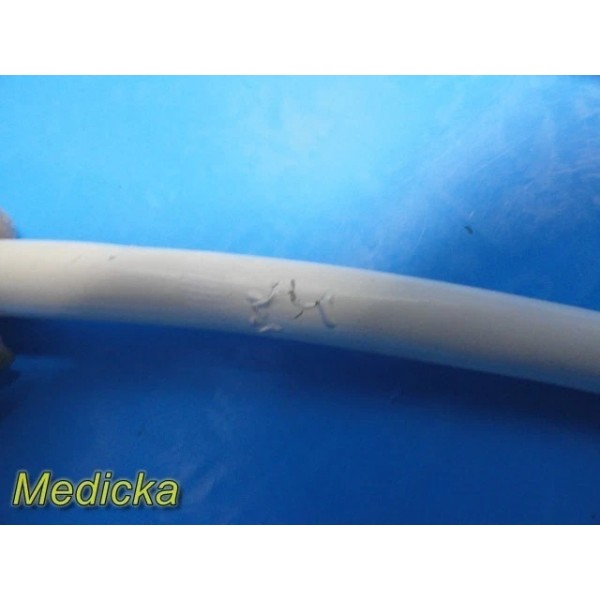

- Minor outer insulation tear observed and taped
- No exposed shielding; strain reliefs intact

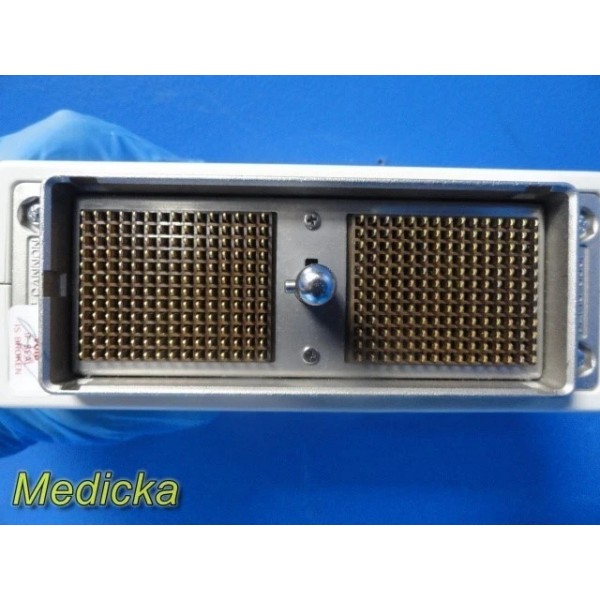

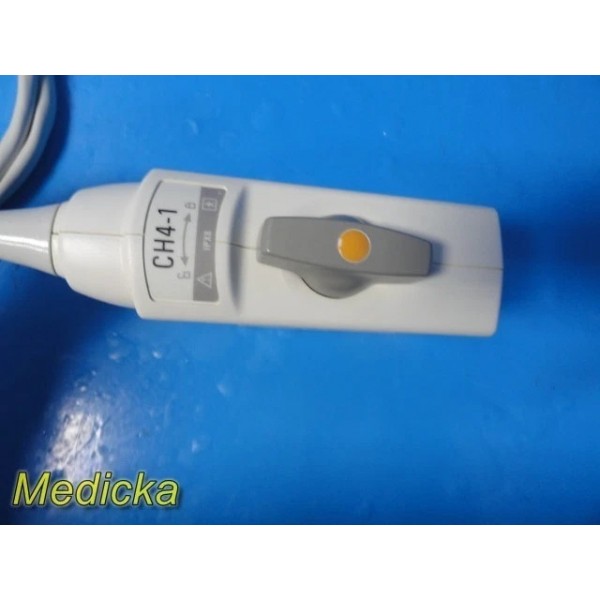

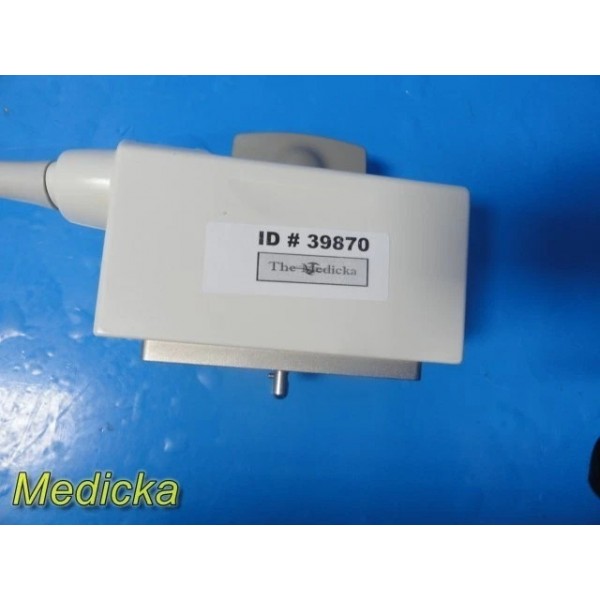

Connector Assembly
- Housing intact; no cracks or structural damage
- Pins straight and intact; no bent or recessed contacts
- Locking mechanism firm and functional
FUNCTIONALITY / TESTING SUMMARY
System Recognition
Probe recognized immediately by Siemens ACUSON Antares system with no communication errors.

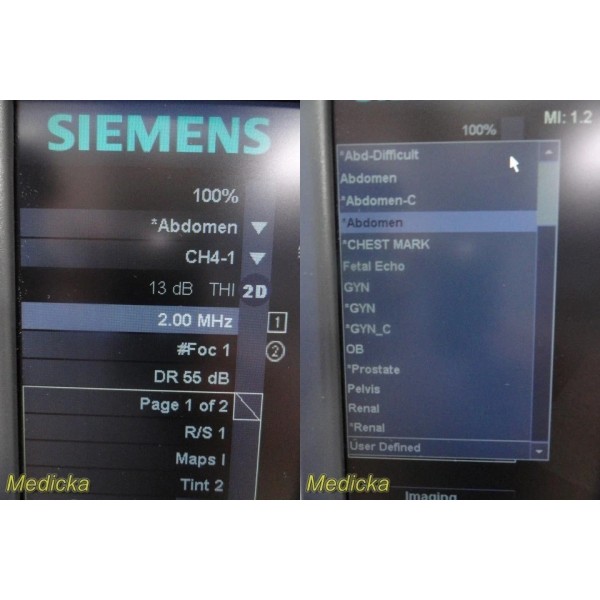

System Presets / Applications Observed
Abd‑Difficult, Abdomen, Abdomen‑C, Chest Mark, Fetal Echo, GYN, GYN_C, OB, Prostate, Pelvis, Renal.

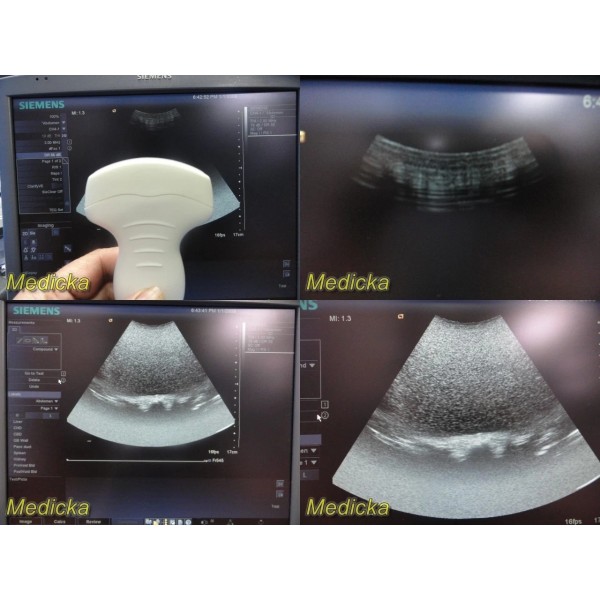

Air Scan Evaluation
- Sector formation preserved
- Depth penetration acceptable
- Multiple non‑uniform echogenic bands and mild vertical grayscale irregularities present
- Findings consistent with early element wear rather than complete dropout
- No large black dead zones observed
Uniformity / Phantom‑Style Evaluation
- Faint horizontal reverberation‑type artifacts
- Mild grayscale non‑uniformity in deeper sector
- Sector geometry stable; no severe collapse or major dropout

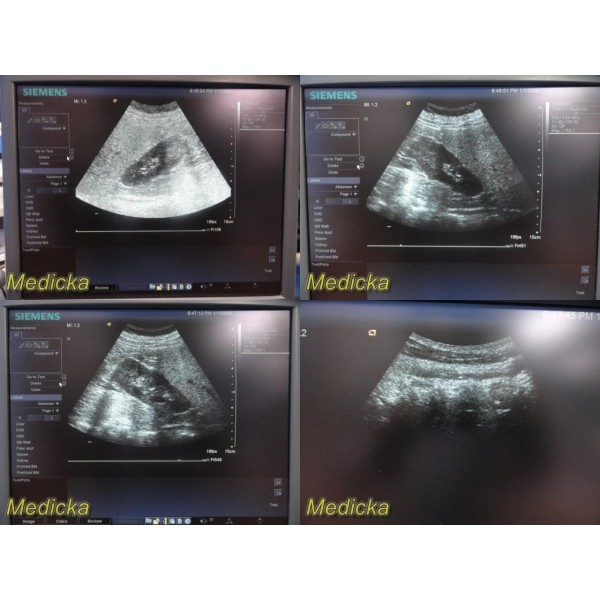

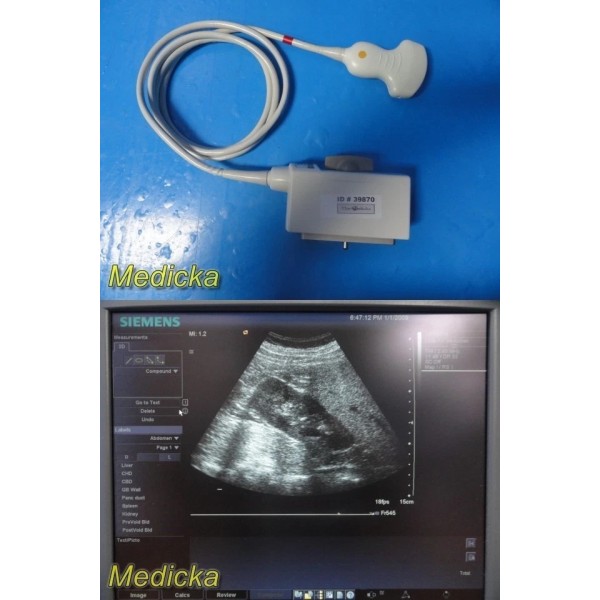

Body Scan Evaluation (Hepato‑Renal)
- Hepatic and renal structures visualized
- Recognizable anatomy with preserved organ differentiation
- Penetration and grayscale contrast acceptable for basic imaging

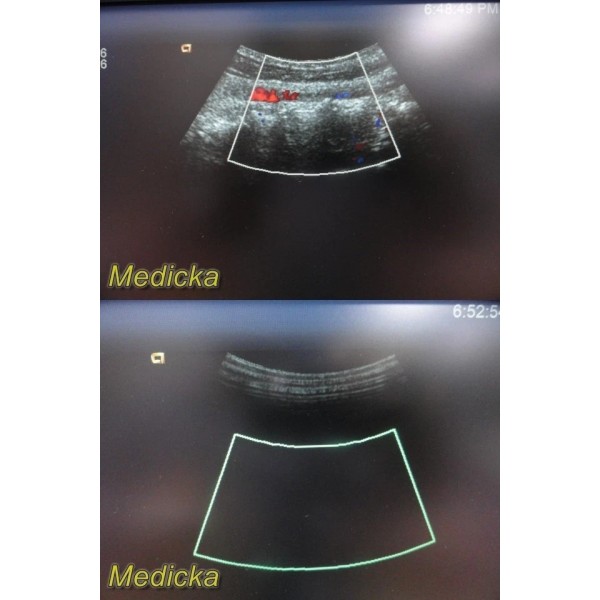

Color Doppler Evaluation
- Color flow mapping responsive
- Doppler fill and vascular signal acquisition preserved
Technical Imaging Observations
- Probe recognized consistently
- Sector geometry preserved
- Mild image non‑uniformity present
- Early element wear/artifact suspected
- No major dead element dropout
- Color Doppler functional
- Suitable for basic/general imaging
- Detailed diagnostic performance not formally verified
WHAT IS INCLUDED

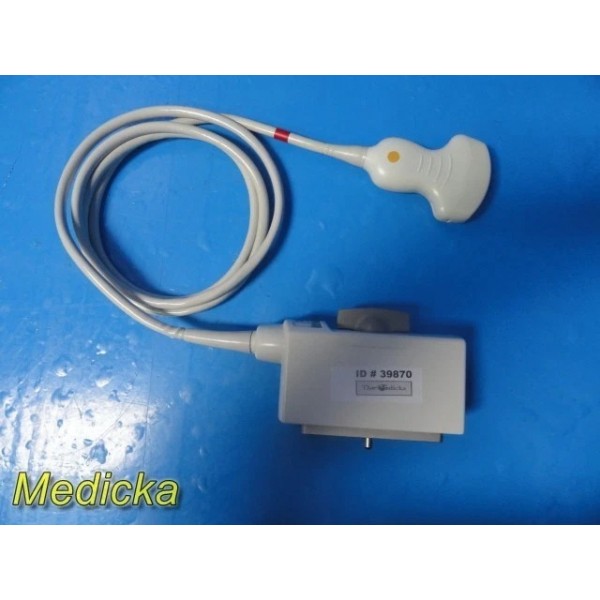

Siemens CH4‑1 Convex Ultrasound Probe
WHAT IS NOT INCLUDED
Ultrasound system, phantom, user manual, storage case, additional accessories not shown.
BUYER ADVISORY NOTE
Only basic operational testing was performed. Imaging artifacts and mild non‑uniformity suggest early element aging/degradation. Probe may be suitable for general imaging or training applications but may not be ideal for advanced diagnostic use. Preventive maintenance, calibration, and clinical suitability verification are recommended prior to patient use.
SHIPPING NOTE
Professionally packed and shipped from Medicka Medical, Minnesota.
Stock ID: 39870 (P.O. 1200) (WH104 SCC16)
