Siemens CH6‑2 Convex Ultrasound Probe | P/N 07465672 | Tested & Working ~ 39404
Item specifics
- CH6‑2MPN
- 07465672
Product details

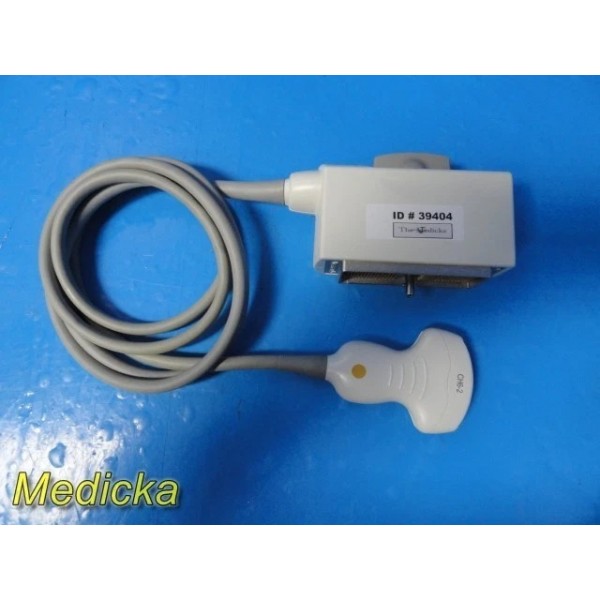

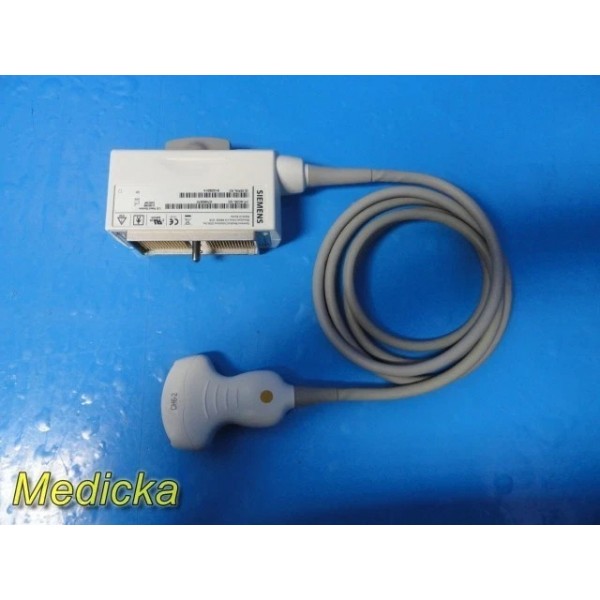

Device Profile — Siemens CH6‑2 Convex Ultrasound Probe
Device Identification
Manufacturer: Siemens Medical Solutions USA, Inc. Model: CH6‑2 Convex Array Transducer Probe Type: Curved / Convex Broadband Transducer Frequency Range Observed: 2.5 – 4.44 MHz Serial Number: 81529314 Part Number (P/N): 07465672 Date of Manufacture: 2008 Country of Manufacture: Korea Compatible System Used for Testing: Siemens ACUSON Antares Premium Edition (system not included)
Short Description
Siemens CH6‑2 convex abdominal ultrasound transducer tested on a Siemens ACUSON Antares Premium Edition system. Probe was recognized properly and evaluated using air scan, phantom‑style uniformity assessment, abdominal grayscale imaging, and color Doppler flow testing. Sale includes probe only; ultrasound system, phantom, manuals, and storage case are not included.
CONDITION SUMMARY
Quick Condition Overview
Functional Status: Tested & Working
Cosmetic Condition: Very Good Used Condition
Cable Condition: Good — no cuts or exposed shielding
Connector Condition: Good — pins intact, no bent or broken contacts

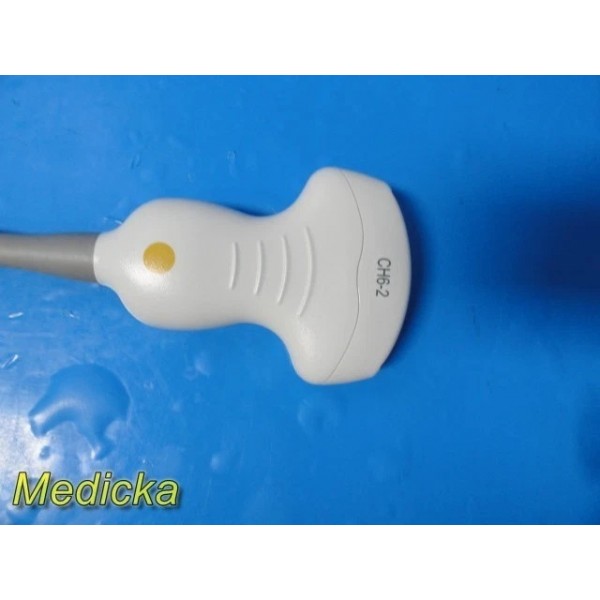

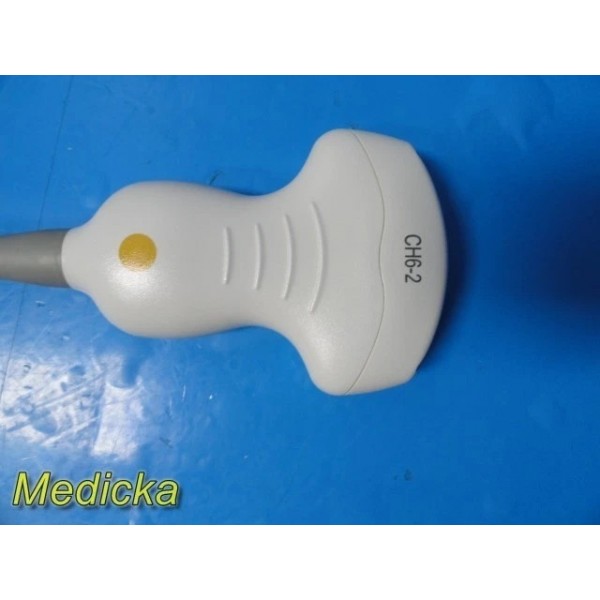

Probe Housing & Handle
Structurally intact; no cracks or major defects
Light cosmetic wear consistent with prior clinical use

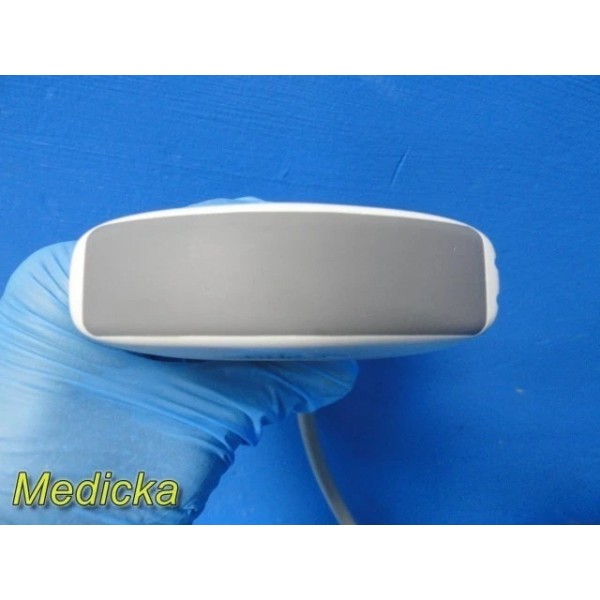

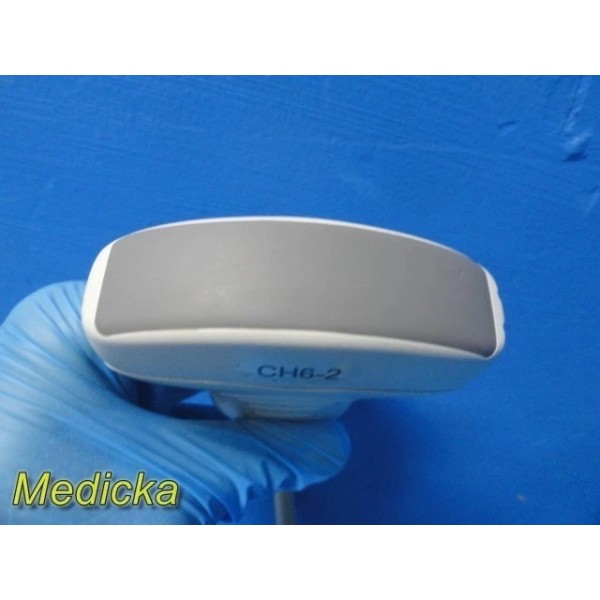

Acoustic Lens
Smooth and intact
No visible cuts, punctures, swelling, or delamination

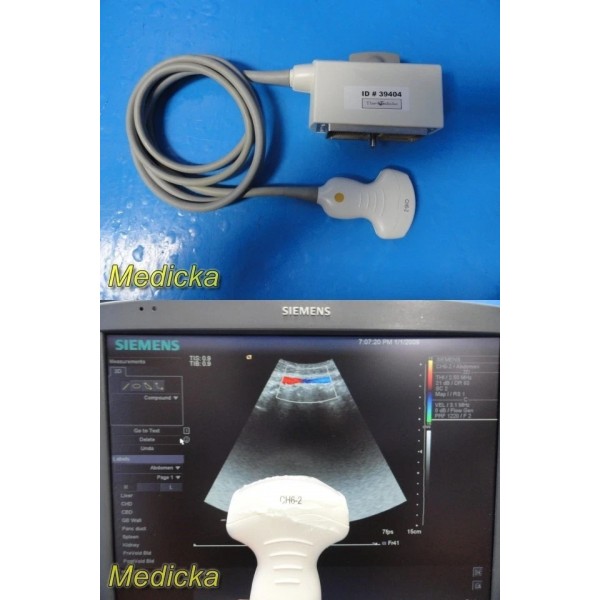

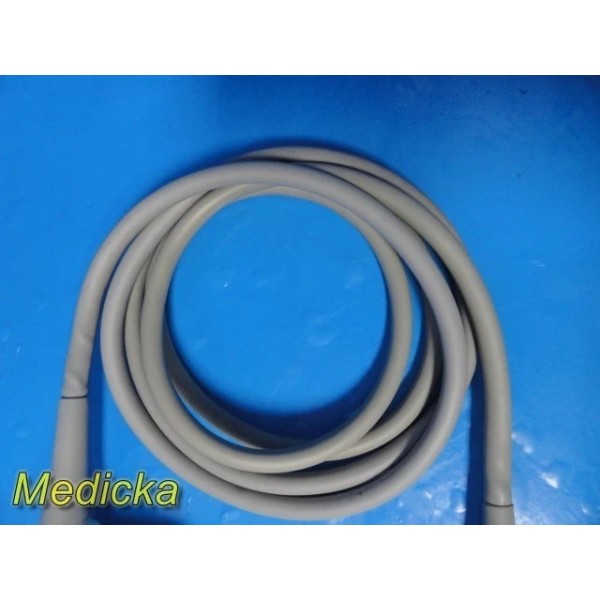

Cable & Strain Relief
Approx. 7‑foot cable
Jacket and strain reliefs intact; no separation or exposed wiring

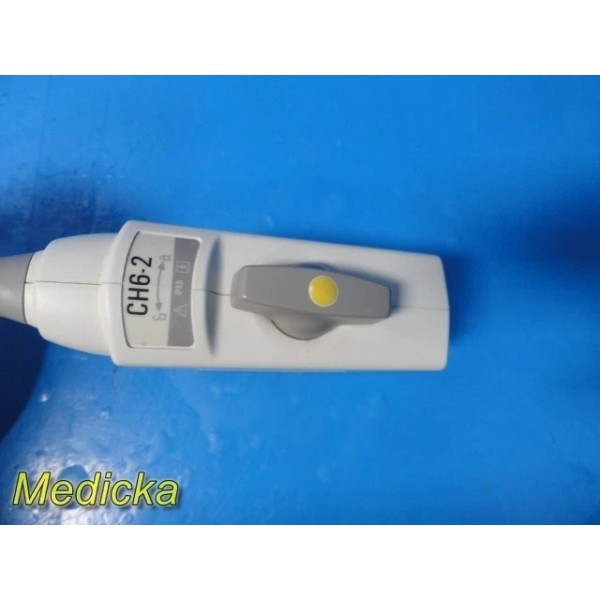

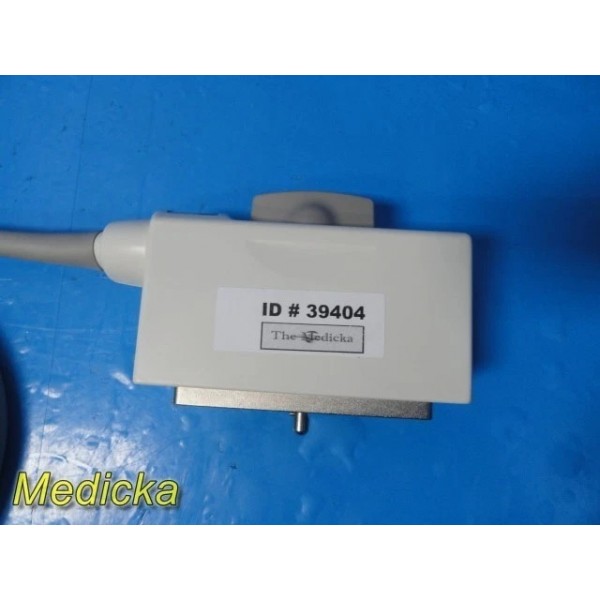

Connector Assembly
Housing intact; lock mechanism present

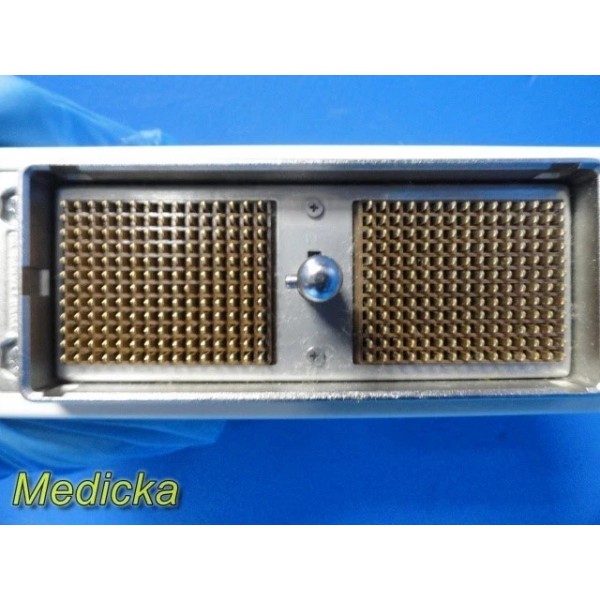

Pins straight and clean; no bent or recessed contacts
FUNCTIONALITY / TESTING SUMMARY
System Recognition
Probe recognized immediately by Siemens ACUSON Antares platform with no communication errors.
Preset / Application Recognition
Multiple clinical presets observed, including: Thyroid, Chest, Abdomen, GYN, Fetal Echo, OB, Breast, Intra‑Op Vascular, Pediatric Abdomen, Pelvis, PV‑Art.

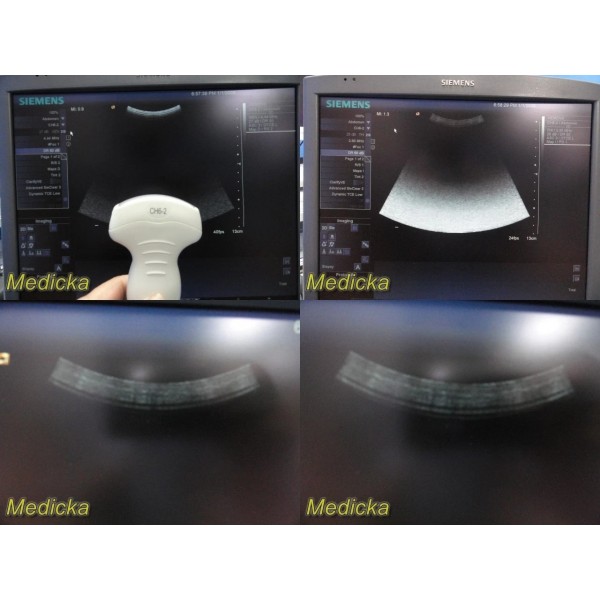

Air Scan Evaluation
Uniform sector generation
No major dropout zones or severe streaking
Mild background speckling consistent with older convex probes and gain settings
Phantom‑Style / Uniformity Assessment
Grayscale uniformity generally preserved
Acceptable depth penetration
No major horizontal banding or element failure patterns observed

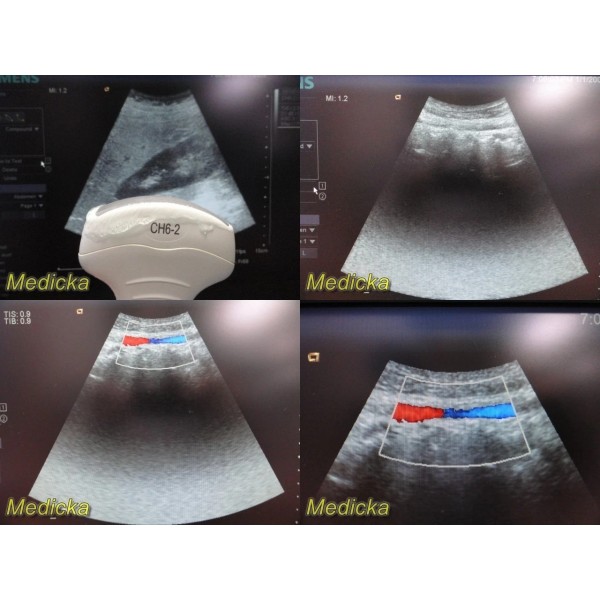

Body Scan Evaluation
Abdominal imaging performed over RUQ
Hepatic and renal echotexture visualized
Grayscale differentiation and depth penetration acceptable for general abdominal use

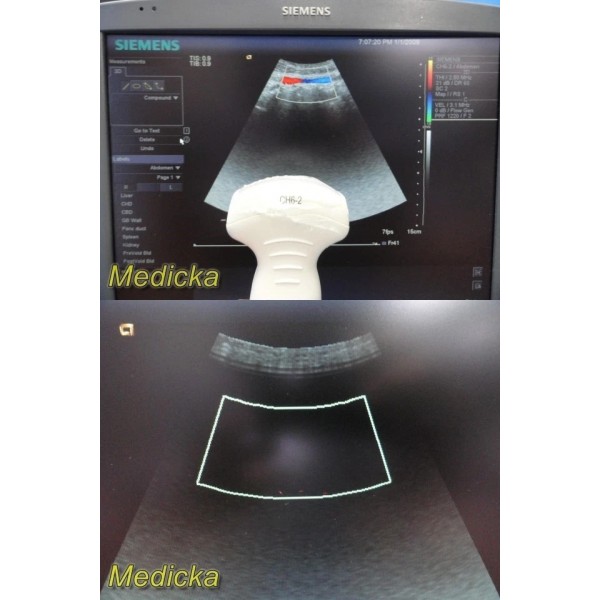

Color Doppler Assessment
Color flow demonstrated during carotid assessment
Color fill and Doppler responsiveness functional without instability or intermittent loss
Technical Imaging Observations
Sector geometry stable
Depth penetration acceptable for low‑frequency convex probe
No major dropout observed
Grayscale uniformity preserved
Color Doppler functionality demonstrated
Suitable for general abdominal/basic imaging applications
BUYER ADVISORY NOTE
Only basic operational testing was performed. No formal phantom calibration or biomedical analyzer testing was conducted. Probe may be suitable for general imaging but may not meet requirements for advanced diagnostic applications. Preventive maintenance, calibration, and clinical suitability verification are recommended prior to patient use.
WHAT IS INCLUDED
Siemens CH6‑2 Convex Ultrasound Probe
WHAT IS NOT INCLUDED
Ultrasound system, phantom, user manual, storage case, additional accessories or cables not shown.
SHIPPING NOTE
Professionally packed and shipped from Medicka Medical, Minnesota.
Stock ID: 39404 (P.O. 1200) (WH104 SCC16)
