Device Profile - Siemens VFX9‑4 Multi‑D Linear Array Probe

Model: 05936237 S/N: X94C081465  DOM: 2008   Frequency: 9–4 MHz  
Connector: Siemens Multi‑D  Cable Length: ~7 ft
Manufacturer: Siemens Medical Solutions USA, Inc.  
Country of Origin: Made in USA  CE# 0123
System Compatibility: Siemens ACUSON Antares / Antares Premium Edition Ultrasound Systems
Probe Type: Linear Array Ultrasound Transducer

Short Description

Siemens VFX9‑4 Multi‑D linear array ultrasound probe tested on a Siemens ACUSON Antares Premium Edition system (system not included). Probe was evaluated using air scan, phantom‑style imaging, carotid vessel imaging, and color Doppler flow. Probe was recognized by the system and produced vascular imaging with responsive color flow.

Quick Condition Overview

• Functional Status — Tested & Working
• Cosmetic Condition — Good Used Condition
• Working Status — System Recognized; Functional Color Doppler
• Completeness — Probe Only

Condition Summary

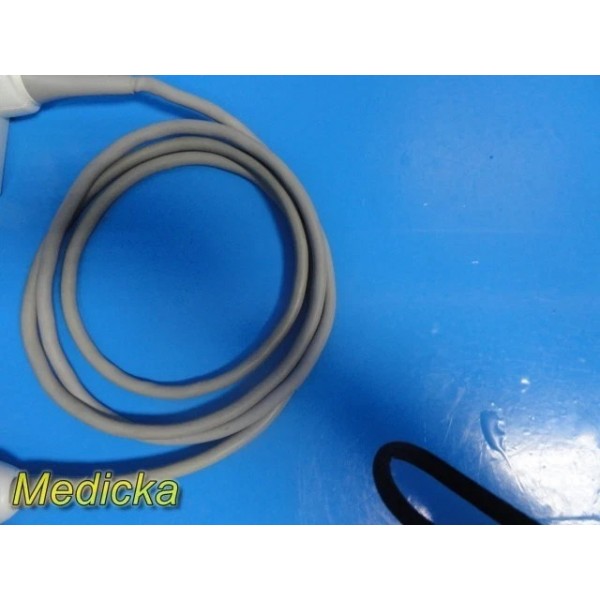

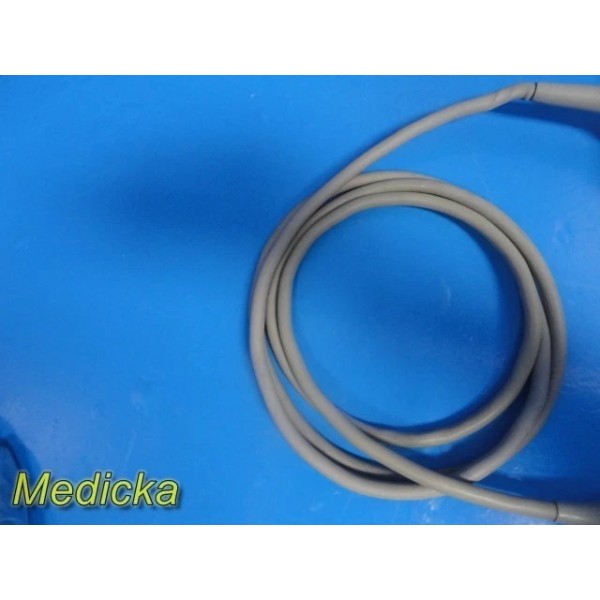

Cable Condition
Approx. 7‑ft cable in good condition; no major cuts, tears, or exposed shielding observed.

Strain Reliefs
Both strain reliefs intact; no major separation or deterioration.

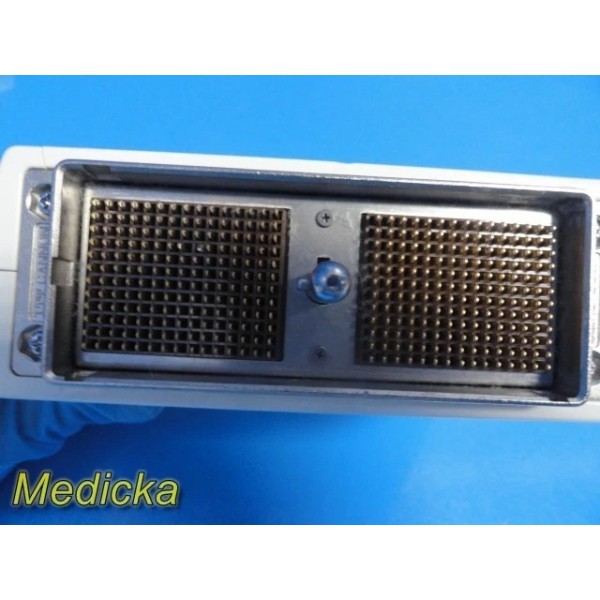

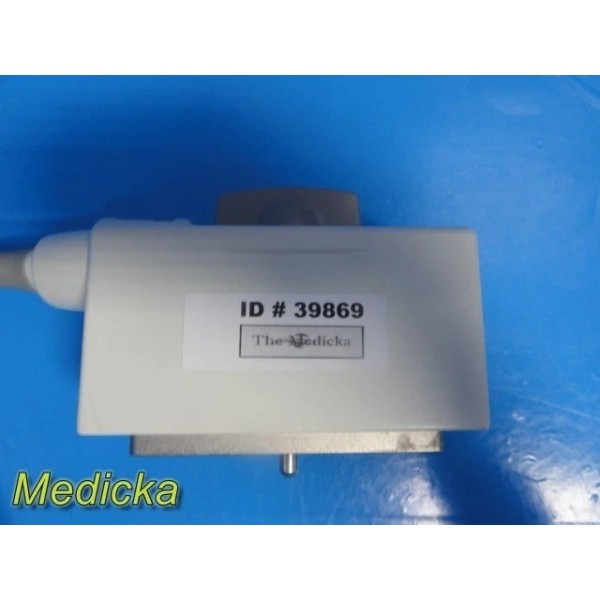

Connector Condition

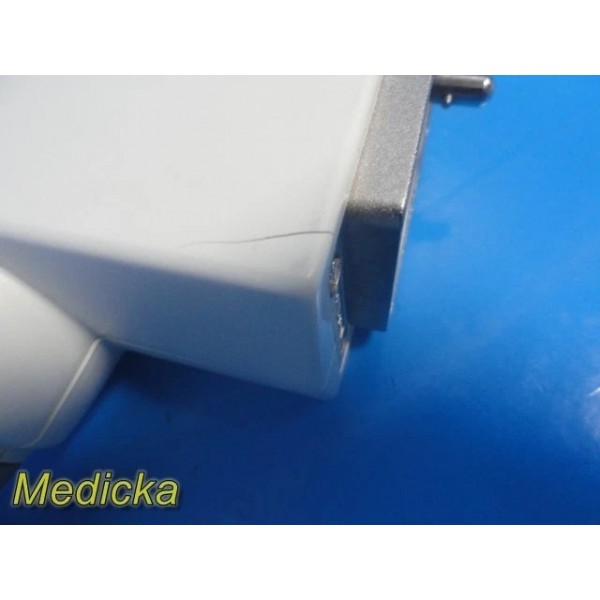

Housing structurally intact; faint crack present near connector (visible in images).

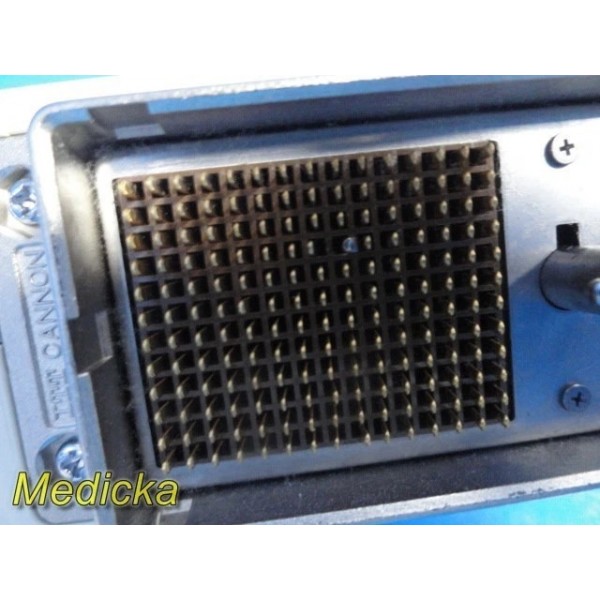

One pin bent and one slightly deformed — buyer should review connector images carefully.

Locking Mechanism
Connector lock present and functional.

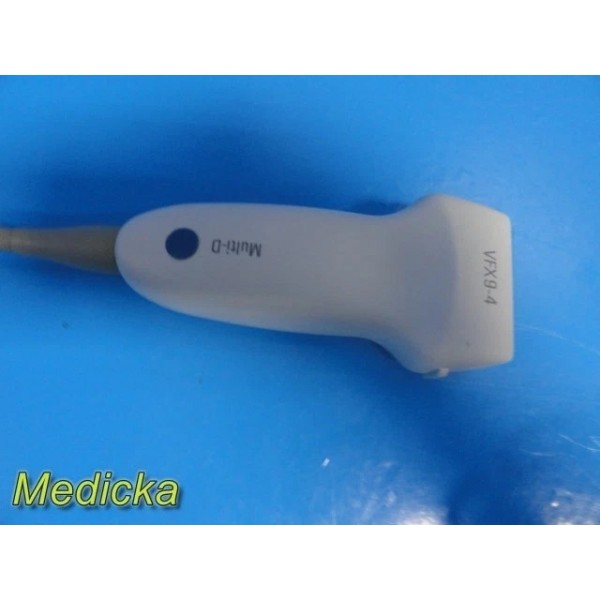

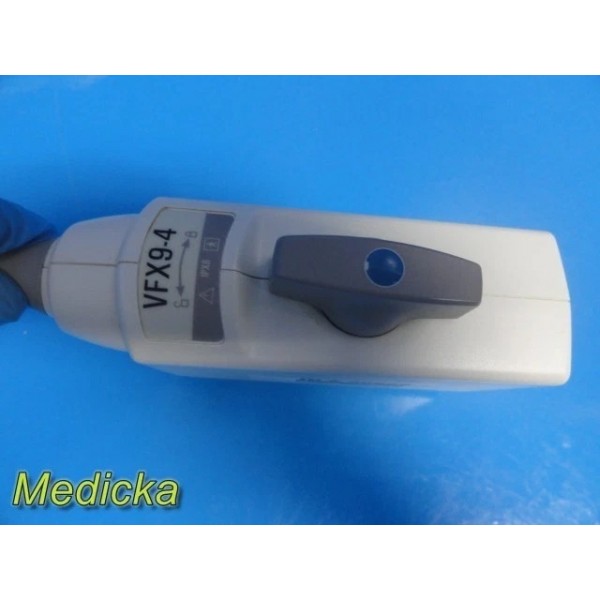

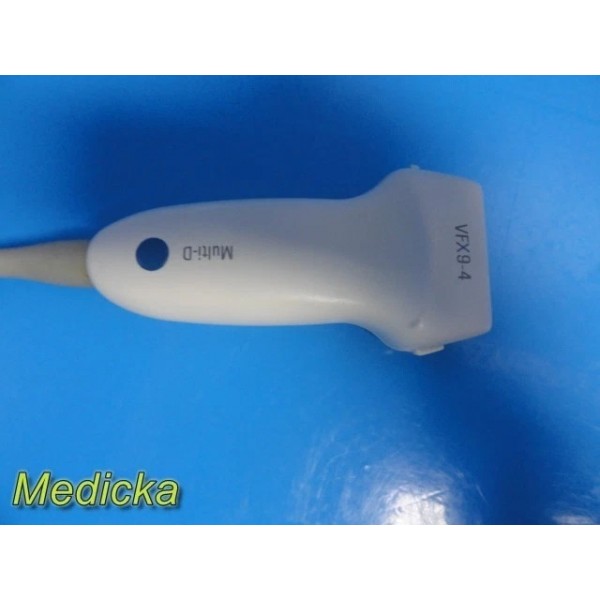

Probe Housing & Handle
Structurally intact with normal cosmetic wear; no major cracks or dents.

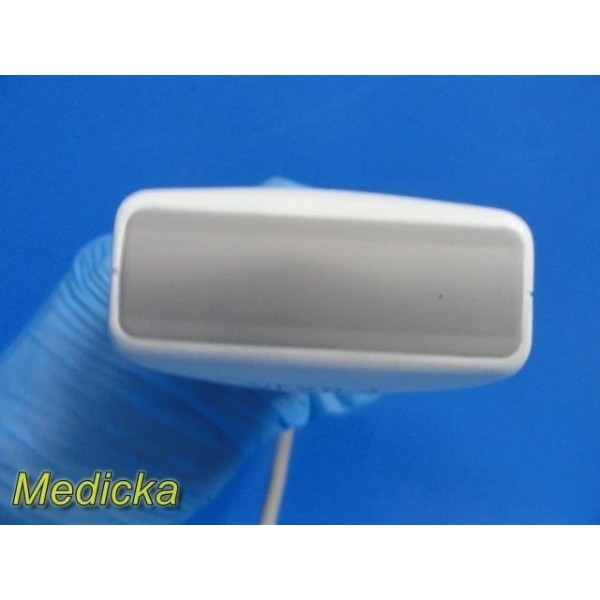

Acoustic Lens
Shows normal clinical wear with minor surface imperfections; no major delamination observed.

Functionality / Testing Summary

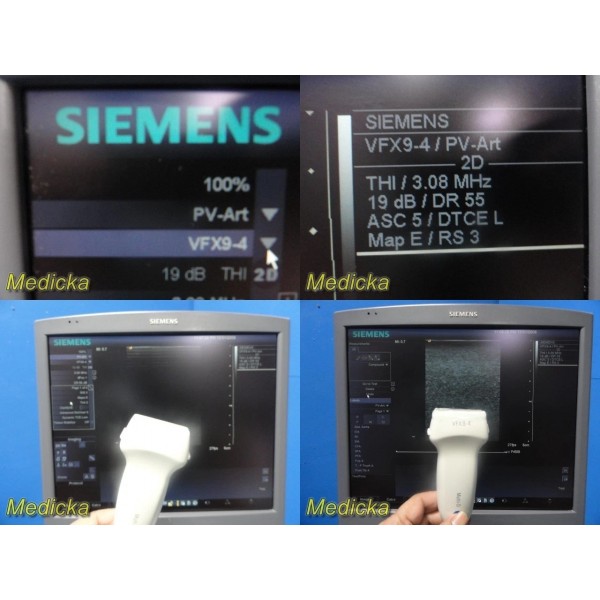

System Recognition
Probe recognized by Siemens ACUSON Antares Premium Edition.

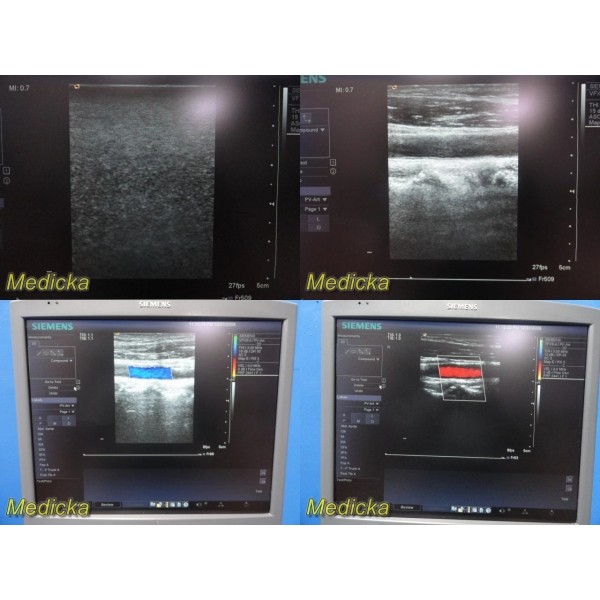

Air Scan Evaluation
Image output produced; minor image imperfections may be present.

Phantom‑Style Imaging
Grayscale imaging responsive with acceptable visualization during limited testing.

Body Scan Testing
Limited carotid scan performed; vascular lumen visualized successfully.

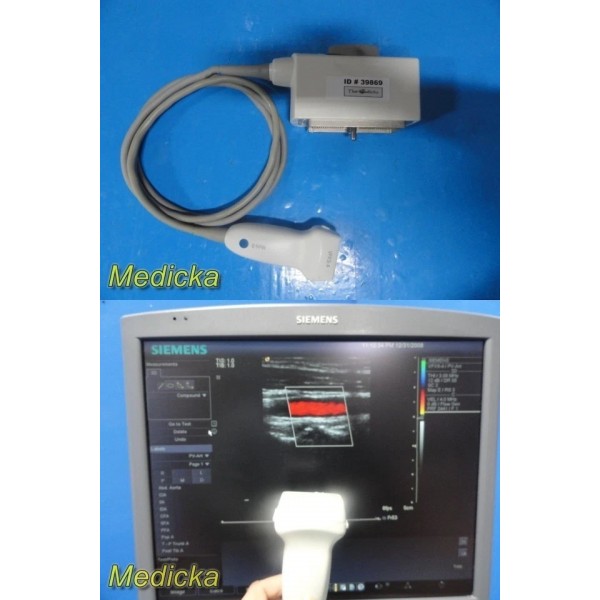

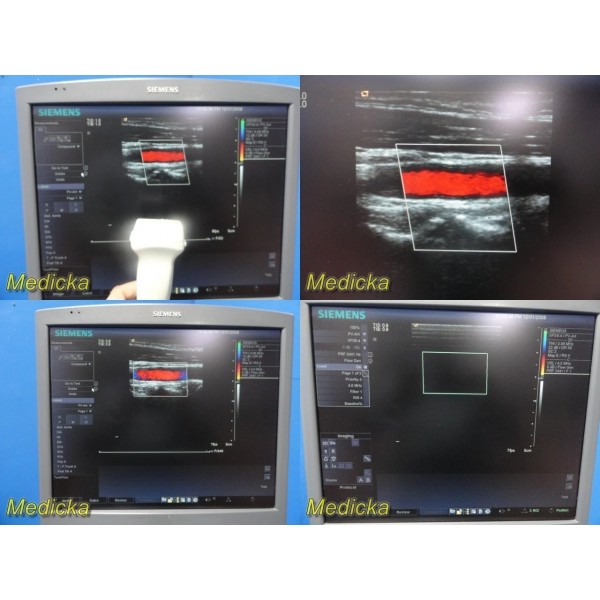

Color Doppler Evaluation
Color flow Doppler responsive with visible vascular flow during carotid assessment.

Testing Limitation
No element‑by‑element analysis, calibration verification, or advanced diagnostic testing performed.

What Is Included

• Siemens VFX9‑4 Multi‑D Linear Ultrasound Probe

What Is Not Included

• Siemens ACUSON Antares ultrasound system
• User manual
• Phantom
• Storage case
• Biopsy guide
• Consumables or disposables
• Any additional accessories not shown

Buyer Advisory Note

This is a used medical ultrasound transducer. Additional inspection, calibration, or servicing may be required before clinical use. Connector pin condition should be reviewed carefully. Minor cosmetic wear and image irregularities may be present consistent with age and prior use. Please review all images carefully.

Shipping Note

Probe will be professionally packaged with protective cushioning and connector protection for safe shipment.
