Product details

Device Profile – Siemens ACUSON Antares Premium Edition Ultrasound System

• Manufacturer: Siemens Medical Solutions USA, Inc.
• System: ACUSON Antares Premium Edition Diagnostic Ultrasound System
• Model: ACUSON Antares P.E.
• Model No.: 10032746
• Serial Number: 114909
• Date of Manufacture: 2007
• System Type: IVK
• Voltage: 115V • Frequency: 50/60 Hz • Current: 12A
• Software Platform: syngo Antares 5.0
• Software Version Observed: 200.1.125
• Diagnostics Version: 200.1.125.01 (Oct 2, 2012)
• Country of Manufacture: USA
• CE Marked: Yes (CE 0123)

Short Description

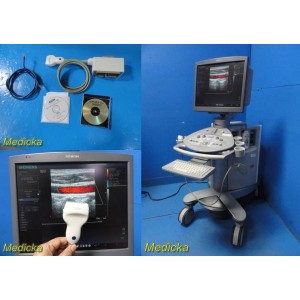

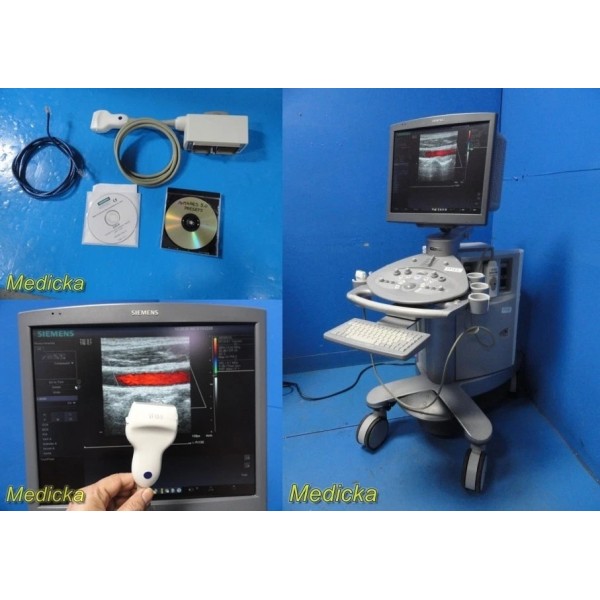

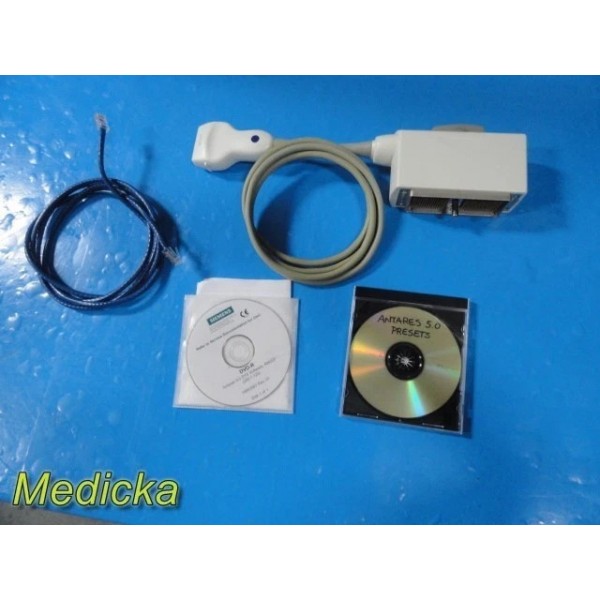

Siemens ACUSON Antares Premium Edition ultrasound system with Siemens VF10‑5 linear probe, Mitsubishi P93D thermal printer, and syngo Antares 5.0 software media. System powers on, bypasses the CMOS battery warning, boots into syngo Antares 5.0, recognizes the VF10‑5 probe, and was tested with air scan and carotid color Doppler imaging.

Quick Condition Overview

Functional Status: Tested & Working Cosmetic Condition: Good overall with normal clinical wear Display: Bright & clear; no cracks Controls / Keyboard: Responsive; one “M” knob missing Probe Status: VF10‑5 included & recognized Printer Status: P93D powers on (paper not included) Software Media: SYS Software RM220 DVD‑R + Presets disc included Maintenance Note: CMOS/date‑time battery replacement recommended Completeness: Console + VF10‑5 probe + printer + keyboard + software media

Condition Summary

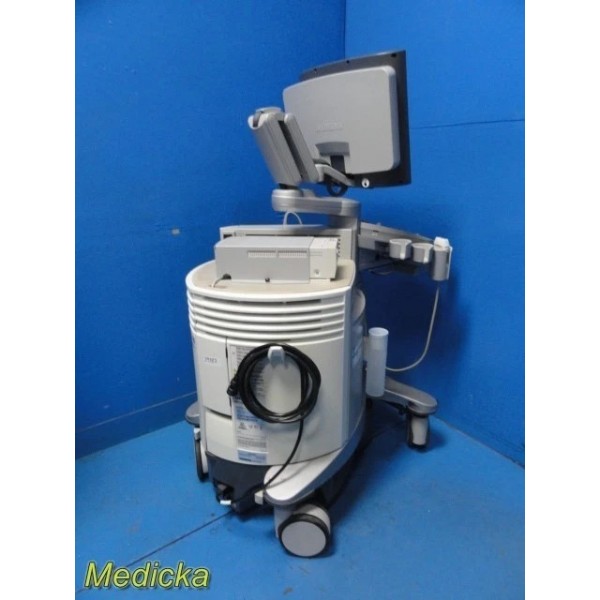

System Cosmetics

Good overall condition with normal scuffs, scratches, and age‑related wear. Side panels intact; no major cracks or dents. Some paint wear on high‑contact areas.

Monitor & Articulating Arm

Siemens flat‑panel monitor bright and readable; no cracks. Articulating arm positions and rotates properly.

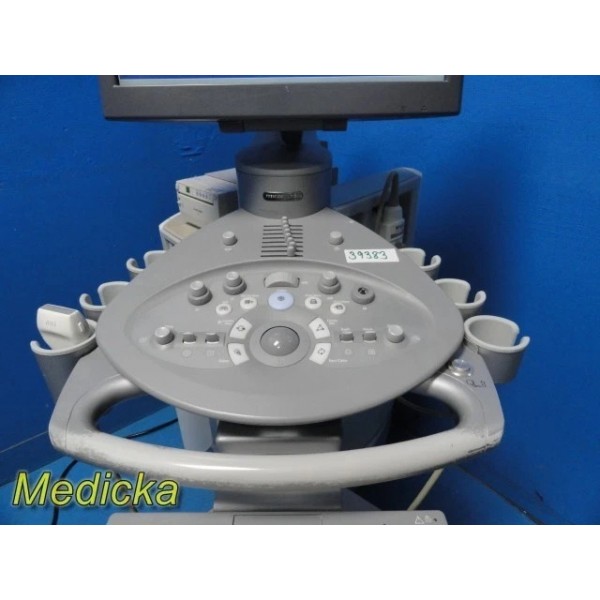

Control Panel & Keyboard

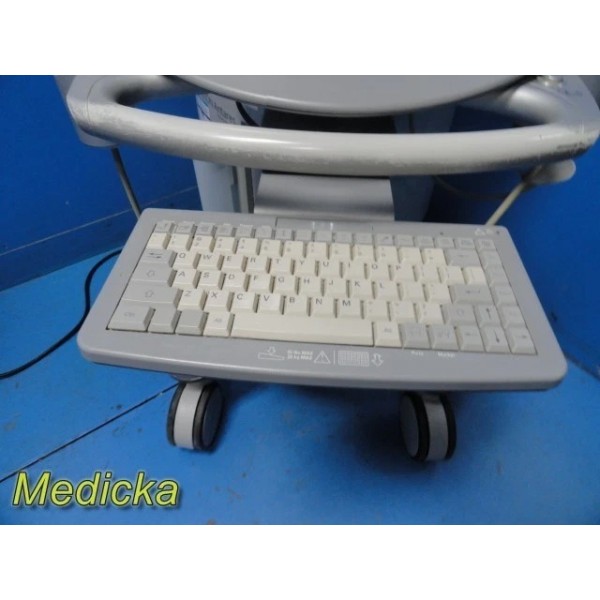

Control panel responsive; trackball, keys, and membrane controls functional. One rotary knob (“M”) missing. Retractable keyboard included and responsive.

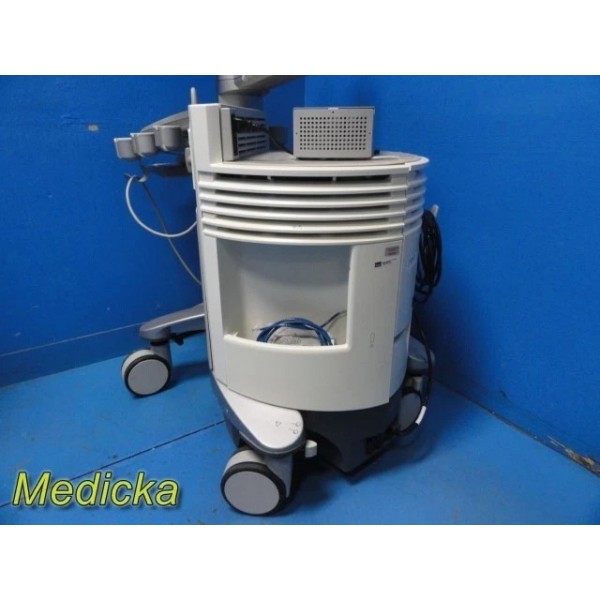

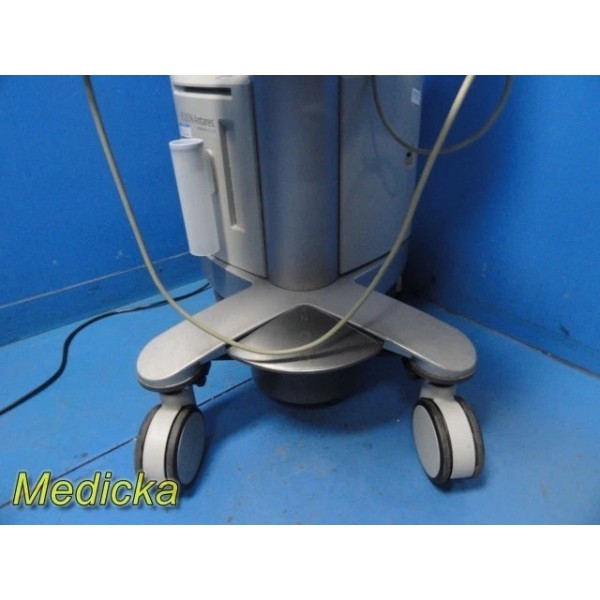

Mobility / Cart

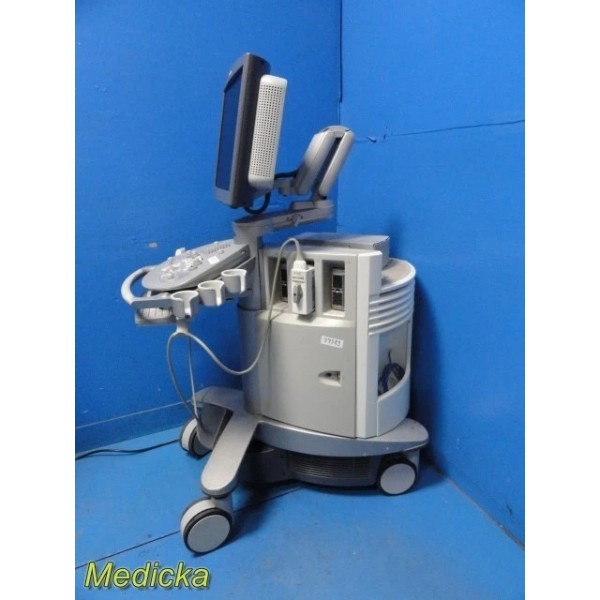

System rolls smoothly; wheels lock properly. Probe holders and cart structure intact. Height/position adjustments functional.

Printer

Mitsubishi P93D included; powers on and front controls illuminate. Paper not included, so print output not fully tested.

Probe Condition

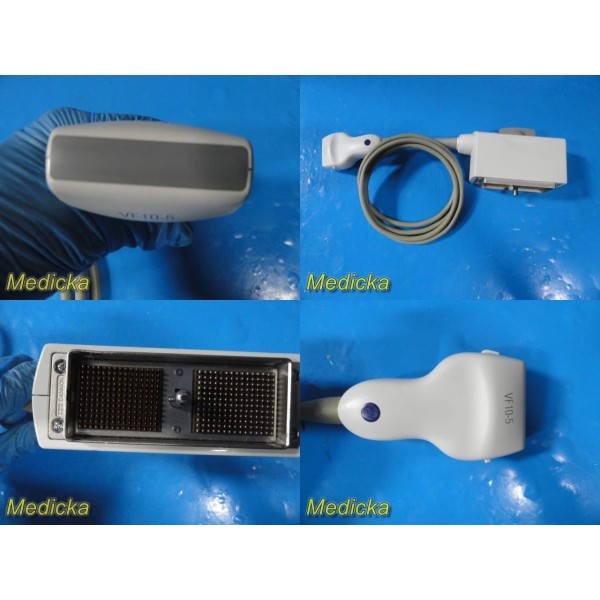

Siemens VF10‑5 linear probe included. Cable intact with no visible cuts. Housing and lens in good condition. Connector pins intact; no bent or missing pins. IPX8 marking observed.

Ports / Connectivity

Rear/service ports present including ECG/physio module, LAN, USB, and video/communication interfaces. ECG/physio module observed: Model 10436473, Serial JBSH1228R015, Rev. 01. Full PACS/network testing not performed.

Software / Media

Includes Siemens Antares 5.0 SYS Software RM220 DVD‑R (Version 200.1.125) and Antares 5.0 presets disc.

Functionality / Testing Summary

Power‑On / Boot

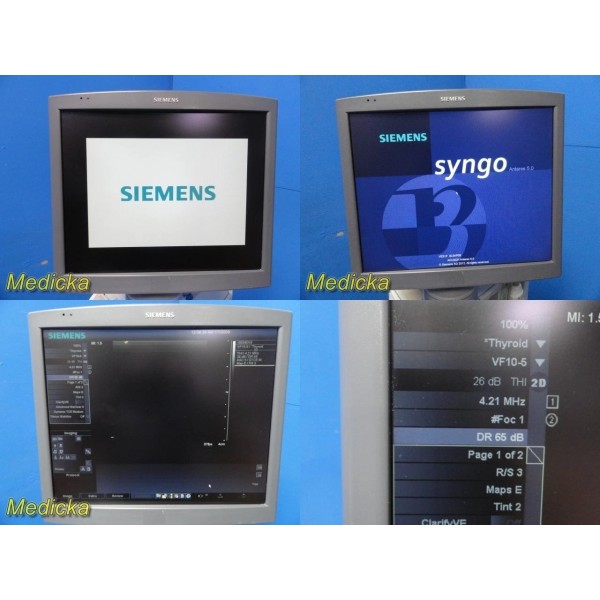

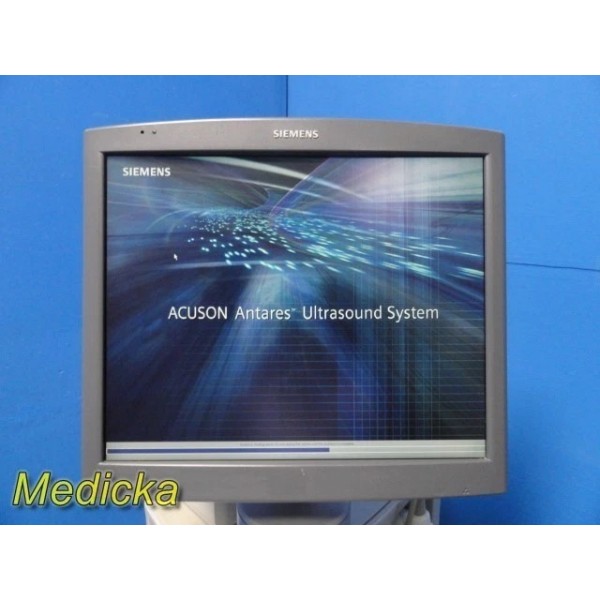

System powers on, displays CMOS battery warning, and continues to syngo Antares 5.0 after pressing Enter.

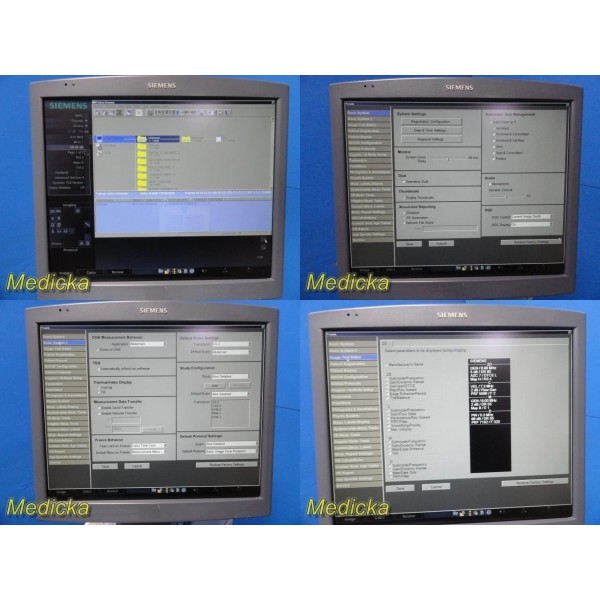

Software Operation

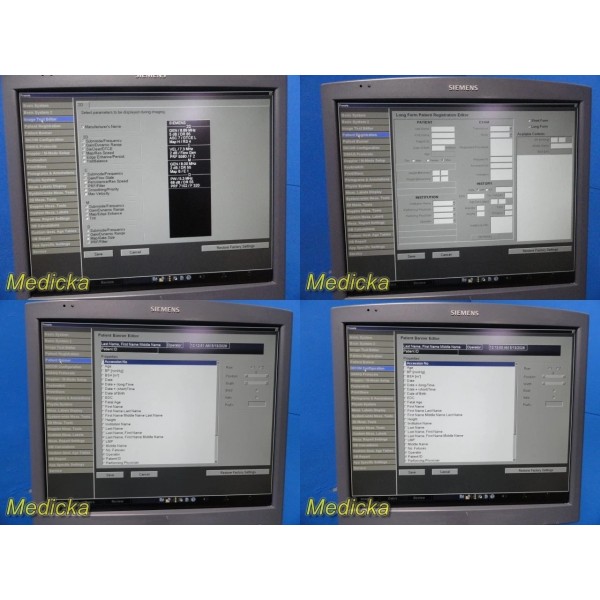

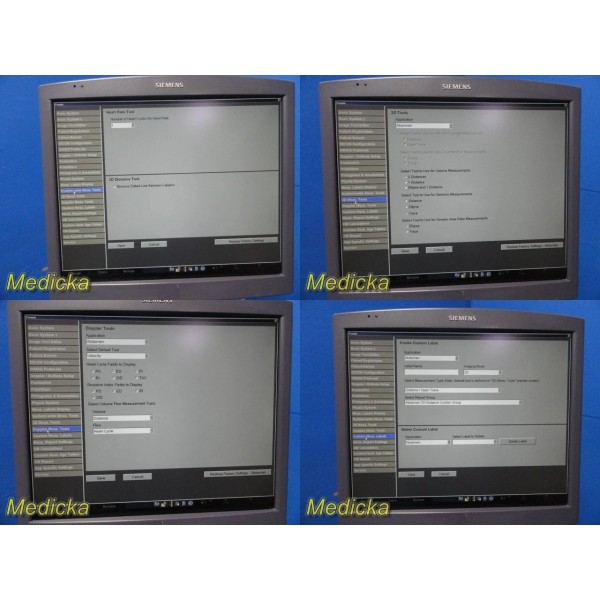

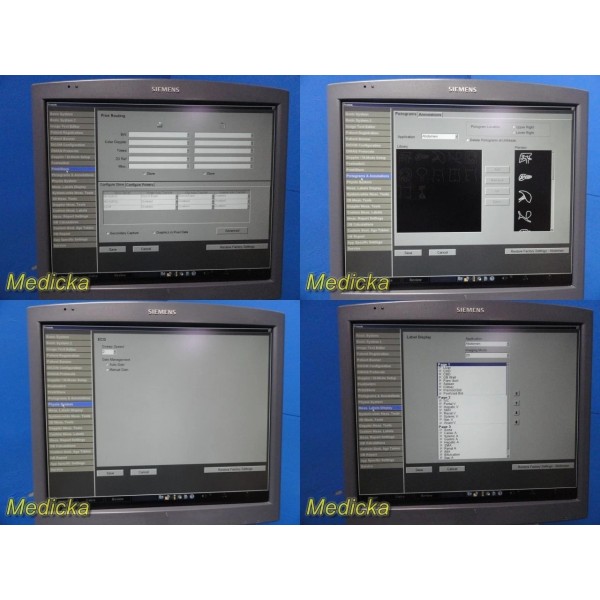

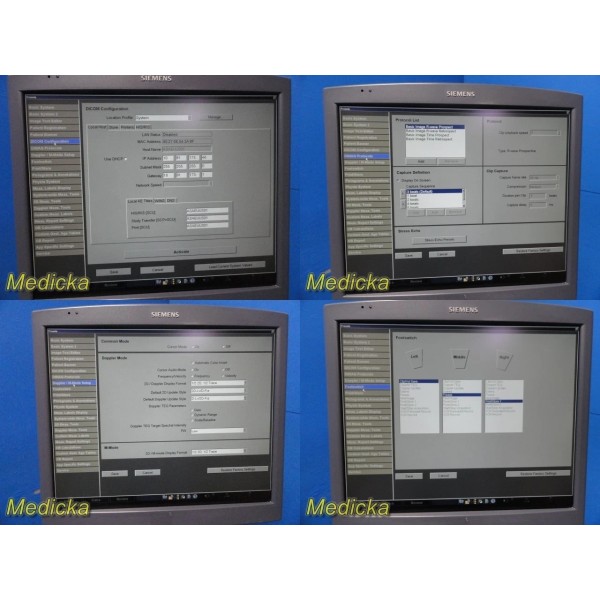

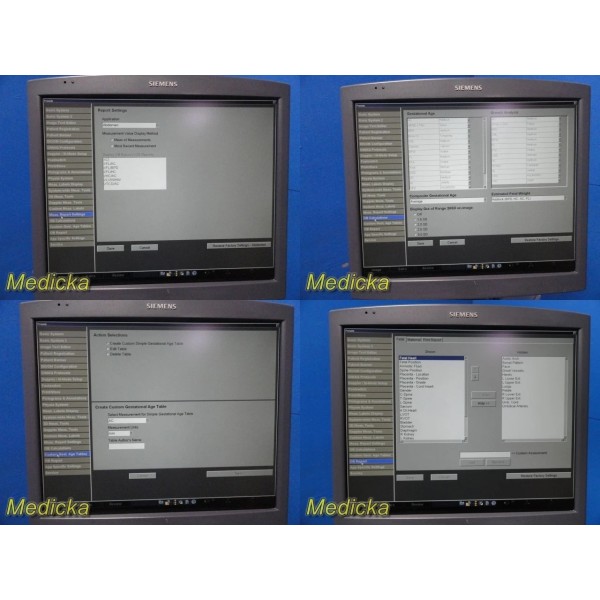

Accessed system information, DICOM configuration, print/store routing, footswitch setup, DIMAQ protocols, measurement tools, OB calculations, annotations, and general system settings.

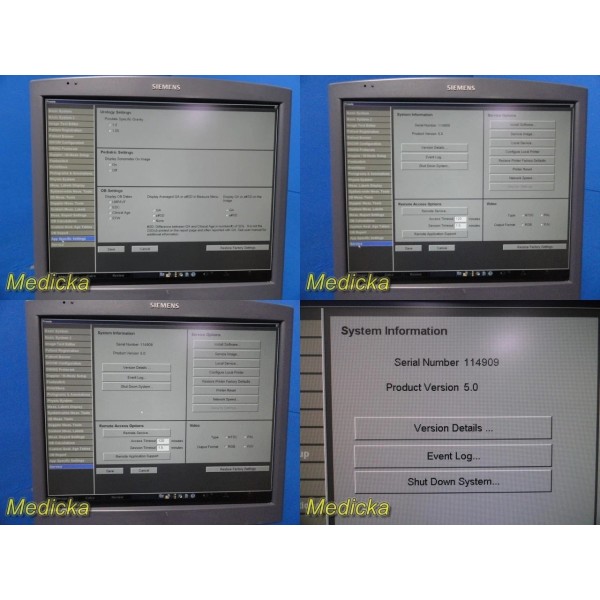

System Information Observed

Product Version 5.0 • Software 200.1.125 • Diagnostics 200.1.125.01 • Serial Number 114909.

Probe Recognition

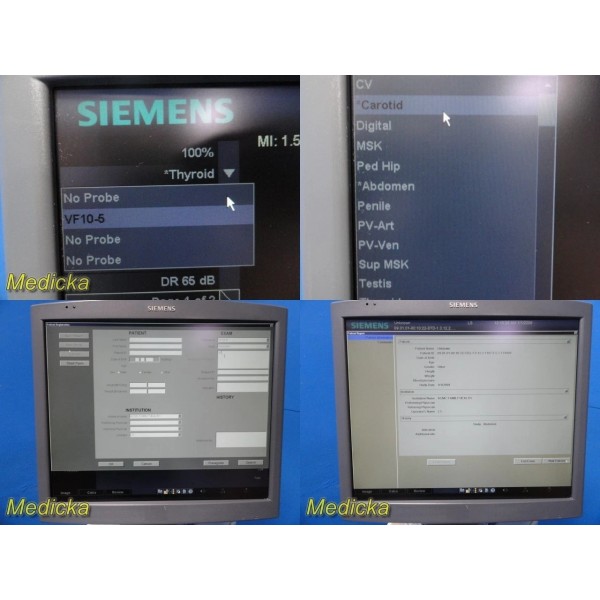

VF10‑5 probe recognized. All three probe ports tested and reported functional.

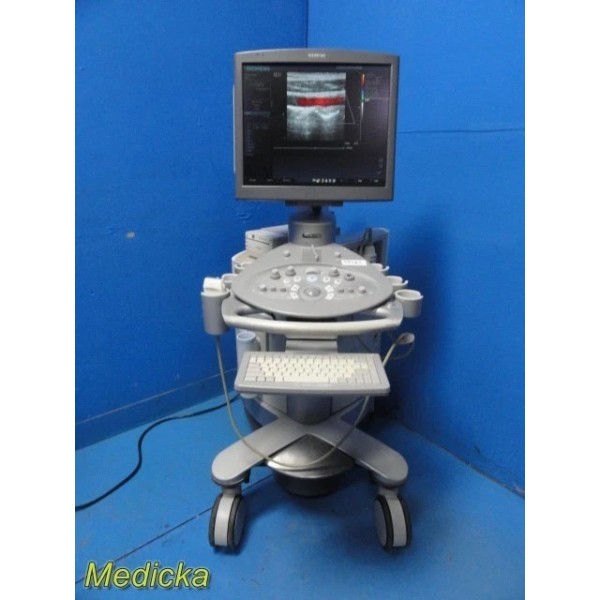

Imaging Tests

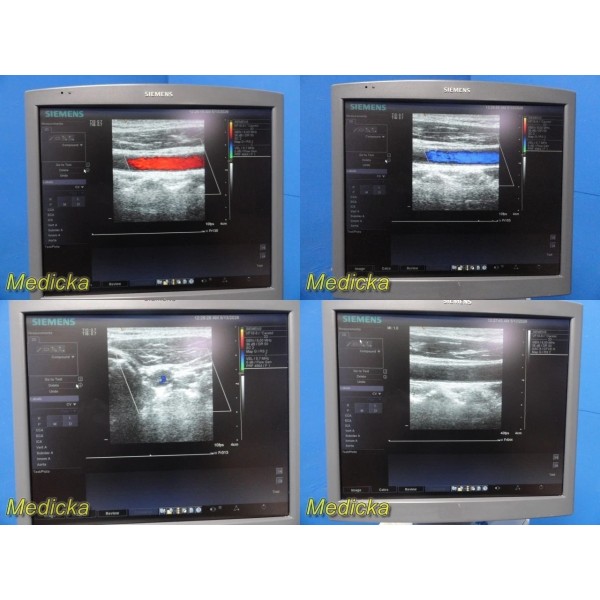

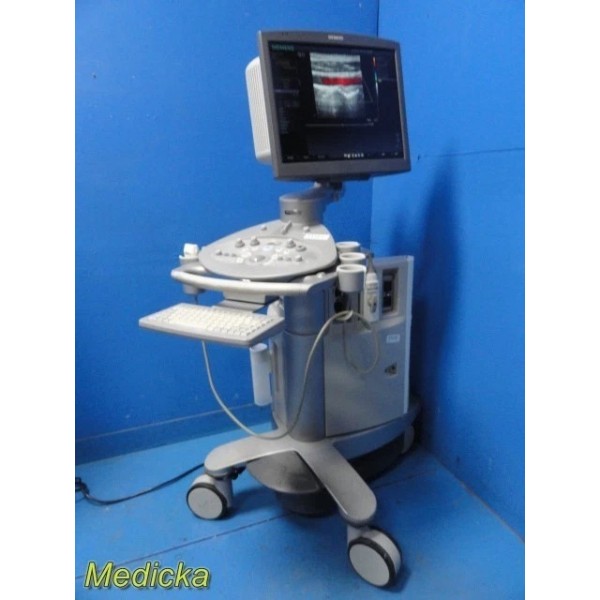

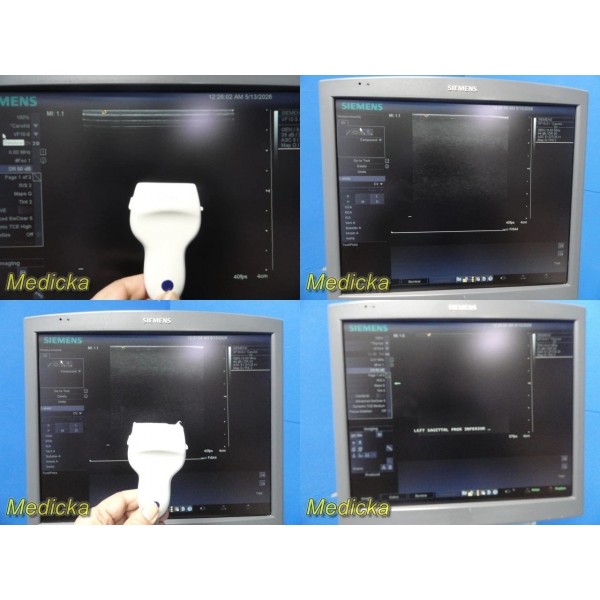

Air scan performed (minor artifact noted). Carotid vascular scan performed; vessel lumen visualized and color Doppler functional. No additional clinical testing performed.

Applications / Presets

Observed presets include Carotid, Digital, MSK, Ped Hip, Abdomen, Penile, PV‑Art, PV‑Ven, Sup MSK, Testis, Thyroid, OB, and User Defined.

DICOM / Network

DICOM menus accessible; AE title, LAN, and routing screens available. PACS connectivity not tested.

Workflow Features

Footswitch configuration, DIMAQ protocols, annotations, pictograms, structured reporting, and measurement tools accessible.

What Is Included

• Siemens ACUSON Antares P.E. ultrasound system
• Siemens VF10‑5 linear array probe
• Mitsubishi P93D thermal printer
• Integrated monitor & articulating arm
• Operator control panel
• Retractable Siemens keyboard
• Power cord
• Siemens Antares 5.0 SYS Software RM220 DVD‑R
• Antares 5.0 presets disc
• Items shown in images

What Is Not Included

Printer paper • User manual • Phantom • Footswitch • Additional probes • Additional accessories/cables • Consumables • Recent PM records

Buyer Advisory Note

This is a used diagnostic ultrasound system tested as described. A CMOS/date‑time battery warning appears at startup; replacement is recommended. Printer powers on but print output was not tested due to lack of paper. Probe testing was limited to air scan and carotid Doppler. Buyer should verify compatibility, software/licensing requirements, calibration, and clinical readiness before use.

Stock ID: 39383 (P.O. 1200) (WH104)
