2015 Siemens VF13-5 Linear ...

Product details

Device Profile

Manufacturer: Siemens Medical Solutions USA, Inc.

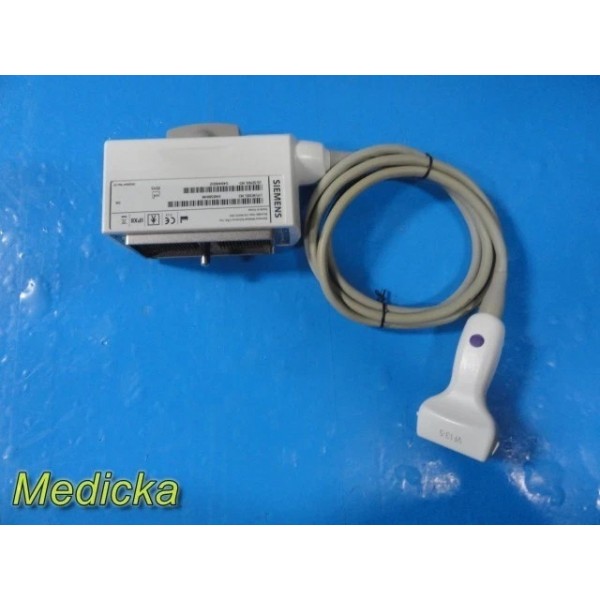

Item: Siemens VF13-5 Linear Array Ultrasound Transducer / Probe
Model / REF No.: 04838848
Serial No.: 54846002
Probe Model:VF13-5
Date of Manufacture: 2015
Made In: Korea
CE Marked: Yes, CE 0123
Ingress Protection: IPX8 marked on probe housing
Frequency / Application: High-frequency linear probe, VF13-5, 5–13 MHz range as indicated by model series

Short Description

Siemens VF13-5 high-frequency linear ultrasound probe tested with a Siemens Sonoline ANTARES Premium Edition ultrasound system. The probe was recognized by the system and was evaluated with air scan, phantom scan, and vascular carotid scan. 2D imaging and color flow were observed during testing.

Compatible / Available Applications Shown on System

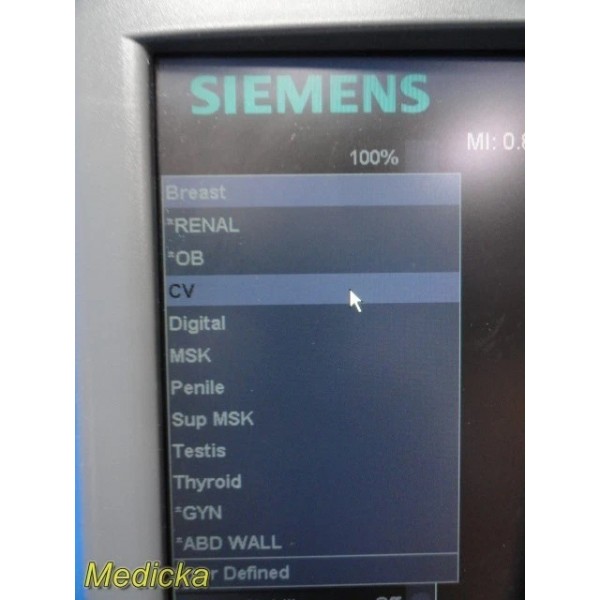

The uploaded system screen shows available probe applications including: Breast, Renal, OB, CV, Digital, MSK, Penile, Sup MSK, Testis, Thyroid, GYN, ABD WALL, and User Defined.

Quick Condition Overview

Cosmetics: Good overall used cosmetic condition
Cable Condition: Approx. 7 ft cable, no visible cuts, tears, or major kinks noted
Strain Relief: Intact

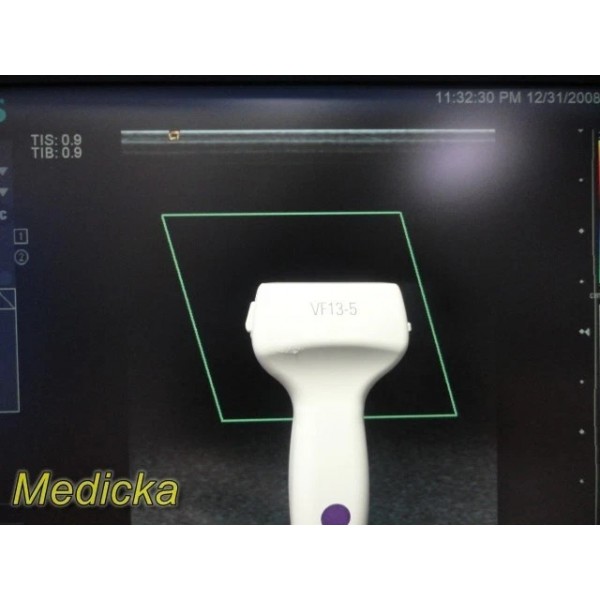

Probe Handle / Housing: Good condition overall; no dents or cracks observed, minor signs of normal use may be present
Acoustic Lens: Smooth and intact with no obvious surface cuts or tears noted

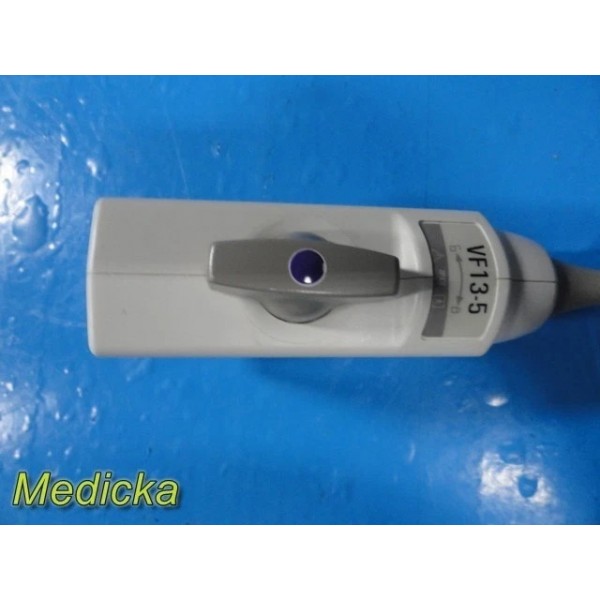

Connector Condition: Good shape; lock/lever is intact
Pin Condition: Connector pins appear intact with no broken or visibly bent pins noted
Working Status: Tested with 2D imaging and color flow observed
Completeness: Probe only

Condition Summary

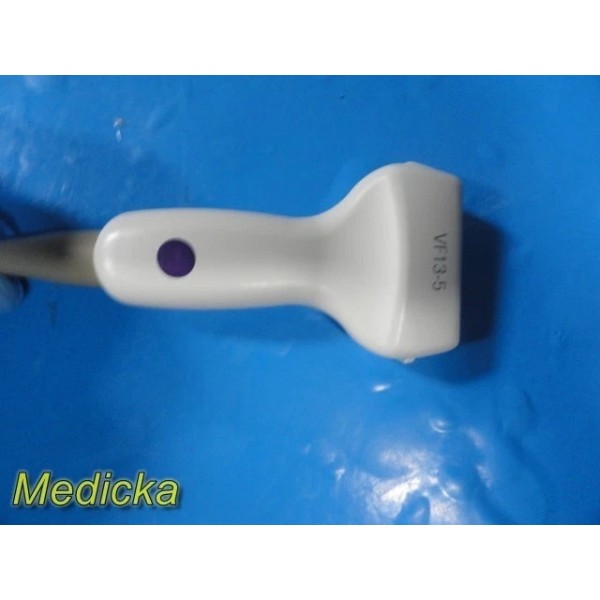

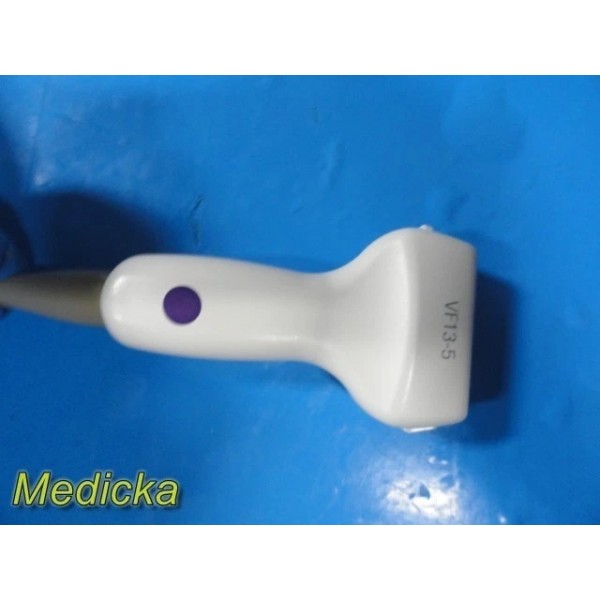

Probe Body & Handle: The probe handle and body are in good overall condition. No dents, cracks, or major structural damage were observed. Minor surface wear/scuffs may be present from normal prior use.

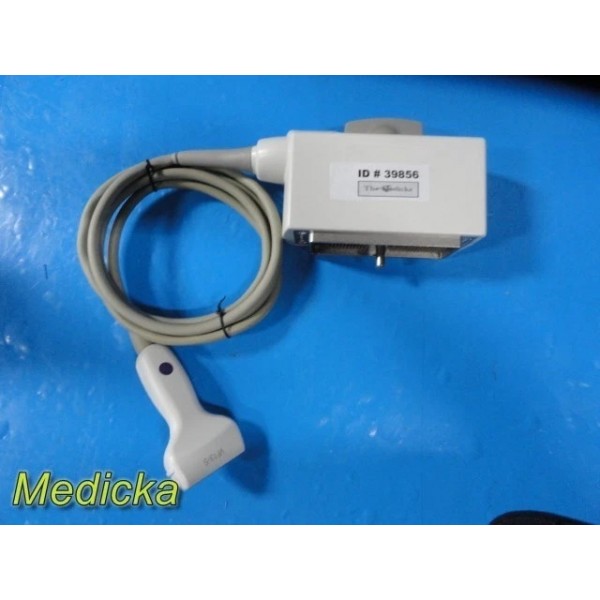

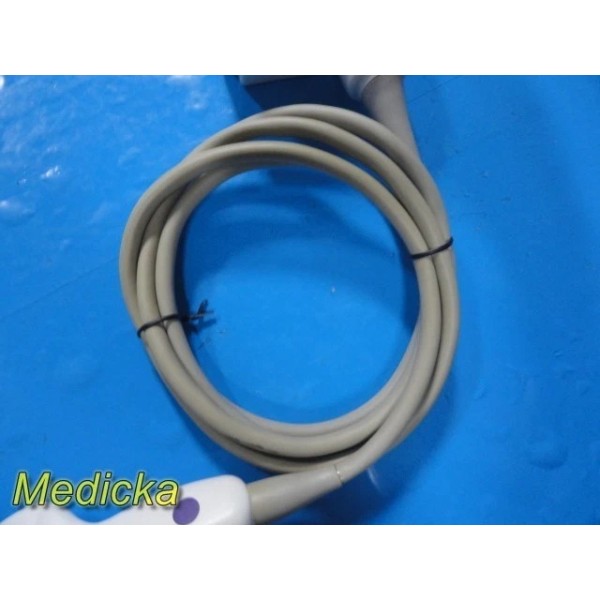

Cable & Strain Relief: Cable measures approximately 7 feet and appears intact, with no visible cuts, tears, or major kinks noted. Strain relief areas appear intact.

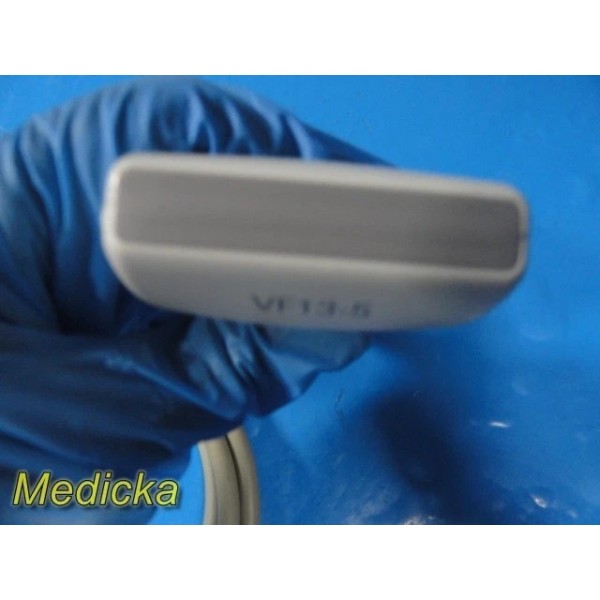

Acoustic Lens: Acoustic lens appears smooth and intact. No obvious tears, cuts, or significant lens damage were observed from the provided images.

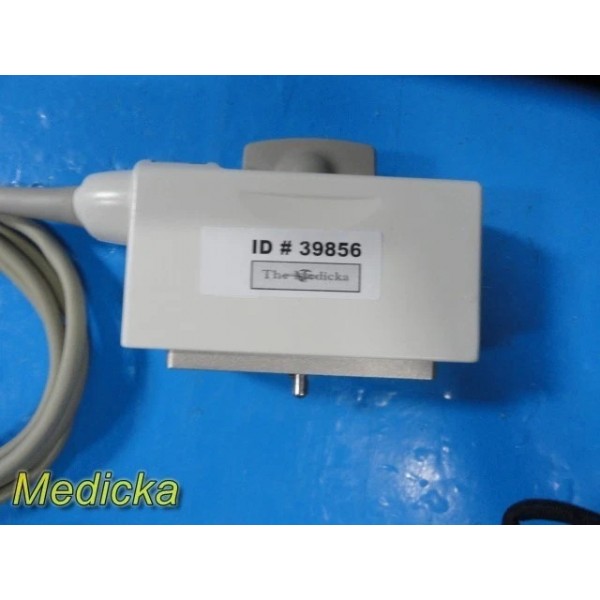

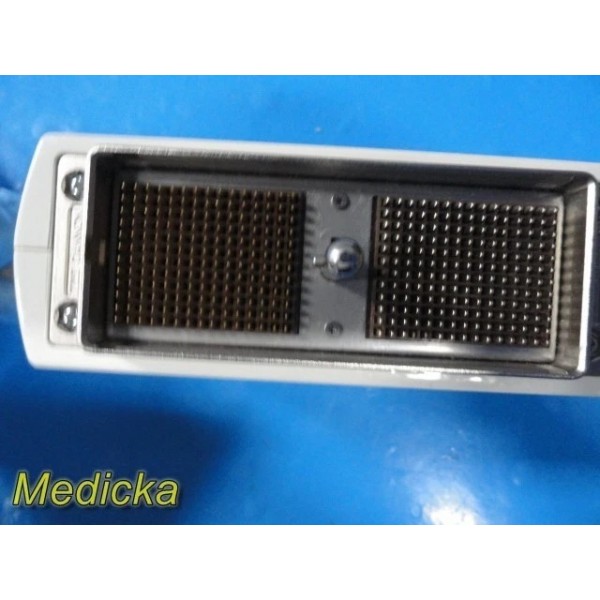

Connector & Locking Mechanism: Connector is in good overall condition. Locking mechanism is intact. Connector pin field appears clean and intact, with no broken or visibly bent pins noted.

Functionality / Testing Summary

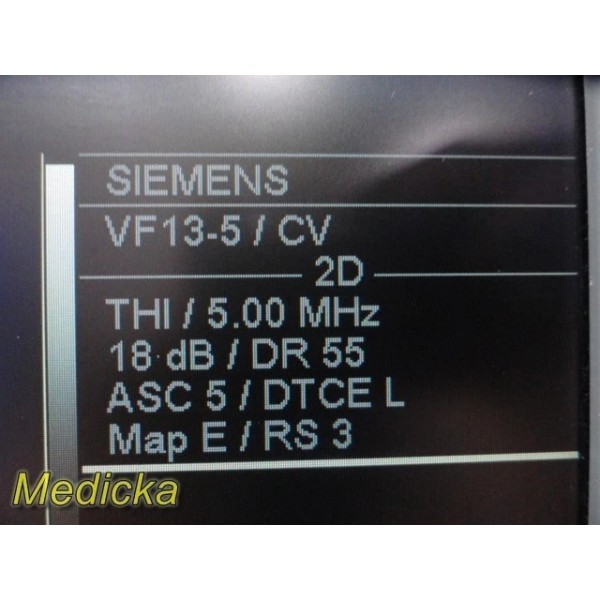

System Recognition: Probe was connected to and recognized by a Siemens Sonoline ANTARES Premium Edition ultrasound system. The system console is not included in this sale.

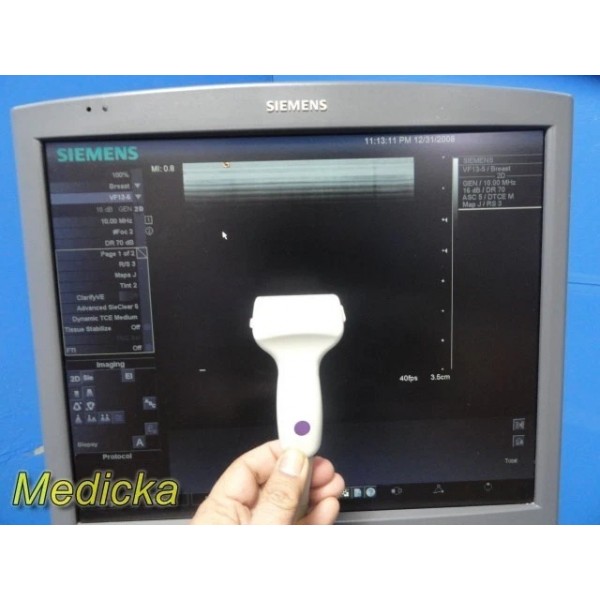

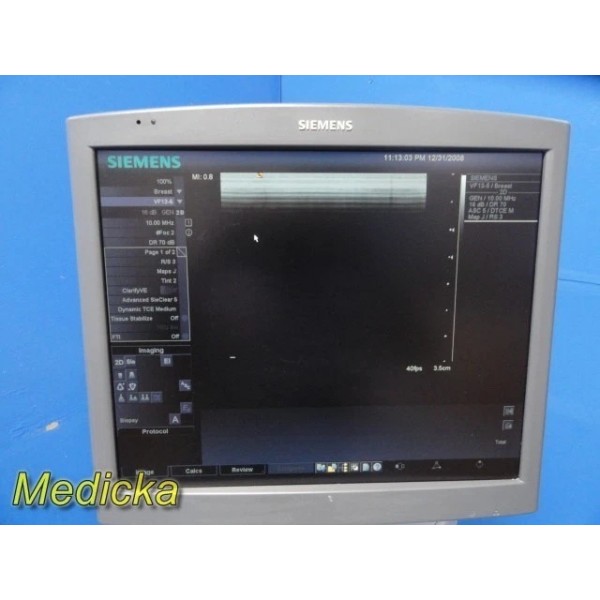

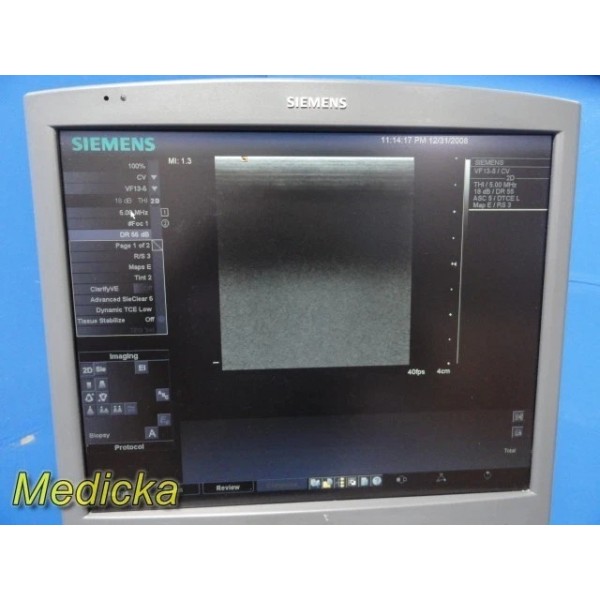

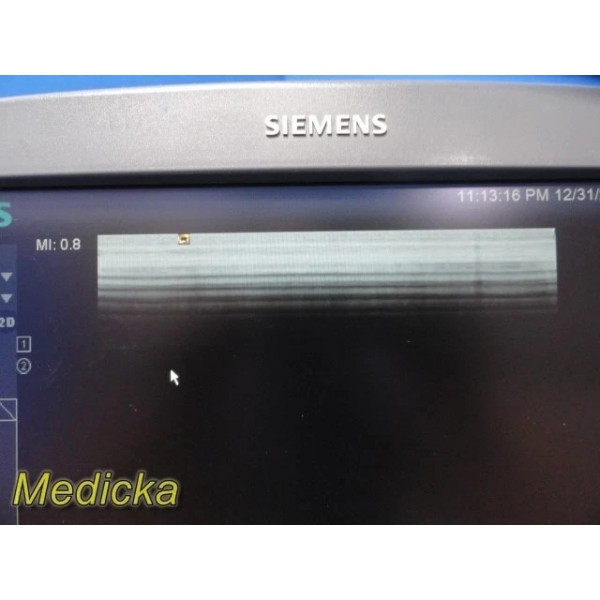

Air Scan: Air scan was performed. Slight imaging imperfection/artifact was noted but no major failure was observed.

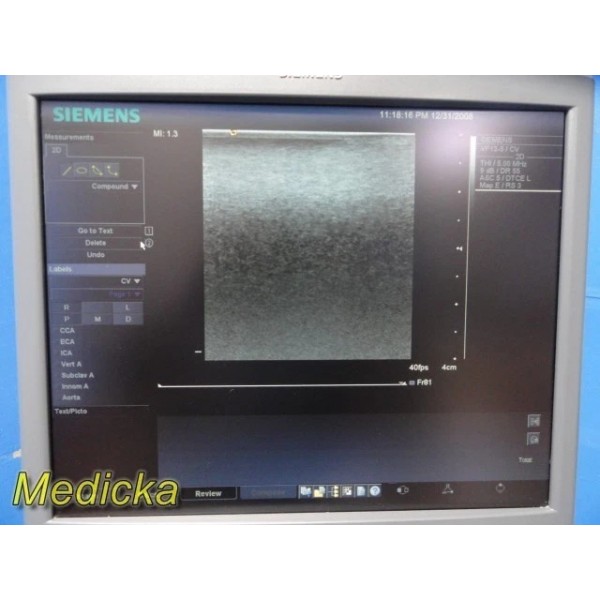

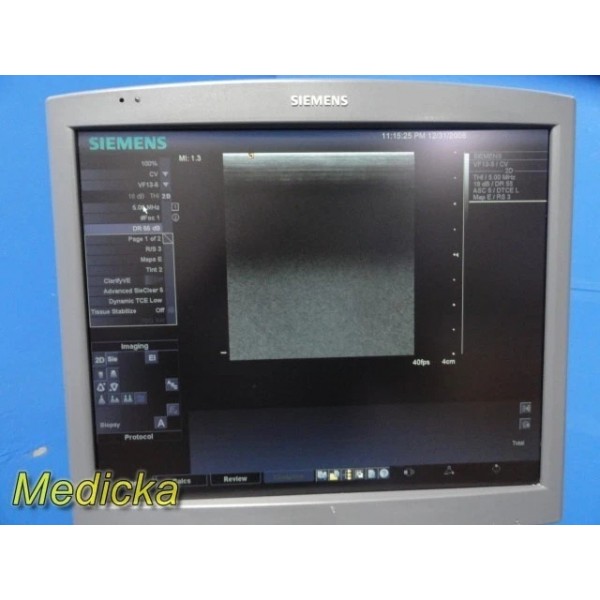

Phantom Scan: Phantom scan was performed and appeared acceptable during basic testing.

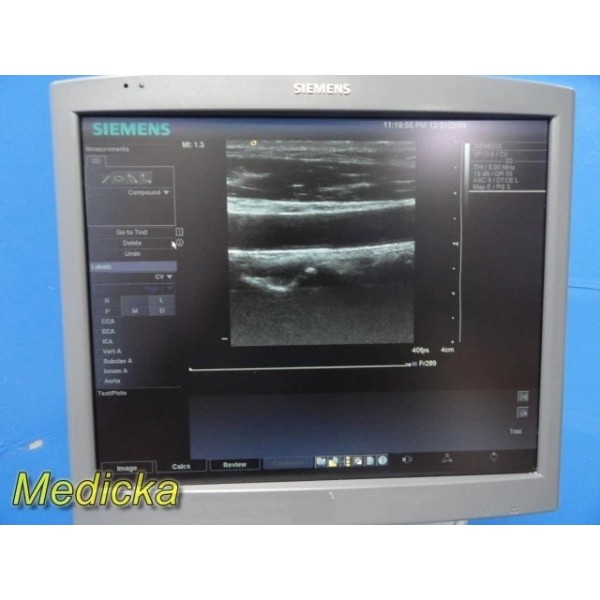

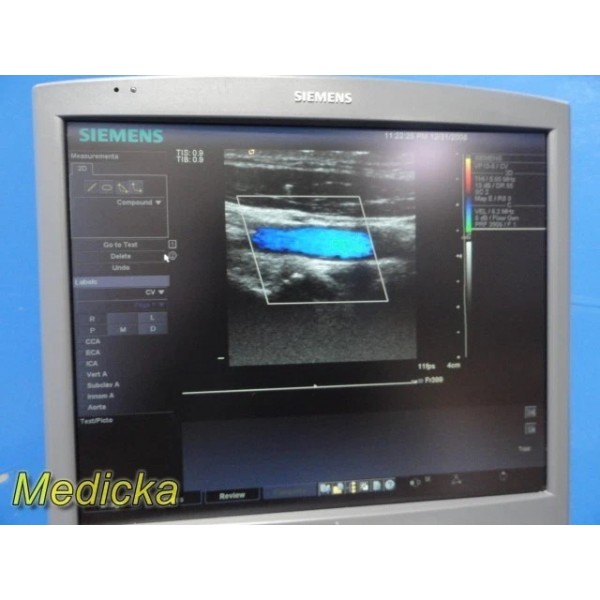

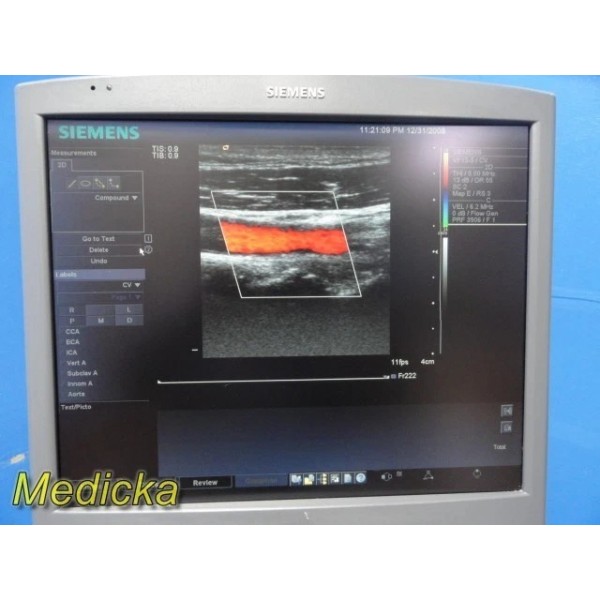

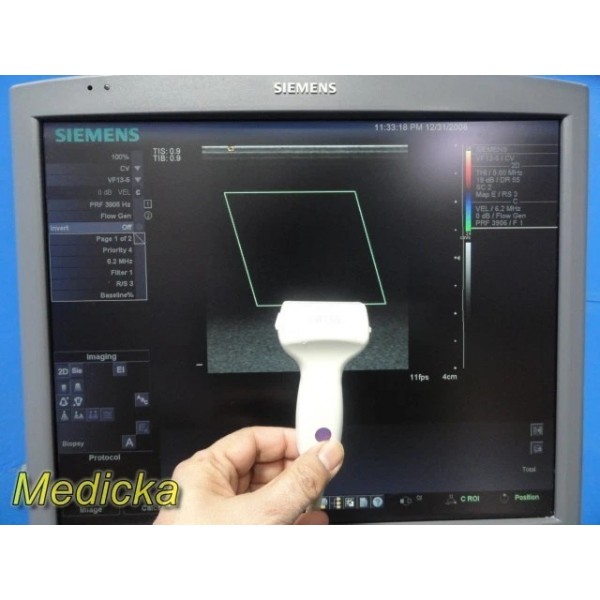

Vascular / Color Doppler Test: Vascular scan was performed at the right carotid area. The lumen of the vessel was visualized, and color flow was observed. Color Doppler appeared functional during this limited test.

Testing Limitation: Only limited bench/operator testing was performed. Vascular/carotid imaging was tested; no additional body-part clinical testing was performed.

Included Accessories

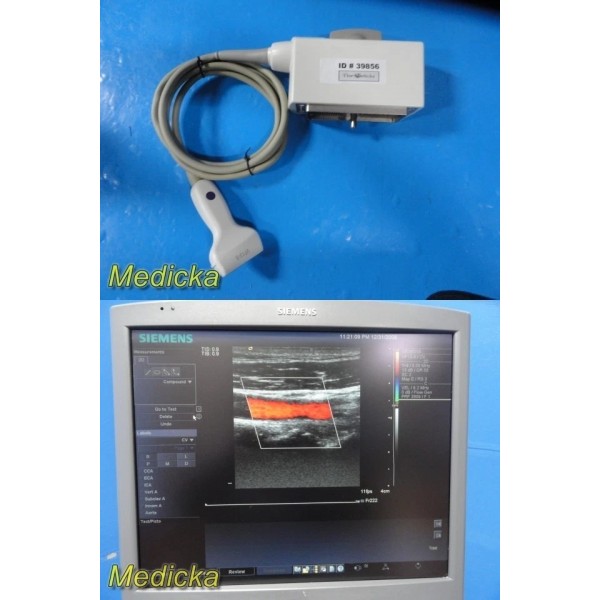

• Siemens VF13-5 Linear Array Ultrasound Probe / Transducer
• Items shown in the images

What Is Not Included

• User manual is not included
• Storage case is not included
• Phantom is not included
• Ultrasound system / console is not included
• No additional accessories are included

Buyer Advisory Note

This is a used medical ultrasound transducer tested as described above. Buyer should verify compatibility with their Siemens ultrasound system before purchase. Professional biomedical inspection, calibration, and facility approval are recommended before clinical use.

Shipping Note

This item will be professionally packed for safe shipment. The monitor, screen area, printer section, and included transducers/accessories will be packed carefully to reduce movement during transit.

Stock ID: 39856 (P.O. 1200) (WH104 SCC15)
