GE Vivid 7 Ultrasound Syste...

Product details

Voltage:                  100–120 VAC | 10 A | 50/60 Hz  (Also supports 230 VAC | 5 A | 50/60 Hz)

Short Description:

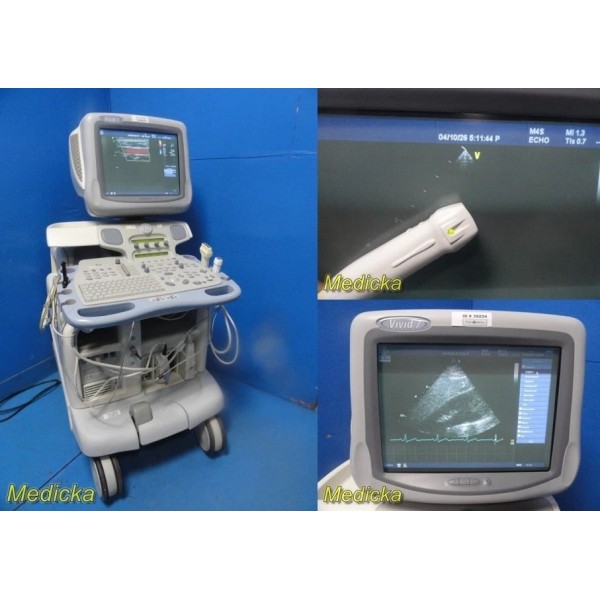

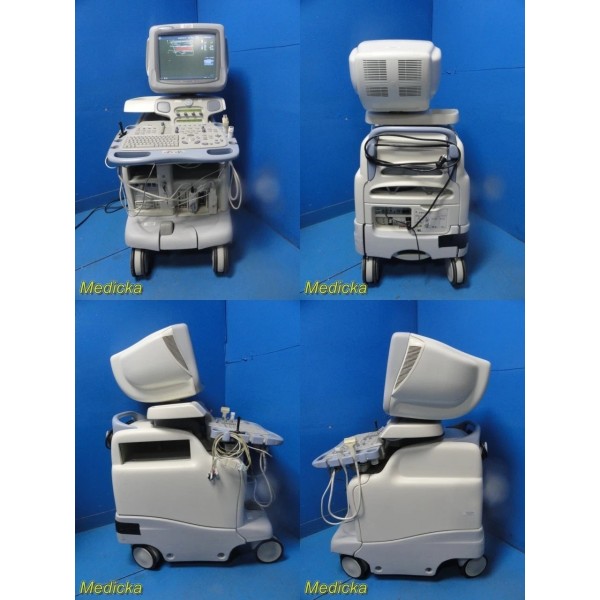

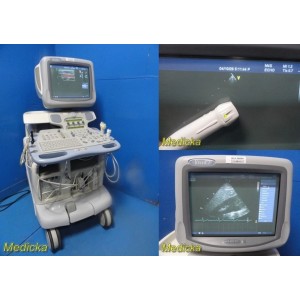

GE Vivid 7 cardiovascular ultrasound system configured with three probes (7L, M4S, and P2D Pedoff), EKG trunk cable with leads, and full cart-based platform. System powers on, passes initialization, and demonstrates imaging and Doppler functionality. Probes show cosmetic and possible functional imperfections and are offered in as-is condition.

System Software & Configuration:

Application Software: Version 7.2.3 (P/N: FD200255-02)  Build Date: Wed Jul 08, 2009

System Software: Version 3.0.3 (P/N: FD200078-04)  Build Date: Jan 13, 2010  Platform: BEP4

Configuration:

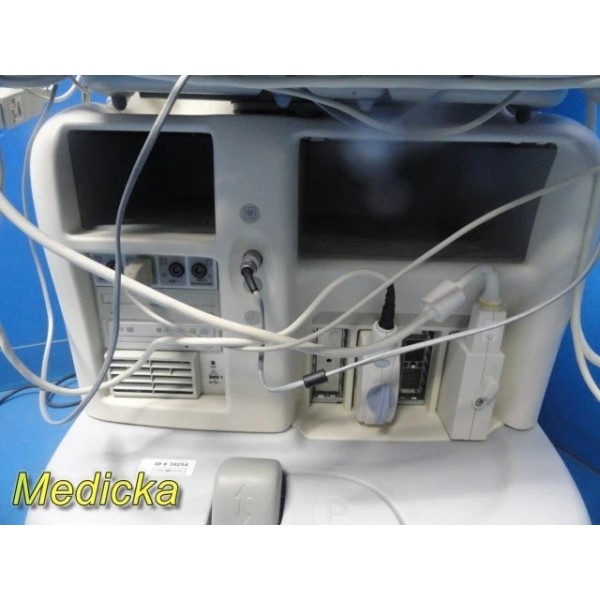

Four probe ports (3 active + 1 dummy)   EKG port, auxiliary interfaces, non-imaging probe board

2D, Color Doppler, PW/CW Doppler modes observed

Probes Included:

GE 7L Linear Probe

Model: 7L REF: 2302648 Serial Number: 64005YP2   Date of Manufacture: November 2010

Condition:
Housing: No major cracks; normal wear Lens: Smooth and intact

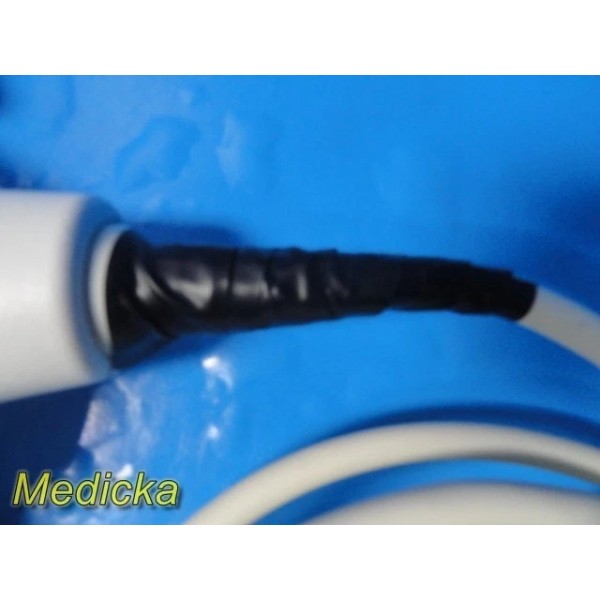

Cable: Approx. 7 ft; shows wear/aging with insulation repair (taped)
Connector: No bent/broken pins; lock intact

Testing:
Air Scan: Left lateral non-uniformity (possible weak elements)
Phantom Scan: Imperfection persists

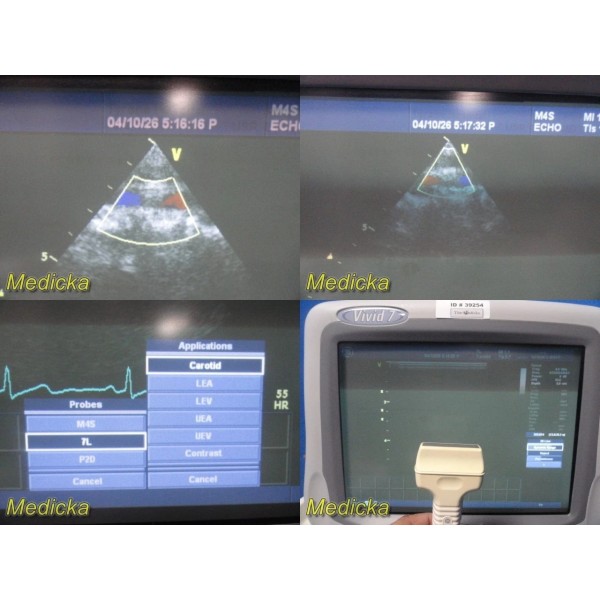

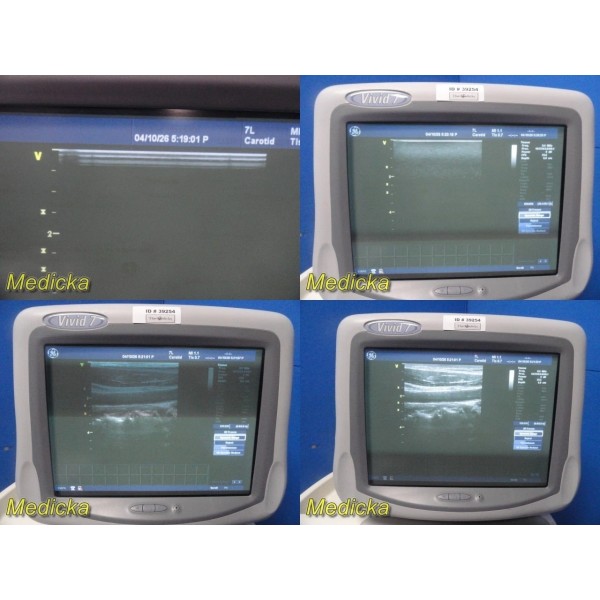

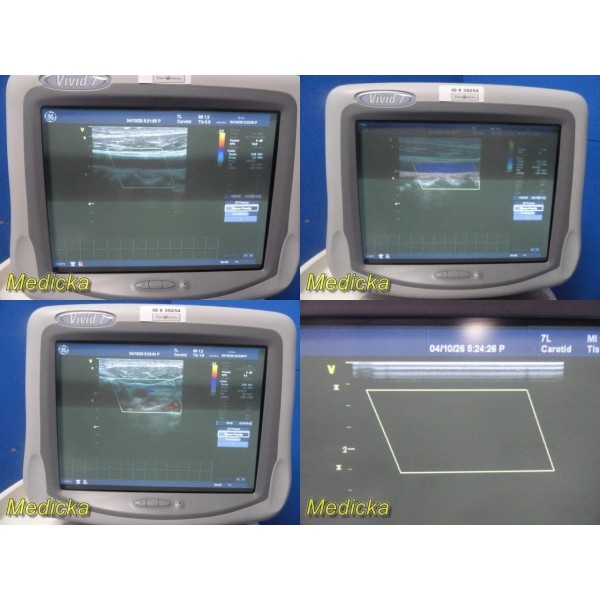

Vascular Scan: Carotid lumen visualized; color flow present

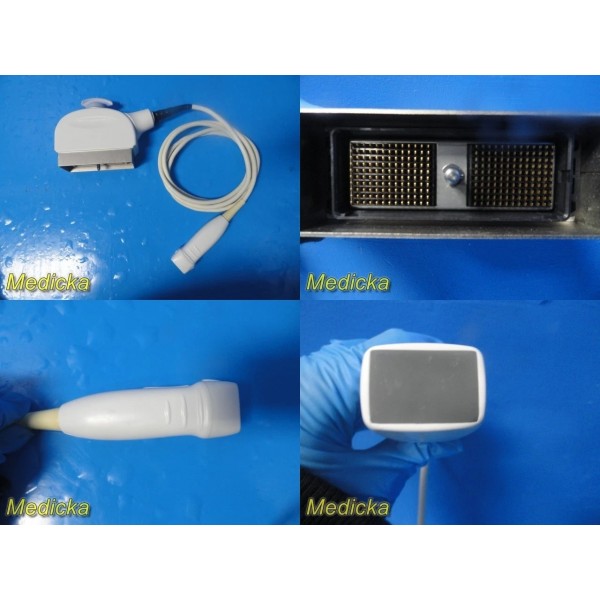

GE M4S Phased Array Probe

REF: 5129041 Serial Number: 103730PD8 Date of Manufacture: October 2009

Condition:
Housing: Intact; no cracks    Lens: Smooth
Cable: Insulation tear near connector (taped)
Connector: No bent pins; lock intact

Testing:

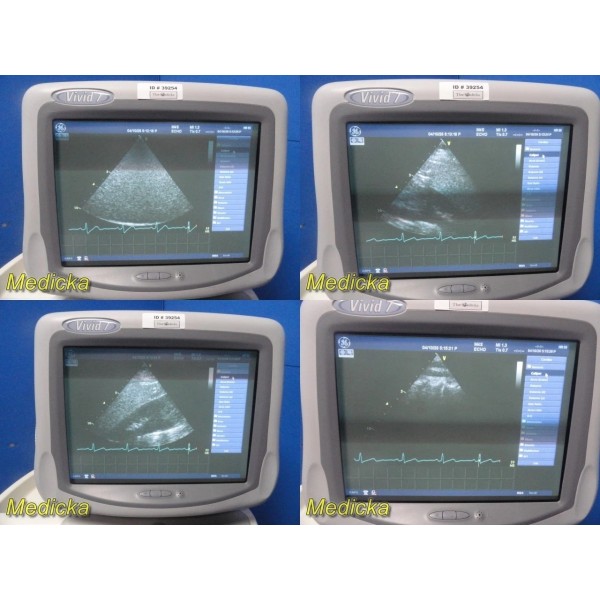

Air Scan: Functional (refer to images)
Phantom Scan: Acceptable
Abdominal (RUQ): Liver/kidney echotexture visualized
Color Doppler: Flow demonstrated on vascular testing

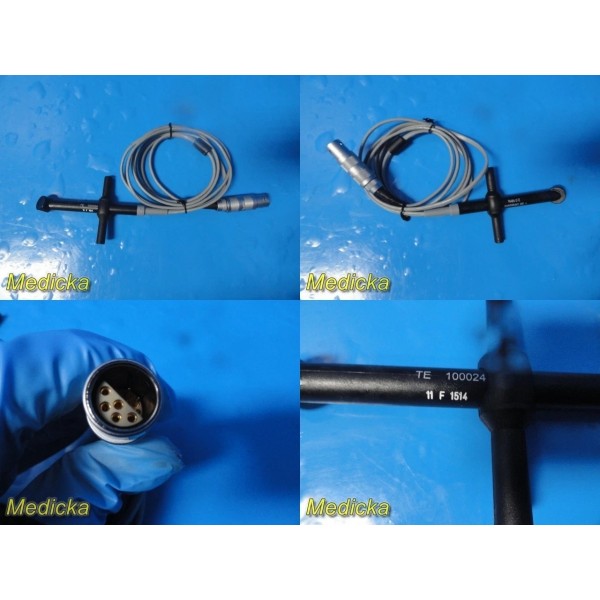

GE P2D Pedoff Doppler Probe

Model: P2D Type: Continuous Wave (Non-Imaging)
Frequency: 2.0 MHz REF TE100024 / SN 11F1514 / DOM: uk

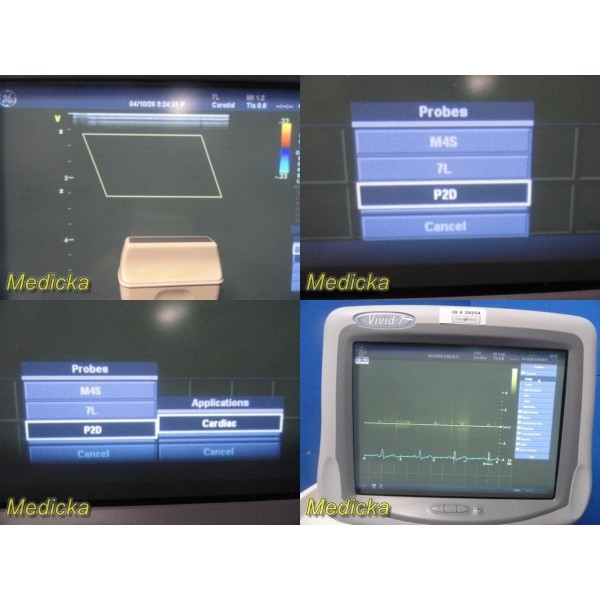

Condition & Testing:  Recognized by system   PW/CW Doppler signals obtained
No cardiac-specific validation performed

Condition Summary:

Overall Cosmetic Condition:
System is in good cosmetic condition for age with noted imperfections

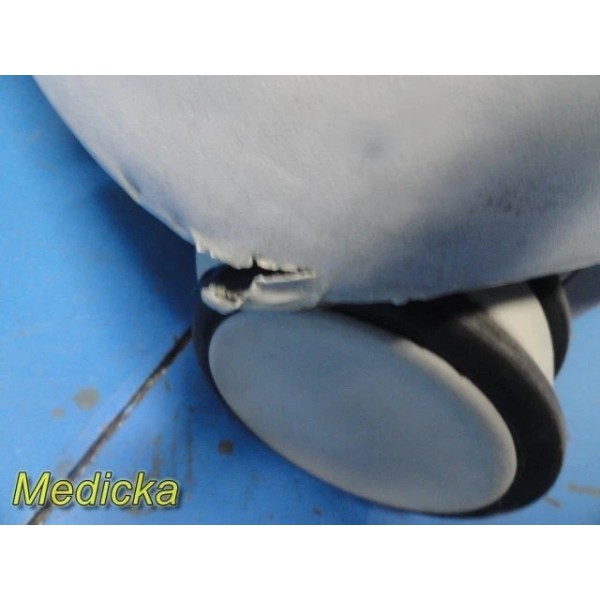

Housing Condition:    Right front panel tear present

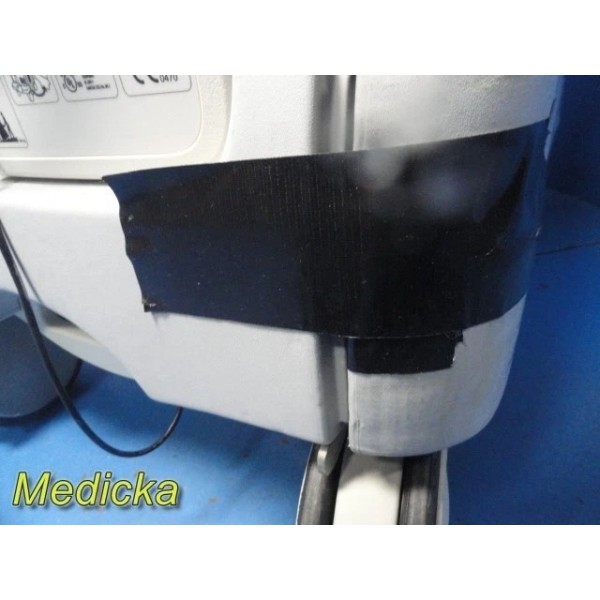

Left posterior panel crack (secured with black tape)

Monitor Condition:    LCD is bright with good contrast and clarity     No cracks observed

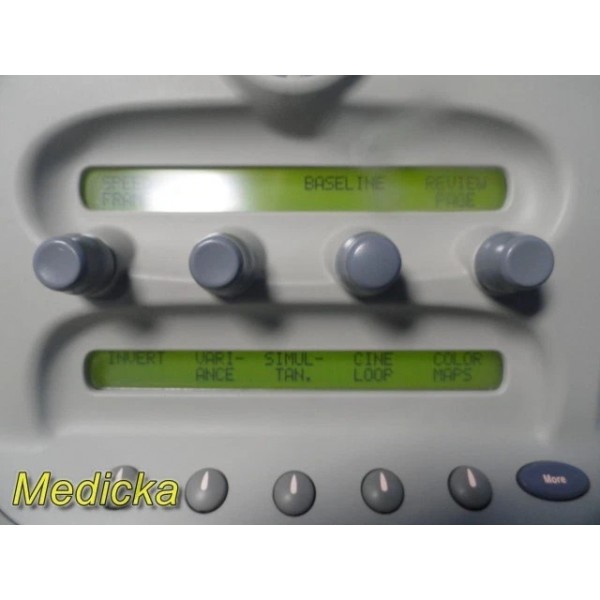

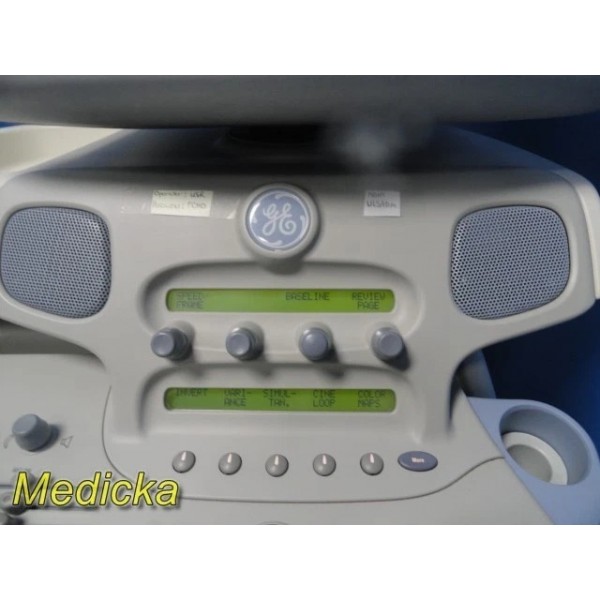

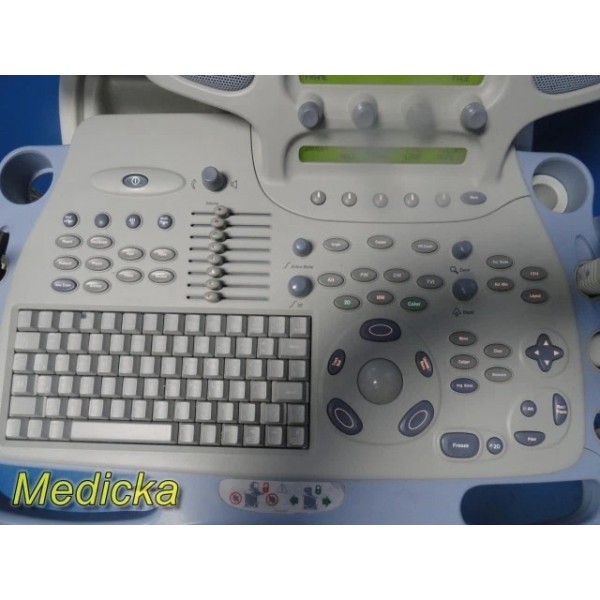

Control Panel Condition:    Keyboard, trackball, and soft keys are intact and responsive

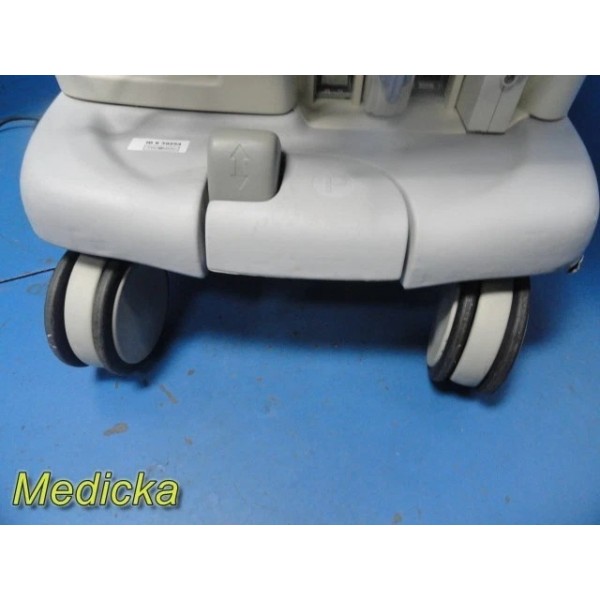

Mobility:    All four wheels roll smoothly     Front wheel locks functional

Functionality / Testing Summary:

Power-On & Initialization:

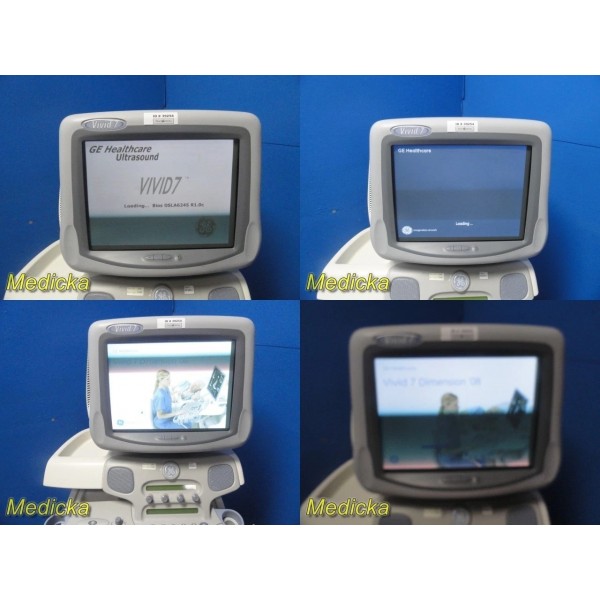

Device powers on, passes startup, and reaches operating interface

Imaging Performance:    2D imaging functional across probes    Color Doppler and PW/CW Doppler demonstrated

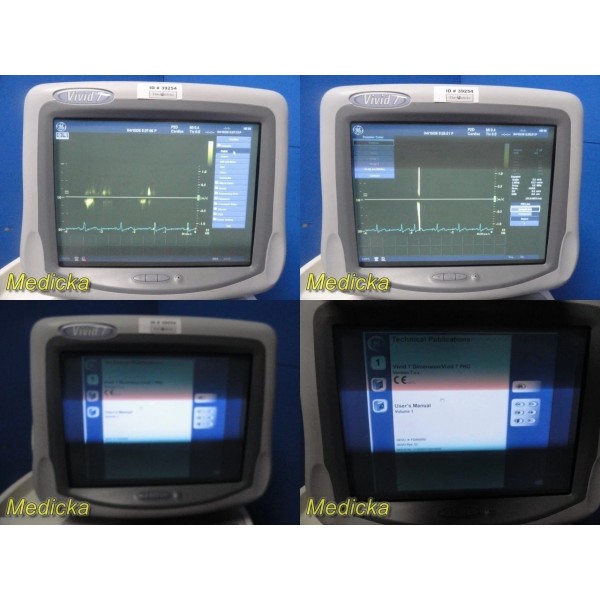

EKG Functionality:    EKG trunk cable connected    Cardiac rhythm waveform observed on screen

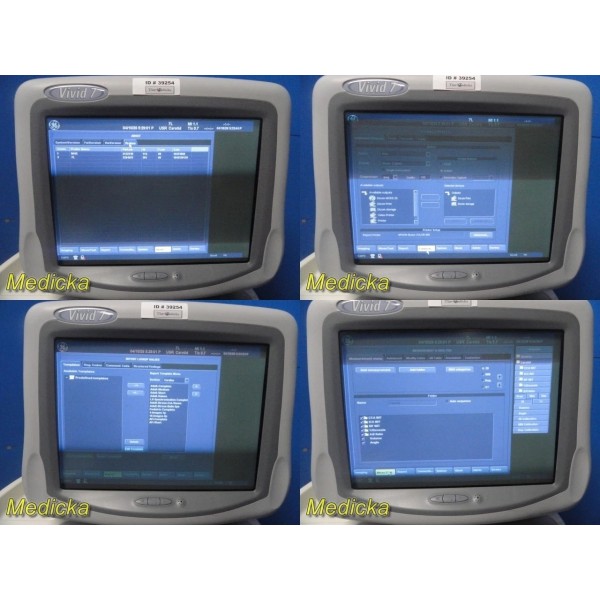

System Settings:   Date/time functional and adjustable

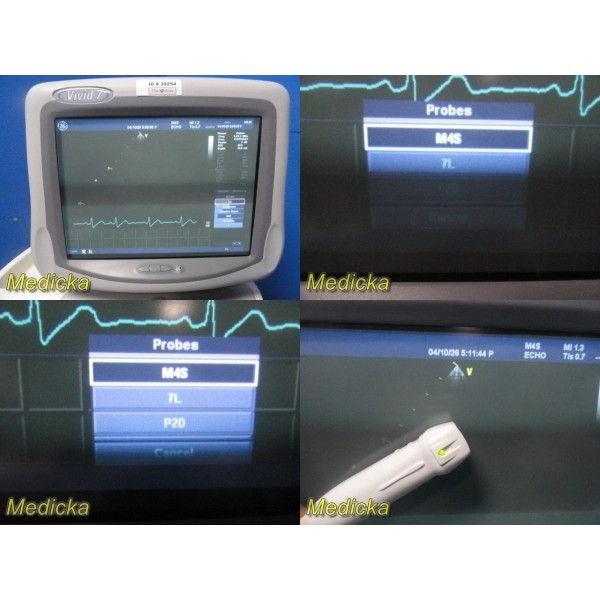

Probe Performance:    All probes recognized
Functional testing performed as outlined above
Notable imperfections present → sold as-is

What Is Included:

• GE Vivid 7 Ultrasound System
• GE 7L Linear Probe
• GE M4S Phased Array Probe
• GE P2D Pedoff Doppler Probe
• GE EKG Trunk Cable with 5 Leads
• Hospital-grade power cord

What Is Not Included:

• User manual
• Software discs
• Printer
• Probe storage cases
• Consumables/disposables
• Additional probes or modules
• PM/service records

Buyer Advisory Note:
Probes are offered as-is due to:
Cable insulation damage (7L & M4S)
Image non-uniformity (7L)

System shows cosmetic wear but is operational.
No clinical certification or advanced calibration performed.

Shipping Note:
Large ultrasound system — will ship via freight
Professionally palletized
Liftgate service available upon request

Freight & Packaging Information

If you choose to use your own shipping carrier, a $150 handling fee applies. This covers professional palletization, strapping, and protective cardboarding to help ensure your item ships safely.

For international shipments, we also offer custom crating for a flat fee of $300 to provide added protection during transit.

Please feel free to reach out if you’d like a shipping quote or have any questions — we’re happy to help coordinate the best option for your needs.

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

Stock ID : 39254 (P.O 2022) (WH 104)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition: As seen in images - AS IS
2. 2.    Physical Condition: Please review images before bidding - Very Good
3. 3.    Working Condition: Functional testing performed as outlined above | Notable imperfections present → sold as-is.....Will receive item as pictured…………(Offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
