Siemens ACUSON 4C1 Curved A...

Product details

Short Description:

Siemens ACUSON 4C1 curved array ultrasound probe (Ref. 08258525) intended for abdominal and general imaging applications. This probe was tested using a Siemens ACUSON S2000 ultrasound system (not included) and demonstrated functional 2D imaging and color Doppler performance during basic testing.

Application: Abdominal / General Imaging
System Compatibility: Siemens ACUSON S2000

Condition Summary:

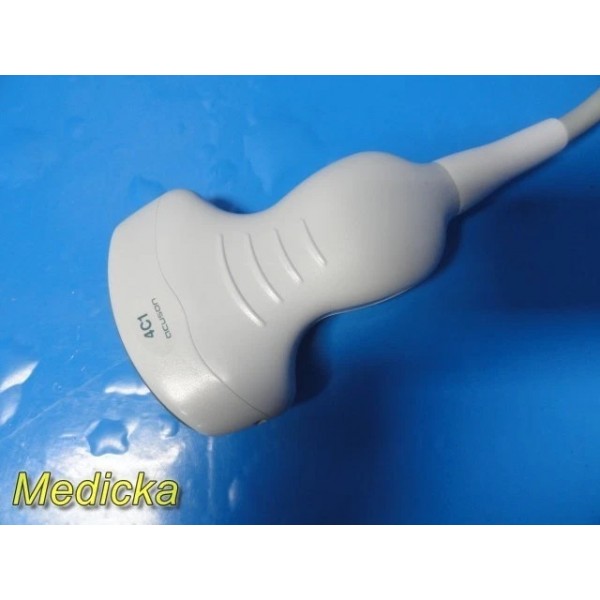

Scan Head / Housing

• Probe head and handle are in good overall cosmetic condition
• No dents, fractures, or structural damage observed
• Normal cosmetic wear consistent with prior clinical use

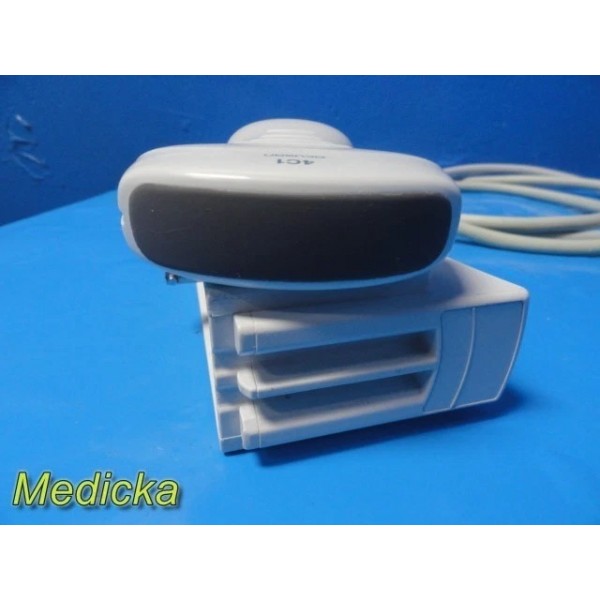

Acoustic Lens

• Acoustic lens is intact with no cracks or tears noted
• Minor surface stress effects are present, consistent with use
• No peeling, separation, or gross damage observed

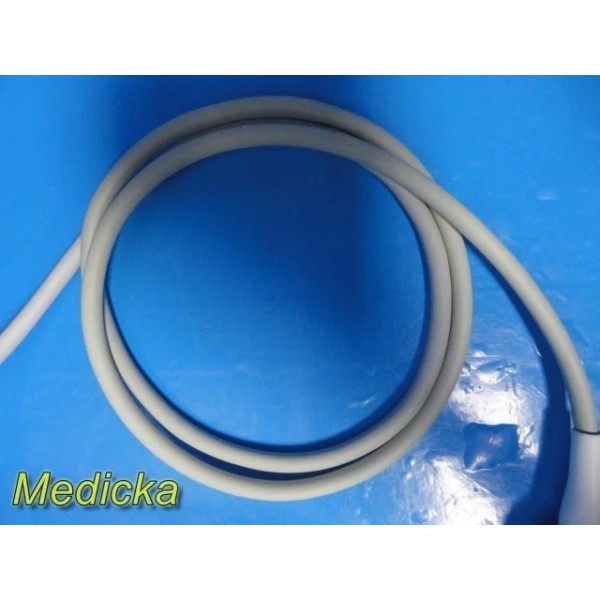

Cable

• Cable length approximately 6 feet
• Cable jacket is smooth with no cuts, tears, or exposed wiring
• No kinks or compression damage noted

Strain Relief

• Strain reliefs at both probe and connector ends are intact
• No tearing, splitting, or separation observed

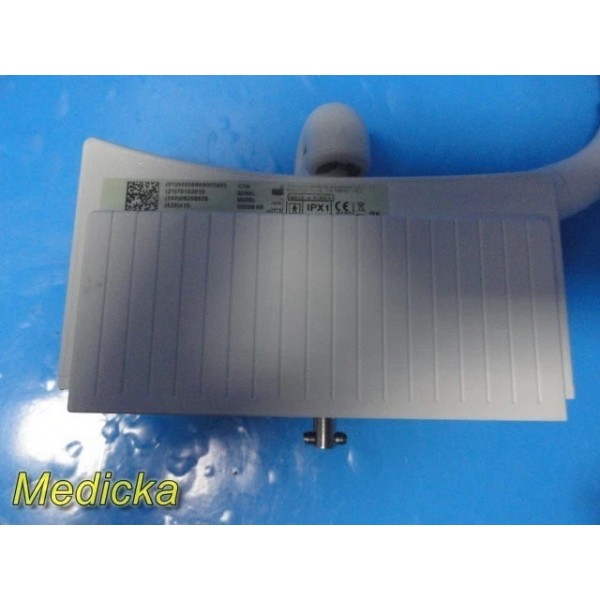

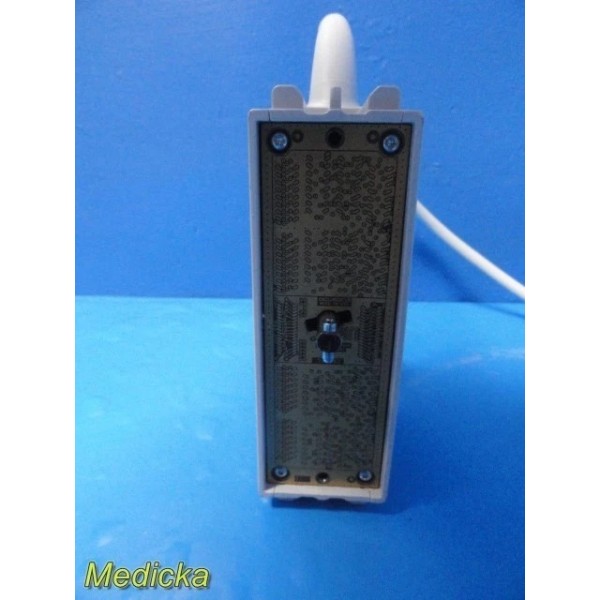

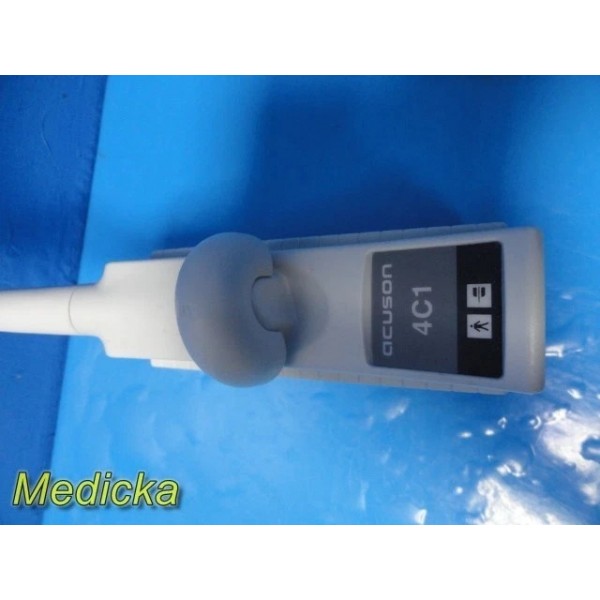

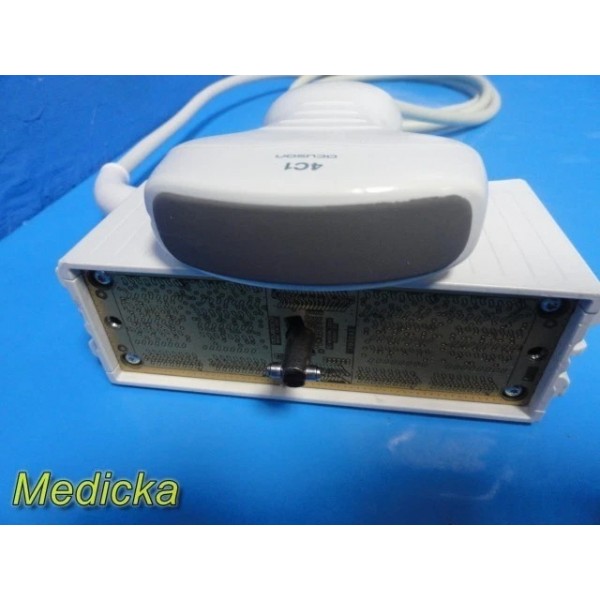

Connector (Pinless Style)

• Pinless connector housing is in good condition
• No dents, cracks, or chips noted
• Contact face appears clean with no visible damage
• Connector seated properly during testing

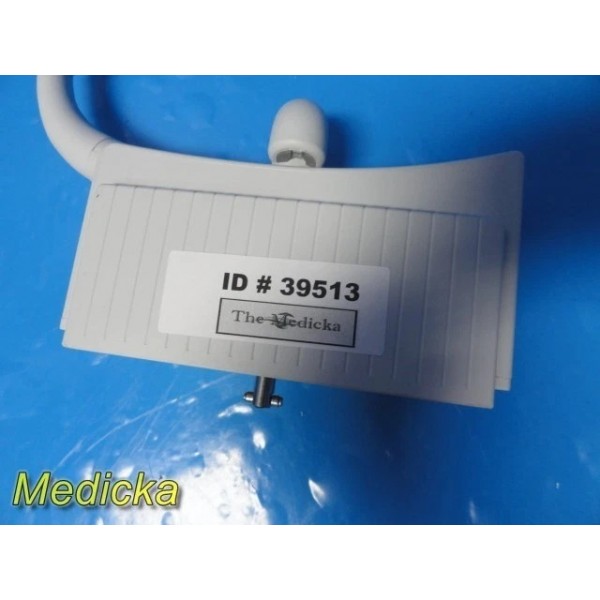

Connector Lock

• Locking mechanism is present and secure
• Connector locks firmly into the system port
• No looseness noted during testing

Functionality / Testing Summary:

System Recognition

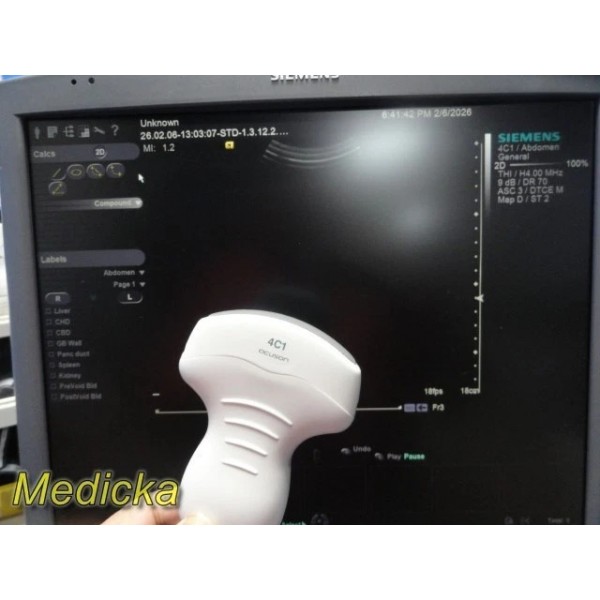

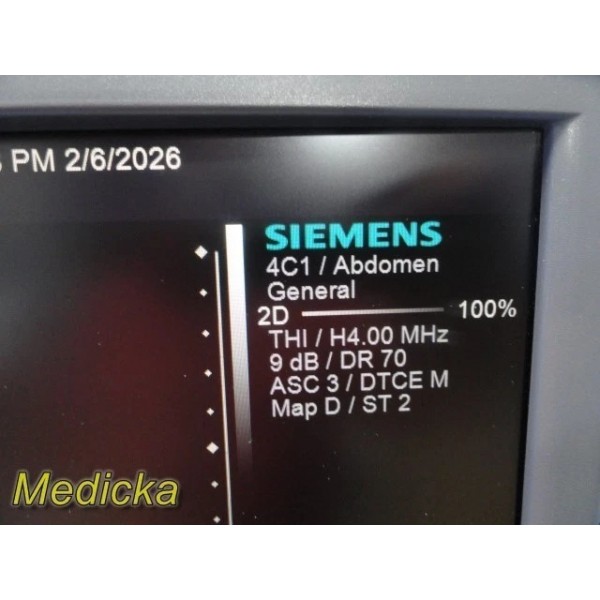

• Probe was connected to and recognized by a Siemens ACUSON S2000 ultrasound system (system not included)

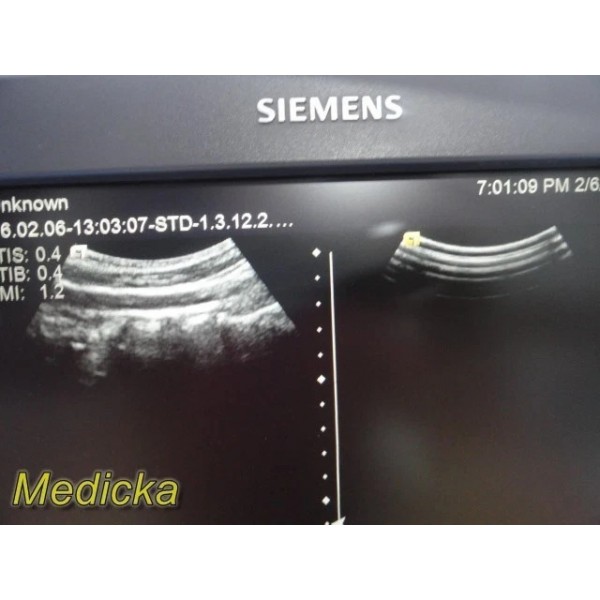

2D Imaging / Air Scan

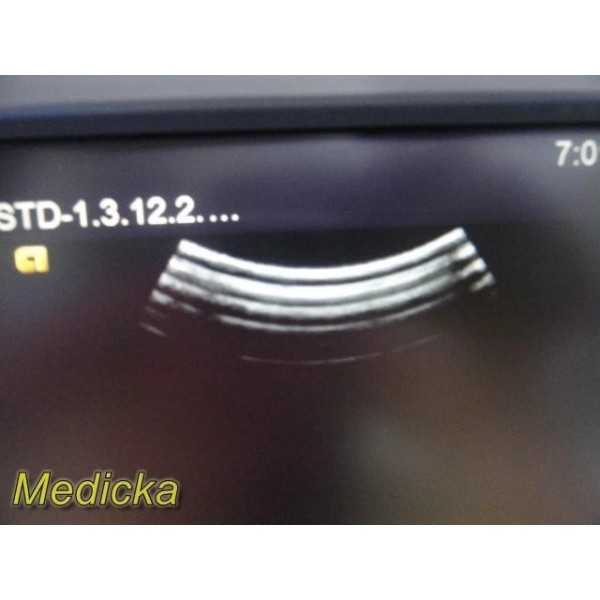

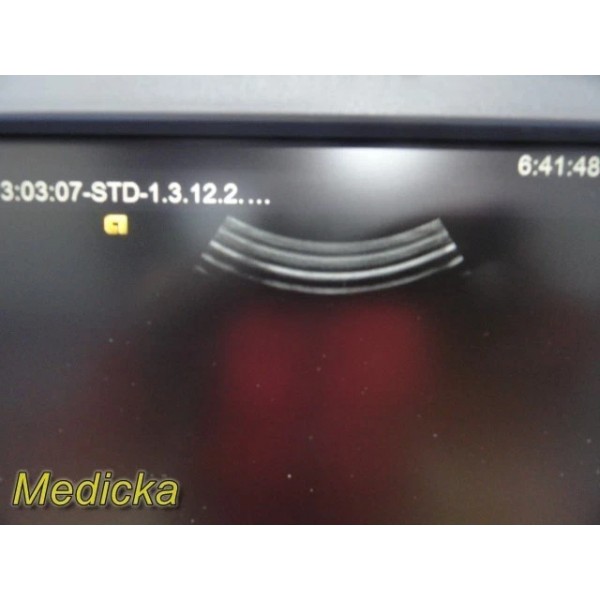

• Air scan performed
• Image generation observed
• Minor image imperfections noted

Phantom Scan

• Phantom scan performed
• Image generation observed with minor imperfections
• Buyers are encouraged to review provided phantom images carefully
• Phantom used for testing is not included

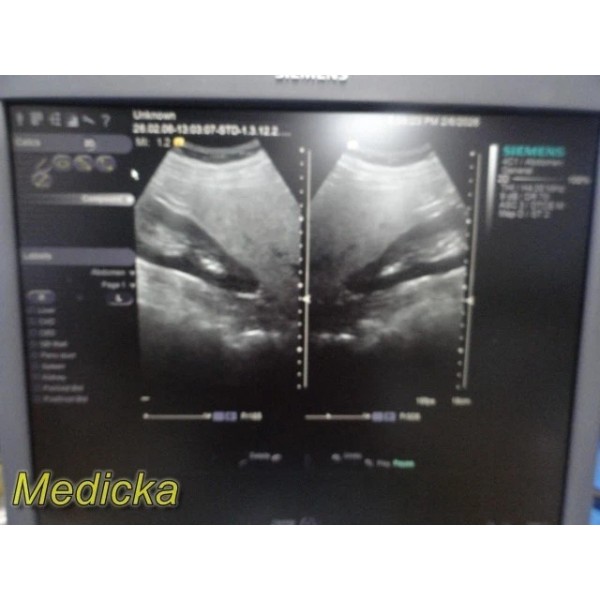

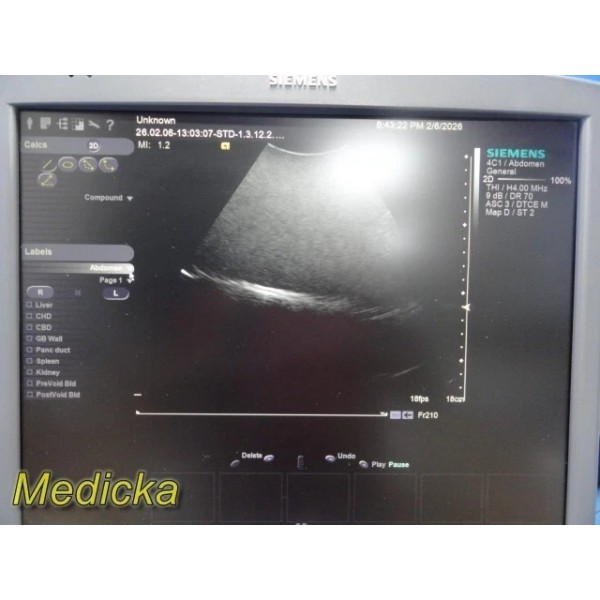

Body Scan

• Body scan performed by placing the probe on the right upper quadrant
• Hepatorenal imaging conducted
• Echotexture of solid organs such as liver and kidney visualized
• Buyers are encouraged to review images for assessment of image quality

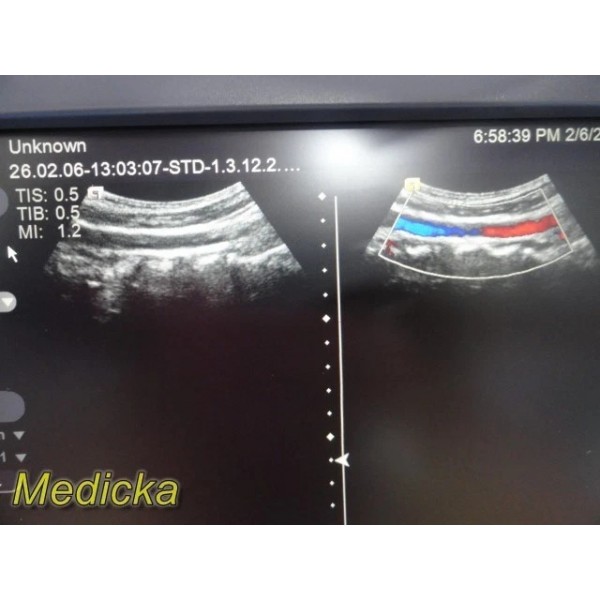

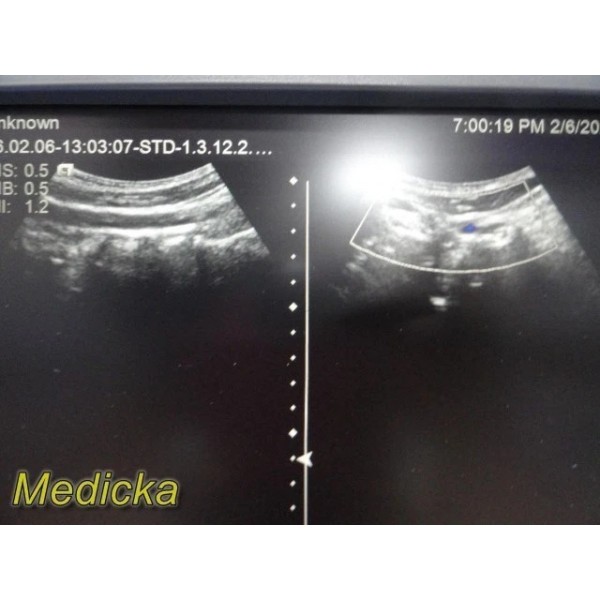

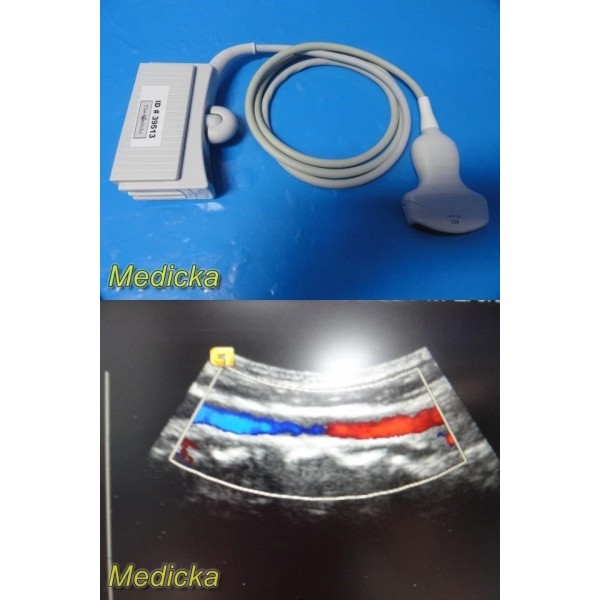

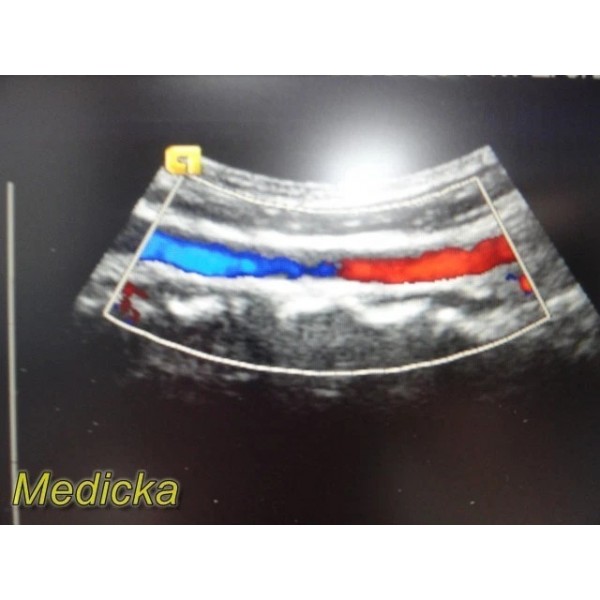

Vascular / Color Doppler Scan

• Vascular scan performed by placing the probe on the right carotid artery
• Color Doppler flow observed and functioning well

Additional Notes

• No advanced, quantitative, or long-duration clinical testing performed
• Testing limited to the procedures described above

What Is Included:

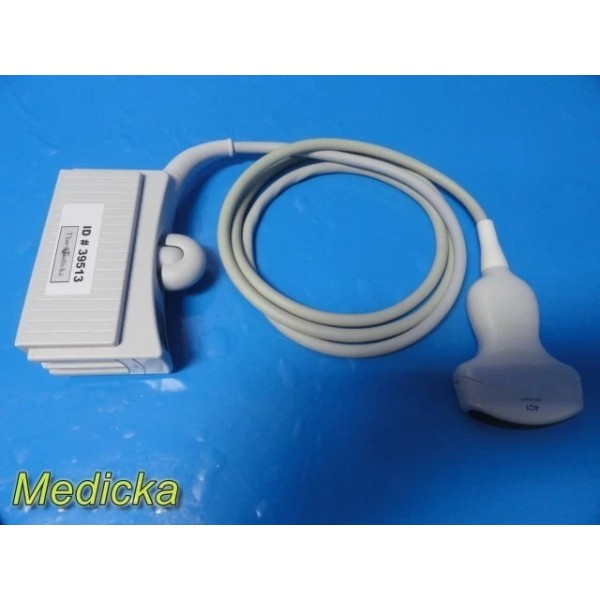

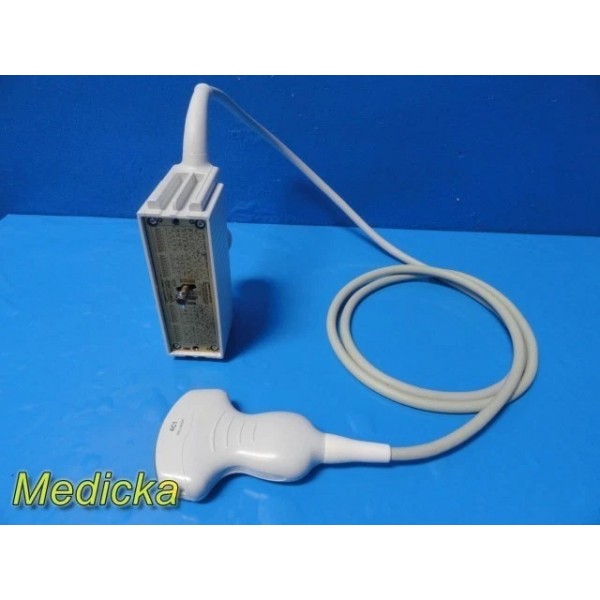

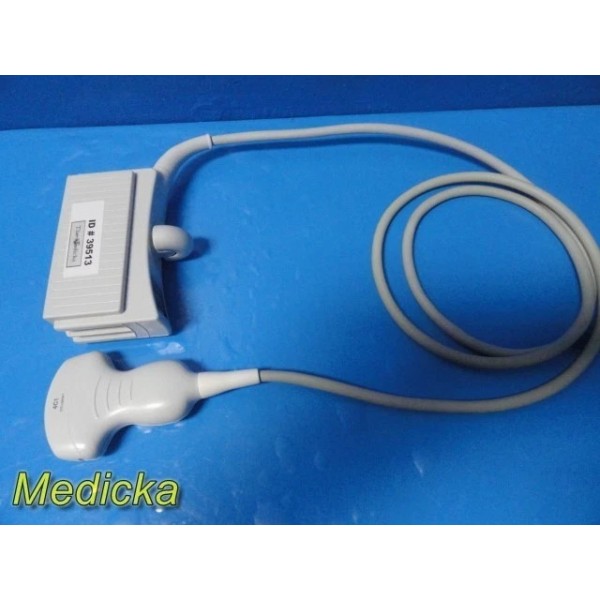

• Siemens ACUSON 4C1 Ultrasound Probe (Ref. 08258525), as pictured

What Is Not Included:

• Ultrasound system / console
• Phantom used for testing
• Storage case
• User manual
• Any accessories not shown in images

Buyer Advisory Note:

This probe has undergone basic functional testing only, as described above. Minor image imperfections were observed during air and phantom scans. The item is sold based on the testing performed and documented. Buyers are encouraged to review all images carefully to determine suitability for their intended application.

Shipping Note:

The probe will be professionally packaged to protect the acoustic lens, cable, and connector during shipment.

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

Stock ID : 39513 (P.O 2022) (WH C13)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition: As seen in images - Good
2. 2.    Physical Condition: Please review images before bidding - Good
3. 3.    Working Condition: No advanced, quantitative, or long-duration clinical testing performed | Testing limited to the procedures described above.....Will receive item as pictured…………(Offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
