Site-Rite Vision II Ultrasound W/ 40mm Linear Probe, Cart & Keyboard ~ 38973

Item specifics

Condition
Used
Seller Notes
“The Bard Site-Rite Vision II Ultrasound System comes with a 40 mm linear 128-element probe, touchscreen console, Medigenic keyboard, Brother MW-260 printer, rolling cart, and utility baskets."
Model
Site-Rite Vision II
MPN
9770177

More details


$2,250.40

38973

1 item in stock

Warning: Last item in stock!

Add to cart

Place an offer

Product details

Manufacturer

Bard Access Systems, Inc.

Item:

Bard Site-Rite Vision II Ultrasound System W/ 40mm Linear Probe REF 9770168, Cart, Keyboard

Model/Cat #

Site-Rite Vision II / Ref 9770177

Serial No.

DYYGV017

Made In:

USA

Date of Manufacture:

U/K

Voltage:                  100–240V, 50/60 Hz, 180 VA

Short description:

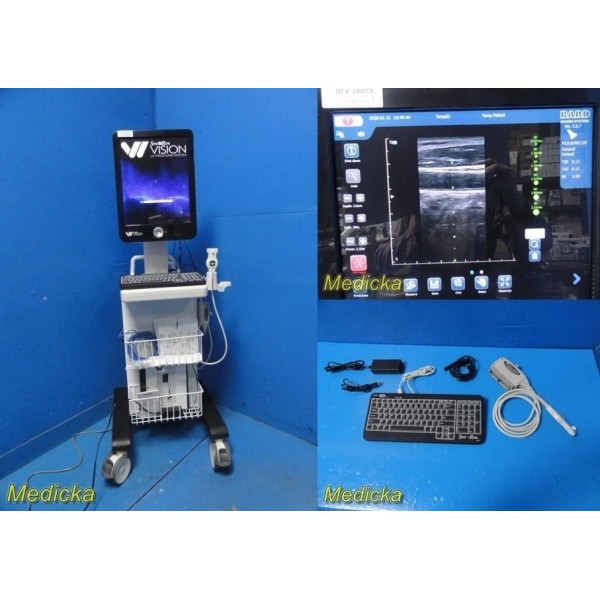

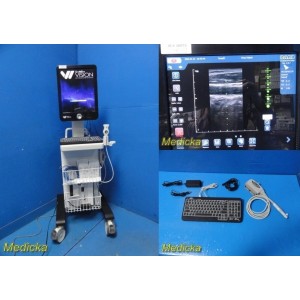

Bard Site-Rite Vision II Ultrasound System with 40 mm Linear 128-Element Probe (REF 9770168), touchscreen console, keyboard, Brother MW-260 printer with XP Power adapter, rolling cart, utility baskets, and network cable. System powers on, passes self-test, and reaches operating screen. Probe tested with color flow and vascular imaging as described below.

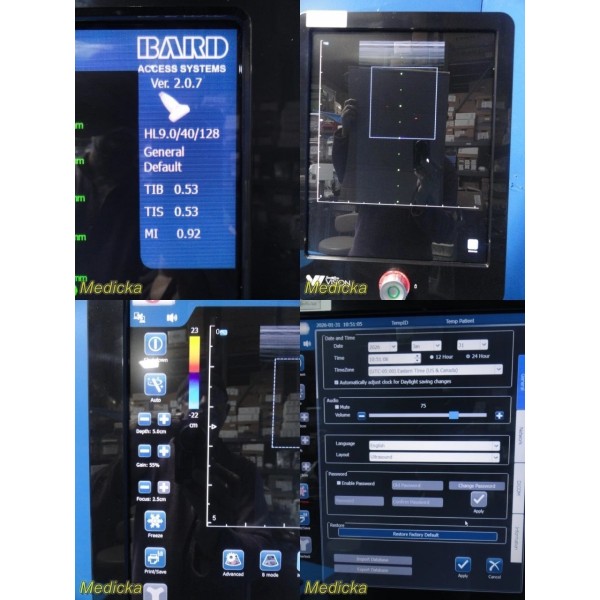

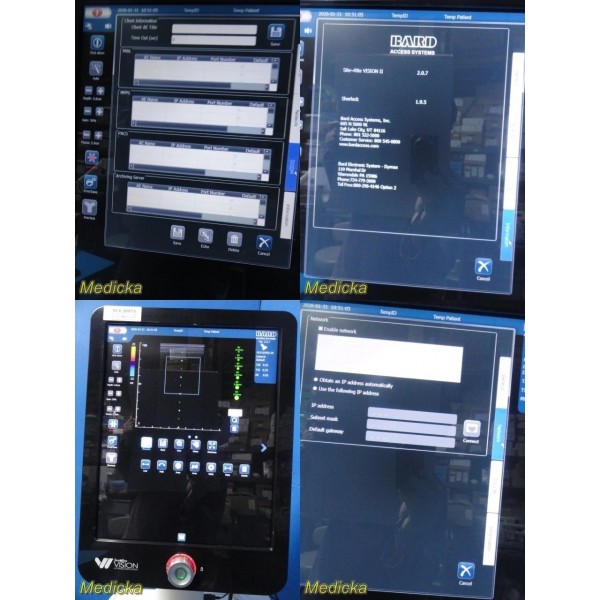

Software Version: 2.0.7
Sherlock Version: 1.9.5



Included Probe:



  • Manufacturer: Bard Access Systems
  • Type: Vision Linear Ultrasound Probe
  • Description: 40 mm Linear, 128 Element
  • REF: 9770168
  • Serial Number: K06FM3GD600021P
  • Ingress Protection: IPX1
  • Patient Applied Part: Type BF



Condition Summary:

Overall Cosmetic Condition

System is in excellent cosmetic condition with normal signs of prior clinical use. Light scratches and scuffs are present, primarily along the lower exterior areas most exposed to wear.

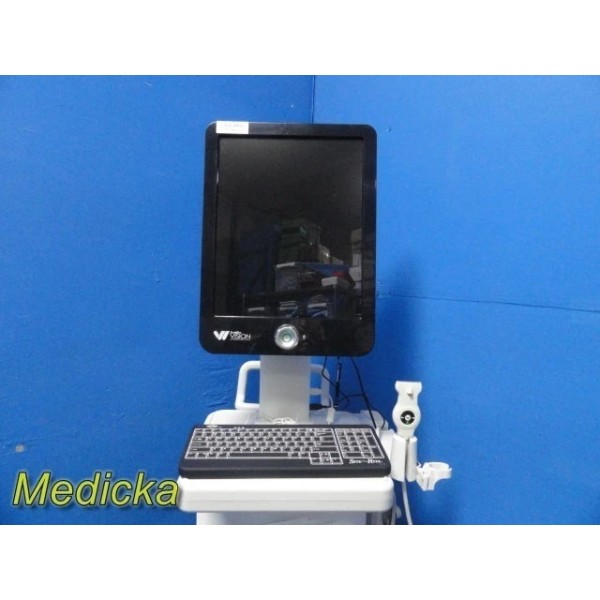

Display & Controls

  • Large touchscreen is clean and fully responsive

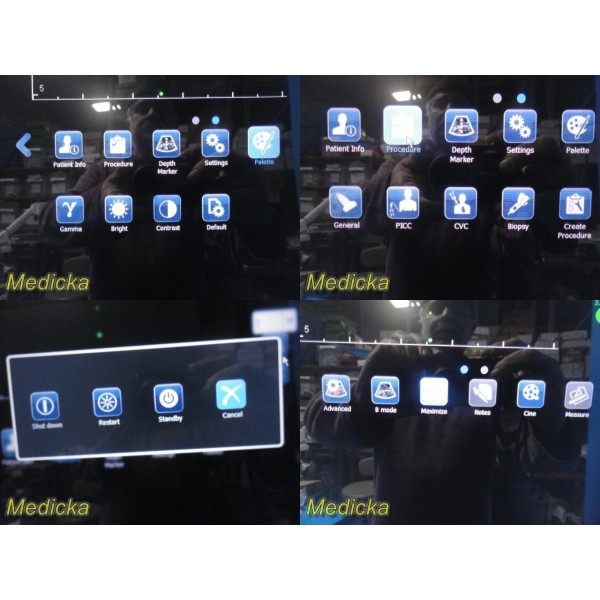

  • Touch interface executes all commands properly
  • Front control/trim knob functions correctly

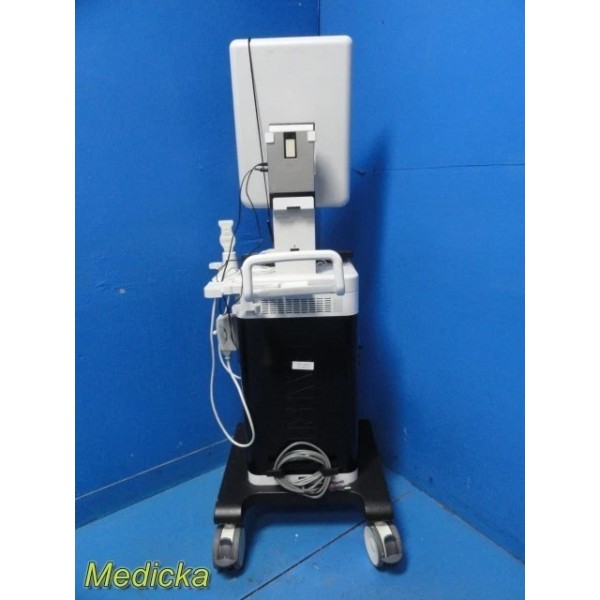

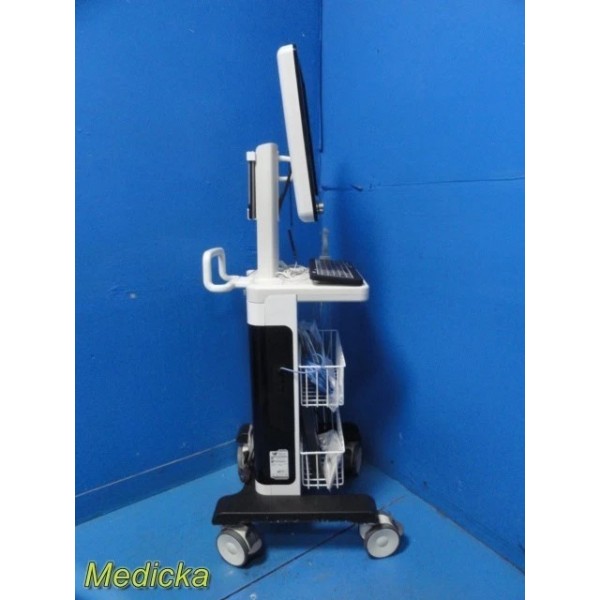

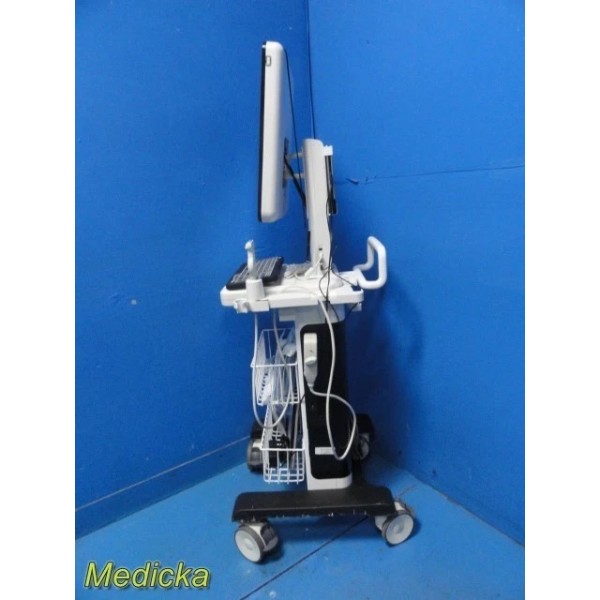

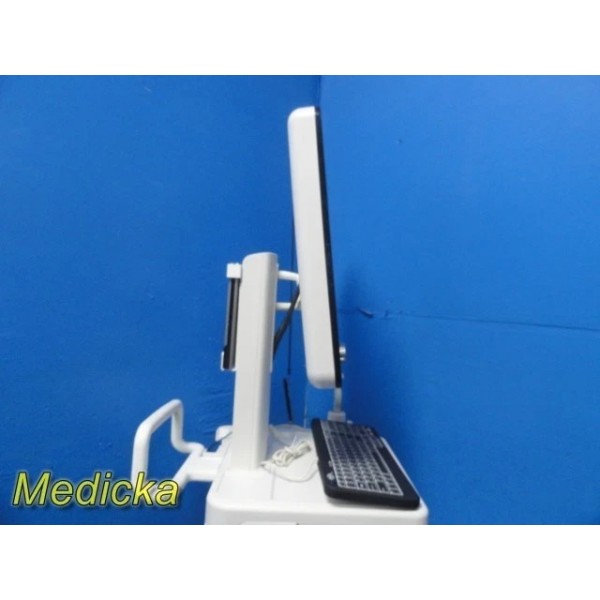

Cart & Physical Structure

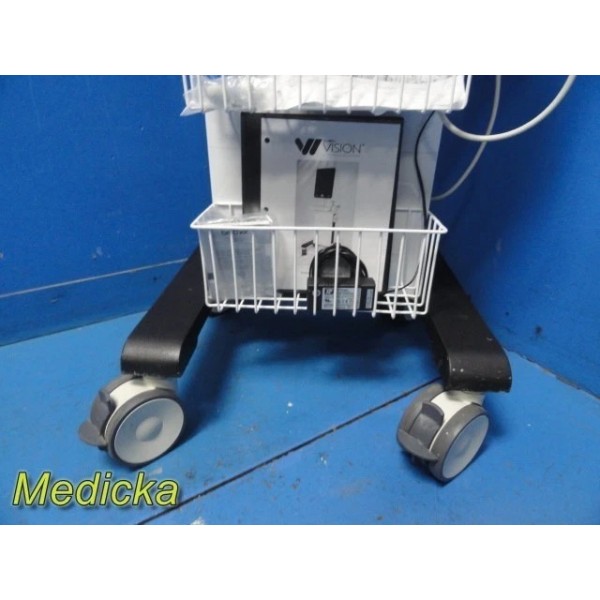

  • Modular rolling cart with four lockable caster wheels

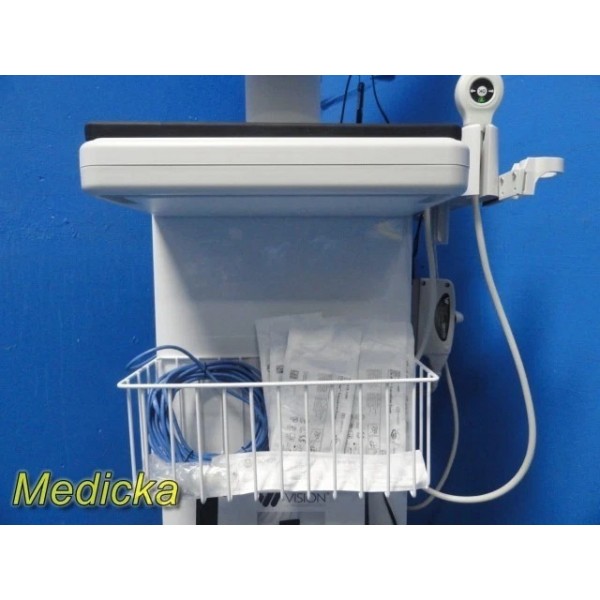

  • Front utility baskets intact

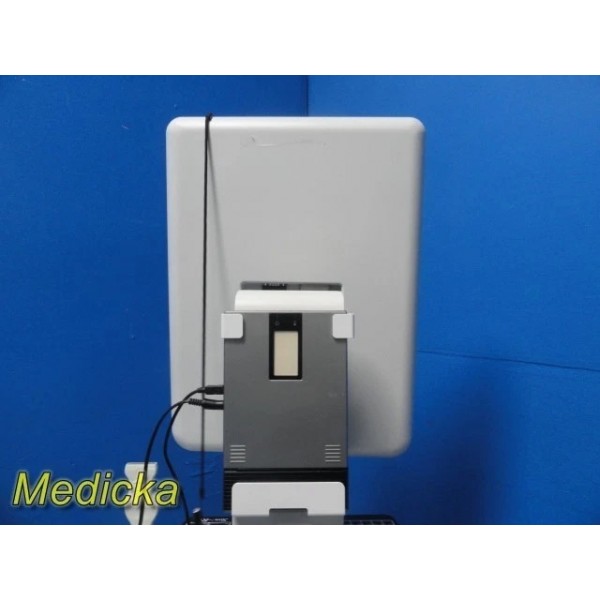

  • Rear printer mount present
  • Rear pulling handle intact
  • Probe holders and accessory holders present
  • Minor cosmetic wear near rear connector areas and lower console housing

Probe Physical Condition

  • Probe head and handle free of cracks or dents
  • Lens in good condition
  • Cable approx. 8–10 ft with no cuts or tears
  • Strain relief intact
  • Connector shows no broken pins (light cosmetic wear only)

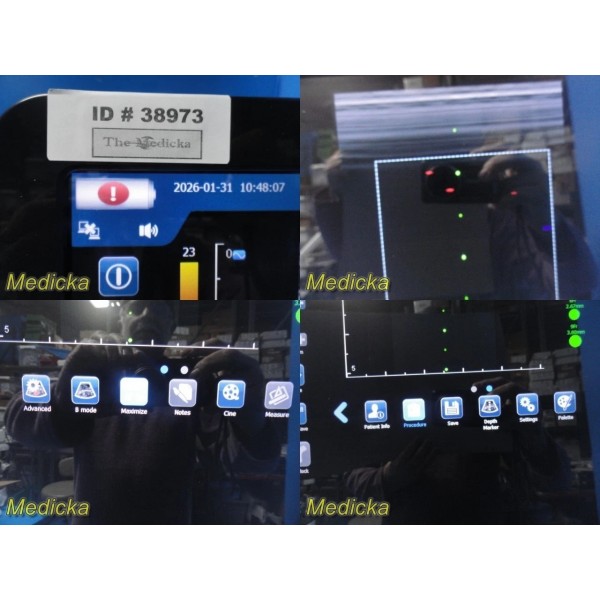

Functionality / Testing Summary:

System Operation:

  • Powers on properly
  • Passes self-test
  • Reaches main operating window
  • Touchscreen highly responsive
  • Steering / selector knob operates correctly
  • Date correct (time adjustable)
  • Network connection tested and recognized
  • Includes approx. 20 ft blue Ethernet cable

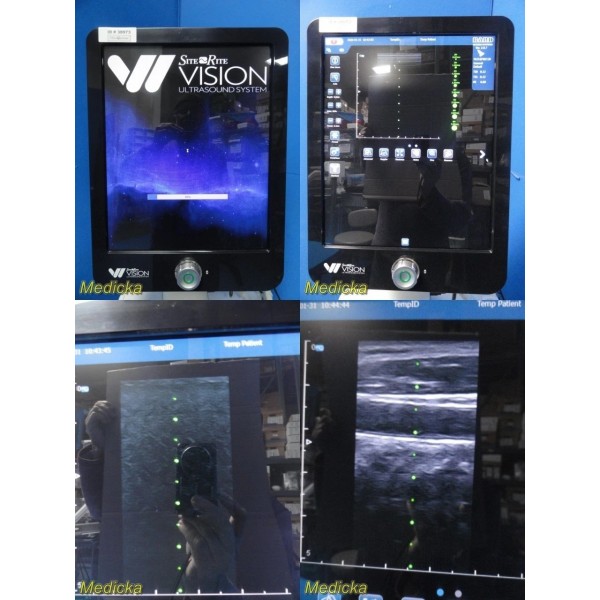

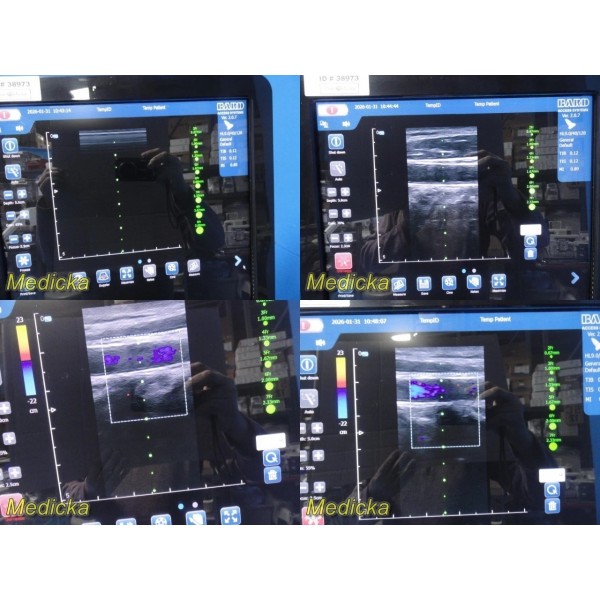

Probe Testing:

Performed using this system:

  • Probe recognized by system
  • Air scan shows no major image dropouts
  • Phantom scan appears smooth
  • Vascular body scan performed on right carotid
  • Color flow verified and functioning
  • Probe buttons responsive

No advanced quantitative testing performed. No first-call report available.

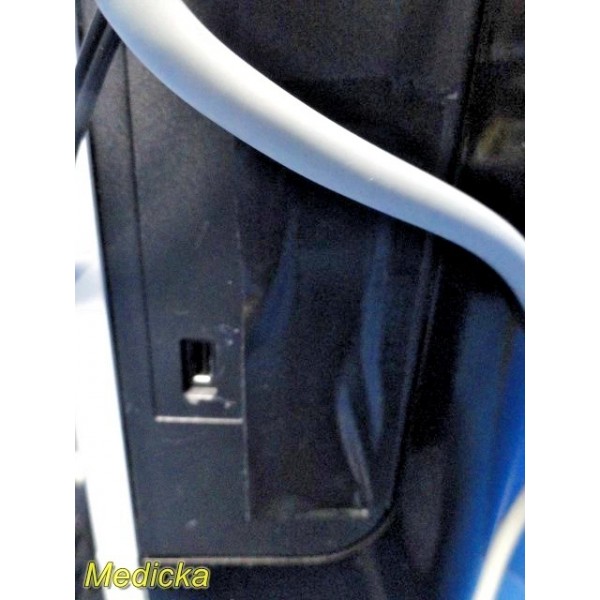

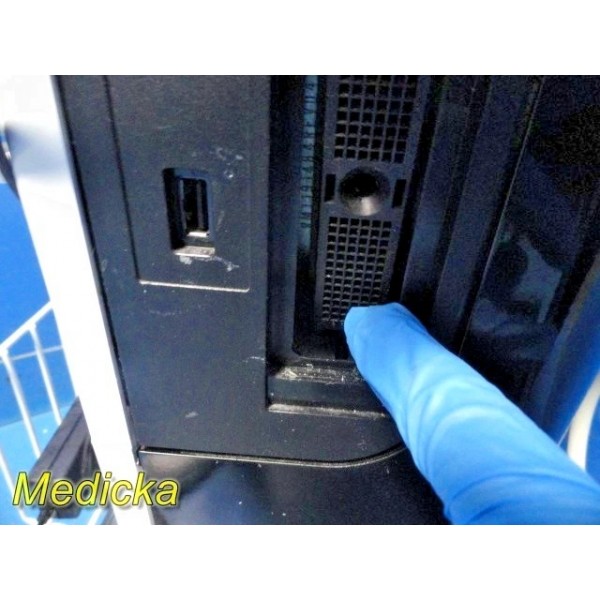

Connector Advisory:
Upper probe port (Probe A) functions normally and was used for testing.
Lower probe port (Probe B) appears pushed inward/damaged and will require repair before use. Please review images.

Battery: Battery displays error and likely requires replacement.
Printer: Brother MW-260 printer present; printer functionality has not been tested.

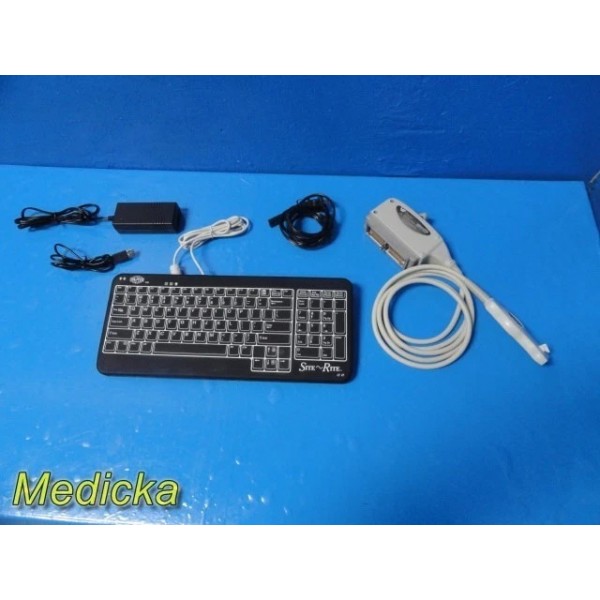

What Is Included:

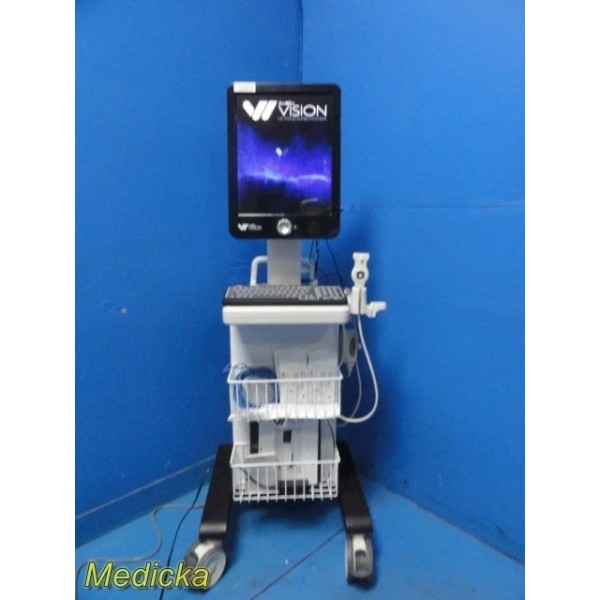

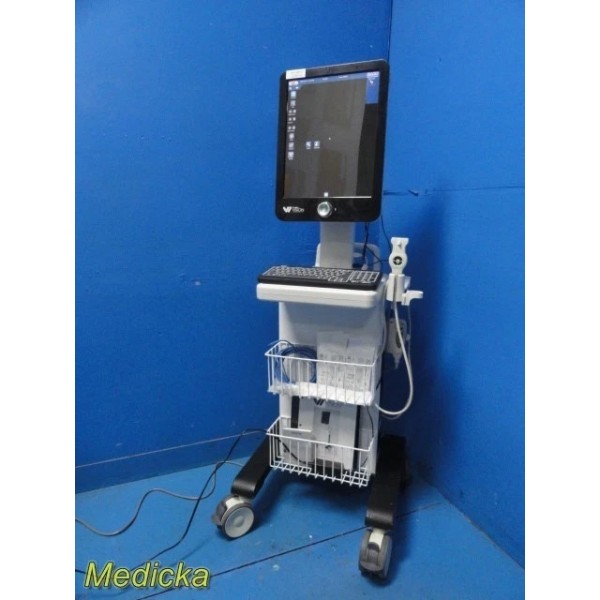

  • Bard Site-Rite Vision II Ultrasound Console on rolling cart / Tower
  • Bard Vision Linear Probe, 40 mm / 128 Element (REF 9770168)
  • Integrated touchscreen display

  • Keyboard (Esterline Medigenic)

    • Model: Medigenic Keyboard  C/N: 0733874   Serial: C0002736413

  • Brother MW-260 mobile printer
  • XP Power AC adapter (Model PDM30US09, Output 9VDC 3A)
  • Approx. 20 ft blue Ethernet cable
  • Front utility baskets
  • Rear printer mount
  • Probe / accessory holders
  • Site-Rite Vision Instructions For Use manual (binder)

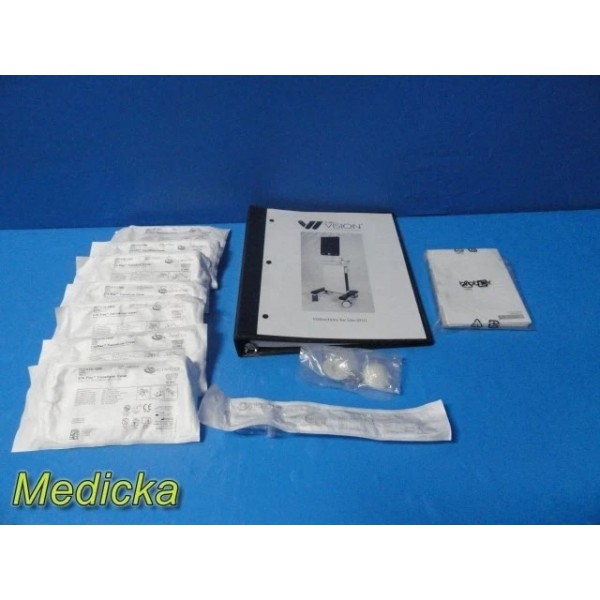

Expired Accessories (Included As-Is)

  • CIVCO CIV-Flex Transducer Covers – REF 610-1000 (Qty: 6, expired)
  • Medplast FloBag Decanter – REF 20005 (Qty: 1, expired)
What’s NOT Included:
  • Sherlock device (mount only)
  • Additional probes
  • Original packaging
  • Phantom
  • Any non-expired consumables or disposables
Buyer Advisory Note:
Lower probe connector (Probe B) requires service. Battery likely needs replacement. Printer has not been functionally tested. Only limited functional testing was performed as described. Buyers are encouraged to review all images and testing notes carefully and make an informed purchasing decision.

Shipping Note:
System will be professionally packed and shipped via freight due to size.


*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*



Stock ID : 38973 (P.O 2022) (WH104)



Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

Condition: USED, please refer to images for cosmetic condition.

  1. 1.    Overall Condition:- As seen in images - Very Good
  2. 2.    Physical Condition:  Please review images before bidding - Very Good
  3. 3.    Working Condition: Has been tested at our end & is in good functionality.....Will receive item as pictured ……………(offered AS IS)
  4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
  5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
