2014 FUJIFILM SonoSite S-Na...

Device Information:

Ultrasound Console:

Manufacturer: FUJIFILM SonoSite, Inc.         Model: S-Nerve Ultrasound System
Reference Number (REF): P07576                  Serial Number (SN): 03HBBL
Date of Manufacture: 2014 (as per software copyright)
Voltage Requirement: 100–240V ~ 50/60Hz | 6.0–2.5A
Country of Origin: USA (Bothell, WA 98021)
CE Mark: CE 0086

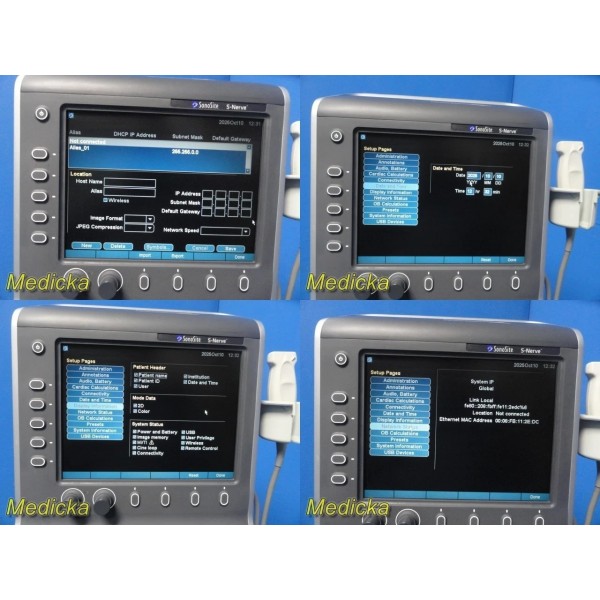

Software/System Configuration:

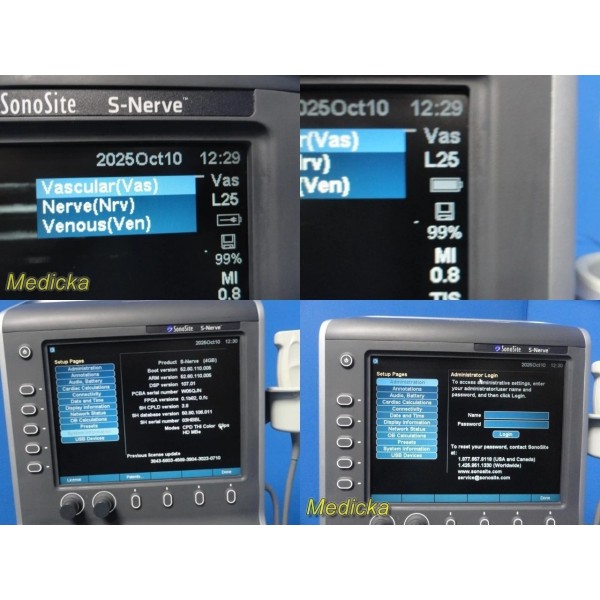

• Boot Version: 52.80.110.005    ARM Version: 52.80.110.005
• DSP Version: 107.01               PCBA Serial No.: W05QJN
• FPGA Version: 0.1b82, 0.fc    SH CPLD Version: 3.8
• Database Version: 50.80.106.011 Modes: 2D, Color, CPD, THI, HD, MBe    System Memory: 4GB

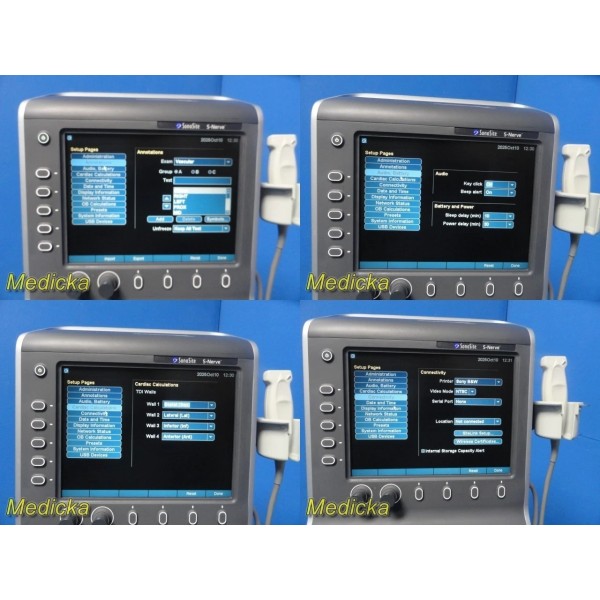

Connectivity:

• Printer: Sony B&W (NTSC mode)    Video Mode: NTSC      Serial Port: None
• Location: Not connected

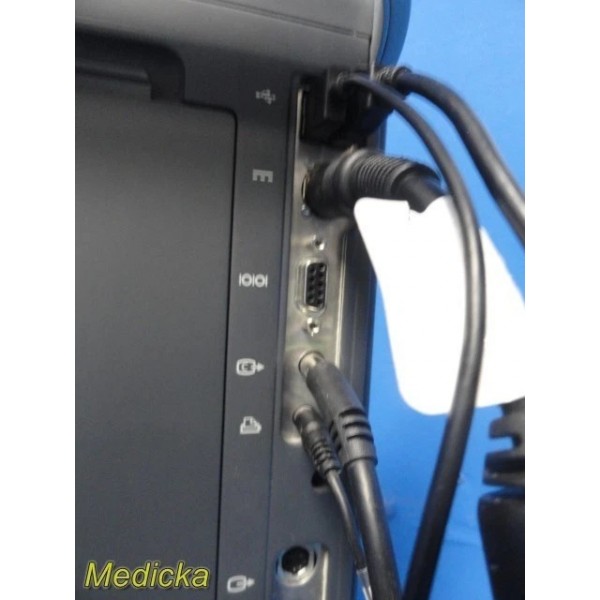

• Ports (Rear Panel):


  • 2 × USB ports (for mouse/keyboard)    1 × Serial (RS232) port

  • 1 × DVI video output   1 × Network I/O port   1 × Multi-pin peripheral input

  • Power connector and printer interface port


• Detected USB Devices: Dell Inc. Keyboard (SK-8115) and Dell Inc. Mouse (Ready Status)


Ultrasound Probe:

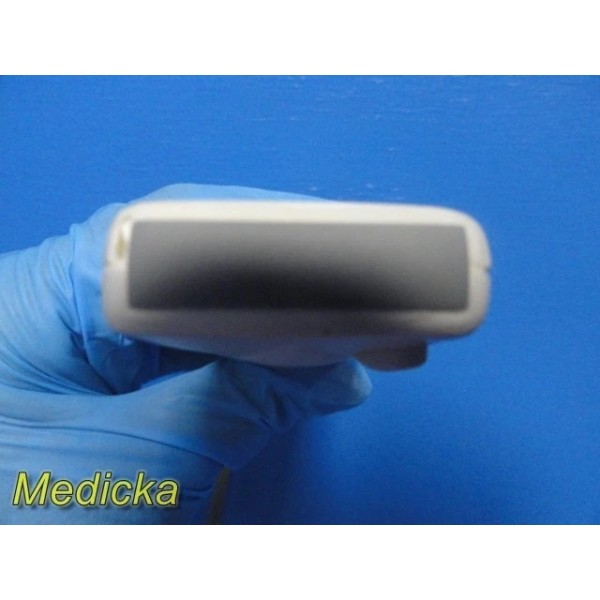

Type: Linear Array Transducer              Model: L25x/13–6 MHz               Reference Number (REF): P07619-20
Serial Number (SN): 03HBBL               Frequency Range: 13–6 MHz
Connector Type: Cartridge-style lock-in connector             Cable Length: Approximately 10 ft  Country of Origin: USA

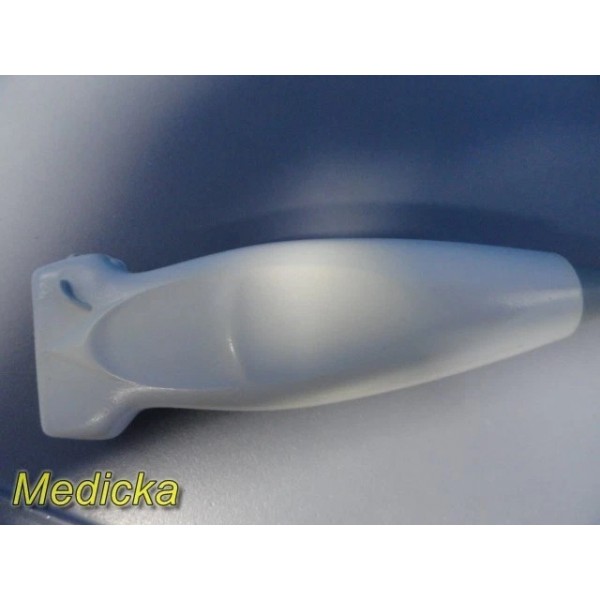

Condition: Some minor surface scuffs and scratches on the probe housing. Cable intact with no tears. Cartridge connector locks securely.

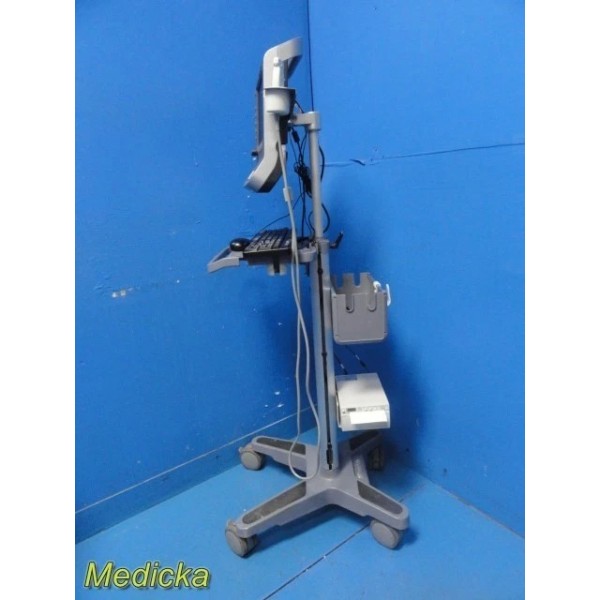

Stand:

Model: S-Series Stand     Reference Number (REF): P09900-05   Serial Number (SN): WM051H
Manufactured for: FUJIFILM SonoSite, Inc., Made In: Singapore   Date of Manufacture: 2010-01
Input Voltage: 100–240V ~ 50/60Hz | 8.0–3.3A

Output Ratings:

• 15V = 5.0A
• 19.5V = 2.3A
• 100–240V ~ 50/60Hz, 6.0–2.5A

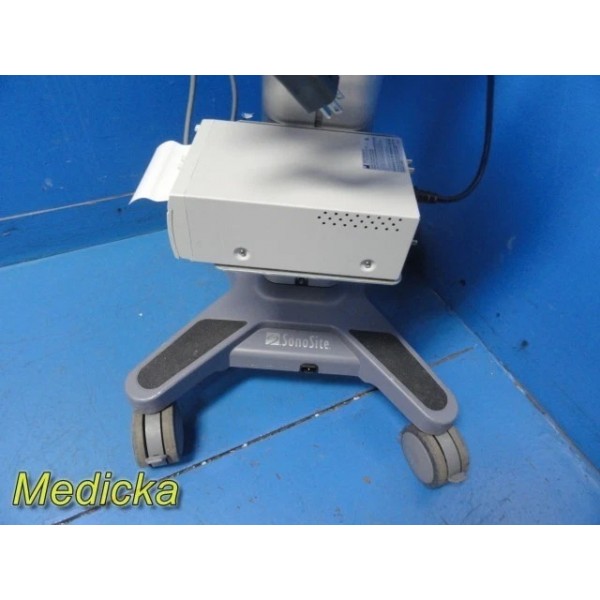

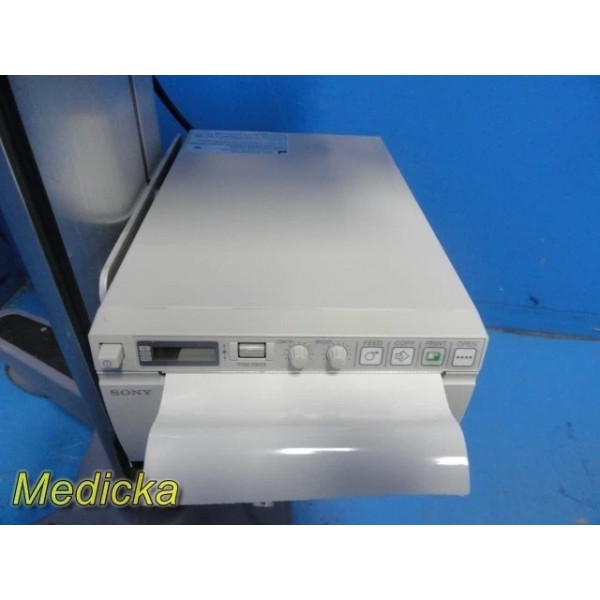

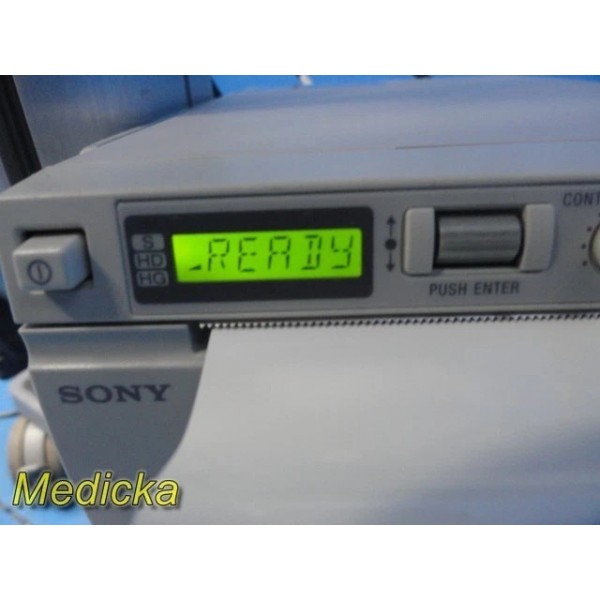

Manufacturer: Sony Corporation    Model: UP-897MD   Type: Video Graphic Printer
Voltage: 100–240V ~ 50/60Hz | 1.0–0.5A

Condition:

• Powers on normally.
• Paper loads and advances correctly.
• Connectivity established but image printing not achieved—likely due to a software/firmware glitch or communication mismatch.
• May require recalibration/reset or driver reinstallation to restore print functionality.
• Advisory: Printer is sold as-is with no warranty on print functionality.

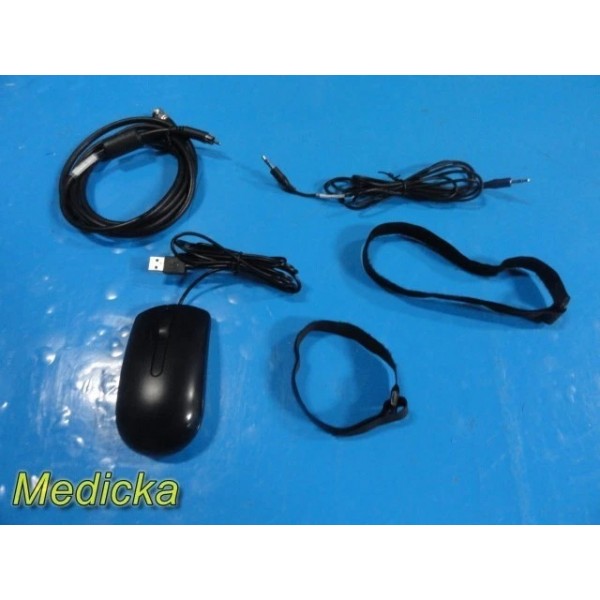

Keyboard and Mouse:

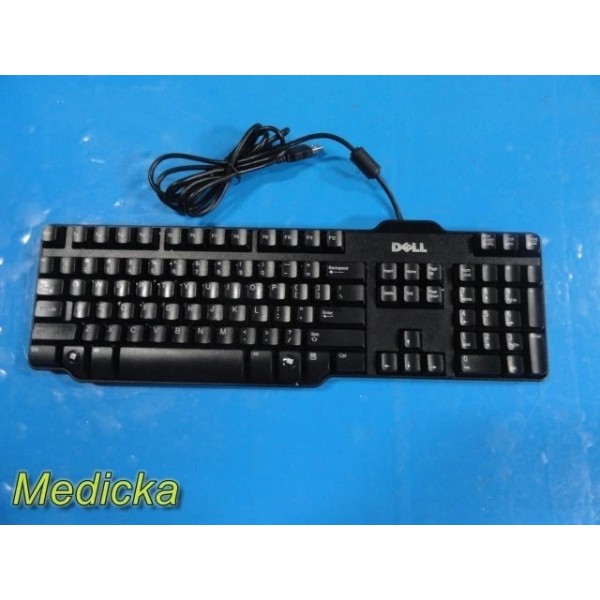

Manufacturer: Dell Inc.   Keyboard Model: SK-8115   Keyboard REF/ID: CN-0D2331-71616-76B-00EX
Voltage: 5V DC        Power: 100 mA      Country of Origin: China
Mouse: Dell Optical USB Mouse
Status: Both keyboard and mouse recognized by ultrasound system (Ready status confirmed). Fully responsive during testing.

Short Description:

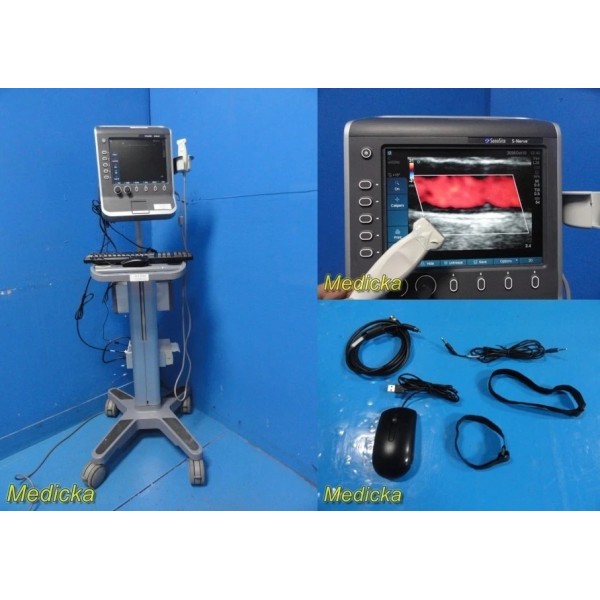

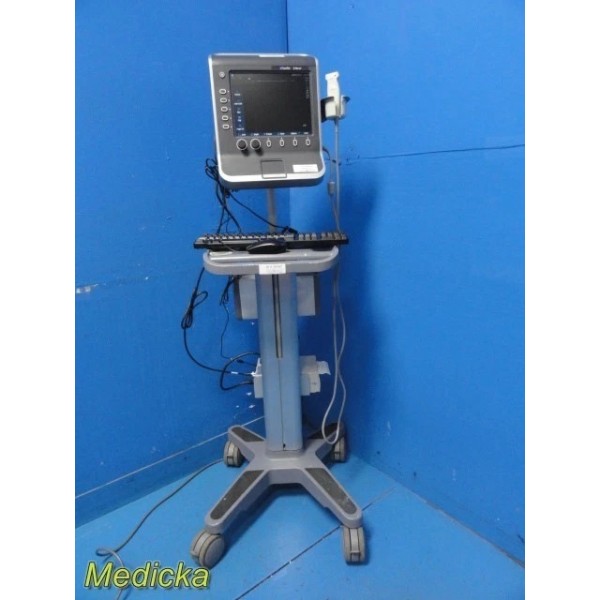

Fully integrated FUJIFILM SonoSite S-Nerve Ultrasound Imaging System with L25x/13–6 MHz Linear Transducer, S-Series Ergonomic Stand, and Sony UP-897MD Graphic Printer. Includes Dell USB Keyboard and Mouse for ease of data entry and workflow.

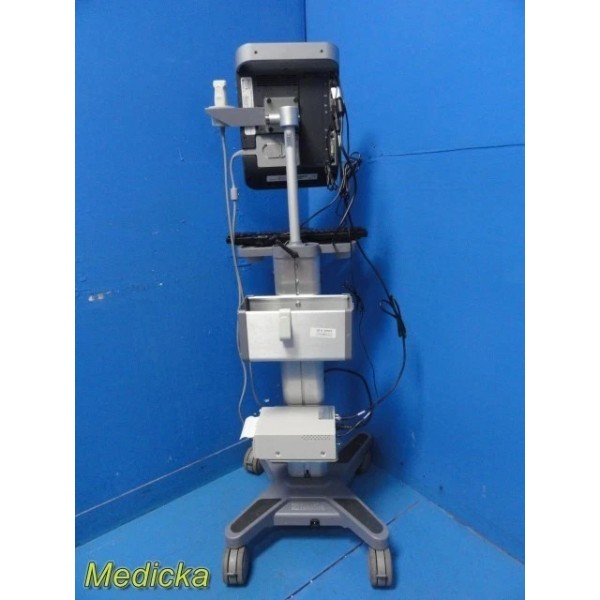

Mounted on a stable, lockable stand with integrated power supply and cable channels, featuring a utility basket and printer mount. System powers on successfully with full menu access, color imaging, and Doppler modes operational.

Condition:

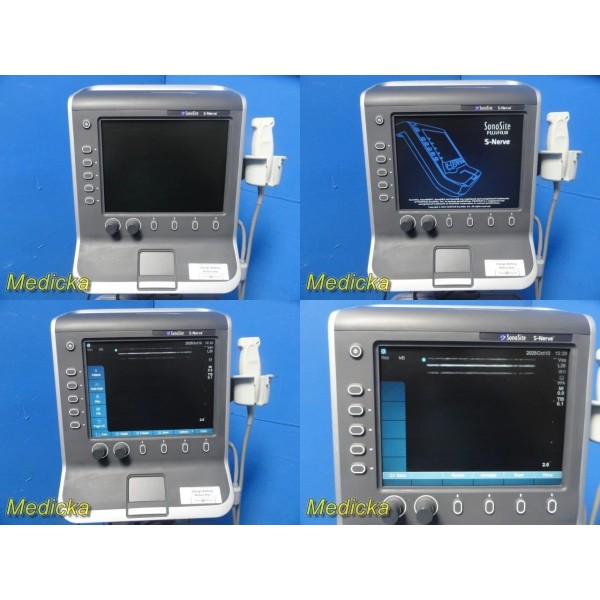

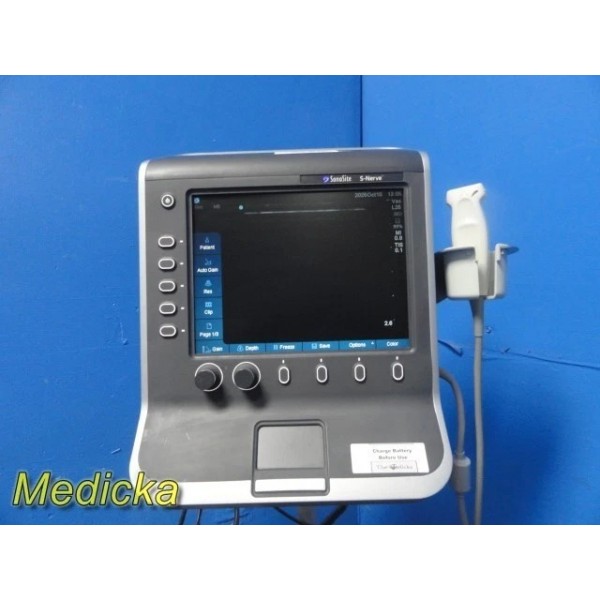

• Console: Excellent cosmetic and functional condition. Minor scuffs only; bright, scratch-free LCD. All buttons, dials, and ports intact.
• Probe: Functionally sound with stable image acquisition. Minor artifact visible on the right side during phantom and carotid testing.
• Printer: Powers on and feeds paper; communication issue prevents printing (likely software mismatch).

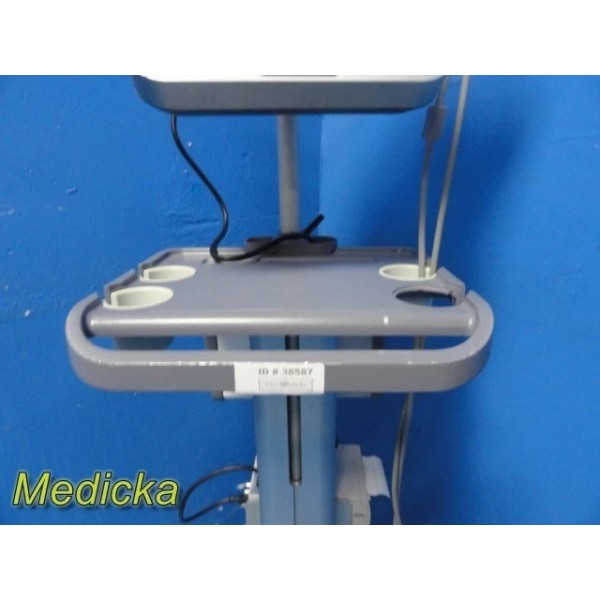

• Stand: Clean and sturdy; one gel bottle holder missing. All wheels lock properly.
• Keyboard/Mouse: Tested, fully functional and recognized via USB.

• Unit powers on and completes internal diagnostics successfully.

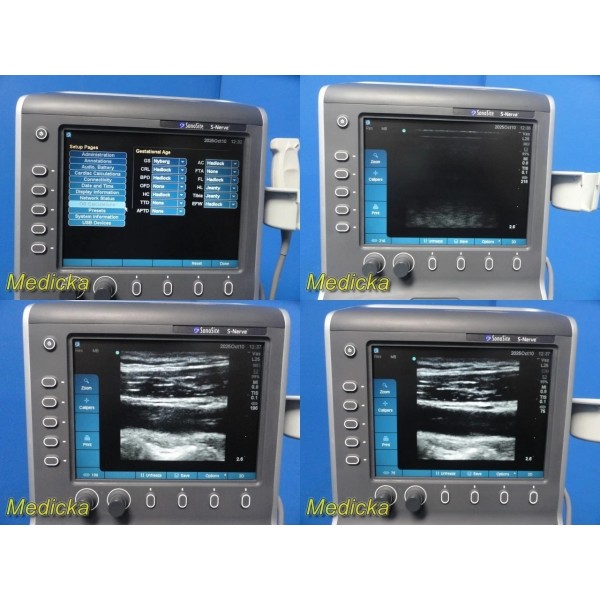

• All menu functions and modes accessible (Vascular, Venous, Nerve).
• Cardiac and OB calculations available in system setup.
• 2D, Color, CPD, and THI imaging confirmed operational.
• Minor image imperfections observed on the right during test scans.

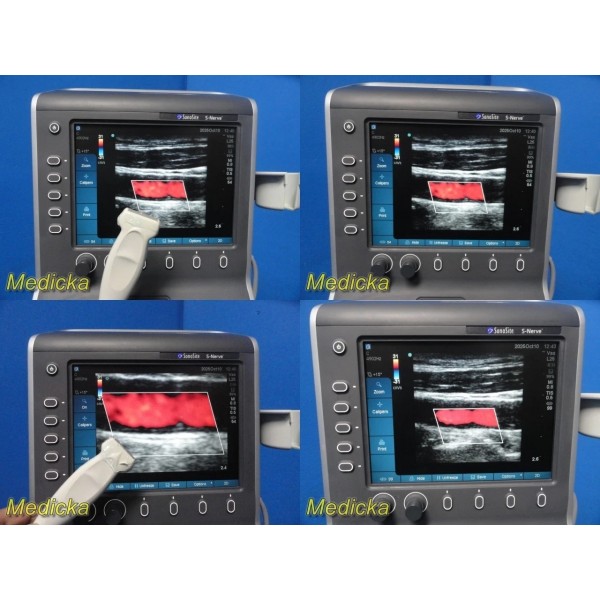

• Phantom and carotid tests show clear vascular lumen and color flow visualization.
• Printer powers and feeds but may require recalibration for image output.
• Keyboard and mouse fully responsive.

• FUJIFILM SonoSite S-Nerve Ultrasound Console (SN: 03HBBL)
• L25x/13–6 MHz Linear Transducer (REF: P07619-20)
• S-Series Stand (REF: P09900-05)
• Sony UP-897MD Video Graphic Printer with cable
• Dell Keyboard (SK-8115) and Optical Mouse
• Hospital-grade power cord

• Ultrasound gel
• Phantom/test block
• Disposable probe covers
• User manuals or service guides
• Additional probes or accessories

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

Stock ID : 38587 (P.O 2020) (WH 104)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition:- As seen in images  - Very Good
2. 2.    Physical Condition:  Please review images before bidding : Very Good
3. 3.    Working Condition: Has been tested at our end and the functionality has been shown in the image section...will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
