Verathon BladderScan BVI940...



Verathon BladderScan BVI9400 W/ Probe E570-0315, Batteries, Charger & PSU ~38006

Item specifics

Condition
Used
Seller Notes
“This is a preowned Siemens Acuson 6C2 convex ultrasound probe (Ref 08248186, SN: 25147808), tested ...
Model
BVI9400
MPN
0570-0190

More details


$1,375.20

38006

Availability: This product is no longer in stock.

Product details

Manufacturer

Verathon Medical

Item:

Verathon BladderScan BVI 9400 W/ Probe E570-0315, 2 Batteries, Charger & PSU

Model/Cat #

BVI 9400 / 0570-0190

Serial No.

B4013113

Made In:

USA

Date of Manufacture:

N/A

Voltage:                   5200mAh | 11.1V | 57Wh



Short description:

Verathon BladderScan BVI 9400 portable bladder volume measurement system with probe, dual rechargeable batteries, wireless dual bay charger, and AC power adapter. Console powers on, passes self-test, probe produces volume scans, and printer is functional (no spare paper included). Calibration is required before clinical use.

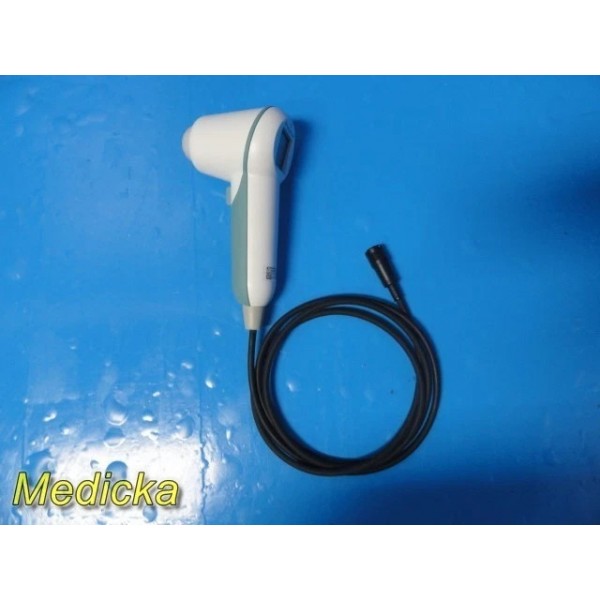

Probe:



  • Bladder Volume Imaging Probe
  • Part Number: E570-0315
  • Serial Number: PE005075
  • Probe DOM: 2021-06-10
Battery Charger Model: Wireless Hub, Ref 0570-0193 (DOM: 2021-11-09)
CE Mark: CE 0123



Battery Packs (Qty: 2):



  • Verathon Rechargeable Lithium-Ion
  • P/N 0400-0066
  • Rating: 11.1V, 5200mAh, 58Wh
  • UL listed, Made in Korea
Warnings/Labels:
Do not remove battery while instrument is ON (risk of lock-up).
Use only original Verathon battery packs.
WEEE recycling and lithium-ion handling precautions present.

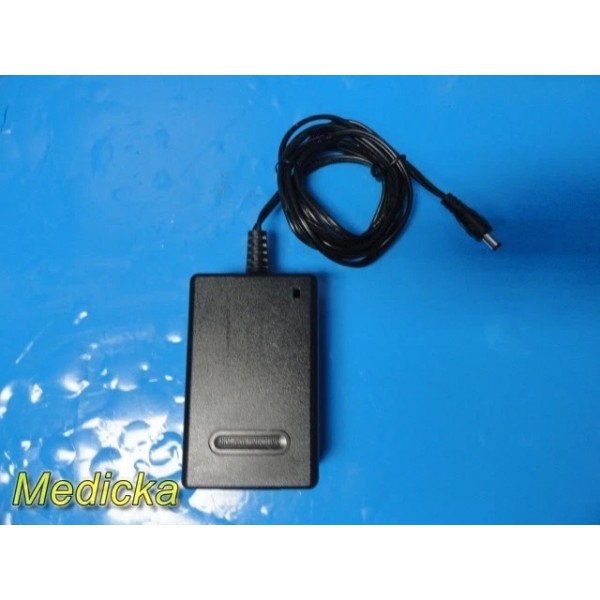

AC Adapter/Power Supply:



  • Verathon Model PSU40B-5
  • P/N 0400-0067
  • Input: 100–240V AC, 50/60Hz, 1.0A
  • Output: 18V DC, 2.22A, 40W max

Condition (Visual & Physical):

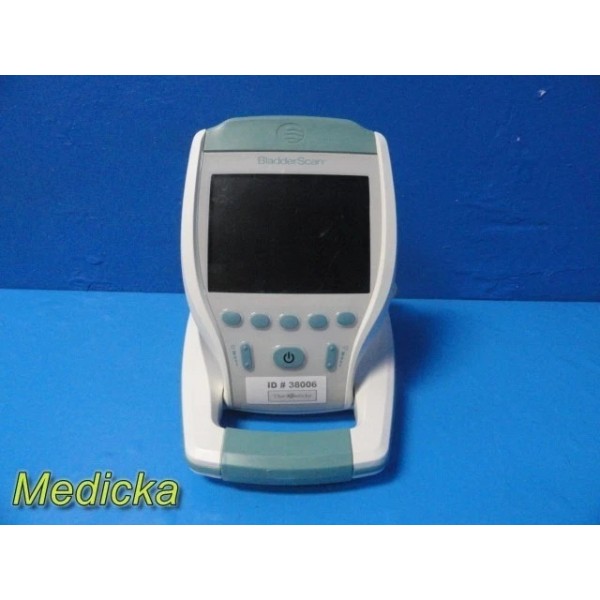

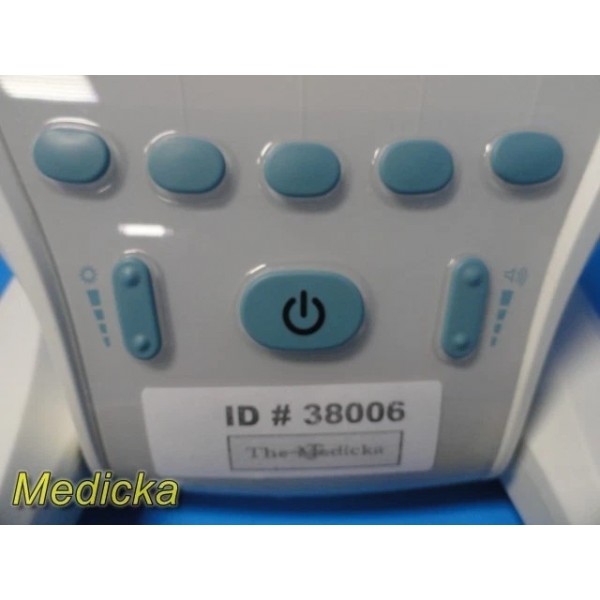

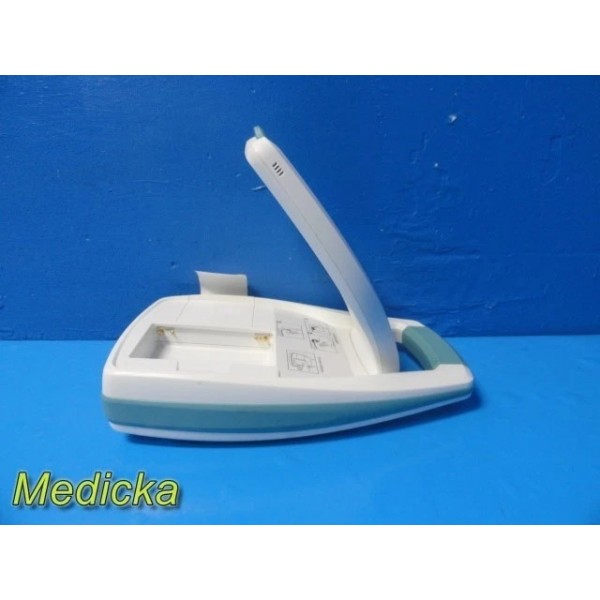

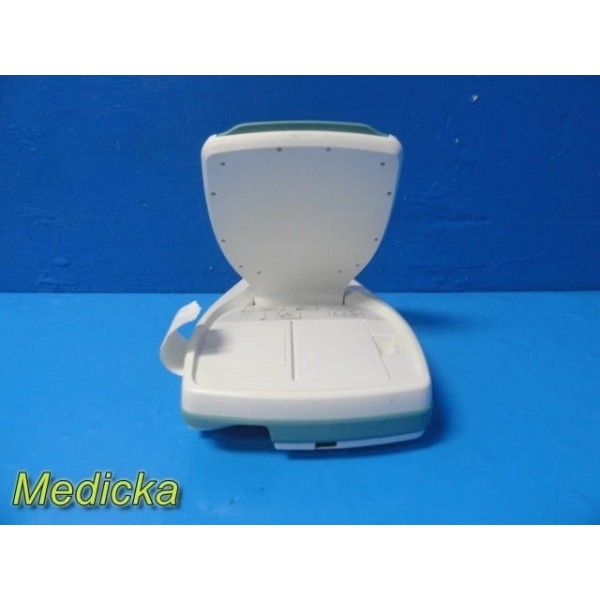

  • Console:

    • Housing intact, no cracks or dents; some cosmetic scratches/scuffs.

    • LCD: bright, responsive, no dead pixels.

    • Protective cover intact.

    • Handle and base feet in good shape.

    • Probe connector intact.

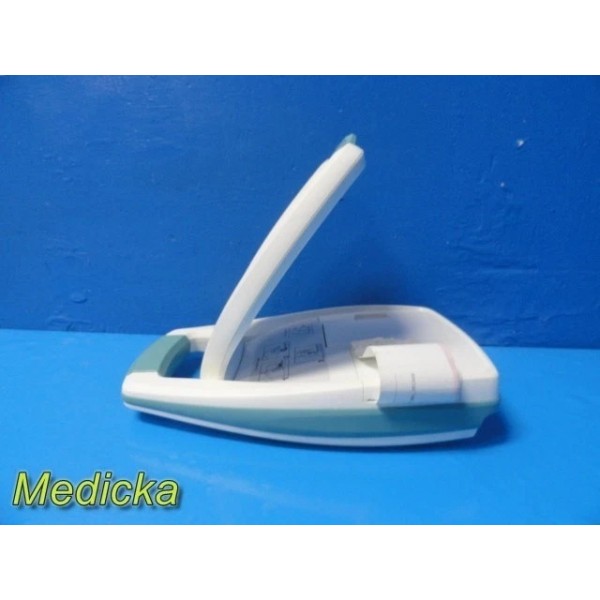

    • Built-in printer tested, prints; currently open/out of paper.

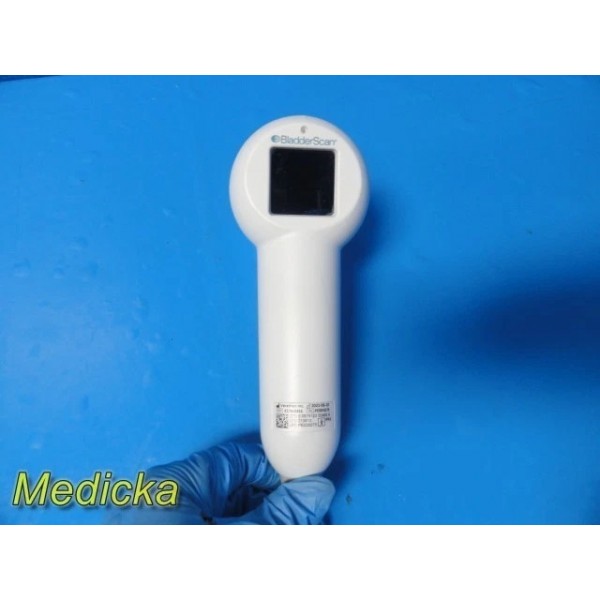

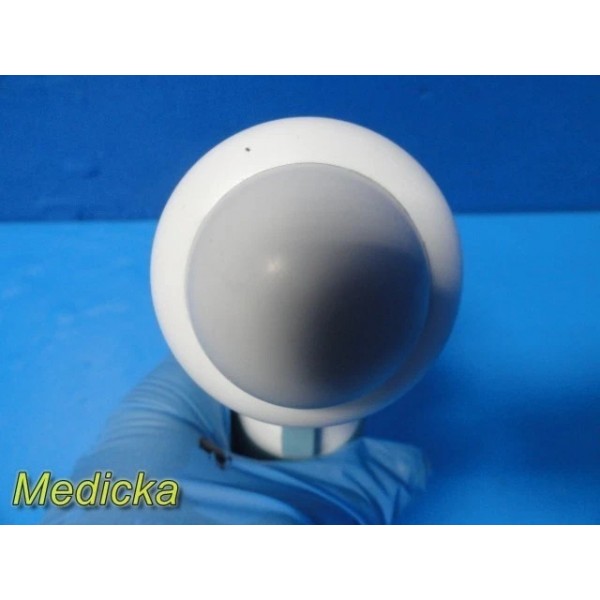

  • Probe:

    • Housing intact, no cracks or dents.

    • Mini LCD good, no dead pixels.

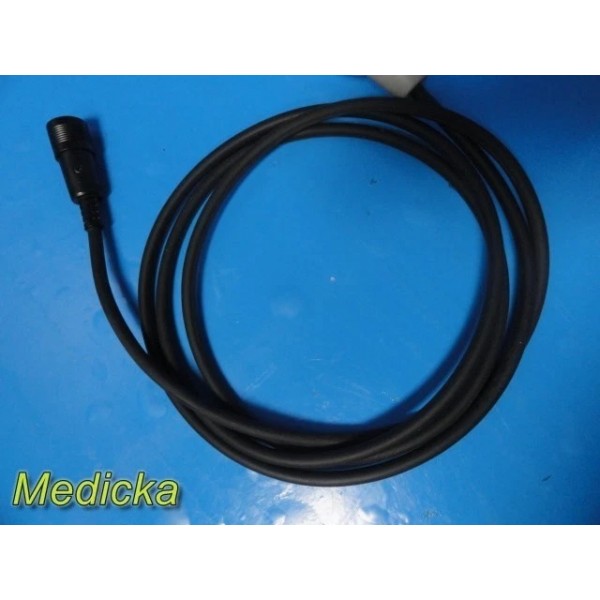

    • Cable ~4 ft, no cuts/tears.

    • Strain relief intact.

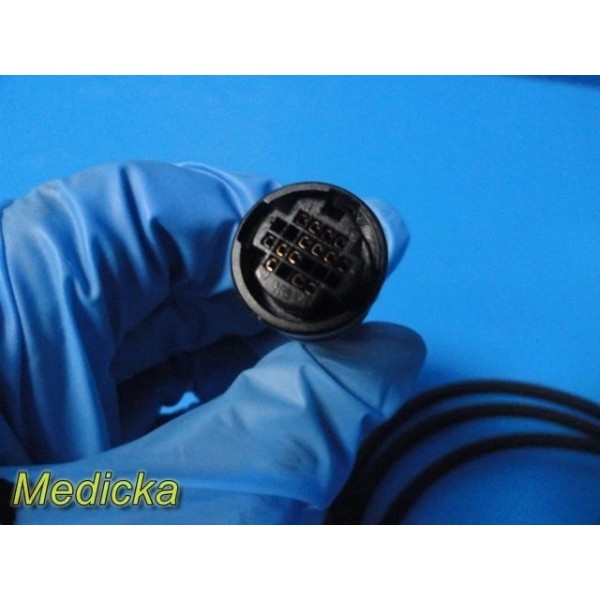

    • Connector secure, clean.

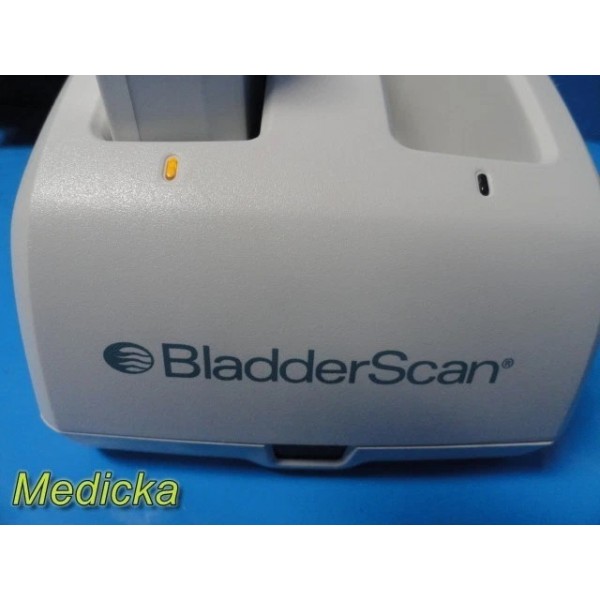

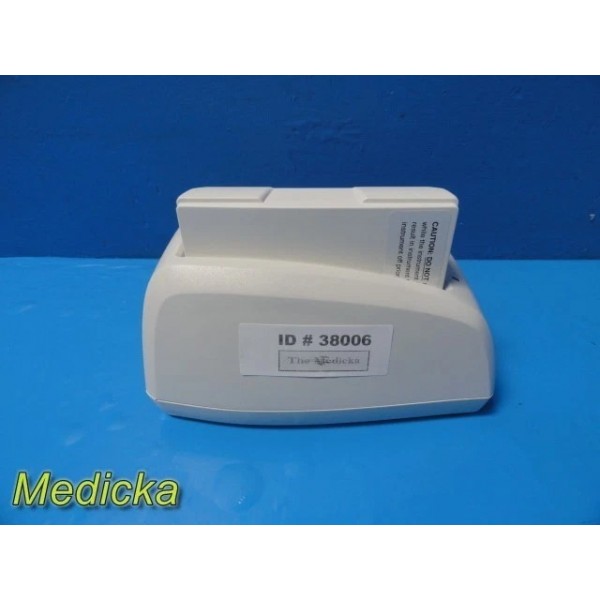

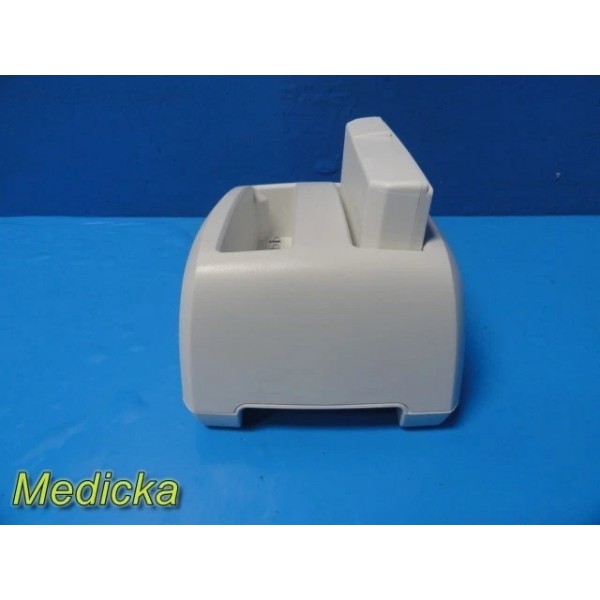

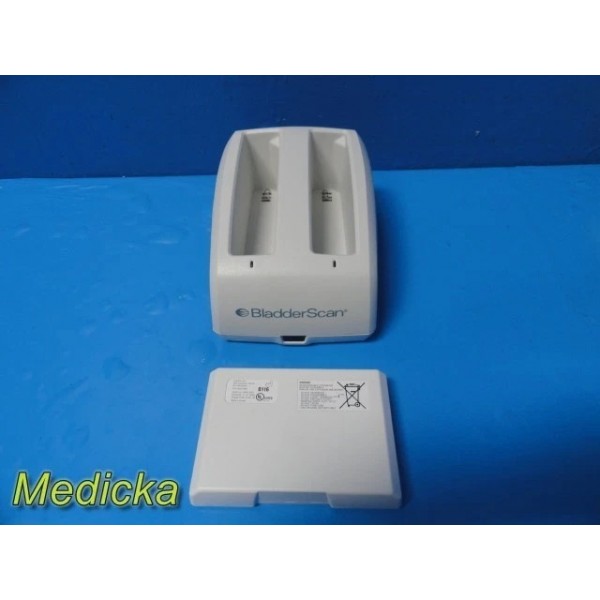

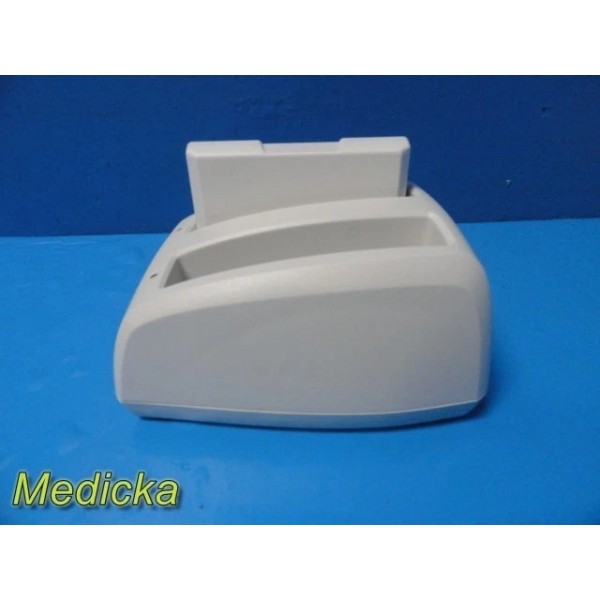

  • Battery Charger (Dual Bay):

    • No cracks or damage.

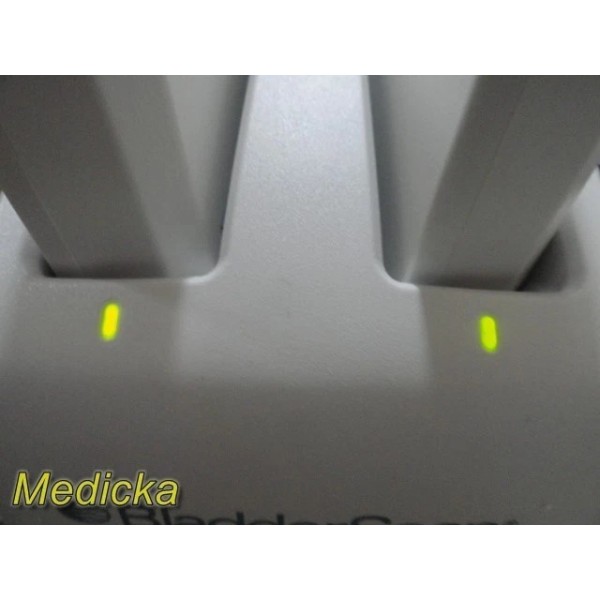

    • LEDs functional (orange = charging, green = charged).

  • Battery Packs (x2):

    • Good cosmetic condition.

    • Fully charged per console/charger.

    • Health not guaranteed; recommend overnight charging before use.

    • No warranty on used batteries.

  • Power Adapter:

    • Good condition, connector intact.

    • Includes power cord.

Functionality Summary:

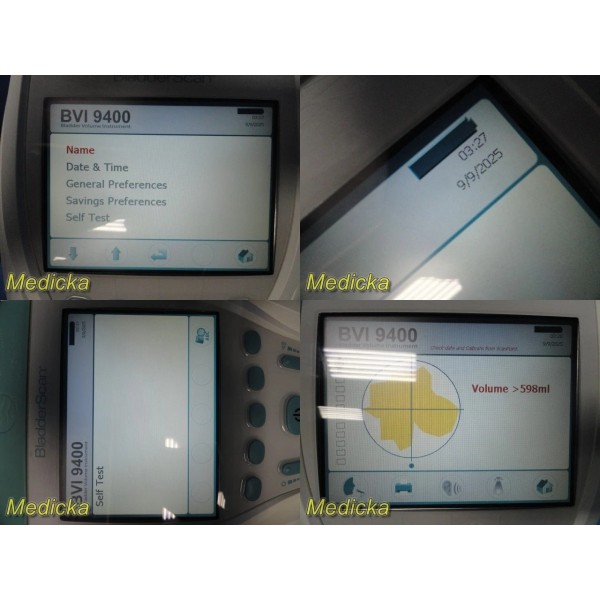

  • Self-Test Report:

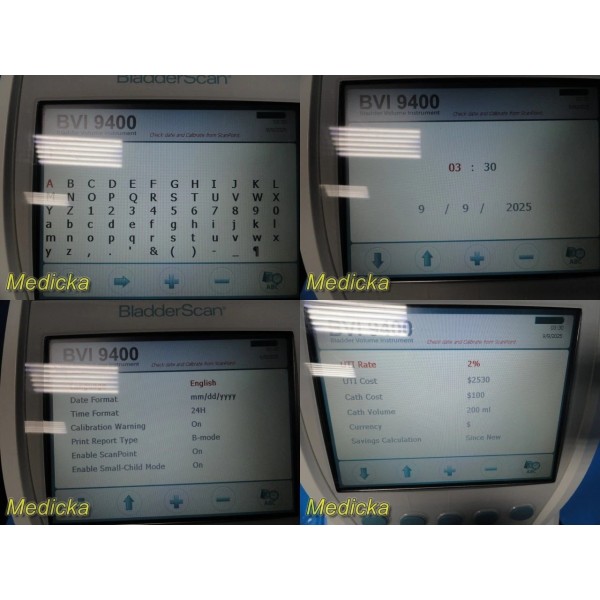

    • Console S/N: 00013113 | Versions: U.I. 2.8.7.6/601, DSP 4.3/BVI9400 | Disk Space: 19490KB available | Microphone: Passed | DSP: Present & functional | Battery: 98% (78% ref.), 4140 mAh capacity | Cell voltages: 3996, 4024, 3975 mV | Internal Temperature: 24.25 °C | Calibration prompt: Run ScanPoint | Printer: Open or out of paper.

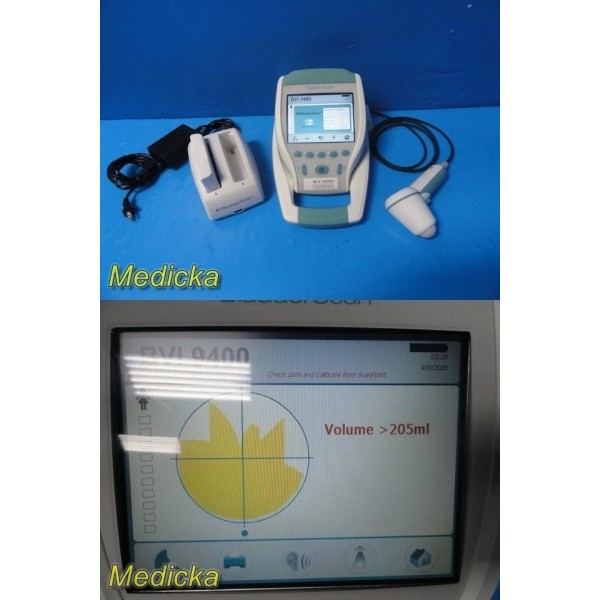

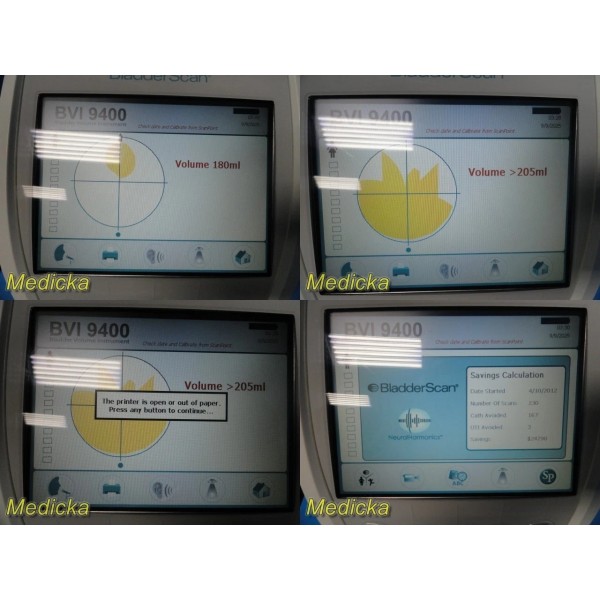

  • Probe Testing: 3 mock scans on saline bottle performed; probe detects and displays bladder volume.

  • Calibration: Not performed; unit prompts for calibration.

  • Printer: Working, but no additional paper rolls included.

  • Recommendation: Calibration strongly advised prior to clinical use.

What’s Not Included:
  • User manual
  • Phantom
  • Calibration kit
  • Gel
  • Mobility cart/stand
  • Extra printer paper
  • Any consumables or disposables

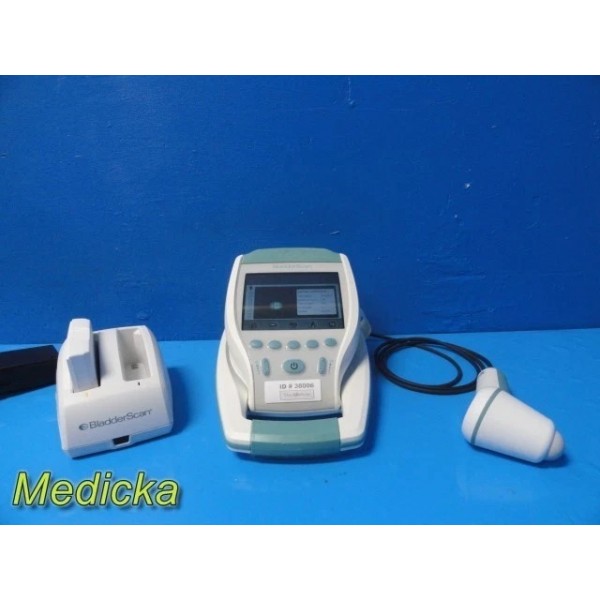

Package includes:


BladderScan BVI 9400 console (P/N 0570-0190)

Bladder scanner probe (Ref E570-0315)

2 × rechargeable battery packs (P/N 0400-0066)

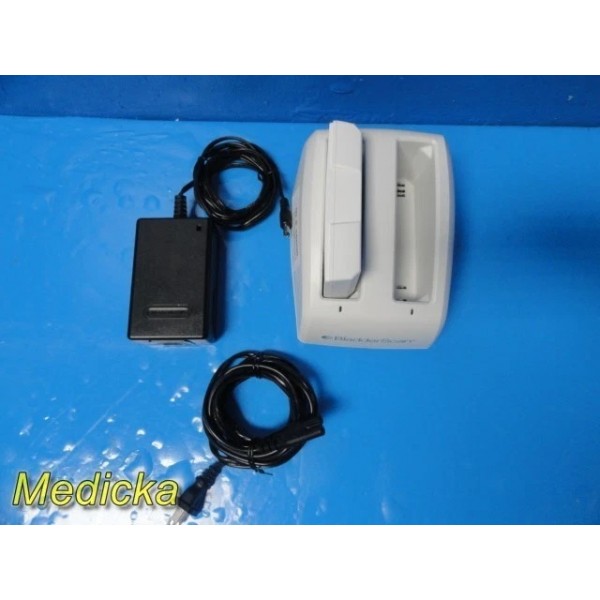

Dual bay wireless battery charger (P/N 0570-0193)

AC power adapter (Model PSU40B-5) W/ Power cord




*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*


Sterilized : Non-sterile device

Manual : Not Included

Cleaned : Yes, at our facility

Shipping Weight : 30 lbs



Stock ID : 38006 (P.O 1200) (WH105 R3C2)



Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

Condition: USED, please refer to images for cosmetic condition.

  1. 1.    Overall Condition:- As seen in images - Very Good
  2. 2.    Physical Condition:  Please review images before bidding - Very Good
  3. 3.    Working Condition: Has been tested at our end & is in good functionality....will receive item as pictured ……………(offered AS IS)
  4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
  5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
