Philips S7-3T Pediatric / Adult Transesophageal Ultrasound Probe W/ Case ~36259

Item specifics

Condition
Used
Seller Notes
“Has been tested at our end / Review functionality images / Cosmetically in good shape / Please review images & check for compatibility before bidding for the item”
Model
S7-3T
MPN
453561181215

More details


$731.20

36259

Availability: This product is no longer in stock.

Product details

Manufacturer

Philips

Item:

Philips S7-3T Pediatric Transesophageal Ultrasound Probe W/ Case

Model/Cat #

S7-3T / 453561181215

Serial No.

02Q80P

Made In:

USA

Date of Manufacture:

N/A



Short description...

✅ Sale Includes Only the Imaged Items
✅ Signs of Average Use

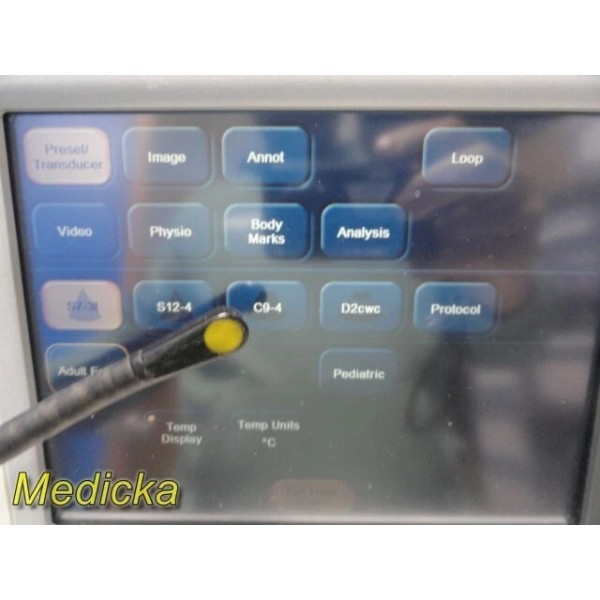

✅ Tested at Our Facility – Review Functionality Images

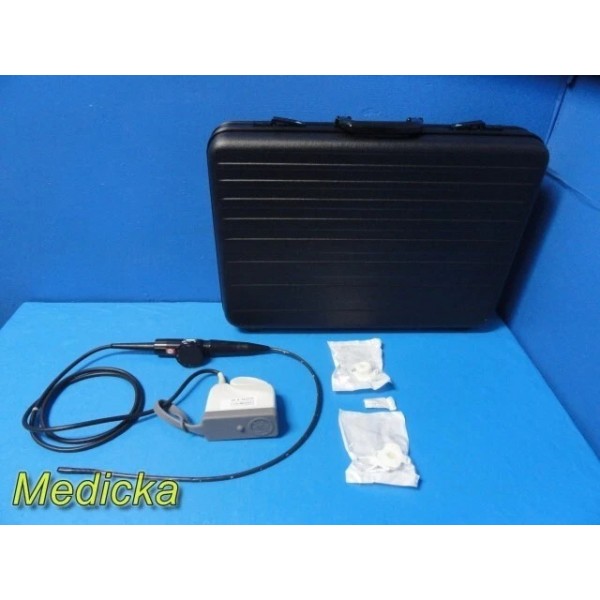

 Accessories Included

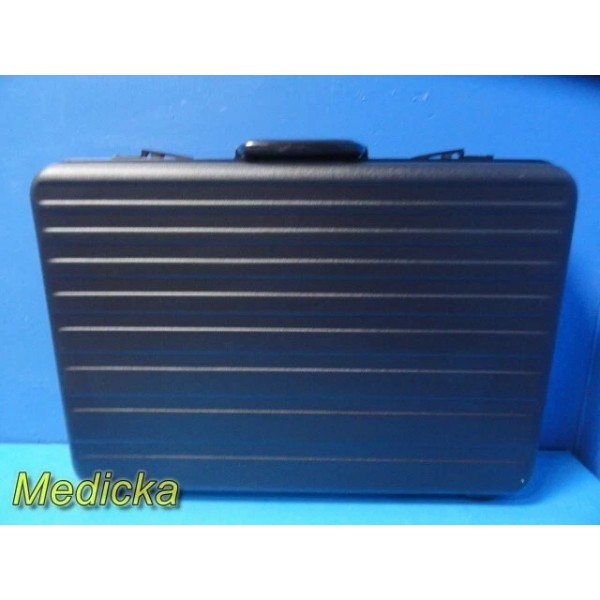

  • 1X Storage Case
  • 2X Keys, 2 x Mouth guards

 No manual, disposables, or consumables included with the device.

 Probe Condition & Features

Probe Analysis

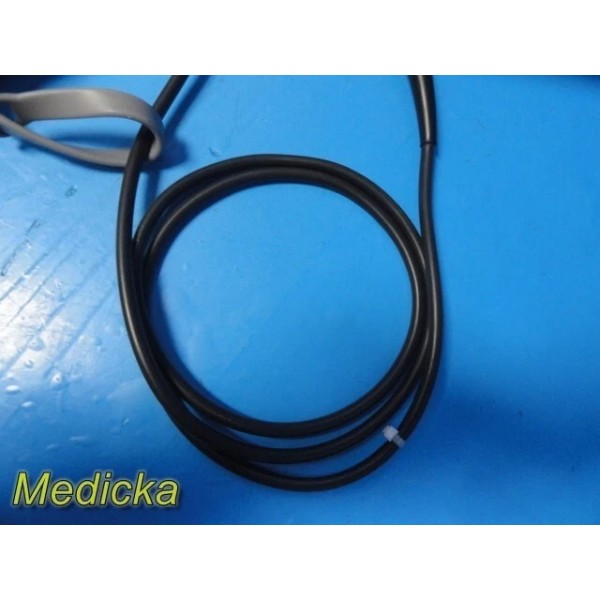

  • Cable: No cuts or tears noted | Strain reliefs are tear-free

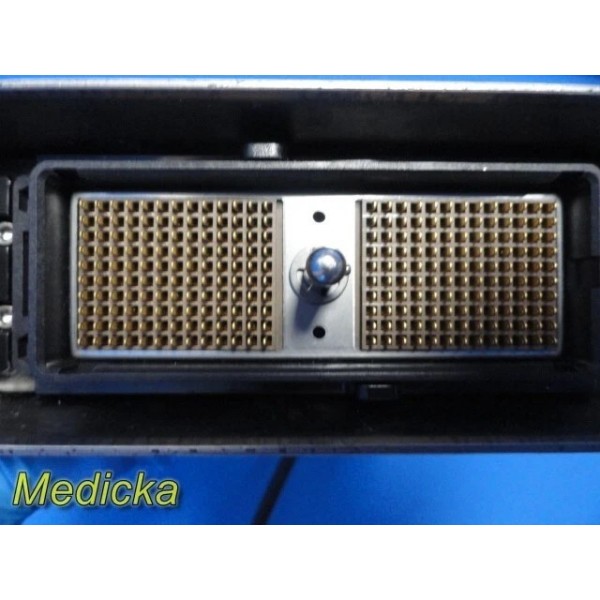

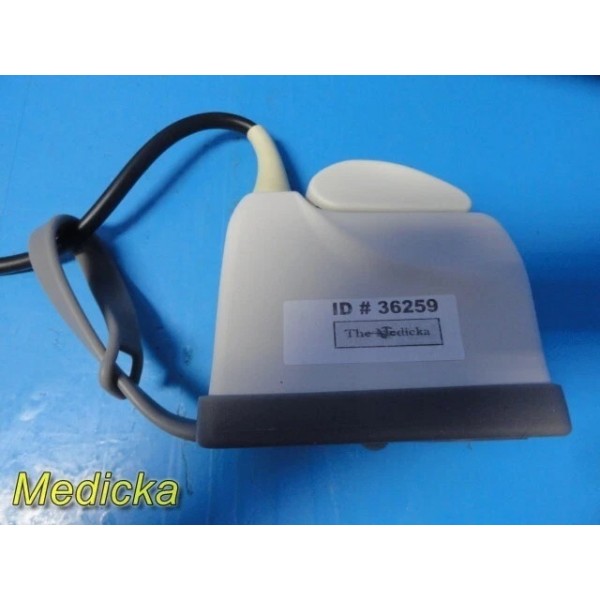

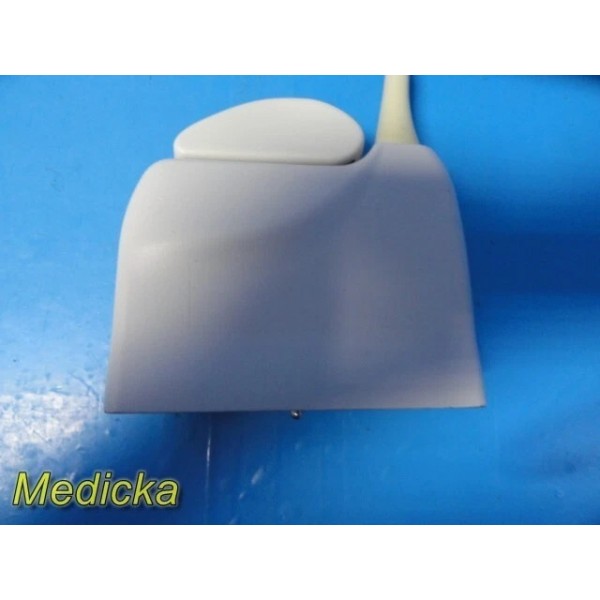

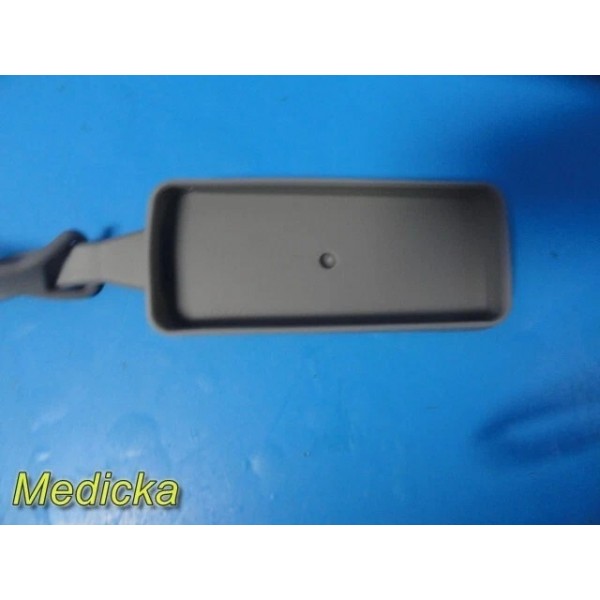

  • Connector with Cap: Some scratches & minor paint loss | No broken or bent pins

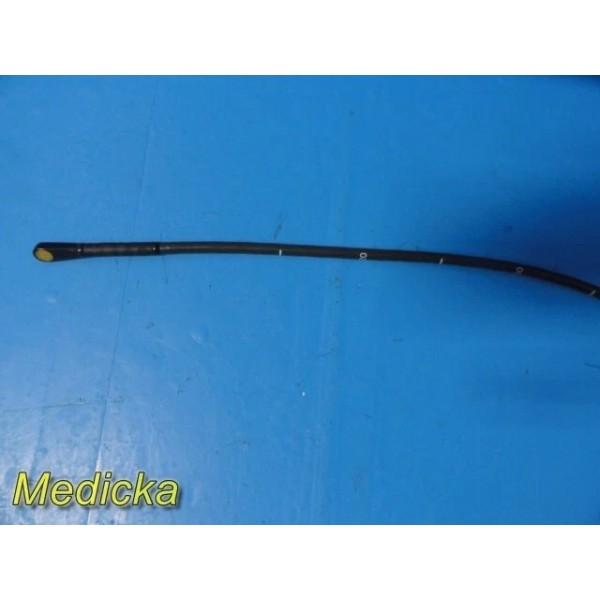

  • Insertion Tube: No cuts, tears, buckling, or degeneration

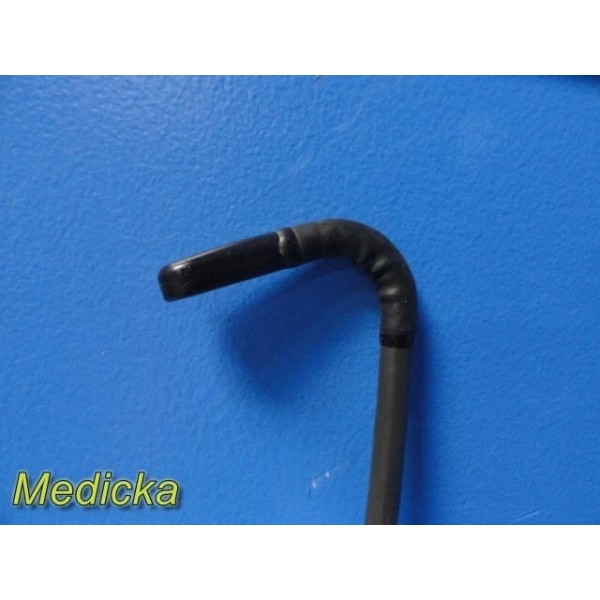

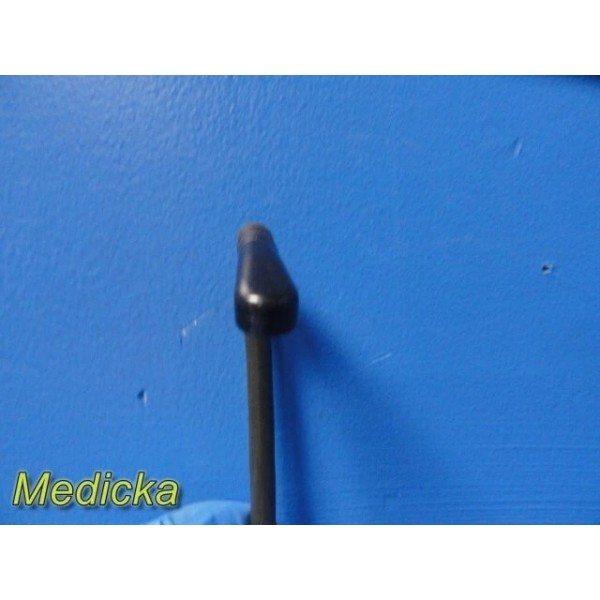

  • Head & Tip:

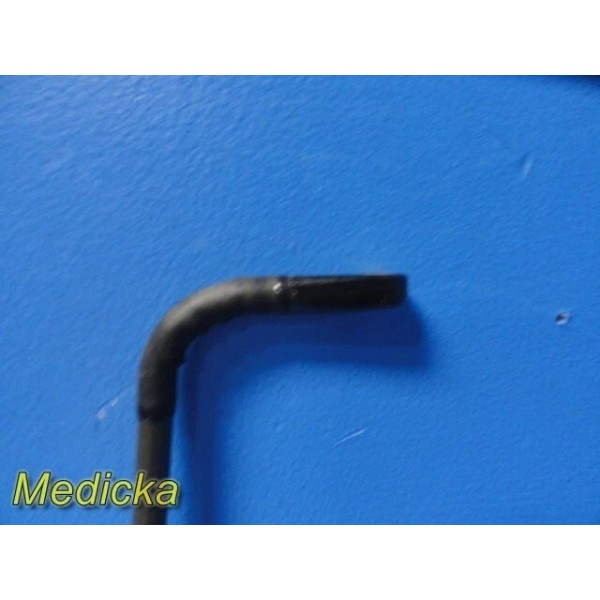

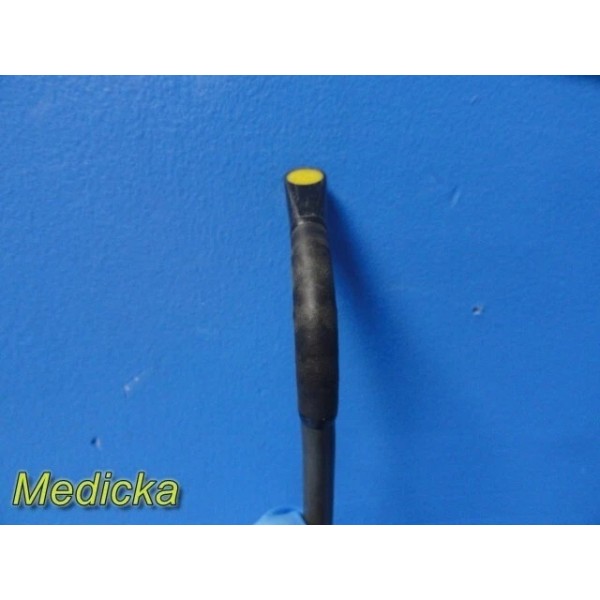

    • Angulation is responsive

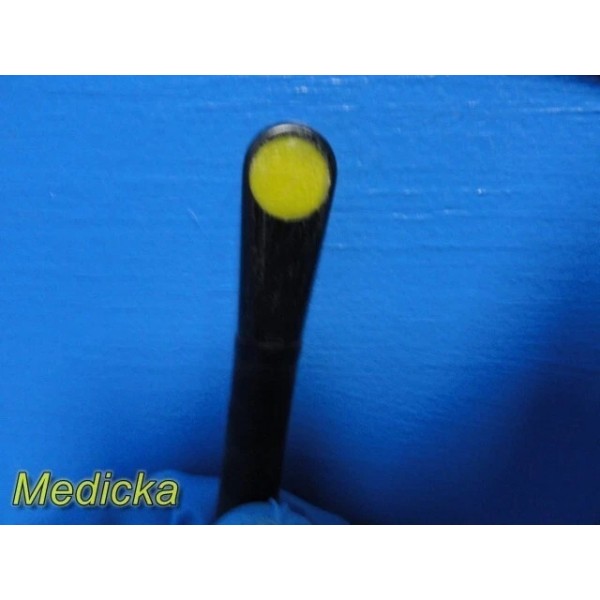

    • Lens appears smooth but has some scratches (see images)
    • No tears noted

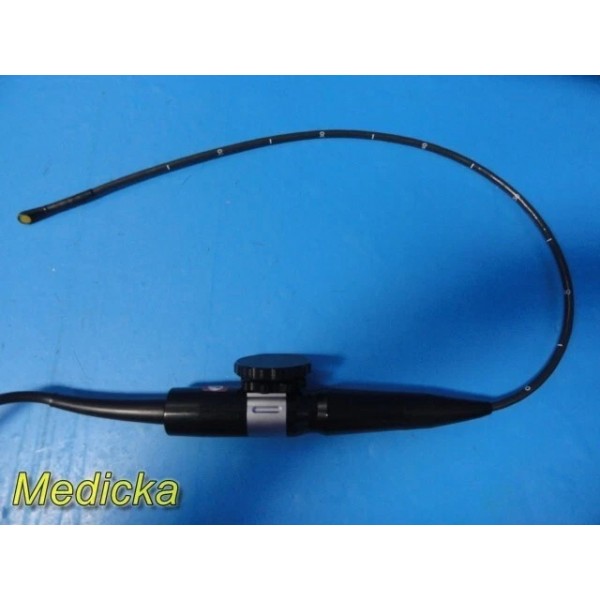

  • Control Body & Mechanics:
    • Both knobs are intact
    • Angulation knob is responsive
    • Body has some scratches

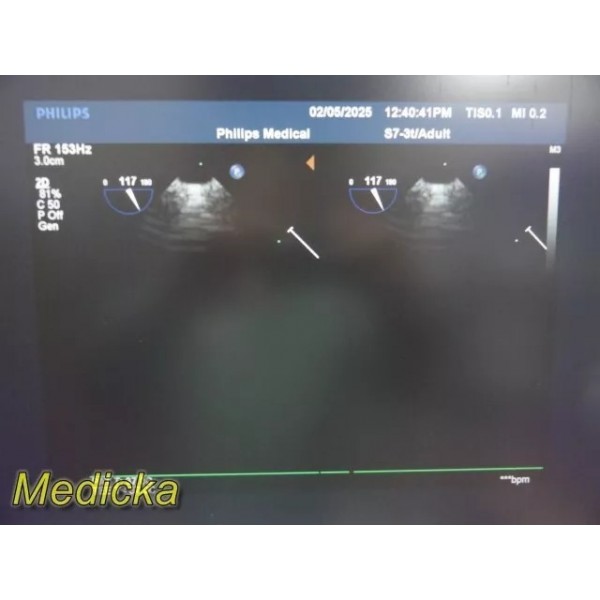

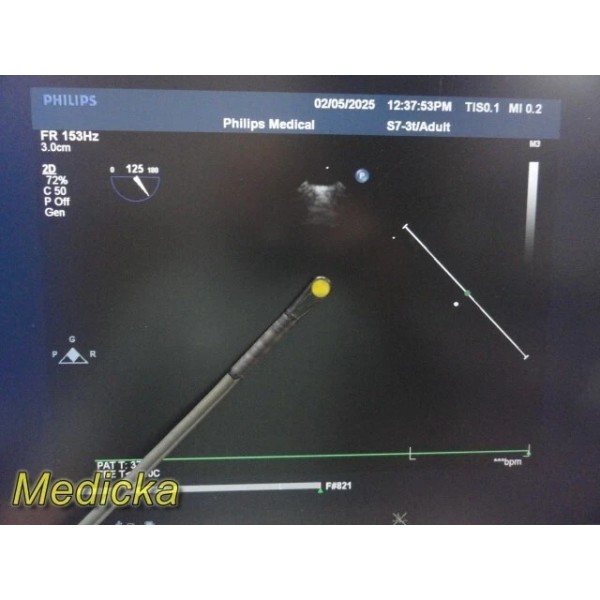

Functionality Analysis

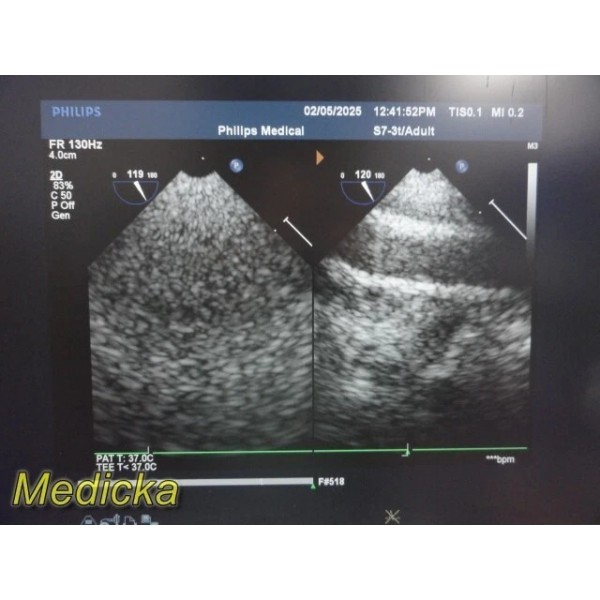

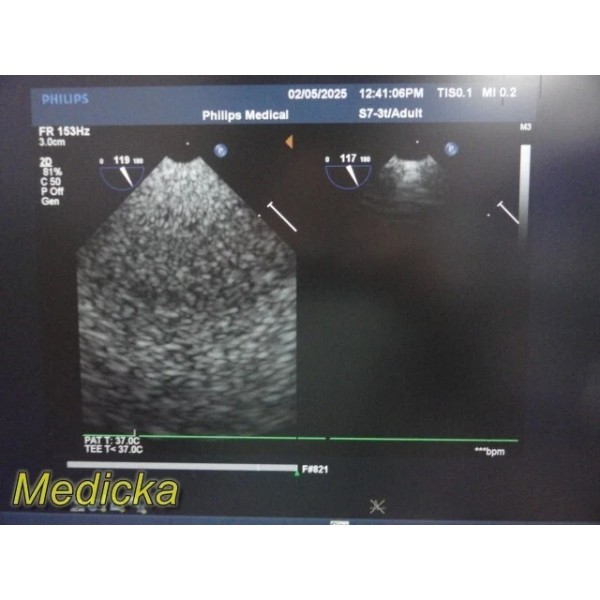

  • Air Scan: Some shadows may be present
  • Phantom Scan: Unable to assess

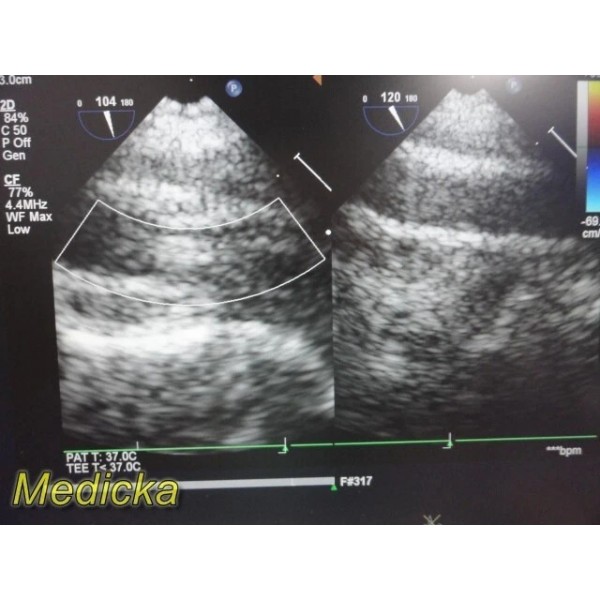

  • Body Scan: Not performed | Color flow & other parameters remain untested | Carotid color scan appears patchy

 NOTE: Preventative Maintenance (PM) is recommended before clinical use.

 Please review images and verify compatibility before purchasing.

 Device Overview & Compatibility

Specifications

This Pediatric and Adult TEE Transducer operates with broadband technology and features 48 elements. It has a frequency range of 7 - 3 MHz and uses a sector array type with an aperture of 7.25 mm. The field of view is 90°, but it does not have a volumetric field of view.

The probe supports multiple imaging modes, including 2D, steerable PW Doppler, CW Doppler, color Doppler, XRES, and harmonic imaging. It is designed for pediatric and adult transesophageal echocardiography (TEE) applications.

This transducer is not biopsy-capable and does not support image fusion navigation.

Physical Dimensions

  • Tip Dimensions: 10.7 x 8 x 27 mm (0.42 x 0.31 x 1.1 in)
  • Shaft Diameter: 7.4 mm (0.29 in)
  • Shaft Length: 70 cm (27.6 in)

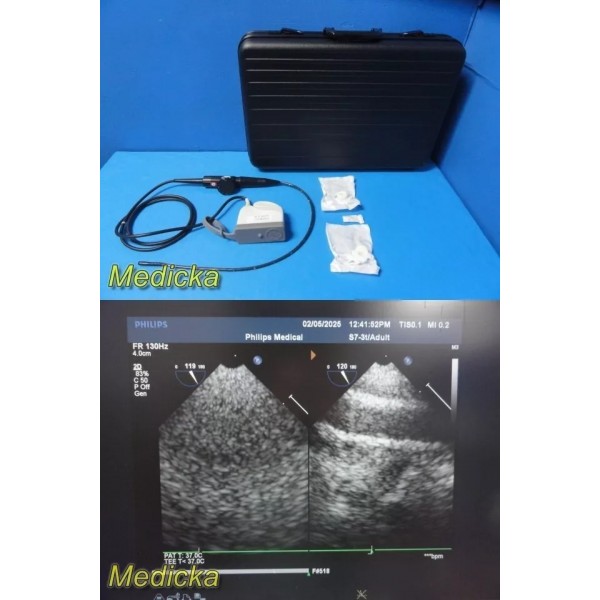

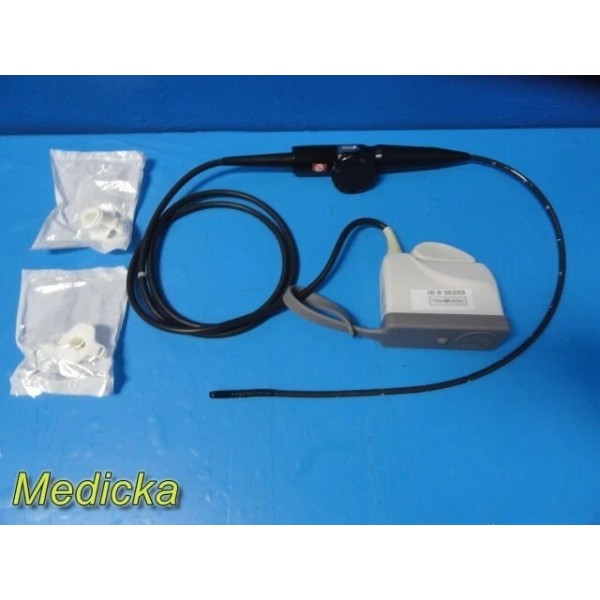

 Package Includes:
✅ Philips S7-3T Pediatric Transesophageal Ultrasound Probe

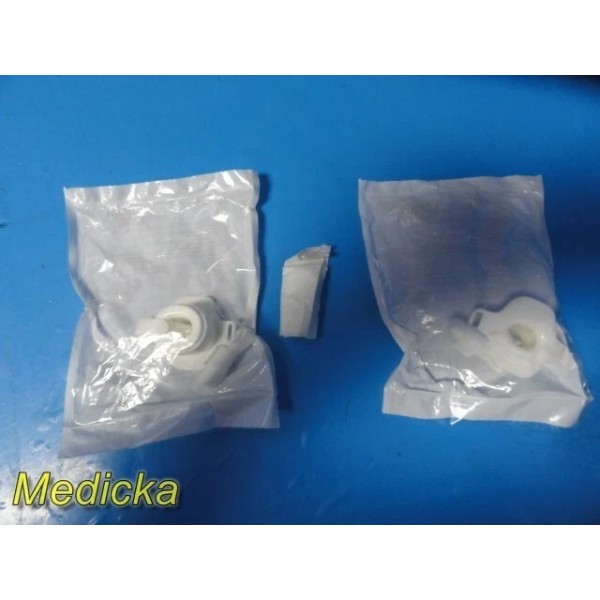

✅ EZ Guard Mouthpiece
✅ 1X Storage Case

 Note: Only the items displayed in the images are included. If it’s not shown, it is NOT part of the sale.

 Additional Information

  • Shipping Weight: 20 lbs



Stock ID: 36259 (P.O 4017) (Loc SC3 ?)



Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

Condition: USED, please refer to images for cosmetic condition.

  1. 1.    Overall Condition: As seen in images - Very Good
  2. 2.    Physical Condition: Please review images before bidding - Very Good
  3. 3.    Working Condition: No detailed testing / Review functionality images....Will receive item as pictured ……………(offered AS IS)
  4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
  5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
