Product details

Manufacturer: Olympus
Model:UPD-3
Item: Endoscope Position Detecting Unit (ScopeGuide System Component)
Serial Number: 07532933
Monitor Compatibility (Tested With): Olympus SV-2 HD Monitor (NOT included)
Made In: Japan
Power Requirement: 100–240V, 50/60Hz
Configuration: Console Unit Only

Short Description

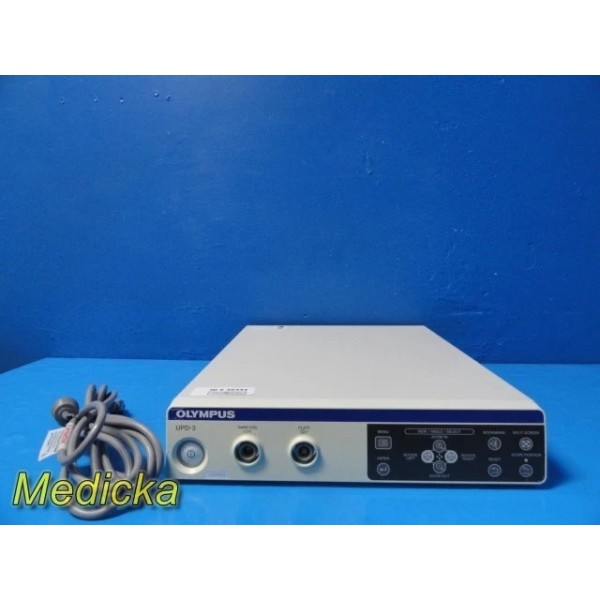

Olympus UPD-3 ScopeGuide Endoscope Position Detecting Unit. Device powers on and was tested with a compatible SV-2 monitor (not included). System responds to front panel controls and displays multiple operational menus. Ideal replacement or expansion unit for existing ScopeGuide systems.

Condition Summary

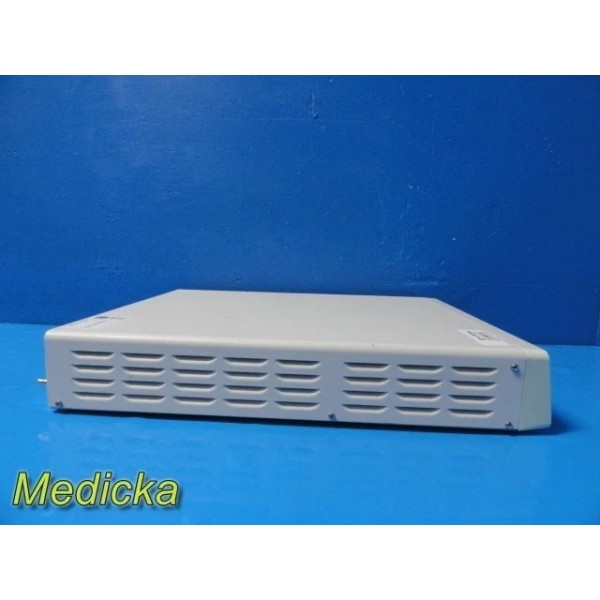

Container Housing: Very good cosmetic condition with signs of prior professional use, including minor scuffs and scratches consistent with handling. No structural dents, cracks, or deformation noted.

Lid & Base: Perforated aluminum lid and solid base are clean, structurally sound, and align properly.

Filter System: Installed JK100 universal DBP filter retainer present in lid.

Latch & Handles: Locking latches and pickup handles are intact and functional.

Overall Presentation: Clean surplus condition. Buyers are encouraged to review images for cosmetic detail.

Functionality / Testing Summary

Power-On Test:

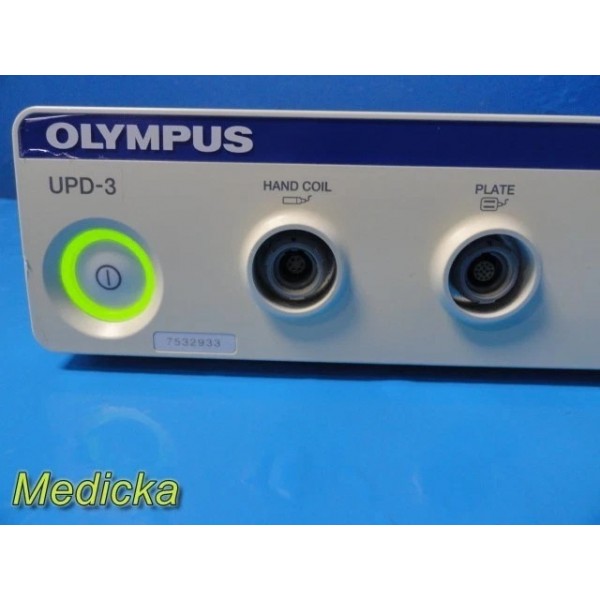

Device powers on successfully with illuminated power button.

System Navigation:

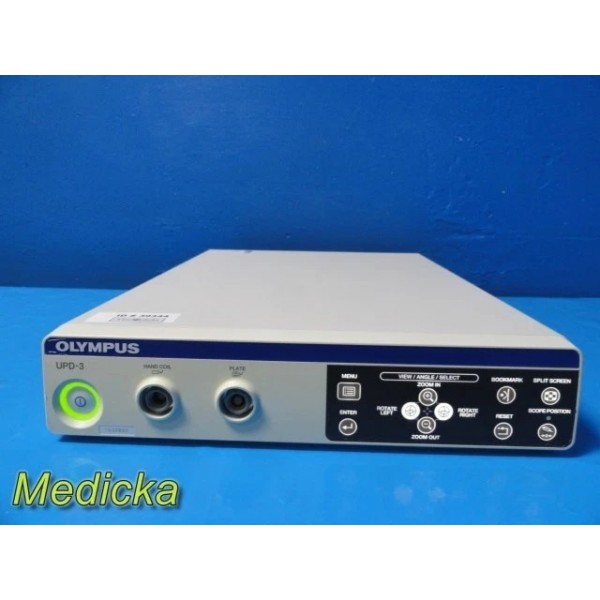

Unit responds appropriately to front panel controls including menu, rotation, zoom, and selection functions.

Display / Interface Behavior:

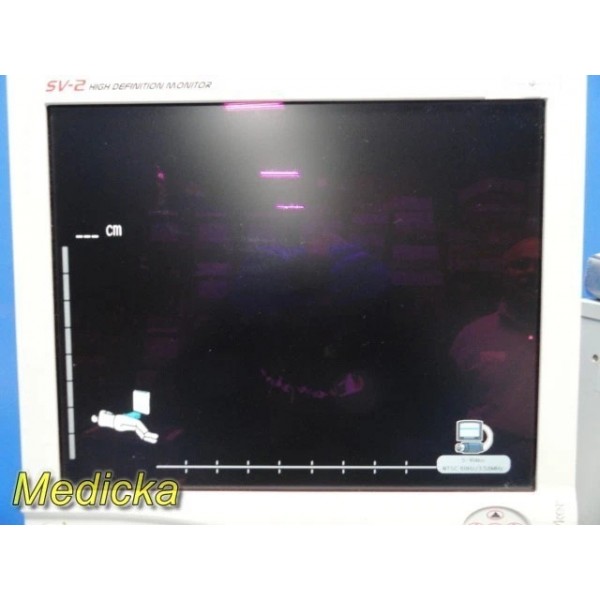

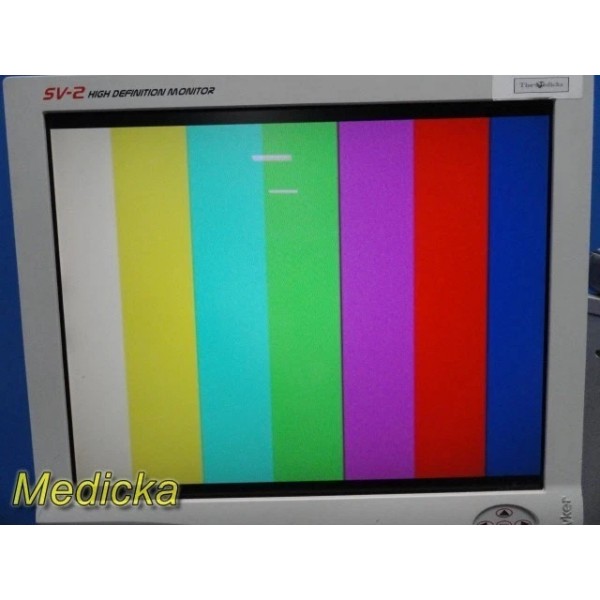

Connected to Olympus SV-2 monitor (not included) and confirmed:

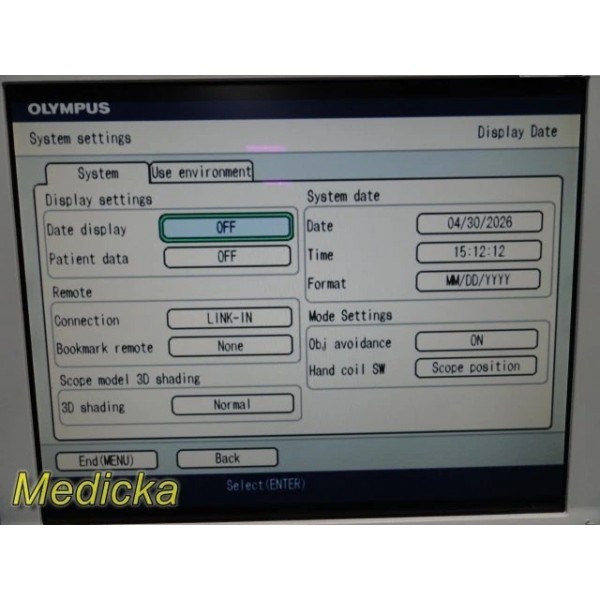

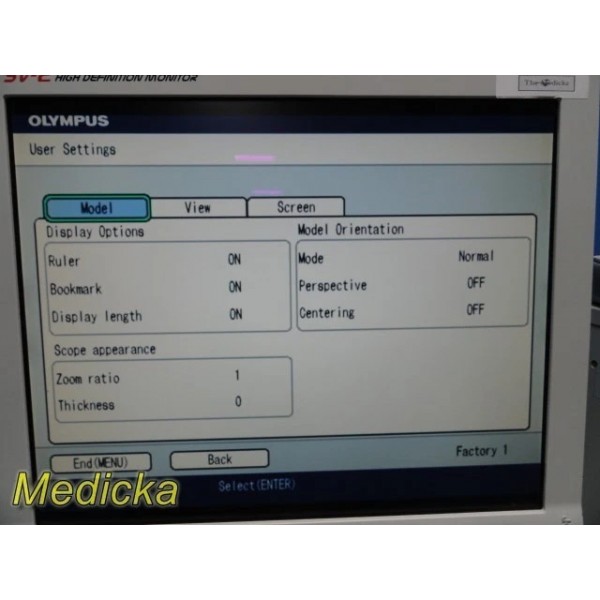

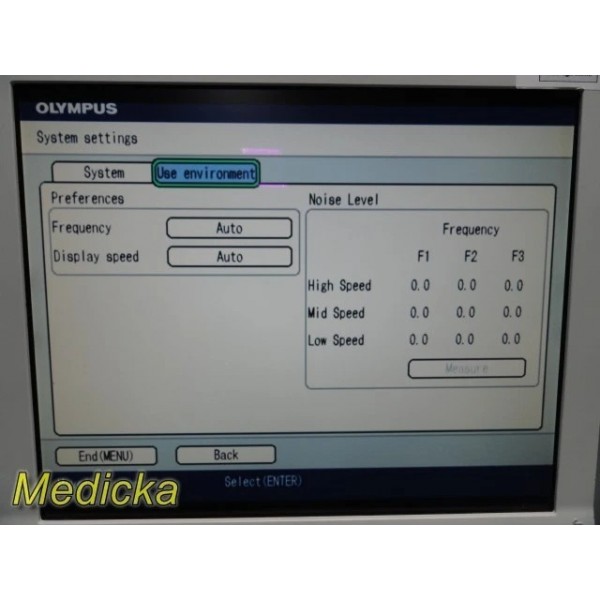

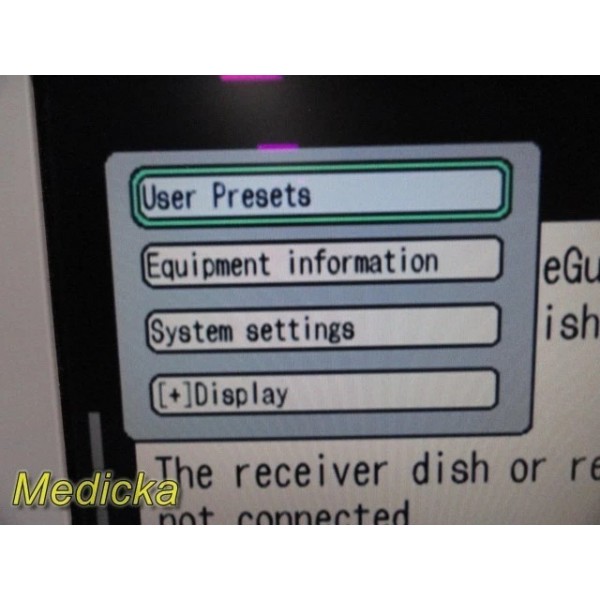

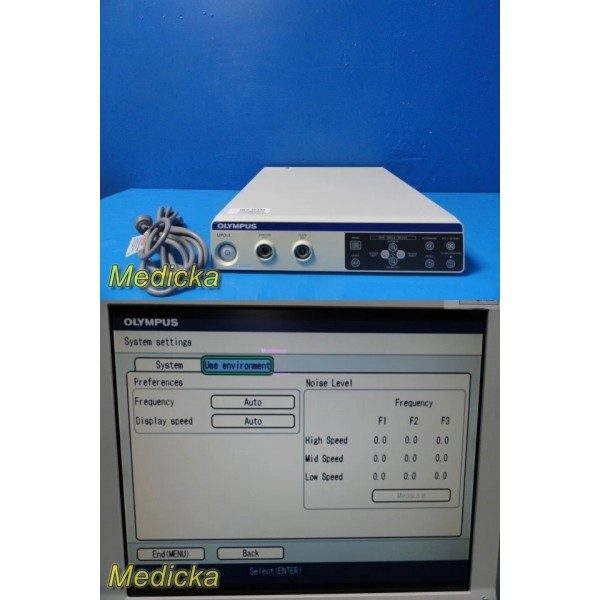

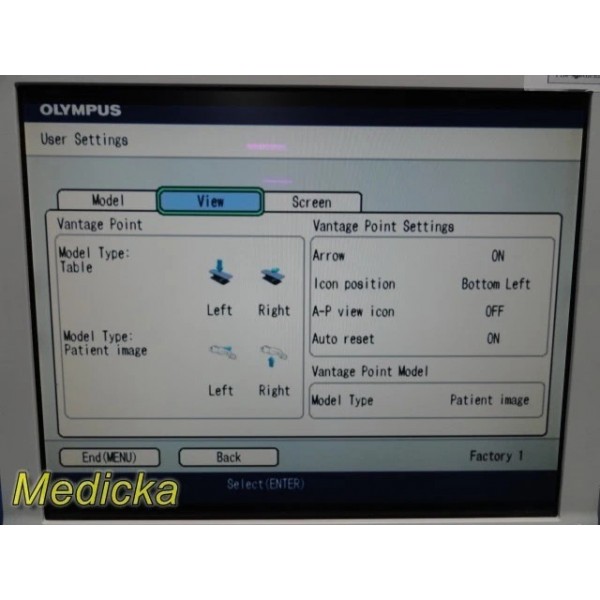

• System menus accessible (User Settings, System Settings, Equipment Info)

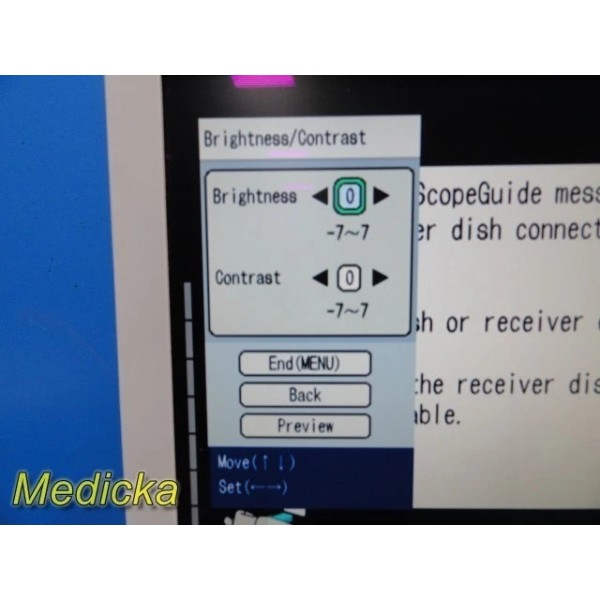

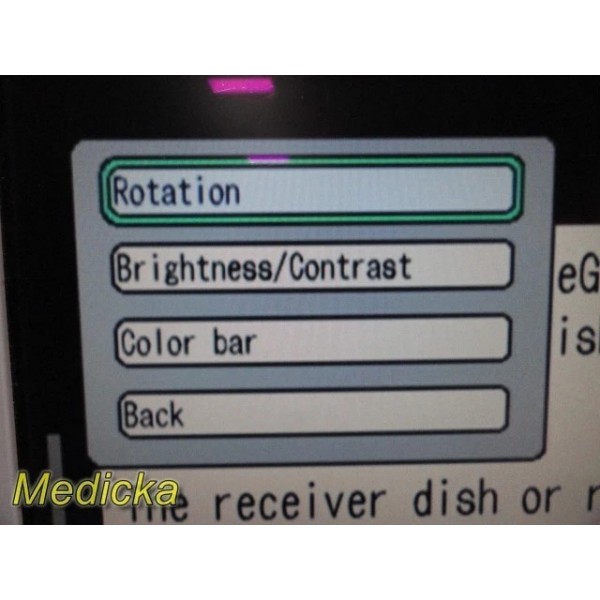

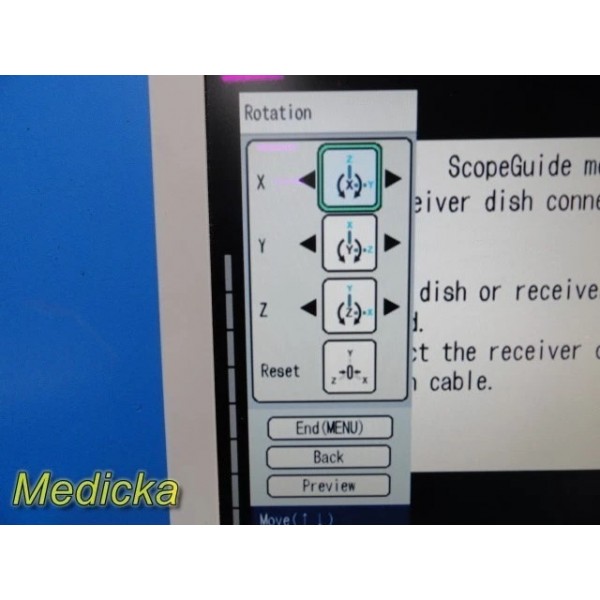

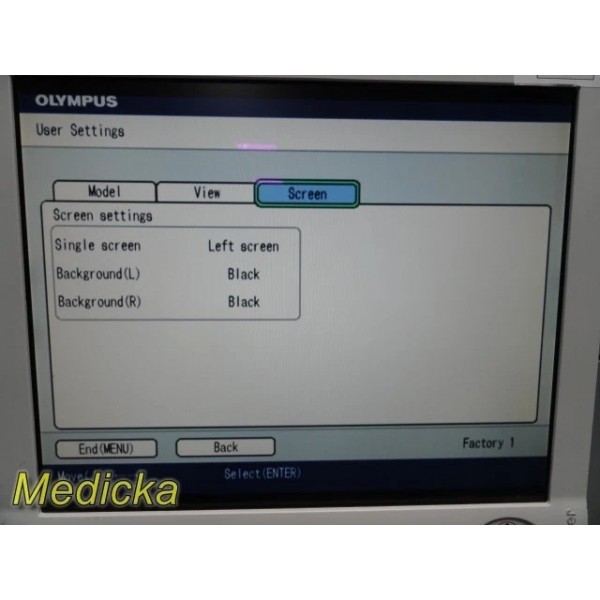

• Display settings, rotation controls, and configuration options visible

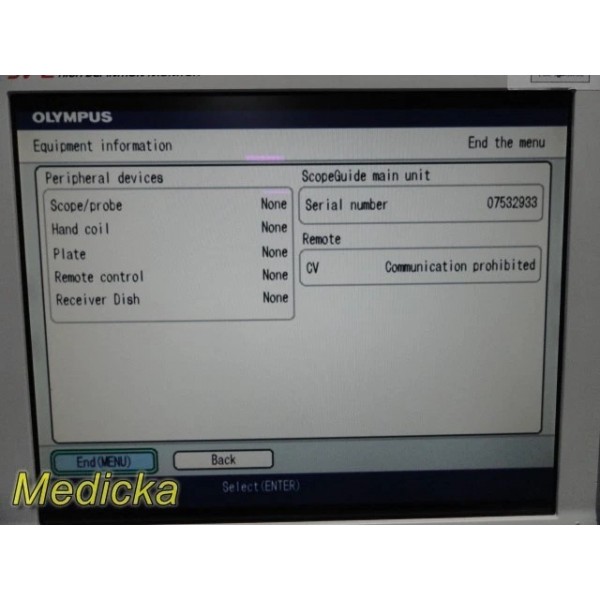

• Serial number correctly displayed in system information


Operational Note:
System displays:

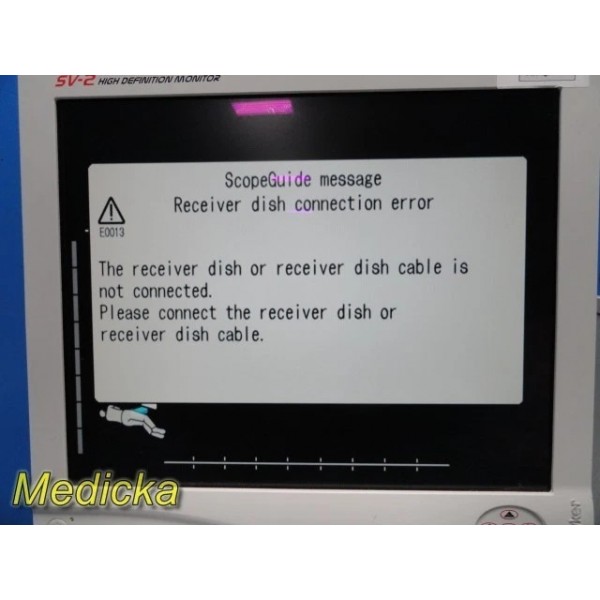

“Receiver dish connection error (E0013)”
This is expected as the receiver dish and related cable are NOT included and were not available for testing.

Ports & Connectivity

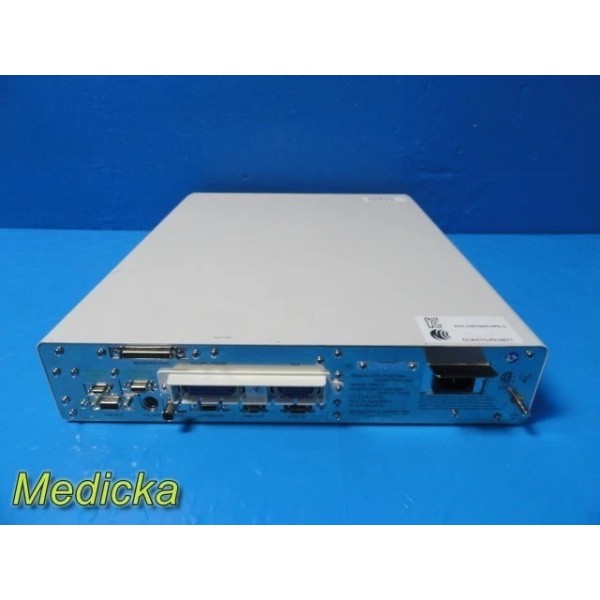

Rear panel includes multiple interface ports such as:

• Scope/Probe connection ports

• Receiver Dish input

• Remote control interface

• Video output (XGA / V/C OUT)

• Communication / link ports


(All ports appear clean and intact – please review images for exact configuration)

What Is Included

• Olympus UPD-3 Main Console Unit
• Power Cord

What Is Not Included

• Receiver Dish / Sensor
• Receiver Dish Cable
• Monitor (SV-2 shown for testing only)
• Scope / Probe / Hand Coil / Plate
• User Manual
• Any additional accessories

Buyer Advisory Note

This unit is part of a larger ScopeGuide system and requires additional components (receiver dish and accessories) for full functionality. Testing was limited to power-on and interface verification only. Buyers should ensure compatibility with their existing system prior to purchase.

Shipping Note

Item will be securely packaged with appropriate cushioning to ensure safe delivery.

Stock ID: 39344 (P.O. 2022) (WH104 SCC16)

Purchase Terms & Buyer Protections

Condition & Use Notice

Condition: Overall, cosmetic, and functional condition are described in the listing above; please review all images carefully.

Functionality: Sold as described in the listing (or untested if stated). Biomed evaluation is recommended where applicable.

Included: Only items shown in photographs or specifically stated in the listing are included.

Buyer Responsibility: Buyer is responsible for verifying compatibility, suitability, and obtaining inspection, calibration, maintenance, or service as appropriate prior to use.
