Product details

Manufacturer: Olympus
Model: UPD-3
Item: Endoscope Position Detecting Unit (ScopeGuide System Console)
Serial Number: 07532935
Made In: Japan
Power Requirements: 100–240V ~ 50/60Hz, 110VA
TV Type: NTSC

Short Description

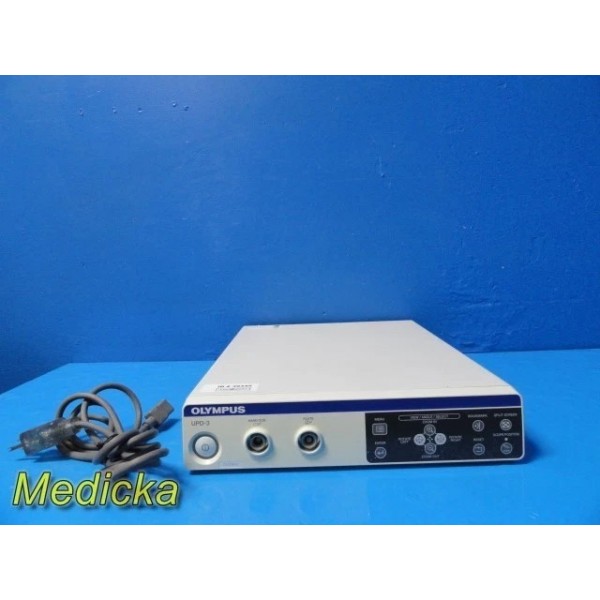

Olympus UPD-3 ScopeGuide endoscope position detecting unit console. This listing is for the console only and includes a power cord. Monitor, probes, receiver dish, and all other accessories are not included.

Condition Summary

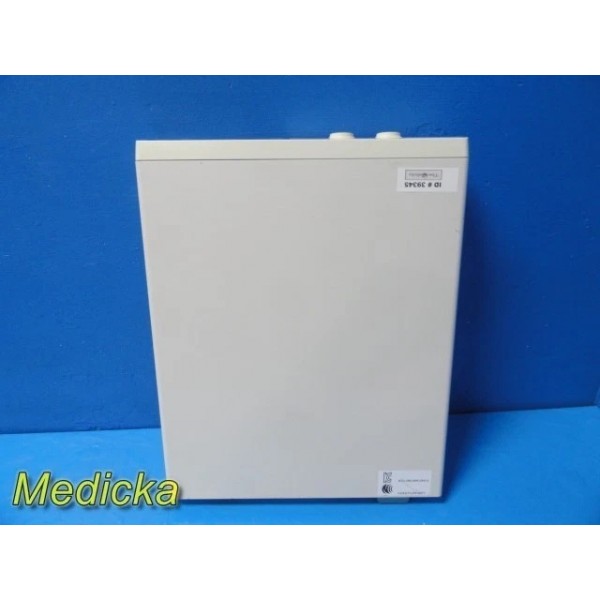

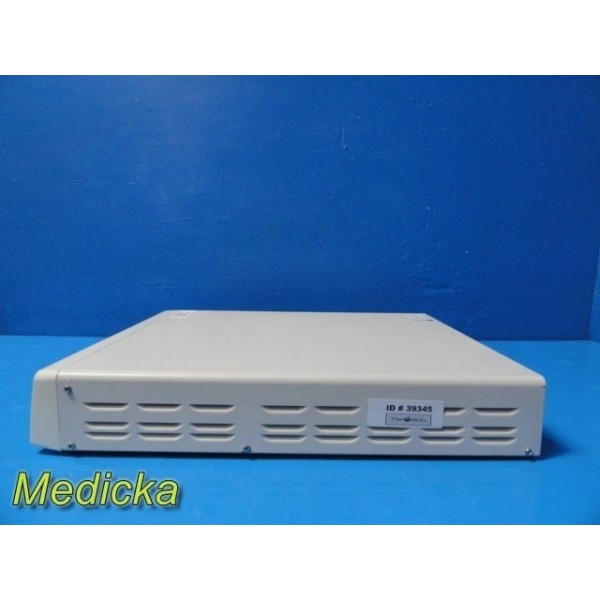

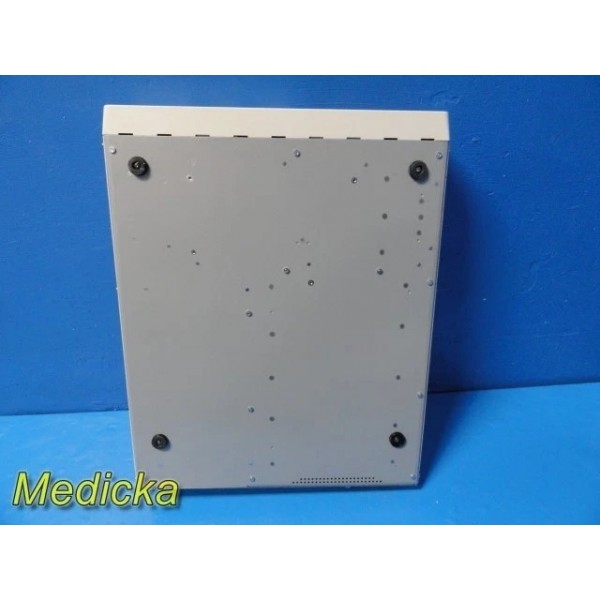

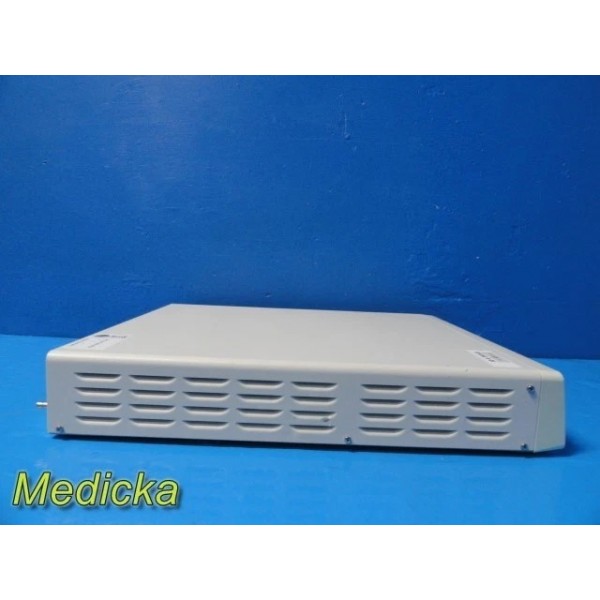

Cosmetic Condition: Unit shows moderate signs of prior clinical use including surface scratches, scuffs, and handling wear on the top housing and chassis. No structural dents or cracks were observed.

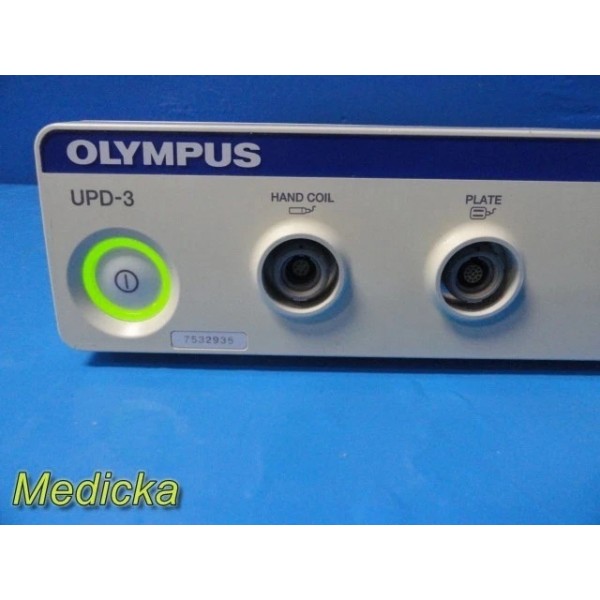

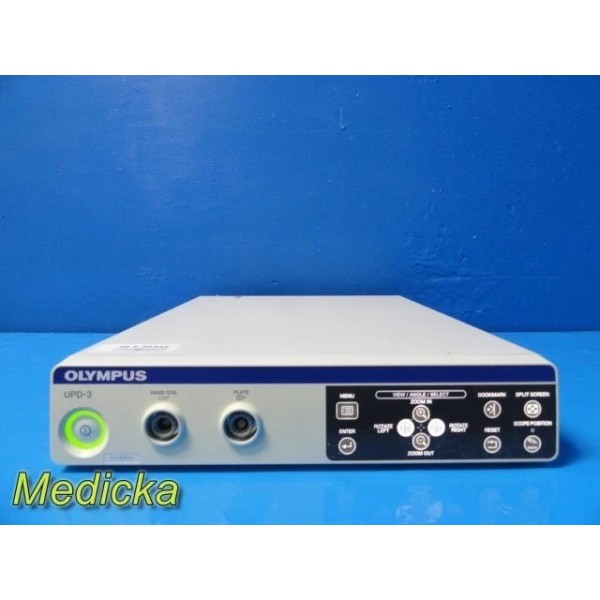

Front Panel & Controls: The control panel is clean and well preserved. Buttons are intact, responsive, and labeling remains clear and legible.

Rear Panel & Connectors: All rear connectors and ports appear intact and in good condition. No bent pins or physical damage were observed.

Functionality / Testing Summary

Power-On Status: Unit powers on normally with stable startup.

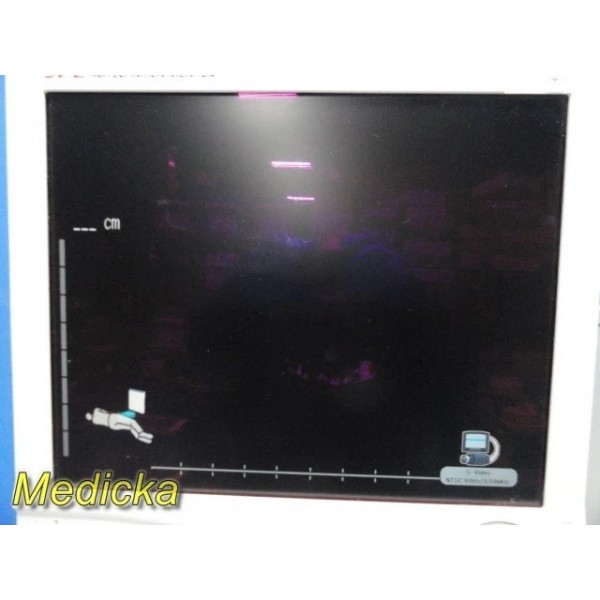

Display Output: Tested with a compatible Olympus SV-2 monitor (not included). Video output is clear and stable with no distortion or flickering observed.

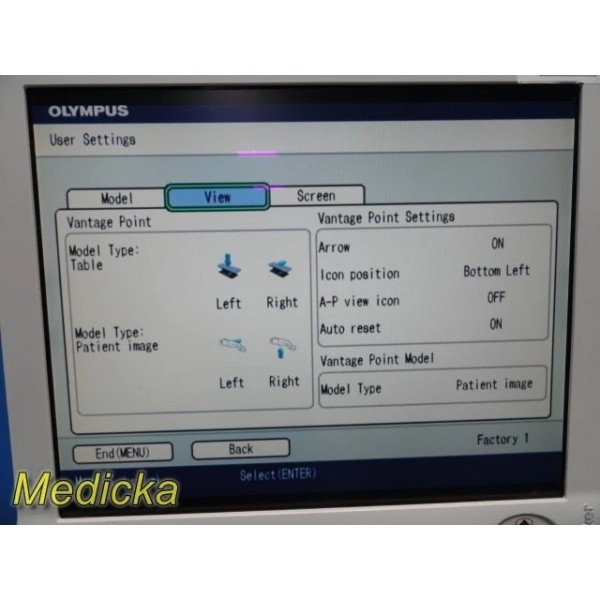

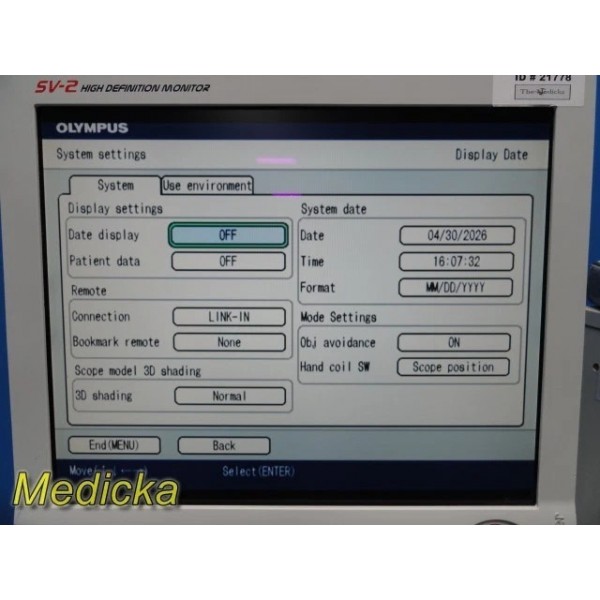

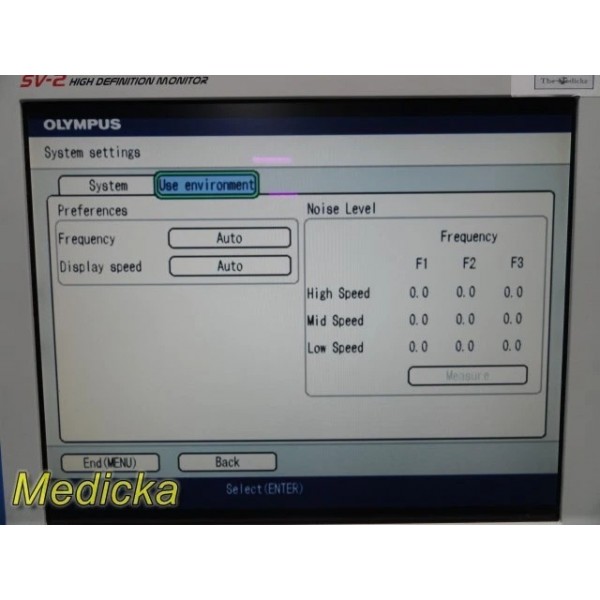

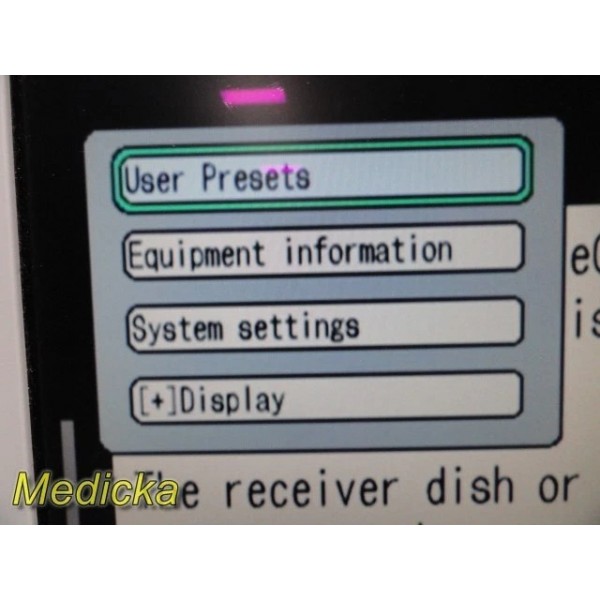

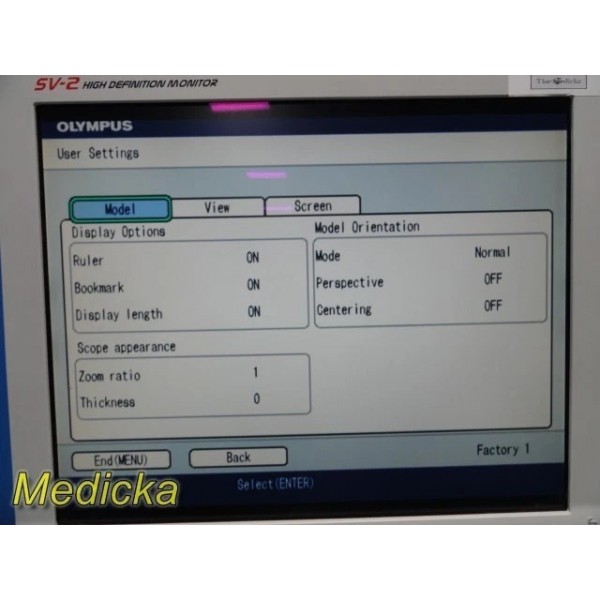

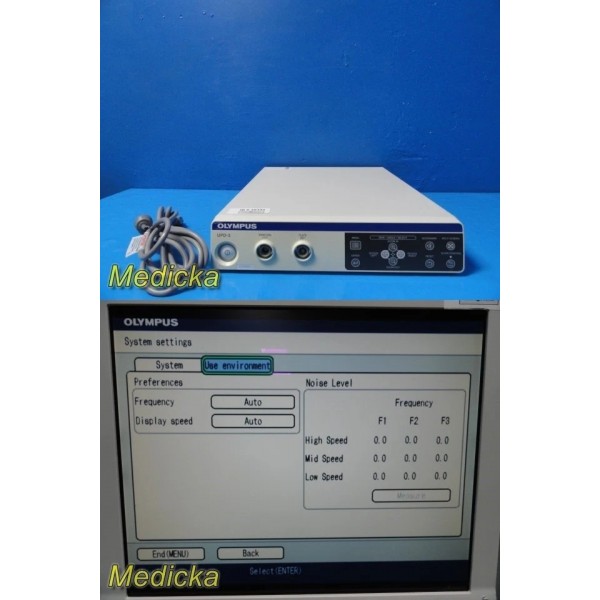

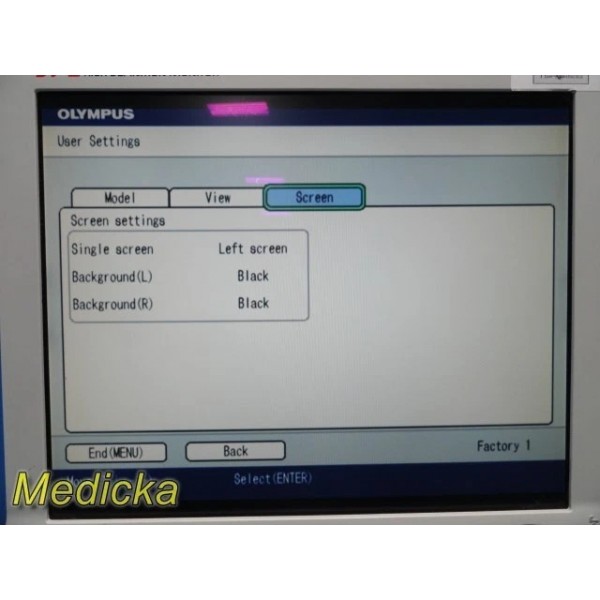

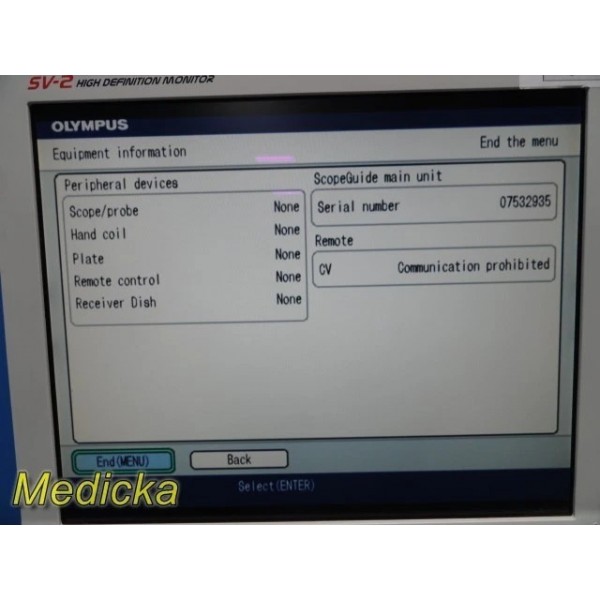

Menu Navigation: System menus, user settings, and configuration screens are fully accessible. Controls respond appropriately.

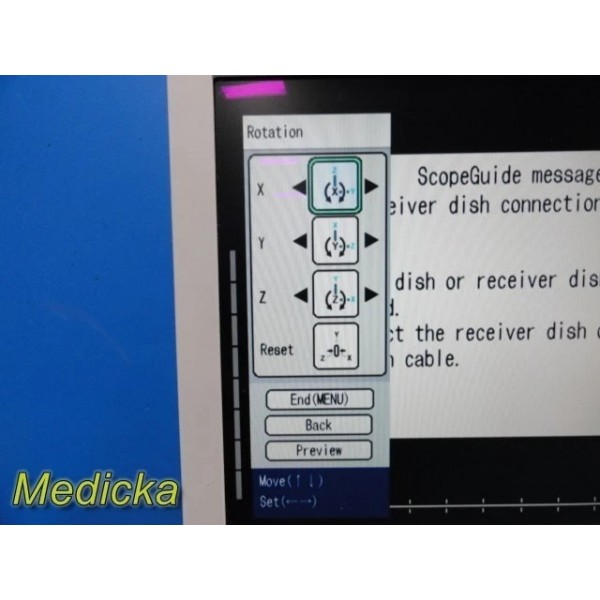

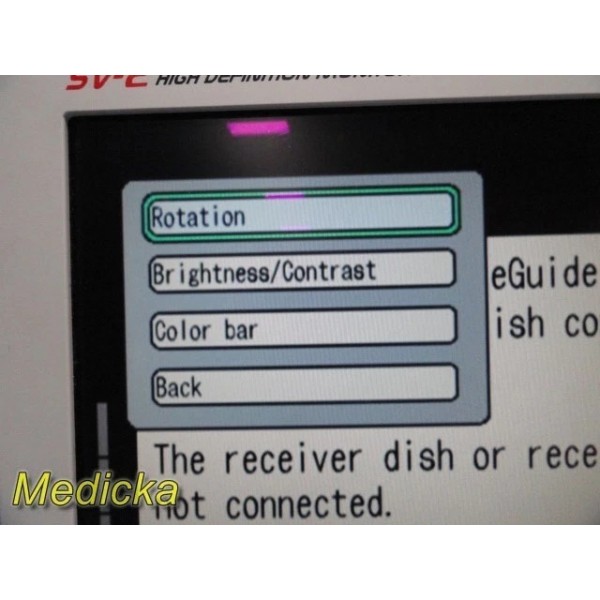

Adjustment Controls: Rotation, brightness/contrast, and display settings were tested and respond correctly.

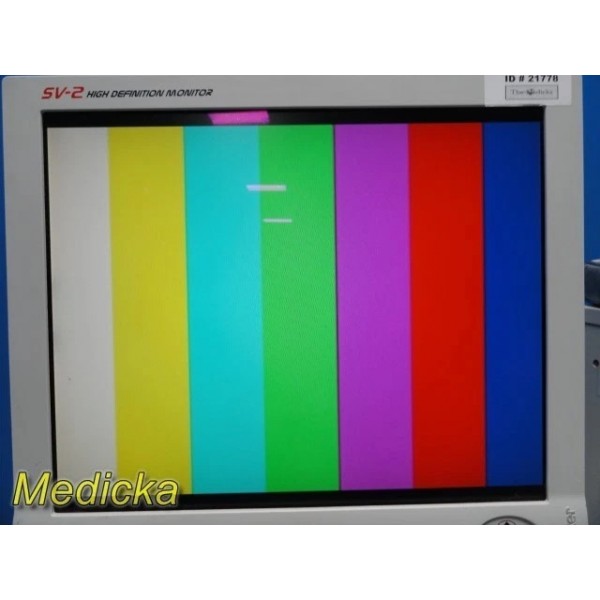

Color Bar Test: Color bar output displays properly, confirming a stable video signal.

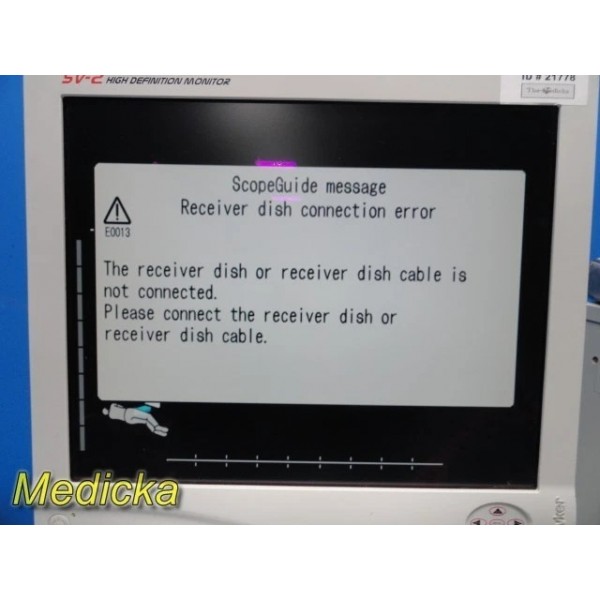

System Message: Unit displays “Receiver Dish Connection Error (E0013)” due to the absence of the receiver dish and related components. This is expected behavior and not a fault.

Ports & Connectivity

Rear panel includes receiver dish input, dual scope/probe interface ports, remote/control connections, XGA OUT, Y/C (S-Video) OUT, SDI OUT, CV remote, LINK-IN / LINK-OUT, and AC power input. All ports were visually inspected and appear in good condition.

What Is Included

• Olympus UPD-3 Console Unit
• Power Cord

What Is Not Included

• Monitor (SV-2 or any display)
• Receiver Dish
• Scope / Probe
• Hand Coil / Plate
• Connection Unit
• Interface Cables / Accessories
• User Manual

Buyer Advisory Note

This unit is part of a complete ScopeGuide system and requires additional components for full functionality. Testing was limited to power-on and interface/output verification only.

Shipping Note

Unit will be securely packaged with protective materials to ensure safe delivery.

Stock ID: 39345 (P.O. 2022) (WH104 SCC16)
