Product details

Manufacturer: Olympus
Model:UPD-3
Item: ScopeGuide Endoscope Position Detecting Unit
Serial Number: 07532931
Made In: Japan
Power Requirement: 100–240V, 50/60Hz, 110VA
Video System: NTSC
Configuration: Main Console Unit Only

Short Description

Olympus UPD-3 ScopeGuide positioning unit. Device powers on and was tested with an Olympus SV-2 HD monitor (not included). System menus, rotation controls, and display settings are accessible and responsive. Unit requires additional ScopeGuide components for full operation.

Condition Summary

Cosmetic Condition:

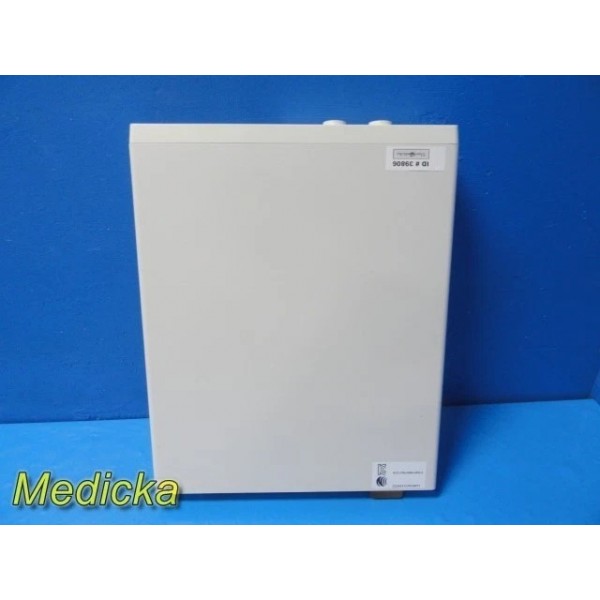

Good overall condition with typical signs of prior use including surface scuffs, light scratches, and adhesive residue on the top cover. No cracks or structural damage observed.

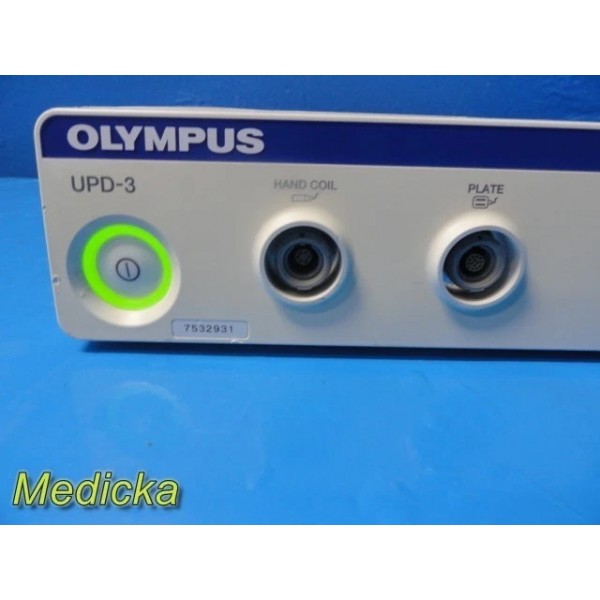

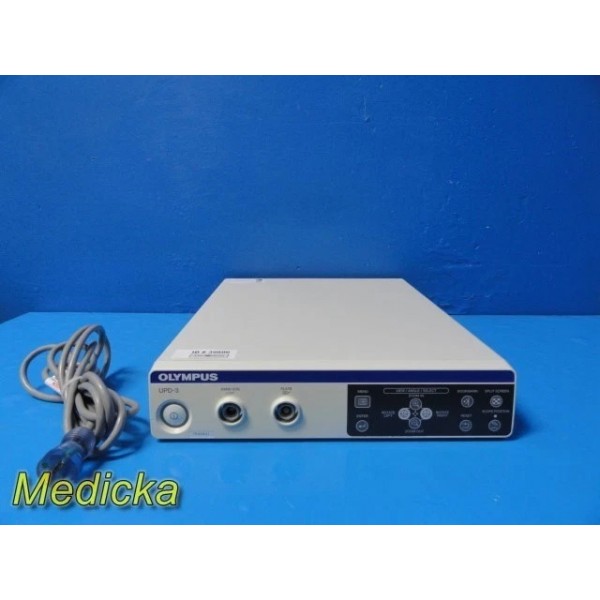

Front Panel & Controls:

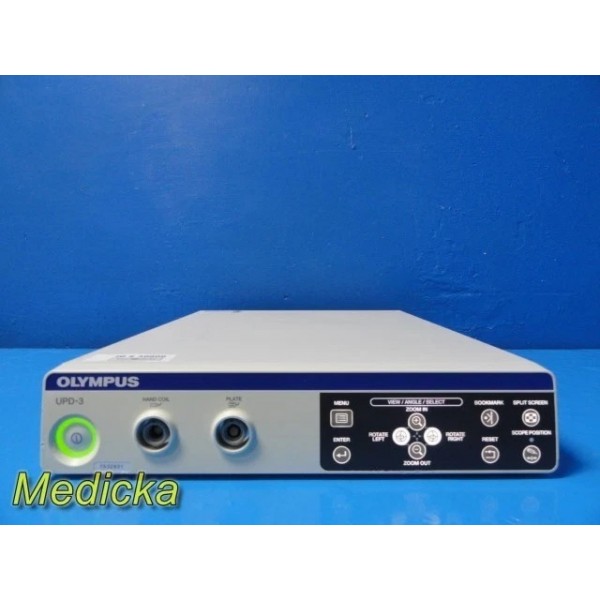

Control panel is intact with responsive buttons and no visible damage.

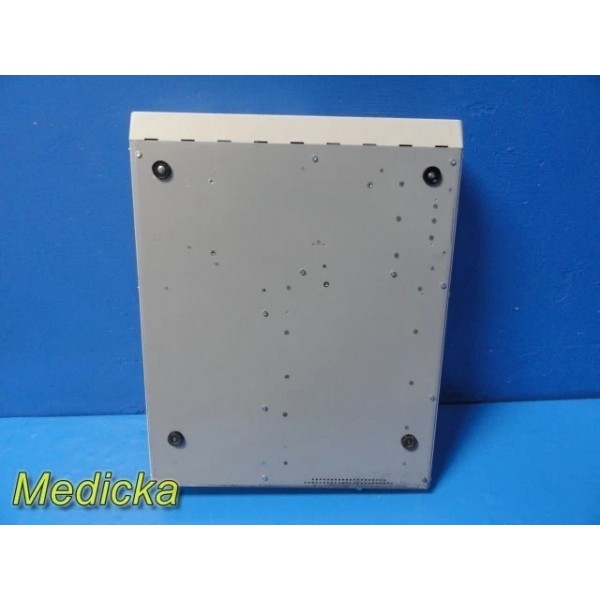

Chassis & Stability:

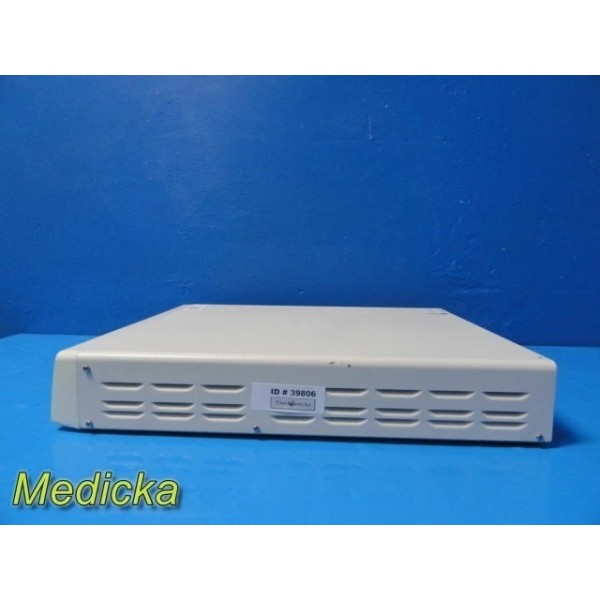

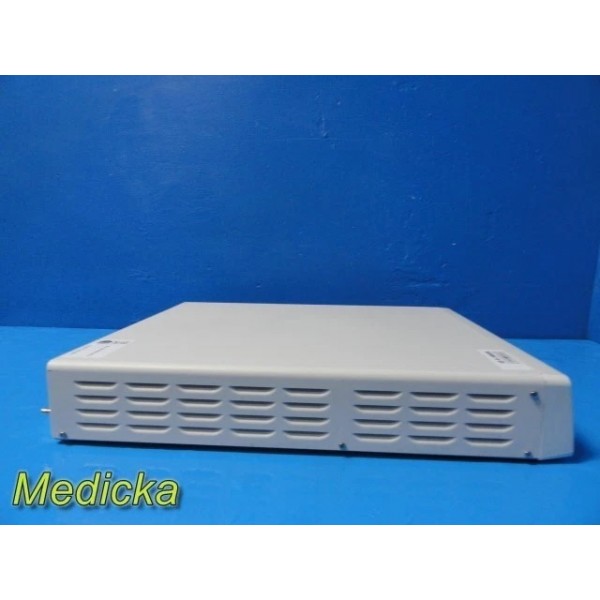

Unit is structurally sound with intact bottom feet.

Ports & Connectors:
Rear connectors appear complete and intact with no visible damage.

Functionality / Testing Summary

Power-On Status:
Unit powers on normally.

System Navigation:

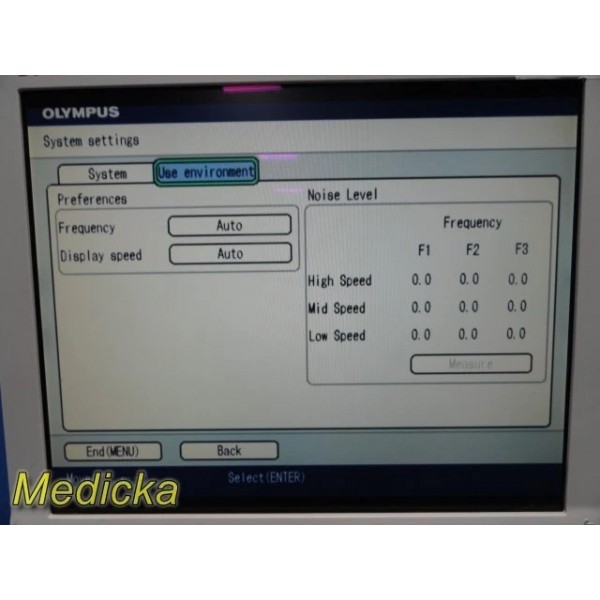

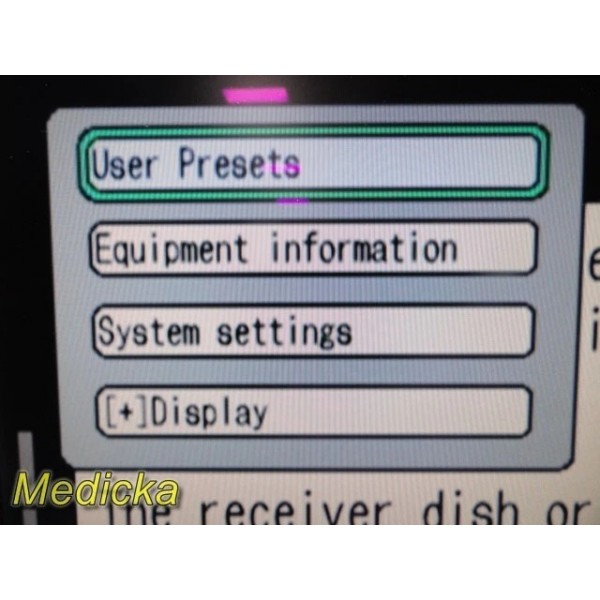

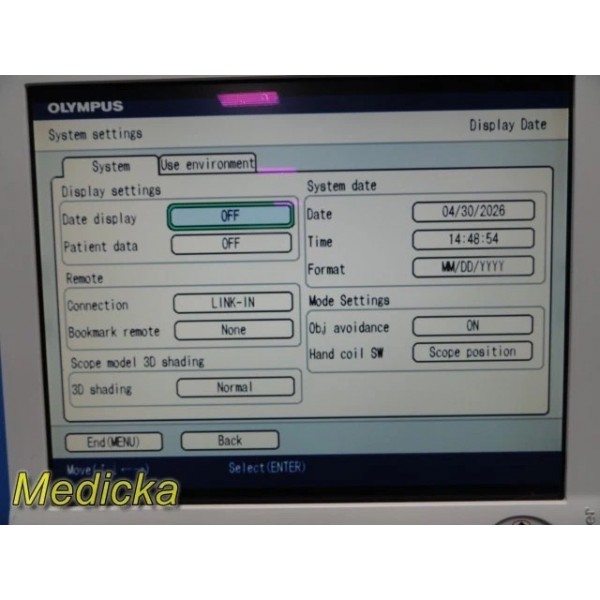

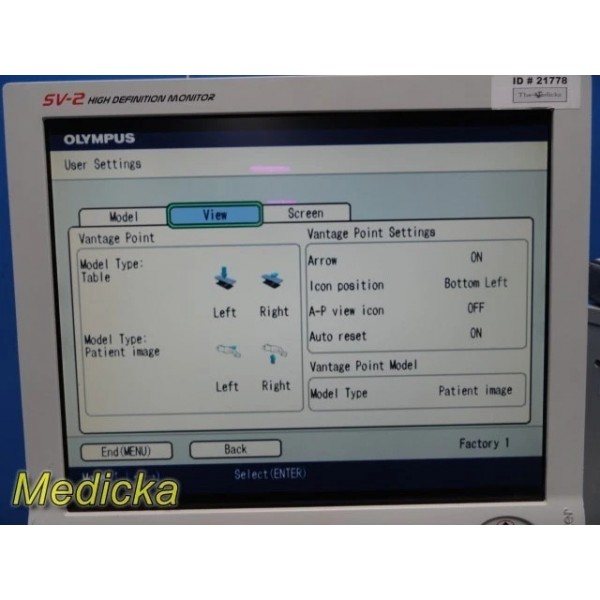

Menus are accessible and responsive, including user presets, system settings, display, and rotation controls.

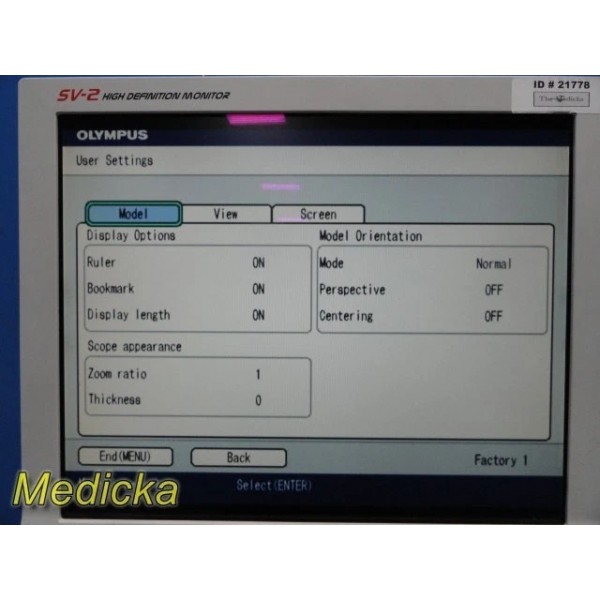

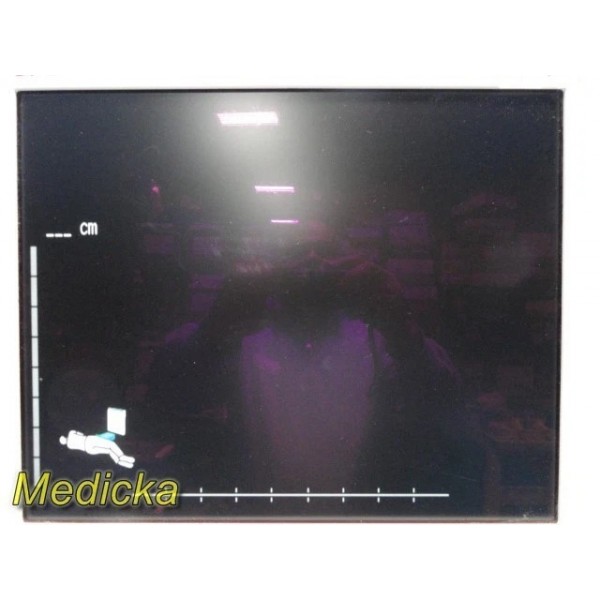

Display & Interface Verification:

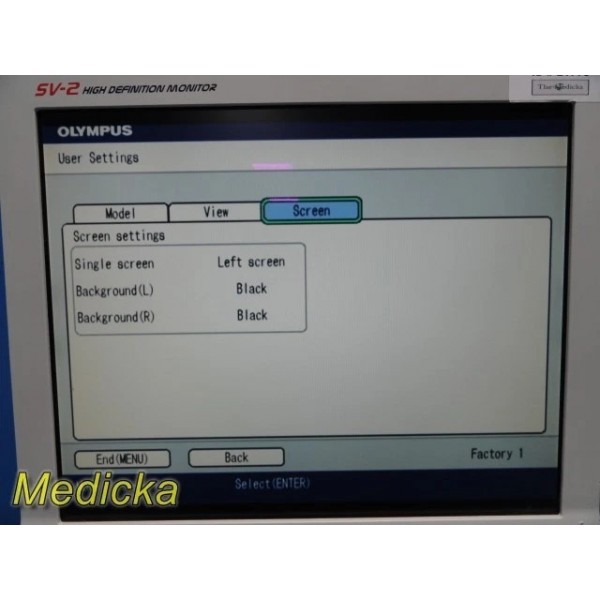

Tested with SV-2 monitor (not included):

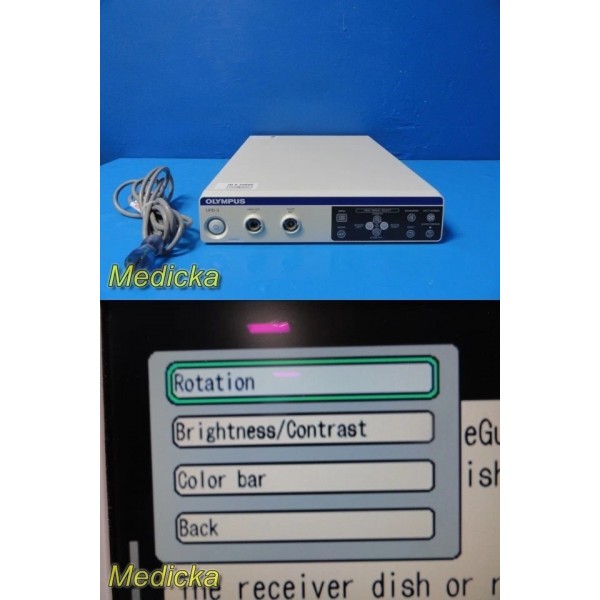

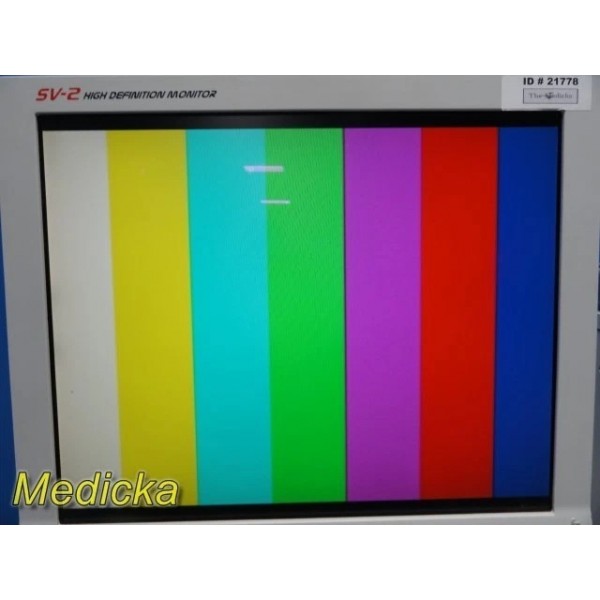

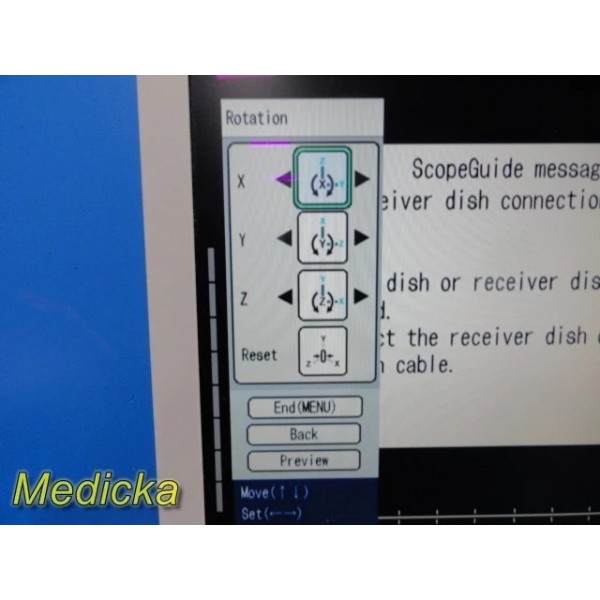

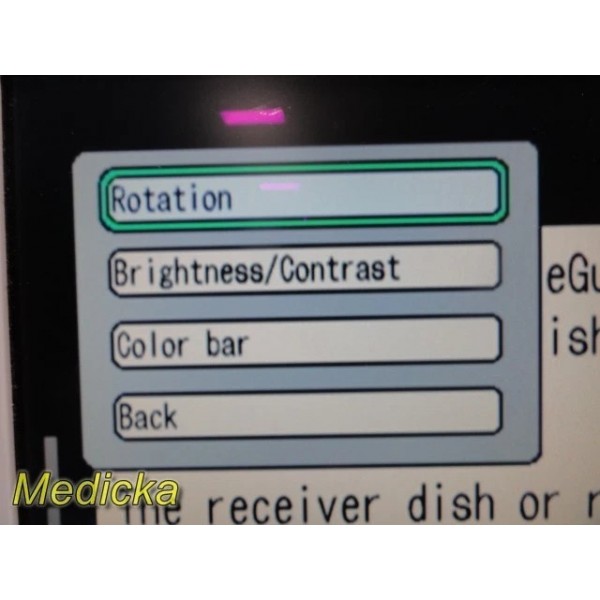

Rotation (X/Y/Z), brightness/contrast, color bar, and display settings all function as expected.

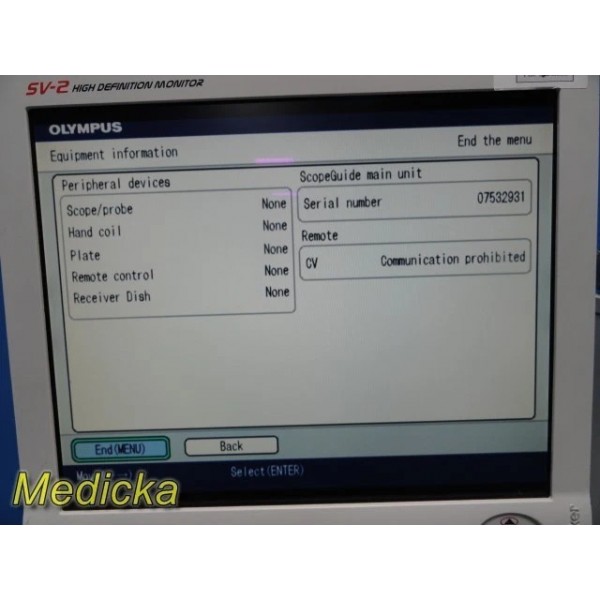

Peripheral Detection:
No accessories detected (Scope, Hand Coil, Plate, Remote, Receiver Dish — all show “None”).

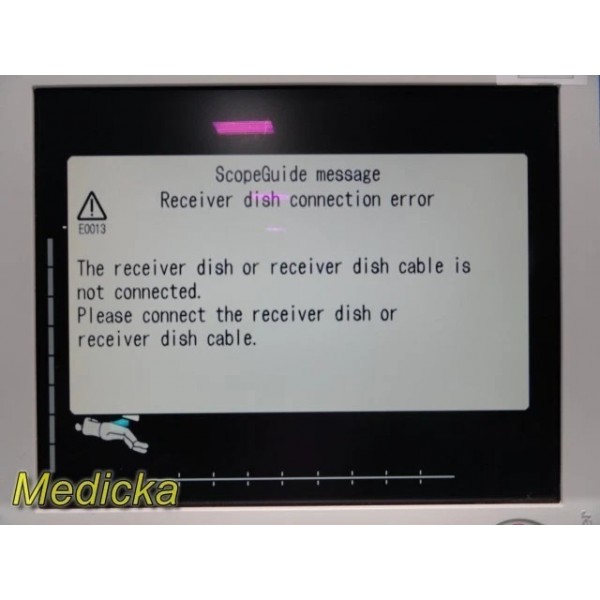

Error Message (Expected):
E0013 – Receiver Dish Connection Error
Displayed due to the missing receiver dish/cable (not a confirmed fault).

Communication Status:
“Communication Prohibited” is shown under CV — consistent with no connected peripherals.

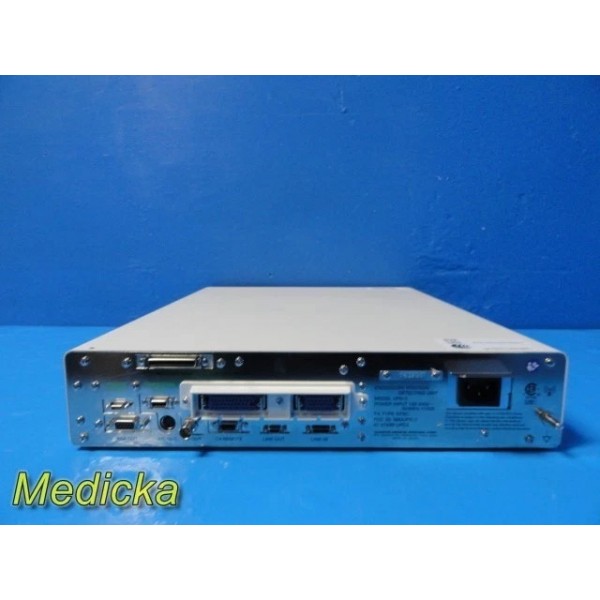

Ports & Connectivity

Includes Receiver Dish input, dual scope/probe ports, video outputs (XGA, Y/C, SDI), remote/control interfaces, and LINK IN/OUT connections.
All ports were visually inspected with no physical damage observed.

What Is Included

• Olympus UPD-3 Console Unit
• Power Cord

What Is Not Included

• Receiver Dish / Cable
• Scope / Probe
• Hand Coil / Plate
• Remote Control
• Monitor (used for testing only)
• User Manual
• Any additional accessories

Buyer Advisory Note

This is a partial ScopeGuide system component and requires compatible accessories for full functionality. Testing limited to power-on and interface verification.

Shipping Note

Unit will be securely packaged for safe delivery.

Stock ID: 39806 (P.O. 2022) (WH104 SCC16)
