KARL STORZ 11302BD2 Flexible Intubation Fiberscope (Dia 3.7mm) (WL 65cm) ~ 39196
Item specifics
Condition
- Used
Seller Notes
- Model
- 11302BD2
MPN- 11302BD2
Product details
Manufacturer | Karl Storz |
Item: | KARL STORZ 11302BD2 Flexible Intubation Fiberscope (Dia=3.7mm) (WL=65cm) |
Model/Cat # | 11302BD2 |
Serial No. | 2092812 |
Made In: | Germany |
Date of Manufacture: | U/K |
Short description:
KARL STORZ flexible intubation fiberscope (3.7 mm class) designed for airway management and endotracheal intubation. Features high-resolution fiber optic imaging, smooth articulation, and slim insertion profile suitable for difficult airway visualization.
Key Specifications:
- Outer Diameter (Distal End): 3.7 mm
- Working Length: 65 cm
- Total Length: 93 cm
- Working Channel Diameter: 1.5 mm
- Field of View: 120°
- Direction of View: 0° (Forward)
- Deflection: Up 140° / Down 140°
- Resolution: ~11,000 pixels
- Recommended ETT Size: ≥ 4.5 mm
- Weight: ~363 g
- Visualization Type: Eyepiece
Condition Summary:
Cosmetic Condition:
Good preowned condition. Scope body shows minor scratches and scuffs consistent with prior clinical use. No cracks or structural damage observed.

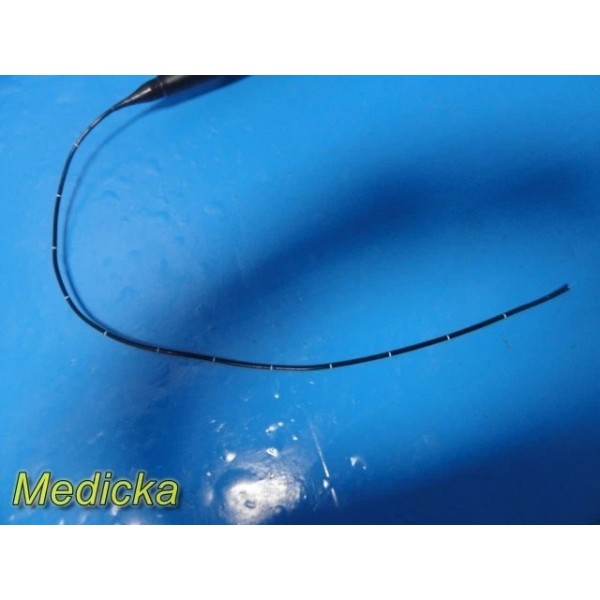

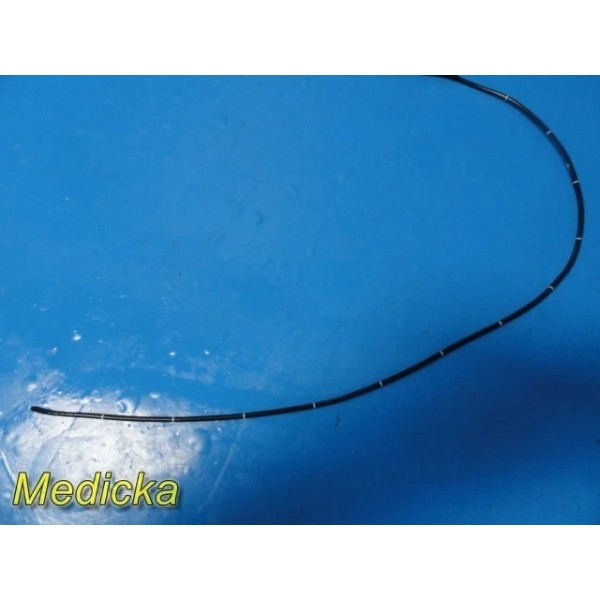

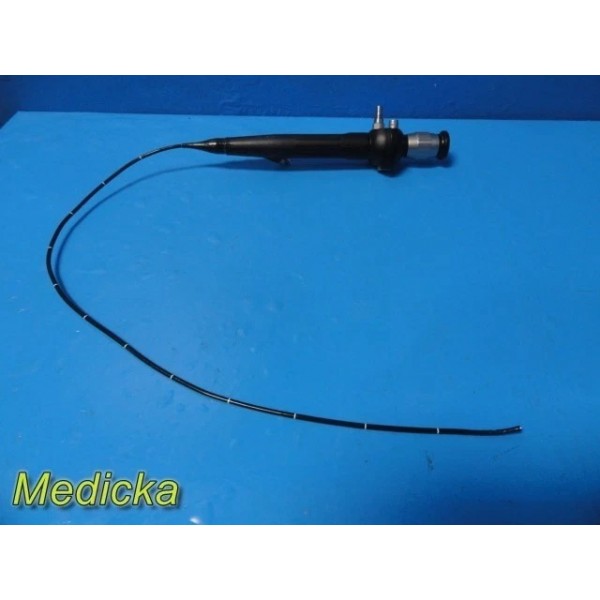

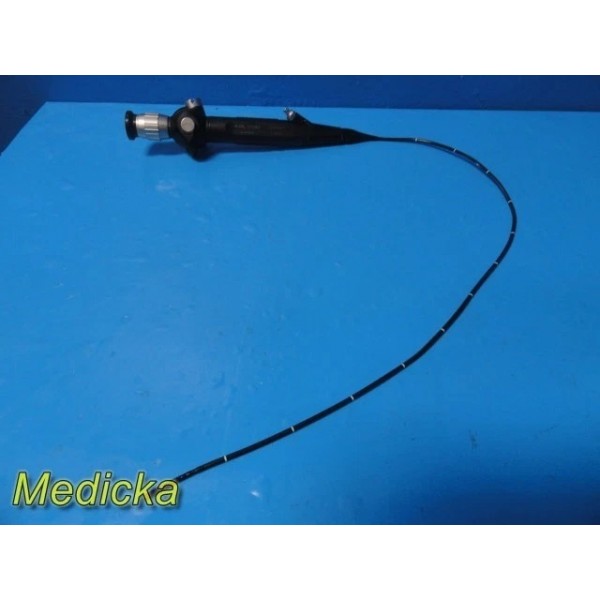

Insertion Tube:
Insertion tube is in good overall condition with no dents, kinks, or pinching noted. All external markings remain intact. Slight stiffness noted during handling.

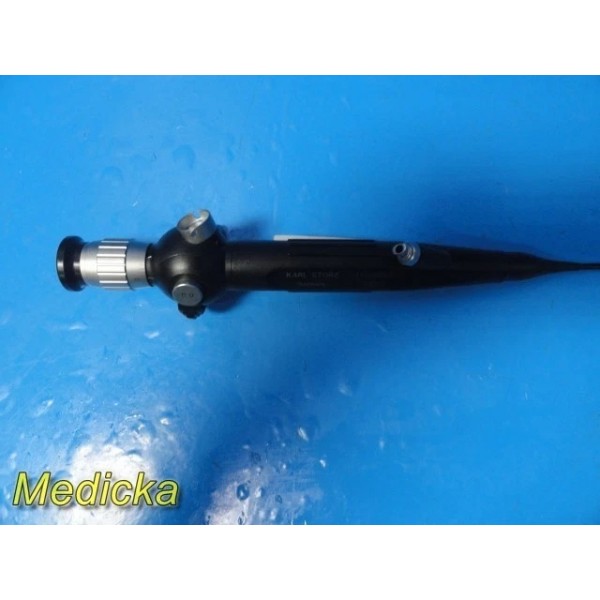

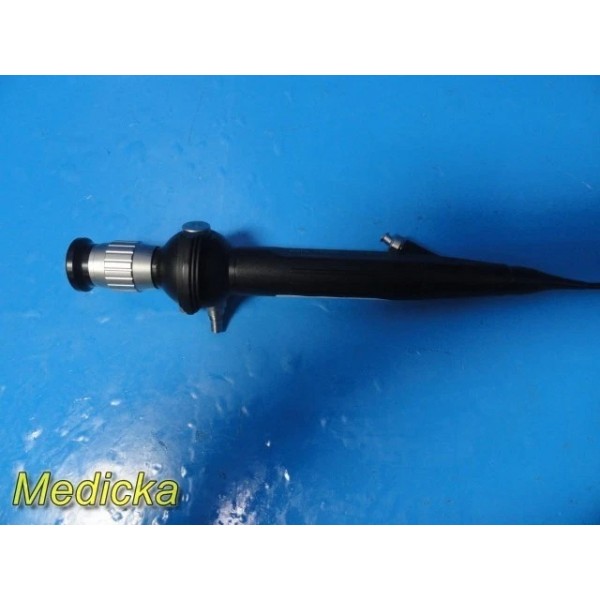

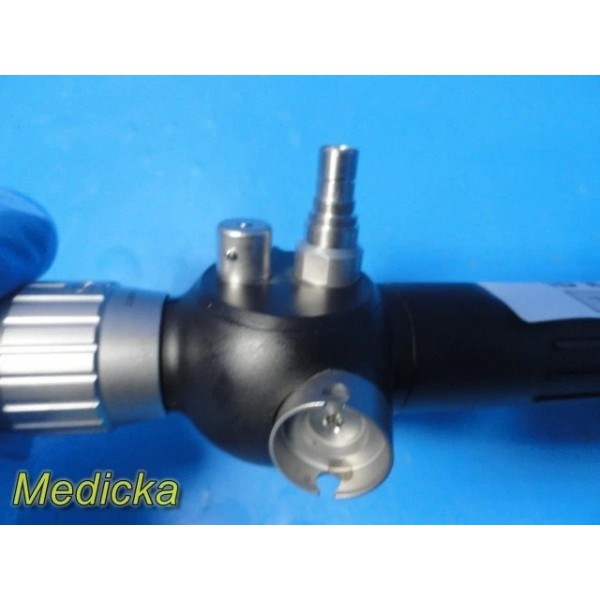

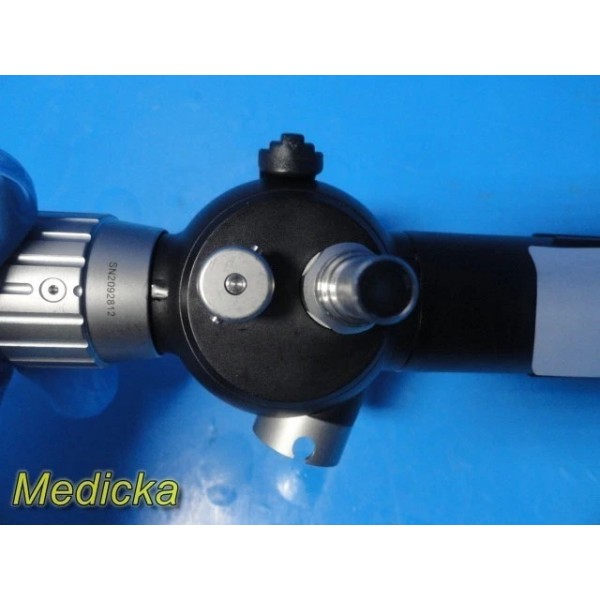

Strain Relief & Housing:
Strain relief is intact and in good condition. Control body structurally sound.
Functionality / Testing Summary:
Optical & Light Performance:
- Image quality: Clear and sharp
- No broken fibers observed

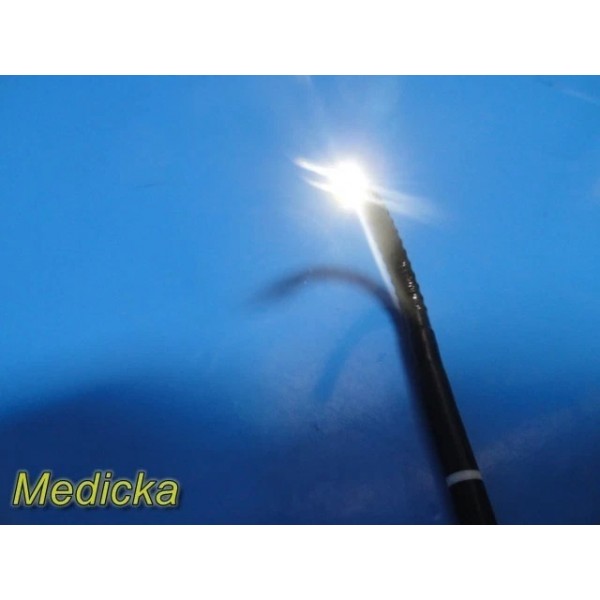

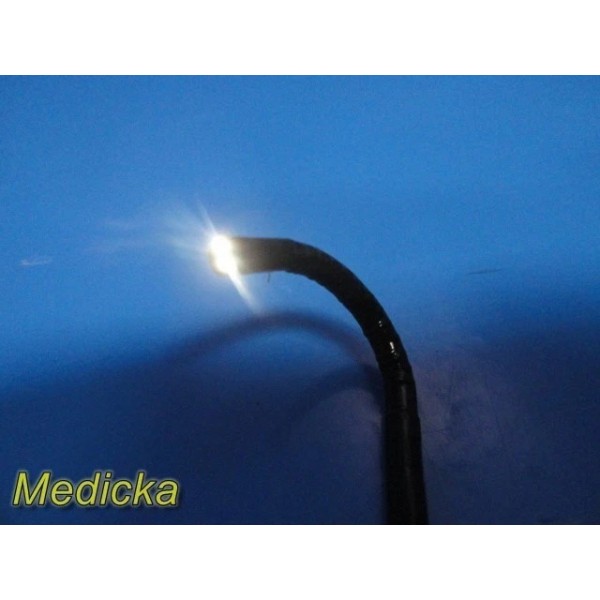

- Light transmission: Strong and unobstructed
Mechanical Performance:

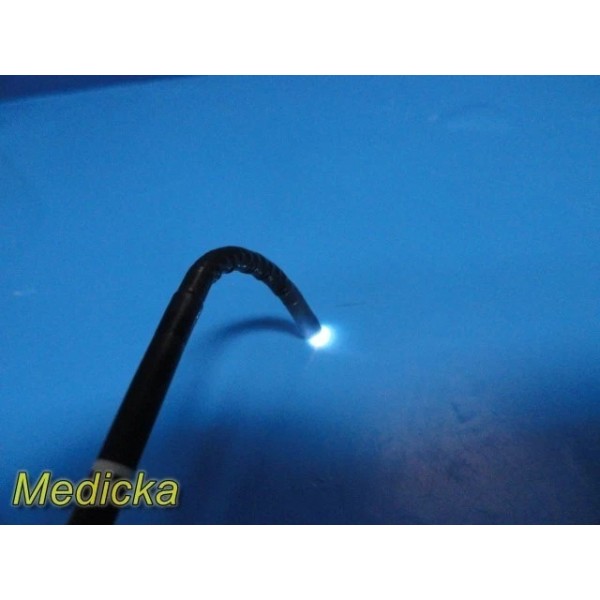

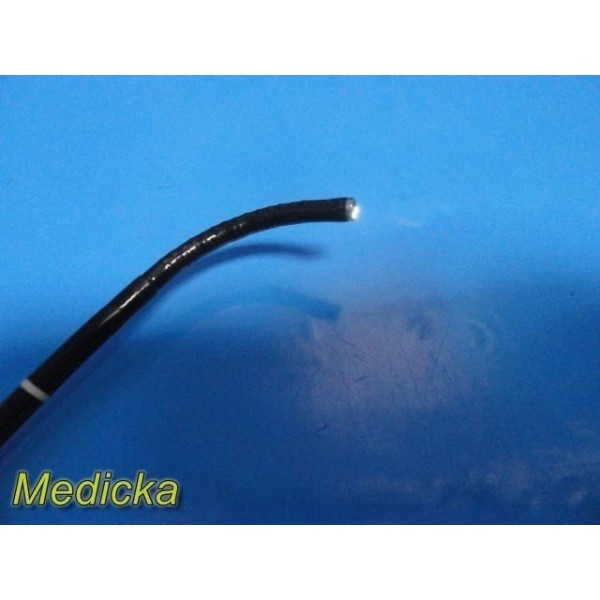

- Angulation: Smooth and responsive (up/down functioning properly)
- Insertion tube articulation: Maintained

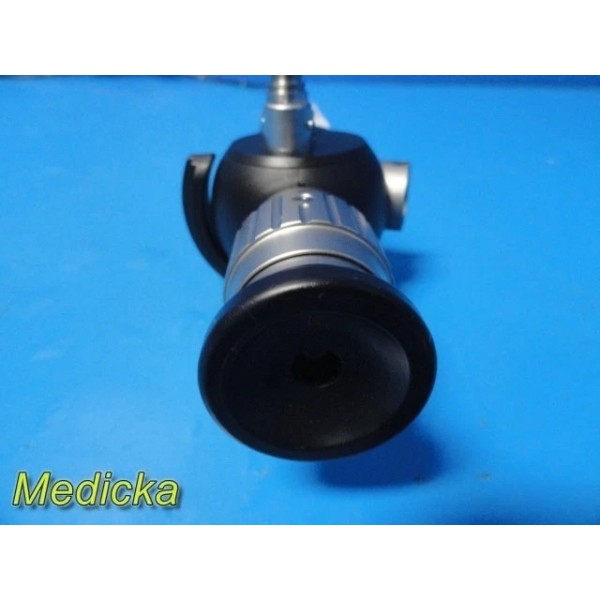

- Focus adjuster: Functional
Testing Notes:
- Tested using compatible endoscopy system (not included)

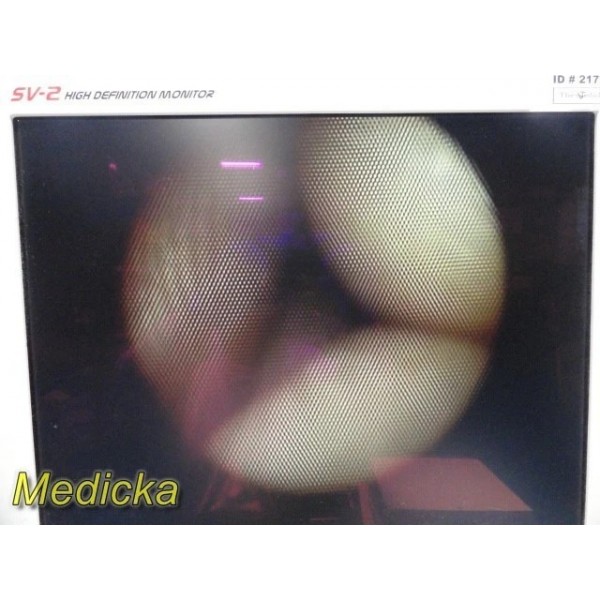

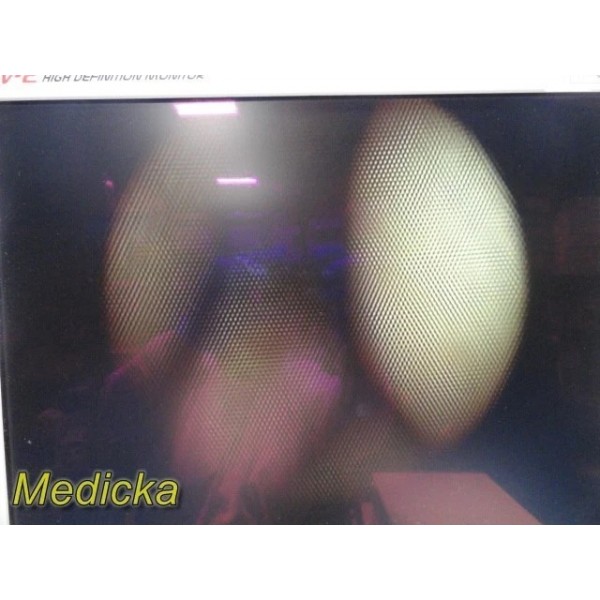

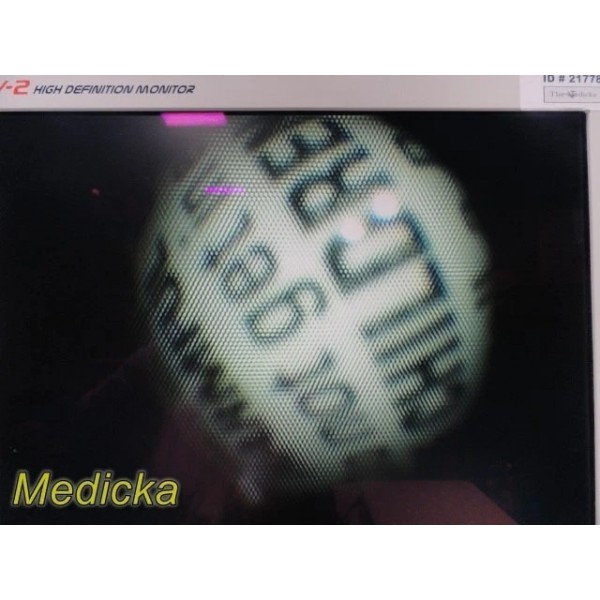

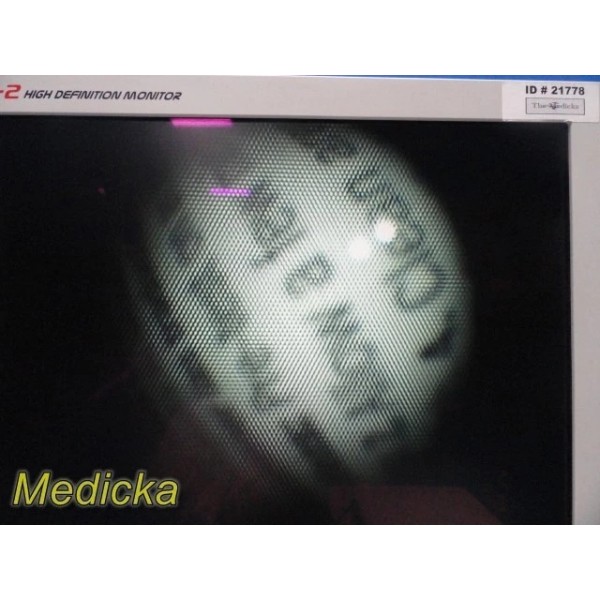

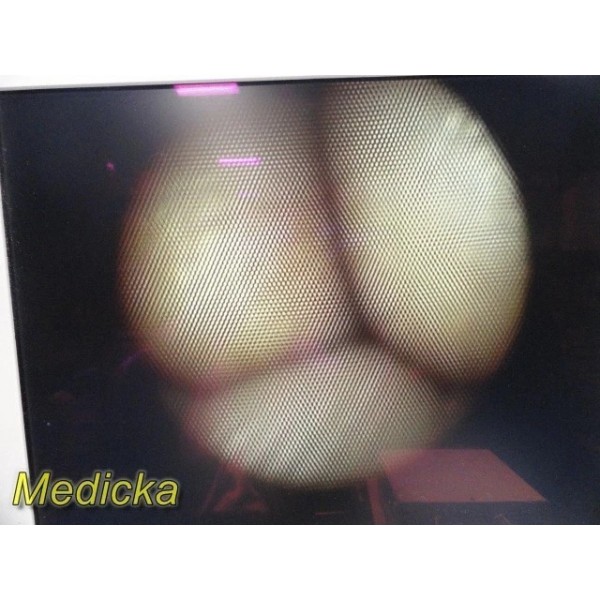

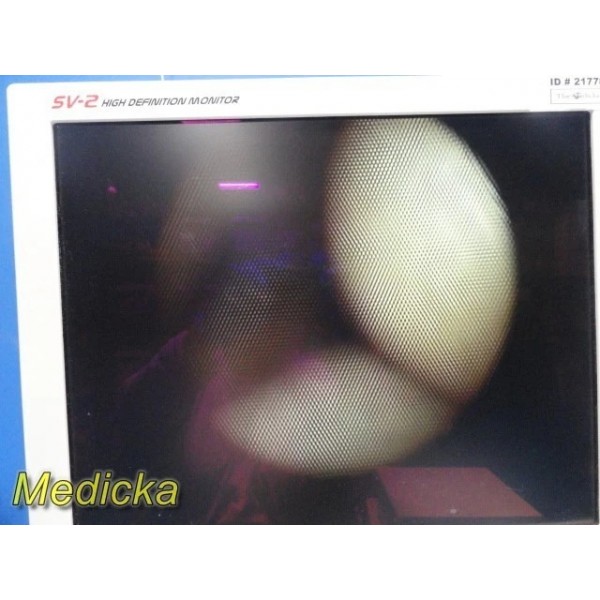

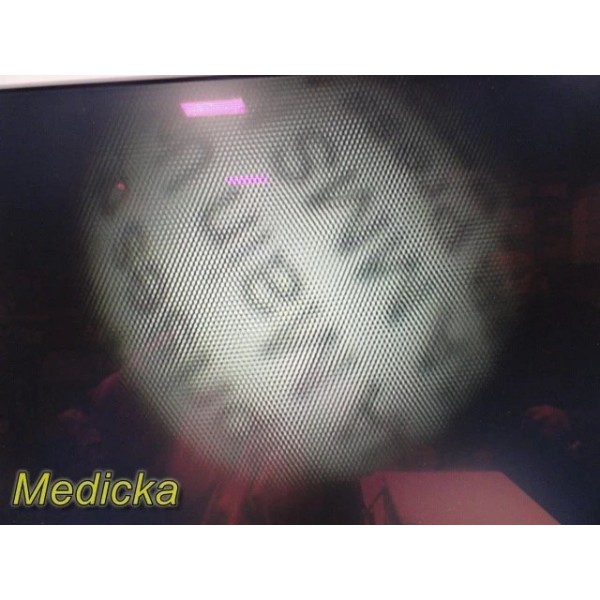

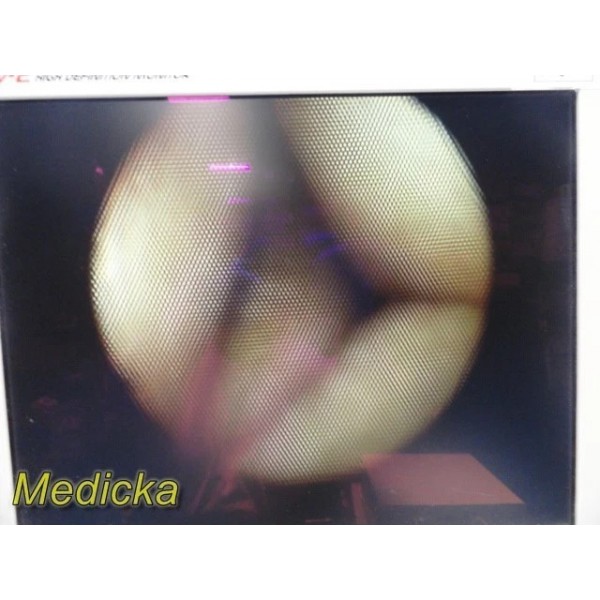

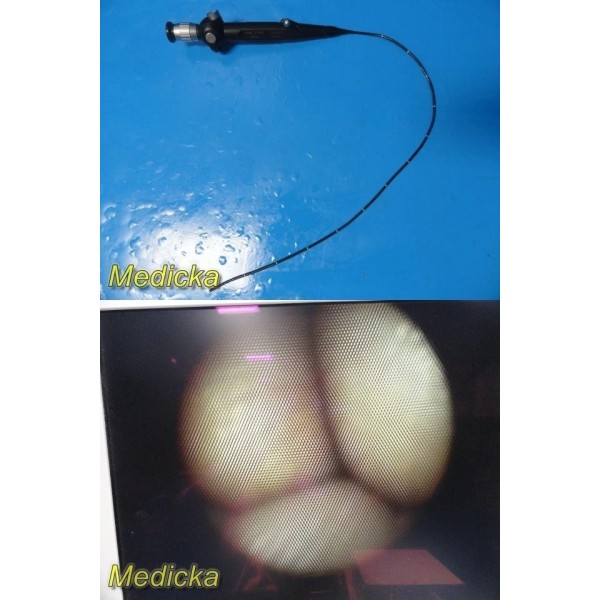

- Image quality verified and shown in listing images
- No additional advanced testing performed
What's Included:

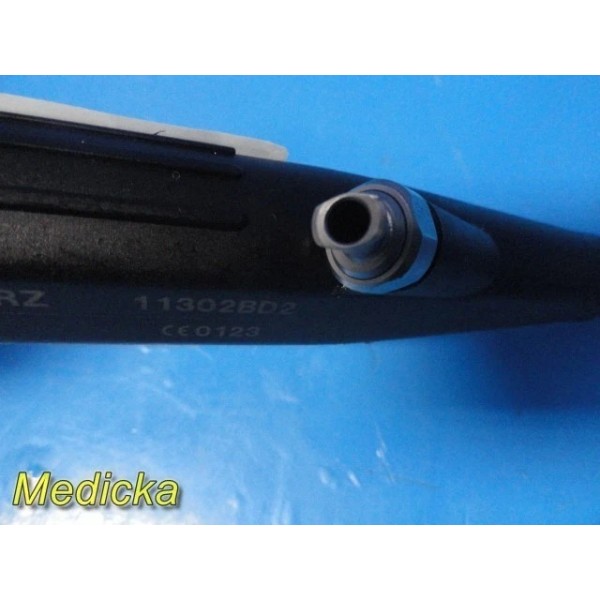

- KARL STORZ Flexible Intubation Fiberscope (Ref: 11302BD2)
What's Not Included:
- Fiber optic light guide
- Video processor / endoscopy system
- Light source
- User manual
- Storage case
- Consumables / disposables
- Any additional accessories
Buyer Advisory Note:
Device is in good working condition with clear optics and functional articulation. Minor stiffness in the insertion tube is noted but does not affect basic operation. Buyers are advised to review images and confirm compatibility prior to purchase.
Shipping Note:
Item will be securely packaged to ensure safe delivery.
*Items shown in photos are the items that will ship. If it is not shown in the photos, it is not included*
Stock ID : 39196 (P.O 3034) (WH C12)
Comments:
Kindly enlarge the images and see them with zooming.
Concern or query: Ask a Question
Condition: USED, please refer to images for cosmetic condition.
- 1. Overall Condition: As seen in images - Very Good
- 2. Physical Condition: Please review images before bidding - Good
- 3. Working Condition: Has been tested at our end & is in good functionality...Will receive item as pictured……………(Offered AS IS)
- 4. “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
- 5. Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
