Nihon Kohden Cardiofax G ECG-2550 Electrocardiograph w/ JC-201DA & 10-Lead Set

Item Overview

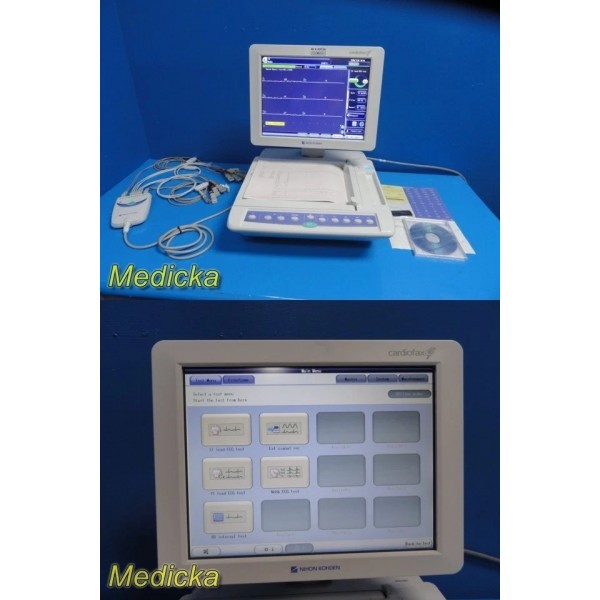

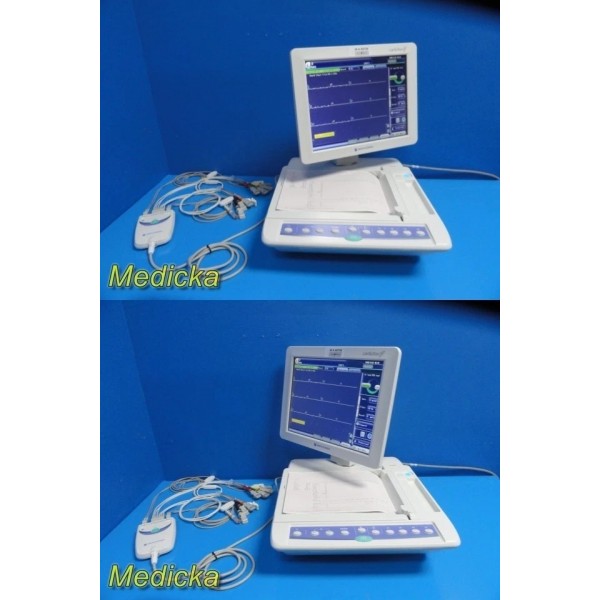

Pre-owned Nihon Kohden Cardiofax G ECG-2550 electrocardiograph system with JC-201DA acquisition module, BR-202DA 10-lead leadwire set, reusable ECG electrodes/tabs, lead organizers, power cord, and User's Guide CD. System powers on, acquires ECG simulator signals, displays waveforms, and records/prints rhythm data as described below.

Device Information

Manufacturer: Nihon Kohden Corporation

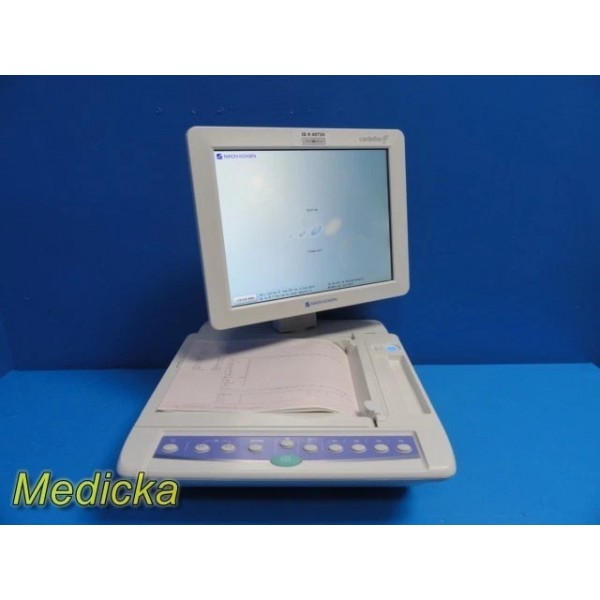

Product: Cardiofax G Electrocardiograph
Model: ECG-2550 • S/N: 036 • DOM: 2014
Version: ECG-2550A VER. 04-11

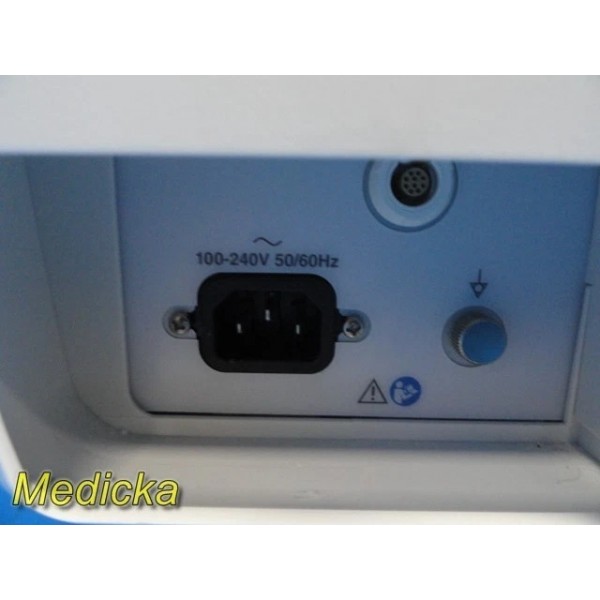

Power: 100–240V • 50/60Hz • 500VA
Made In: Japan
Display: Color Touchscreen • Articulating/Rotating Monitor

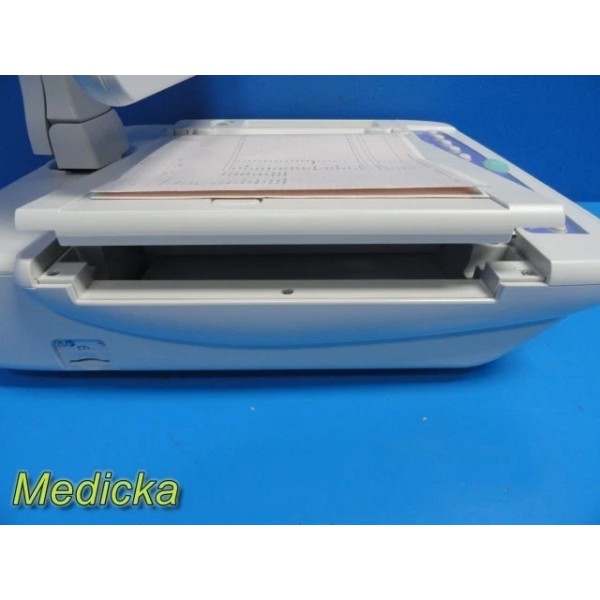

Recorder: Integrated Thermal ECG Recorder
Battery: Fully Charged & Holding Charge During Testing; Extended Runtime Unknown
Date/Time: Current & User Adjustable for Local Time Zone
System Settings Access: Verified • Password: 1234

ECG Acquisition Module

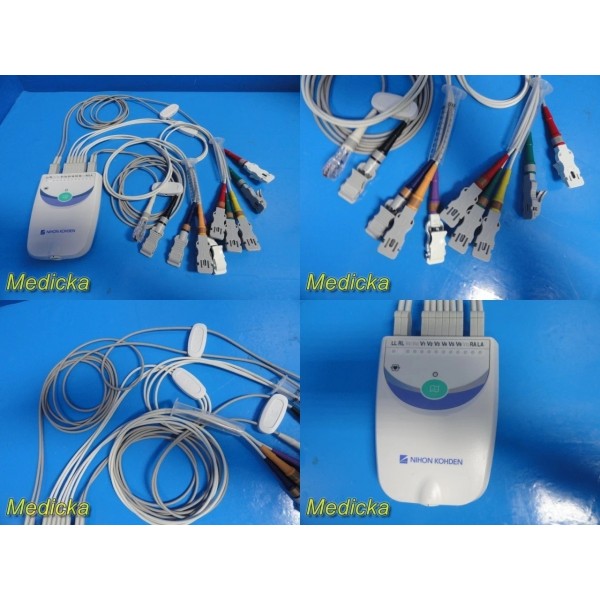

Nihon Kohden JC-201DA • S/N 01 • DOM 2014
Module connects the patient ECG leads to the ECG-2550 and successfully transmitted the applied simulator ECG signal to the system during testing.

ECG Lead System

Model: BR-202DA • Configuration: 10 Physical Leads for Standard 12-Lead ECG Acquisition
Limb Leads: RA • LA • RL • LL
Chest/Precordial Leads: V1 • V2 • V3 • V4 • V5 • V6
Lead Organizers: 3 Pairs • Reusable ECG Tabs/Electrodes: Qty 10

Condition & Functional Testing

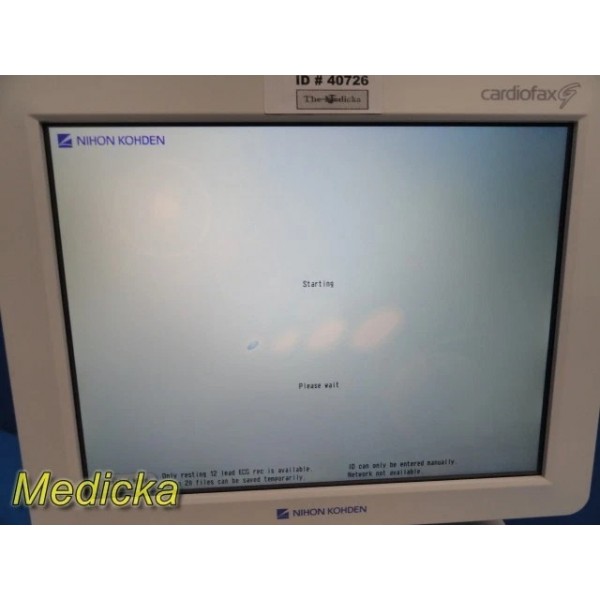

• Power/Boot — Powers on and boots normally
• Battery — Fully charged and held charge during testing; extended runtime unknown

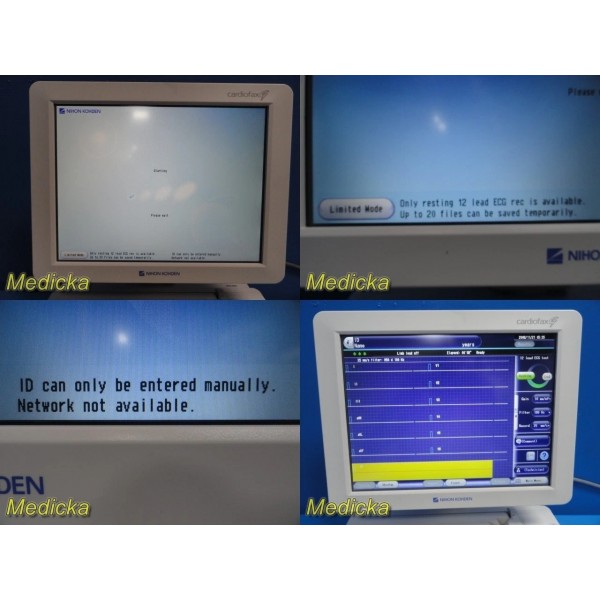

• LCD/Touchscreen — Bright, clear, and fully responsive

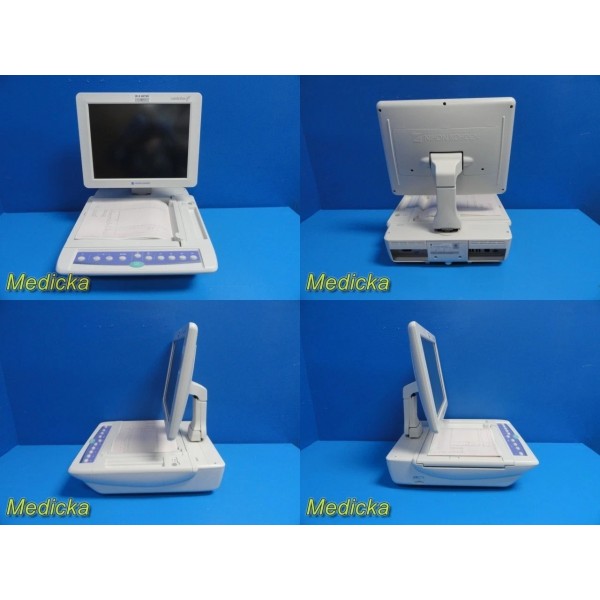

• Display Assembly — Articulates/rotates properly

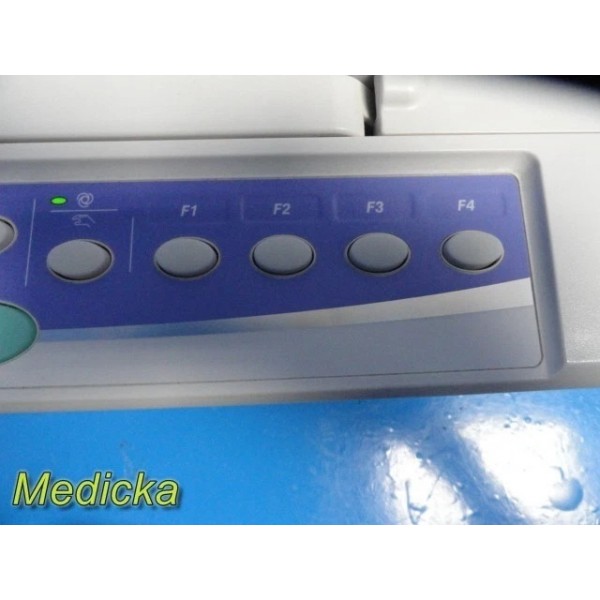

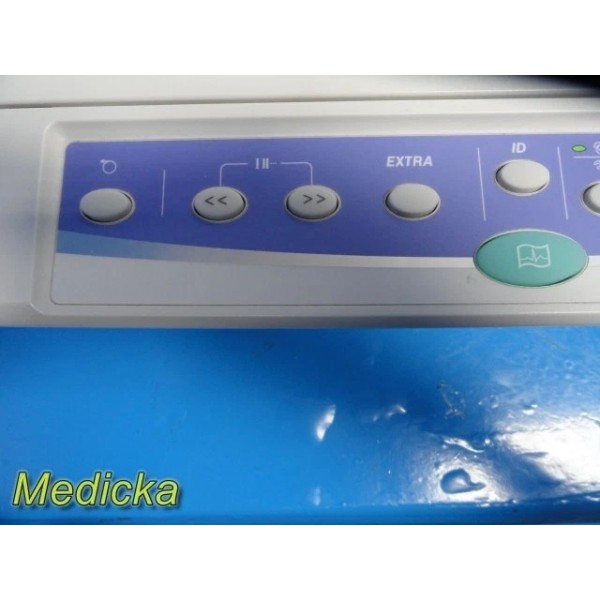

• Controls — Physical buttons intact and responsive
• JC-201DA Module — Connected and functioning during simulator testing

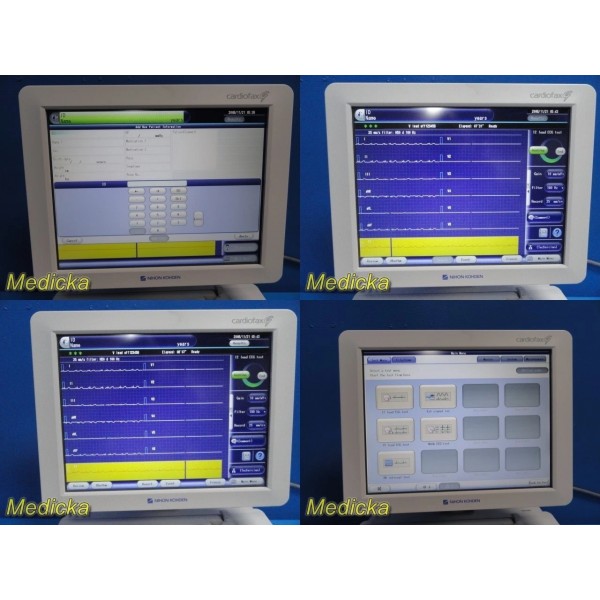

• ECG Acquisition — Simulator rhythm successfully acquired and displayed

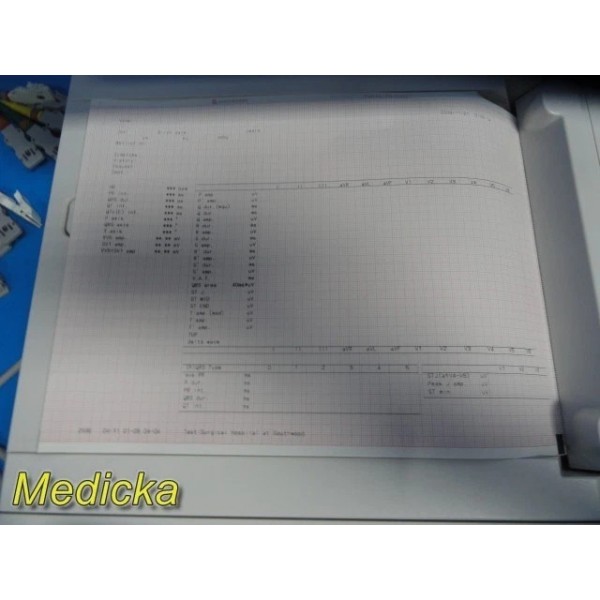

• Recorder/Printer — Successfully recorded/printed test rhythm data
• ECG Modes Observed — 12-Lead • 15-Lead • Nehb ECG • RR Interval • External Signal Recording

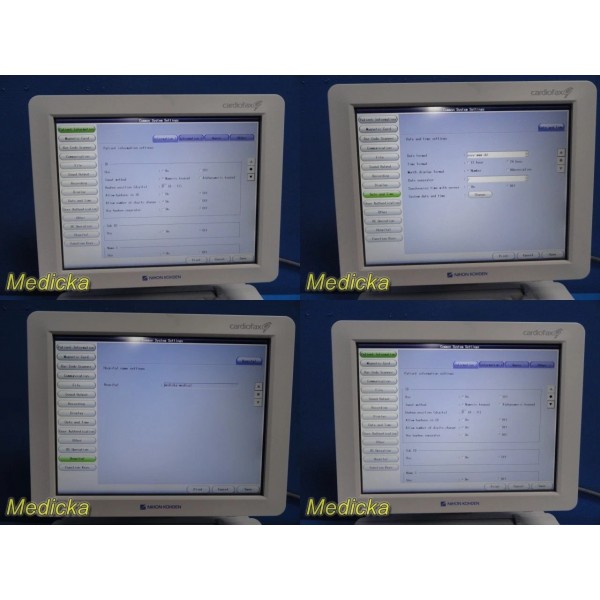

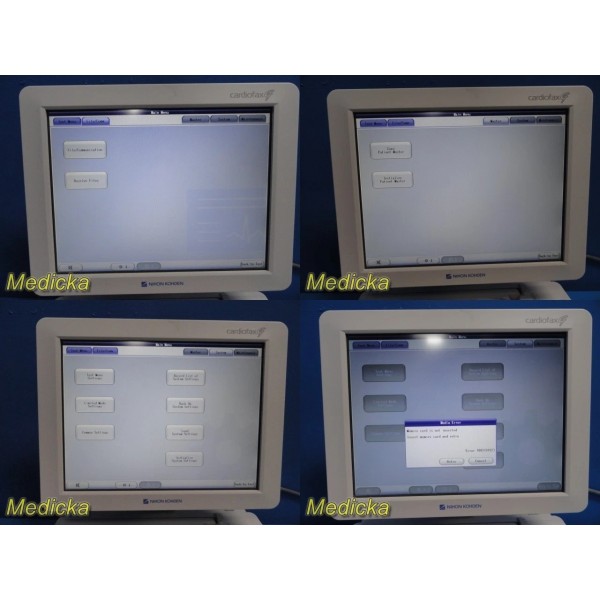

• System Menus — System • Master • File/Communication • Maintenance accessible
• Full Patient 12-Lead ECG — Not performed
• Cosmetic Condition — Very good; no major dents or cracks observed; minor scratches/scuffs consistent with prior use

Test Note: The "CANNOT ANALYZE ECG" message visible in one photo occurred during simulator/partial-lead testing and was not generated during a completed patient 12-lead ECG study.

Connectivity / Interfaces

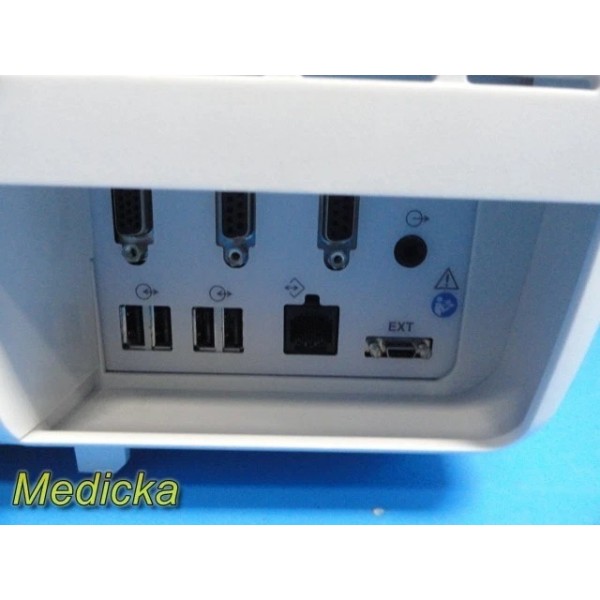

Rear interfaces include USB, LAN/Ethernet, serial/interface ports, EXT, and external signal connections. System menus also show support/settings for communication, file management, barcode scanner, magnetic card, recording, display, user authentication, hospital settings, and function keys.

Compatible external peripherals such as a barcode scanner, keyboard, mouse, communication equipment, and removable memory/media may be used where supported; these items are not included.

Included

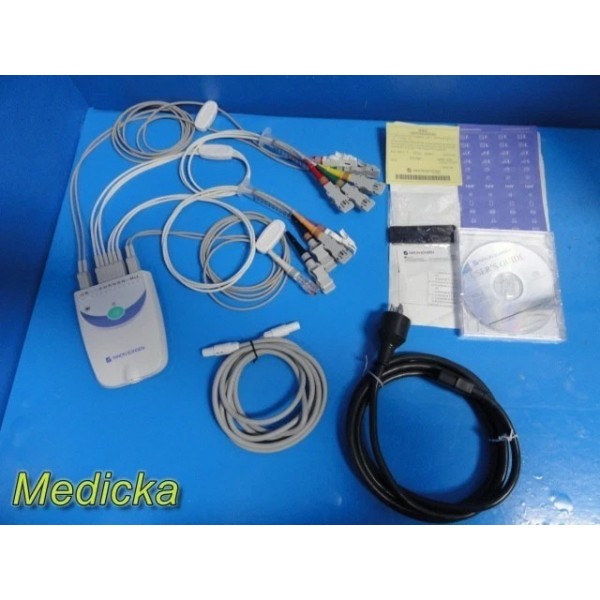

ECG-2550 Cardiofax G • JC-201DA Acquisition Module • Module Interface Cable • BR-202DA 10-Lead Leadwire Set • 3 Pairs Lead Organizers • 10 Reusable ECG Electrodes/Tabs • Power Cord • User's Guide CD (ECAPS12C)

Not Included

Rolling Cart • KH-210D Articulating Platform • Additional/Spare Lead Sets • Barcode Scanner • Keyboard • Mouse • External Communication Equipment • Memory Card/Media • Additional ECG Paper • Disposable Electrodes/Consumables • Printed User Manual • Additional Accessories Not Listed

Buyer Advisory

Testing was limited to the functions described above using an ECG simulator. A complete biomedical inspection, calibration verification, diagnostic accuracy evaluation, and full patient 12-lead ECG study were not performed. Battery was fully charged and held charge during testing; extended runtime was not evaluated. Buyer/facility should perform appropriate inspection, calibration verification, electrical-safety testing, and complete functional testing before clinical use.

Stock ID: 40726 (P.O.1200) (WH66) - SHIPPING READY
