Manufacturer: Genoray Co. Ltd

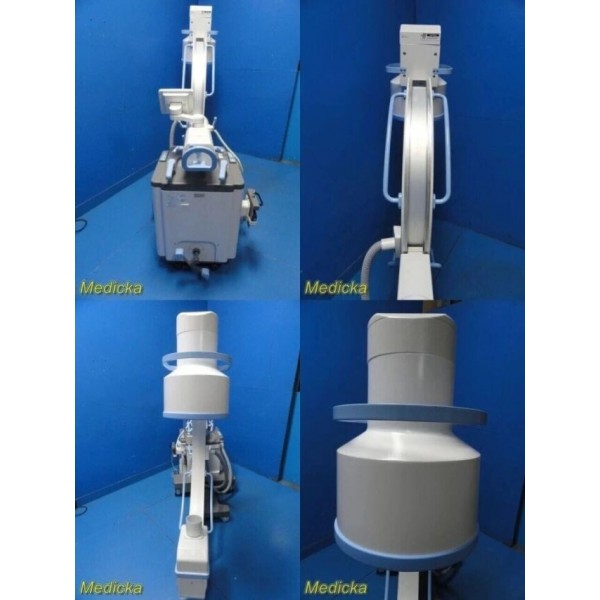

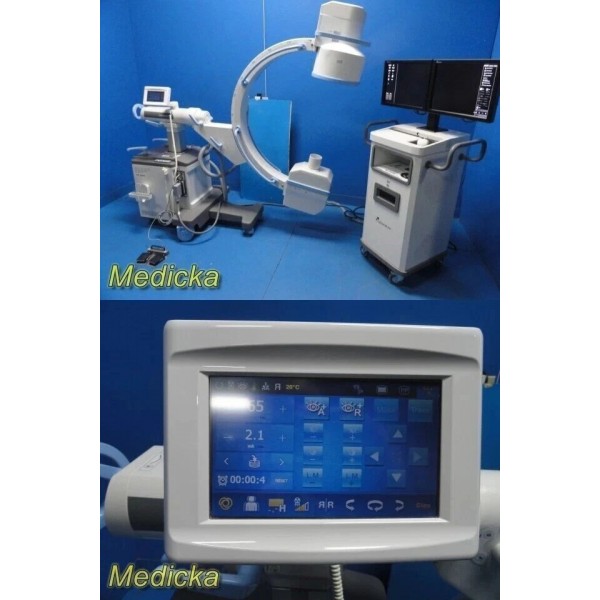

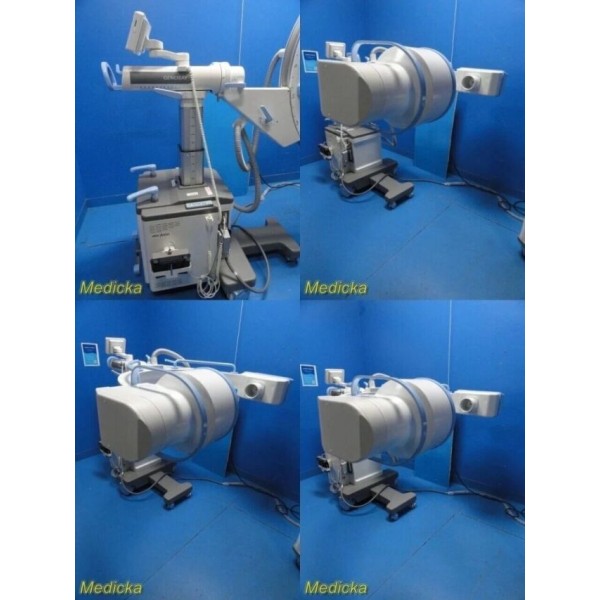

Item: 2018 Genoray Model ZEN-7000 Digital Fluoroscopic X-Ray C-Arm System (For Parts)
Model/Cat # ZEN-7000
Serial No. ZEN-040502-10618
Made In: Korea
Date of Manufacture: April 5, 2018
Voltage: 120V | 60Hz | 5kVA

Short description...

*Sale is for imaged items only.
*PARTS ONLY SALE.
*Has been tested at our end for power on, device is following commands / Needs PM before use.
*CURRENT MODEL, SUPPORT STILL AVAILABLE WITH THE MANUFACTURER
*CE# 2460
*Power Rating: 5 kVA
*Max Output:
-Radiography: 120 kV @ 20 mA
-Fluoroscopy: 120 kV @ 4 mA
*Focal Spot Size: 0.3 mm / 0.6 mm
*Filtration: 3.7 mm Al (0.7 mm inherent + 3 mm added)
*Core Components:
1. X-Ray Tube
*Model: RTM 70H
*Manufacturer: IAE (Italy)
*Focal Spot: 0.3 / 0.6 mm
*Inherent Filtration: 0.7 mm Al
*Serial Number: 80T213
2. X-Ray Generator
*Model: XHEART
*SN# 15C7M0TPO308
*Manufacturer: Genoray Co., Ltd.
*Input Voltage: 220 V
*Output: 120 kV @ 100 mAs (Radiography), 120 kV @ 4 mA (Fluoroscopy)
3. X-Ray Collimator
*Model: ZIC-300
*Manufacturer: Genoray Co., Ltd.
*Material: 2.0 mm Pb
*Serial Number: ZEN-1803016-106COL

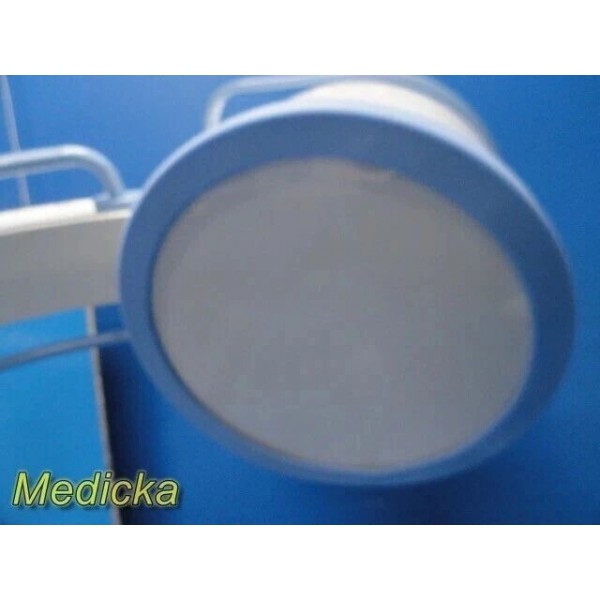

4. X-Ray Image Intensifier
*Model: E5796SD-P2A
*Manufacturer: Toshiba Electron Tubes & Devices Co., Ltd.
*Serial Number: 17L011
*Manufacture Date: November 2017
5. X-Ray Controller
*Model: JC-7000C
*Manufacturer: Genoray Co., Ltd.
*Power Voltage: 220 V
*Serial Number: 15C7MANP0308
6. X-Ray Tube Support
*Model: JC-7000A
*Manufacturer: Genoray Co., Ltd.
*Serial Number: M6-180402-01
7. Monitor Cart (XTV Support)
*Model: ZEN-CART-00
*Manufacturer: ELMORAY Co., Ltd.
*Serial Number: ZENCA040502-10618CA
8. LCD Monitor
*Brand: WIDE Corporation
*Model: 54IJ / MX10P
*Serial Numbers: MX10SDP3S0006, MX10SDP3S0023
*Input: 12 VDC
*Manufacture Date: March 2018
*Included Accessories & Features
-Dual high-resolution flat-panel monitors | Non-touch

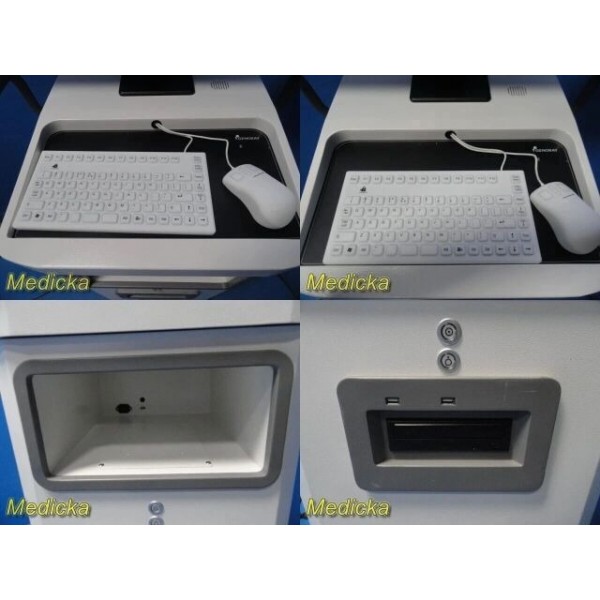

-Integrated monitor cart with keyboard and mouse

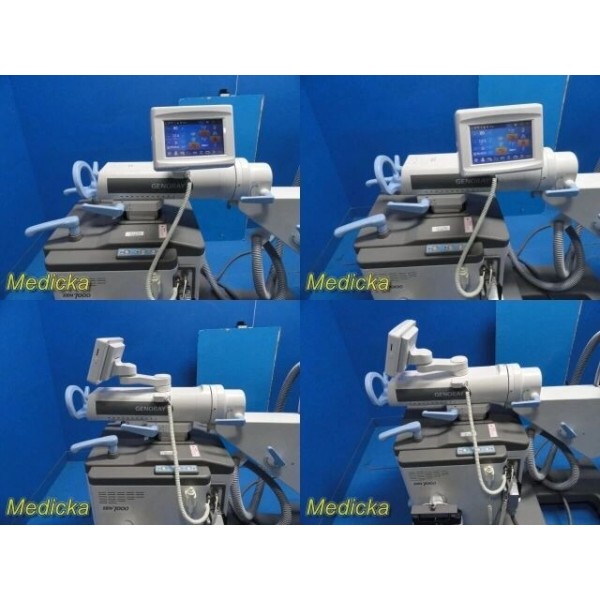

-Touchscreen control panel (fully responsive) | (On-C-arm)
-Foot control pedal
-Coiled remote hand switch
-Quick-start instruction checklist
-Signed Final Test Report (dated April 2018)
-Four software/media discs:
a. GENORAY C-Arm (Windows Embedded Standard 7)
b. NVIDIA Driver Installation DVD v2.6
c. CyberLink Media Suite 10
d. Gigabyte Drivers (Ver. 1.2)
-System powers on and menu navigation is functional

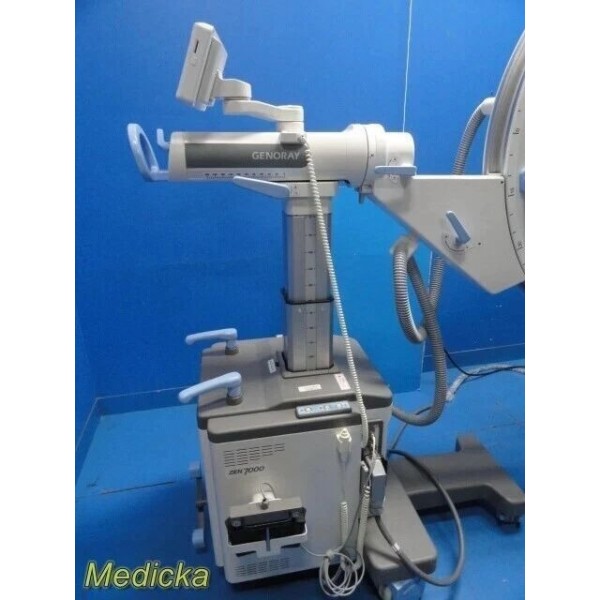

-C-arm vertical movement is motorized and smooth

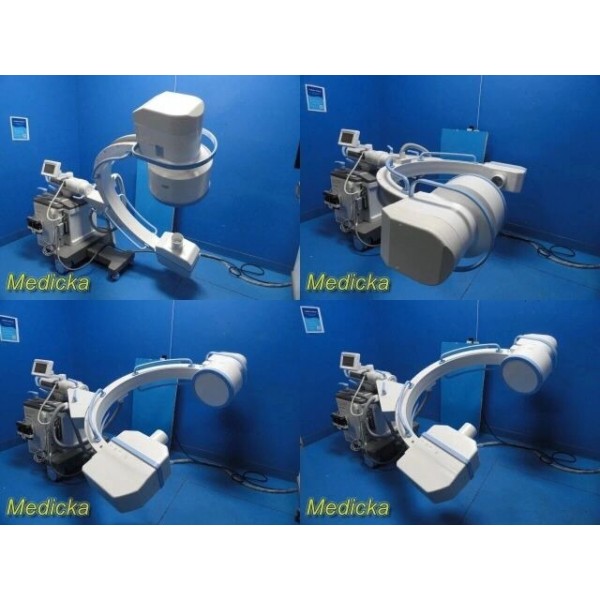

-Manual articulations (swivel, rotation, lock) are fully responsive

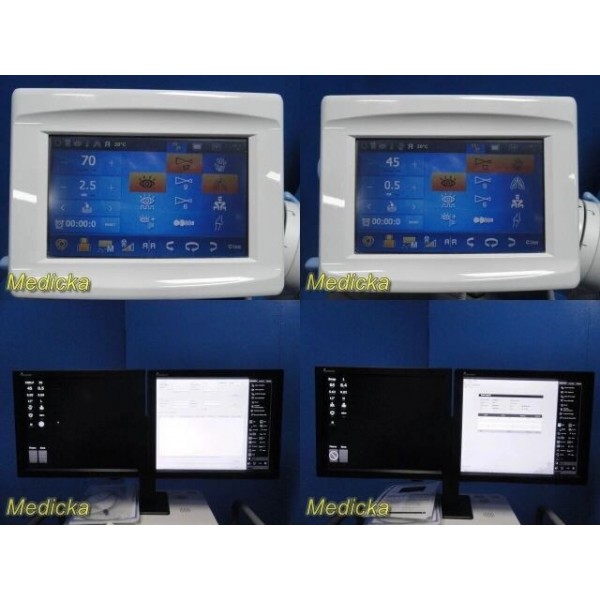

*Display & Operational Status:

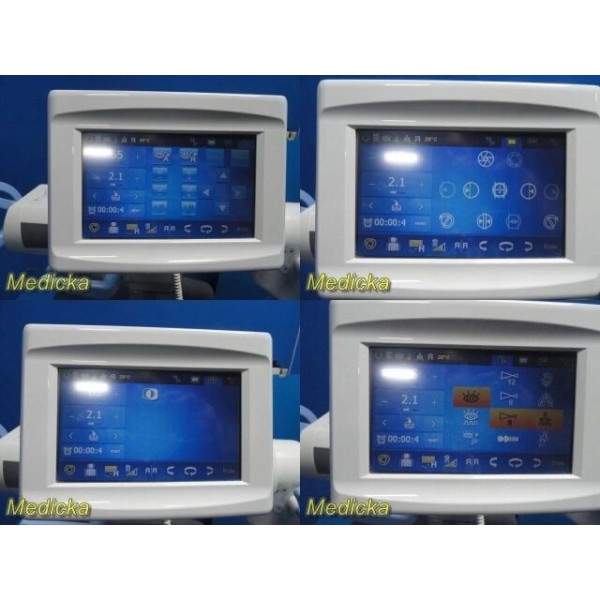

-Touchscreen boots successfully and responds to all inputs
-Foot switch and hand controller function as expected
-Display monitor or control monitor > See provided images for various configurations & setup
-Anatomy presets and imaging modes (spine, extremities, lungs, etc.)

Important Note:
During testing of the Genoray ZEN-7000 Digital Fluoroscopic X-Ray System, no clinical image was acquired. The exact cause is unknown and may relate to software configuration, calibration requirements, detector or image chain issues, or internal diagnostics. No detailed troubleshooting or imaging procedures were performed.
*Missing / Not Included:
-Printer
-Printed operator manuals
-Radiation shielding or protective lead gear
-Service/maintenance history documentation
-No clinical images were captured during testing
